V021417-EA www.elitescreens.com 1

Aeon Series

EDGE FREE® Fixed Frame Projection Screen

User’s Guide

Applies to all available screen materials: CineGrey 3D®, CineGrey and CineWhite®

Product Description: The Aeon Series is a fixed frame projection screen that uses Elite’s EDGE FREE®

technology. The EDGE FREE® design resembles a giant size flat panel TV display. The Aeon includes a velvet tape as

an installation option to further enhance the frame appearance and absorb projector overshoot.An optional LED

backlighting kit is available for added visual appearance.

Assembly Video: For further assistance, watch our assembly and installation video at

www.elitescreens.com/video/aeon-assembly or scan the following QR Code:

For more information on the LED kit please visit: http://www.elitescreens.com/led

Hardware and Parts List

Please make sure all parts listed below are included before installation.

A. Elbow joint x 4 pcs

B. Top/Bottom horizontal fame x 4 pcs

C. Left/Right vertical frame x 2 pcs

D. Center joints x 2 pcs

E. Center Support bar x 1-3pcs

F. Wall brackets x2-3 pcs

(135”-150”x2pcs;180”-200” x3pcs)

G. M6 screw x 2-12 pcs

H. M5x15 screw x24 pcs

I. M6x12 screw x 2-12pcs

J. M5x50 screws/anchor x 6 pcs

K. Rubber hammer x 1 pc

L. Screwdriver x1 pc

M. Velvet tape N. Corner Support Bar (180”-200”) x4pcs

V021417-EA www.elitescreens.com 2

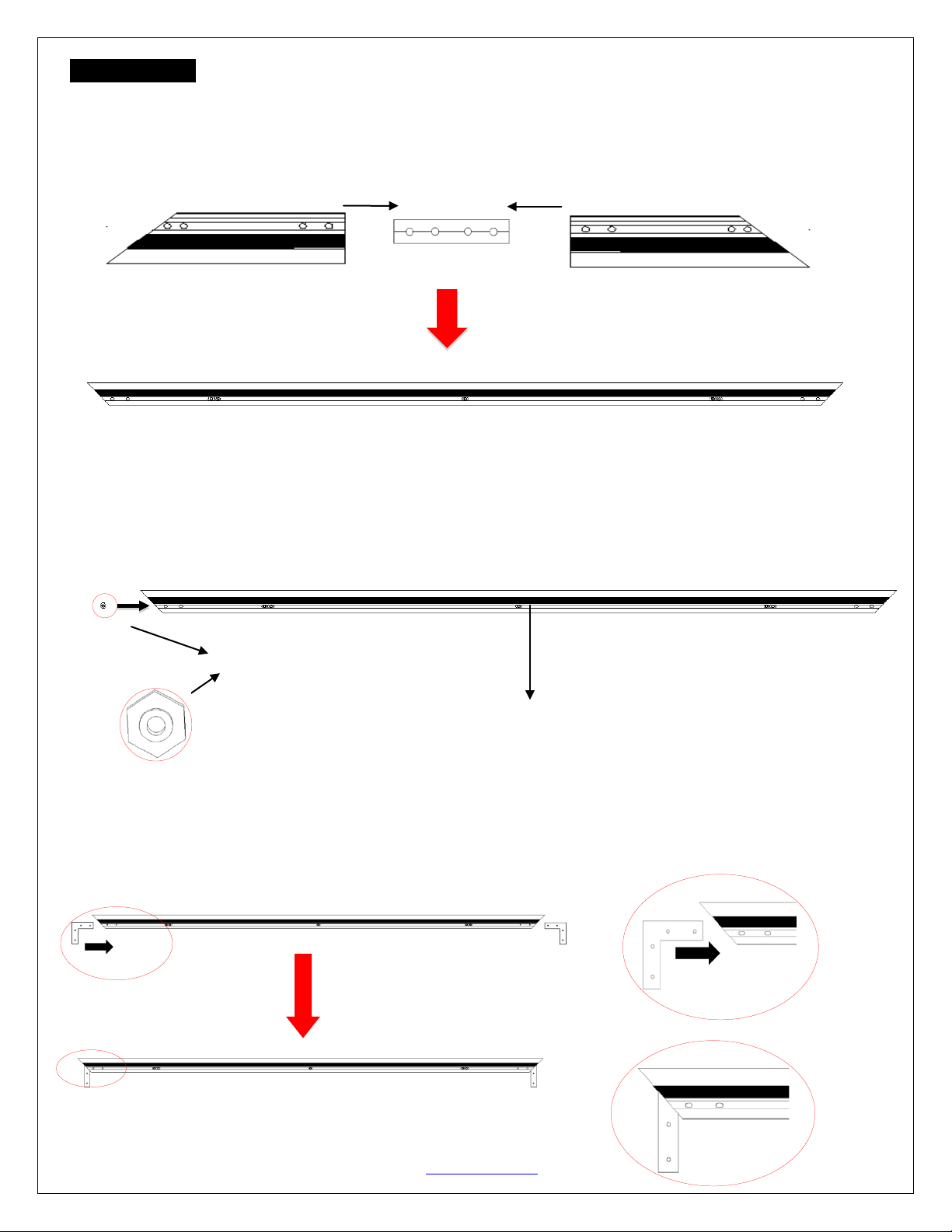

Frame Assembly

1. Insert the center joint (D) into one of the ½ horizontal frames (B) and fasten it with the two M5x15 screws (H).

2. Insert the other ½ horizontal frame piece to the center joint and fasten also using two M5x15 screws.

3. Repeat steps 1 and 2 for assembling the second horizontal frame.

Push Push

4. For models 150” and below, insert and slide in oneM6 screw (G)through the channel located on the back each

horizontal frame section (top/bottom).

Note: For models 180” and above, insert and slide in four M6 screws (two on each frame) through the channel

located on the back of each horizontal frame section (top/bottom). Insert two M6 screws on each vertical frame

section (left/right).

5. Insert the elbow joint (A) into each end of the horizontal frames (B) as shown below.

Horizontal long frame (B)

Elbow Joint (A)

Horizontal long frame

Place one M6 hex screw (G)in the center for attaching the center support bar (E)

Face up

M6 hex screws (G)

Horizontal frame

Center Joints

Top right Frame Top left Frame

V021417-EA www.elitescreens.com 3

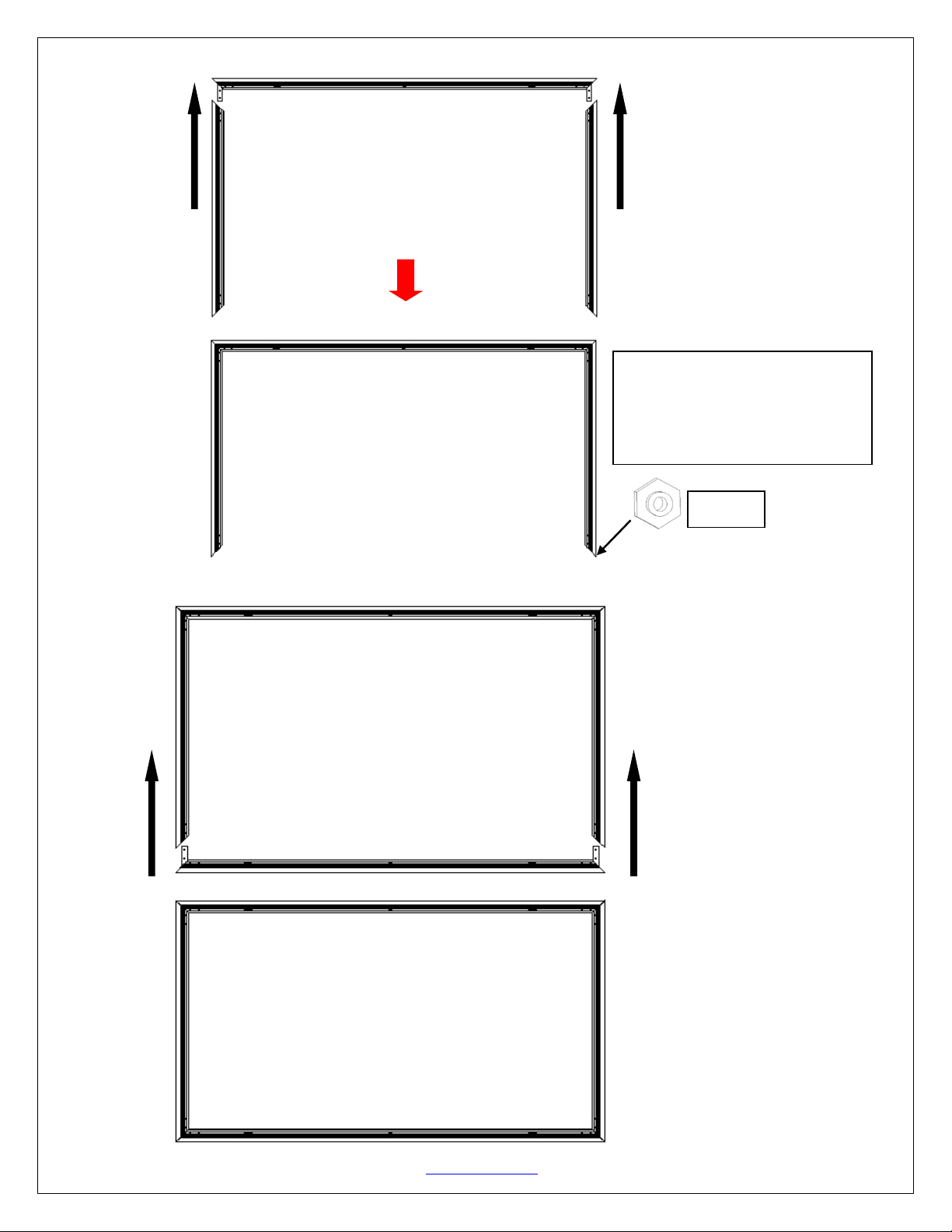

6. Insert the two vertical short frames (C) into the elbow joint (A).

7. Join the remaining horizontal long frame (B) with the frame built in the previous steps as shown below.

Horizontal long frame (B)

Vertical short frame (C)

Horizontal Long frame (B)

push

pushpush

Vertical short frame (C)

Note: For models 180” and above,

ensure two M6 screws

(G) are

inserted on each vertical frame

before proceeding to step 7.

Face up

V021417-EA www.elitescreens.com 4

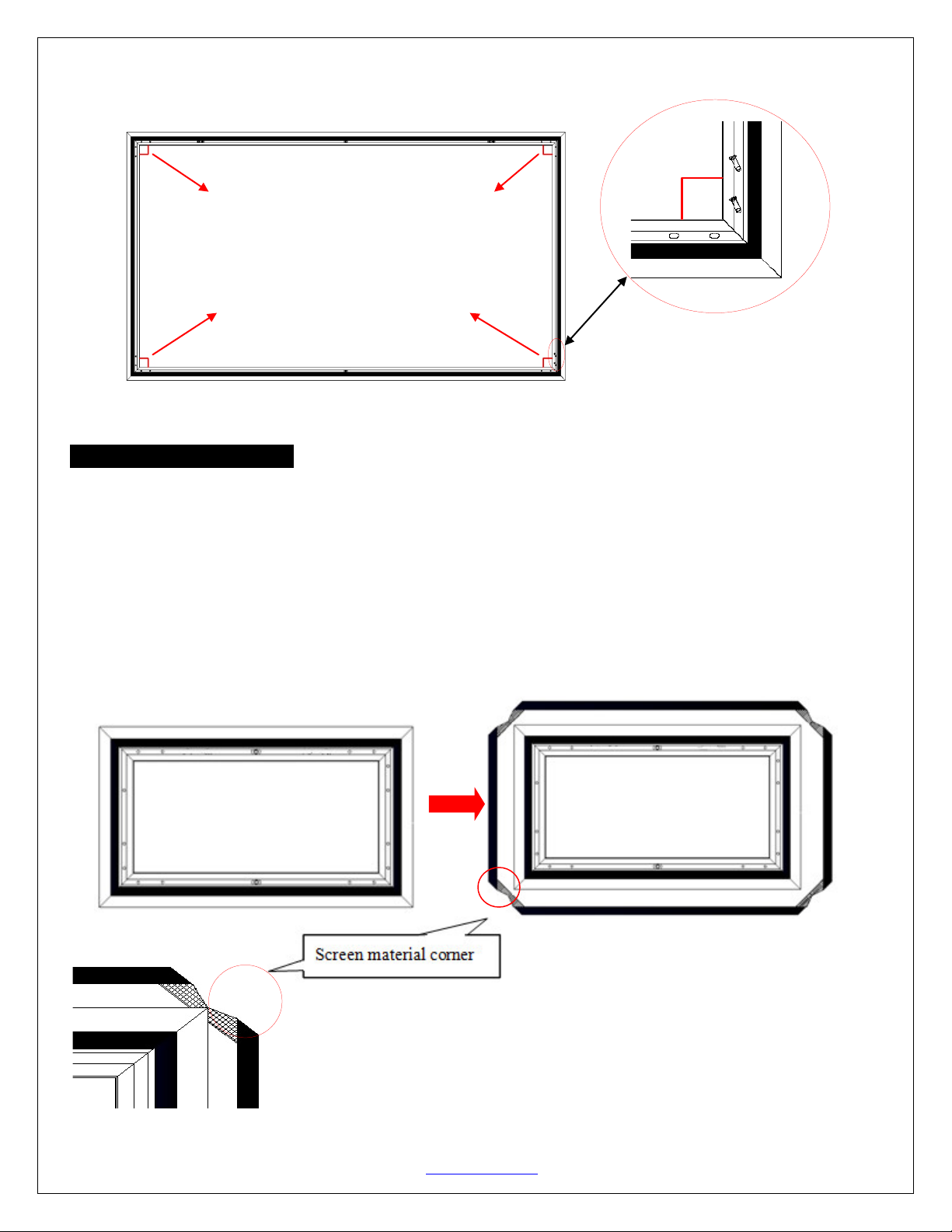

8. Make sure all four corners are properly in place to form a perfect square. Then fasten the four angles with the

M5x15 Screws (H).

Screen Material Installation

1.Lay the screen material completely flat with the front facing down on a clean surface in a horizontal position. The

back side of the screen material should be placed upwards.

Note: The back side of the material has the velcro borders all around the edges.

2. Carefully and gently place the assembled frame on top the screen material as shown below. Make sure to not allow

the angle edge of the frame to come in direct contact with the screen material to avoid puncturing it.

Four corners join correctly to form a perfect

square. Use the included screwdriver (L) to

fasten the Mx15 screws (H) into each corner

by aligning the frame screw holes to the

holes in the elbow joint (A).

Screen material back facing up

V021417-EA www.elitescreens.com 5

3. After all of the corners of the frame have been properly aligned, attach the material to the frame in the following

order A→B→C→D(see instructions below for details).

Attach the screen material to the corners as shown below.

4. After all four corners have been attached; please check whether the frame corners are wrapped by the screen material.

If not, please loosen the velcro connection and repeat the above steps so the frame is not exposed.

Note: The black shaded part represents the velcro on the frame. That Velcro end will ultimately

attach with the other velcro end on the screen material.

Note:

Represents the

screen material

2) Fold over and attach

material to the velcro

strip of the frame.

3) Fold over second side

and attach to frame

4) Repeat until all four

sides are done in the

order A, B, C, D

1) Stretch the screen

material in the direction

of the arrowhead.

A D

V021417-EA www.elitescreens.com 6

5. Proceed to attach the rest of the material to the frame as described in the illustrations below.

Lay the Velcro end on the screen

material over the Velcro end of the

frame and keep it within the edge.

Proceed in the following sequence

below

①②

The key is to attach within the

middle sections of 1 and 2. Then

continue attaching the remaining

unattached areas.

Repeat the

same steps on

remaining three sides in the

sequence A, B, C, D as show

below.

Grasp the middle of the screen

material and attach it to the velcro

strip on the frame

Attach in the following sequence: a-b-c-d

C D

V021417-EA www.elitescreens.com 7

6.If the material is too loose or tight after adjusting all four corner sides, then you will need to reattach the material.

Please follow the steps below to properly remove the screen material from the frame. This procedure will ensure

prolonging the life of the screen material.

Screen Material Removal

1. Detach the velcro from the frame.

2. Gently pull back the material to release the material from the velcro connections on the corners.

Support bar installation (for models under 135”):

1. Position the center support bar (E)in the middle of the frame and align the hole on each end of the support bar

with the M6 hex screws (G)on the top and bottom frames. Then fasten with the M6x12 screws (I).

Move the

M6 hex screw (G)

to the middle area of the frames.

Align the M6 screws

with the two holes.

Pull back the screen material from

the velcro connection along the

edges of the frame to detach it.

Center Support bar

V021417-EA www.elitescreens.com 8

Support bar installation (for models 135” - 150"):

1. Position the center support bar (E) and M6

hex screws (G) in the areas of the frame

shown in fig 1. (Each about one thirds the

way in from the end of the frame.) Align the

hole on each end of the support bar with the

M6 hex screws (G) located at the top and

bottom frame sections. Then fasten with the

M6x12 screws (I).

Support bar installation (for models 180” - 200")

2. Position the center support bar (E) and M6

hex screws (G) in the areas of the frame

shown in fig 1. Align the hole on each end of

the support bar with the M6 hex screws (G)

located at the top and bottom frame sections.

Then fasten with the M6x12 screws (I).

Center Support Bar

Align the M6 Screws with

the two holes located on

the Center Support Bar.

Figure 1

Move the M6 hex screw (G) to these areas of the frame.

Center Support Bar

Align the M6 Screws with

the two holes located on

the Center Support Bar.

Figure 1

Move the M6 hex screw (G) to these areas of the frame.

V021417-EA www.elitescreens.com 9

1. Position the Corner support bars (N) and M6 Hex screws (G) in the areas of the frame as shown below in

fig 2. Align the holes on each end of the corner support bars with the M6 hex screws located on the

vertical and horizontal frame sections. Then fasten with the M6x12 screws (I).

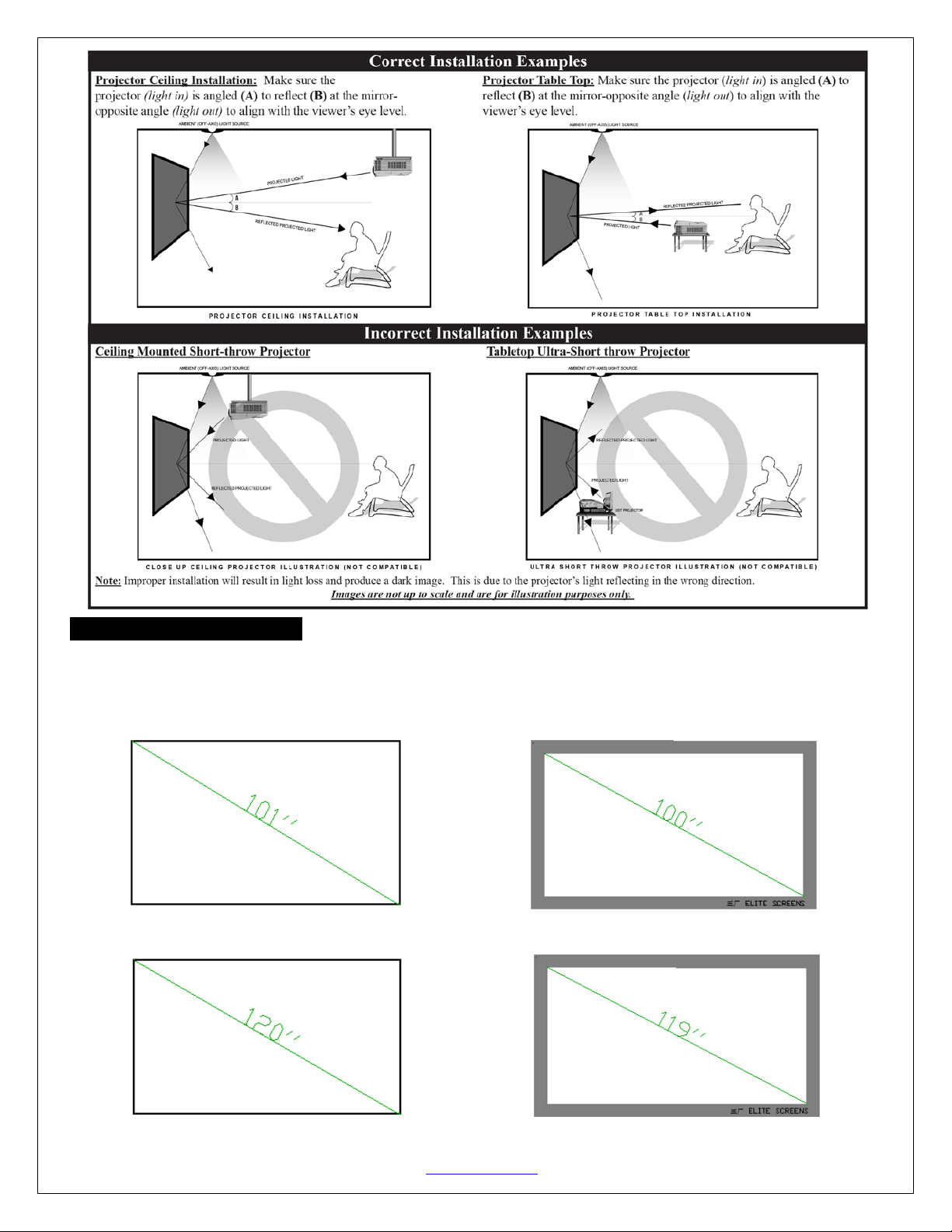

Notice to Installer:

Please use the following installation instructions to obtain superior optical performance from the CineGrey 3D®

Angular Reflective ALR (Ambient Light Rejecting) Screen.

Make sure to follow these instructions in order for the CineGrey 3D® to perform correctly.

•Angular-Reflective material is not compatible with ultra/short-throw projectors

•Minimum lens throw ratio 1.5x image width

•Ambient light must not come from the same direction as the projector

Since angular-reflective means that the projected image will reflect at the mirror-opposite angle, it

is important to position the projector so that the viewer will get the best possible image.

Step 1: Establish the general “eye level” of the viewers

Step 2: Set the appropriate projection level

Step 3: Adjust the screen height level and projection angle

Input Angle (A) = OutputAngle (B) aligns with the viewer’s angle

Figure 2

Corner Support Bar

Align the M6

screws with the

two holes on the

Corner Support

Bars.

V021417-EA www.elitescreens.com 10

Velvet Tape Trim Installation

Attention: Installing the velvet trim will reduce the viewing size of your screen. See below illustrations for a

comparison of the viewing size of the before and after edge trim installation using the 100” &120” 16:9 diagonal

models.

100” comparison:

120” comparison:

Before installing the trim strip

After installing the trim strip

Before installing the trim strip
