Emulex LP9402DC Installations- und Betriebsanleitung
LP9402DC Installation and Reference Manual
Table of Contents
Installation
Compatability
Prerequisites
Install HBA
Attach Media
Apply Power
View LEDs
Reference
Specifications
FCC and Regulatory Notices
Declaration of
Conformity
Laser Safety
Emulex Drivers, Software and Manuals
1
Chapter 1 − Installation
Table of Contents
Compatability
Prerequisites
Install HBA
Attach Media
Apply Power
View LEDs
Emulex Drivers, Software and Manuals
2
Installation
Caution Emulex LightPulse ® Host Bus Adapters (HBAs) contain
electronic components that can be damaged by static
electricity through an electrostatic discharge (ESD) event. To
prevent ESD damage, maintain constant contact with any
grounded metal surface. A grounding wrist strap is useful for
this purpose. Handle the card carefully at all times and
preferably by the edges. Avoid touching electronic
components and keep the card in the original packaging until
you are ready for installation.
Compatibility
Software EnvironmentsWindows Server 2003, Windows 2000, Windows NT,
Linux, NetWare, AIX, Solaris x86
Hardware
Environments PCI hardware platforms: x86, SPARC, PowerPC
Prerequisites
Host computer must provide 3.3VDC bus power• PCI/PCI−X 64−bit data and addressing with 3.3 V signaling• PCI bus clock rate up to 66 MHz is supported• PCI−X bus clock rate up to 133 MHz is supported•
Note The LP9402DC can only be used in a 3.3V signaling slot. 66
MHz, 64−bit PCI slots and 66/100/133 MHz, 64−bit PCI−X
slots are 3.3V signaling slots. The LP9402DC is keyed so it
cannot be installed in an incorrect slot.
Media and connectors (user supplied) − multimode fiber optic cable
(50/125 m m or 62.5/125 m m) with LC connectors, used with
short−wave lasers
•
Emulex Drivers, Software and Manuals
3
Install the Host Bus Adapter Board
Record IEEE and serial numbers.
Each host bus adapter port is shipped with a unique address identifier
called the IEEE address. Since this adapter has two ports, there are two
IEEE addresses. The IEEE address is used when configuring your
system. The serial number is used when communicating with Emulex.
All numbers are clearly marked on the board. We recommend that you
record these numbers before installing the adapter.
1.
Turn off and unplug the computer.2. Remove the computer case.3. Remove the blank panel from an empty PCI/PCI−X bus slot.4.
Note The LP9402DC can only be used in a 3.3V signaling
slot. 66 MHz, 64−bit PCI slots and 66/100/133,
64−bit PCI−X slots are 3.3V signaling slots. The
LP9402DC is keyed so it cannot be installed in an
incorrect slot.
This product supports 64−bit PCI operations only.
Insert host bus adapter board into the empty PCI/PCI−X bus slot. Press
firmly until seated.
5.
Secure the host bus adapter's mounting bracket to the case with the panel
screw or clip.
6.
Replace the computer case and tighten case screws.7.
The host bus adapter is now installed in the PC and is ready for media
attachment.
Emulex Drivers, Software and Manuals
4
Attach Media
Note The host bus adapter will not allow normal data transmission
on an optical link unless it is connected to another similar or
compatible laser product (that is, multimode to multimode.)
Use multimode fiber optic cable used with short−wave lasers, that adhere
to the following specifications:
Fiber Optic Cable Maximum Length Minimum
Length Connector
62.5/125 µm
(multimode) 300 meters at 1.0625 Gb/s
150 meters at 2.125 Gb/s 2 meters LC
50/125 µm (multimode) 500 meters at 1.0625 Gb/s
300 meters at 2.125 Gb/s 2 meters LC
Connect the fiber optic cable to the LC connector on the HBA.1.
Connect the other end of the cable to the Fibre Channel device.2.
After the media is connected to the host bus adapter, you are ready to apply
power to the computer.
Emulex Drivers, Software and Manuals
5
Apply Power
Verify that the host bus adapter is securely installed in the computer.1. Verify that correct media is attached.2. Observe LEDs for Power On Self Test (POST) results.3.

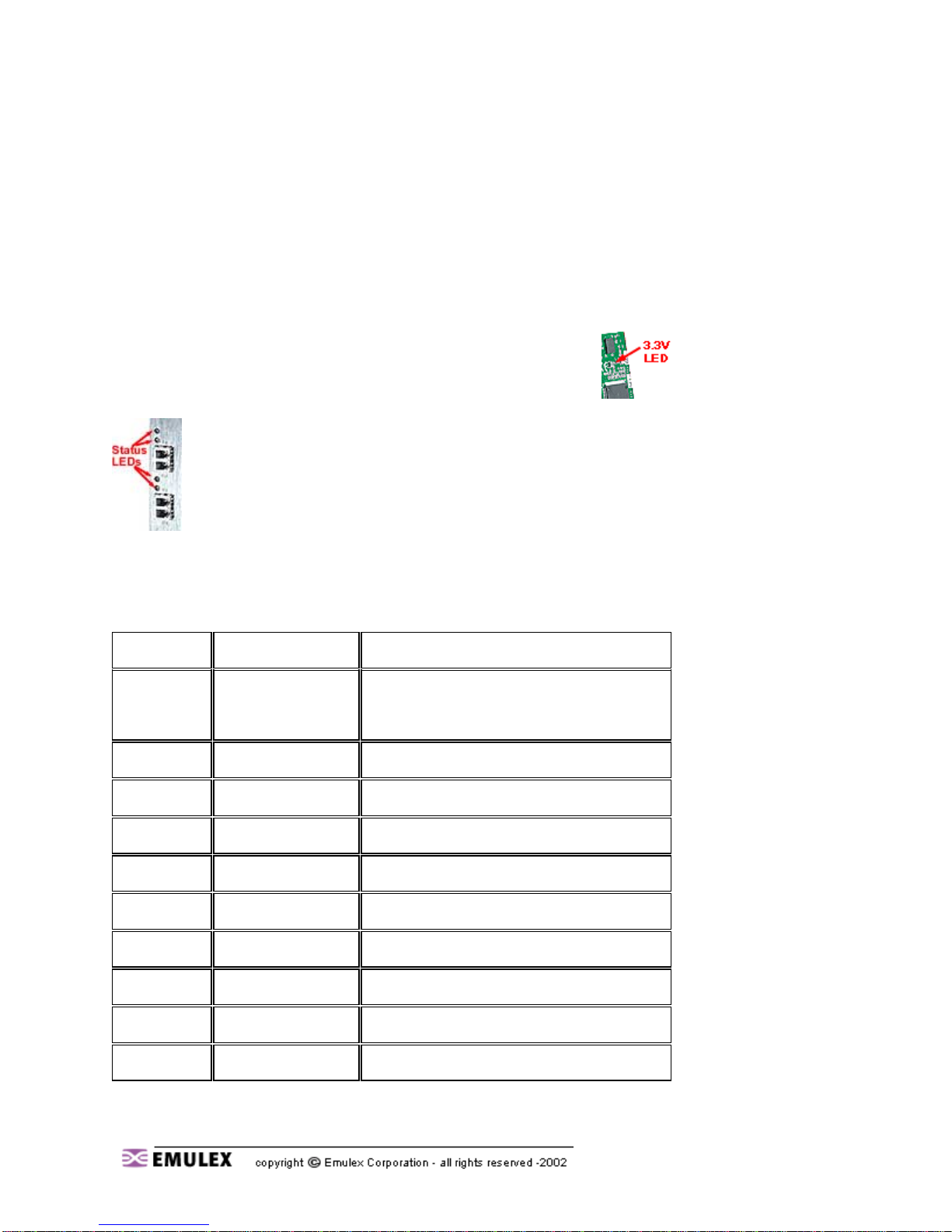

View LEDs
An LED is located on the upper rear corner of the board. This LED
indicates 3.3v power.
Green and yellow light emitting diodes (LEDs) can be seen through
openings in the host bus adapter's mounting bracket. These LEDs
indicate the status of the ports according to the following chart.
POST conditions and results are summarized in this table.
Green LED Yellow LED State
OFF OFF Wake−up Failure (Dead Board). Check the
3.3v led on the HBA (component side) if this
LED is lit, the slot is providing 3.3v power.
OFF ON POST Failure (Dead Board)
OFF Slow Blink (1 Hz) Wake−up Failure (Dead Board)
OFF Fast Blink (4 Hz) Failure in POST (Dead Board)
OFF Flashing (Irregular) POST Processing in Progress
ON OFF Failure while Functioning
ON ON Failure while Functioning
ON Slow Blink (1 Hz) Normal − 1 Gb Link Rate
ON Fast Blink (4 Hz) Normal − 2 Gb Link Rate
Blink (1 Hz) OFF Normal − Link Down or Not Yet Started
Emulex Drivers, Software and Manuals
6
Chapter 2 − Reference
Table of Contents
Specifications
FCC and Regulatory Notices
Declaration of Conformity
Laser Safety
Emulex Drivers, Software and Manuals
8
Reference
Specifications
Parameter Range
Media Interface Dual LC connector
Physical Dimensions PCI Short form factor (full height) 6.875" x 4.2"
Power Requirements 16 watts (typical) @ + 3.3 VDC, +/− 5 % DC
Airflow 100 lf/min (minimum)
Temperature Operating:K2° to 113° F (0° to 45° C)
Storage:−40° to 158° F (−40° to 70° C)
Humidity 5% to 95% non−condensing
Agency Approvals for
LP9402DC Class 1 Laser Product per DHHS 21CFR (J) & EN60825
UL recognized to UL1950
CUR recognized to CSA22.2, No.950
TUV certified to EN60950
FCC Rules, Part 15, Class A
Industry Canada, ICES−003, Class A
EMC Directive 89/336/EEC (CE Mark)
EN55022, Class A
EN55024
Australian EMC Framework (C−Tick Mark)
AS/NZS 3548: Class A
VCCI, Class A
Emulex Drivers, Software and Manuals
9
FCC and Regulatory Notices
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LUOKAN 1 LASERLAITE
APPAREIL A` LASER DE CLASSE 1
The above statement applies to products marketed in the European Union.
Model LP9002 / LP9002L / LP952L / LP9002S / LP9002DC / LP9002C /
LP9402DC (2x5 SFF Models)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense. Shielded cables must be used between this
equipment and attached peripheral devices. The reader is cautioned that changes
or modifications made to the equipment not expressly approved by Emulex could
void the user's authority to operate this equipment. The above statement applies
to products marketed in the USA
This class A digital apparatus meets all requirements of the Industry Canada (IC)
Interference − Causing Equipment Standard (ICES−003). Cet appareil numerique
de la Classe A respecte toutes les exigences du reglement sur le materiel
brouilleur du Canada. This statement applies to products marketed in Canada.
FCC Compliance Information Statement; Models LP9000−N1/L1/T1 (GBIC
Models):
Emulex Drivers, Software and Manuals
10
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Responsible Party: Paul Folino, President & CEO, Emulex Corporation, 3535
Harbor Blvd., Costa Mesa, CA 92626, USA, (714) 662−5600
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.•
The reader is cautioned that any changes or modifications to the equipment not
expressly approved by Emulex could void the user’s authority to operate this
equipment.
This class B digital apparatus meets all requirements of the Canadian
Interference − Causing Equipment Regulations. Cet Appareil numerique de la
classe B respecte toutes les exigences du reglement sur le material brouilleur du
Canada.
The above statement applies to products marketed in Canada.
VCCI Notices and Translations (Japan Only)
Note VCCI regulations provide that changes or
modifications not expressly approved by Emulex
Corporation could void your authority to operate this
equipment.
LP9000−N1/L1/T1 (GBIC Model):
Emulex Drivers, Software and Manuals
11
