Enclume DR20 Gebrauchsanweisung

DR20-Small Rectangle Rack

Décor Low Ceiling

Enclosed you will find everything needed for the assembly

and use of your hearth rack. Two people make assembly

and installation easier. The parts and hardware included are:

Hardware included:

4 – 5/16” x ½” Button Head Screws

4 – 2” Lag Screws (for wood mounting)

1 – 3/16” Allen Wrench

Toggler Kit

Components included:

4 – Low Ceiling Arms

1 – Rack Body Square

1 – Hanging Grid

4 – Grid Brackets, EGB

12 – Straight Pot Hooks, EPHS

See reverse side for ASSEMBLY AND INSTALLATION INSTRUCTIONS

Thank you for choosing Enclume!

Enclume racks are the ultimate quality,

design, strength and function.

WARNING: READ ALL OF THE

INSTRUCTIONS BEFORE

ASSEMBLING AND USING YOUR

RACK

If you need help, please call 1-877-ENCLUME

Enclume Design Products

24 Colwell Street, Port Hadlock, WA 98339

Phone 360-385-6100 Fax 360-385-6156

www.enclume.com

ASSEMBLY AND INSTALLATION INSTRUCTIONS

Rack Assembly

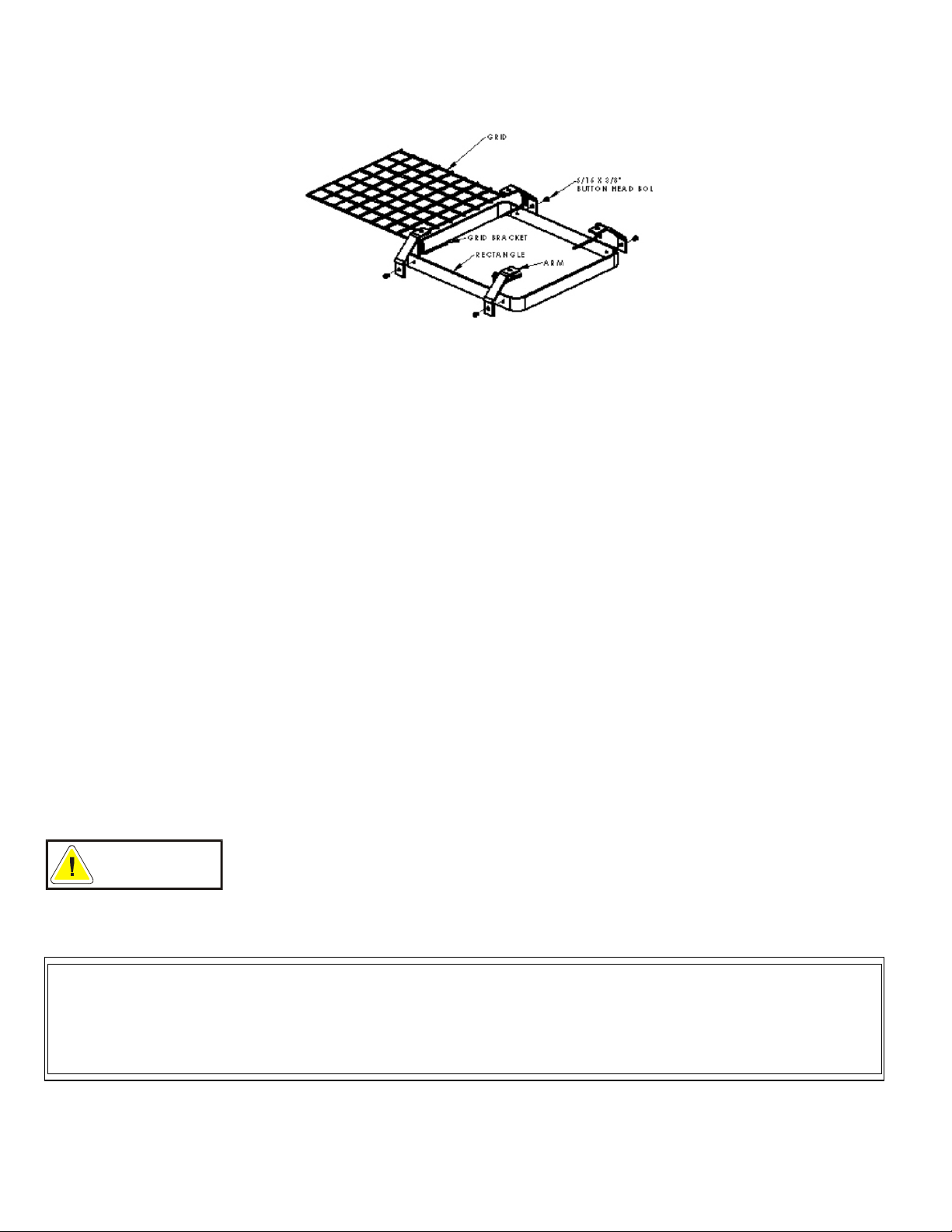

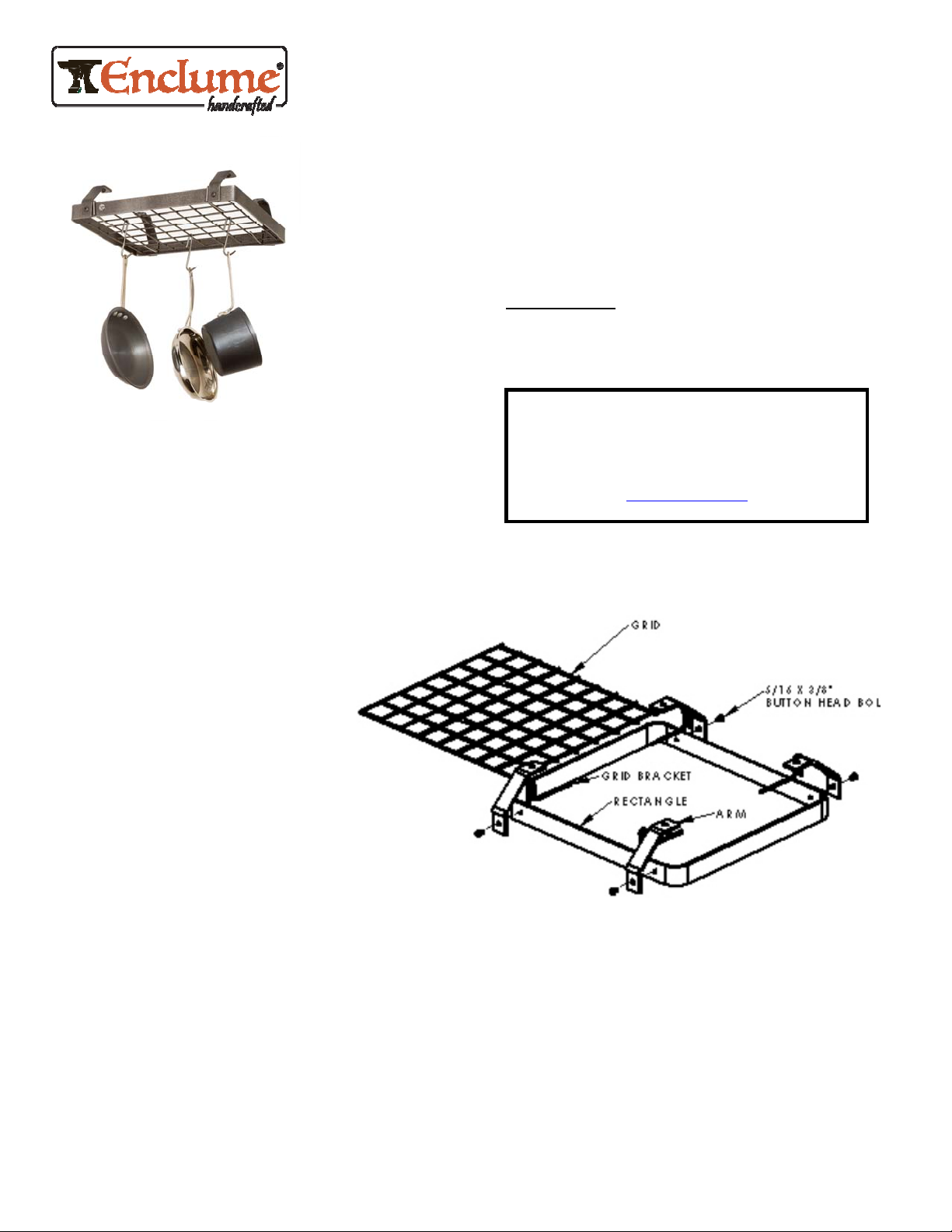

1) First, locate the four low ceiling arms. Using the four 5/16” x ½” button head screws attach the arms to the outside of the

rack body square – as shown in the assembly diagram. Do not fully tighten the button head screws at this time. Note: that

the Enclume medallion should be facing up on the outside of the rack body.

2) Place the rack on a flat surface to level and set the arms to straight – then tighten all screws to final positions.

3) We recommend that you anchor your rack into the solid wood of ceiling joists or beams. Carefully measure the area where

the rack is to be hung and install the ceiling screw hooks directly into the wood joists. If it is not convenient to hang your

rack directly into wood joists you may use the included DRYWALL anchors enclosed with your rack. See Toggler® brand

manufacturer recommendations for weight limits included in the instructions in the Toggler kit.

Grid Assembly

4) Place the four grid brackets over the sides of the rack, just inside each of the low ceiling arms with the straight end of the

brackets facing towards the inside of the rack. Next place the grid on top of the grid brackets and distribute the hooks on the

rack.

5) Note: The grid should be placed on the grid brackets so that the grid crossbars that extend the width of the grid are facing

down. This will help to keep the grid from sliding out of position when the rack is in use.

It is important that your rack is assembled correctly. If the unit is assembled or used

incorrectly, it could become unstable and collapse, possibly causing injury.

WARNING

Limited Warranty: This product is warranted to be free of material defects for a period of five year from the date of purchase. Customer's exclusive remedy shall

be the repair or replacement of the defective product and shall be subject to the following conditions: (1) notice of any defect is received by Enclume within the

warranty period and (2) customer returns the defective product to Enclume Design Products, 24 Colwell St., Port Hadlock, WA 98339, postage prepaid within 20

days following a return authorization number (which may be obtained by telephoning the number at the top of this instructions) being provided to the customer by

Enclume. There are no other warranties, expressed or implied. THERE ARE NO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PORPOSE. ENCLUME SPECIFICALLY DISCLAIMS ANY AND ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING

OUT OF THE PURCHASE OR USE OF ENCLUME'S PRODUCTS.
