Eneo IEB-62F0036P0A Bedienungsanleitung

User Manual

1/2.8” Network Dome, Fixed,

Day&Night, 1920x1080,

Infrared, 12VDC, PoE, Indoor

IEB-62F0036P0A

IEB-62V2812P0A

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Safety Precaution

MEGA-PIXEL NETWORK CAMERA

Safety Precaution

MEGA-PIXEL NETWORK CAMERA

NOTICE

• The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

• Avoid installing areas where has shock or vibration which results in the problems.

• Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

• Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

• Maintenance and repair have to be carried out only by authorized service centers.

• Use only a mild detergent to clean the housing body only but never for the clear

bubble dome.

• The camera should never be operated beyond the technical specifications.

This can lead to destruction.

• The camera should never be operated in water.

Contents

MEGA-PIXEL NETWORK CAMERA

Safety Precaution

p.03~04

Contents

p.05

Features

p.06

Composition

p.07

Dimensions

p.07

Part Names

p.08

Installation Instructions

p.09~10

Operating Instructions

p.11~18

Troubleshooting

p.19~20

Specifications

p.21~22

Features

MEGA-PIXEL NETWORK CAMERA

• Full-HD, 2.3Mega Pixel, NETWORK CAMERA, 1920x1080(30p/25p)

• ONVIF Conformance

• Zero configuration

• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)

• Adaptive web resizing depending on layout & resolution of

display device by RESPONSIVE WEB

• Increased usability for all PC, tablet and mobile

• Simultaneously H.264 & MJPEG (Triple streaming)

• ONVIF Event Mapping

• Lens

>IEB-62V2812P0A : f=2.8~12mm F1.4, Mega pixel Vari-focal lens

>IEB-62F0036P0A : f=3.6mm F2.3, Mega pixel Fixed lens

• Dual Filter Switcher

• D-WDR (Digital Wide Dynamic Range)

• Improved noise figure with the enhanced 3DNR

• Simple-LDC(Lens Distortion Correction)

• Motion Detection, Privacy Mask, Tamper, Defog, BLC/HLC,

D-Zoom(~16x), Mirror/Flip, Sens-up(Slow shutter), Hue, Contrast,

Brightness, Saturation, Sharpness, Auto-Flickerless, Smart IR,

VerticalView(90°/270°)

• Circuit protection against faulty connection in power polarity

• PoE(IEEE Std. 802.3af) & DC12V

• Built-in 24pcs IR-LED

• Optimized Cooling system

• 3-Axis Gimbal

Composition

Dimensions

MEGA-PIXEL NETWORK CAMERA

(unit : mm)

Mounting

Template

Mounting Screw:

4 x 25mm (3pcs)

Plastic Anchor:

6 x 30mm (3pcs)

Dome Camera

Installation CD Open Driver (1pc)

Operating

Instruction

Ø113 87

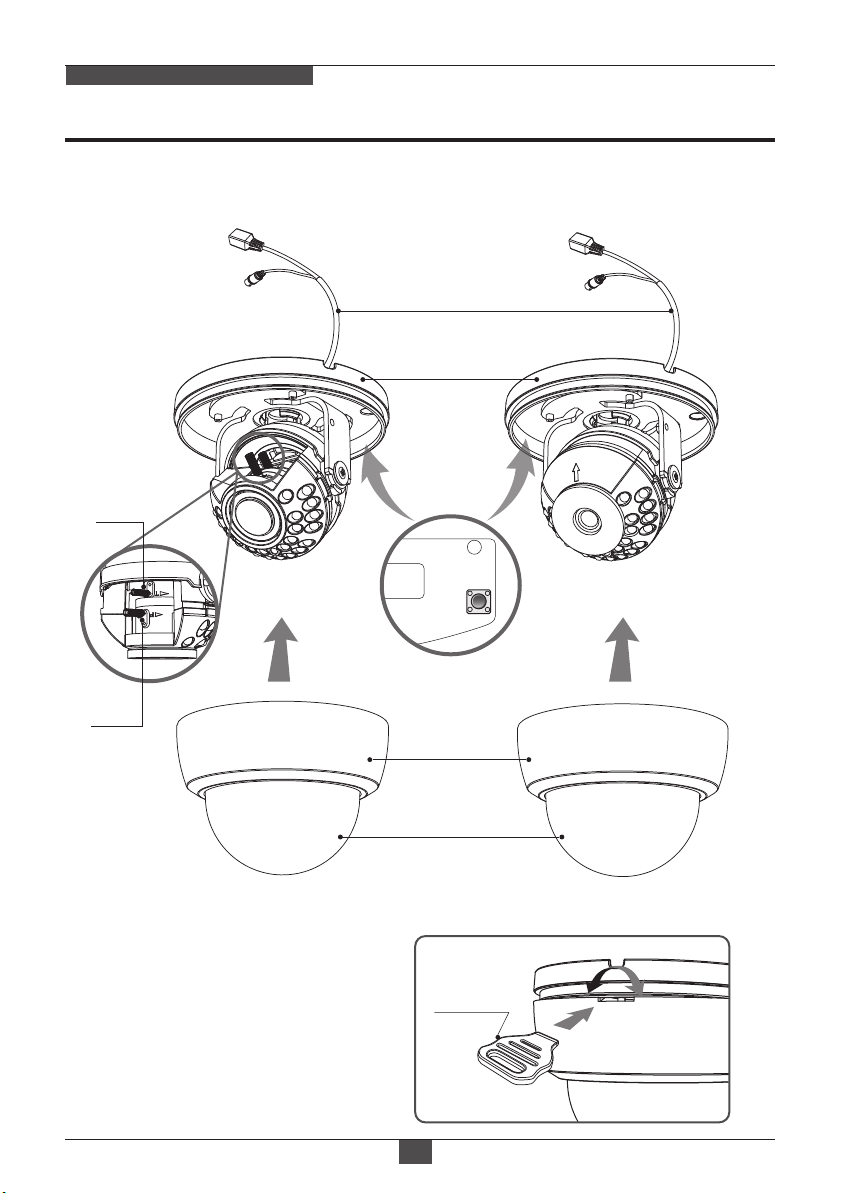

Part Names

MEGA-PIXEL NETWORK CAMERA

Zoom

lever

Focus

lever

Open key

Turn the open key in the

dome cover gap as shown.

■Open the dome cover

[ IEB-62F0036P0A ]

[ IEB-62V2812P0A ]

Dome Cover

Bubble Dome

Dome Base

Power Cable

IP RESET button

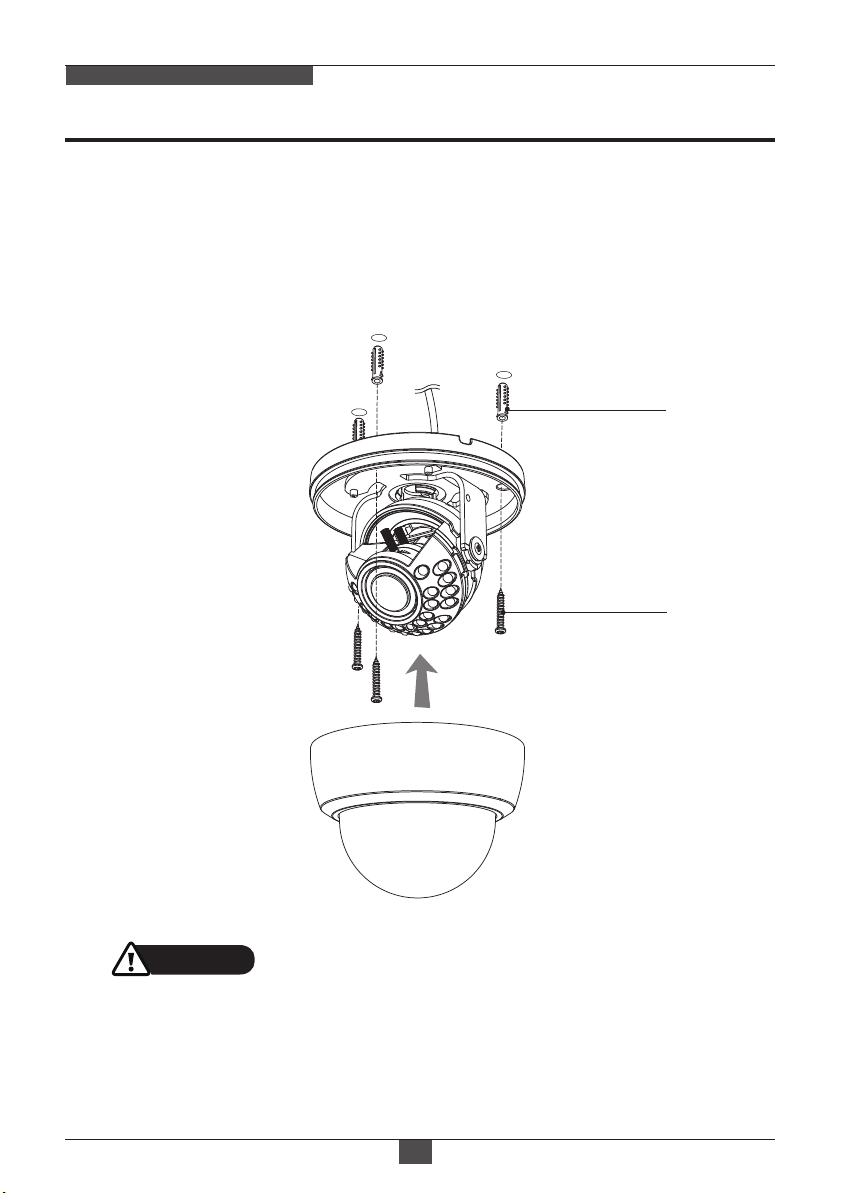

Installation Instructions

MEGA-PIXEL NETWORK CAMERA

Mounting Screw

(4x25mm)

Plastic Anchor

(6x30mm)

• Extreme care should be taken NOT to scratch the lens and the bubble dome

surface while the camera installing or adjusting.

• Care should be taken the cable is NOT to be damaged, kinked or exposed in

the hazardous area.

• Do not expose the camera directly to a strong light source such as the sun or

spot light.

CAUTION

1. Drill three holes for mounting on the ceiling or wall.

2. Place the dome base at the pre-drilled installation position and fix it by using

mounting screws.

3. Route the power & ethernet cable to the connecting place.

4. Adjust the camera’s viewing angle (Pan, Tilt, Rotation)

5. Assemble the dome cover to the dome base unit.

Installation Instructions

MEGA-PIXEL NETWORK CAMERA

Limit of Pan & Tilt

Installation and commissioning Instructions

• Make sure the power is removed before the installation.

• After all connections are finished properly, follow the order for applying power.

a) Plug the network cable into RJ-45 Ethernet Port.

If PoE is the unique power, there will be no need to connect Power jack.

b) When DC12V Local power is necessary, connect the low voltage

(DC12V) first, then plug the DC adapter to DC outlets to avoid an

improper reset from power jitter and a damage from the surge voltage when

no load.

►When PoE and Local DC power are connected at the same time,

Local power has priority.

1) Pan limit:

Adjusts the first pan angle by turning

the gimbal 360˚.

2) Tilt limit:

Tilt is limited to 25°min ~ 90°max. with

reference to the ceiling when the

inclination of camera module is 0°, that

is, the image is aligned horizontally.

3) Rotation limit

(Horizontal image alignment):

Adjust the rotation angle by turning

the upper gimbal 360°.

25º

90º

Pan

Tilt

Rotation

• Be careful with the cable twisting

during pan or tilt adjustments.

CAUTION

Zoom & focus adjustments (Vari-focal lens type)

• Turn the Focus lever to “N”(Near) or “∞”(Far) until the sharpest focus is made.

• To widen the viewing angle, turn the Zoom to “W”(Wide) and to obtain a closer

view, turn it to “T”(Tele)
