Eneo TVD-2080V2812IR Bedienungsanleitung

User Manual

1/2.8” HD-TVI Dome, Fixed,

Day&Night, 1920x1080, 2.8-

12mm, Infrared, 3D-DNR,

12/24V

TVD-2080V2812IR

Safety Precaution

FULL-HD MEGA-PIXEL CAMERA

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFERSERVICING TO QUALIFIEDSERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely tocause harmful

interference in which case the user will be required tocorrect the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of atypical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user tothe presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude toconstitute a risk of electric shock to persons.

FULL-HD MEGA-PIXEL CAMERA

Safety Precaution

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

FULL-HD MEGA-PIXEL CAMERA

Contents

Safety Precaution

p.03~04

Contents

p.05

Features

p.06~07

Composition

p.07

Dimensions

p.08

Part Names

p.09

Installation Instructions

p.10~13

Operating Instructions

p.14~29

Specifications

p.30

FULL-HD MEGA-PIXEL CAMERA

Features

Key Features

• Full HD, 2Mega Pixel HD-TVI CAMERA, 1920x1080(30p/25p)

• TVI Video Transmission Distance over Coax.; 500M (RG59, 75Ω)

• Automatically removable IR Cut filter by Dual filter switcher

• Built-in f=2.8~12mm F1.4 Mega pixel DC Auto Iris Vari-focal lens

• True WDR(Wide Dynamic Range)

• Improved Noise figure with the enhanced 3D-NR

• Pointing Zoom which enables the flexible zooming at any area.

• Smart Motion Zoom in combining with Pointing Zoom.

(Automatic zoom in/out when motion is detected)

• Preset Zoom

• Motion Detection, Privacy Mask, Defog, Sens-up(x32), D-WDR,

H/V/HV Flip, D-Zoom(1.1x~8x), LSC(Lens Shade Compensation),

BLC/HLC, Pixel Defect Compensation, Title Set

• Top performance at low light sensitivity (Sens-up On)

• Video output HD-TVI or CVBS switchable

•OSD MENU & Video Sub-out port for easy installation & maintenance

• Circuit protection against faulty connection in power polarity

• Isolated power supply against ground loop problem

• Remote control via RS-485 (Pelco-D/P)

• UTC Control through HD-TVI DVR

• Zoom & Focus Adjustment on 3-Axis Gimbal

• Built-in 30pcs IR-LED

• Flush mount (Option: Surface mount and Various adaptors)

• Double side Anti-Scratch Hard coated clear bubble dome

• IP67 / IK10 Protection

• AC24/DC12V Dual power

FULL-HD MEGA-PIXEL CAMERA

General Description

• With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can accepts the infrared light

• With Intelligent Focus Indicator and FOCUS ASSIST menu,

- Offers easy adjustment of Focus

- Eliminates the mistake of the erratic focus adjustment

• With 24VAC/12VDC dual power design,

- Offers the flexibility of installation

- Ensures the reliability

This camera realizes the natural and crisp image as you see the scene in front

of you by Full HD(1920x1080p) camera module.

Highly detailed pictures can be achieved and color reproducibility deserves

attention.

Composition

Features

Mounting Template

Cable Signal

Sticker

Operating

Instruction

Torque Wrench:

3mm (1pc)

Video Sub-out

Cable (1pc)

Mounting Screw:

4 x 30mm (3pcs)

Plastic Anchor:

6 x 30mm (3pcs)

Dome Camera

Focus adjust

Driver (1pc)

Wiring Connector

(1pc)

Connector fixing Screw:

2.5 x 5mm (1pc)

FULL-HD MEGA-PIXEL CAMERA

Dimensions

(unit : mm)

Ø140

119

PCD Ø120

Ø102

Ø140

3-Ø4.2

Part Names

FULL-HD MEGA-PIXEL CAMERA

BUBBLE DOME

3-AXIS GIMBAL

DOME COVER

SAFTY WIRE

VIDEO (BNC)

FLUSH MOUNT

FOCUS / ZOOM

LENS

POWER CABLE

[ BOTTOM VIEW ]

OSD CONTROL

JOY STICK

POWER SUPPLY

CONNECTOR

POWER

CABLE

Installation Instructions

FULL-HD MEGA-PIXEL CAMERA

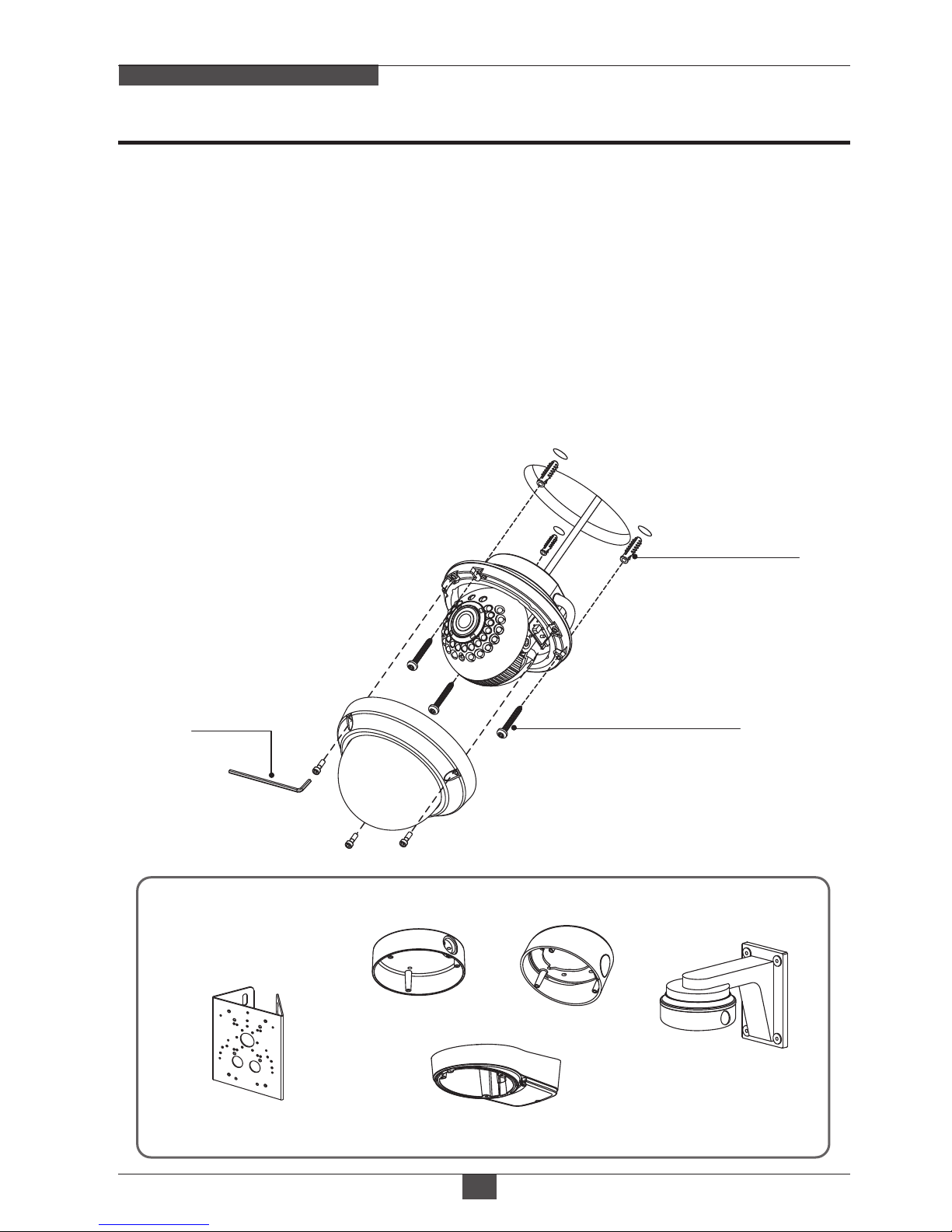

1. Locate the mounting template at the installation position and drill the ceiling

or wall if needed.

2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench

supplied.

3. Set the camera’s viewing angle and adjust zoom/focus of lens by using the focus

driver.

4. Put the dome cover to the dome base unit and tighten the assembly screws.

- Place the dome base unit on pre-drilled position and fix it through using mounting

screws (4x30mm).

- Route the power cable to the connecting place.

• Surface mount

• Pole mount adaptor

• Tilted mount

• Wall mount

(Requires additional

Surface mount)

• Tilted junction mount

■ Optional Mounting Accessories

Mounting Screw

(4x30mm)

Plastic Anchor

(6x30mm)

Torque

Wrench
