Eneo 232574 Bedienungsanleitung

User Manual

1/2,8” Network Camera,

1920x1080, Day&Night, DOL-WDR,

2.7 - 13.5 mm, Infrared, IP67

ICB-72M2713MAA

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Safety Precaution

MEGA-PIXEL NETWORK CAMERA

Safety Precaution

NOTICE

• The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

• Avoid installing areas where has shock or vibration which results in the problems.

• Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

• Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

• Maintenance and repair have to be carried out only by authorized service centers.

• Use only a mild detergent to clean the housing body.

• The camera should never be operated beyond the technical specifications.

This can lead to destruction.

• The camera should never be operated in water.

MEGA-PIXEL NETWORK CAMERA

Contents

MEGA-PIXEL NETWORK CAMERA

Safety Precaution . . . . . . . . . . . . . . . . . . . . 03~04p

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05p

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06p

Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p

Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08p

Installation Instructions . . . . . . . . . . . . . . . . 09~15p

Operating Instructions . . . . . . . . . . . . . . . . . 18~21p

. . . . . . . . . . . . . . . . . . . . . . . . . 16~17p

Specifications

Full Menu Setup . . . . . . . . . . . . . . . . . . . . . 22~69p

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 70~71p

3-1. Information

3-2. Video & Image

3-3. Record

3-4. Event

3-5. System

1. LIVE VIEW

2. PLAYBACK

3. SETUP

........................................................ 22p

............................................... 25p

......................................... 25p

....................................................... 24p

............................................................... 25p

........................................................ 41p

...................................................... 44p

...................................................... 56p

4. 4 EYES PRINCIPLE ................................. 67~69p

Features

MEGA-PIXEL NETWORK CAMERA

• Full-HD 2.16Mega Pixel, NETWORK CAMERA, 1920x1080(30/25p)

• The best low light performance with SONY’s STARVIS sensor

• ONVIF Conformance

• ONVIF Event Mapping

• Zero configuration

• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)

• Adaptive web resizing depending on layout & resolution of

display device by RESPONSIVE WEB

• Increased usability for all PC, tablet and mobile

• HTML5 playback for recorded video on Micro SD card

• Simultaneously H.264, H.264+ (Smart Stream),

H.265, H.265+ (Smart Stream), MJPEG (Multi streaming)

• f=2.7~13.5mm, Motorized vari-focal lens

• Motorized Zoom & Focus Adjustment

• True Day&Night by ICR

• DOL HDR (Digital Overlap High Dynamic Range)

• D-WDR (Digital Wide Dynamic Range)

• Improved noise figure with the enhanced 3DNR

• LDC(Lens Distortion Compensation)

• Smart Video Stream, ROI(Region of Interest)

- Enables to process video data smartly according

to users demand.

- Lowering overall bandwidth and reduce the storage burden

• Privacy Mask, Motion Detection, HLC/ BLC,

Digital Zoom(~x8), Mirror/Flip, Contrast, Brightness, Hue,

Saturation, Sharpness

• Circuit protection against faulty connection in power polarity

• Isolated power supply against ground loop problem

• Cooling Fan & Optimized Heat sink System

• Dual window for protecting IR reflection

• Built-in 5pcs x 850nm High power LEDs

• PoE(IEEE Std. 802.3af), AC24/DC12V

• One-touch 3-Axis locking bracket with Junction Box

• Integral Junction Box

- Both RJ-45 and Network wiring connector(LSA) for flexible

Network/PoE connection.

- Simple wiring and tidy cable arrangement.

• IP67 Protection

Composition

Dimension (unit : mm)

79.18

108.00

87.70

130.50

109.19

81.90

51.40

318.40

280.45

31.00

MEGA-PIXEL NETWORK CAMERA

Torque Wrench:

3mm (1pc)

Cable tie (2pcs)

Hinge pin (1pc)

Camera unit

Mounting Screw:

4 x 30mm (4pcs)

Plastic Anchor:

6 x 30mm (4pcs)

Mounting

Template

Operating

Instruction

Grommet (2pcs)

Cable fixation plate

with Fixing screw

RJ45 Easy Cap

for Grommets

Part Names

DUAL

WINDOW

BODY CASE

SUNSHIELD BOLT

SUNSHIELD

LOCK/UNLOCK

SCREW

BRACKET

JUNCTION BOX TOP

MEGA-PIXEL NETWORK CAMERA

COVER OPEN

JUNCTION BOX

BASE

[ JUNCTION BOX BASE ]

Ethernet from Cam.

User Network

Network wiring

Connector

Junction Box

Open Alarm

Power & I/O

to Cam.

Power/ Alarm

IP Reset (Default) : pressing for 5~8 secondsresets

all parameters to original factory settings.

Micro

SD Card Slot

Installation Instructions

Cover Opening(Sabotage) Alarm and External Alarm Input are electrically tied

together internally.

Alarm contact types, N.O or N.C are selectable by the Alarm Input Selection

Jumper and the selection types should be matched with Alarm Type in setup

menu.

When both of Cover Opening Alarm and External Alarm Input are used at the

same time, the alarm contact types must match. Otherwise, alarm malfunctions.

When External Alarm Input only is used with disabling Cover Opening Alarm,

remove the jumper cap of Alarm Input Selection Jumper.

Default setting for Alarm Input selection jumper is N.C. It prevents from Alarm is

generating when Junction box is OPEN during installation. Alarm Input selection

jumper should be set to N.O and Event Trigger/Action should be dened to enable

Cover opening alarm.

For Cover Opening Alarm, please go to SETUP> Event Rules> Event Processing>

Add Event Trigger should be set to “Alarm In” and then Event Action should be

set as available options.

• Cover Opening Alarm and External Alarm Input :

CAUTION

N.O : Alarm is generated when Junction box is OPEN.

N.C : Alarm is generated when Junction box is CLOSED.

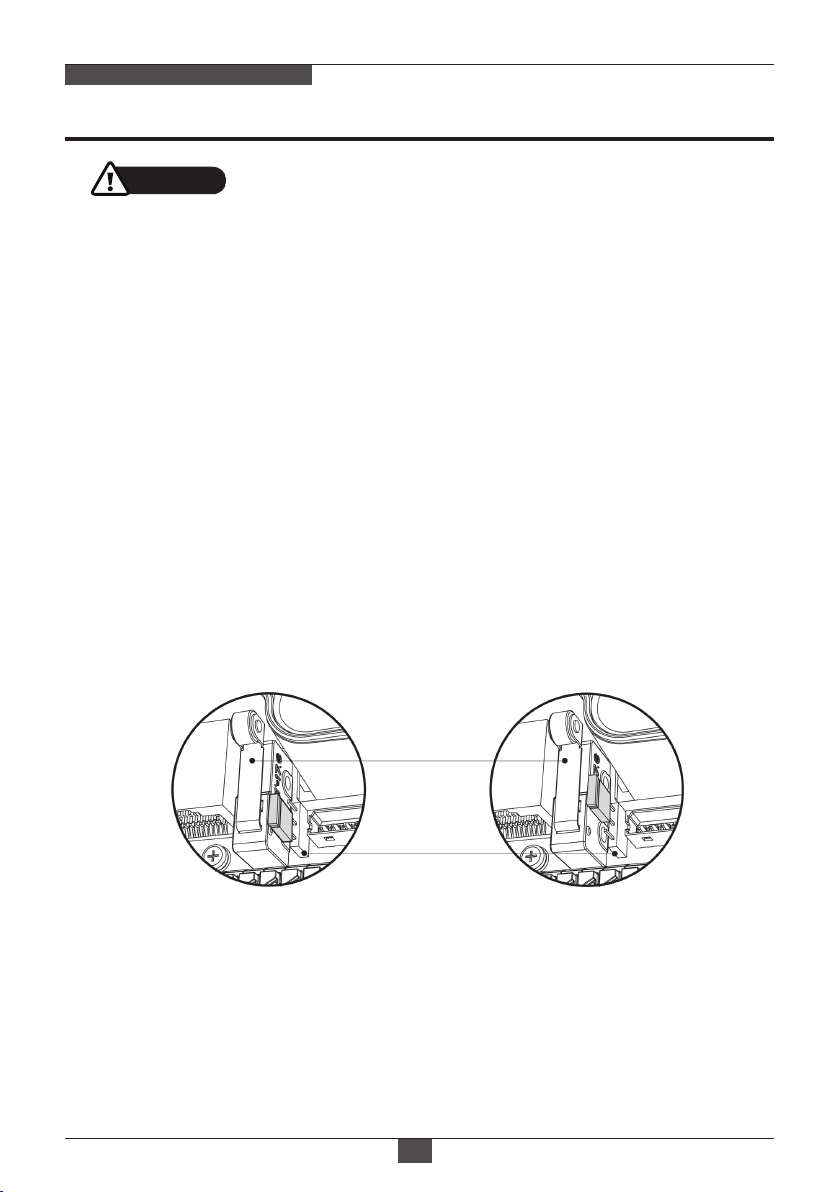

[N.O] [N.C]

Cover opening alarm switch

(Sabotage alarm)

Alarm Input selection jumper

MEGA-PIXEL NETWORK CAMERA

Installation Instructions

• Using Grommet :

Tear off the cocks of grommets properly and pull up the grommet so that sealing

can

wrap the cable properly as illustrated. If it doesn’t wrap the cable properly,

it could cause the water leakage problem.

• Using RJ45 Easy Cap for Network cable :

• Recommended cable length into the Junction box base :

- CABLE with RJ-45 Connector: 70mm~80mm

- CABLE for Network Wiring Connector: 20mm~30mm (excluding cable tripping section)

8P cable stripping distance: 20mm~30mm

- Alarm CABLE: 20mm~30mm (excluding cable tripping section)

5P cable stripping distance: 20mm~30mm

MEGA-PIXEL NETWORK CAMERA
