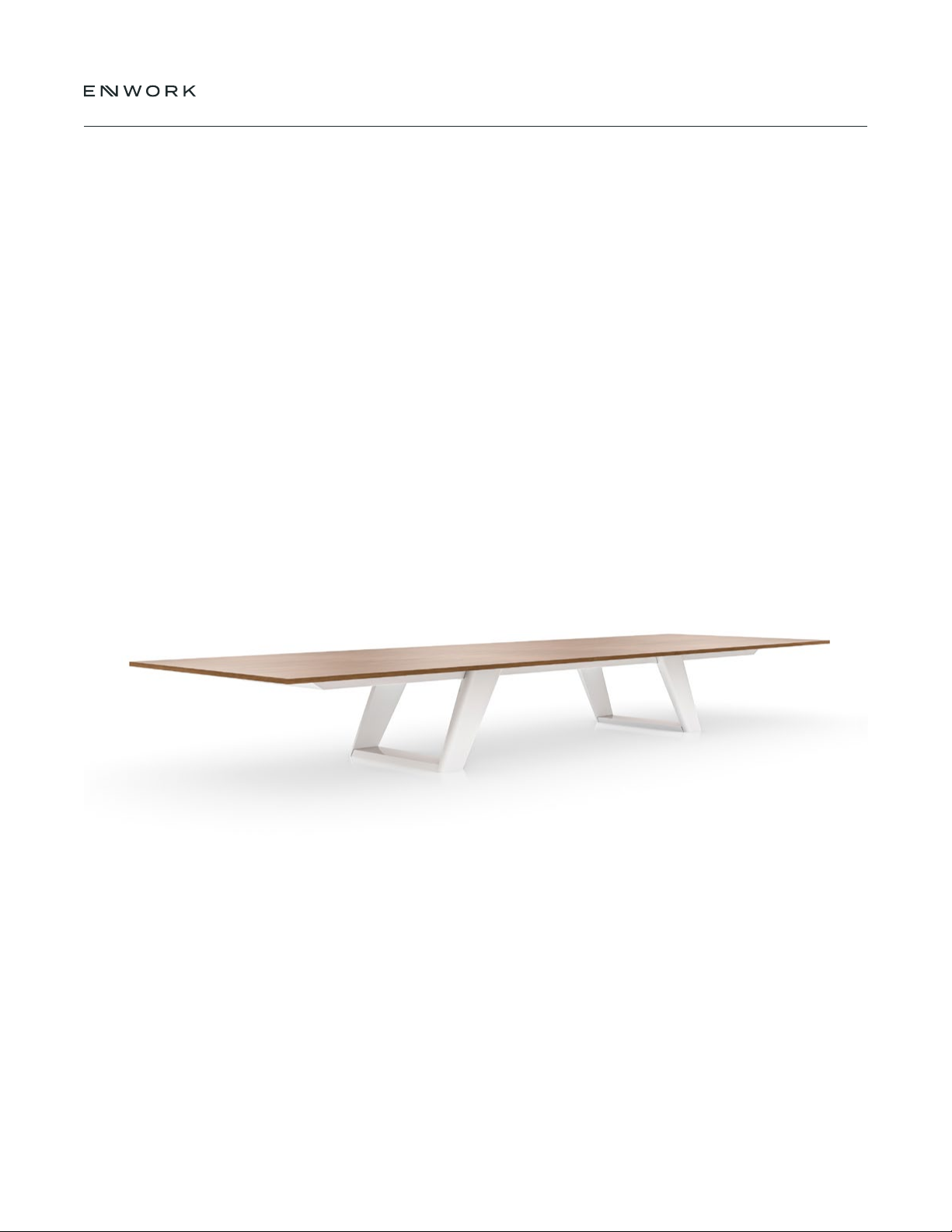

Enwork Expanse Bedienungsanleitung
Expanse
Installation Guide
PART NUMBER EAAXXX
CONFERENCE TABLES
TI0075
Expanse Conference Table Installation Guide – Rev 02.23
2TI0075 - Expanse Table Installation Instructions

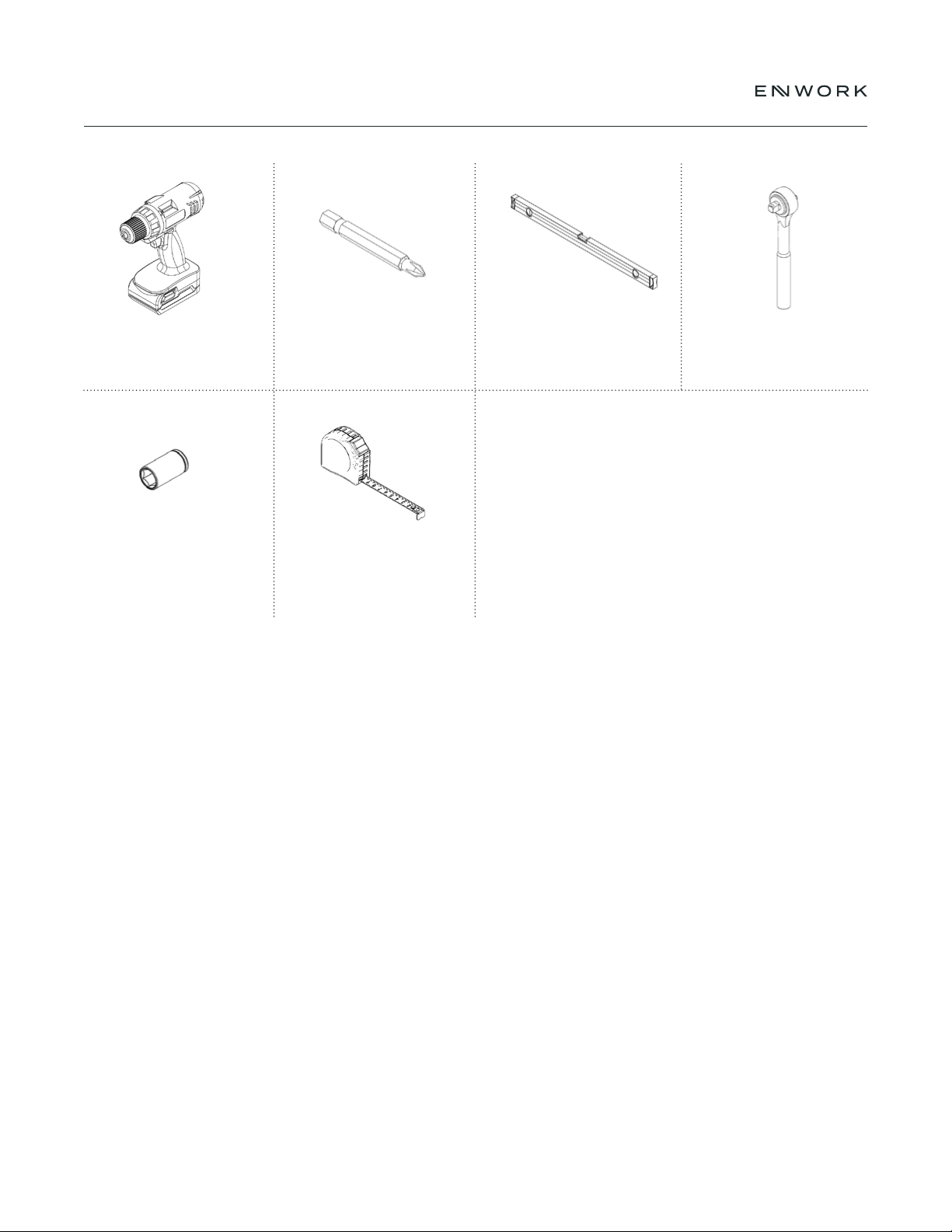

1 — REQUIRED TOOLS AND SUPPLIES
Drill Philips Head Driver
Socket
Level Ratchet
Tape Measure
3TI0075 - Expanse Table Installation Instructions

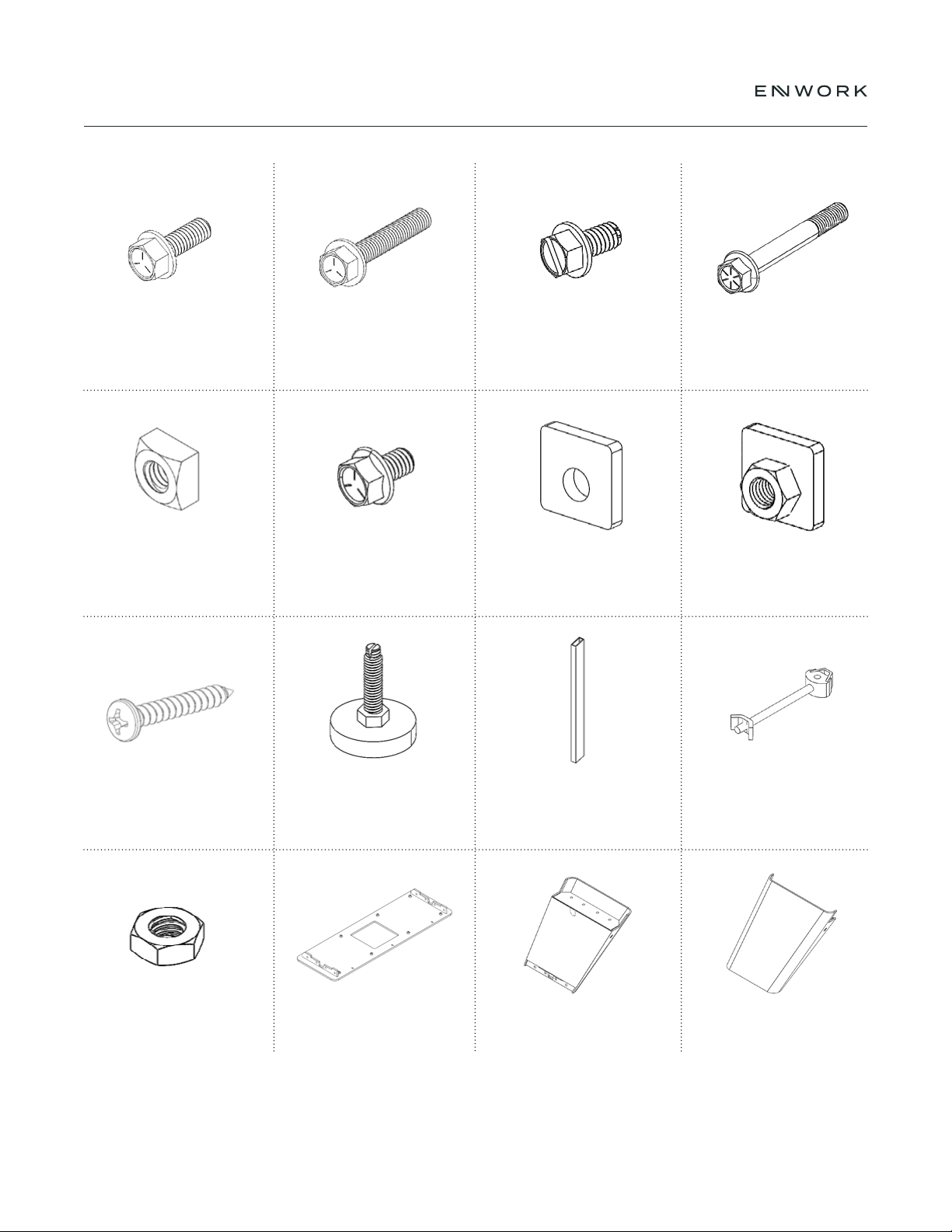

2 — INCLUDED PARTS AND FASTENERS
.375-16 x 1.25"
Hex Head Bolt
.375-16 x 2.25"
Hex Head Bolt
.375-16 Square Nut
#12 x 1.00" Screw
25-20 Nut Base Plate Right Base Leg Left Base Leg
.375-16 x .50"
Hex Head Bolt
.375 -16 Easy Adjust Glide
25-20 x .50"
Draw Plate 1
Kickstand
.50-13 x 4.00"
Hex Head Bolt
Draw Plate 2
Zipbolt Surface Connector
4TI0075 - Expanse Table Installation Instructions

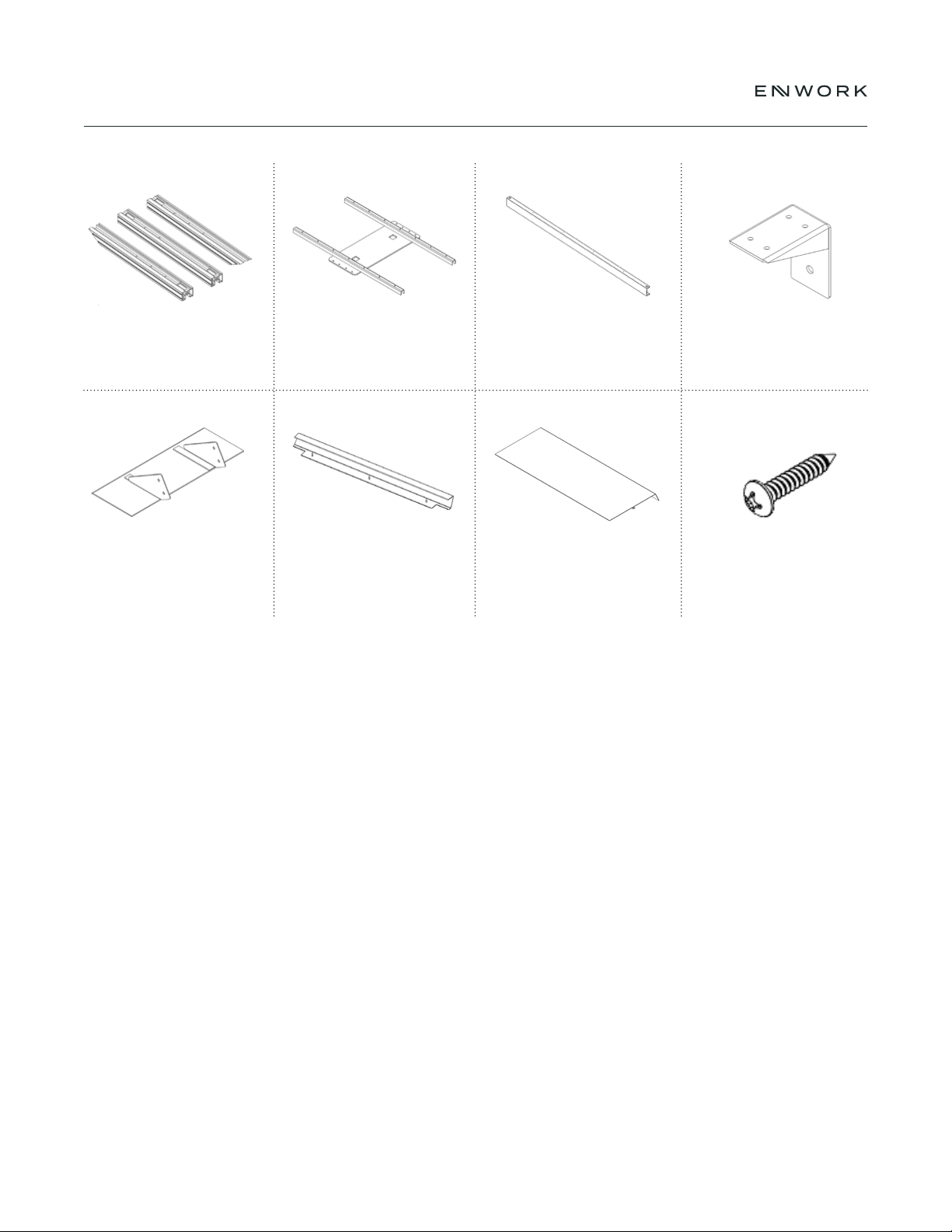

2 — INCLUDED PARTS AND FASTENERS
Extrusions
(Left, Mid, & Center)
Top Plate Assembly
End Cap Base Bottom Cover,
Inside
C Channel
Base Bottom Cover,
Outside
L Bracket
10-10 x 1" Truss Head SQ/
Phillips (SCREW 1)
5TI0075 - Expanse Table Installation Instructions

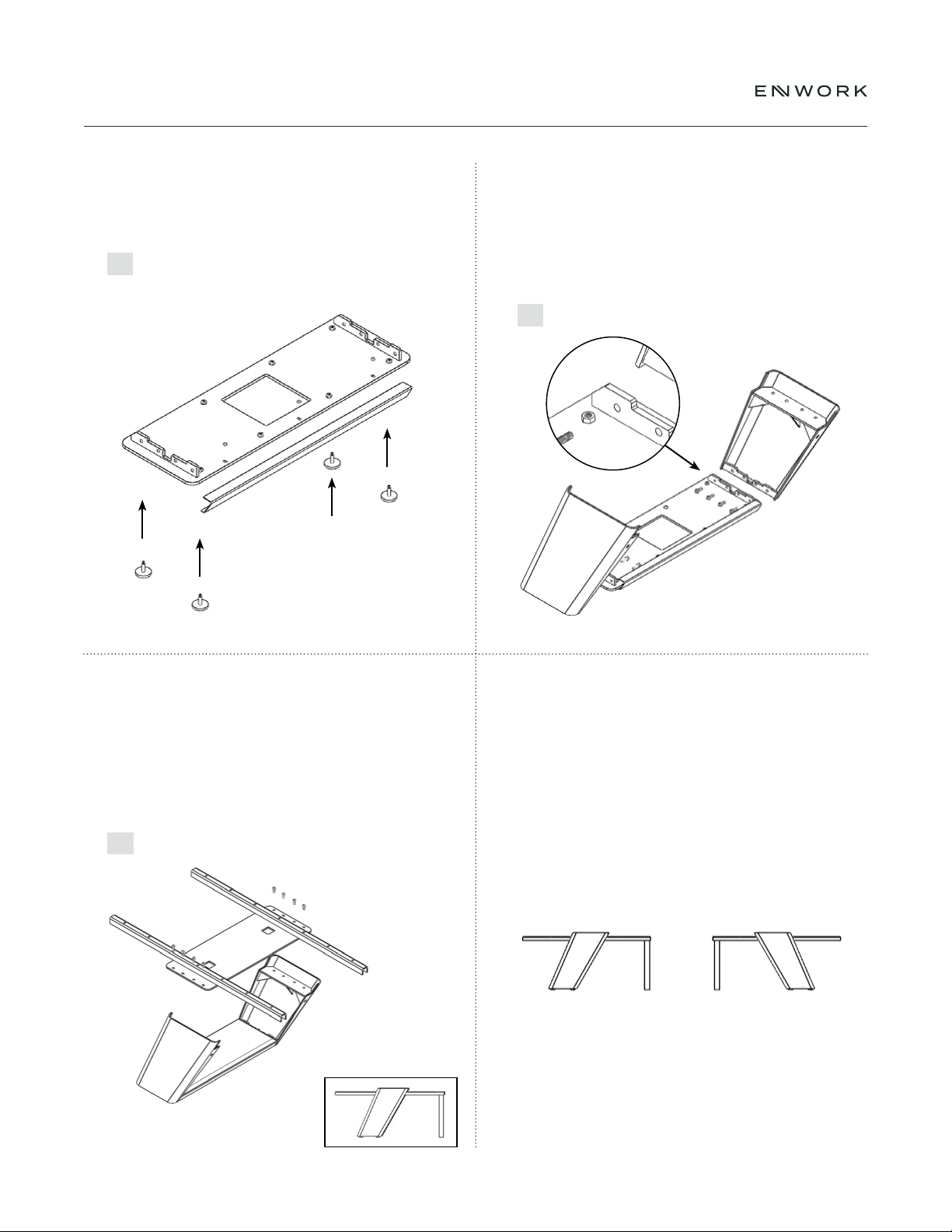

Assemble (4)Glides into the Baseplate.
Assemble the Inside Base Bottom
Cover using (3) 25-20 Nuts.
While standing on the base plate, Line up the connection
holes of the Top Plate Assembly with the Base Leg
assembly and attach using (8).375-16 x 1.25" bolts.
Note: Once the base is full assembled, place the provided
Kickstand under the assembly to keep it from falling forward.
Line up the Base Leg connection holes
with the holes on the Base Plate. Secure
together with (4).375-16 x 1.25" bolts.
Note: The angles cut into the attachment
plates should be facing the back.
3.1
3.3
3.2
3 — BASE ASSEMBLY
2x
2x
2x
When the base assemblies are completed,
place them in there nal position.
3.4
6TI0075 - Expanse Table Installation Instructions

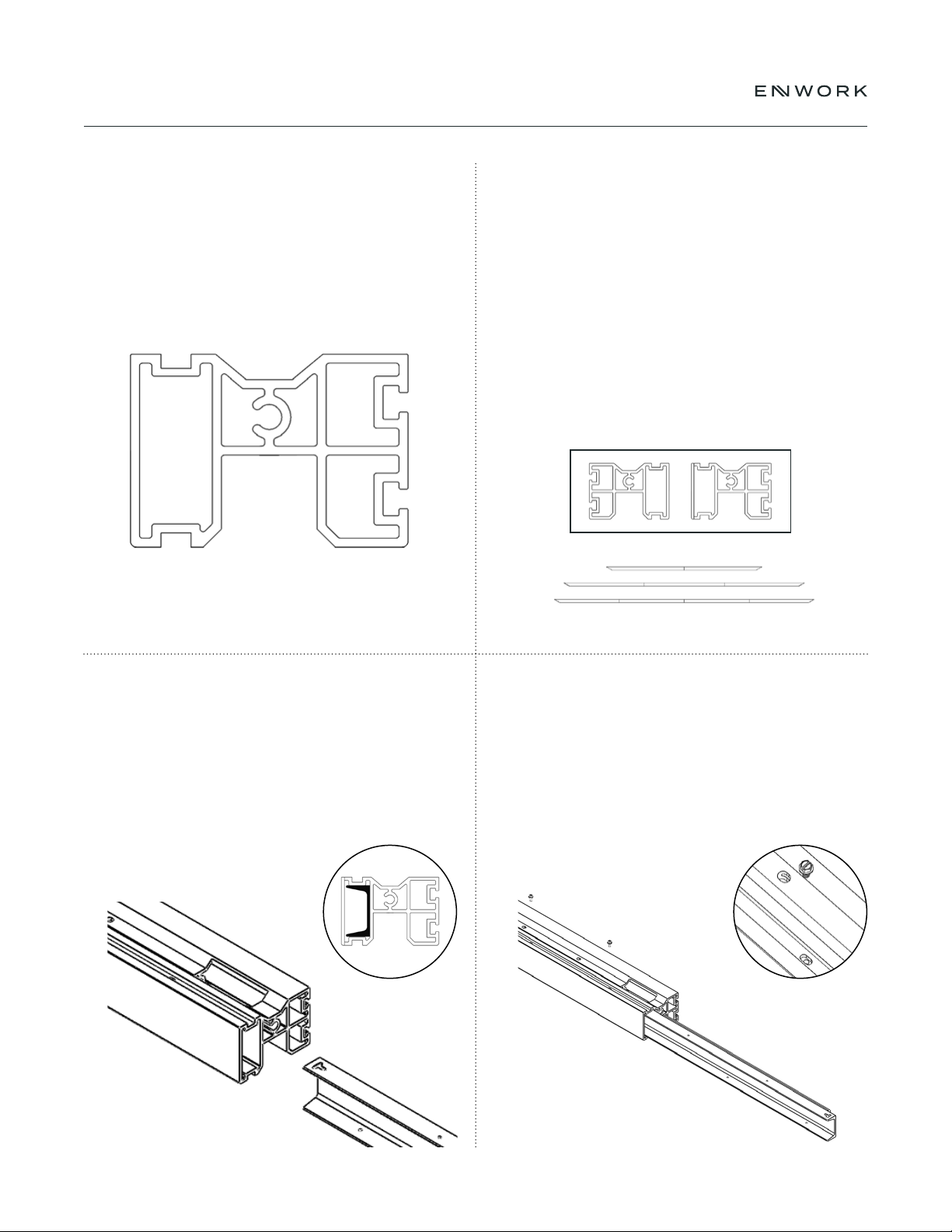

Extrusion Description
Top
Bottom
Outside
Inside
U-Channel
Space
Assemble the C Channels(EAM-1001-xx) into the
outside of the extrusion with the embossed "T"
facing up and the opening of the C facing outside.
Note: Do not tighten the bolts at this time
Place the extrusions in a clear area on a non marring
surface, in an order similar to their completed position.
Note: The Number of extrusions is dependent on table length.
Assemblies with 2 extrusions, assemble
the Left and Right Extrusion
Assemblies with 3 extrusions, skip to
section 5) Table Frame Assembly
Assemblies with 4 extrusions, assembly the Mid Extrusion
4.1
4.3
4.2
4 — EXTRUSION ASSEMBLY
Line up 2 of the threaded holes. Install (2) .25"-20 x
.50". and nger tighten. Repeat for all Extrusion.
Note: Do not tighten the bolts at this time
4.4
7TI0075 - Expanse Table Installation Instructions

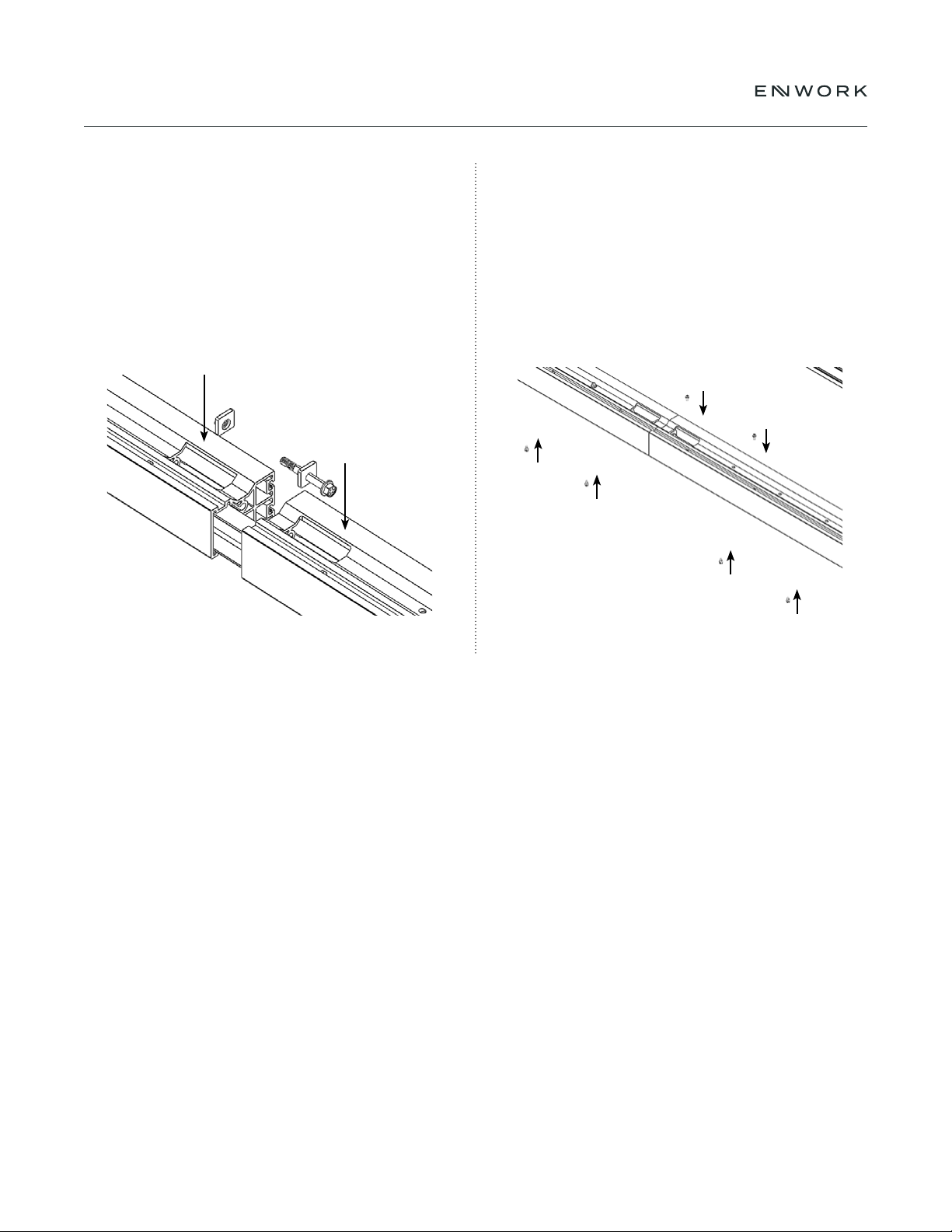

Slide the next extrusion on to the C-Channel.
Assemble (1) Draw Plate 1, (1) Draw Plate 2
and (1) .50 -13 X 4.00" bolt into each Extrusion
connection hole and loosely tighten so the
extrusions line up ush on all sides.
Note: The extrusions must be aligned and square before they
are fully tightening. Adjust as necessary while tightening.
Once the Draw Plates are fully tightened, Fully tighten
the (2) .25-20 x .50" on top of the extrusion and
install and fully tighten (6) .25-20 x .50" into the top
and bottom of the extrusion (as shown in Fig 4.5).
Note: Depending on table length, Left & Right
Extrusions may be assembled at this point.
4.5 4.6
4 — EXTRUSION ASSEMBLY
8TI0075 - Expanse Table Installation Instructions

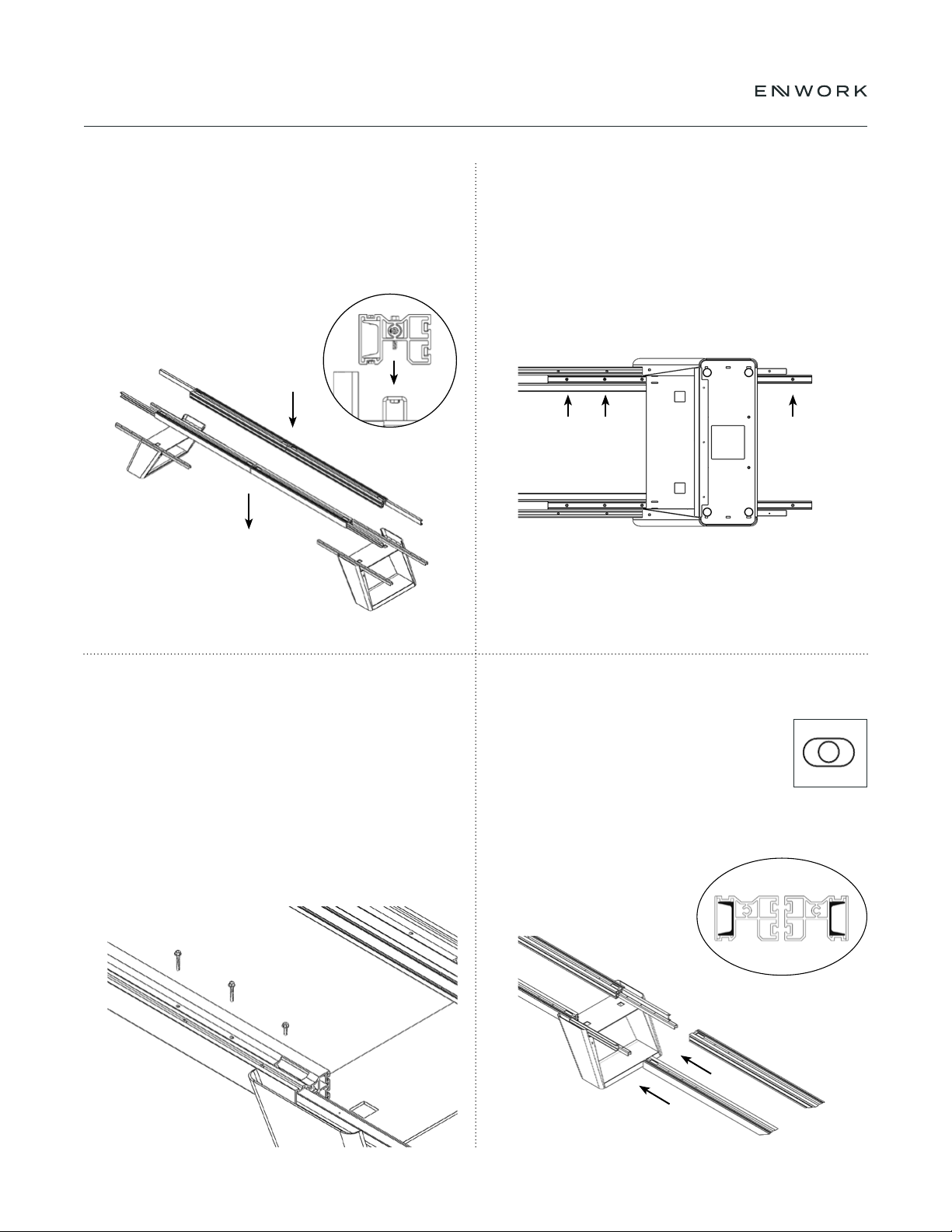

Place the fully assembled beams on the
Base Assembly, seating the channel of the
extrusion in to the U Channel of the base.
Note: leave the Kickstands in place
until the beams are fully secured.
Secure the ends of both extrusion to the Base
Assemblies using a .375-16 x 1.25" bolt, then proceed to
secure the extrusion with the using .375-16 x 2.25" bolts.
Repeat process for the other end of the table.
Align the holes of the assembled beams to
the holes of the assembled bases.
5.1
5.3
5.2
5 — TABLE FRAME ASSEMBLY
Slide the extrusions completely until the
surfaces meet. The C Channel holes should
alight with the top slots on the middle
extrusion assembly as shown below.
5.4
9TI0075 - Expanse Table Installation Instructions

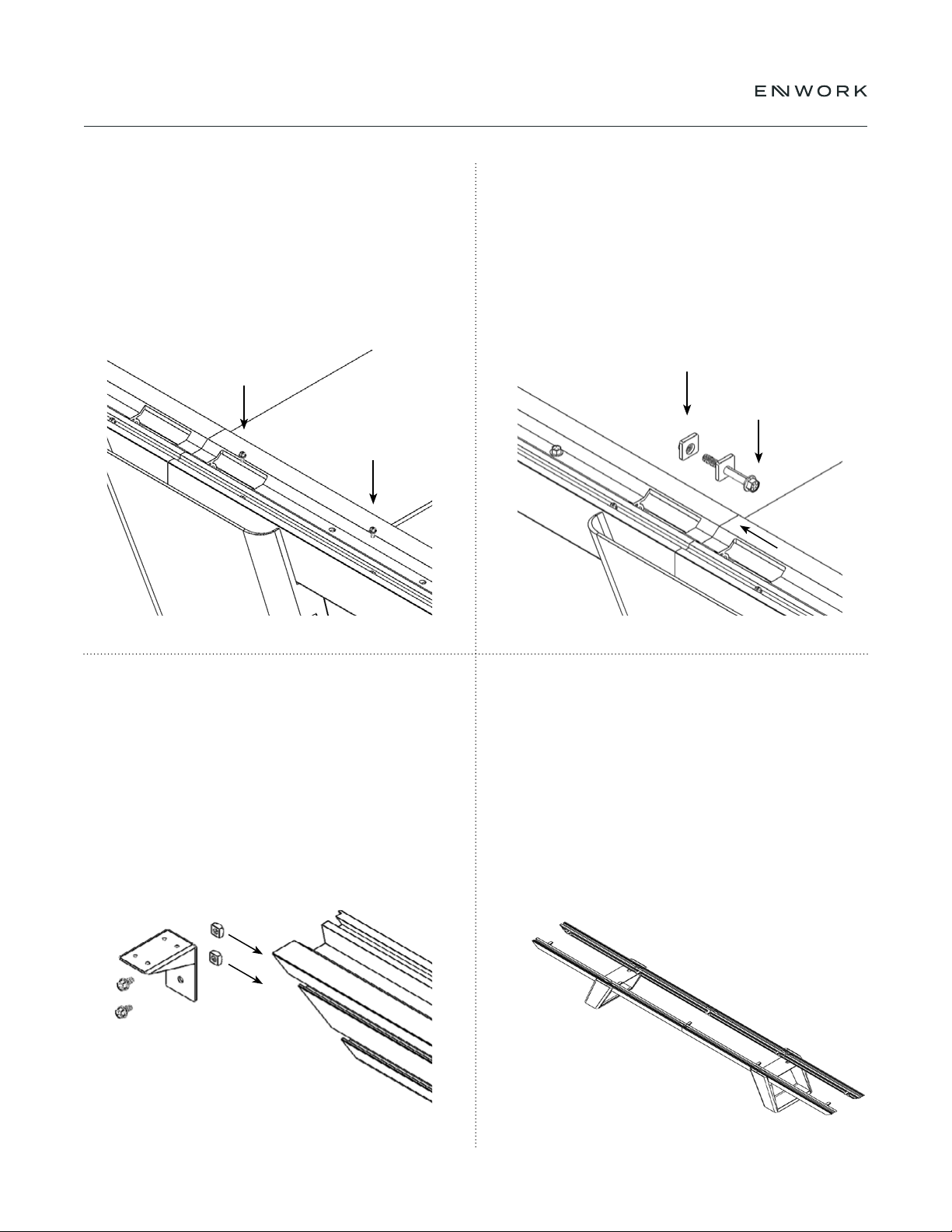

Insert (2).25-20 x .50" into the extrusion slots
to secure the C-Channel and nger tighten.
Note: Do not tighten the bolts at this time
Loosely assemble the Top Connection Bracket, (2)
375-16 x .50" bolts, and (2) .375-16 Square Nuts
Insert the this assembly into the inside of the extrusions
There will be 2 for every Top Connection
Bracket (EAM-1024).
Install Draw Plate 1, Draw Plate 2 and a .50 -13 X 4.00"
bolt into each Extrusion connection hole and tighten.
Note: The extrusions must be aligned and square before they
are fully tightening. Adjust as necessary while tightening.
Fully tighten the bolts connecting the extrusion
to the base at this time (see Fig 5.5).
5.5
5.7
5.6
5 — TABLE FRAME ASSEMBLY
Position the 2 outer most Top Connection
Brackets 10"-16" from the end of the extrusion
and then evenly distribute the remaining
Brackets along the length of the extrusion.
Do not tighten yet. These may need to be
repositioned later in the assembly process.
5.8
10TI0075 - Expanse Table Installation Instructions

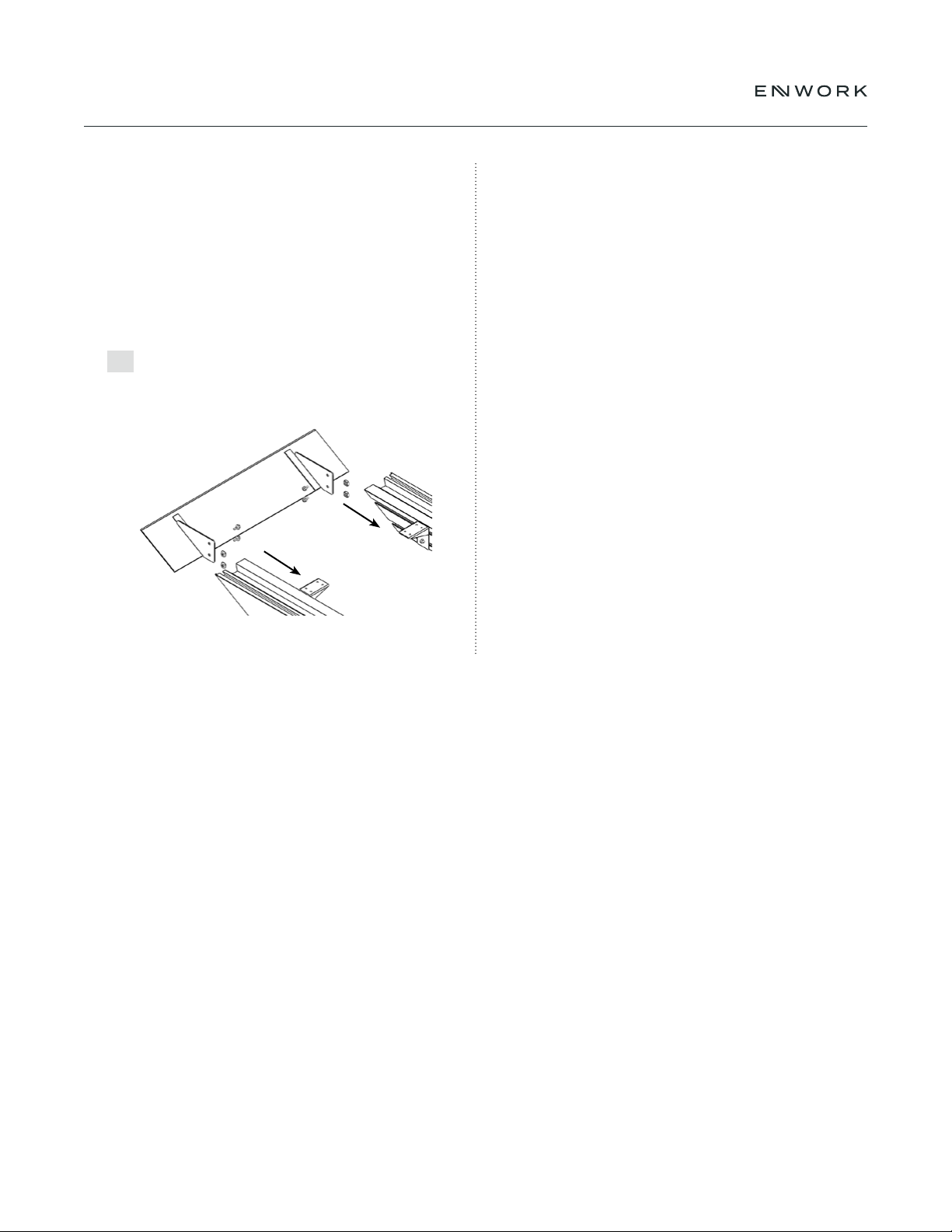

Loosely assemble the Extrusion Cap (EAM-2010-x) ,
(4) 375-16 x .50" bolts, and (4) .375-16 Square Nuts.
Press the end cap in all the way tight against the
end of the extrusion. Insure the back side of the
cap is ush with the end of the extrusion.
Fully tighten
5.9
5 — TABLE FRAME ASSEMBLY
2x
