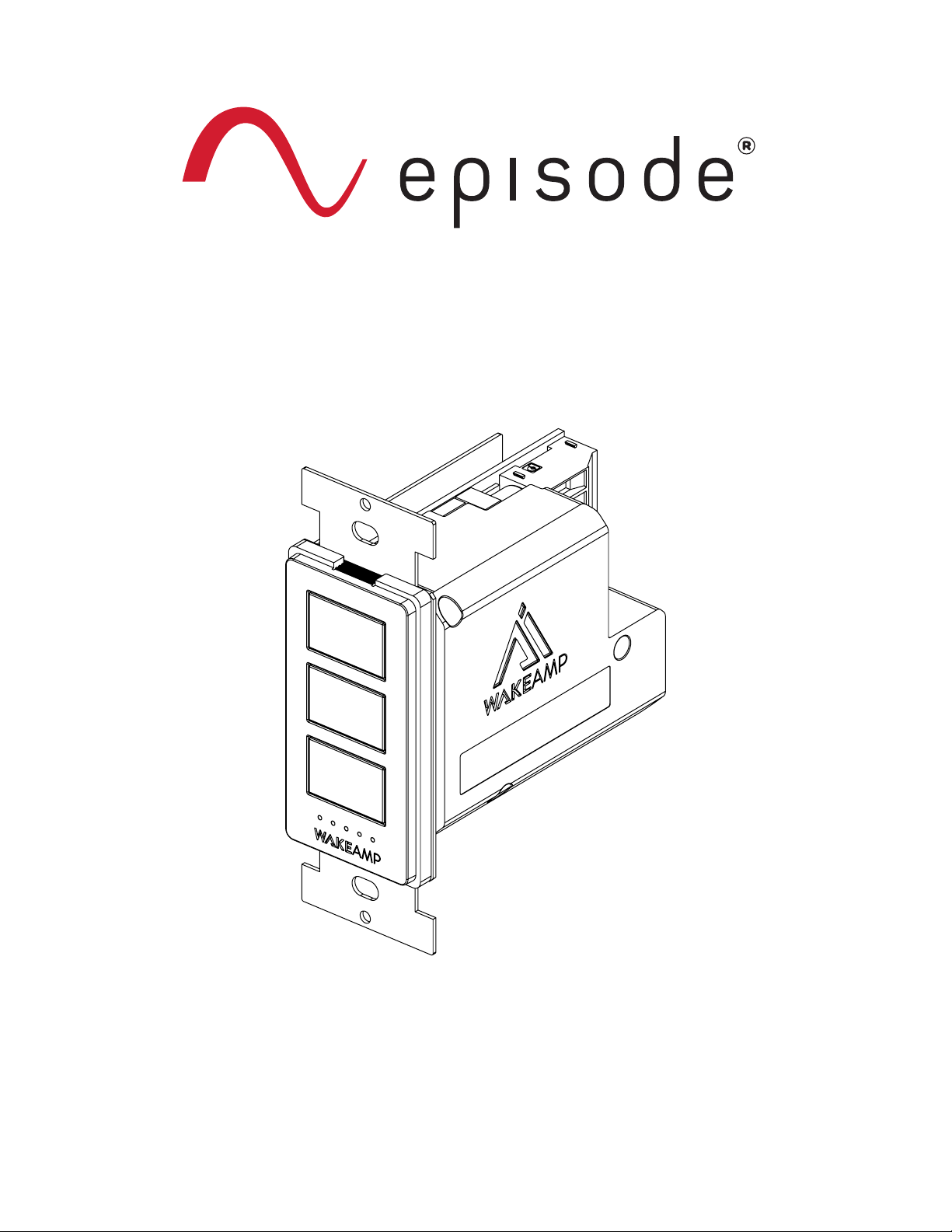

Episode EA-WAKE-2D Bedienungsanleitung
EA-WAKE-2D
Wake Amp
Owner’s Manual
2
Introduction
Thank you for purchasing Episode® Electronics. To complete installation, follow these guidelines. Visit
our website for design recommendations and speaker calculators.
Contents
• 1x WAKE Amp
• 2x Junction box screws
• 1x Face plate
• 2x Faceplate screws
• 1x Power supply
• 1x Power supply adapter
Selecting Wire
The WAKE Amp can accommodate 14 to 22 gauge speaker wire. The longer your run, the thicker
the wire should be. All in-wall and in-ceiling wire installations are subject to local code fire ratings.
Never use lamp or zip cord for an installation where the wire will be in a wall or ceiling. Always use
multi-strand copper speaker wire for your installations. UV protected wire should be used for outdoor
installations.
• Check your local building and fire rating codes for low voltage device installation & wiring
requirements before you begin your installation.
• In existing construction installations, check for obstructions such as any pipes, conduit or wiring
before cutting into drywall.
Selecting a Junction Box
The WAKE Amp is compatible with deep and backless single gang plastic back boxes.
Caution: Do not use a metal back box as it significantly impacts Bluetooth performance
and range.
3
Getting Connected
1. Strip back 1/4” of insulation from each wire that is to be connected to the amplifier. Twist the
exposed conductors tightly so there are no stray strands.
2. Connect the wires going to each speaker making sure to maintain proper polarity.
Warning: Do not connect the power supply to AC power while wiring the WAKE Amp.
3. Once all conductors are inserted into the connectors, visually inspect each of your connections
to ensure that there are no stray strands or exposed wire, that could cause a short. Make sure
that the connection is tightened down on bare wire and not insulation.
CAUTION: Reversing the power and speaker connections can cause damage to the
amplifier or speakers and is not covered under warranty.
4. Install the amplifier in the junction box using the provoided junction box screws. Be careful not
to force the amplifier into the box, as this may cause the connections to become loose.
5. Place the wall plate over the WAKE Amp, then insert and tighten the short faceplate screws until
the cover is tight and flush with the wall.
6. Use the supplied adapter to connect the amp to the power supply.
+ Right
– Right
+ Left
– Left
– Power
+ Power
–
+
–
–
+
To Right Speaker
To Left Speaker
To Power
+
–
4
Mobile App Setup
Download the WAKE Amp mobile app from the Apple App Store or Google Play store.
Open the app and it automatically searches for available WAKE Amps. Tap the WAKE Amp you want
to configure and the Amp Setup page appears.
Tap the icons along the bottom of the page, to navigate through configuration options.
To disconnect from a WAKE Amp, tap the overflow icon ( ), in the upper right corner.
Amp Setup Tab
The Amp Setup tab contains general setup options. The following sections outline each header and
it’s respective fields.
LED Settings
• LED Timeout After 10 Seconds. Toggle on for the LEDs to turn o after 10 seconds of inactivity.
• LED Brightness. Use the slider to adjust the brightness of the LEDs.
5
Keypad Volume Settings
• Keypad Controls Volume. Selecting this feature causes the WAKE Amp’s buttons to control the amp
volume.
• Keypad Controls Music. Selecting this feature causes the WAKE Amp’s volume to be controlled by
the source and the WAKE Amp’s buttons control track forward, back and pause.
• Amp Fixed Volume. Sets fixed amplifier level for use when volume is being adjusted at the source.
Use this slider to optimize output level without overdriving amplifier.
Note: This feature is only available when Keypad Controls Music is selected.
Name Change
Tap the pencil icon to edit the name of the WAKE Amp. It’s best to name the WAKE Amp after the
location it’s installed in.
Speaker Size
Tap to select the size of the connected speakers to properly tune the WAKE Amp.
Use the Small setting for in-celing, in-wall, or bookshelf speakers. Use the Large settings for
floorstanding or other large speakers.
6
Bluetooth Reconnect
Toggle on to have the WAKE Amp try to automatically reconnect to the paired Bluetooth device, if
disconnected.
If toggled o, the WAKE Amp automatically enters Bluetooth Pairing mode after disconnecting from a
paired device.
EQ Tab
The EQ tab includes Treble and Bass adjustments.
Loudness boost is a dynamic EQ boost to both bass and treble when the amp is at lower volumes.
This feature makes the speakers sound more dynamic at lower volumes without coloring the speaker
at higher volumes.
Info Tab
The Info tab displays the WAKE Amp’s current firmware version and a link to the device manual.
7
Firmware Tab
The firmware tab checks for new firmware versions. Tap the Update button to push firmware updates
via Bluetooth.
Note: The firmware update process uses Bluetooth to transfer the firmware file from the
mobile device to the WAKE Amp. This process can take up to 20 min. To reduce file
transfer time ensure that the mobile device is in close proximity to the WAKE Amp.
Pairing Your Bluetooth Device To The WAKE Amp
Press and hold the button for 5 seconds to enter pairing mode on the WAKE Amp. LEDS 1-5
start to run from left to right and the WAKE Amp’s name appears in the Discoverable list of the device
you’re pairing it to.
The WAKE Amp may appear twice in some devices Discoverable list. Once as a traditional audio
Bluetooth connection, and again as a Bluetooth low energy data connection (used for communication
with the mobile app). Be sure to connect to the WAKE Amp’s audio device connection.
Note: Wireless devices may be susceptible to RF interference from other devices. To reduce
potential interference and maximize wireless performance, check the proximity to
other wireless devices and relocate them accordingly. Signal interference created by
microwave ovens, ceiling fans, or other appliances subsides when those devices are not
in use.
Button Behavior
Button Volume Mode Music Mode
Volume Up Next Track
Volume Down Previous Track
Mute Play/Pause
LEDs
Numbered 1 through 5, from left to right. The following table describes the
LED behaviors.
8
Function LED Behavior
Firmware Update LED 1 blinks during update process.
Mute/Pause LED 1 illuminates red.
No Source Connected LED 1 slowly blinks blue.
Factory Reset LEDs 1-5 blink red.
Bluetooth Pairing Mode LEDs 1-5 blink blue.
Error LEDs 1-5 illuminate red.
Current Volume
LEDs 1-5 illuminate blue to show the current
volume level. For example, if LEDs 1 and 2 are
illuminated the volume is at 40%.
Factory Reset Procedure
Press and hold the and buttons until the LEDs blink red, then release the buttons.
LEDs 1 through 5 blink red and blue during the procedure. Once they stop, use the WAKE Amp mobile
app to set up the amp again.
Note: Factory resetting the amp also resets the paired device list, so the user must pair the
WAKE Amp to the source again.
Firmware Recovery Mode
There are two ways to recover a WAKE Amp if it fails a firmware update. Once restored, try the
firmware update again.
Hardware Method
1. Remove power by unplugging the power supply from the AC power outlet.
2. Press and hold the and buttons.
3. Plug the power supply back in to the AC power outlet.
4. Once LEDs turn on pink, release the buttons.
5. All LEDs slowly blink pink. The unit is validating the stored factory default firmware file.
6. All LEDs quickly blink pink. The unit is reprogramming the processor memory.
7. LED 1 blinks pink. The unit is reprogramming the Bluetooth module.
8. LED 1 blinks blue. The unit is ready to use.
Software Method
1. Press and hold the and buttons.
2. Once LEDs start blinking red, release the buttons.
3. While the LEDs are still blinking red, press and hold the and buttons once more.
4. Once the LEDs turn pink, release the buttons.
9
5. All LEDs slowly blink pink. The unit is validating the stored factory default firmware file.
6. All LEDs quickly blink pink. The unit is reprogramming the processor memory.
7. LED 1 blinks pink. The unit is reprogramming the Bluetooth module.
8. LED 1 blinks blue. The unit is ready to use.
Restarting the WAKE Amp
Press and hold the button. Continue holding while LEDs 1-5 start blinking blue, then release
the button when they start blinking red.
Note: If you continue to hold the button, the LEDs stop blinking. Releasing the button after this
time has no eect and you’ll have to try again.
Specifications
Input Voltage 100V - 240V
Power Consumption for Power
Supply 1.5A
Power Output 60W
Output Voltage 15V
Power Consumption 4A
Channels 2
Power Output @ 4 ohms 25W/Ch
Frequency Response 20Hz - 20kHz
Wireless Protocols Bluetooth Class 1/BLE
Range Up to 30m*
Installation Compatible with deep and backless single-gang plastic back boxes
Dimensions (W x H x D) 101.7 mm (4”) x 38.5 mm (1.5”) x 81mm (3.2”)
Weight 114 g (.25 lb)
*Varies depending on the Bluetooth source.
10
Technical Support
For chat and telephone, visit tech.control4.com/s/contactsupport • Email: T[email protected]om. Visit tech.control4.
com for discussions, instructional videos, news, and more.
Warranty and Legal Notices
Find details of the product’s Limited Warranty at snapone.com/legal/ or request a paper copy from Customer Service at
866.424.4489. Find other legal resources, such as regulatory notices and patent and safety information, at snapone.com/
legal/ .
Copyright ©2021, Snap One, LLC. All rights reserved. Snap One its respective logos are registered trademarks or trademarks
of Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. 4Store,
4Sight, Control4, Control4 My Home, SnapAV, Araknis Networks, BakPak, Binary, Dragonfly, Episode, Luma, Mockupancy,
Nearus, NEEO, Optiview, OvrC, Pakedge, Sense, Strong, Strong Evolve, Strong VersaBox, SunBriteDS, SunBriteTV, Triad,
Truvision, Visualint, WattBox, Wirepath, and Wirepath ONE are also registered trademarks or trademarks of Snap One, LLC.
Other names and brands may be claimed as the property of their respective owners. Snap One makes no claim that the
information contained herein covers all installation scenarios and contingencies, or product use risks. Information within this
specification subject to change without notice. All specifications subject to change without notice.
Version 211020
200-EA-WAKE-001-A
