Epson Stylus COLOR 460 Bedienungsanleitung

STYLUS COLOR 460

Page 1

REF PART NO DESCRIPTION SPEC QTY

100 1039820 HOUSING;B 1

101 1039821 COVER,PRINTER;B 1

102 1040615 PAPER SUPPORT;B 1

103 1039828 STACKER ASSY.;B 1

104 1039829 PANEL ASSY.,RIGHT;B 1

105 1030603 SHIELD PLATE,PANEL 1

106 1039827 HOUSING,PANEL,LEFT;B 1

107 1037312 BUTTON,P/S;B 1

108 1030669 GROUNDING PLATE 2

110 1030610 COVER,SHIELD PLATE,M/B,LEFT 1

111 1030608 COVER,CABLE 2

112 1037313 COVER,INLET,UPPER;B 1

113 1037314 COVER,INLET,LOWER;B 1

114 1032587 SHIELD PLATE,M/B;C 1

115 1049132 LOGO PLATE;C 1

116 1038233 HOUSING,SUPPORT,RIGHT;B 1

117 1038234 HOUSING,SUPPORT,LEFT;B 1

119 1033230 FOOT 4

121 B010103311 C.P.SCREW M3X6 2

122 B300204211 C.B.S. SCREW M3X6 23

123 1032538 C.B.(O) SCREW,4X5,F/ZG 1

124 B300204411 C.B.S. SCREWM3X10 4

125 1005019 C.B.P-TITE SCREW,3X8,F/ZN M3X8 F/ZN 2

126 1012350 C.B.P-TITE,3X10,F/ZN 2

128 1031165 MINI CLAMP 1

180 1041680 LABEL,CAUTION 1;B 1

183 1037833 LABEL,LEVER CARTRIDGE,BLACK 1

184 1037835 LABEL,LEVER CARTRIDGE,COLOUR 1

200 2032128 BOARD ASSY.,MAIN 1

300 2025775 BOARD ASSY.,POWER SUPPLY 220V/240V 1

330 2023343 WIRE HARNESS 1

400 2006741 POWER CABLE,BS31303SA-SR-10A 240V 1

401 2018028 HARNESS 220V/230V/240V 1

450 2023066 BOARD ASSY.,PANEL 1

500 2028550 PRINTER MECHANISM(ASP)M4L10-100 1

501 1040655 FRAME ASSY.,LEFT 1

502 2028086 MOTOR ASSY.,PF 1

503 1039368 SPUR GEAR,23.2 1

504 1030453 COMBINATION GEAR,16,40.8 1

505 1030343 FRAME,RIGHT 1

506 1040571 FRAME,TOP 1

507 1031323 MOTOR ASSY,CR DC42V/0.46A/19.3W SM 1

508 1040515 PUMP ASSY. 1

509 1044903 CAP ASSY.;B 1

510 1030345 FRAME,BOTTOM 1

511 1032969 SHEET,PROTECTION,HEAD 1

512 1030344 FRAME,FRONT 1

513 1030392 BUSHING,PARALLELISM ADJUST,LEFT 1

514 1030393 BUSHING,PARALLELISM ADJUST,RIGHT 1

515 1030417 PAPER GUIDE,REAR 1

516 1041663 ROLLER,PF 1

517 1030957 COMPRESSION SPRING,5.85 1

518 1037093 BUSHING,12,LEFT 1

519 1030454 LEVER,CHANGE 1

520 1030452 SPUR GEAR,26.4 1

521 1030975 SPACER,C-RING 2

522 1032301 SCALLOP SPRING PIN-AW,2X16,F/B 1

523 1030965 COMPRESSION SPRING,0.9 1

524 1030402 SPUR GEAR,67.2 1

525 1037094 SPACER,FASTEN,ROLLER,PF 1

526 1037095 SPACER,FASTEN,ROLLER,PF;B 1

527 1031164 C-RING 3

528 1030967 PLAIN WASHER,12.2X0.5X15 2

529 1040586 ROLLER,ASSY.,PAPER EJECT 1

530 1030422 BUSHING,6 2

531 B150300711 RETAINING RING TYPE-E(4) 1

532 1030424 SPUR GEAR,36 1

533 1040576 SPUR GEAR,11 1

534 1030971 PLAIN WASHER,4.1X0.5X6.5 2

STYLUS COLOR 460

Page 2

REF PART NO DESCRIPTION SPEC QTY

535 1040585 PAPER GUIDE,FRONT 1

536 1042582 GROUNDING WIRE,EJ 1

537 1042649 GUIDE,PAPER EJ 1

538 1040574 FRAME, PAPEREJECT 1

539 1042338 HOLDER,STAR WHEEL,RIGHT 1

540 1042339 HOLDER,STAR WHEEL,LEFT 1

541 1032723 HOLDER,STARWHEEL,FRONT 1

542 1045223 STARWHEEL ASSY.,8;E 20

543 1033652 STAR WHEEL,8;B 1

544 1032244 ROD SPRING,STAR WHEEL 14

545 1030408 PAPER GUIDE,UPPER 5

546 1030414 PAPER GUIDE,LEFT 1

547 1032646 PAPER GUIDE,RIGHT 1

548 1030968 SHAFT,PAPER GUIDE,UPPER 6

549 1030969 SHAFT,ROLLER,DRIVEN 6

550 1038961 ROLLER,DRIVEN;D 12

551 1030956 TORSION SPRING,117.6 6

552 2022329 CIRCUIT ASSY,PE 1

553 1030411 HOLDER,PE 1

554 1030410 LEVER,PE 1

555 1030958 TORSION SPRING,0.22 1

556 1042648 SHEET,GUIDE PLATE,CABLE 1

557 1040575 GUIDE PLATE,CABLE 1

558 1032719 SHEET,CABLE 1

559 2021854 DETECTOR,HP 4V,50MA,100MW, 1

560 1032426 CARRIAGE ASSY. 1

561 1030380 LEVER,ADJUST 1

562 1030381 GROUNDING PLATE,HEAD 1

563 1030382 OIL PAD 1

564 1030387 SLIDER,CR 1

565 1041884 TIMING BELT 1

566 1030391 SHAFT,CR,GUIDE 1

567 1031313 PULLEY ASSY.,DRIVEN 1

568 1030389 HOLDER,PULLEY,DRIVEN 1

569 1030955 COMPRESSION SPRING,19.6 1

570 1037577 LEVER,PG 1

571 1030395 LEVER,PG,SUPPORT 1

572 1032240 TORSION SPRING,63.7 1

573 1040653 COMBINATION GEAR 6,34.4 1

574 1040652 COMBINATION GEAR 8,30 1

576 1034669 POROUS PAD,SLIDER,CAP 1

577 1040644 BUSHING,FASTEN,COMBINATION GEAR 1

578 1023219 PUSHING NUT,2 1

579 2028816 HARNESS,HP 1

580 2028815 HARNESS,PE 1

581 2028817 HARNESS,ASF 1

586 1015240 C.C.S.SCREW 2

587 B300204211 C.B.S. SCREW M3X6 19

588 1032300 C.P.S-TITE(P4),3X6,F/ZN 2

589 B101254590 LEAF SPRING 6.2X0.15X11 1

590 1030972 PLANE WASHER,2.6X0.5X8 1

700 F058000 PRINT HEAD,IJ127-0A0 1

701 1030383 FASTENER,HEAD 1

702 1030954 TORSION SPRING,49 1

703 1024130 C.B.P-TITE SCREW,3X6,F/ZN 4

704 2025569 CABLE,HEAD 1

705 1030386 HOLDER,CABLE 1

706 1033220 SPACER,CABLE HEAD 1

707 1038244 FRAME,ASF;B 1

708 1040589 HOPPER 1

709 1040590 EDGEGUIDE 1

710 1040606 CORK 1

711 1030429 SLIDER,EDGEGUIDE 1

712 1030960 COMPRESSION SPRING,3.23 1

713 1033016 PAD, BRAKE ,EDGE GUIDE 1

714 1040645 REINFORCEMENT PLATE,HOPPER 1

716 1040661 PAD ASSY.,RIGHT 1

717 1030450 LEVER,PAD,RELEASE,RIGHT 1

STYLUS COLOR 460

Page 3

REF PART NO DESCRIPTION SPEC QTY

718 1030420 ROD SPRING,HOLDER,PAD 2

719 1040608 HOLDER,EDGEGUIDE,RIGHT 1

720 1036867 COMPRESSION SPRING,1.17 2

721 1036874 EXTENSION SPRING,0.62 2

722 1040595 LEVER,PAPERRETURN,RIGHT 1

723 1040646 EXTENSION SPRING,0.294 2

724 1040596 ROLLER,LD,SUPPORT 2

725 1040648 HOLDER,ROLLER,LD,SUPPORT,RIGHT 1

726 1040660 PAD ASSY.,LEFT 1

727 1030449 LEVER,PAD,RELEASE,LEFT 1

728 1040602 HOLDER,EDGE GUIDE,LEFT 1

729 1040594 LEVER,PAPER RETURN,LEFT 1

730 1040647 HOLDER, ROLLER,LD,SUPPORT,LEFT 1

731 1040658 ROLLER ASSY.,LD,LEFT 1

732 1040659 ROLLER ASSY.,LD,RIGHT 1

733 1040597 COVER,ROLLER,LD,LEFT 1

734 1040598 COVER,ROLLER,LD,RIGHT 1

735 1036868 COMPRESSION SPRING,1.961 2

736 1038211 LEVER,FASTEN,EDGE GUIDE;B 2

737 1030959 EXTENSION SPRING,0.088 2

738 1040601 SHAFT,ROLLER,LD 1

739 1042067 LEVER,HOPPER,RELEASE 2

740 1040607 WHEEL,DETECT 1

741 1030951 LEVER,BRAKE 1

742 1030970 PAD,BREAK 1

743 1030966 TORSION SPRING,41.2 1

744 1030456 BUSHING,FASTEN,SHAFT 1

745 1040599 SHEET,PAPERFEED 2

746 1040600 HOLDER,SHEET,PAPERFEED 2

747 1005416 SHAFT,MOUNT,CR 1

748 1032300 C.P.S-TITE(P4),3X6,F/ZN 1

750 1040588 SPURGEAR,34 1

751 1030419 PAPERGUIDE,LOWER 1

752 1030372 POROUSPAD,INKEJECT,LARGE 2

753 1030374 TRAY,PORUSPAD 1

754 1040873 SPACER,TRAY 1

755 1031178 BUSHING,FASTEN,SHAFT,LEFT 1

756 1037724 PAPER SUPPORT,SUUPPORT,UPPER 1

757 1042947 HOLDER,PAPER SUPPORT,SUPPORT,UPPER 1

758 1036849 EXTENSION SPRING,0.29 1

759 1037575 COVER CARTRIDGE,BK 1

760 1040656 COVER,CARTRIDG,C;B 1

761 1030378 SEPARATOR,CARTRIDGE,BK 1

762 1030379 SEPARATOR,CARTRIDGE,C 1

763 2021854 DETECTOR,HP 4V,50MA,100MW, 1

764 1043828 CORK;B 1

765 1034969 CLEANER,HEAD,ASP 1

766 1043979 ASF UNIT;C 1

771 1045092 HOLDER ASSY.,STAR WHEEL,RIGHT,ASP 1

772 1045093 HOLDER ASSY.,STAR WHEEL,LEFT,ASP 1

15009016 INDIVIDUAL CARTON BOX FOR EUROPE 1

35007240 PAD SET,PRINTER 1

45007245 PAD,ACCESSORY 1

5X680634010 PLASTIC PROTECTIVE BAG 440X730X0.04 1

N/A 1041471 INK CARTRIDGE,B,AS 1

N/A 1041473 INK CARTRIDGE,C,AS 1

N/A 1041888 SPECIAL COATED PAPER,T,OVERSEAS 1

N/A 3002782 SOFTWARE CD-ROM,E 1

N/A 3002788 APPLICATION CD-ROM,M 1

N/A 4010434 SUPPLEMENT 1

N/A 4010614 UNPACKING SHEET 1

N/A 4010736 SETTING UP MANUAL 1

N/A 4010737 USER'S GUIDE 1

STYLUS COLOR 460

Page 4

STYLUS COLOR 460

Page 5

STYLUS COLOR 460

Page 6

100

124

101

115

126

751

752

753

500

126

125

105

450

107

104

122

106

124

180

182

for LATIN

124

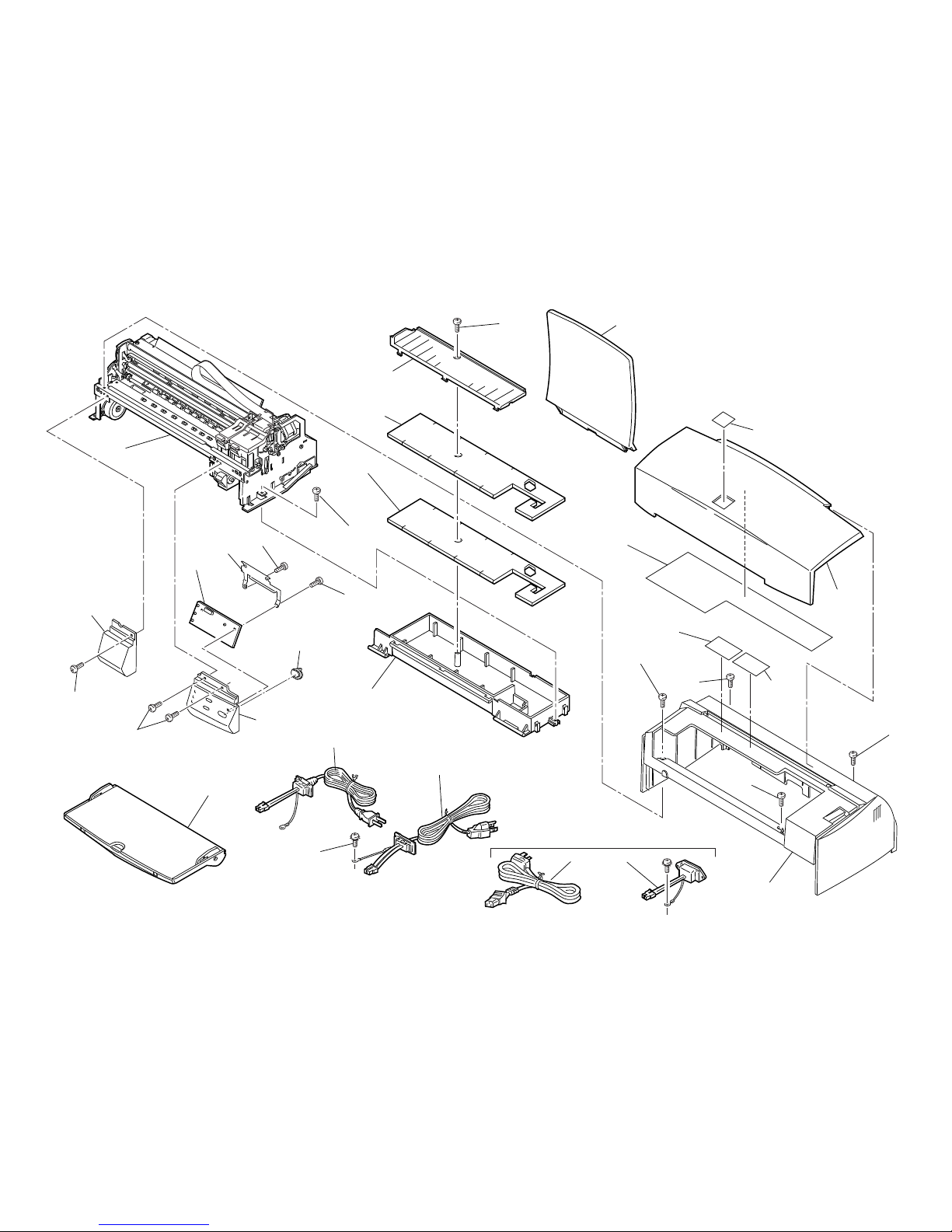

EXPLODED DIAGRAM FOR EPSON STYLUS COLOR 440/460 (1/3)

103

400

123

400 for EAI

400 for ETT

401

for EUR,S.E.ASIA,OCEANIA,EKL,RUSSIA,CHINA

REV.03 10001

102

181

for LATIN

766 without 747,748

with 581

586

501

502

587

503

750

587

504

725

724

732

734

733

731

724

745

746

720 729

723

736

737 738

735

739

728

718

726 727 709

764

712 711

707

713 708

714 703

703

710

736

739

748

737

744

740

747

763

721

720

735

722 723

719

718

716

717

565

506

587

558

587

556

587

557

758

756

757

559 587

505 122

116

108

114

121

112

122

110

122

579

580

581

330

510

128

511

122

200

122

587

122

300

111

113

121

587

569

568

721

755

743

730

534

530

587

532

574

578

573

590

EXPLODED DIAGRAM FOR EPSON STYLUS COLOR 440/460 (2/3) REV. 03 10001

577

122

567

742

741

REV.03 #109 DELETE

527 524

523

527

521

545548551

545548

(506) 546 553 552

554

555 507 759

706

700

705

702

560

119

576

587

765

509

508 530533534

(505)

572 570

571

589

588

514

561

564 562

701703

704

760

762

(565)

551

545548551

545

548551

545

587

548551

547548551

119

(501)

119

521526

550

549

550 549

566

515

516

535

531

536 529

587

544

543

541

540

539 544

544

542

544

542 544

544

542 771

542

544

542

544

542 544

542

544

587

512

587

542 544

542

544

542 544

542

544

772

542

538

587

527 522

563

550 549

122

117

588

513

518 528

525 528

517

519

520

EXPLODED DIAGRAM FOR EPSON STYLUS COLOR 440/460 (3/3) REV.02 10001

183

184

761

754

2 For S.E.ASIA

PACKING MATERIAL FOR EPSON STYLUS COLOR 440/460 REV. 1.0 10001

Andere Handbücher für Stylus COLOR 460

Andere Epson Drucker Handbücher

Epson

Epson Stylus CX3200 Handbuch

Epson

Epson STYLUS PRO WT7900 Gebrauchs- und Wartungshandbuch

Epson

Epson AcuLaser C8600 Bedienungsanleitung

Epson

Epson WF-100 Bedienungsanleitung

Epson

Epson Stylus Photo X810FW Series Montageanleitung

Epson

Epson DFX 8000 Bedienungsanleitung

Epson

Epson WF-7620 Series Bedienungsanleitung

Epson

Epson FX-980 - Impact Printer Bedienungsanleitung

Epson

Epson Stylus Pro 9600 Photographic Dye Ink Bedienungsanleitung

Epson

Epson Stylus CX7300 Series Bedienungsanleitung

Epson

Epson LQ-2170 Bedienungsanleitung

Epson

Epson Mobilink TM-P60 Bedienungsanleitung

Epson

Epson Stylus Photo R3000 Series Montage- und Wartungsanleitung

Epson

Epson R800 - Stylus Photo Color Inkjet Printer Bedienungsanleitung

Epson

Epson Stylus Scan 2000 Bedienungsanleitung

Epson

Epson Stylus Office BX305F Montageanleitung

Epson

Epson R280 - Stylus Photo Color Inkjet Printer Bedienungsanleitung

Epson

Epson J2100 - TM Color Inkjet Printer Bedienungsanleitung

Epson

Epson ET-3700 Bedienungsanleitung

Epson

Epson XP-6000 Bedienungsanleitung

Epson

Epson R2880 - Stylus Photo Color Inkjet Printer Bedienungsanleitung

Epson

Epson 1400 - Stylus Photo Color Inkjet Printer Bedienungs- und Wartungshandbuch

Epson

Epson Stylus pro 7700m Bedienungsanleitung

Epson

Epson LQ-780 Bedienungsanleitung

Beliebte Drucker Handbücher anderer Marken

Lexmark

Lexmark 1400 Series Handbuch

Canon

Canon i70 Series Bedienungsanleitung

Evolis

Evolis Elypso Bedienungsanleitung

Kyocera

Kyocera FS-9530DN Bedienungsanleitung

Canon

Canon LASER SHOT LBP-1210 Bedienungsanleitung

Samsung

Samsung BIXOLON SRP-350plusF Bedienungsanleitung

Canon

Canon PIXMA PRO-1 Series Bedienungsanleitung

Canon

Canon PIXMA G3560 Einrichtungshandbuch

Dell

Dell Color Laser Printer 2130cn Bedienungsanleitung

Tektronix

Tektronix Phaser 840 Bedienungsanleitung

Canon

Canon CLBR 460ps Bedienungsanleitung

Eltron

Eltron P210 Guide Bedienungsanleitung

Ricoh

Ricoh MD-P1 Bedienungsanleitung

Canon

Canon imagePASS-A2 Bedienungsanleitung

Canon

Canon S820D Bedienungsanleitung

IRA3D

IRA3D POETRY4 Bedienungsanleitung

Ricoh

Ricoh Aficio AP400 Bedienungsanleitung

BIXOLON

BIXOLON SRP-352plusV Bedienungsanleitung
