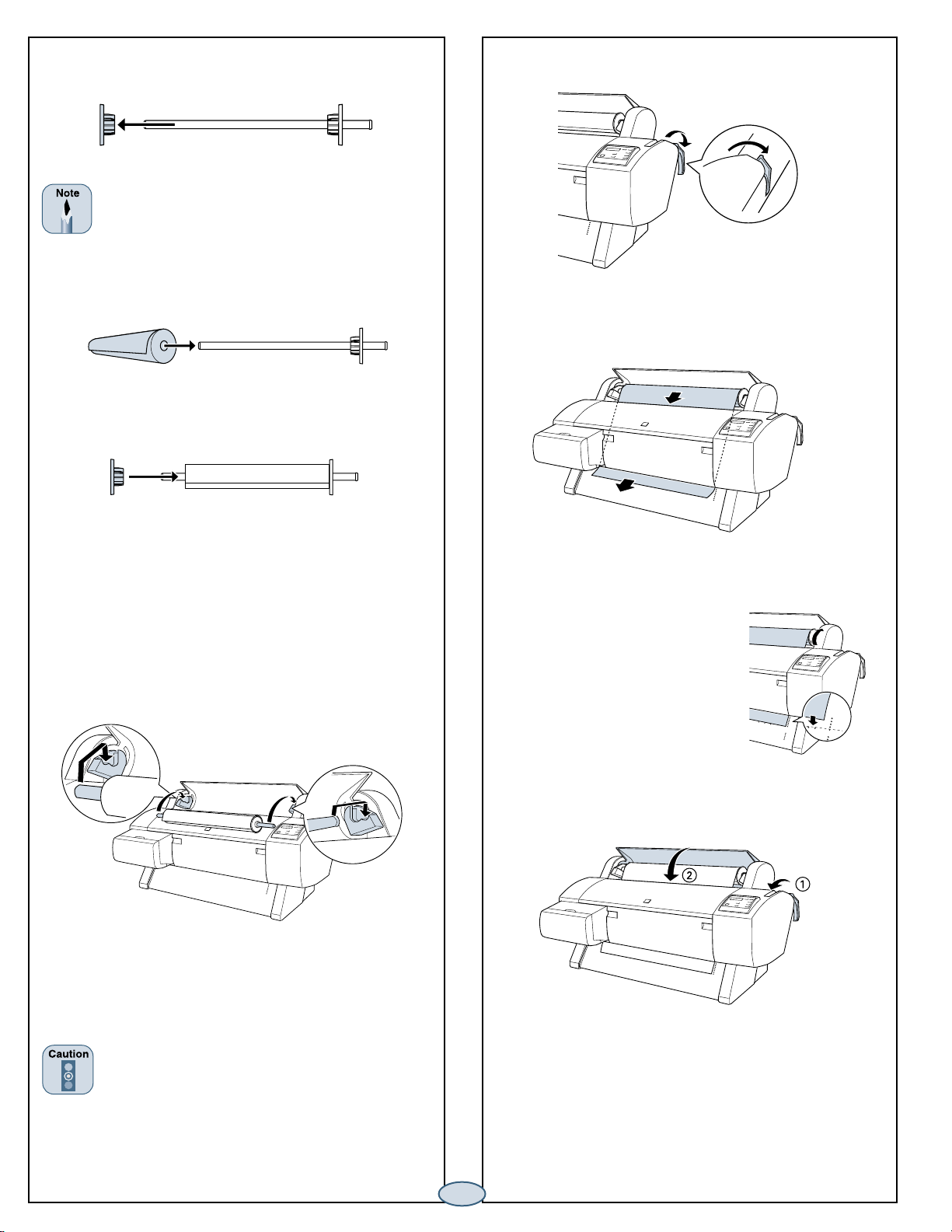

1Slide the removable paper stop off the left end of

the spindle.

To use a 3-inch roll paper core, attach the gray

adapters to the paper stops at each end. See

your

Printer Guide

for details.

2Position the roll paper as shown, then slide it onto

the spindle.

3Slide the removable paper stop back onto the

spindle and insert it firmly into the end of the roll.

7Move the paper lever to the released position.

8Feed the paper into the slot and pull it all the way

through.

4Open the roll paper cover on the printer.

5Place the roll paper in the printer as shown. (The

white end of the spindle goes on the right.)

6Make sure the printer is turned on, then press the

Paper Source button until the Roll Auto Cut

light comes on.

To avoid feeding excess paper, make sure you

don’t select Sheet when you’re using roll

paper.

9Turn the roll back to

remove any slack. Then

align the bottom edge of

the paper with the row of

holes, as shown.

10 Return the paper lever to the locked position,

then close the roll paper cover.

11 Press the Pause button. The paper feeds into the

printing position automatically and READY

appears on the control panel.

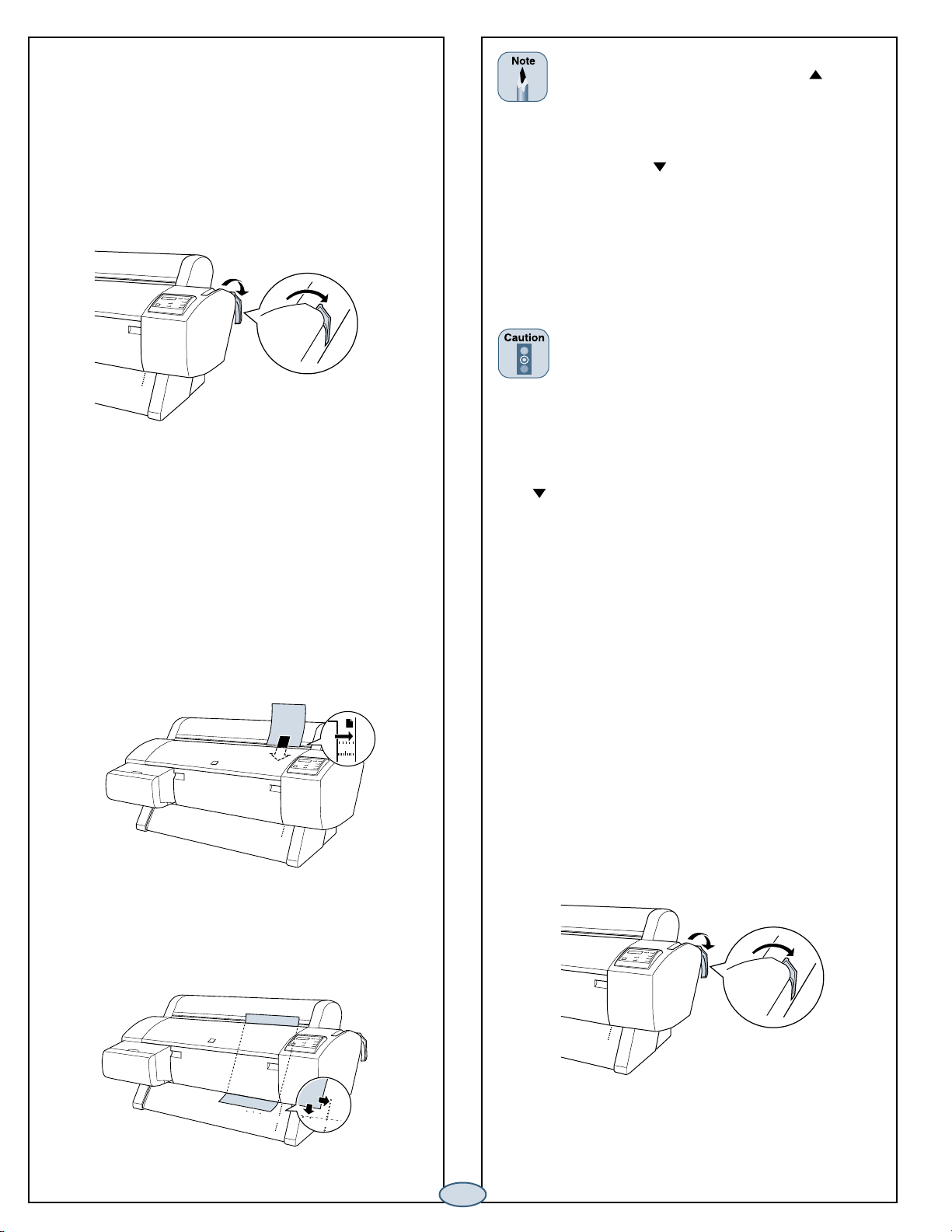

4Feed the sheet into the paper slot. Make sure the

right edge of the paper is straight and aligned

with the scale on the roll paper cover.

For a large sheet of paper, feed it so that it comes

out below. Then align the edges of the sheet with

the rows of holes as shown.

INCH

1Make sure the printer is on and the roll paper

cover is closed.

2Press the Paper Source button until the Sheet

light comes on.

3Push the paper lever back to the released

position.

For heavy paper, you may need to increase

the suction strength by pressing the button.

This helps hold the paper in place during

loading and printing.

For lightweight paper, decrease the suction by

pressing the button.

5Return the paper lever to the locked position.

6Press the Pause button. The sheet feeds into

the printing position automatically and READY

appears on the control panel.

To avoid damaging the printer, never move

the paper lever during printing, or while the

Operate or Pause light is flashing.

7Print your page. After it is finished, the sheet

stays in the printer.

8To remove your print, press the Paper Feed

button.

Printing on Posterboard

When you print on posterboard or other thick media

(more than 19 mil thick), you should open the front cover

before loading as described below.

1Make sure the printer is on and the roll paper

cover is closed.

2Press the Paper Source button until the Sheet

light comes on.

3Push the paper lever back to the released position.

Continue

▲

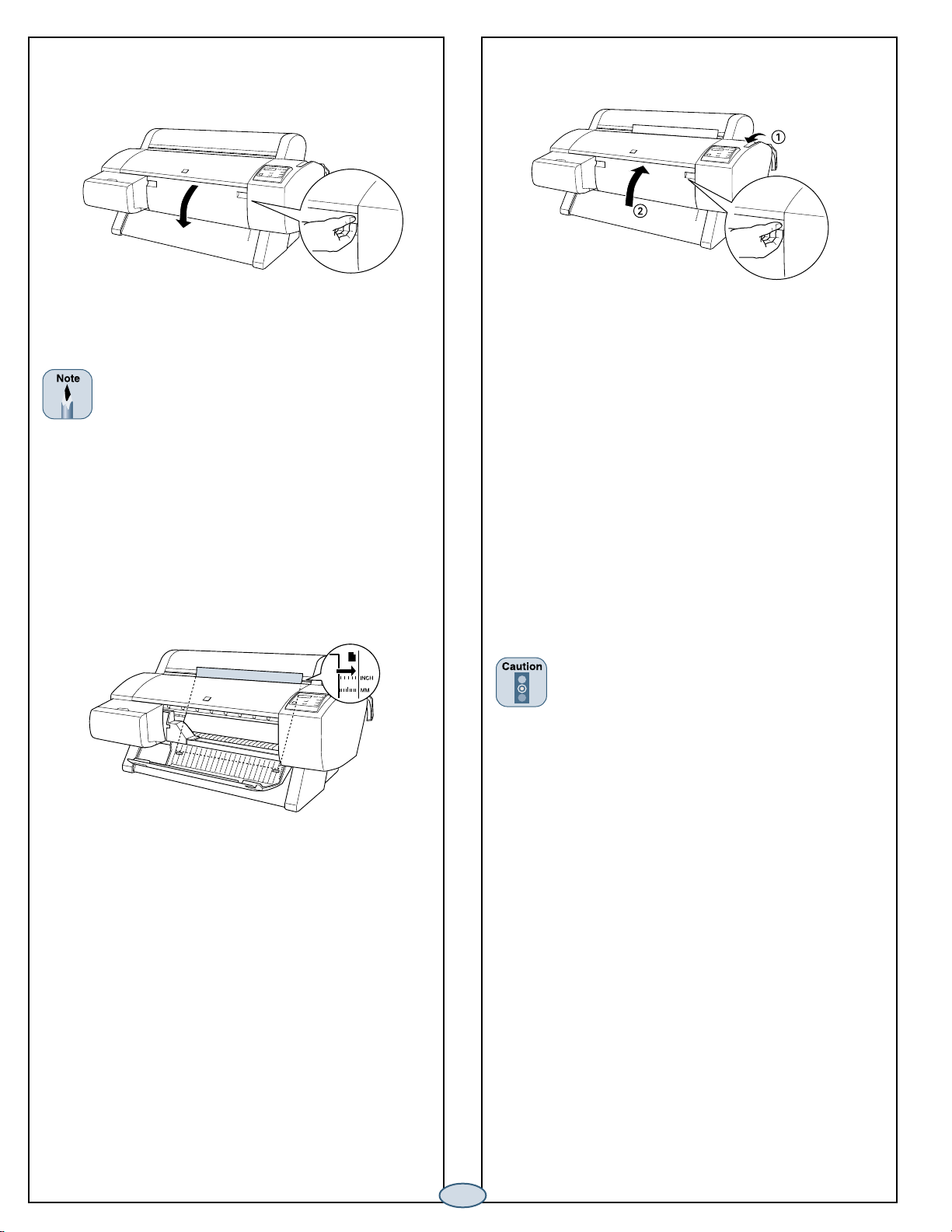

6Align the board with the scale on the roll paper

cover.

4Open the front cover. (The cover has special tabs

that act as paper supports when the cover is

open.)

5Feed the posterboard into the paper slot until it

meets resistance.

If you’re using stock more than 39 inches

long, load it long edge first (in landscape

orientation).

7Return the paper lever to the locked position.

Then close the front cover.

8Press the Pause button. The board feeds into

the printing position automatically and READY

appears on the control panel.

9Run your print job. After it is finished, the

posterboard stays in the printer.

10 To remove the print, hold it and push the paper

lever back to the released position.

To avoid damaging the printer, never move

the paper lever during printing, or while the

Operate or Pause light is flashing.

If you notice banding or missing colors in your printouts,

the print head may need cleaning. First print a nozzle

check pattern to find out the condition of the print head.

Then run a cleaning cycle, if neccessary, and print another

check pattern to test the results.

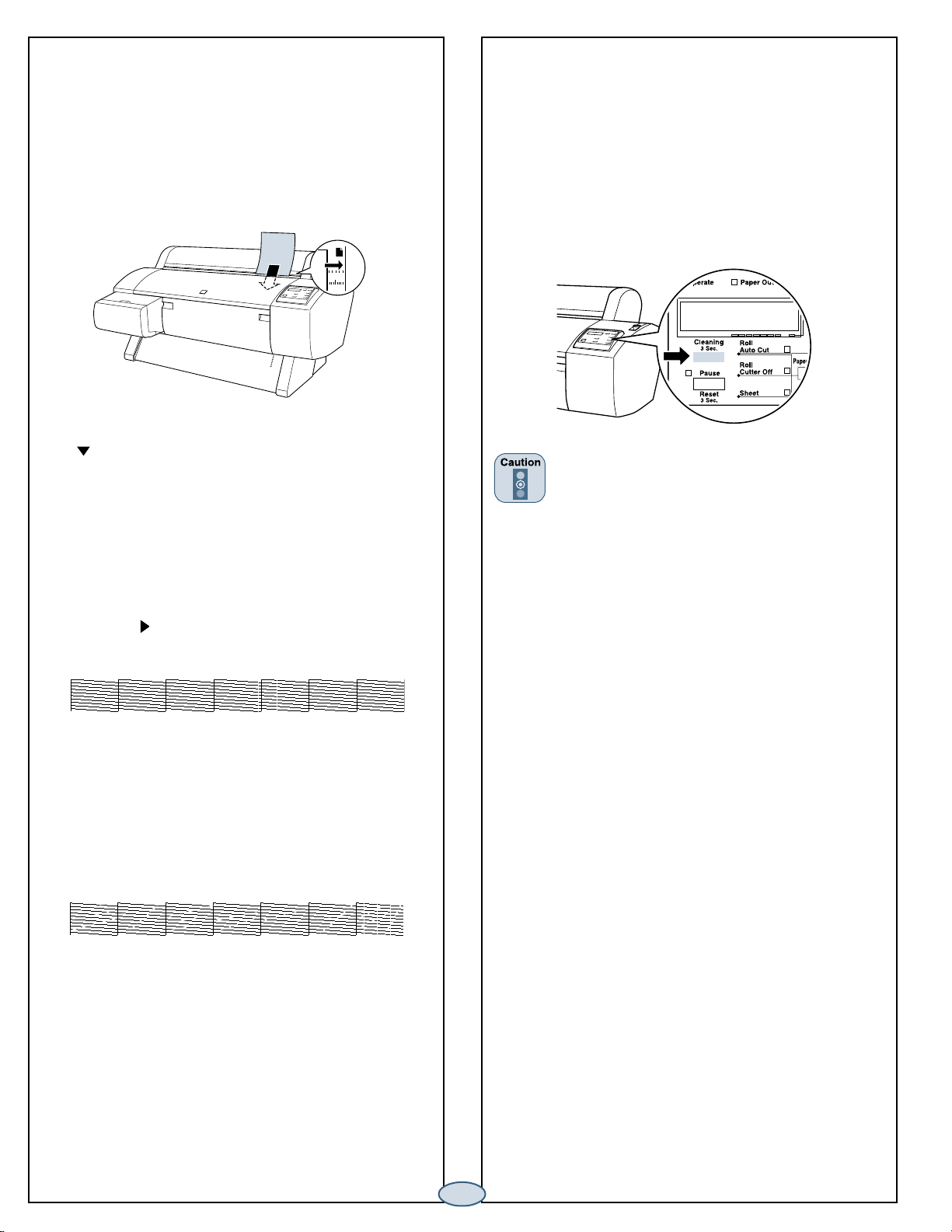

1Load a sheet of coated ink jet paper (or roll paper)

in the printer.

2Press the SelecType button, then press the

button so that TEST PRINT appears on the

display.

INCH

3Press the button twice, then press Enter. The

nozzle check prints as shown:

If all the lines in the nozzle check are complete, with

no missing dots or gaps, the print head doesn’t need

cleaning.

If the pattern is missing dots or lines, as shown below,

you need to run a cleaning cycle.

4Make sure all the Ink Out lights on the printer’s

control panel are off. If an Ink Out light is

flashing or on, you need to replace the

corresponding ink cartridge instead.

5Press the Cleaning button and hold it for at least

3 seconds. The Pause light flashes as the printer

cleans its print head. The cleaning cycle takes

about a minute and does not use any paper.

To avoid damaging the printer, don’t turn it off

until the cleaning cycle is finished and the

Pause light has stopped flashing.

6When the Pause light goes off, follow steps

1 through 3 to run another nozzle check to make

sure the print head is clean.

If You Notice Banding...

If you still see banding after running a cleaning cycle, you

may need to align the print head as described in the

Printer Guide.

Banding can also be caused by selecting the incorrect

paper type in your printer software. Be sure to select the

paper you’re using in the EPSON printer software or in a

third-party RIP. If your paper is not listed, you can use the

printer’s SelecType menu to create a custom paper type

(see “Optimizing the Settings for Your Paper” in the

Printer Guide).

Continue

▲

Before you begin a large print job, you should check

your ink levels. If one of your cartridges is low, you

can replace it before you start. Or you can wait until

the ink runs out, replace the cartridge, and then

continue the job without any loss of print quality.

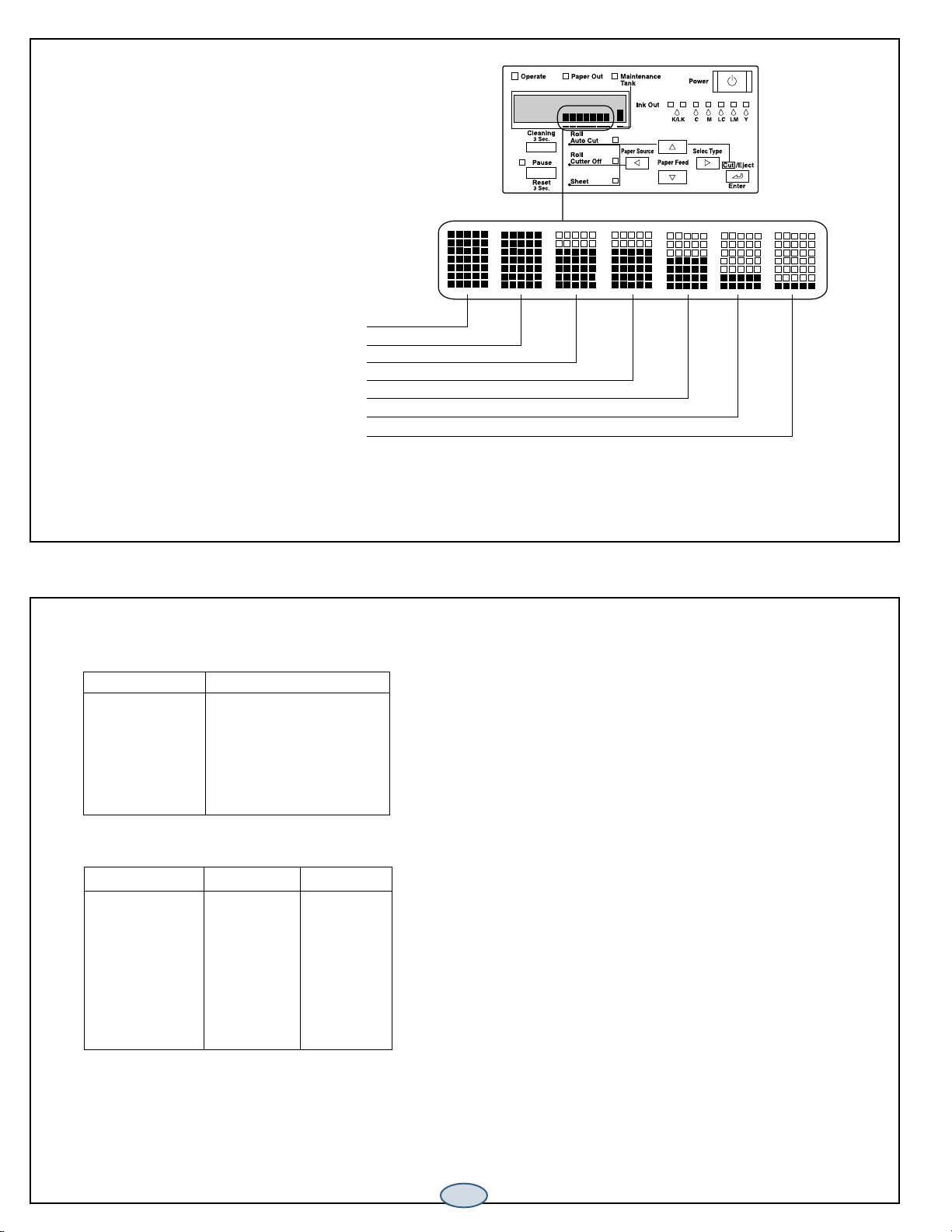

Checking Ink Levels

The easiest way of checking ink levels is from

the control panel.

*If your printer uses EPSON UltraChrome™ ink, the black ink cartridges may be either Photo Black, Matte Black, or Light Black. See

your

Printer Guide

for more information on switching between black print modes.

Replacing Ink Cartridges

When one of the Ink Out lights is flashing and INK LOW is

displayed on the control panel, the corresponding cartridge is

nearly empty. Make sure you have the correct replacement

cartridge.

If you have a Stylus Pro 9600 that uses EPSON UltraChrome

ink, you can install any combination of 110 ml and 220 ml

cartridges. Unless you are planning to switch between black

print modes (see your Printer Guide for details), be sure to

replace the black ink cartridges with the same colors as you are

currently using.

EPSON Photographic Dye™ink

110 ml

Black T545100

Cyan T545200

Magenta T545300

Yellow T545400

Light Cyan T545500

Light Magenta T545600

EPSON UltraChrome ink

110 ml 220 ml

Photo Black T543100 T544100

Cyan T543200 T544200

Magenta T543300 T544300

Yellow T543400 T544400

Light Cyan T543500 T544500

Light Magenta T543600 T544600

Light Black T543700 T544700

Matte Black T543800 T544800

(full) (almost empty)

black*

cyan

magenta

light cyan

light magenta

yellow

When one of the Ink Out lights stays on and INK OUT

is displayed on the control panel, the cartridge is empty.

To replace the cartridge, first make sure the printer is on.

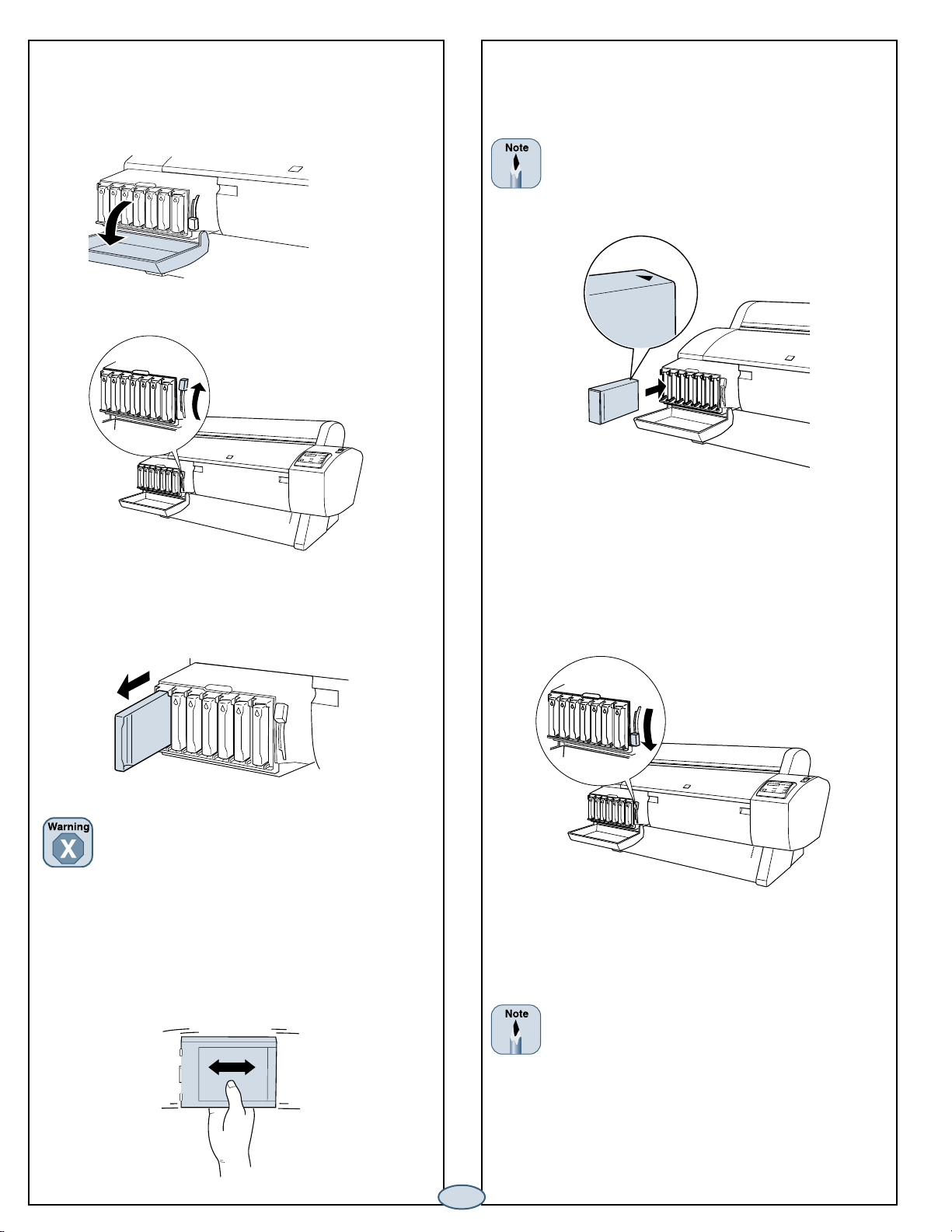

1Open the ink compartment cover.

2Raise the ink lever to the unlocked position.

5Hold the cartridge with the arrow mark pointing

toward the printer. Then insert the cartridge into

the slot. Don’t force it.

If you can’t insert the cartridge smoothly, you

may have the wrong cartridge. Check the

package and product code. If the Ink Out light

remains on after installing the cartridge, it may

not be inserted fully.

3Remove the empty ink cartridge from the printer.

Do not shake the empty cartridge, or ink may

escape. If ink gets on your hands, wash them

thoroughly with soap and water. If ink gets in

your eyes, flush them immediately with water.

4Make sure the replacement cartridge is the correct

color, and remove it from its package.

If you’re using UltraChrome Ink, gently shake the

cartridge before installing it.

6Return the ink lever to its locked position.

7If you’re using 110 ml cartridges, close the ink

compartment cover. If you’re using 220 ml

cartridges, you’ll have to leave the cover open.

If you see the message WRONG INK

CARTRIDGE, you may have loaded an incorrect

black ink cartridge for the black ink mode

you’re currently in, or a cartridge containing

the wrong type of ink for your printer

(Photographic Dye or UltraChrome). Remove

any cartridges indicated by a red light on the

control panel, and replace them with the

correct cartridges.

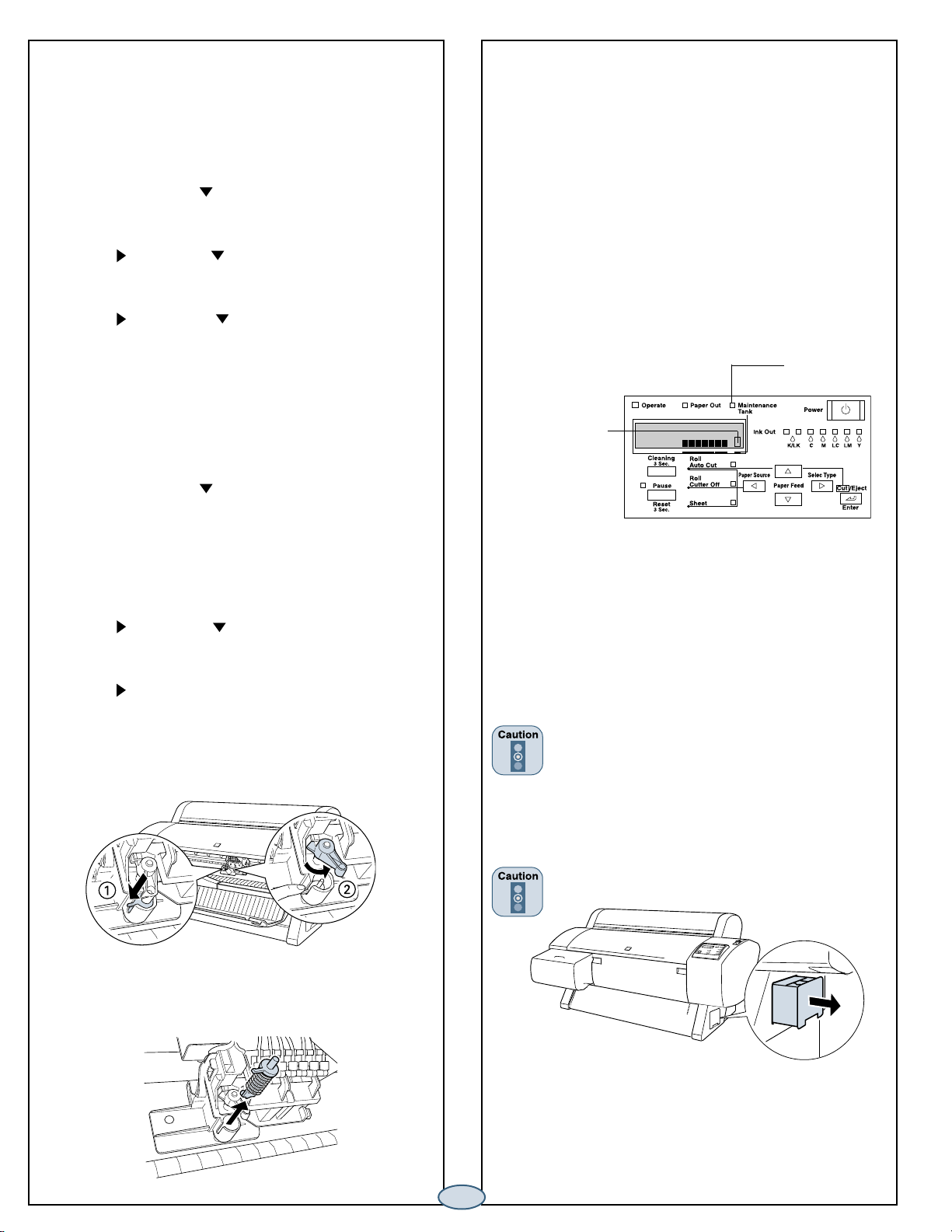

Replacing the Cutter Blade

If you notice that the paper isn’t cut cleanly, you may

need to replace the cutter blade. You can check its status

as described below:

1 Press the SelecType button on the control

panel, then press until you see PRINTER

STATUS.

2Press , then press until you see

SERVICE LIFE.

3 Press , then press until you see CUTTER.

E*****F indicates a new cutter. If no stars are

displayed, the cutter needs to be replaced.

Follow these steps to replace the cutter:

1Press the SelecType button on the control

panel, then press until you see

MAINTENANCE.

2Press , then press until you see

CUTTER REPL.

3Press , then press Enter. The carriage moves to

the cutter replacement position.

4Open the front cover. Hold down the side pin, as

shown, then turn the latch to the right.

5Carefully remove the cutter blade, being careful

not to let the spring fly out.

6Insert the new cutter blade. Hold down its side

pin and secure it with the latch.

7 Close the printer cover. The carriage returns to

the home position and the cutter replacement is

complete.

Replacing the Maintenance Tank

The maintenance tank stores ink that gets flushed from

the system during print head cleaning and other

maintenance procedures. It is time to replace it when the

Maintenance Tank light remains on. You can also check

its status as shown below:

Follow these steps to replace the tank:

Turn on the printer. Wait until READY or

PAPER OUT appears on the control panel.

Make sure the printer is on before you start.

Pull out the maintenance tank from the side of the

printer.

Do not tip the tank, or ink may spill out.

Insert the new tank.

Maintenance

tank indicator

(showing an

empty tank)

Maintenance

tank light

Message Light Explanation or response

READY Operate light on Printer is ready to print.

PRINTING Operate light flashing Printer is receiving data.

RESET All lights flash briefly Printer is resetting.

PRESS PAUSE BUTTON Pause light on Press the Pause button to continue.

WAIT Pause light on Printer is initializing, performing maintenance, or

charging ink.

PAUSE Pause light flashing Printer is paused. To resume printing, press the Pause

button.

Status messages

These messages indicate normal phases of printer operation.

Continue

▲

Message Light Explanation Response

INK LOW Ink Out light(s) flashing Ink cartridge(s) nearly Replace ink cartridge(s) indicated

empty (printing continues). by Ink Out light(s). See page 7.

INK OUT Ink Out light(s) on Ink cartridge(s) empty Replace ink cartridges indicated

(printing stops). by Ink Out light(s). See page 7.

LOAD ROLL PAPER Paper Out light on Paper source setting in Make sure the right paper is loaded

LOAD SHEET PAPER print options is different and the paper source setting is the

from control panel. same on the control panel and print

options.

MAINTENANCE REQ. A maintenance part will Note the error number and contact

<error number> need to be replaced soon. EPSON.

Error messages

For a complete list of error messages, see your Printer Guide.

Where To Get Help

Message Light Explanation Response

PAPER JAM Paper Out light Paper has jammed in the Raise the paper lever and open

flashing printer. the lower cover if necessary. Then

remove the jammed paper, close

the lower cover, and lower the

lever. Turn the printer off and

then back on.

PAPER NOT STRAIGHT Paper Out light on Paper was fed at an angle. Reload paper, making sure the

edges are straight and lined up

with the row of holes.

SERVICE REQ. All lights flashing An error has occurred. Note the error number, and turn

<error number> the printer off and then on. If the

message remains, contact EPSON.

TURN PRINTER PWR OFF This message appears after Turn the printer off and then

AND THEN ON you clear a paper jam. on again.

Error messages (continued)

EPSON and EPSON Stylus are registered trademarks of SEIKO EPSON CORPORATION. EPSON UltraChrome and EPSON Photographic Dye are

trademarks and EPSON Preferred is a service mark of Epson America, Inc.

Service

Telephone support

World Wide Web

Support for non-EPSON RIP

Place your EPSON PreferredSM

Unit ID label here

Access

Call (888) 377-6611. Make sure

you have your Unit ID number.

If you experience any difficulty with the toll-free number or your Unit ID

number, call (562) 276-1305.

Go to http: //support.epson.com to download drivers, access product

documentation and troubleshooting, and get technical advice

through e-mail.

Contact the RIP manufacturer.

Andere Handbücher für Stylus Pro 9600 Photographic Dye Ink

Inhaltsverzeichnis

Andere Epson Drucker Handbücher

Epson

Epson SC-S30600 Bedienungsanleitung

Epson

Epson Stylus C82 Installationsanleitung

Epson

Epson SC-P8550D Series Bedienungsanleitung

Epson

Epson AcuLaser C1000 Bedienungsanleitung

Epson

Epson Stylus Photo 825 Bedienungsanleitung

Epson

Epson Stylus Photo T50 Bedienungsanleitung

Epson

Epson SC-F2000 Series Bedienungsanleitung

Epson

Epson AcuLaser CX17 Series Bedienungsanleitung

Epson

Epson Stylus TX235 Bedienungsanleitung

Epson

Epson F6070 Bedienungsanleitung

Epson

Epson ET-3700 Bedienungsanleitung

Epson

Epson FX 1170 - B/W Dot-matrix Printer Abmessungen

Epson

Epson Stylus Photo 750 Bedienungsanleitung

Epson

Epson WF-5690 Bedienungsanleitung

Epson

Epson Perfection V37 Bedienungsanleitung

Epson

Epson XP-432 Series Bedienungsanleitung

Epson

Epson C414014 - TM L90 Color Thermal Line Printer Bedienungsanleitung

Epson

Epson 2000P - Stylus Photo Color Inkjet Printer Installationsanleitung

Epson

Epson PictureMate Flash - PM 280 - PictureMate Flash Compact Photo... Installations- und Betriebshandbuch

Epson

Epson TM-T20II-i Bedienungsanleitung

Epson

Epson STYLUS PRO XL 4004677 Bedienungsanleitung

Epson

Epson XP-900 Series Bedienungsanleitung

Epson

Epson SQ-2000 Gebrauchs- und Wartungshandbuch

Epson

Epson EX-1000 Bedienungsanleitung

Beliebte Drucker Handbücher anderer Marken

Lexmark

Lexmark 1400 Series Handbuch

Canon

Canon i70 Series Bedienungsanleitung

Evolis

Evolis Elypso Bedienungsanleitung

Kyocera

Kyocera FS-9530DN Bedienungsanleitung

Canon

Canon LASER SHOT LBP-1210 Bedienungsanleitung

Samsung

Samsung BIXOLON SRP-350plusF Bedienungsanleitung

Canon

Canon PIXMA PRO-1 Series Bedienungsanleitung

Canon

Canon PIXMA G3560 Einrichtungshandbuch

Dell

Dell Color Laser Printer 2130cn Bedienungsanleitung

Tektronix

Tektronix Phaser 840 Bedienungsanleitung

Canon

Canon CLBR 460ps Bedienungsanleitung

Eltron

Eltron P210 Guide Bedienungsanleitung

Ricoh

Ricoh MD-P1 Bedienungsanleitung

Canon

Canon imagePASS-A2 Bedienungsanleitung

Canon

Canon S820D Bedienungsanleitung

IRA3D

IRA3D POETRY4 Bedienungsanleitung

Ricoh

Ricoh Aficio AP400 Bedienungsanleitung

BIXOLON

BIXOLON SRP-352plusV Bedienungsanleitung
