Epson SylusScan 2000 Bedienungsanleitung

All in One Product

Printed in Japan

99.XX-X 4010626

XXX-00

SetupGuide SetupGuide

4010626 BK

1-F Rev.0

4010626 PMS327

1-F Rev.0

4010626 DICF43

1-F Rev.0

R4C428_V2

Setup.bk Rev_C

A5 size SETUP.TOC

1/13/00 Pass 0

Proof Sign-off:

K. Nishi, Crestec _______

N. Nomoto _______

K. Pipa _______

Contents

Attaching the Paper Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Plugging in the EPSON Stylus Scan . . . . . . . . . . . . . . . . . . . . . . . 1

Connecting the Stylus Scan to Your Computer . . . . . . . . . . . . . . 2

Using the parallel port (for Windows 98 or 95) . . . . . . . . . 2

Using the USB port (for Windows 98 or Macintosh) . . . . . 3

Installing the Drivers and Other Software on Your PC . . . . . . . 4

For Windows 98 and 95 with a parallel connection . . . . . . 5

For Windows 98 with a USB connection . . . . . . . . . . . . . . . 9

Installing the software in your Macintosh . . . . . . . . . . . . . . 17

Installing the Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Checking the Stylus Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Printing the Nozzle Check Pattern . . . . . . . . . . . . . . . . . . . . 32

Cleaning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

After Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Changing the Connection Port (for Windows 98) . . . . . . . 35

R4C428_V2

Setup.bk Rev_C

A5 size SETUP.TOC

1/13/00 Pass 0

LProof Sign-off:

K. Nishi, Crestec _______

N. Nomoto _______

K. Pipa _______

R4C428_V2

Setup.bk Rev_C

A5 size SETUP.FM

1/13/00 Pass 0

Proof Sign-off:

K. Nishi, Crestec _______

N. Nomoto _______

K. Pipa _______

Attaching the Paper Support

The EPSON Stylus Scan comes with two paper supports.

❏Paper support (gray)

Fit the paper support into the slots at the rear of the Stylus

Scan.

❏Document support (transparent)

Carefully fit the document support into the holes at the rear

of the Stylus Scan.

Plugging in the EPSON Stylus Scan

1. Make sure that the Stylus Scan is turned off. It is off when the

power button protrudes slightly from the surface of the

control panel.

2. Check the label on the back of the Stylus Scan to make sure

the voltage required by the Stylus Scan matches that of the

electricaloutlet you plug it into. Also, make sure that you have

the correct power cable for your power source.

paper support

document support

R4C428_V2

Setup.bk Rev_C

A5 size SETUP.FM

1/13/00 Pass 0

LProof Sign-off:

K. Nishi, Crestec _______

N. Nomoto _______

K. Pipa _______

cCaution:

It is not possible to change the Stylus Scan's voltage. If the

rated voltage and your outlet voltage do not match, contact

your dealer for assistance. Do not plug in the power cord.

3. If the power cord is not attached to the Stylus Scan, connect it

to the AC inlet at the back of the Stylus Scan.

4. Plug the power cord into a properly grounded electrical

outlet.

Connecting the Stylus Scan to Your Computer

Your Stylus Scan has two ports through which it can be connected

to a computer; a parallel port and a USB port. Use the port

appropriate for your computer.

Note:

❏If your computer has both a parallel and USB port, be sure to follow

the correct steps to connect to the desired port.

❏Do not use the Stylus Scan’s parallel port and USB port

simultaneously. Connect the Stylus Scan to one computer at a time.

Using the parallel port (for Windows 98 or 95)

To connect the Stylus Scan to your PC using the parallel port, you

need a shielded, twisted-pair parallel cable. Follow the steps

below to connect your Stylus Scan via the parallel port.

1. Make sure both the Stylus Scan and computer are turned off.

R4C428_V2

Setup.bk Rev_C

A5 size SETUP.FM

1/13/00 Pass 0

Proof Sign-off:

K. Nishi, Crestec _______

N. Nomoto _______

K. Pipa _______

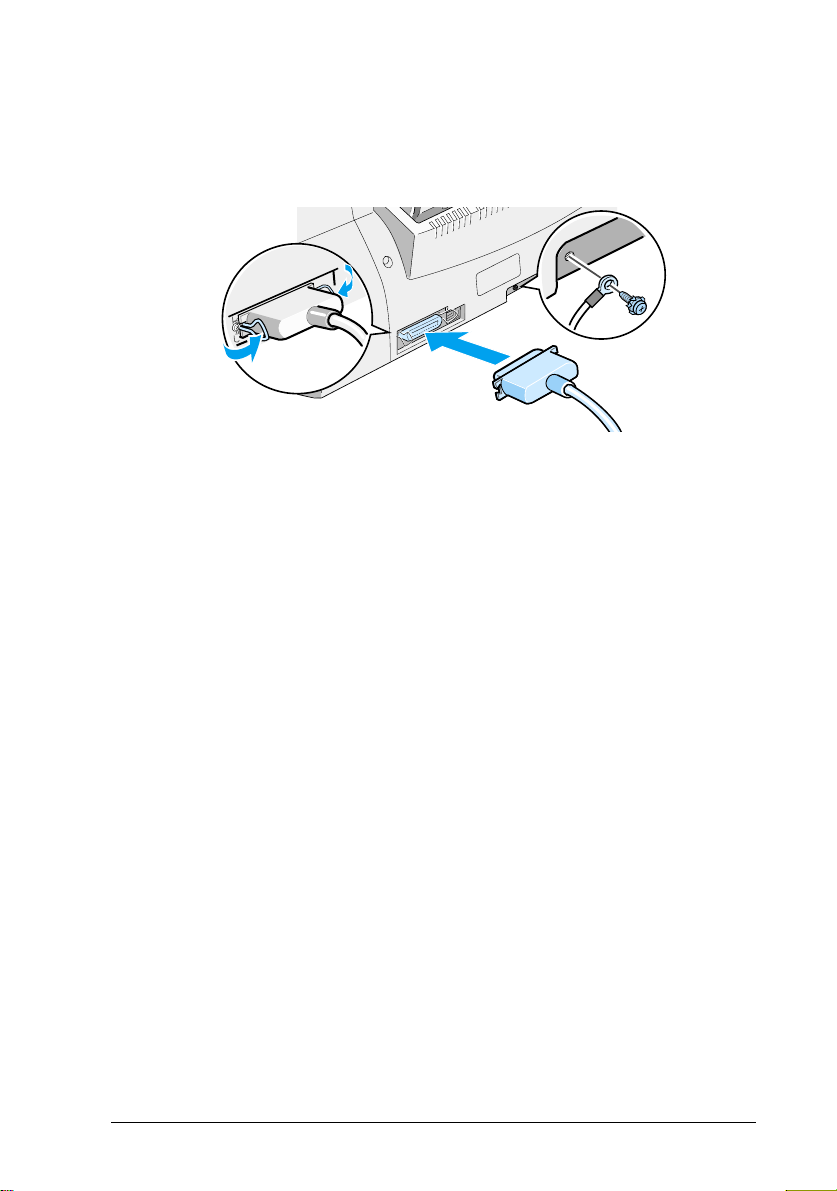

2. Plug the cable connector securely into the parallel interface

connector at the rear of the Stylus Scan. Squeeze the wire clips

together until they lock in place on both sides.

3. Plug the other end of the cable into the computer’s parallel

interface. If there is a ground wire at the computer end of the

cable, connect it to the ground connector at the back of the

computer.

You are now ready to install the Stylus Scan drivers. For

installation instructions, see “For Windows 98 and 95 with a

parallel connection” on page 5.

Using the USB port (for Windows 98 or Macintosh)

To connect the Stylus Scan to your computer using the USB port,

you must first install the Stylus Scan drivers.

See “For Windows 98 with a USB connection” on page 9 to install

the drivers and connect the Stylus Scan to your Windows 98

computer using the USB port.

To install the software and connect the Stylus Scan to your

Macintosh, see “Installing the software in your Macintosh” on

page 17.

R4C428_V2

Setup.bk Rev_C

A5 size SETUP.FM

1/13/00 Pass 0

LProof Sign-off:

K. Nishi, Crestec _______

N. Nomoto _______

K. Pipa _______

Installing the Drivers and Other Software on Your PC

Your Stylus Scan comes with the EPSON Stylus Scan 2000

Software for Windows CD-ROM which includes software for

your Stylus Scan.

To print and scan with your Stylus Scan, you need to install the

following software included on the CD-ROM.

❏EPSON SMART PANEL

Provides easy access to the Stylus Scan’s scanning, printing,

and copying features.

❏EPSON Stylus Scan 2000 Drivers

Printer Driver

Allows you to use the Stylus Scan’s printer function.

EPSON Stylus Scan SF TWAIN

Allows you to use the Stylus Scan’s scanner function.

The included CD-ROM also contains the following software.

❏Acrobat Reader

This software enables you to read the manuals for EPSON

SMART PANEL and WinFAX, or any other files that are in

the Portable Document Format (PDF).

❏WinFax BASIC EDITION

Includes applications that support the Stylus Scan’s fax

features and other special operations.

R4C428_V2

Setup.bk Rev_C

A5 size SETUP.FM

1/13/00 Pass 0

Proof Sign-off:

K. Nishi, Crestec _______

N. Nomoto _______

K. Pipa _______

For Windows 98 and 95 with a parallel connection

After connecting the Stylus Scan to your computer as described

in “Using the parallel port (for Windows 98 or 95)” on page 2,

follow the steps below to install the drivers and other software.

Note for users with a parallel connection:

Before installing the software on your computer, make sure there is no

Stylus Scan driver already installed on your computer. If there is, see

“Uninstalling the parallel driver” on page 36 to uninstall the software

before following the steps below.

1. Turn on the computer and start Windows.

Note:

If you turn on the EPSON Stylus Scan before turning on your PC,

the computer may detect the Stylus Scan and display the New

Hardware Found dialog box or a similar wizard, following start-up.

If this occurs, click the Cancel button to close the dialog box, and

continue with installation as described below.

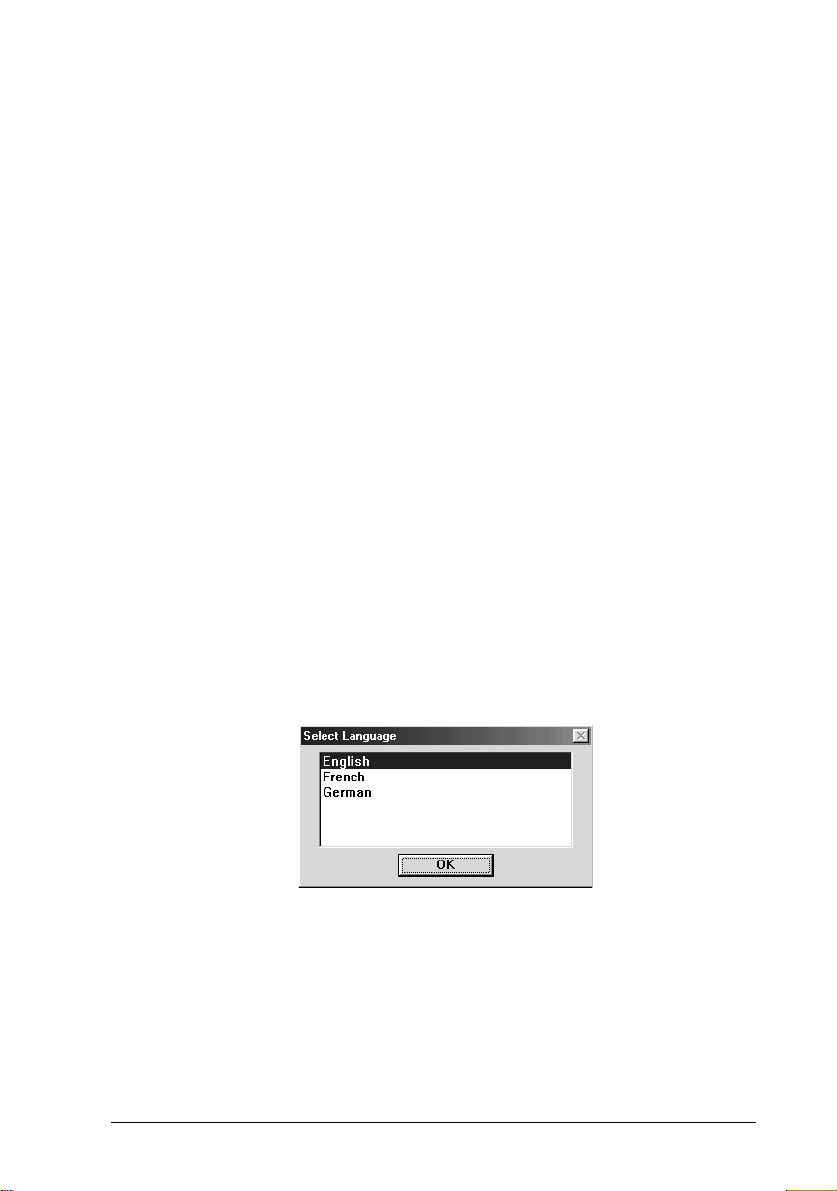

2. Insert the EPSON Stylus Scan 2000 Software for Windows

CD-ROM in the CD-ROM drive. The Select Language dialog

box appears.

3. Select the language you want and click OK.

R4C428_V2

Setup.bk Rev_C

A5 size SETUP.FM

1/13/00 Pass 0

LProof Sign-off:

K. Nishi, Crestec _______

N. Nomoto _______

K. Pipa _______

4. Click the Add Software button.

5. The EPSON Software Setup dialog box appears. Make sure

there is a check mark next to EPSON SMART PANEL and

EPSON Stylus Scan 2000 Drivers. Clear the check marks next

to the names of any software that you do not want to install.

6. Click OK.

7. Follow the on-screen instructions to install EPSON SMART

PANEL.

R4C428_V2

Setup.bk Rev_C

A5 size SETUP.FM

1/13/00 Pass 0

Proof Sign-off:

K. Nishi, Crestec _______

N. Nomoto _______

K. Pipa _______

8. When installation is complete, the EPSON Stylus Scan Setup

dialog box appears. Click Next.

9. In Windows 98, the following dialog box appears. Select LPT

(Printer Port), then click Next to begin installation. (If this

dialog box does not appear, go to the next step.)
