PROFESSIONAL DIGITAL COUNTING SCALE
C - Series
OPERATING MANUAL
INTRODUCTION
Congratulations on your purchase of our Professional Digital Counting Scale.
In order to ensure the scale continues to deliver peak performance, please
read these operation instructions carefully and thoroughly prior to initial usage.
IMPORTANT
1. Read all instructions before operating the scale.
2. Follow the basic safety precautions for all office equipment when using this
scale.
3. The manufacturer does not warrant this unit to be waterproof. Do not
expose this product to rain or moisture.
4. Do not use the scale in direct sunlight. Keep it away from heating
appliances such as an oven, stove, etc.
5. This scale does not contain any user-serviceable parts. Do not
disassemble.
6. Use the scale for its intended purpose only.
Note: The display value may be affected by electromagnetic influences, e.g.
when a radio is operated in the immediate vicinity of the device. The product
can be used for its intended purpose again when the interference is
discontinued, but may need to be switched on again to re-start.
2
PARTS DESCRIPTION
SYMBOLS
1) Insufficient sample size
2) Insufficient unit weight
3) Battery Low
4) Accumulating
M+
Stainless Steel
Scale Platform
Bubble
Leveler
Weight
Display
Unit
Weight
Display Total Pcs
Display Numeric and
Function Keys
Cancel Upper
& Lower Limit
Unit Weight
Recall
Rechargeable
Battery Door
Power On/off
Switch
AC Socket Level Adjusting
feet Upper &
Lower Limit
Setting
Unit Weight
Setting
3
5) Cancel Accumulating MC
OPERATION
LEVEL THE SCALE
When the scale is put to use at a new place, adjust the level of the scale by turning the 4
level adjusting feet until the bubble is located in the middle position of the bubble.leveler.
ACTIVATING THE SCALE
1. Turn on the “power on/off switch”
2. All LCD displays will light up and display 9,8,7,6,5,4,3,2,1,0,A,B,C,D,E,F in turn until
the LCD displays as shown :
SET UP UNIT WEIGHT
Example : 4 pcs of pencil :
(A). Unit weight of item is unknown
1. Turn on the scale.
2. Place the samples on the platform and the exact weight of samples will be displayed.
3. Input the quantity of the samples, Then press “SET UNIT” key,
Remark: the unit weight will be stored in the scale and can be recalled by
pressing the “UNIT WGT” key.
4
(B). Unit weight of item is known
1. Turn on the scale.
2. Input the unit weight of the samples.
3. Press “UNIT WGT” key. The unit weight of the sample is stored in the scale.
COUNTING
1. The scale is powered on
2. Put objects on the scale platform
3. Press “UNIT WGT” key.
4. The quantity of the objects will be shown on the TOTAL (PCS) display.

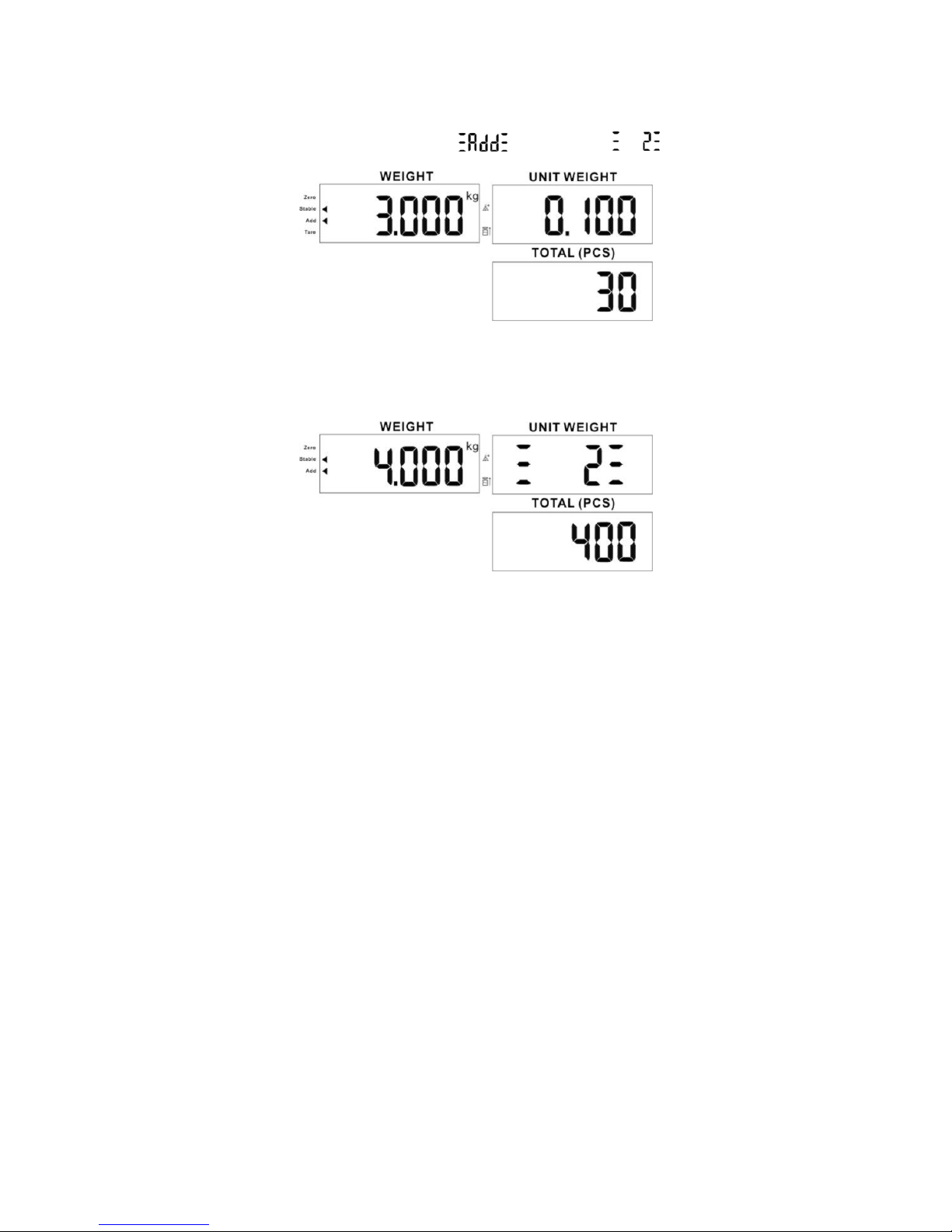

ACCUMULATE COUNTING:
1. Repeat COUNTING procedures above (1) to (4).
2. Press “M+” key.
3. The ‘UNIT WEIGHT” display will show followed by .
4. After 2 seconds, the scale will return to the counting model
5
5. Take off the first samples and put the second samples (e.g. 30 pcs) on the scale
platform.
6. Press “M+” key.
7. The ‘UNIT WEIGHT” display will show followed by .
8. Repeat the procedures until all the samples are counted.
9. Press “ZERO” key and “CE”, to clear the “WEIGHT” and “UNIT WEIGHT” display.
10. The total accumulated quantity will be displayed by pressing “M+” key.
11. Press “MC” key to cancel the accumulated quantity.
WEIGHT ACCUMULATING
1. When the “UNIT WEIGHT” display shows 0, place samples on the scale platform.
2. Press “M+” key. The weight will be stored.
3. Take off the first samples from the scale and put the second samples on the scale
platform.
4. Repeat procedure (2) until all the samples are weighted.
5. To recall the accumulated weight, press “M+” key when “WEIGHT” and “UNIT
WEIGHT” display show “0”.
6. Cancel the accumulated weight by pressing the “MC” key.
SELECTING WEIGHT UNIT
When the scale is power on, press the “KG/LB” key repeatedly to change weight unit
according to following sequence:
kg --- g --- lb
Displays 3 modes, e.g. “kg” mode F1.500kg
“g”modeF1500g
“lb” mode F3.32lb
6
UPPER AND LOWER QUANTITY LIMIT SETTING
1. Turn the scale on.
2. Press “PRESET QTY” key, the 3 LCD will show as below.
3. Input the upper limit quantity in the “UNIT WEIGHT” display. Then press “M+” key to
confirm.
4. Input the lower limit quantity in the “TOTAL (PCS)” display. Then press “M+” key to
confirm.
5. Place the samples on the scale platform. When the quantity arrives at the upper limit,
the scale will alarm with a beep sound. The “WEIGHT” display will show the weight,
the “UNIT WEIGHT” display will show .
6. If the quantity of the sample is below the lower limit, scale will alarm with beep, beep
sound. The “WEIGHT” display will show the weight, the “UNIT WEIGHT” display will
show .
7. The upper & Lower quantity limit can be cancelled by pressing the “CANCEL
PRESET” key.
USING THE TARE MODE:
1. Turn the scale on.
2. “0.000” will be shown on the “Weight” display after a few seconds.
3. Place an item on the weighing platform and read the value accordingly.
4. Press the “TARE” key, the weight of this item will be eliminated and the reading will
change to “0.000”.
5. Place next item on the weighing platform and get the reading.
Note: The scale will display a negative reading when you remove all items. Press the
“TARE” or “ZERO” key once and the negative reading will disappear.
OVERLOAD
When the loading capacity exceeds the maximum capacity of the Digital Scale, the word
“O_Ld” will be displayed on the “Weight” LCD screen. Remove the item(s) from the scale
platform to avoid damage to the scale.
EL BACK-LIGHT
The EL Back-light will automatically light up when the scale is in operation. It will turn-off
automatically when the scale is idle..
POWER OFF
The scale can be powered off manually by pressing the “On/Off” switch.
7
BATTERY STATUS
When the battery is low, a symbol will be displayed. Recharge the
battery by plugging the AC cable to the AC main.
MAINTENANCE
Clean with a soft cloth. Do not immerse directly into water or detergent, scrub
with abrasive material or use corrosive cleanser.
TECHNICAL SPECIFICATIONS
Model No. C136 C3315 C6630
Maximum Capacity 6kg / 13lb 15kg / 33 lb 30kg / 66lb
Graduation 0.5g / 0.1oz 1g / 0.1oz 2g / 0.1oz
Minimum sample weight 20d
Minimum unit weight 0.2d
Operating Temperature 0°C ~ +40°C
Power Source 6V 4AH Rechargeable Battery with AC cable
Remark : d= graduation
