EZA1240 eZ.HD Series

1080p FHD IP66 IR Bullet Camera

User’s Manual

Release Date: April, 2019

All the images including product pictures or screen shots in this document are for example

only. The images may vary depending on the product and software version. Information

contained in this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

1. Introduction

EverFocus eZ.HD series cameras – EZA1240 deliver 1080p full HD image quality.

The model provides 3.6mm fixed lens with ICR. Featured with Digital Wide

Dynamic Range (D-WDR), the camera can provide clear images even under

backlight circumstances where intensity of illumination can vary excessively.

The EZA1240 supports both NTSC and PAL scanning systems and is IP66

certified.

1.1 Packing List

Camera x 1

Mounting Sticker x 1

L-Type Wrench x 1

Screw & Screw Anchor x 3

User Manual x 1

1.2 Features

Equipped with 1080p Full HD CMOS sensor to deliver stunning image

quality

3.6mm fixed lens with ICR to capture the desired field of view

Extended IR range of up to 25m / 82ft. with 20 LEDs (depends on scene

IR reflectivity)

D-WDR to improve the visibility under high contrast scene

The flexible angle viewing with its 3-Axis rotation design allows wall or

ceiling mounting

IP66-rated with metal housing

Supports UTC function: Control camera OSD settings directly from DVR

end

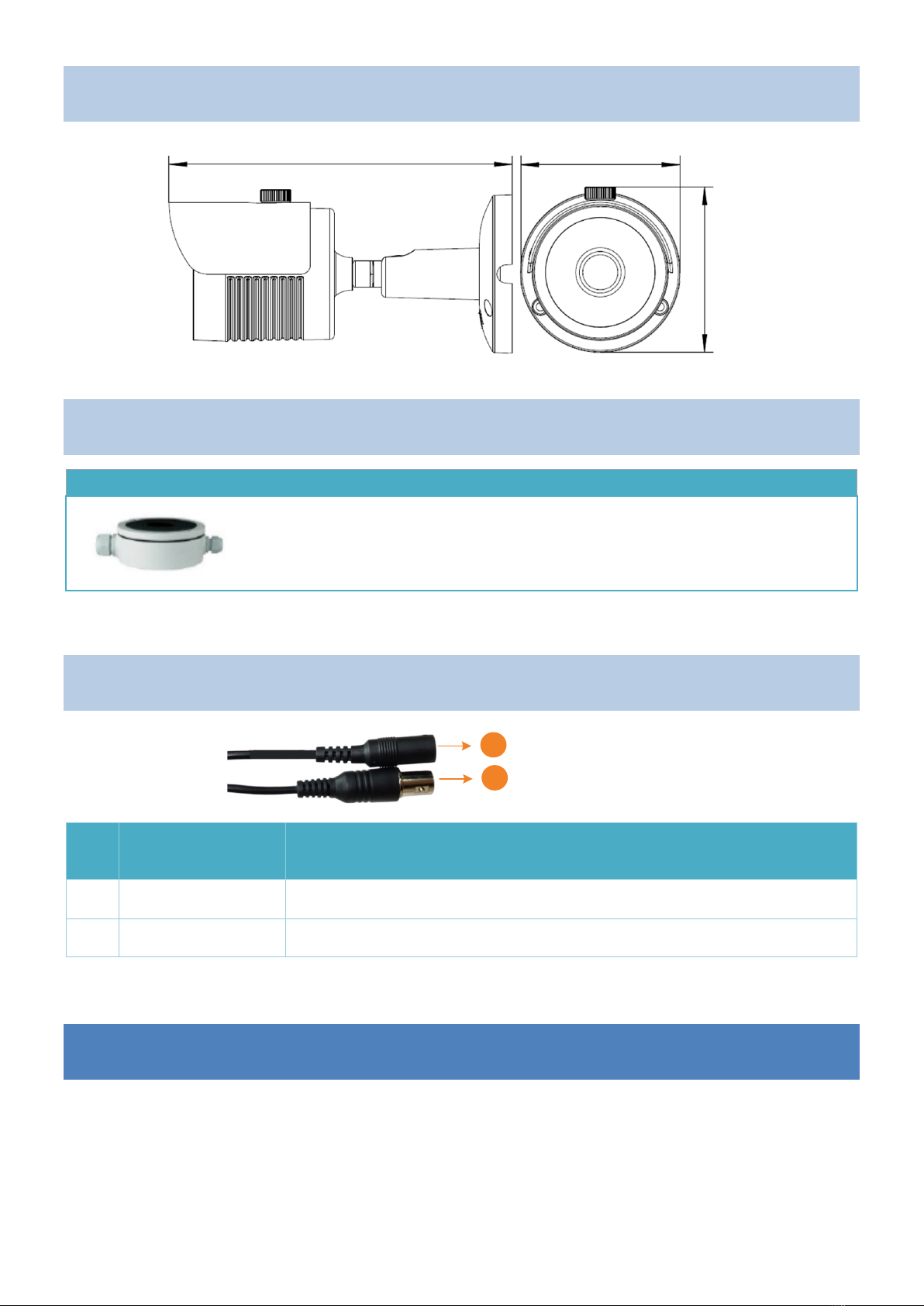

1.3 Dimensions

70mm / 2.76"

157mm / 6.18" 66mm / 2.6"

1.4 Optional Accessory

BA-E310

Color / Material: White / Metal

Size (Φx H): 101 x 52mm / 3.98”x 2”

Weight: 540g / 1.2lb

1.5 Cable Description

Power Cable

Video Output Cable

No. Name Descriptions

1 Power Cable Connects to a 12VDC power source.

2 Video Output 1080p output, using 75 Ohm BNC-type coaxial cable.

2. Installation

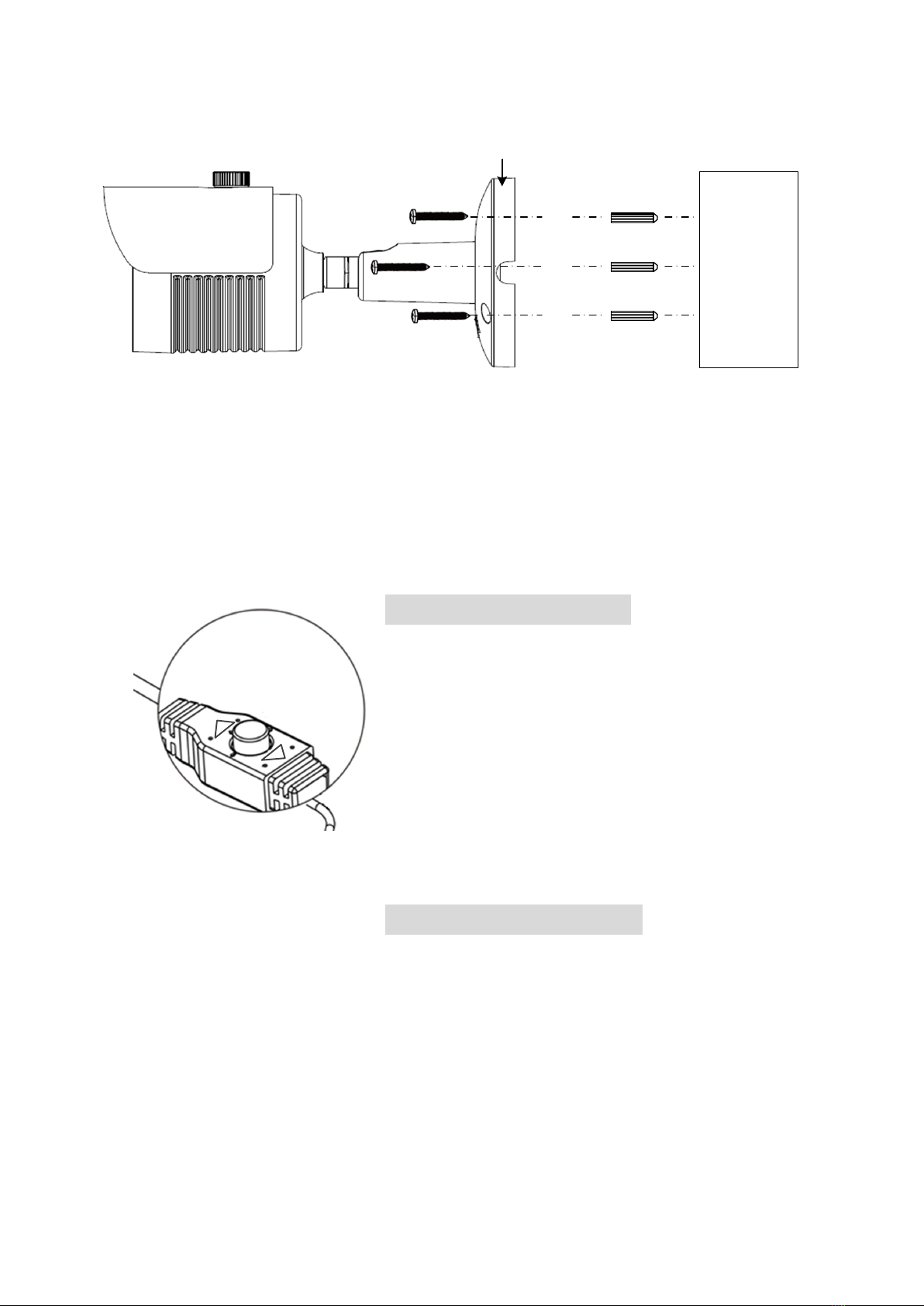

1. Stick the supplied Mounting Sticker to the surface to mark the 3 screw

positions. Drill 3 holes on the surface and insert the supplied 3 Screw

Anchors into the screw holes. If you want to run the cable through the

surface, drill a hole within the 3 screw area.

2. To mount the camera to the surface, screw the Camera Base to the surface

using the supplied 3 Screws.

Mounting

Surface

Screws Screw Anchors

Camera Base

3. Connect the Power Cable to a 12VDC power source. Connect the Video

Output Cable to a monitor or DVR.

4. You can use the Joystick on the cable to configure camera OSD settings or

switch to different video formats. Remove the Protection Cap from the

Joystick before using it.

Switching Video Format:

•Push the joystick up for 5 sec. to switch to

AHD.

•Push the joystick right for 5 sec. to switch

to TVI.

•Push the joystick down for 5 sec. to switch

to CVI.

•Push the joystick left for 5 sec. to switch to

CVBS.

Configuring OSD Settings:

•Push the Joystick up / down to select

among menu items.

•Push the Joystick left / right to adjust the

level of the selected item.

•Press the Joystick to enter the submenu or

exit the OSD Setup Menu.

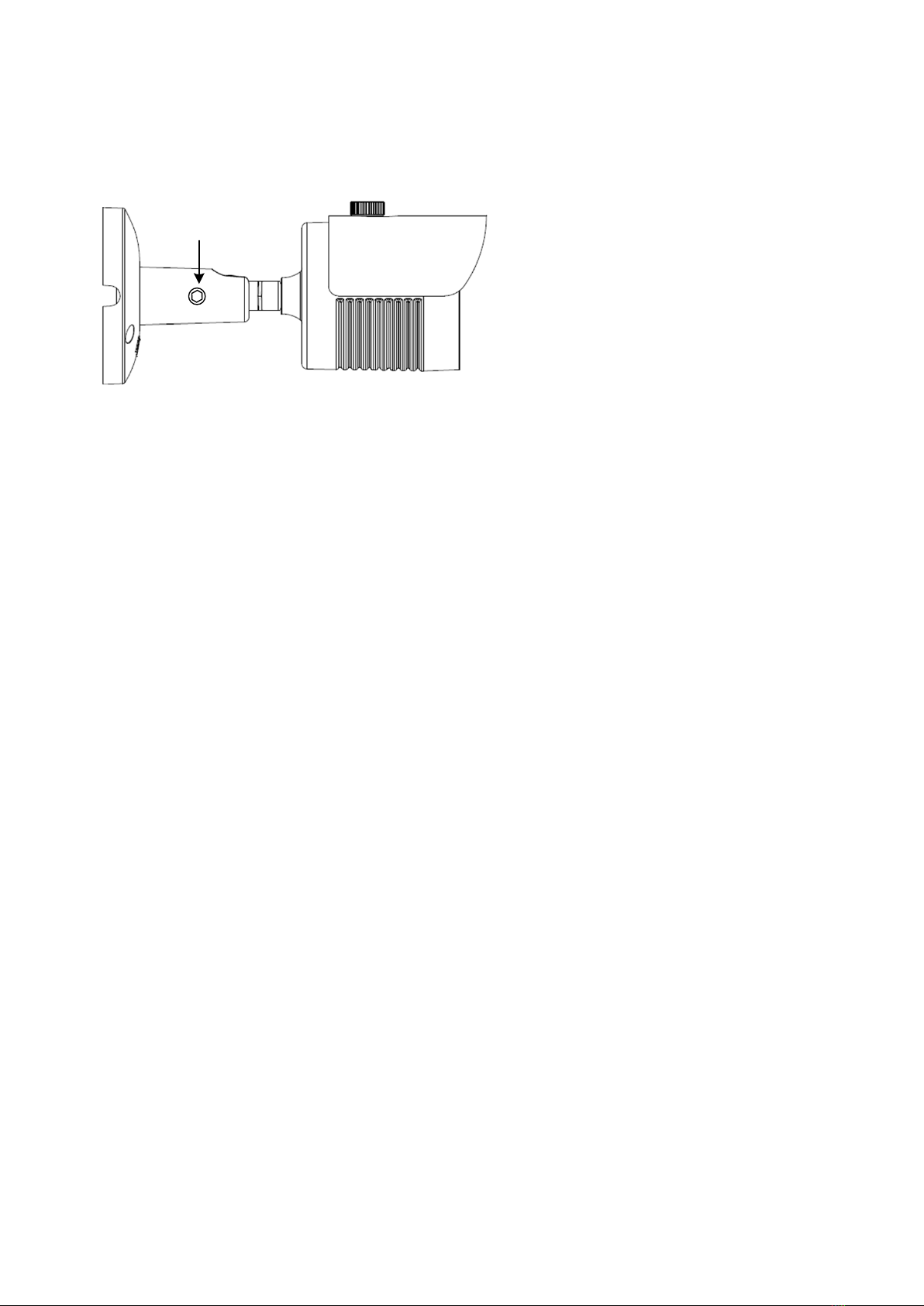

5. You can optionally adjust camera angles. To do so, loosen the Rotate Screw

on the bracket using the supplied L-Type Wrench to adjust camera angles.

After adjusting camera angles, tightly screw back the Rotate screw.

Rotate Screw

3. Configuration in the OSD Menu

Main

Sub Menu

Sub Menu / Function

1 AE

Brightness

0-100

Exposure

Mode

Global

Center

FLC

BLC

0-7

Return

2 AWB Mode

ATW

Gray World

MWB

R Gain

0-63

B Gain

0-63

Return

3 Day/Night Mode

Auto

Gain Day/Night

Low/Middle/High

Gain Night/Day

Low/Middle/High

Color

B/W

Return

4 Image

Enhance

Contrast

Auto/Manual

0-20

Sharpness

Auto/Manual

0-20

Saturation

Auto/Manual

0-20

3DNR

Auto/Manual

0-20

2DNR

Auto/Manual

0-20

DWDR

Close/Open

Return

5 Video

Setting

AHD

1080P25/1080P30/720P25/720P30

TVI

1080P25/1080P30/720P25/720P30

CVI

1080P25/1080P30/720P25/720P30

CVBS

PAL/NTSC

Apply & Reboot

Return

Language

ENG/CHN/CHN(T)/RUS/SPA/FRA/POL/ITA/POR/JAP/KOR/GRE

7 Function

Privacy

Mode

On/Off

Area 0-3

Display

On/Off

X Position Start

0-100

Y Position Start

0-100

Width

0-100

Height

0-100

Return

Color

Red/Green/Blue

Transparency

On/Off

Return

Motion

Mode

On/Off

Area 0-3

Display

On/Off

X Position Start

0-100

Y Position Start

0-100

Width

0-100

Height

0-100

Return

Color

Red/Green/Blue

Transparency

On/Off

Return

Version

Reset

Save & Exit

Exit
