EverFocus 350HQ Bedienungsanleitung

User’s Manual

and

Operation Instructions

Notice

This manual is presented to the users of EZ series by EverFocus Electronics

Corp. With years of engineering researches, EverFocus has spared no effort

to provide the high quality products to the worldwide users. For the policy

of continual product improvement, EverFocus reserves the right to make

changes to the product specifications and documentation without notice.

All the components of the products, including accessories, components, and

outlook, are based on the agreements of each deals to satisfy all kinds of

users. Meanwhile, please be advised that every step of operation must

follow the instruction of this manual to keep EZ series working under the

best condition. Please notice that EverFocus will not be charged any claims

or renewing cases resulted from inappropriate operation.

Table of Contents

Safety Warning …………………………………….. 1

Introduction………………………………………….2

Specification…………………………………………3

Major Parts Names…..………………………………4

Installation Instructions………………………….… ..5

Settings……………………………………………….7

Simple Instructions for the desiccant pack…………. 10

1. Handle the camera with care.

Be careful when handling the camera, do not drop it or subject

it to strong shock or vibration to prevent any damages to it. Do

not disassemble it or place it on an unstable base.

2. Do not install the camera near electric or magnetic fields.

Installed the camera away from TV, radio transmitter, magnet,

electric motor, transformer, audio speakers because the

magnetic fields generate from above devices will distort the

video image.

3.Do not install the camera in the high temperature environment.

Installed the camera away from stoves, or other heat generating

devices as the high temperature could cause deformation,

discoloration or other damages of the camera.

Install the camera at where the temperature range will stay

between -40℃~ +50℃.

4. Never face the camera toward the sun.

Never aim the camera at the sun or other extremely bright objects

whether it is in use or not.

5.Cleaning

Do not touch the surface of CCD sensor by hand directly. Use a soft

cloth to remove the dirt from the camera body. Use lens tissue or a

cotton tipped applicator and ethanol to clean the CCD sensor and the

camera lens. When the camera is not in use, put the cover cap on the

lens mount.

Safety Warning

The new EZ series offers great performance in 1/3”image format color

CCD camera. The EZ series is ideal for outdoor applications such as

parking lots, gas stations or shopping malls. The sophisticated circuit

design provides a heater that turns on at 10℃for cold weather. The EZ

series will provide protection against the elements and provide an excellent

quality picture.

Main Features :

?? High Resolution: 520 TV Lines.

?? Built-in Aspherical vari-focal lens for versatile application.

?? Designed with sturdy aluminum shell specifically for outdoor

surveillance.

?? Removable sun shield.

?? The heater allows the camera to be used in extremely low temperature

to -40°C.

Introduction

Model 350HQ 550EX

Pickup device:

”

interline transfer CCD

Picture element: NTSC: 768(H) x 494(V)

PAL: 752(H) x 582(V)

Horizontal resolution:

520

TV Lines

Sensitivity: 0.5lux/F=1.2;

1.43lux/F=1.6 1.0lux color, 0.15lux

monochrome/F=1.2

Video output:

1.0Vp

p, 75 ohm

Lens focal length: Vari-focal lens f=3.8~9.5mm /

Vari-focal lens f=3.7~12mm

Gamma Correction:

>0.45

S/N ration:

Over 48db

Back light Comp.: On/Off switch

Auto gain control:

On/Off switch

Flickerless:

On/Off switch

Line Lock:

On/Off switch

Sync. Mode:

Internal Sync.

Weather proof rate IP 66

Power source:

DC12V/AC24V

Power Consumption:

W max

, 15W when heater is active

Dimension: 83(W) x70(H) x172.5(L) mm

Operating

temperature: -40℃~ +50℃,20~80%

Specification

Mounting

Base

Swivel

Screw

Assembly

Screw

Sun Shield

Cover

Back Fixing Plate

Mounting

Base

Swivel

Screw

Assembly

Screw

Sun Shield

Cover

Back Fixing Plate

Major Parts Names and Their Functions

Fixing Screw Front

Fixing Plate

Fixing Screw Front

Fixing Plate

Mounting Bracket

O-ring Seal

Heater

Lens

Focus Zoom

IRIS ALC/Level Adjustment

Control Switch Mounting Bracket

O-ring Seal

Heater

Lens

Focus Zoom

IRIS ALC/Level Adjustment

Control Switch

Set-Screw

1. Using the supplied screws, mount the bracket base on the desired

location.

2. Connect the BNC connector of the camera to a monitor or other video

device through a 75 ohm type coaxial cable with BNC female connector

at cable extension.

3. Connect the AC24V or DC12V regulated power source of the camera

(power jack) to the power-in jack with 2mm plug. For DC12V power

source, please make sure the power plug is center+ outer-for heater

normal operation.

4. If the factory settings out of focus, or any other adjustment is required,

follow the procedures below.

a. Remove the fixing screw in the front,which hold the sun shield

cover. Remove the sun shield cover.

b. Twist open and carefully remove the housing cover.

(Please pay attention to prevent damage to the “O”-Ring seal.)

c. Loosen the focal lens and focus locking screws.

d. Adjust the lens to bring the subject into focus.

(Caution: Heater elements could be hot! When camera power is on,

use caution when adjusting the camera.)

e. Retighten the screws.

f. Please refer to the Settings section for the details of the other

adjustments. Adjust accordingly if necessary.

Installation Instructions

g. When all the adjustments and settings are completed, overlaying the

cover gently. Be careful not to damage to the “O”-Ring and camera

components.

h. To reassemble the sun shield, match the hole on the sun shield to

the back fixing plate of camera, Fix the screw on the front fixing plate.

Make sure the wider side of the fixing plate holdsthe edge of the

camera well.

5. Attach the camera onto the mounting bracket.

6. Loosen the swivel screw and point the camera to the desired direction.

7. Tighten the swivel screw. To strengthen the fixing power of the swivel

screw, tighten the set-screw with the set-screw wrench. (supplied)

Notes:

(A) Make wiring connections only after it has been determined that

power has been disconnected.

(A) There is a desiccant pack attached to the housing base under the

camera which is designed to absorb any moisture trapped inside the

housing during adjustment. To avoid excessive moisture build up,

it is recommended that the camera not be installed in rainy or

excessively damp conditions. It is also advisable to limit the

number of times the housing cover is removed. The desiccant pack

can be replaced if condensation develops inside the housing.

The camera is set up at factory and normally requires no adjustments.

Sometimes, however, adjustments may be necessary. Please refer to the

following description for the function details.

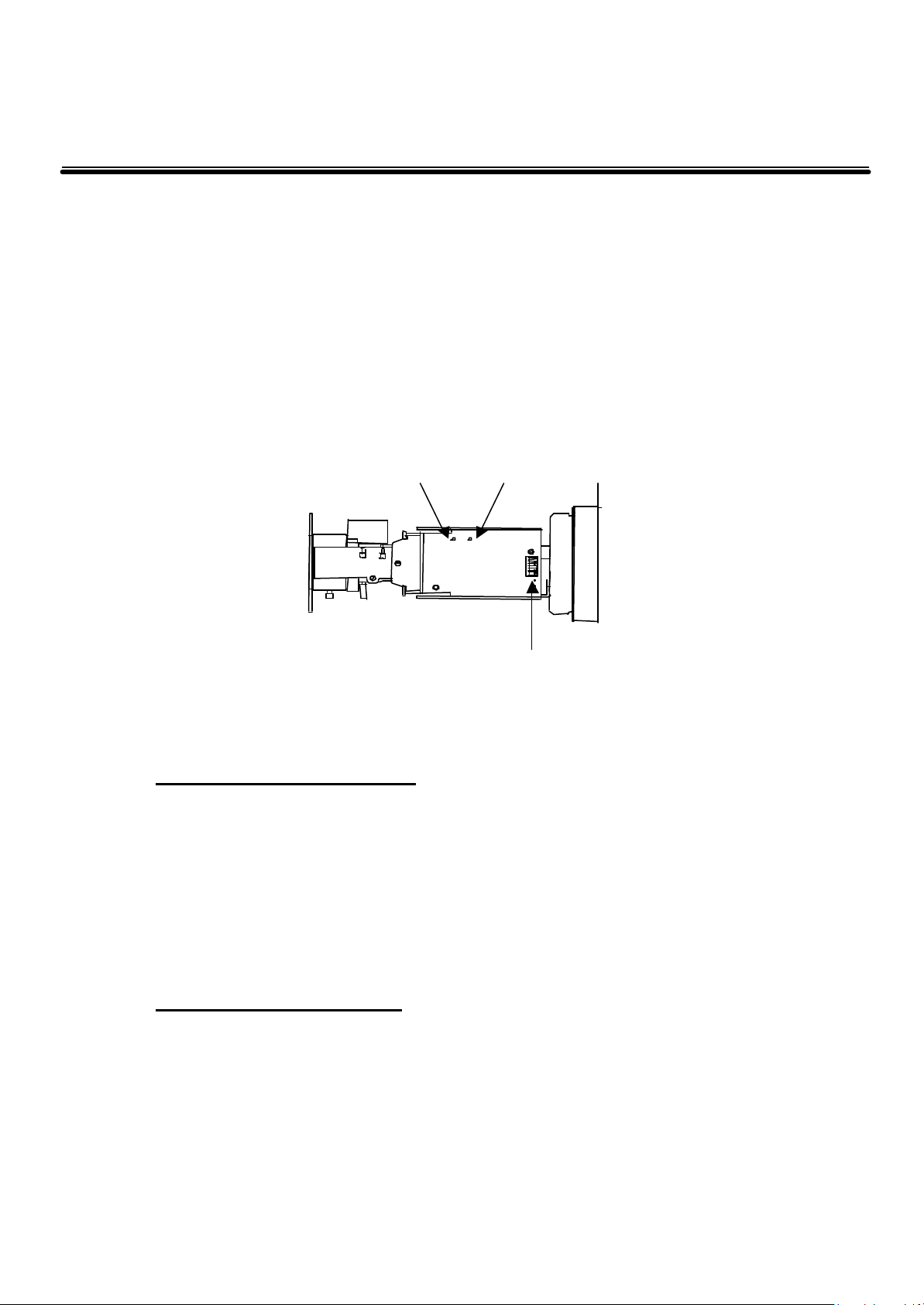

??The IRIS ALC and IRIS Level adjustments are located on the side

circuit board, use a screwdriver to adjust if it’s necessary.

IRIS Level Adjustment

To adjust brightness level –

?? Turn the IRIS Level Adjustment VR counterclockwise to get darker

picture.

?? Turn the IRIS level adjustment VR clockwise to get brighter picture.

IRIS ALC Adjustment

To select light metering method –

?? Turn the IRIS ALC Adjustment VR counterclockwise for Average

Metering.

?? Turn the IRIS ALC Adjustment VR clockwise for Peak Metering.

Settings

IRIS ALC

Adjustment

IRIS Level

Adjustment

Control Switches
