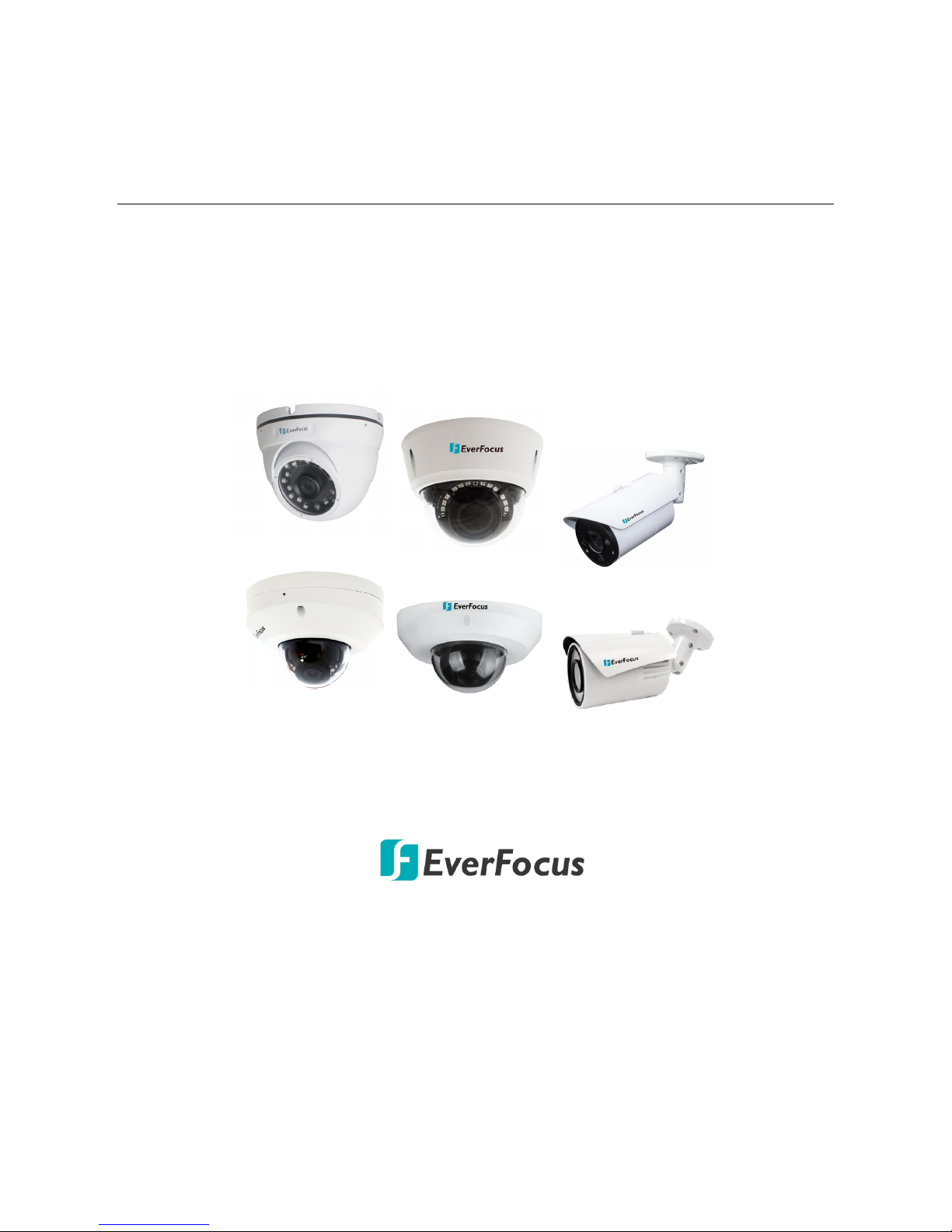

EverFocus EBN288 Bedienungsanleitung

Value IP Series Outdoor Network Camera

2-Megapixel 288 Series / 3-Megapixel 368 Series / 4-Megapixel 468 Series

Quick Installation Guide

EBN288/368/468

EDN288M/368M/468M

EMN468W EZN288/368/468

EMN468

EZN288M/368M/468M

Release Date: November, 2017

All the images including product pictures or screen shots in this document are for example only. The images may vary

depending on the product and software version. Information contained in this document is subject to change without notice.

Value IP 288 / 368 / 468 Series

1. Physical Description

EBN288/368/468 EDN288M/368M/468M

No. Item Name Descriptions

1Light Sensor Detects lights.

2Lens Lens.

3IR LEDs IR LEDs for infrared illumination in night vision applications.

4Micro SD/SDHC/SDXC Slot

Insert a micro SD/SDHC/SDXC card. Please go to the web page of

the IP camera to see the latest Storage Compatibility

List. http://www.everfocus.com.tw

5Reset Button Press the button to restore the camera to factory default.

EMN468 EMN468W

No. Item Name Descriptions

1Light Sensor Detects lights.

2Lens Lens.

3Video Test Output Connects to a monitor.

4Micro SD/SDHC/SDXC Slot

Insert a micro SD/SDHC/SDXC card. Please go to the web page of

the IP camera to see the latest Storage Compatibility

List. http://www.everfocus.com.tw

5IR LEDs IR LEDs for infrared illumination in night vision applications.

6Reset Button Press the button to restore the camera to factory default.

Value IP 288 / 368 / 468 Series

EZN288/368/468

IR LED

Light Sensor

Lens

1Sunshield

6Micro SD/SDHC/SDXC Card Slot

5Reset Button

No. Item Name Descriptions

1Sunshield Protect the camera from the direct rays of the sun.

2IR LEDs IR LEDs for infrared illumination in night vision applications.

3Light Sensor Detects lights.

4Lens Fixed lens.

5Reset Button Press the button to restore the camera to factory default.

6Micro SD/SDHC/SDXC Slot

Insert a micro SD/SDHC/SDXC card. Please go to the web page of

the IP camera to see the latest Storage Compatibility

List. http://www.everfocus.com.tw

EZN288M/368M/468M

4Sunshield

No. Item Name Descriptions

1IR LEDs IR LEDs for infrared illumination in night vision applications.

2Lens Motorized lens.

3Light Sensor Detects lights.

4Sunshield Protect the camera from the direct rays of the sun.

Value IP 288 / 368 / 468 Series

Dimensions

EBN288/368/468

EDN288M/368M/468M

EMN468/468W

Value IP 288 / 368 / 468 Series

EZN288/368/468

EZN288M/368M/468M

System Requirements

Before installing, please check that your computer meets the following system requirements.

Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)

Microsoft Internet Explorer 11 or later, Chrome (Windows version 44 and earlier), Firefox

version 50 and earlier, EverFocus Browser

Value IP 288 / 368 / 468 Series

Packing List

Please check that there is no missing item in the package before installing.

No Item Name EBN288/

368/468

EDN288M/

368M/468M

EMN468/

468W

EZN288/

368/468

EZN288M/

368M/468M

1Camera x 1 x 1 x 1 x 1 x 1

2MAC Address Sticker x 2 x 2 x 2 x 2 x 2

Screw Anchor

(in conjunction with

Screw)

x 4 x 3 x 3 x 3 x 4

4Screw x 4 x 3 x 3 x 3 x 4

Hexagon Wrench

(for adjusting camera

position)

x 1 - x 1 x 1 x 1

Cable Gland Kit

(connect to the LAN/PoE

cable for waterproofing)

x 1 x 1 x 1 x 1 x 1

7Set Screw x 3 - - - -

8Power Pigtail Cable x 1 x 1 x 1 x 1 x 1

Accessories Instruction

(for installation of Set

Screw)

x 1 - - - -

10 Software CD x 1 x 1 x 1 x 1 x 1

11 Quick Installation Guide x 1 x 1 x 1 x 1 x 1

12 Sticker

(Mounting Template) x 1 x 1 x 1 x 1 x 1

13 Gasket - -

x 1

(EMN468

W only)

- -

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult your local

EverFocus office or agents for more information. Please also keep the shipping carton for possible

future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

Optional Accessory

You can go to the product page on EverFocus’ website to check the related optional accessories.

www.everfocus.com.tw

Value IP 288 / 368 / 468 Series

2. Cables

For Standard models, the cables provide connections for Network, BNC output, power, audio input

/ output, RS-485 (reserved) and alarm inputs / output. A Reset Button is also provided. Note that

the audio-in / out cable features a line 3.5mm jack (TRS). Be sure to prepare microphones /

speakers with TRS connector (see TRS Connector image below). Also, microphones / speakers with

a (built-in) amplifier and external power supply are required.

12VDC Input

LAN / PoE Cable

Audio Input (TRS Line-in) (Red)

Audio Output (TRS Line-out) (White)

Alarm Input (Black)

Reset Button

Alarm Output / RS-485 (Red)

Video Output (BNC) (Yellow)

Cable EBN288/

368/468

EDN288M/

368M/468M

EMN468/

468W

EZN288/

368/468

EZN288M/

368M/468M

Alarm In (with

Terminal Block) Yes Yes - Yes Yes

Alarm Out /

RS-485 (reserved)

(with Terminal

Yes Yes - Yes Yes

Audio In (Red) Yes Yes - Yes Yes

Audio Out (White)

Yes

Video Out (BNC)

Yes

LAN/PoE Yes Yes Yes Yes Yes

12VDC

Yes

Reset Button (with

a dust-proof cap)Yes - - - Yes

Value IP 288 / 368 / 468 Series

For Economic models, the cables provide connections for Network, power and Reset Button.

12VDC Input

LAN / PoE Cable

Reset Button

Cables of Economic Models

Model LAN/PoE 12VDC Reset Button

EBN288/368/468 Yes Yes Yes (with a

dust-proof cap)

EDN288M/368M/468M Yes Yes -

EMN468/468W Yes Yes -

EZN288/368/468 Yes Yes -

EZN288M/368M/468M Yes Yes Yes (with a

dust-proof cap)

Audio Function

TRS Connector

Left Channel (Tip)

Right Channel (Ring)

Ground (Sleeve)

To activate the Audio function, the Complex Stream must be

selected. See Stream in 7.2.1.2 Streaming Settings.

Pin Assignment

Alarm Output / RS-485 (reserved)

Alarm Output

COM (-)

NO (+)

RS-485

(reserved)

B (+)

A (-)

Alarm Input

Alarm In 1

GND (-)

Alarm In (+)

Alarm In 2

Alarm In (+)

GND (-)

Reset Button

1. Reboot the camera:

When the camera is powered up, press the Reset Button will reboot the camera.

2. Restore the camera:

Keep the Reset Button pressed, at the same time unplug the camera power then plug it back

again will return camera settings to the factory default values.

Value IP 288 / 368 / 468 Series

3. Installation

This installation guide provides the basic instructions on installing an Value IP camera. For details,

please refer to the User’s Manual in the software CD.

3.1 Mounting and Wiring

EBN288/368/468

1. Before screwing the camera to the wall, stick the Sticker on the wall / ceiling to mark the

position for installation. Drill four holes on the wall / ceiling according to the supplied Sticker

and push the supplied four Screw Anchorsinto the four holes on the wall / ceiling. Drill

another hole in the middle of the Sticker if you wish to run the wires into the wall / ceiling.

2. Twist the Outer Housing counterclockwise and then remove the Outer Housing from the

camera base.

3. Place the camera base on the wall / ceiling and run the cable through the camera base first.

4. Tread the cables:

a. From the side cut of the camera base

Value IP 288 / 368 / 468 Series

b. Through the wall / ceiling: run the cables through the hole on the wall / ceiling.

Wall or

Ceiling

5. Use the supplied four Screws to screw the camera base to the ceiling / wall.

6. Adjust the camera angle and twist back the Outer Housing simultaneously.

7. Optionally screw back the Set Screw by using the supplied Hexagon Wrench to prevent

uninstallation.

8. Connect the LAN / PoE cable to the camera.

a. Remove the Screw Cap from the Cable Gland.
