EverFocus EZA1281 eZ.HD Series Bedienungsanleitung

EZA1281 eZ.HD Series

1080p Dual Power FHD IP66 IR Bullet Camera

User’s Manual

Release Date: November, 2022

All the images including product pictures or screen shots in this document are for example

only. The images may vary depending on the product and software version. Information

contained in this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

1. Introduction

Equipped with a 1080p Sony STARVIS CMOS sensor, the EZA1281 deliver

1080p full HD image quality. The model provides 2.8-12mm lens with ICR.

Featured with Digital Wide Dynamic Range (D-WDR), the camera can

provide clear images even under backlight circumstances where intensity

of illumination can vary excessively. The EZA1281 supports dual power

(12VDC / 24VAC) and supports both NTSC and PAL scanning systems.

1.1 Packing List

Camera x 1

Mounting Sticker x 1

Hexagonal Wrench x 1

Screw & Screw Anchor x 3

User Manual x 1

1.2 Features

1080p Sony STARVIS CMOS sensor, delivering amazing high sensitivity

Varifocal 2.8-12mm with ICR to capture the desired field of view

Extended IR range of up to 40m / 131ft. with 8 LEDs (depends on

scene IR reflectivity)

D-WDR to improve the visibility under high contrast scene

3-Axis rotation design allows wall or ceiling mounting

IP66-rated with metal housing

Supports dual power (12VDC / 24VAC)

Supports UTC function: Control camera OSD settings directly from

DVR end

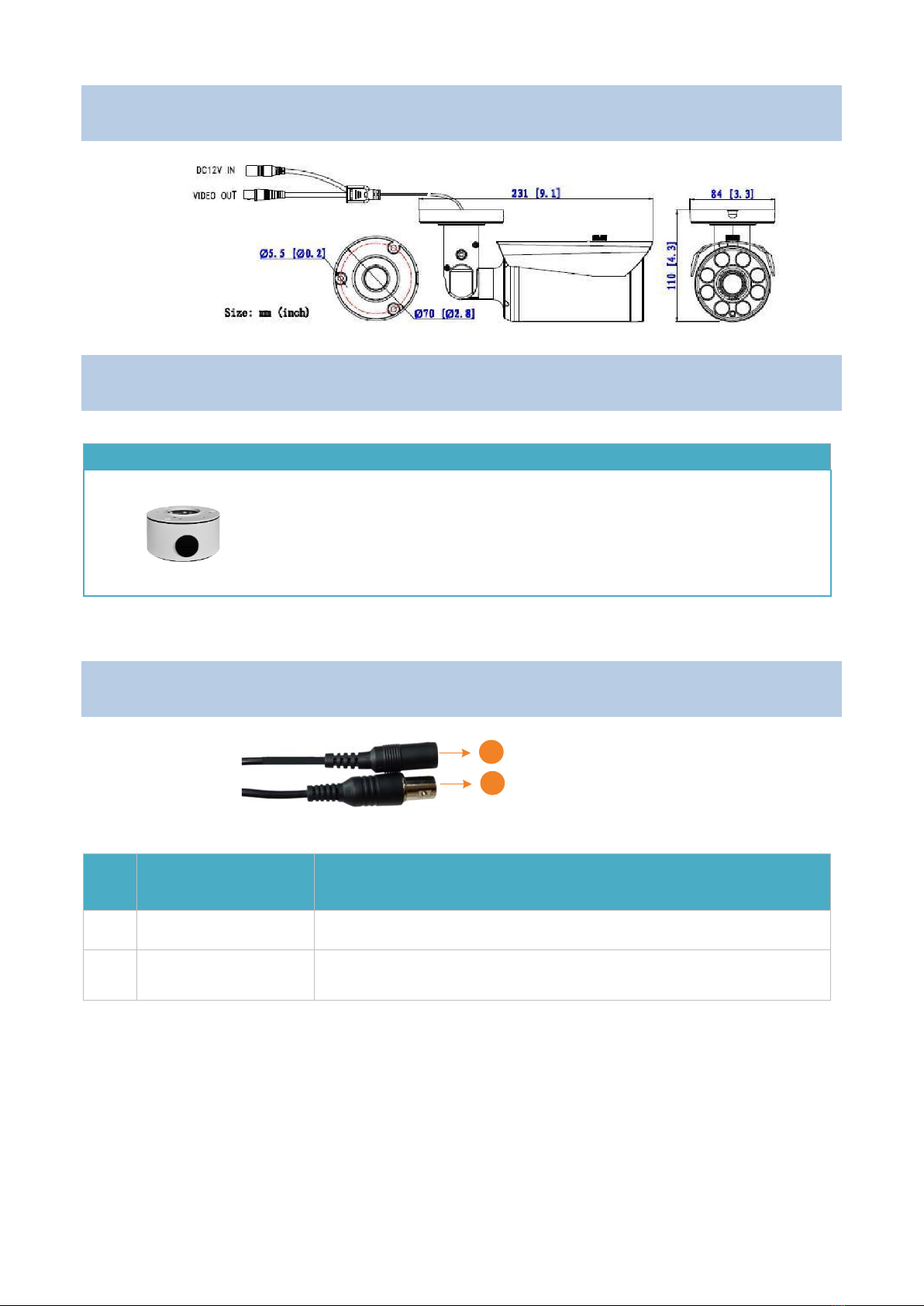

1.3 Dimensions

1.4 Optional Accessory

BA-E320-I

Color: White

Size: Φ93 x 45(H)mm

Weight: 500g

Material: Metal

1.5 Cable Description

Power Cable

Video Output Cable

No. Name Descriptions

1 Power Cable Connects to a 12VDC / 24VAC power source.

2 Video Output

1080p output, using a 75 Ohm BNC-type coaxial

cable.

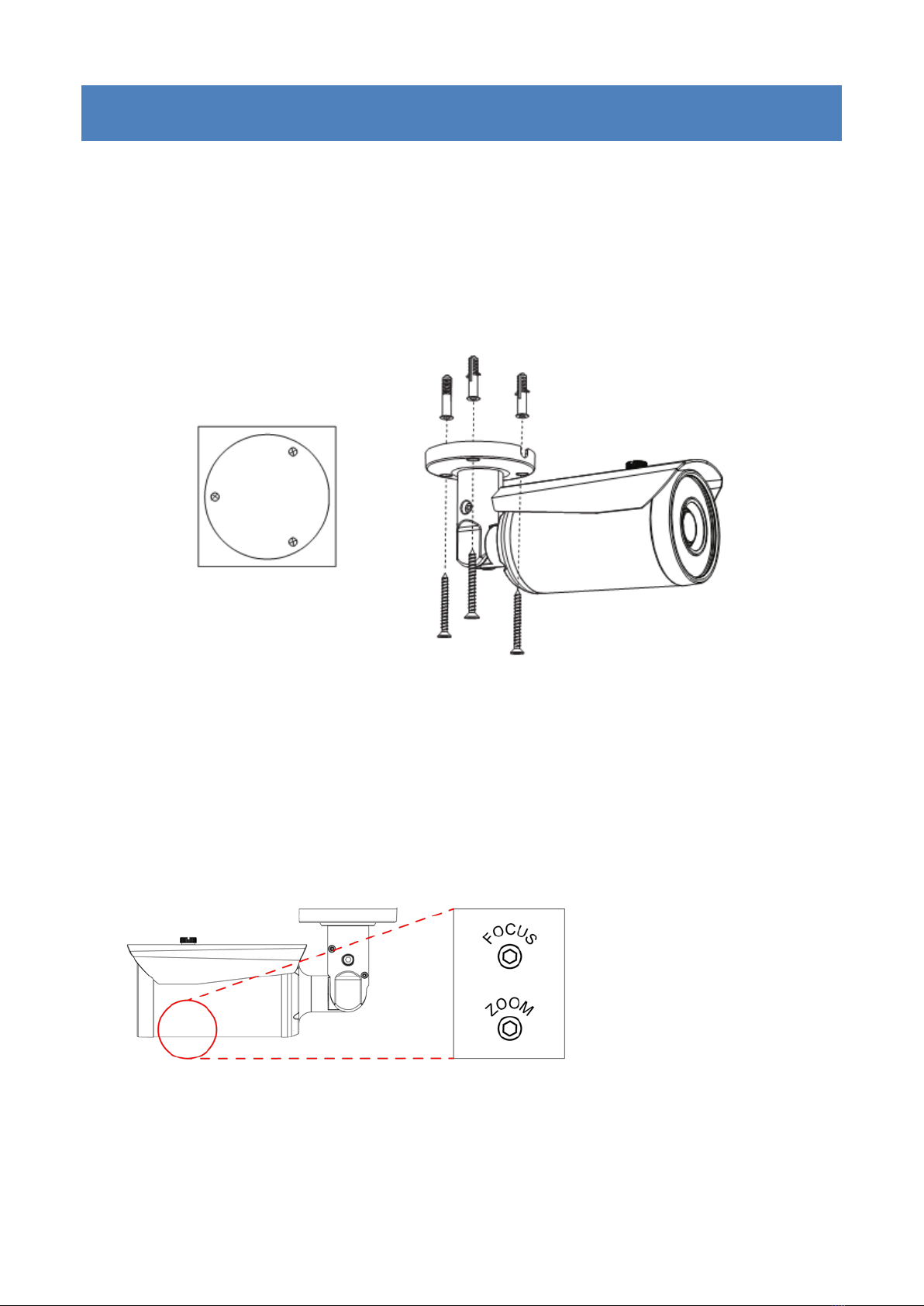

2. Installation

1. Stick the supplied Mounting Sticker to the surface to mark the 3 screw

positions. Drill 3 holes on the surface and insert the supplied 3 Screw

Anchors into the screw holes. If you want to run the cable through the

surface, drill a hole within the 3 screw area.

2. To mount the camera to the surface, screw the Camera Base to the

surface using the supplied 3 Screws.

3. Connect the Power Cable to a 12VDC / 24VAC power source. Connect

the Video Output Cable to a monitor or DVR.

4. For the first time installation, check whether the camera is properly

focused. If not, you can manually adjust camera Zoom or Focus using

the supplied L-Type Wrench. On the bottom of the camera, find the

Zoom and Focus nuts. Using the supplied L-Type Wrench to adjust

camera Zoom or Focus.

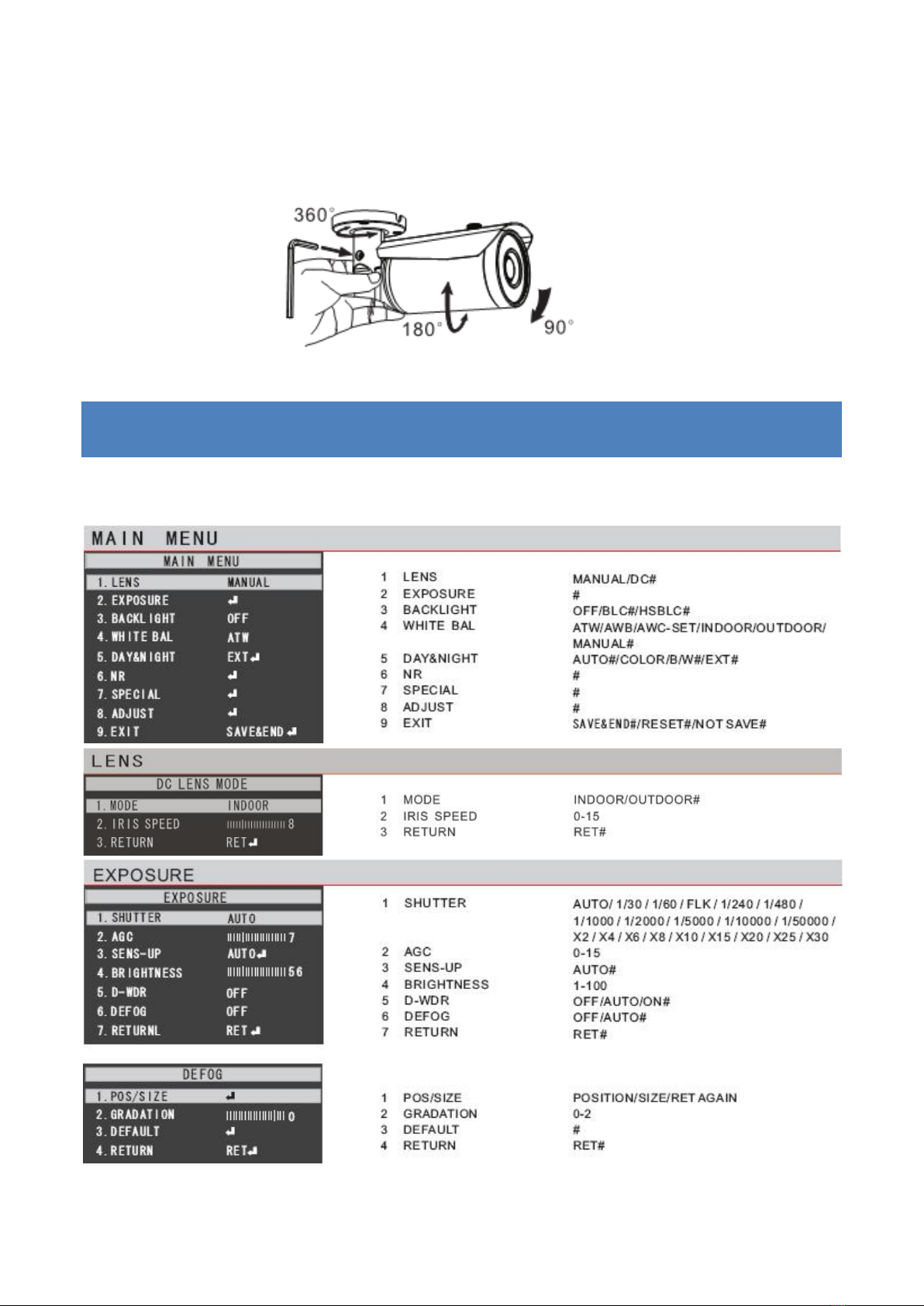

5. You can optionally adjust camera angles. Loosen th e brac ket screw ,

the housing can be adjusted into horizontal for 180° , up and down

for 90° , the bracket base can be adjusted into horizontal for 360°

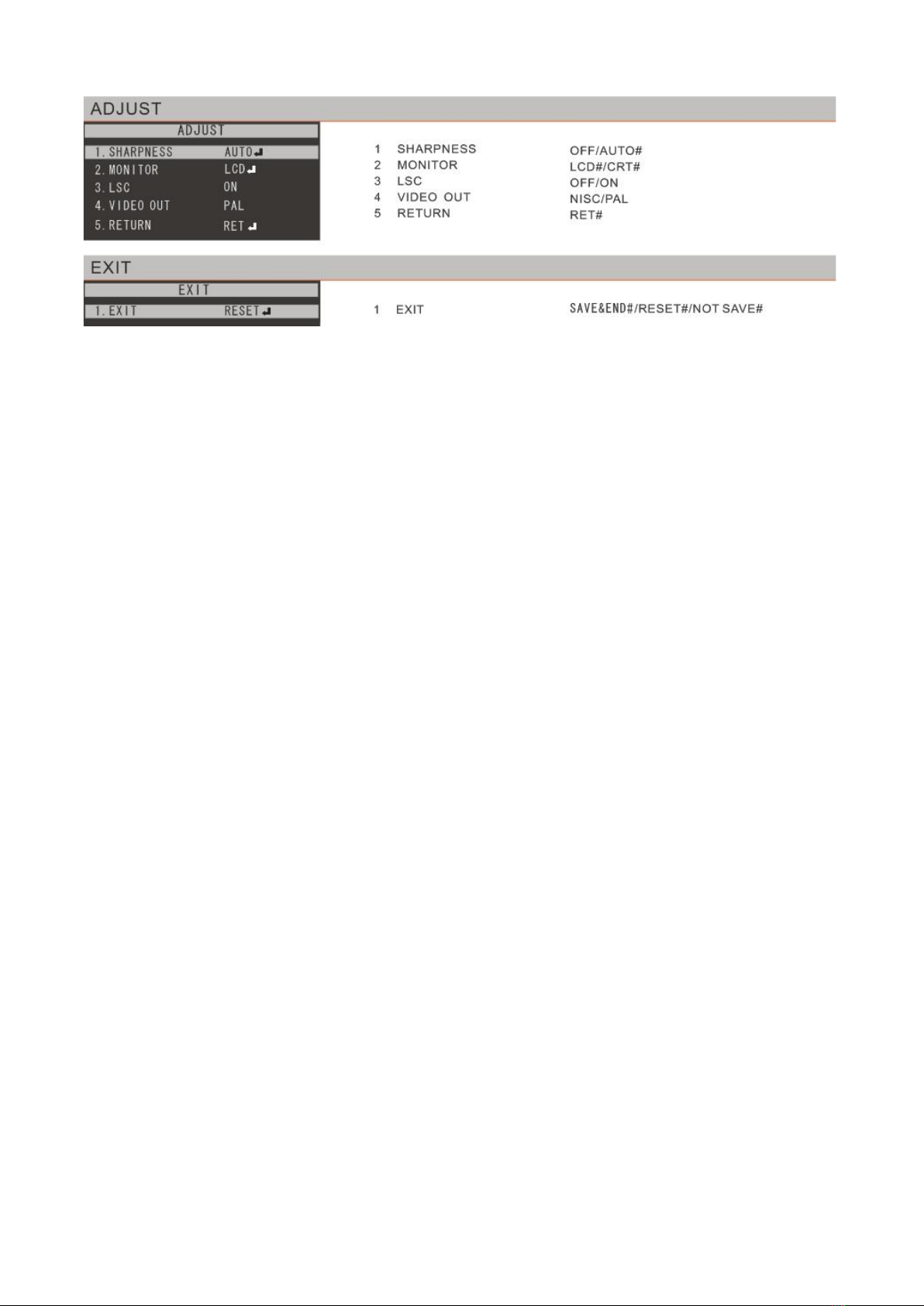

3. Configuration in the OSD Menu

You can configure camera settings in the OSD menu from DVR end.
