EverFocus M117-N701-001 Bedienungsanleitung

HIGH PERFORMANCE

Super Night Vision Camera

OPERATION MANUAL

Thank you for choosing our high quality camera. Before attempting

to connect operate this unit,please read and follow these instructions.

M117-N701-001

These servicing instructions are for use by qualied service personnel only.

To reduce the risk of electric shock do not perform any servicing other than

that contained in the operating instructions unless you are qualied to do so.

In USA and Canada, Use Class 2 Power Supply Only

CAUTION

CONTENTS

1. CAUTIONS

2. IMPORTANT SAFETY INSTRUCTIONS

3. FEATURES

4. COMPONENTS

5. NAME AND FUNCTION

6. INSTALLATION

7. DIMENSIONS

8. SPECIFICATION

9. OSD MANUAL

10. COMMUNICATION PROTOCOL

1. CAUTIONS

1. A regulated DC12V 1A power supply is recommended for use with this camera

for the best picture and the most stable operation.

An unregulated power supply can cause damage to the camera.

When unregulated power supply is applied, product warranty will be

out of subject.

2. It is recommended that the camera is used with a monitor that has a CCTV quality

75 video impedance level.

If your monitor is switched to high impedance then please adjust accordingly.

3. Do not attempt to disassemble the camera to gain access to the internal componets.

Refer servicing to your dealer.

4. Never face the camera towards the sun or any bright or reective light, which may

cause smear on the picture and possible damage to the CCD.

5. Do not remove the serial sticker for the warranty service.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions;

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.”

WARNING

This is a class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Caution

Any changes or modications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

1. CAUTIONS

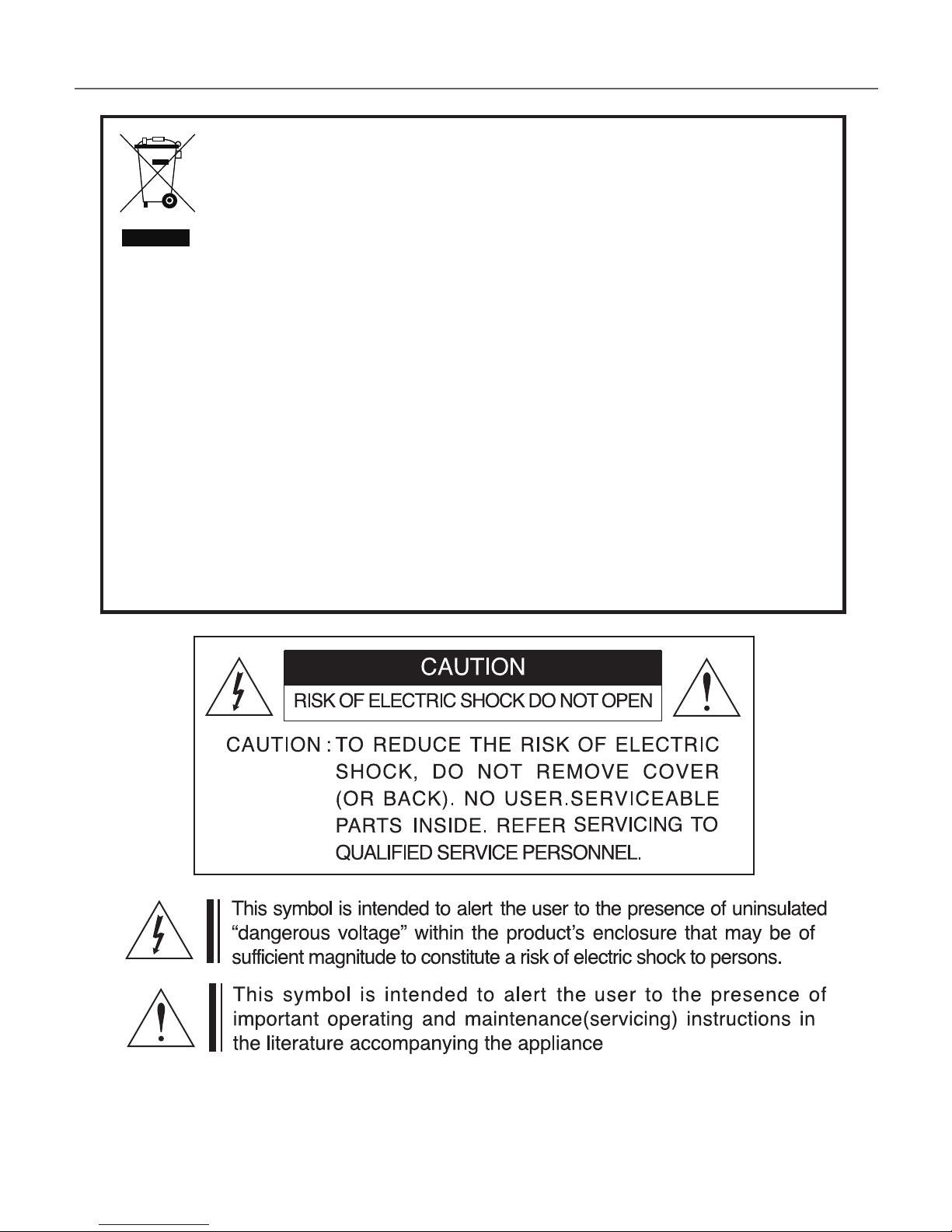

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with

separate collection systems)

This marking shown on the product or its literature, indicate that it should not

be disposed with other household wastes at the end of its working life. To

prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it

responsibly to promote the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes purchased this

product, or their local government ofce, for details of where and how they can

take item for environmentally safe recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract.

Household users should contact either the retailer where they for disposal.

2 . IMPORTANT SAFETY INSTRUCTION

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not t into your outlet, consult an

electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specied by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to

avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long

periods of time.

14) Refer all servicing to qualied service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord or plug

is damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

3. FEATURES

• 1/3960H SONY EXview HAD CCD II

• High Resolution of 700TV Lines

• OSD Function

• Multi Language

(ENGLISH, CHINESE, RUSSIAN, SPANISH, GERMAN, FRENCH, PORTUGUESE, JAPANESE)

• 2DNR

• Privacy Zone / Motion Detect

• Smart IR

• DC12V / AC24V Dual Voltage

• ATR(Adaptive Tone-curve Reproduction / Digital WDR)

The function provides gradation compensation to improve the contrast of subjects both

low-luminance areas and high luminance areas exist in the same picture

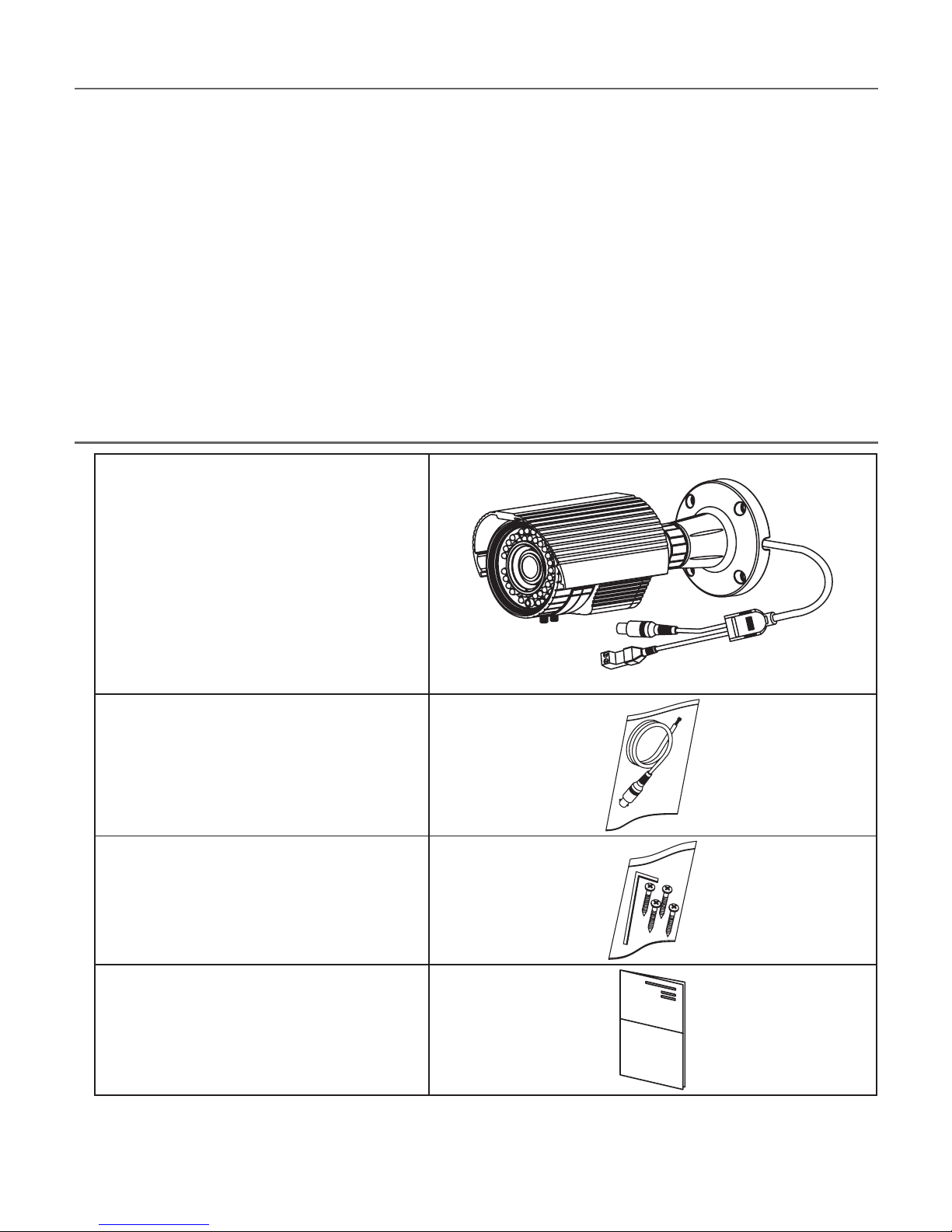

4. COMPONENTS

SUPER NIGHT VISION CAMERA

VIDEO OUTPUT

TEST CABLE

L-WRENCH / SCREW - 4ea

OPERATION MANUAL

5. NAME AND FUNCTION

• Service Video connector & OSD Joystick

① Sunshield

② Cable Concealed

Thru Bracket

③ LED : 45ea

④ Photo cell

⑤ Body

③ ④ ⑤

① ②

• CONTROL FUNCTION

(OSD JOYSTICK)

LEFT

RIGHT

DOWN

5. NAME AND FUNCTION

• Heater

• External Zoom & Focus Adjustable

Heater

Built in heater protects the camera from low temperature.

(Operating temperature with Heater:-40℃)

External Zoom & Focus Adjustable

6. INSTALLATION

• MOUNTING POSITION

˚TLIT 360

˚PAN

360

˚PAN

˚TLIT
