Everlast EPIC SPINNER Bedienungsanleitung

IMPORTANT - PLEASE

READ THESE

INSTRUCTIONS FULLY

BEFORE ASSEMBLY OR

USE

These instructions contain

important information which

will help you get the best from

your equipment and ensure

safe and correct assembly, use

and maintenance.

If you need help or have

damaged or missing parts, call

the service centre on

087 997 0865

Please keep this manual for

future reference.

MODEL NO.

EPIC SPINNER

RONS CODE

12867

www.everlastsa.co.za

Everlast/SA

everlast_sa

EPIC SPINNER

USER MANUAL

COMPONENT - PARTS

For queries or additional product information, please call our Service Centre on:

087 997 0865

Please have your model name on hand.

www.everlastsa.co.za

Everlast/SA everlast_sa

IMPORTANT - PLEASE CHECK YOU HAVE ALL THE PARTS LISTED BELOW

NOTE: SOME OF THE SMALLER PARTS MAY BE PRE-ASSEMBLED TO LARGER COMPONENTS. PLEASE

CHECK CAREFULLY BEFORE CONTACTING US REGARDING ANY MISSING PARTS.

No.16

Main Frame x 1pc

No.56

Computer x 1pc

No.13

Seat x 1pc

No.18

Handlebar x 1pc

No.12

Slider x 1pc

No.4

Rear Stabiliser x 1pc

No.1L

Left Pedal x 1pc

No.17

Handlebar Post x 1pc

No.10

Seat Post x 1pc

No.15

Front Stabiliser x 1pc

No.1R

Right Pedal x 1pc

NOTE: IF YOU HAVE DAMAGED OR MISSING COMPONENTS, CALL THE SERVICE CENTRE ON 087 997 0865

COMPONENT - FIXINGS

For queries or additional product information, please call our Service Centre on:

087 997 0865

Please have your model name on hand.

www.everlastsa.co.za

Everlast/SA everlast_sa

IMPORTANT - PLEASE CHECK YOU HAVE ALL THE PARTS LISTED BELOW

NOTE: SOME OF THE SMALLER PARTS MAY BE PRE-ASSEMBLED TO LARGER COMPONENTS. PLEASE

CHECK CAREFULLY BEFORE CONTACTING US REGARDING ANY MISSING PARTS.

No.3 (M8×52mm) Carriage Bolt x 4pcs

No.5 (8) Flat Washer x 4pcs

No.6 (M8) Domed Nut x 4pcs No.21 Flat Washer 1x 2pcs

No.7 (M16×1.5×20mm) Short L Elastic Latch x 2pcs No.22 (M10×25mm) Spring Adjustment Knob x 2pcs

TOOL REQUEST

Crosshead Spanner x 1pc Inner Hexagon Spanner (#5) x 1 x 1pc

NOTE: IF YOU HAVE DAMAGED OR MISSING COMPONENTS, CALL THE SERVICE CENTRE ON 087 997 0865

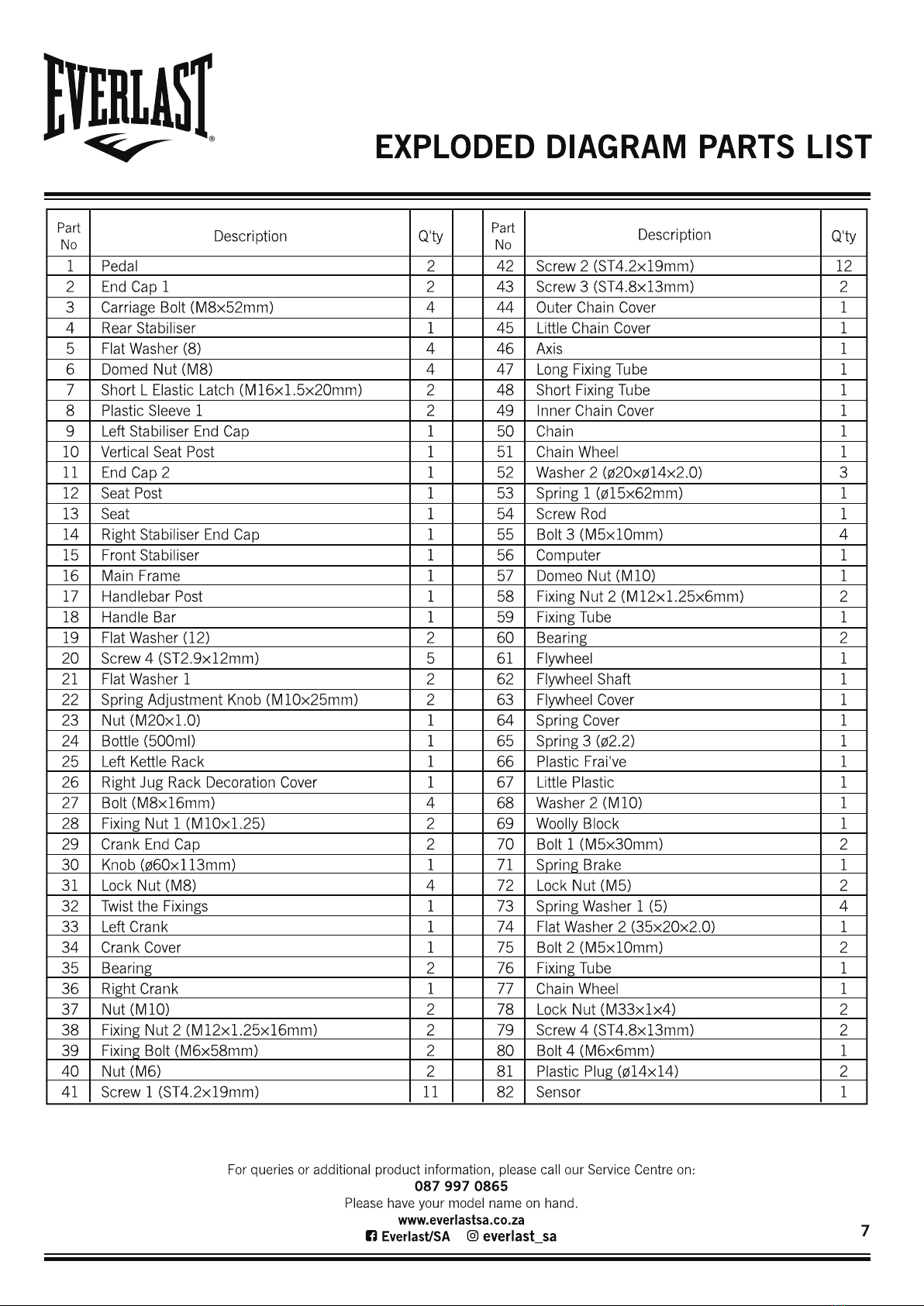

EXPLODED DIAGRAM VIEW

For queries or additional product information, please call our Service Centre on:

087 997 0865

Please have your model name on hand.

www.everlastsa.co.za

Everlast/SA everlast_sa

79 21

ASSEMBLY INSTRUCTIONS

For queries or additional product information, please call our Service Centre on:

087 997 0865

Please have your model name on hand.

www.everlastsa.co.za

Everlast/SA everlast_sa

IMPORTANT - ASSEMBLE WITH ALL NUTS AND BOLTS LOOSE AT FIRST, ONLY TIGHTEN AFTER

COMPLETING ALL ASSEMBLY STEPS. UNPACK THE BOX AND PLACE ALL PARTS ON THE FLOOR.

CAREFULLY REMOVE ALL PACKING MATERIAL AND CHECK EACH PART AGAINST THE MANUAL FIRST.

REMEMBER SOME PARTS ARE PRE-ASSEMBLED TO LARGER COMPONENTS.

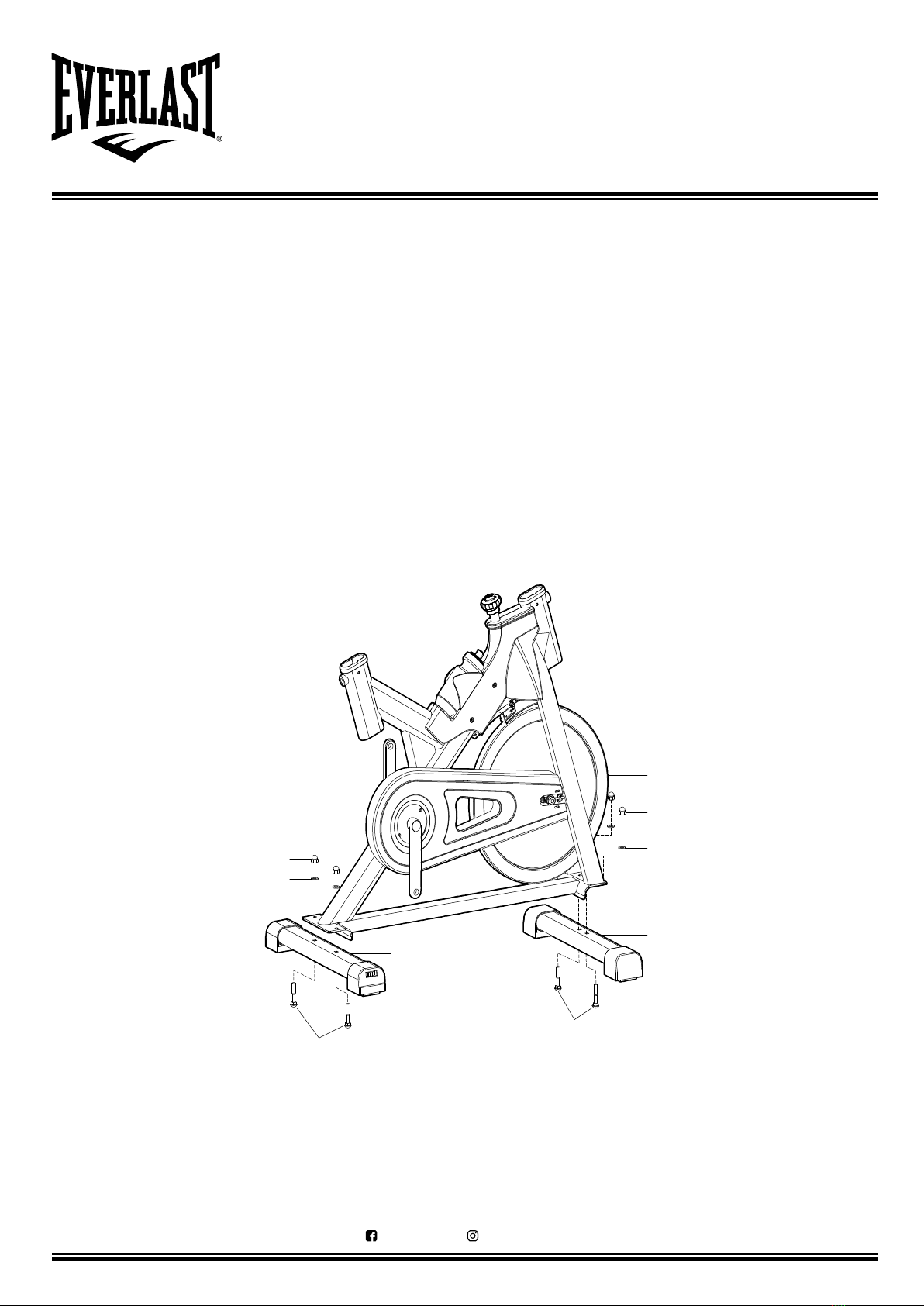

STEP 1

Front and Rear Stabiliser Installation

1. Attach the Front Stabiliser (15) to the Main Frame (16) using 2 pcs Flat Washers (5), Domed Nuts (6) and

Carriage Bolts (3).

2. Attach the Rear Stabiliser (4) to the Main Frame (16) using 2 pcs Flat Washers (5), Domed Nuts (6) and

Carriage Bolts (3).

ASSEMBLY INSTRUCTIONS

For queries or additional product information, please call our Service Centre on:

087 997 0865

Please have your model name on hand.

www.everlastsa.co.za

Everlast/SA everlast_sa

STEP 2

Handbar and Computer Installation

1. Slide the Handlebar Post (17) into the handlebar post housing on the Main

Frame (16). Slacken the knurled section of the L Shape Knob

(7) and pull the knob back, select the desired height. Release the knob and

retighten the knurled portion.

2. Fix the Handlebar (18) using Flat Washer (21) and L Shape Knob (22).

ATTENTION: SECURE THE HANDLEBAR TIGHTLY.

3. Fix the Computer (56) onto the support tube of the Handlebar (18) using 4pcs

Screws (55). Connect the sensor wire (A1 & A2).

ASSEMBLY INSTRUCTIONS

For queries or additional product information, please call our Service Centre on:

087 997 0865

Please have your model name on hand.

www.everlastsa.co.za

Everlast/SA everlast_sa

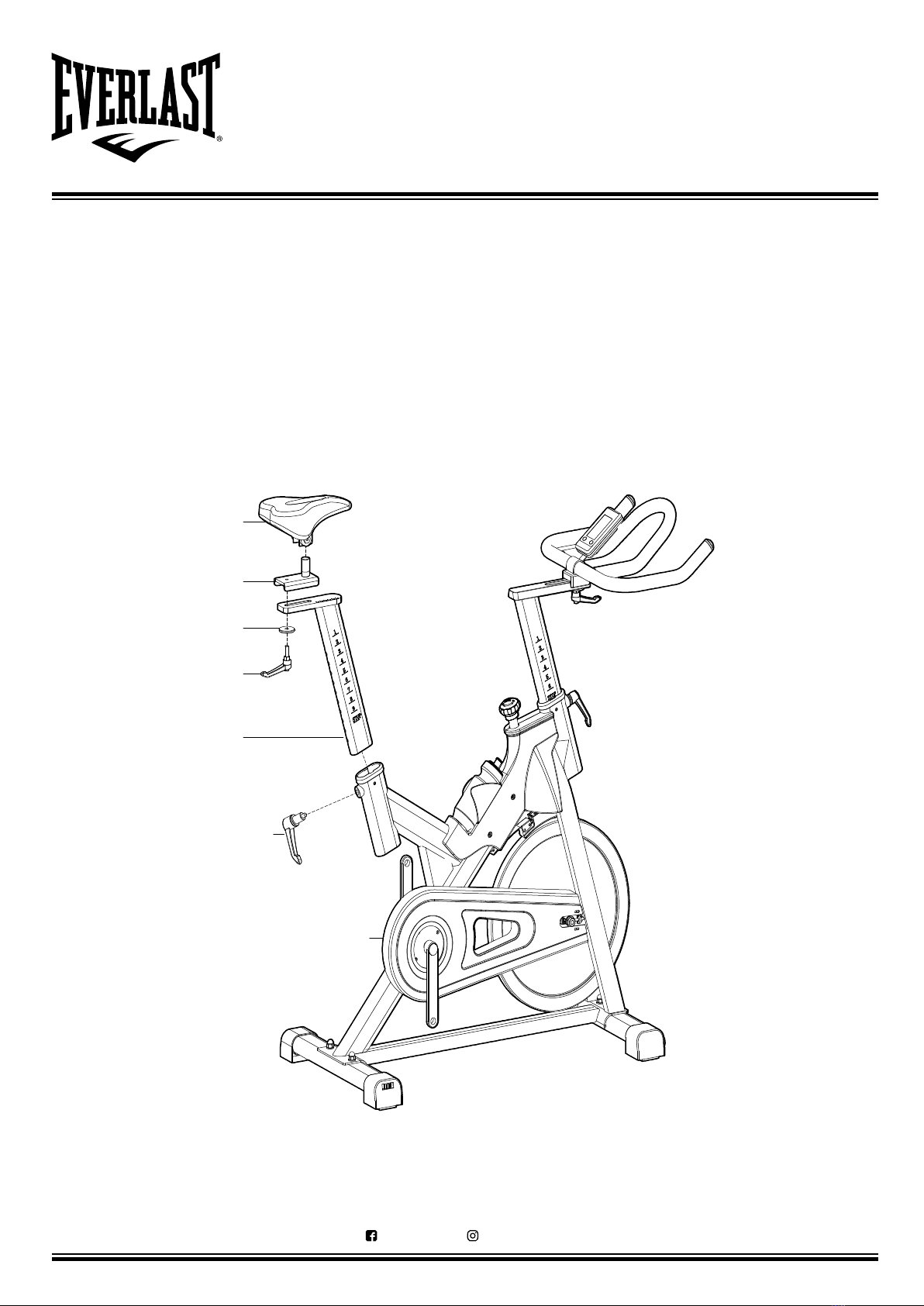

STEP 3

Seat Installation

1. Slide the Vertical Seat Post (10) into the seat post housing on the Main Frame (16).

2. Slide the Seat Post (12) into the Vertical Seat Post (10), secure using ﬂat washer (21) and knob (22). Slacken

the knurled section of the Knob (7) pull the knob back and select the desired height. Release the knob and

retighten the knurled portion.

3. Fix the Seat (13) to the Seat Post (12), tighten the bolts around the screws under the seat.
