Excalibur 500 Bedienungsanleitung

Arming: Press & Release the “Lock” button

Silent Arming: Press & Release the Small “3rd” button Twice in 3 sec.

Disarming: Press & Release the “Unlock” button

Silent Disarming:Press & Release the Small “3rd” button Twice in 3 sec

Page 1

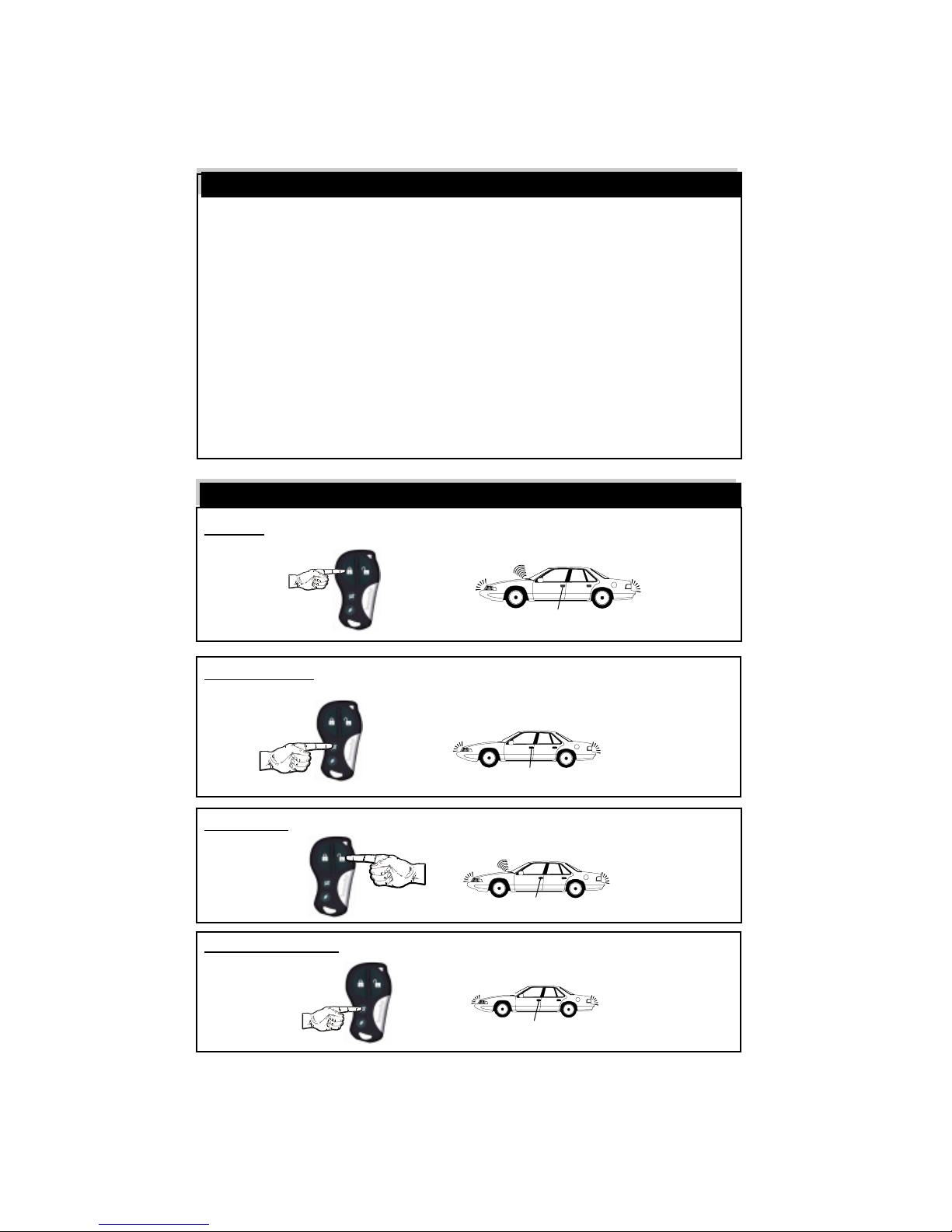

Remote Control Quick Reference Guide

THE SIREN WILL

CHIRP ONCE

THE PARKING LIGHTS

WILL FLASH ONCE

THE DOORS WILL LOCK

(IF CONNECTED)

THE PARKING LIGHTS

WILL FLASH ONCE

THE DOORS WILL LOCK

(IF CONNECTED)

2 X

THE SIREN WILL

CHIRP TWICE THE PARKING LIGHTS

WILL FLASH TWICE

THE PARKING LIGHTS

WILL FLASH TWICE

THE DOORS WILL UNLOCK

(IF CONNECTED)

2 X

THE DOORS WILL UNLOCK

(IF CONNECTED)

Table Of Contents

Owner’s Guide

Arming the System ....................... 3

Disarming the System ................. 4

Emergency Override .................... 4

System Armed & Activated ........... 5

Panic ............................................ 5

Sensor By-Pass ............................ 5

Auxiliary Channel ......................... 6

3rd Channel .................................. 6

Remote Controlled Anti-Carjack ... 6

Anti-Carjacking ............................. 7

Valet Mode ................................... 8

LED Status Indicator .................... 8

Auxiliary Sensor & Prewarn .......... 9

Installation Instructions

How To Program Remote Control ............. 9

How To Program Features ...................... 10

Programmable Features .................. 10 - 12

Wiring Diagram ....................................... 13

Door Lock/Unlocking Systems ................ 14

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions, (1)

This device may not cause harmful interference and, (2)

This device must accept any interference received,

including interference that may cause undesired operation.

The manufacturer is not responsible for any radio or TV

interference caused by unauthorized modifications to this

equipment. Such modifications could void the user's

authority to operate the equipment.

Emergency Override:

Panic:Press & Hold the “Lock” Button for 3 Sec’s, with the ignition “Off”

Shock Sensor & Prewarn Bypass:

1) Arm the alarm by, Pressing & Releasing the “Lock” button

2) Within 2 seconds Press & Release the small “3rd” button.

To Activate the Auxiliary Channel:Press & Hold The Small “3rd”

Button for 3 Seconds

To Activate the 3rd Channel:Press & Hold The Small “4th” Button

for 3 Seconds

To Activate Remote Anti-Carjack: (programmable feature # 10)

Press & Hold the Small “4th” button, for 3 Secs, with the ignition “On”

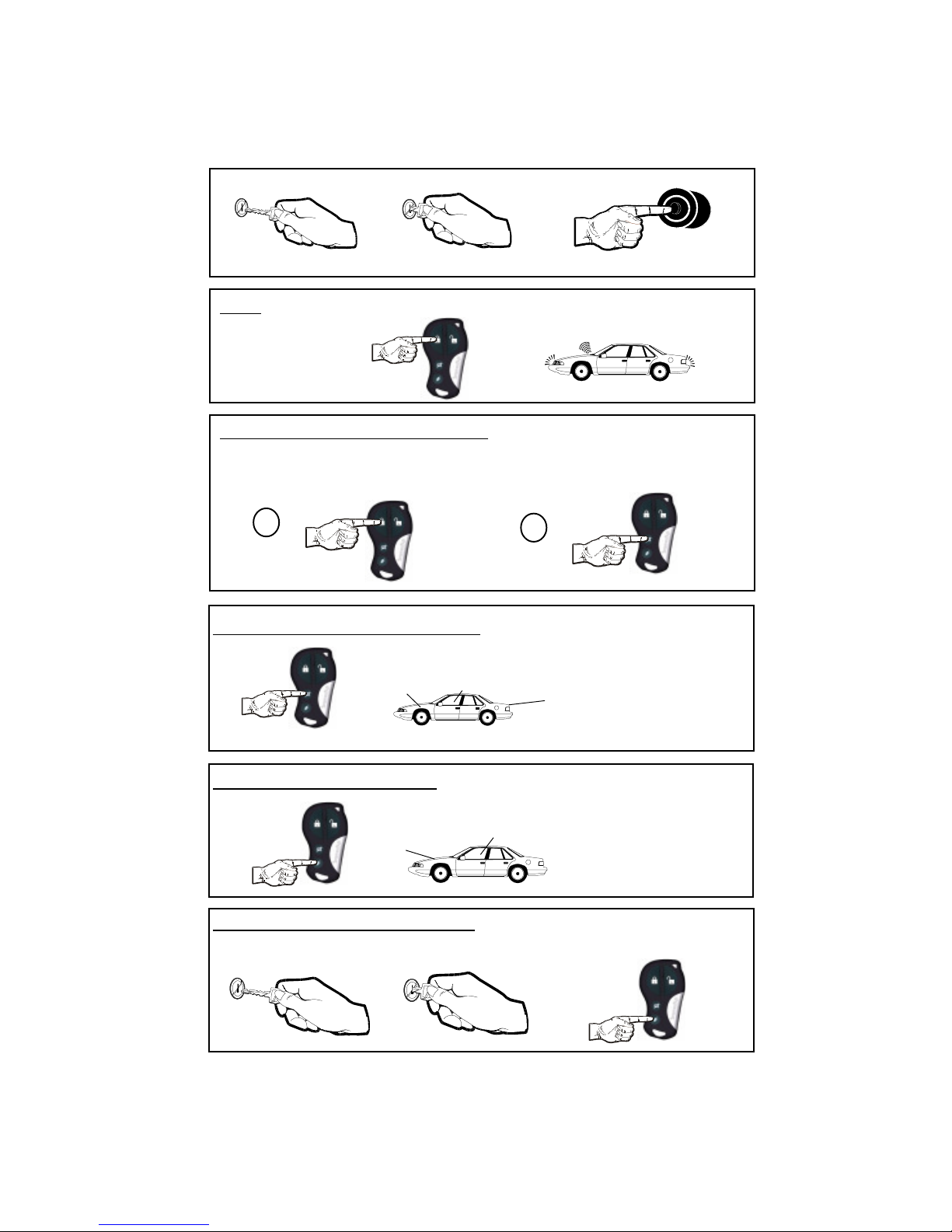

Page 2

Hold 3 seconds Operate Remote Start Unit

Operate Window Roll-Up Unit

Hold 3 seconds

Open Electric Trunk

Operate Window Roll-Up Unit

Operate Remote Start Unit

Hold 3 seconds

THEN WITHIN

10 SECONDS

PRESS & RELEASE

VALET BUTTON

THE SIREN WILL SOUND THE PARKING LIGHTS

WILL FLASH

Hold 3 seconds

Then

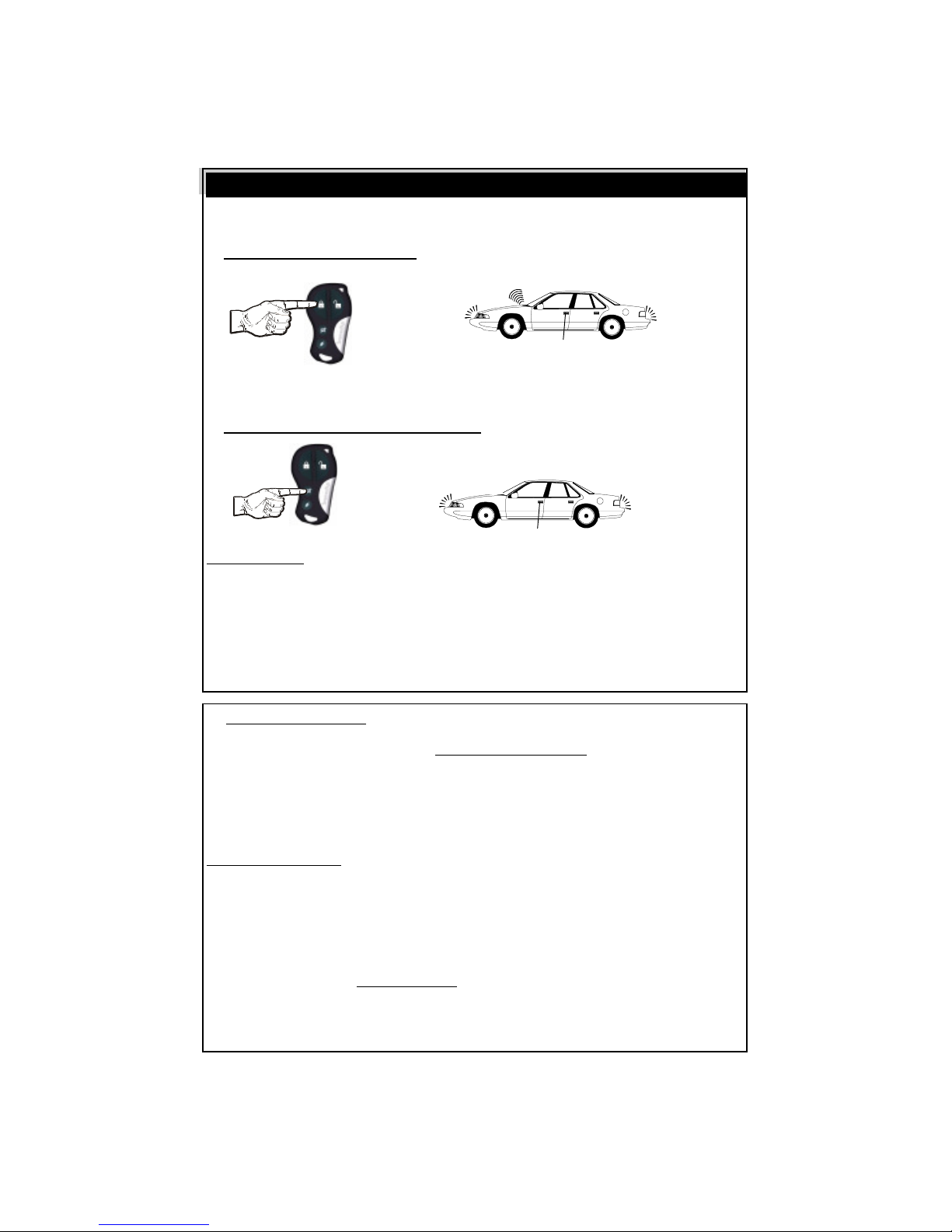

The system may be "Armed" by any of 3 methods:

1) Remote Control Arming: Press & Release the “Lock” button

Page 3

Arming the Alarm

2) SILENT Remote Control Arming: Press & Release the Small “3rd”

button Twice within 3 seconds

Upon Arming:• The siren will chirp one time. (3 times if there is open zone)

• The parking lights will flash once.

• The doors will lock. (If an optional interface is connected)

• The starter interrupt will engage.

• The LED Status Indicator will begin to flash slowly.

- If a zone is open, (for example a car door), when arming, the alarm will still arm,

but will bypass the open zone until the zone is secured (siren will chirp 3 times).

3) To Passively Arm:Turn Ignition “Off”, Then Close all Doors.

Automatic “Last Door Arming” is a programmable feature which allows the alarm

to arm itself and, if desired, lock the doors upon arming.

If on, anytime the ignition is turned off, and then a door is opened and closed:

• The Siren will chirp once to confirm arming countdown has begun.

• The LED Status Indicator will begin to flash rapidly.

Thirty seconds later:

• The siren will chirp & the lights will flash once.

• The LED Status Indicator will begin to flash slowly.

• The starter interrupt will engage.

- The alarm is now fully armed. The doors will lock at this time, if programmed to

do so, and if the vehicle is equipped.

- The system can not Last Door Arm if a protected zone is open. Should a ve-

hicle door be opened during the arming countdown, the countdown will stop and

start over again when the door is closed. AUTO REARM (programmable) allows

the Alarm to Rearm itself, if it is Disarmed and a vehicle door is not opened.

THE SIREN WILL

CHIRP ONCE

THE PARKING LIGHTS

WILL FLASH ONCE

THE DOORS WILL LOCK

(IF CONNECTED)

THE PARKING LIGHTS

WILL FLASH ONCE

THE DOORS WILL LOCK

(IF CONNECTED)

2 X

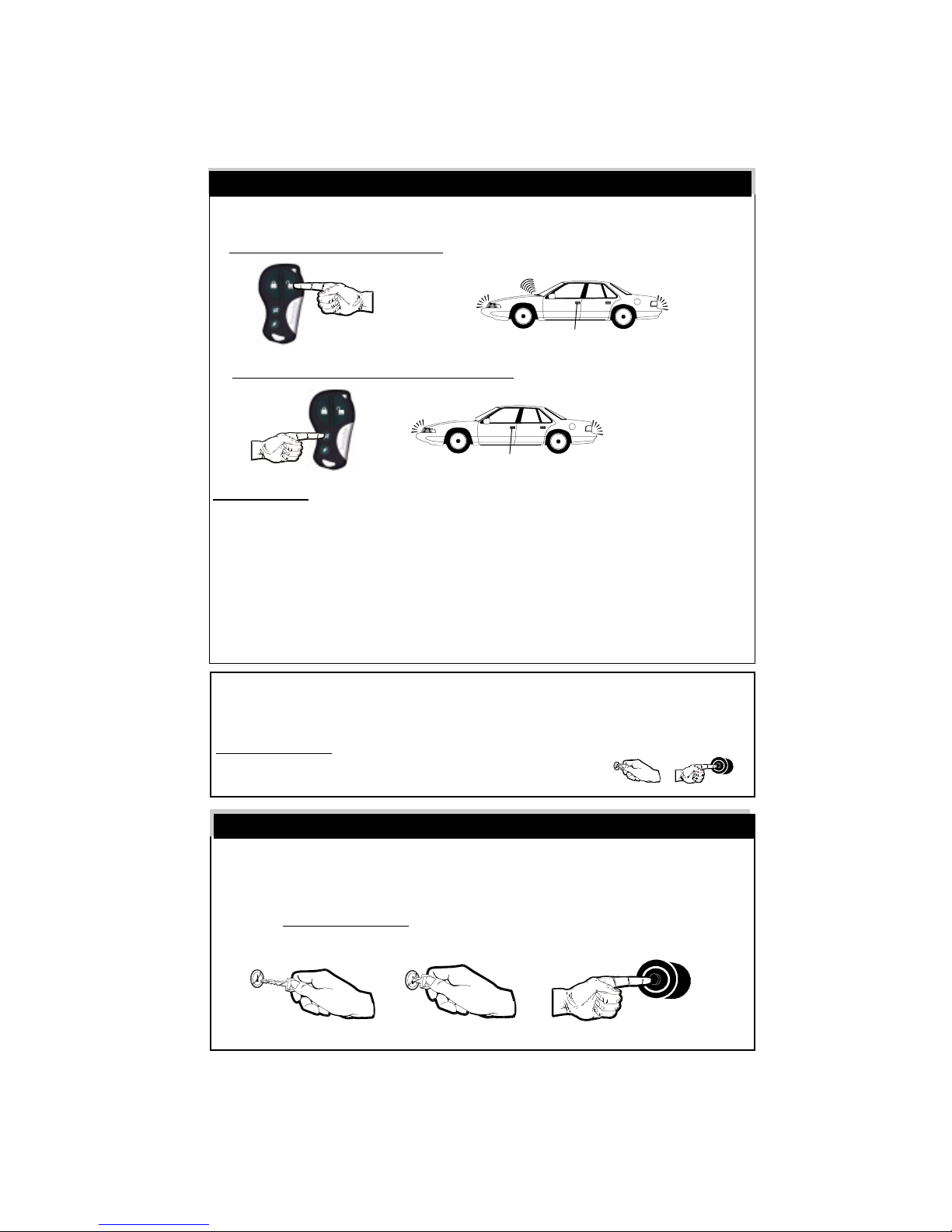

The system may be "Disarmed" by any of 3 methods:

1) Remote Control Disarming: Press & Release the “Unlock” button

2) SILENT Remote Control Disarming:Press & Release the Small

“3rd” button Twice within 3 sec

Upon Disarm:• The siren will chirp twice. (4 chirps if alarm has activated & reset)

• The parking lights will flash twice. (4 times if alarm has activated)

• The doors will unlock. (If an optional interface is connected)

• The starter interrupt will disengage.

• The LED Status Indicator begins flashing rapidly for Automatic

Rearming, until alarm Rearms or a vehicle door is opened.

2-STAGE DISARM: If Disarming the alarm while it is triggered (siren sounding), the

first press of any remote control button will only silence the siren/horn. Asecond

press of the “Unlock” button will Disarm the alarm.

IMMOBILIZER MODE: If this mode is programmed “On”, the starter interrupt will

remain engaged after the alarm is Disarmed, until the ignition is turned “On” and you

Press & Release the Valet button. (Refer to programmable feature #5)

To Start Vehicle: .

1. Disarm the alarm, then Turn “On” the vehicle’s ignition

2. Press & Release the Valet Button.

Step 1: With the system in the armed condition, enter the vehicle via the driver's

door (be aware that the alarm will trigger when the door is opened).

Step 2: Using your key, turn the vehicle’s ignition to the "On" position.

Step 3: Within 10 seconds, Press & Release the Valet/ Override Switch.

Page 4

Disarming the Alarm

Emergency Override

THE SIREN WILL

CHIRP TWICE

THE PARKING LIGHTS

WILL FLASH TWICE

THE DOORS WILL UNLOCK

(IF CONNECTED)

THE PARKING LIGHTS

WILL FLASH TWICE

THE DOORS WILL UNLOCK

(IF CONNECTED)

2 X

THEN WITHIN

10 SECONDS

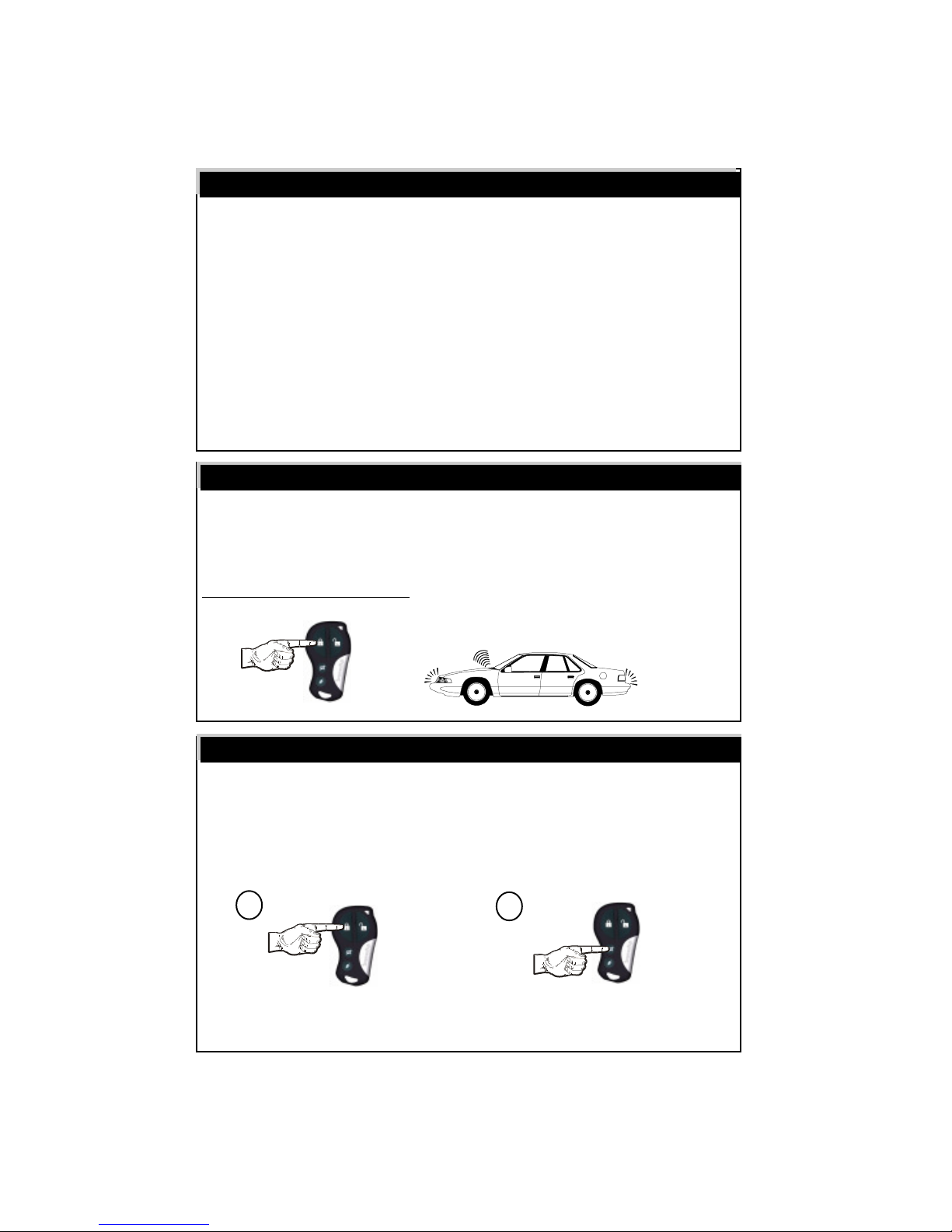

Regardless of method used to Arm the alarm, once Armed, the alarm will monitor

all protected zones, and if an intrusion attempt is detected it will activate, or

“trigger”.

A trigger consists of the following:

• The electronic siren, or optionally the vehicle’s horn, will start sounding.

• The exterior parking lights will flash on and off repeatedly.

An activation has a 30 second duration unless the system is disarmed using the

remote control or the Valet /Override switch. If all protected zones are secure at

the end of the trigger, the system will stop and rearm itself to detect further entry

attempts. If a protected zone is still open at the end of the trigger cycle, the alarm

will continue to re-trigger itself for up to six activated cycles before it resets itself

and ignores the violated zone.

Should it be needed in a threatening situation, or you feel the need to attract

attention, the alarm can be triggered using the remote control. Your alarm fea-

tures “Panic Mode”, which allows you to activate “Panic” from the “Arm/Lock”

button.

To Activate Remote Panic:Press & Hold the “Arm/Lock” Button,

for 3 seconds, with the ignition “Off”.

The shock sensor & Prewarn zone can be by-passed using the remote

control. This may be useful in stormy weather.

1) Arm the alarm by, Pressing & Releasing the “Lock” button.

2) Within 2 seconds, Press & Release the Small “3rd” button.

- The siren will chirp once to confirm sensor has been by-passed.

- Upon Disarming the alarm, the sensor zone will reset.

Sensor By-pass

System Armed & Activated

Remote Panic Operation

Page 5

THE SIREN WILL SOUND

THE PARKING LIGHTS

WILL FLASH

Hold 3 seconds

Then

1. 2.

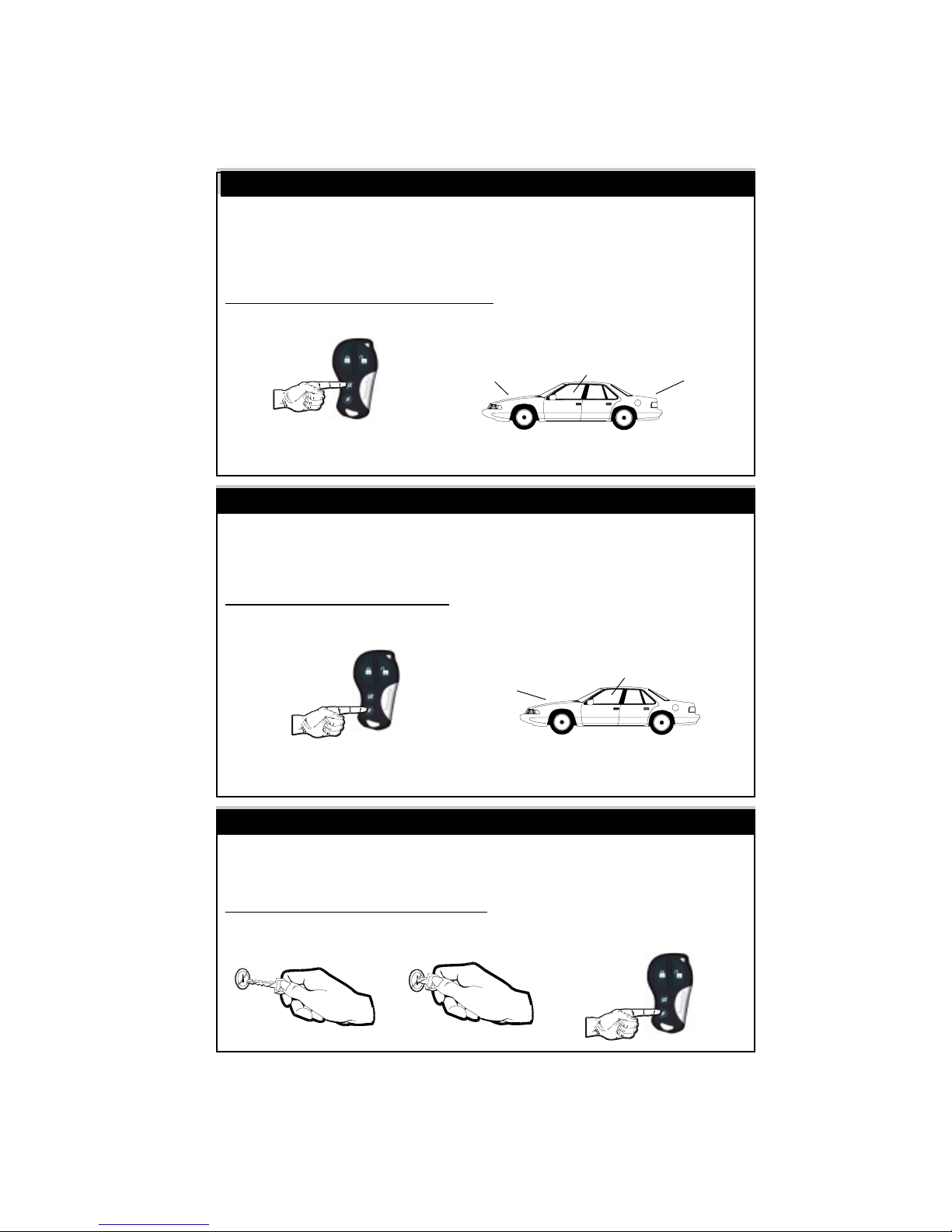

The Auxiliary Channel may be used to operate an optional function. Possibili-

ties include remote trunk release, remote car starting, or an on-demand re-

mote window roll-up interface. Please see your Omega dealer for details on

available options.

To Activate the Auxiliary Channel:

Press & Hold the Small “3rd” Button for 3 Seconds.

- The alarm will Disarm upon activating the Auxiliary channel.

- The Auxiliary Channel cannot be activated if the vehicle's ignition is "On".

The programmable 3rd Channel may be used to operate an optional function,

such as a remote start unit or an on-demand remote window roll-up interface.

Please see your Omega dealer for details on available options.

To Activate the 3rd Channel:

Press & Hold the Small “4th” button for 3 Seconds.

- The 3rd Channel can be programmed to Supply a (-) output when the alarm

is Armed to operate a Window Roll-Up module (Programmable feature #12).

The Anti-Carjacking mode can be activated using the remote control.

- Refer to next page for sequence details. (programmable feature # 10)

To Activate Remote Anti-Carjack:

Press & Hold The Small “4th” Button, For 3 Seconds, With The Ignition

“On”.

Page 6

The Auxiliary Channel

Hold 3 seconds

Open Electric Trunk

Opperate Window Roll-

Up Unit

Opperate Remote Start Unit

Hold 3 seconds

Opperate Remote Start Unit

Opperate Window Roll-

Up Unit

Remote Anti-Carjack

The 3rd Channel Auxiliary Output

Hold 3

seconds

Page 7

The Anti-Carjacking sequence may be activated by any of 3 methods:

1) Using the remote control, by holding down the Small “4th” Button for

3 seconds while the ignition is “On”. (programmable feature #10)

2) When a door is Opened while the ignition is “On” (programmable feature #10)

3) Every time the ignition is turned “On”. (Programmable feature #9)

1)Anti-Carjackingactivatedusingthe transmitter: (programmable feature #10)

The Anti Car-Jacking operation may be activated by pressing and holding the

remote control’s Small “4th” button for 3 seconds while the ignition is “On”.

2) Anti-Carjacking activated by an Open door: (programmable feature #10)

If programmable feature #10 is “On”, the system will initiate the Anti-Carjacking

sequence every time a vehicle door is opened while the ignition is “On”.

3) Anti-Carjacking activated by the ignition: (programmable feature #9)

If programmable feature #9 is “On”, the system will initiate the Anti-Carjacking

sequence every time the vehicle’s ignition is turned “On”.

IMMOBILIZER MODE: If the “Immobilizer mode” is programmed “On”, the

ignition activated anti-carjacking sequence will be cancelled and the “Immobilizer

mode” disarmed by: first turning “On” the vehicle’s ignition, then Pressing &

Releasing the valet button. (Refer to programmable feature #5)

Once the Anti-Carjacking sequence has begun, the user has 59 seconds to

press the Valet/Override Switch in order to cancel the sequence.

ORDER OF ANTI-CARJACKING SEQUENCE:

- For first 20 seconds after the sequence has begun there are no signs.

- From 21-30 seconds, the LED will blink slowly.

- From 31-45 seconds, the LED will blink fast and the siren/horn will chirp

once every 2 seconds.

- From 46-60 seconds, the LED will blink fast and the siren/horn will chirp

once per second.

- If not cancelled yet, at 61 seconds the alarm will trigger.

In the triggered condition:

- The siren/horn will sound & The parking lights will flash.

- The starter interrupt will engage.

NOTE: Once the Anti-Carjack mode is triggered, the remote control will NOT

stop the operation, nor will the system reset automatically. Once it is trig-

gered, the Anti-Carjacking operation can only be deactivated by:

1) Turning the vehicle’s ignition “Off”.

2) Turning the vehicle’s ignition back “On”.

3) Within 10 seconds, Press & Release the Valet button.

Programmable Anti-Carjacking Protection

Page 8

Valet Mode

Valet Mode can only be entered into while the alarm is Disarmed.

Valet Mode turns off all of the alarm’s security features, (including Anti-Carjack).

Valet Mode is designed for situations in which it is not convenient for the security

portion of the alarm to be operational; for example during extended stopovers for

vehicle servicing, loaning others your vehicle, maintenance, valet parking,

washing, etc. The convenience features such as keyless entry will still operate.

To Enter Valet Mode (Alarm MUST be Disarmed):

Press & Hold the Valet Switch for 3 Seconds.

- The LED Status Indicator will light solid Red and the siren will emit a long chirp

to confirm entry into Valet Mode. Now the system cannot become Armed.

- The vehicle's ignition may be "On" or "Off" when entering Valet Mode.

- To remind you its in Valet Mode ,The siren will chirp every time the vehicle’s

ignition is turned “Off”

To Exit Valet Mode:Simply Press & Release the Valet Switch.

- The LED will turn off and the siren will emit a long chirp to confirm that the

system has exited Valet Mode. Normal arming operations may be resumed.

- The vehicle's ignition may be "On" or "Off" when exiting Valet Mode.

The Red LED Status Indicator visually shows the status of the alarm and also

provides a high level of visual deterrence. The Red LED Status Indicator Light

is normally mounted where it can be seen by the driver, as well as from outside.

Security System Status: The primary function of the Red LED Status Indicator

Light is to indicate the normal operating status of the security system:

Off = The system is disarmed and not performing any automatic functions.

On Constant = The system is in the Valet Mode.

Flashing Slow = The system is fully Armed.

Flashing Fast (while Disarmed) = Last Door Arming or Automatic Rearming.

Zone Violation: Once alarm is Disarmed, LED will show which zone triggered

alarm until the ignition is turned “On” (this clears unit’s memory).

2 flash & pause = Pin-Switch zone triggered alarm.

3 flash & pause = Door zone triggered alarm.

4 flash & pause = Sensor zone triggered alarm.

AutomaticTransmitter Verification: For the first 90 seconds after the vehicle’s

ignition is turned "On", the LED Status Indicator will flash a number of times equal

to the number of remote control transmitters which are programmed to operate

the alarm. This indication can be from 1 Flash /pause up to 4 Flashes /pause, as

the system can be operated by just one, or as many as 4 remote transmitters.

The LED Status Indicator

Page 9

Auxiliary Sensor: This security system is equipped with a plug-in port for an

optional sensor to increase the effectiveness of the system. The comprehensive

line of optional sensors offered is comprised of impact sensors, glass tampering

sensors, and microwave/radar sensors which can detect motion inside and

outside the vehicle.

Prewarning Detection: This circuit requires connection to a dual zone sensor

or detection device. When the sensor’s prewarn zone is triggered the siren will

emit a series of chirps.

To program remote controls to operate the alarm:

Step 1: Turn "On" the vehicle's ignition.

Step 2: Within 7 seconds press the Valet/Override Switch 5 times. The alarm

will wolf the siren once to confirm entry into Remote Control Programming Mode.

Step 3: Within 10 seconds, press any Button on each remote to be programmed.

The siren will chirp to confirm each time a remote has been programed.

If 10 seconds expire without any programming activity, or if the vehicle’s ignition

is turned “Off”, the system will automatically exit Remote Control Programming

Mode. The siren will emit 2 long chirps to confirm exit.

NOTE: Up to 4 remote controls can be programed to operate the alarm. When-

ever a remote control, new or existing, is programmed to the alarm, all existing

codes are erased for security. So all remote controls which are to operate the

alarm, must be programmed in at the same time.

Immobilizer Mode: Immobilizer mode must be disarmed before entering

remote control programming mode. (refer to programmable feature #5)

1. Turn “On” ignition

2. Press & Release the Valet/Override button, (siren will chirp twice)

3. Press valet/override button 5 times to enter remote control programming

mode.

ATV: The LED Status Indicator will show the number of programmed remote

control transmitters for 90 seconds after the vehicle’s ignition is turned On.

As the instructions above show, programming extra transmitters to any vehicle

security system is easy; the exclusive patented ATV feature protects against

someone programming their own transmitter to operate your system.

Auxiliary Sensor & Prewarning

How to Program Remote Controls to the Alarm

Page 10

To access Features Programming Mode:

Step 1: Turn the vehicle's ignition "On" then "Off".

Step 2: Within 7 seconds of turning the ignition "Off", press the Valet Switch 5

times. The siren will wolf once confirming entry to Features Programming Mode.

Step 3: Within 10 seconds of entering Features Programming Mode, press the

Valet Switch the number of times equal to the number of the feature to be

programmed. The siren will repeat the feature number with chirps to confirm.

Step 4: After the system acknowledges the feature to be programmed:

- press the “Lock” button on the remote to turn the feature “ON” (the siren will

chirp once), or,

- press the “Unlock” Button to turn feature “OFF” (siren will chirp twice).

Note: Once the feature to be programed is selected, you can toggle the

featurebetween its settingsbypressing the “Lock”& “Unlock” buttons on

the remote control.

- To program more features, simply repeat Steps 3 and 4.

- If 10 seconds expire without any programming activity, or if the vehicle’s igni-

tion is turned “On”, the alarm will automatically exit Features Programming

Mode. The siren will confirm exit.

The alarm has 14 programmable features which allow it to be customized to suite

many individual needs. The following pages provide a brief explanation for each

feature, and notes its factory default setting.

• = Default Factory Setting

1. Auto-Rearm: ( •On = 1 siren chirp / Off = 2 chirps)

-Allows the Alarm to Rearm itself, if it is Disarmed and a vehicle door is not

opened.

2. Last Door Arming: (•On = 1 siren chirp / Off =2 chirps)

-Configures the alarm to automatically arm itself 30 seconds after the last

door is closed with the ignition “Off”. AUTO REARM (not programmable) allows

the Alarm to Rearm if a vehicle door is not opened after the alarm is disarmed.

3. Doors Lock w/ Last Door Arming: (•On = 1 siren chirp /Off = 2 chirps)

-Adds the automatic locking of the vehicle's doors to the previous feature.

How to Program Features

Programmable Features

Inhaltsverzeichnis

Sprachen:

Andere Excalibur Autoalarmanlage Handbücher

Excalibur

Excalibur AL-1510-EDP Bedienungsanleitung

Excalibur

Excalibur Al-1820-EDP Bedienungsanleitung

Excalibur

Excalibur Excalibur Gold eg-1400atv Bedienungsanleitung

Excalibur

Excalibur AL-1660-EDPB Bedienungsanleitung

Excalibur

Excalibur RF-51-eDp Bedienungsanleitung

Excalibur

Excalibur AL-XX70-B Bedienungsanleitung

Excalibur

Excalibur AL-1010-EDP Bedienungsanleitung

Excalibur

Excalibur AL-1860-EDPB Bedienungsanleitung

Excalibur

Excalibur RF-10-EDP Bedienungsanleitung

Excalibur

Excalibur AL-1000 SX Bedienungsanleitung

Excalibur

Excalibur Excalibur Gold eg-1800atv Bedienungsanleitung

Excalibur

Excalibur AL-2030-EDPB Bedienungsanleitung

Excalibur

Excalibur AL-2075-3DB-L Bedienungsanleitung

Excalibur

Excalibur RS-240-DP Bedienungsanleitung

Excalibur

Excalibur AL-1510-EDP Bedienungsanleitung

Excalibur

Excalibur AL-560 Bedienungsanleitung

Excalibur

Excalibur Excalibur Gold 1600atv Bedienungsanleitung

Excalibur

Excalibur RS-255-EDP+ Bedienungsanleitung

Beliebte Autoalarmanlage Handbücher anderer Marken

Clifford

Clifford 3606X Bedienungsanleitung

Ultra Start

Ultra Start 2500M SERIES Bedienungsanleitung

Ultra Start

Ultra Start 650 Series Bedienungsanleitung

Audiovox

Audiovox Prestige Platinum+ APS-511C Bedienungsanleitung

Sparkrite

Sparkrite SRA8 Bedienungsanleitung

Viper

Viper 4708V Bedienungsanleitung

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Handbuch

Falcon

Falcon Predator XL3 Benutzerhandbuch

Audiovox

Audiovox Auto Security XR91 Betriebsanleitung

Clifford

Clifford Sabre II Bedienungsanleitung

CrimeStopper

CrimeStopper CS-8717 Kurzanleitung

Ultra Start

Ultra Start 450 SERIES Bedienungsanleitung

Scytek electronic

Scytek electronic Vectra X3 Bedienungsanleitung

Clifford

Clifford CYBER 2 Bedienungsanleitung

Gemini

Gemini 7057 Bedienungsanleitung

FlashLogic

FlashLogic FLRSBA PRESTIGE Bedienungsanleitung

Magicar

Magicar FAI-440 Bedienungsanleitung

Clifford

Clifford Nova 3 Bedienungsanleitung
