Excalibur RF-30-EDP Bedienungsanleitung
RF-30-EDP
Deluxe OEM Upgrade & Range Extender
October 25, 2012
Operation Guide
Table Of Contents
Transmitter Overview ............................................................................3
The Transmitter .................................................................................3
Transmitter Functions............................................................................4
Other Remote Start Features ................................................................8
Low Battery/Low Temp Automatic Starting........................................8
Pit-Stop Feature ................................................................................8
Security System Features .....................................................................9
Last Door Locking/Arming .................................................................9
Automatic Re-locking ........................................................................9
Using The Valet Switch........................................................................10
Emergency Override .......................................................................10
The Status Light ..................................................................................10
Programming Transmitters ..................................................................12
Programming Features........................................................................13
Programmable Features......................................................................13
Programmable Features Matrix...........................................................15
3
Transmitter Overview
THE TRANSMITTER
1) Antenna
2) Lock Button
3) Unlock Button
4) Trunk Button
5) Start Button
1
5
23
4
part number: 147-03
Call your dealer or visit www.caralarm.com to
order replacement transmitters.
Transmitter battery replacement:
Remove the small screw from the lower
back case, and separate the transmitter
halves. Replace the batteries and reas-
semble the transmitter case.
Battery Types:
147-03 - CR2016 (2 required)
NOTE: This system will also respond to the lock, unlock, and trunk commands from your fac-
tory keyless entry remote on compatible vehicles.
4
LOCK / ARM: Press and release the “LOCK” button.
Transmitter Functions
UNLOCK / DISARM: Press and release the “UNLOCK” button.
THE VEHICLE DOORS WILL LOCK AND THE STATUS LIGHTS WILL•
FLASH SLOW RED
THE SYSTEM IS NOW MONITORING ENTRY POINTS•
THE VEHICLE DOORS WILL UNLOCK•
5
TRUNK RELEASE: Press & hold the “TRUNK” button for 3 seconds.
Transmitter Functions (cont’d)
REMOTE START: Press and release the “START” button twice within 5 sec-
onds. (see programmable feature #5 for additional options)
THE VEHICLE’S ENGINE WILL START AND THE STATUS LIGHTS WILL FLASH•
SLOW GREEN.
Each time you park, set the climate controls to give you the desired•
interior temperature when you use the remote start.
x2
THE TRUNK WILL OPEN & THE DOORS WILL UNLOCK•
6
Transmitter Functions (cont’d)
PANIC: Press & hold the “LOCK” or “UNLOCK” button for 3 seconds.
THE HORN WILL SOUND AND THE DOORS WILL LOCK OR UNLOCK•
DEPENDING WHICH BUTTON IS PRESSED.
NOTE: PaNic may NOT bE availablE ON all vEhiclEs
PRESS LOCK OR UNLOCK AGAIN TO CANCEL PANIC MODE•
OR

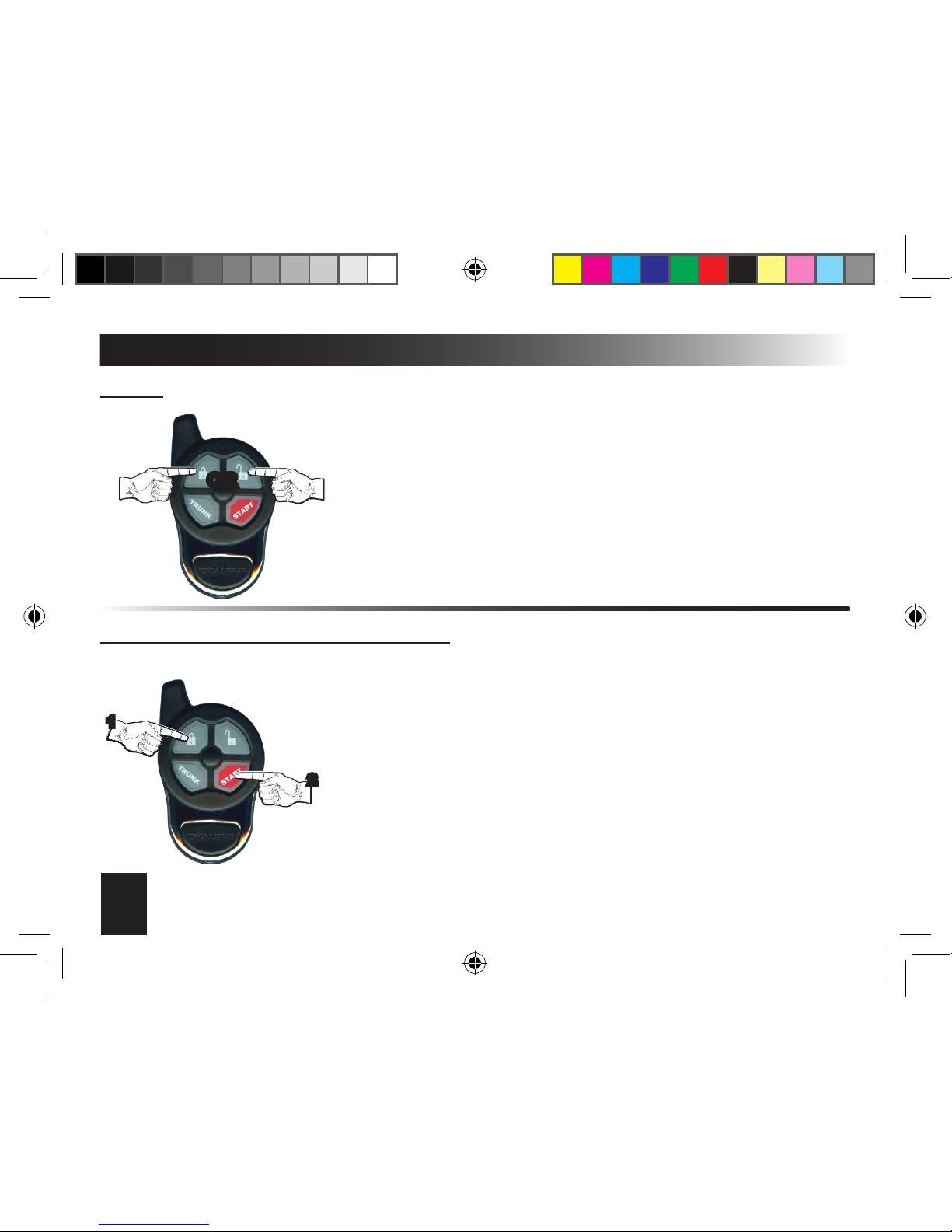

LOW VOLTAGE/TEMP AUTO START: Press and release the “START” button
within 5 seconds of locking/arming the system.
THE ANTENNA WILL GIVE ONE BEEP TO INDICATE THE LOW VOLT/•
LOW TEMP(15 DEGREE) AUTO-START IS ACTIVATED. SEE PAGE 8 FOR
MORE INFO.
2
1
7
Transmitter Functions (cont’d)
AUXILIARY FUNCTIONS 1-4:
The actual operation of these functions will vary from car to car. They are designed to operate extra
vehicle functions like automatic sliding doors or motorized hatches. Aux 1-4 are virtual outputs only
available on certain vehicles when this system is integrated with the vehicle’s data network. Consult
withyourinstallertondoutifanyofthesefunctionsareavailableforyourvehicle.Ifso,conrmeach
operation with the controller and write each function in the blank spaces provided below.
- Auxiliary 1 Function (___________________): To activate this function, press and release the
“trunk” and “start” buttons simultaneously for 1 second).
- Auxiliary 2 Function (___________________): To activate this function, press and release the
“lock” and “trunk” buttons simultaneously for 1 second).
- Auxiliary 3 Function (___________________): To activate this function, press and release the
“unlock” and “start” buttons simultaneously for 1 second).
- Auxiliary 4 Function (___________________): To activate this function, press and release
the “unlock” and “trunk” buttons simultaneously for 1 second).
8
LOW BATTERY/LOW TEMP AUTOMATIC STARTING
Other Remote Start Features
PIT-STOP FEATURE
This feature allows you to leave your engine running for making quick errands. To use this feature,
have the engine running normally from the ignition switch and your foot off the brake pedal. Press the
Valet Switch twice; the antenna will beep 5 times. Turn the key off and the engine will remain running
for the programmed run time. You can lock your vehicle with the transmitter to keep it secure while
away.
This feature will automatically start the engine if the vehicle battery drops below 11 volts or the
interior temperature drop to 15 (or 32) degrees fahrenheit. You must activate these features each time
you park your car to use them. They can be activated one of two ways:
Method 1 - Valet Switch
• Turntheignitionswitch“on”,then“off”(enginenotrunning),andwithin7secondspressthevalet
switch twice. If there is a 2 second delay without additional valet button presses, the antenna will
beep 2 times activating low voltage start mode.
• Toactivatelowtempstarting,enterlowvoltagestartmodeasdescribedabovebut,aftertheanten-
na beeps twice, press the valet switch 1 time (15 degrees) or 2 times (32 degrees) within 5 seconds.
Theantennawillbeeptoconrmyourselection.
Method 2 - With The Transmitter
• Within5secondsofpressingLOCK,presstheSTARTbutton.Youwillhearonebeepfromthe
antenna.
NOTE: When low temp start mode is activated, low voltage start is also activated. These features will
operate once every two hours until the ignition key is turned “ON”.
9
LAST DOOR LOCKING/ARMING
Thissystemcanbeconguredtoarmautomaticallywhenallthevehicle’sdoorsareclosed(see
programmable feature #2). When all of the doors are closed after driving the vehicle, it will start a 30
secondcountdown(indicatedbyafastashingstatuslight).After30seconds,thesystemwillarm
(andlockthedoorsifconguredtodoso).Duringthe30secondarmingdelay,ifapointofentryis
opened, the countdown will pause until all entry points are closed again. Turning ON the ignition key
will cancel the last door arming sequence until the key is turned off and the doors are all closed once
again.
Security System Features
AUTOMATIC RE-LOCKING
This automatically re-locks the doors if the system is disarmed from the remote. (see program-
mable feature #3). When unlocked by remote, the system will start a 90 second countdown (fast
ashingredstatuslight)tore-lockthesystem.Thisisusefulifthecontrolleraccidentallydisarmsthe
system when it’s kept in a purse or pocket where other items could potentially press the buttons. EN-
HANCED AUTO RE-LOCK allows you to cancel the countdown by pressing UNLOCK a second time
within 5 seconds.
10
Using The Valet Switch
EMERGENCY OVERRIDE
If you were to lose or break your controller, you’d need to perform an emergency override to disarm
the system. To do so, use the following steps:
STEP 1 - Enter the vehicle (the alarm may sound)
STEP 2 - Turn the ignition key to the “ON” position
STEP 3 - Press the valet switch (located in the window-mount antenna) once
STEP 4 - Turn the ignition “OFF”.
The valet switch is a push button built into the window mount antenna. It is used to perform emer-
gency override and system programming (see inside of back cover for programming).
The Status Light
The status lights, located in the window-mount antenna, provide a visual indication of the system’s
status via GREEN (remote start status) and RED (alarm status) lights.
SECURITY SYSTEM STATUS (RED LIGHT):
OFF: The system is unlocked and not performing any automatic functions.
FLASHING SLOW: The system is locked and monitoring all entry points.
FLASHING FAST: One of the automatic arming features is in progress.
AUTOMATIC TRANSMITTER VERIFICATION (RED LIGHT):
Everytimeyouturnontheignitionkey,thestatuslightwillashanumberoftimesequaltothenum-
ber of controllers/transmitters programmed to the system. This unique security feature protects you
from a potential thief (valet attendant, mechanic, installer, etc.) adding their own transmitter without
and accessing your vehicle and it’s contents at a later time (the perfect crime!).
