Excell Excell A16617 Bedienungsanleitung
Operation Manual
for model XR2625
Part No. A16617 Rev. 0 2/01/06
IMPORTANT
Please make certain that the person who is to use this equipment carefully
reads and understands these instructions before operating.
Pressure Washer
Table of Contents
Safety Guidelines/Definitions..................2
Consumer Saftey Information................2
Important Safety Instructions..............2-7
Specifications..........................................7
Carton Contents......................................8
Assembly Instructions..........................8-9
Operating Instructions .................... 10-14
Maintenance..........................................15
Storage ............................................ 16-17
Accessories...........................................17
Repairs...................................................17
Trouble Shooting Guide.................. 18-19
Warranty.................................................20
Français ........................................... 21-40
Español............................................ 41-61
Record All Information and attach sales
receipt here for future reference:
Purchase Date:__________________________
Serial #: ________________________________
Questions? 1-800-888-2468
Learn more about your pressure washer,
get answers to frequently asked questions,
and register on line at
www.excellpressurewasher.com
2- ENG
A16617
This product may not be equipped with a spark arresting muffler.
If the product is not equipped and will be used around flammable
materials, or on land covered with materials such as agricultural crops, forest, brush,
grass, or other similar items, then an approved spark arrester must be installed and
is legally required in the state of California. It is a violation of California statutes
section 130050 and/or sections 4442 and 4443 of the California Public Resources
Code, unless the engine is equipped with a spark arrester, as defined in section 4442,
and maintained in effective working order. Spark arresters are also required on some
U.S. Forest Service land and may also be legally required under other statutes and
ordinances. This product contains chemicals, including lead, known to the State
of California to cause cancer, and birth defects or other reproductive
harm. Wash hands after handling.
CONSUMER SAFETY INFORMATION
SAFETY GUIDELINES - DEFINITIONS
Indicates an imminently
hazardous situation
which, if not avoided, will result in death
or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, could result in death
or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, may result in minor
or moderate injury.
Used without the safety
alert symbol indicates a
potentially hazardous situation which, if not
avoided, may result in property damage.
This manual contains information that is important for you to know and understand.
This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT
PROBLEMS. To help you recognize this information, we use the symbols below. Please
read the manual and pay attention to these symbols.
IMPORTANT SAFETY INSTRUCTIONS
Do not operate this unit until you have read and understand this
Operators Manual and the Engine Owners Manual for Safety,
Operation, and Maintenance Instructions.
READ AND SAVE THESE INSTRUCTIONS
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spilled gasoline and it’s vapors
can become ignited from cigarette
sparks, electrical arcing, exhaust
gases and hot engine components
such as the muffler.
• Shut off engine and allow it to cool
before adding fuel to the tank.
• Use care in filling tank to avoid
spilling fuel. Move pressure washer
away from fueling area before
starting engine.
• Heat will expand fuel in the tank
which could result in spillage and
possible fire explosion.
• Fill tank to 1/2" (12.7 mm) below
bottom of filler neck to provide space
for fuel expansion.
3- ENG A16617
RISK OF EXPLOSION OR FIRE (CONTINUED)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Operating the pressure washer in an
explosive environment could result
in a fire.
• Operate and fuel equipment in
well-ventilated areas free from
obstructions. Equip areas with fire
extinguisher suitable for gasoline
fires.
• Materials placed against or near the
pressure washer can interfere with
its proper ventilation features caus-
ing overheating and possible
ignition of the materials.
• Never operate pressure washer in an
area containing dry brush or weeds.
• Muffler exhaust heat can damage
painted surfaces, melt any material
sensitive to heat (such as siding,
plastic, rubber, vinyl or the pressure
hose, itself), and damage live plants.
• Always keep pressure washer a mini-
mum of 4' (1.2m) away from surfaces
(such as houses, automobiles or live
plants) that could be
damaged from muffler exhaust heat.
• Improperly stored fuel could lead to
accidental ignition. Fuel improperly
secured could get into the hands
of children or other unqualified
persons.
• Store fuel in an OSHA-approved
container, in a secure location away
from work area.
• Use of acids, toxic or corrosive
chemicals, poisons, insecticides, or
any kind of flammable solvent with
this product could result in serious
injury or death.
• Do not spray flammable liquids
RISK TO BREATHING (ASPHYXIATION)
WHAT CAN HAPPEN HOW TO PREVENT IT
• Breathing exhaust fumes will cause
serious injury or death! Engine
exhaust contains carbon monoxide,
an odorless and deadly gas.
• Operate pressure washer in a well-
ventilated area. Avoid enclosed
areas such as garages, basements,
etc.
• Never operate unit in a location
occupied by humans or animals.
• Some cleaning fluids contain sub-
stances which could cause injury to
skin, eyes or lungs.
• Use only cleaning fluids specifically
recommended for high-pressure
washers. Follow manufacturers
recommendations. Do not use
chlorine bleach or any other
corrosive compound.
4- ENG
A16617
RISK OF FLUID INJECTION AND LACERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Your pressure washer operates at
fluid pressures and velocities high
enough to penetrate human and
animal flesh, which could result in
amputation or other serious injury.
Leaks caused by loose fittings or
worn or damaged hoses can result
in injection injuries. DO NOT TREAT
FLUID INJECTION AS A SIMPLE
CUT! See a physician immediately!
• Inspect the high-pressure hose
regularly. Replace the hose
immediately if it is damaged,
worn, has melted from contacting
the engine, or shows any signs
of cracks, bubbles, pinholes, or
other leakage. Never grasp a high-
pressure hose that is leaking or
damaged.
• Never touch, grasp or attempt to
cover a pinhole or similar water
leak on the high-pressure hose.
The stream of water IS under high
pressure and WILL penetrate skin.
• Never place hands in front of nozzle.
• Direct spray away from self and
others.
• Make sure hose and fittings are
tightened and in good condition.
Never hold onto the hose or fittings
during operation.
• Do not allow hose to contact muffler.
• Never attach or remove wand
or hose fittings while system is
pressurized.
• Injuries can result if system pressure
is not reduced before attempting
maintenance or disassembly.
• To relieve system pressure, shut off
engine, turn off water supply and
pull gun trigger until water stops
flowing.
• Use only hoses and accessories
rated for pressure higher than your
pressure washer's PSI.
RISK OF INJURY FROM SPRAY
WHAT CAN HAPPEN HOW TO PREVENT IT
• High-velocity fluid spray can cause
objects to break, propelling particles
at high speed.
• Light or unsecured objects can
become hazardous projectiles.
• Always wear ANSI-approved Z87.1
safety glasses. Wear protective
clothing to protect against
accidental spraying.
• Never point wand at or spray people
or animals.
• Always secure trigger lock when
wand is not in service to prevent
accidental operation.
• Never permanently secure trigger in
pull-back (open) position.
5- ENG A16617
RISK OF UNSAFE OPERATION
WHAT CAN HAPPEN HOW TO PREVENT IT
• Unsafe operation of your pressure
washer could lead to serious injury
or death to you or others.
• Do not use chlorine bleach or any
other corrosive compound.
• Become familiar with the operation
and controls of the pressure washer.
• Keep operating area clear of all
persons, pets and obstacles.
• Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all
times.
• Never defeat the safety features of
this product.
• Do not operate machine with
missing, broken or unauthorized
parts.
• Never leave wand unattended while
unit is running.
• If proper starting procedure is not
followed, engine can kickback
causing serious hand and arm injury.
• If engine does not start after two
pulls, squeeze trigger of gun to
relieve pump pressure. Pull starter
cord slowly until resistance is felt.
Then pull cord rapidly to avoid
kickback and prevent hand or arm
injury.
• The spray gun/wand is a powerful
cleaning tool that could look like a
toy to a child.
• Keep children away from the
pressure washer at all times.
• Reactive force of spray will cause
gun/wand to kickback, and could
cause the operator to slip or fall
or misdirect the spray. Improper
control of gun/wand can result in
injuries to self and others.
• Do not overreach or stand on an
unstable support.
• Do not use pressure washer while
standing on a ladder.
• Grip gun/wand firmly with both
hands. Expect the gun to kickback
when triggered.
6- ENG
A16617
RISK OF INJURY OR PROPERTY DAMAGE WHEN
TRANSPORTING OR STORING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Fuel or oil can leak or spill and could
result in fire or breathing hazard. Seri-
ous injury or death can result. Fuel or
oil leaks will damage carpet, paint or
other surfaces in vehicles or trailers.
• If pressure washer is equipped with
a fuel shut-off valve, turn the valve to
the OFF position before transporting
to avoid fuel leaks. If pressure washer
is not equipped with a fuel shut-off
valve, drain the fuel from tank before
transporting. Only transport fuel in an
OSHA-approved container. Always
place pressure washer on a protective
mat when transporting to protect
against damage to vehicle from
leaks. Remove pressure washer from
vehicle immediately upon arrival at
your destination.
RISK OF BURSTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Over inflation of tires could result in
serious injury and property damage.
• Use a tire pressure gauge to check
the tires pressure before each use
and while inflating tires; see the tire
sidewall for the correct tire pressure.
NOTE: Air tanks, compressors and
similar equipment used to inflate tires
can fill small tires similar to these very
rapidly. Adjust pressure regulator on
air supply to no more than the rating
of the tire pressure. Add air in small
increments and frequently use the tire
gauge to prevent over inflation.
RISK OF HOT SURFACES
WHAT CAN HAPPEN HOW TO PREVENT IT
• Contact with hot surfaces, such as
engines exhaust components, could
result in serious burn.
• During operation, touch only the
control surfaces of the pressure
washer. Keep children away from
the pressure washer at all times.
They may not be able to recognize
the hazards of this product.
7- ENG A16617
RISK OF CHEMICAL BURN
WHAT CAN HAPPEN HOW TO PREVENT IT
• Use of acids, toxic or corrosive
chemicals, poisons, insecticides, or
any kind of flammable solvent with
this product could result in serious
injury or death.
• Do not use acids, gasoline, ker-
osene, or any other flammable
materials in this product. Use only
household detergents, cleaners and
degreasers recommended for use in
pressure washers.
• Wear protective clothing to protect
eyes and skin from contact with
sprayed materials.
RISK OF
ELECTRICAL SHOCK
WHAT CAN HAPPEN HOW TO PREVENT IT
• Spray directed at electrical outlets or
switches, or objects connected to
an electrical circuit, could result in a
fatal electrical shock.
• Unplug any electrically operated
product before attempting to clean
it. Direct spray away from electric
outlets and switches.
RISK OF
INJURY FROM LIFTING
WHAT CAN HAPPEN HOW TO PREVENT IT
• Serious injury can result from
attempting to lift too heavy an
object.
• The pressure washer is too heavy
to be lifted by one person. Obtain
assistance from others before lifting.
READ AND SAVE THESE INSTRUCTIONS
SPECIFICATIONS
Model XR2625
PSI Max* 2600
Operating PSI 2340
GPM Max* 2.5
Operating GPM 2.25
* Water flow and maximum pressure ratings determined in accordance with
PWMA standard PW101.
8- ENG
A16617
4. Assemble a "J" bolt through
frame as shown (both side).
5. Slide handle onto "J" bolts and
attach with knobs (both sides) .
Tighten securely.
6. Feed end of chemical hose
(without filter) through front panel
and press onto barbed fitting of
chemical injector.
ASSEMBLY INSTRUCTIONS
CARTON CONTENTS
Engine Frame and
Wheel Assembly
High Pressure
Hose
Spray Gun
Handle
Chemical
Hose
Bagged Parts
Engine
Manual
Operation
Manual
1. Locate and remove all loose parts
from the carton.
2. Cut four corners of the carton from
top to bottom and lay the panels
flat.
3. Remove five colored quick
connect nozzles from plastic
bag and insert them into correct
grommet on the nozzle holder.
NOTE: Nozzles are color coded
to match colored nozzles on
panel.
Accessory
Storage Panel
Cover
"J" Bolts Knobs Cleaning
Tool
Quick
Connect
Nozzles
Quick Connect Spray Wand
9- ENG A16617

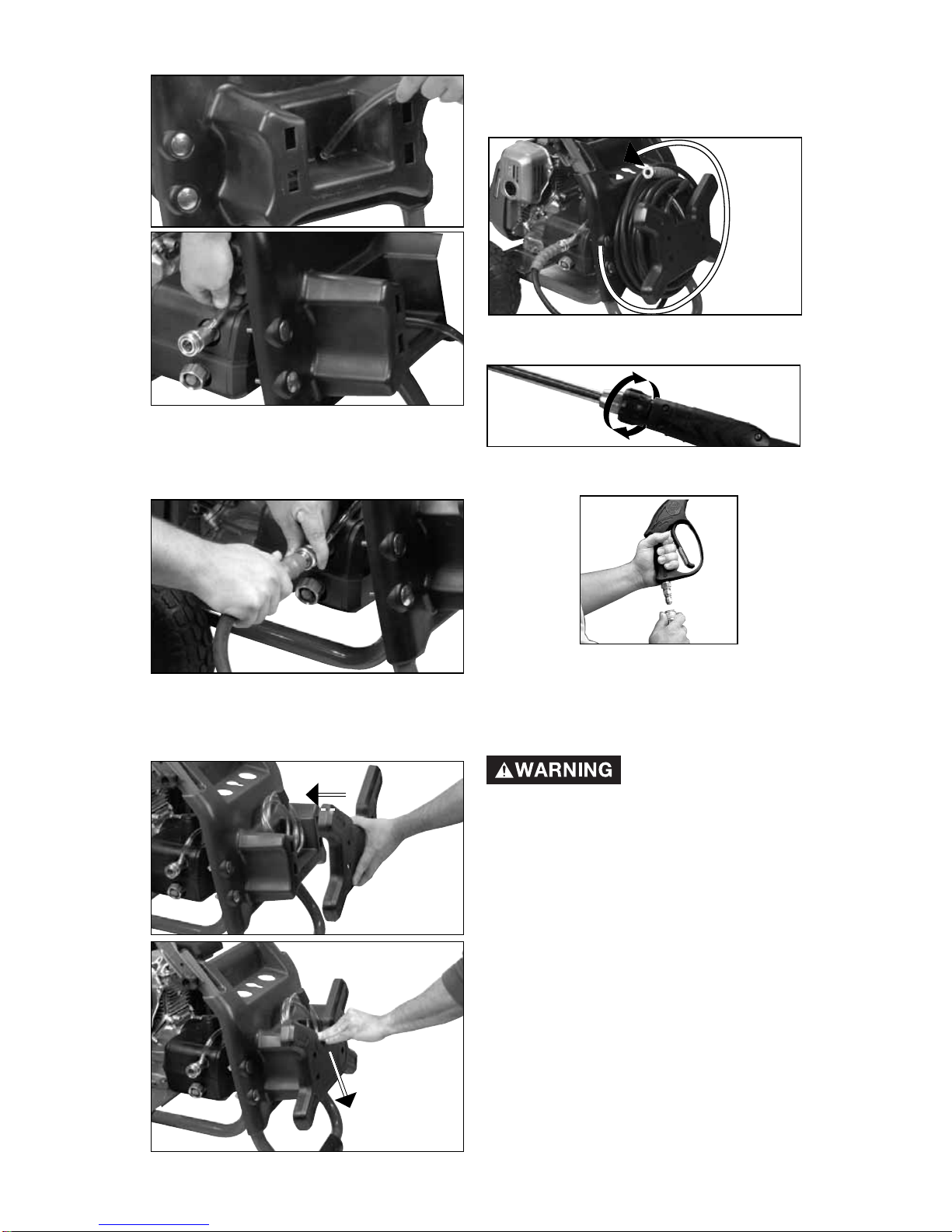

10. Wind high pressure hose around
hose reel of the accessory storage
panel.
11. Connect wand to gun. Tighten
securely.
12. Attach high pressure hose to gun.
NOTE: The pump on this unit is
maintenance free and requires no oil,
if there is a problem with the pump
contact an Authorized Service Center.
Risk of bursting.
Use a tire pressure
gauge to check the tires pressure
before each use and while inflating
tires; see the tire sidewall for the
correct tire pressure.
NOTE: Air tanks, compressors and
similar equipment used to inflate
tires can fill small tires similar to
these very rapidly. Adjust pressure
regulator on air supply to no more
than the rating of the tire pressure.
Add air in small increments and
frequently use the tire gauge to
prevent over inflation.
7. Roll the unit off the carton and
discard carton.
8. Connect high pressue hose to
pump outlet.
9. Align tabs on accessory storage
panel cover with holes in
accessory storage panel and slide
down until it locks into place.
10- ENG
A16617
OPERATING INSTRUCTIONS
BASIC ELEMENTS OF A
PRESSURE WASHER
High Pressure Pump (located inside
the shroud, not shown): Increases
the pressure of the water supply.
Engine: Drives the high pressure
pump.
High Pressure Hose: Carries the
pressurized water from the pump to
the gun and spray wand.
Spray Gun: Connects with spray
wand to control water flow rate,
direction, and pressure.
Compare the illustrations with your unit to familiarize yourself with the location
of various controls and adjustments. Save this manual for future reference.
Engine
High
Pressure
Hose
Spray
Gun
Quick
Connect
Spray
Wand
Accessory
Storage
Panel
Chemical
Hose
Accessory
Storage
Panel Cover
Quick Connect Spray Wand: Allows
the user to quickly change out high-
pressure nozzles. See How To Use
Spray Wand instructions in this section.
Chemical Hose: Feeds cleaning
agents into the pump to mix with the
water. See How To Apply Chemicals/
Cleaning Solvents instructions in this
section.
BASIC ELEMENTS OF AN
ENGINE
Refer to the engine manual for location
and operation of engine controls.
Choke Control: Opens and closes
carburetor choke valve.
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Sprachen:
Andere Excell Hochdruckreiniger Handbücher
Excell
Excell ZR2800 Bedienungsanleitung
Excell
Excell Excell A20118 Bedienungsanleitung
Excell
Excell VR2522 Bedienungsanleitung
Excell
Excell ZR2700 Bedienungsanleitung
Excell
Excell VR2320 Bedienungsanleitung
Excell
Excell EPW2123100 Bedienungsanleitung
Excell
Excell PWZ0163100.02 Bedienungsanleitung
Excell
Excell XR2600 Bedienungsanleitung
Excell
Excell XR2600 Bedienungsanleitung
Excell
Excell XR2600 Bedienungsanleitung
Excell
Excell EPW1792500.01 Bedienungsanleitung
Excell
Excell VR2500 Bedienungsanleitung
Excell
Excell EPW1792500 Bedienungsanleitung
Excell
Excell Excell A17913 Bedienungsanleitung
Excell
Excell ZR3700 Bedienungsanleitung
Excell
Excell PWZ0142700.01 Bedienungsanleitung
Excell
Excell VR2300 Bedienungsanleitung
Excell
Excell ZR2800 Bedienungsanleitung
Excell
Excell Excell A20116 Bedienungsanleitung
Excell
Excell XR2750 Bedienungsanleitung
