Exerpeutic WorkFit Bedienungsanleitung



7150

.4‐1012

PORTAN

tain this

e specifi

thout No

6

: Read a

wner’s

ations o

ice

instruct

anual fo

this pro

ons care

future re

uct may

’S

k

ully befo

ference.

ary from

ANU

using t

this phot

L



is produ

, subject

to chang



SERVICE------------------------------------------------------------------------------ 2

LABEL PLACEMENT--------------------------------------------------------------- 3

IMPORTANT SAFETY GUIDELINES------------------------------------------ 4

OVERVIEW DRAWING------------------------------------------------------------ 5

PARTS LIST-------------------------------------------------------------------------- 6

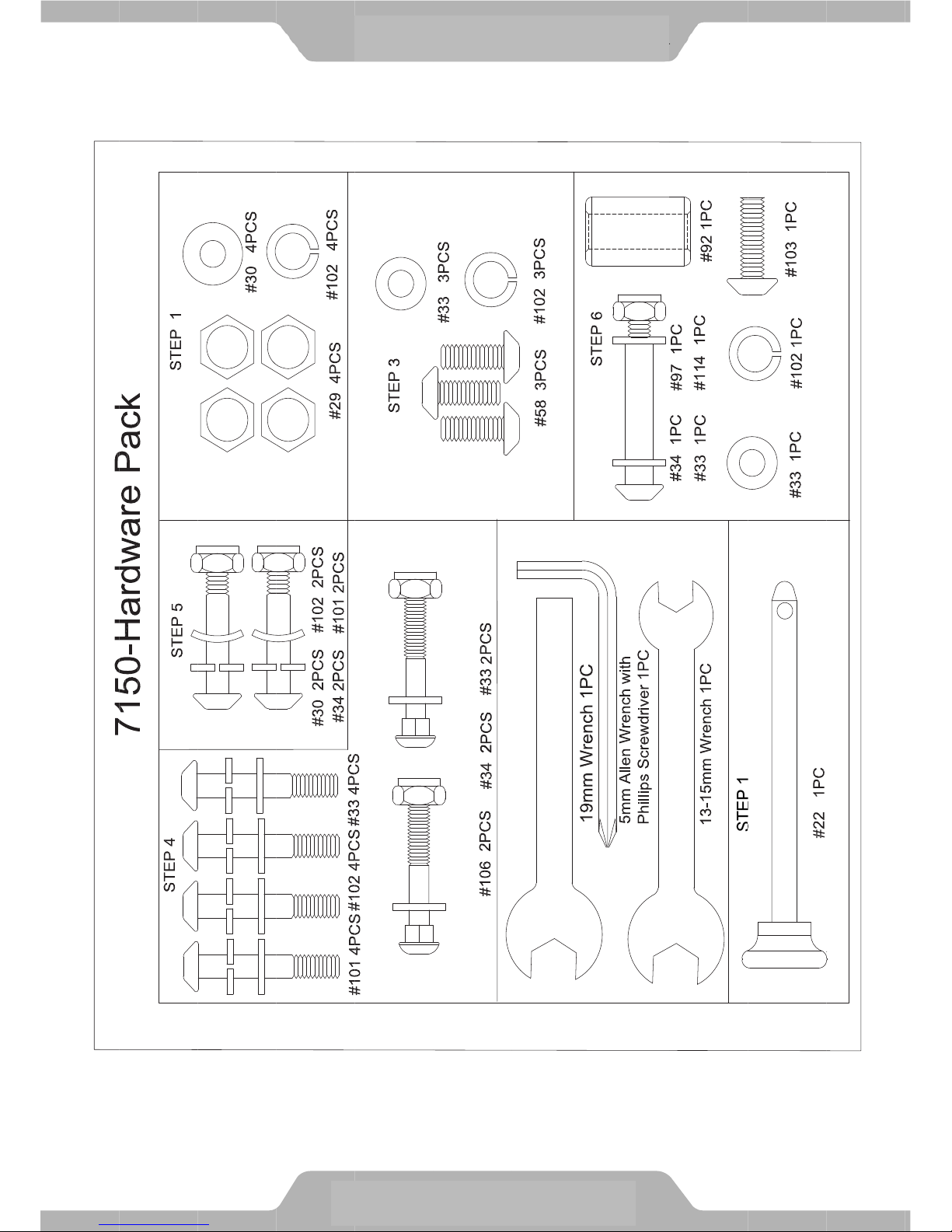

HARDWARE & TOOLS PACK--------------------------------------------------- 8

ASSEMBLY--------------------------------------------------------------------------- 9

CONSOLE---------------------------------------------------------------------------- 15

ADJUSTMENTS-------------------------------------------------------------------- 16

BATTERY INSTALLATION------------------------------------------------------- 20

STORAGE----------------------------------------------------------------------------- 21

TRANSPORTING THE BIKE----------------------------------------------------- 22

MAINTENANCE & TROUBLE SHOOTING----------------------------------- 23

WARRANTY-------------------------------------------------------------------------- 24

PART REQUEST FORM---------------------------------------------------------- 25

TABLEOFCONTENTS

IMPORTANT: FOR NORTH AMERICA ONLY

For damaged or defective product, questions, replacement parts or any

other service support, please contact our customer service department

(8:00 AM - 5:00 PM Pacific Standard Time, Daily) by the below methods:

For Best Service Email:

[email protected]

Website:

www.paradigmhw.com

Toll-Free:

1-844-641-7921

Please have the following information ready when requesting for service:

Your name

Phone number

Model number

Serial number

Part number

Proof of Purchase

For damaged or defective product please contact our customer service

before returning to the store.

*Emailing us with the information above will be the best method to

recieve a response during peak business hours.

**Response time may vary.

Paradigm Health & Wellness, Inc.

1189 Jellick Ave.

City of Industry, CA 91748, USA

SERVICE

*Patent Pending

8 am - 5 pm PST

1-844-641-7921

UNDER PENALTY OF LAWTHIS TAG

NOT TO BE REMOVED EXCEPT BY THE

CONSUMER

NOTICE

This article does not meet

requirements of California

Bureau of Home Furnish-

ings technical bulletin 117.

Care should be exercised

burning cigaretts.

ALL NEW MATERIALCONSISTING

OF POLYURETHANE

FOAM PAD_100%

REGISTRY NO. VA25302 (CN)

manufacturer that the materials

in this article are described in

accordance with law.

Paradigm Health and Wellness, Inc.

1189 Jellick Ave. City of Industry

CA 91748, USA

Paradigm Health and Wellness, Inc.

1189 Jellick Ave. City of Industry, CA

91748 USA

SE SANCIONARÁ LEGALMENTE A

QUIENES QUITEN ESTA ETIQUETA.

SOLO EL CONSUMIDOR PODRÁ

QUITARLA.

MATERIAL COMPLETAMENTE NUEVO

COMPUESTO DE 100% RELLENO DE

ESPUMA DE POLIURETANO.

NO. DE REG VA25302 (CN)

materiales de este artículo se

describen según las leyes.

Paradigm Health and Wellness, Inc.

1189 Jellick Ave. City of Industry

CA 91748, USA

SOUS PEINE DE SANCTION LÉGALE,

CETTE ÉTIQUETTE NE PEUT ÊTRE

ENLEVÉE PAR UNE PERSONNE AUTRE

QUE LE CONSOMMATEUR

AVIS

Ce produit ne satisfait pas

du devis technique du

California Bureau of Home

Furnishings. Ne pas utiliser

près d’une source de

nue (cigarettes, etc.)

ENTIÈREMENT FABRIQUÉ DE

MATÉRIAUX NEUFS REMBOURRAGE

DE MOUSSE DE

POLYURÉTHANE 100 %

NO D’ENREGISTREMENT

VA25302 (CN)

Cette étiquette est apposée

conformément aux lois Cana-

diennes.

Este artículo no cumple

con las normas de

inamabilidad del boletín

técnico 117 de la

Ocina de Mobiliario

para el Hogar de

California. Cuide que el

producto no esté cerca

de las llamas o de

cigarrillos encendidos.

AVISO

LABELPLACEMENT

Basic precautions should always be followed when using this

equipment. Read all instructions before using this equipment which

include the following safety instructions:

1. Read all the instructions in this manual and do warm up exercises

before using this equipment.

2. Before exercising, and in order to avoid injuring your muscles, it is

recommended that you perform warm-up exercises for every muscle

group.

3. Make sure all the components are not damaged and tightened well

before use. This equipment should be placed on a flat surface

when using. Using a mat or other covering material on the ground is

recommended.

4. Wear proper clothes and shoes when using this equipment; do not

wear clothes that might get caught by any part of the equipment;

remember to tighten the pedaling straps.

5. Do not attempt any maintenance or adjustments other than those

described in this manual. Should any problems arise, discontinue use

and consult customer service.

6. Do not use or leave the equipment outdoors.

7. This equipment is for household use only.

8. Only one person should be on the equipment while in use.

9. Keep children and pets away from the equipment while in use. This

machine is designed for adults only. This product requires a minimum

of 6 square feet of space for safe operation.

10. If you feel any chest pains, nausea, dizziness, or shortness of breath,

you should stop exercising immediately and consult your physician

before continuing.

11. The maximum weight capacity for this product is 300 lbs/136 kgs.

WARNING:Before beginning any exercise program consult

your physician. This is especially important for the people who are over

35 years old or who have pre-existing health problems. Read all

instructions before using any fitness equipment.

CAUTION:Read all instructions carefully before operating this product.

Retain this Owner’s Manual for future reference.

IMPORTANT SAFETY GUIDELINES

OVERVIEW DRAWING

Part # Description Qty

1 Rear Frame 1 36 Washer Ø6.2 2

2 Front Frame 1 37 Sensor with Wire 1

3 Rear Stabilizer 1 38 Flywheel Ø195 1

4 Handlebar 1 39 Belt Wheel with Crank Axle

Ø155 1

5 Seat Post 1 40 Bearing Bracket 2

6 Seat 1 41 Wave Washer 1

7 Left Pedal 1 42 Bearing 6003RS 4

7-1 Left Pedal Strap 1 43 C-ring Ø17 6

8 Right Pedal 1 44 Belt Wheel with Crank Axle

Ø150 1

8-1 Right Pedal Strap 1 45 Bearing 6000z 2

9 Backrest Frame 1 46 Axle Ø12.8x94L 1

10 Wire Plug 2 47 Eyebolt M6 2

11 Rear Stabilizer End Cap 2 48 Tension Bracket 2

12 Seat Post Plastic Bushing 1 49 Backrest 1

13 Tension Control Knob 1 50 Nylon Nut M6 2

14 Adjustment Knob M16 1 51 Nut M10 2

15 Rear Supporting Tube 1 52 Washer Ø10.2xØ25 1

16 Oval Wire Plug 5 53 Wave Washer Ø17 1

17 Handrail Foam Grip 2 54 Idle Wheel Axle 1

18 Left Cover 1 55 Nylon Nut M10 1

19 Right Cover 1 56 Bearing 6902Z 2

20 Top Shroud 1 57 Axle 1

21 Round Plastic Bushing 6 58 Hexagon Socket Bolt M8*15 5

22 Safety Pin Ø10*110L 1 59 Rubber Cushion 1

23 Left Crank 1 60 Washer Ø8.2x Ø25x2.0t 2

24 Right Crank 1 61 Flat Phillips Head Screw M6x10 6

25 France Nut 2 62 Holder 1

26 Crank Cover 2 63 Round Phillips Head Screw

M4x10 1

27 Round Phillips Head Drilling

Screw M4x20 4 64 Plastic Washer 1

28 Round Phillips Head Tapping

Screw M4x20 5 65 C-ring Ø15 1

29 Hexagon Cap Nut M8 5 66 Square end cap 4

30 Curve Washer D Ø8.2 6 67 Rear Frame Support Tube 1

31 Front Stabilizer 1 68 Screw M5x20 1

32 C-ring Ø 10 2 69 Washer Ø5.2xØ18 2

33 Flat Washer Ø8.2 13 70 Spring 1

34 Nylon Nut M8 6 71 Belt 240J4 1

35 Magnet Bracket 1 72 Belt 230J3 1

PARTS LIST

No. Description Qty

Part # Description Qty

73 Front Stabilizer End Cap 2 100 Drilling Screw M4x10 4

74 Spring Washer Ø 6.2 1 101 Carriage Bolt M8*45 17

75 Hexagon Socket Bolt M8x80L 1 102 Spring Washer Ø8.2 14

76 Hexagon Socket Bolt M8x43L 1 103 Hexagon Socket Bolt M8*25 1

77 Handlebar End Cap Ø25.4 3 104 Washer Ø25xØ8.2 2

78 Front Frame Support Tube

End Cap Ø22.2 2 105 Plastic Washer 2

79 Connection Wire A 2 106 Carriage Bolt M8*50 2

80 Nut M6 1 107 Drilling Screw M5x15 10

81 Screw M6x15 1 108 Battery Bracket 1

82 Hand Pulse Sensor 2 109 Square end cap 30x30 1

83 Countersunk Phillips Head

Cap Screw M4x20 2 110 Console 1

84 Left Nylon Nut 9/16 1 110A Upper Console Wire 1

85 Nut M10 1 110B Upper Hand Sensor Wire 1

86 Bracket 1 111 Screw 4

87 Desk Mount 1 112 Console Wire 1

88 Desk 1 113 Tube Clip 1

89 Drawer 1 114 Flat Washer Ø10.2 1

90 Bracket 2 115 Clip 4

91 Slide 2 116 Nut M5 1

92 Plastic Bushing 1 117 Screw M5 1

93 End cap 4 118 Right Nylon Nut 9/16 1

94 Pop Pin 1 119 Long Adjustment Knob M16 1

95 Slide Knob 1 120 Screw M4x12L 1

97 Hexagon Socket Bolt M8*58 1 121 Screw 4

98 Hand Pulse Wire 2 122 Crank Plug 2

99 Connection Wire B 1

PARTS LIST

DWA

E &

OOLS

PAC
