Expedition One DSTC Bedienungsanleitung
INSTALLATION GUIDE
DSTC UNIVERSAL TIRE CARRIER
2
CONTENTS
HARDWARE
ITEM QTY
Tire Carrier Mount 1
Swing Arm Mount 1
Hardware
3/8”-16 X 1 1/4” Hex Cap Bolt 4
3/8”-16 Nyloc Nut 4
3/8” USS Wssher 8
1/2”-13 X 1 1/4” Hex Cap Bolt 4
1/2”-13 Nyloc Nut 4
1/2” SAE Washer 8
SKILL LEVEL - 2 STARS
1 STAR EASY - No tools required
2 STARS BASIC - Requires standard tools, basic mechanical knowledge and understanding
3 STARS MODERATE - Requires standard tools. Some drillling and/or cutting.
4 STARS ADVANCED - Requires speciality tools. Drilling, cutting, and/or welding
5 STARS EXPERT - Professional installation recommended.
DISCLAIMER
Expedition One is not responsible for any damages to vehicle or injury.
We always recommend professional assistance when installing our vehicle products.
Always follow safety procautions including the use safety gear and devices.
FOR USE ON DSTC SWING ARMS
3
3
1
UNIVERSAL TIRE MOUNT ASSEMBLY
TIRE CARRIER ASSEMBLY

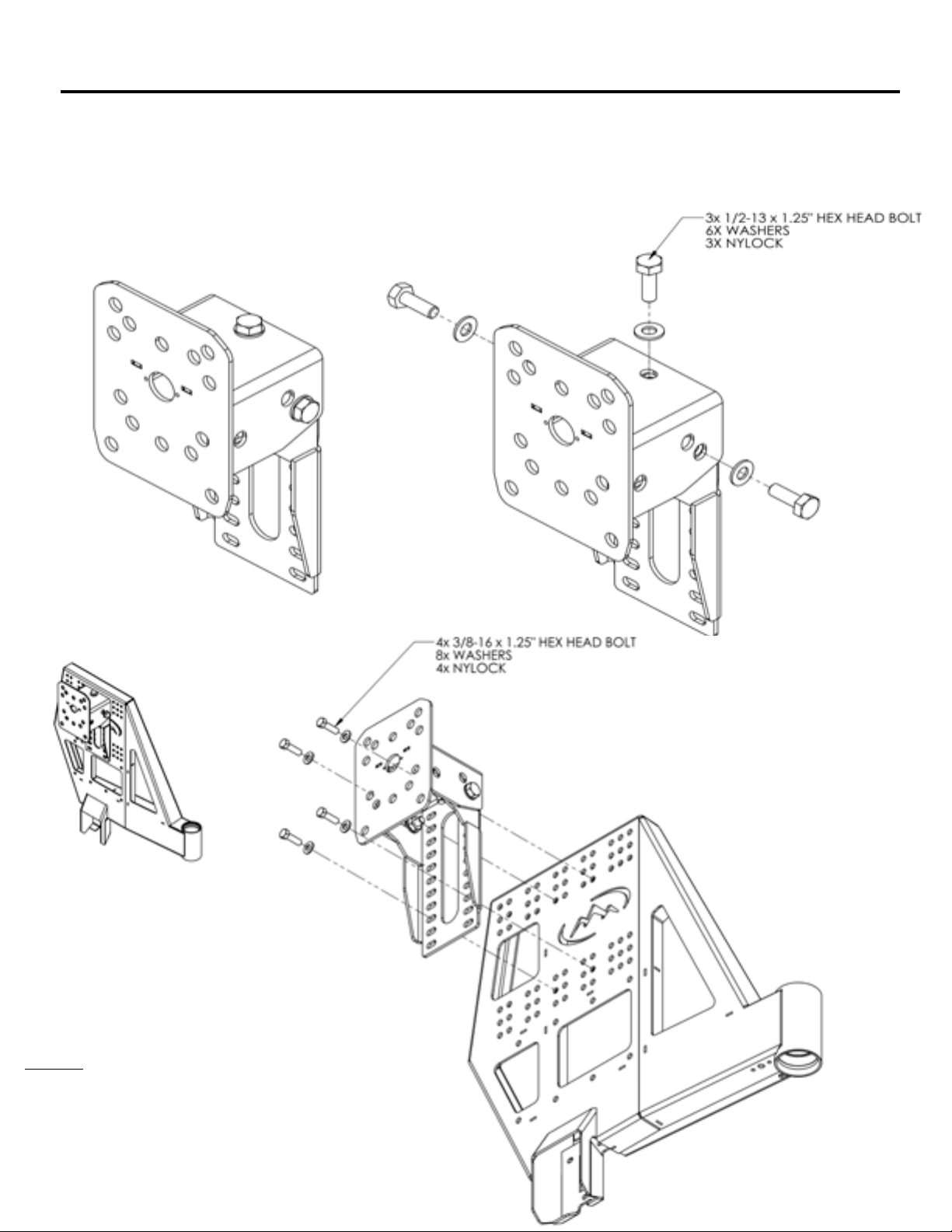

Assemble the tire mount as shown by sliding the tire carrier over the top of the swing arm mount
loosely mount with the 1/2” hardware as shown below. Mount in the desired position on either
swing arm using the 3/8” hardware provided.
NOTE
Tire mount position is dependent on tire and wheel
size and providing clearance for any hardware,
accessories or OEM vehicle features sure as lights.
Test t or check for any interference before
mounting.
4
3
TIRE MOUNT PLACEMENT
Position the tire mount in the desired postion and tighten the hardware
2
TIRE MOUNT POSITION OPTIONS
OPTION 1
OPTION 2
