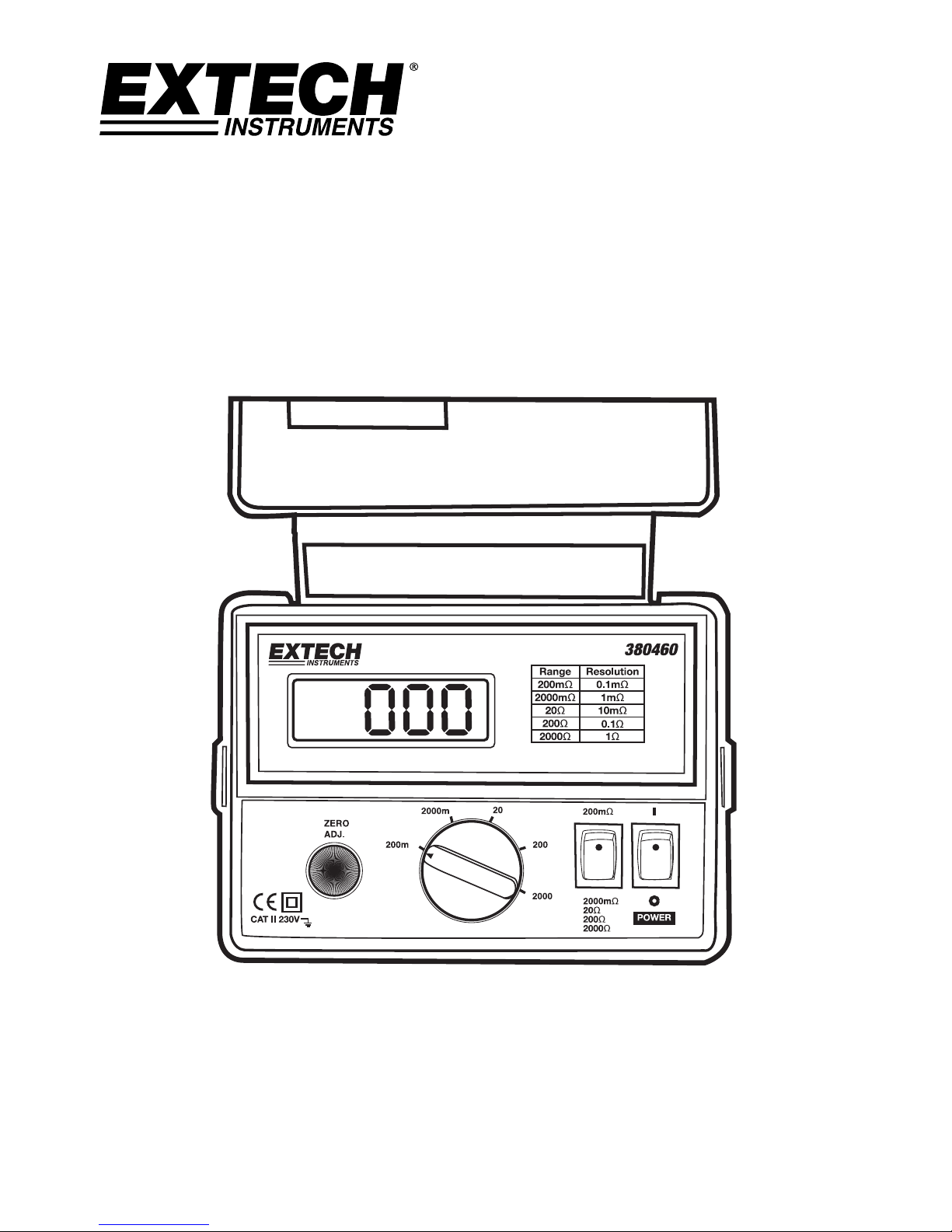

Extech Instruments 380460 Bedienungsanleitung

User Guide

Precision Milliohm Meters

Models 380460 and 380462

380460/380462-en-GB_v2.5 8/15

Introduction

Congratulations on your purchase of the Extech Milliohm Meter Model 380460 (110V) or Model

380462 (220V). The milliohm meters are enclosed in rugged carrying cases for durability.

Measurements are made with Kelvin test leads (supplied) for optimal accuracy in five (5) selectable

ranges. Careful use of this meter will provide years of reliable service.

Meter Description

1. LCD Display

2. Zero adjust knob

3. Range Dial

4. Power switch

5. 200mselect switch

6. AC power cord

7. Kelvin lead to meter connections

8. Carrying case

380460/380462-en-GB_v2.5 8/15

Operation

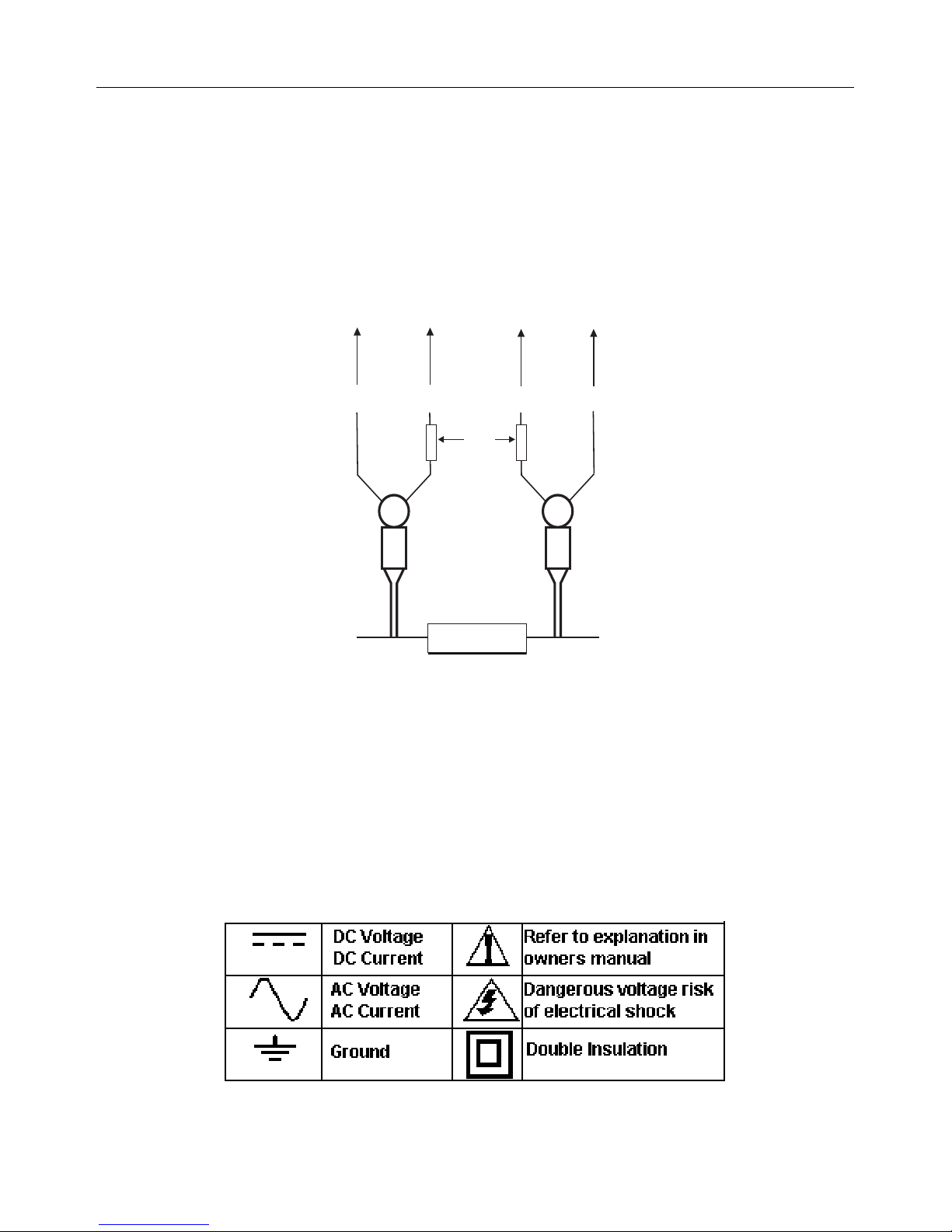

Basic Principles of 4-wire Measurements

For each range, the meter provides a specific amount of test current (refer to General Specifications)

which flows from the HI to the LO meter terminal and therefore from the HI to the LO clip lead (Refer

to the diagram). This is the current that ultimately passes through the device under test (RX in

diagram below).

Once the test current is applied to the device under test, clip leads Rx1 & Rx2 measure the voltage

drop across the device under test. The following equations detail how the meter accomplishes its

measurement tasks.

Measurement Equations

Vx = Is x Rx;

Where Vx is the voltage (measured by the meter) across the device under test; Is is the test current;

Rx is the resistance of the device under test. From Vx = Is x Rx, the meter moves to the next step

which is: Rx = Vx/Is. With this equation the meter determines the resistance of the device under test.

Note that the measured resistance (Rx1 & Rx2) is not affected by stray resistance since the test

current is supplied directly to the device under test. This is the advantage of the 4-wire Kelvin lead

configuration over 2-wire methods which introduce errors into low resistance measurements.

International Symbols

LO HI

Rx1 Rx2

White

bands

Device under test

To Meter

380460/380462-en-GB_v2.5 8/15

Powering the Meter

Connect the meter to the correct power source (110 or 220VAC); the Model 380460 uses 110VAC

and the Model 380462 uses 220VAC (note that these meters are NOT interchangeable). Do not

apply voltage to the meter input measurement terminals. Meter damage may result.

Measurement Procedure

1. Rotate the Range select switch to the desired range.

2. When using the 200m range, put the 200m select switch to the 200m position; for all other

measurement ranges put this switch in the opposite position

3. Perform a Zero Adjustment per the following:

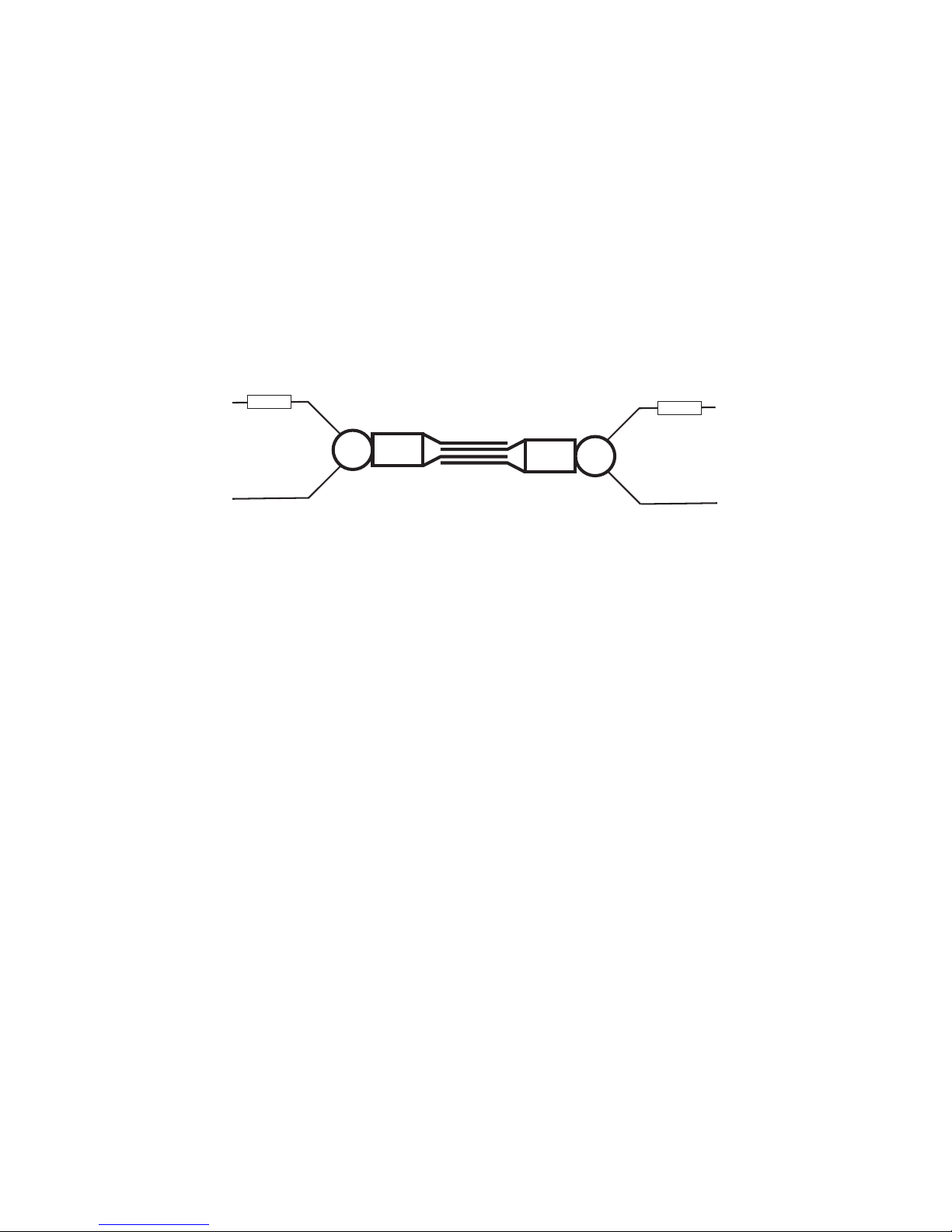

Short the Kelvin Clips as shown in the diagram below.

(Make sure that the clips are clean)

Rotate the Zero Adjust Knob until the meter indicates zero units.

4. Either attach the test leads onto a component or attach the leads between two points on a

circuit.

5. Observe the meter reading.

380460/380462-en-GB_v2.5 8/15

Specifications

General Specifications

Circuit Custom one-chip LSI microprocessor circuit

Display 18 mm (0.7") LCD with 2000 display counts

Measurement terminals 4-Terminal Kelvin type

Measurement ranges Five (5) ranges (200m, 2, 20, 200, 2000ohms)

Zero Adjust ±50 count adjustment

Sampling Time Approximately 0.4 seconds

Over range indication Indication of "1 "

Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)

Operating Humidity 80% Relative Humidity max.

Power Supply 110V (380460) or 220V (380462) ±15%, 50/60Hz

Power Consumption Less than 2 VA

Weight 694g (1.53 lbs.)

Dimensions 167 x 122 x 85 mm (6.6 x 4.8 x 3.4") with cover

Accessories Power Cable and 4-wire Kelvin clip leads(380465)

Range Specifications

Range

Resolution

Test

Current

Accuracy

Open Circuit

Voltage

200 m0.1m100mA ± 0.75% + 4 digits 4.4V

2 1m10mA ± 0.75% + 2 digits 3.6V

20 10m10mA ± 0.75% + 2 digits 3.6V

200 0.1 1mA ± 0.75% + 2 digits 3.5V

2000 1 1mA ± 0.75% + 2 digits 3.5V

Note: Specifications tested using RF Field Strength <3V/m and frequency <30MHz

ISO‐9001Certified

www.extech.com
