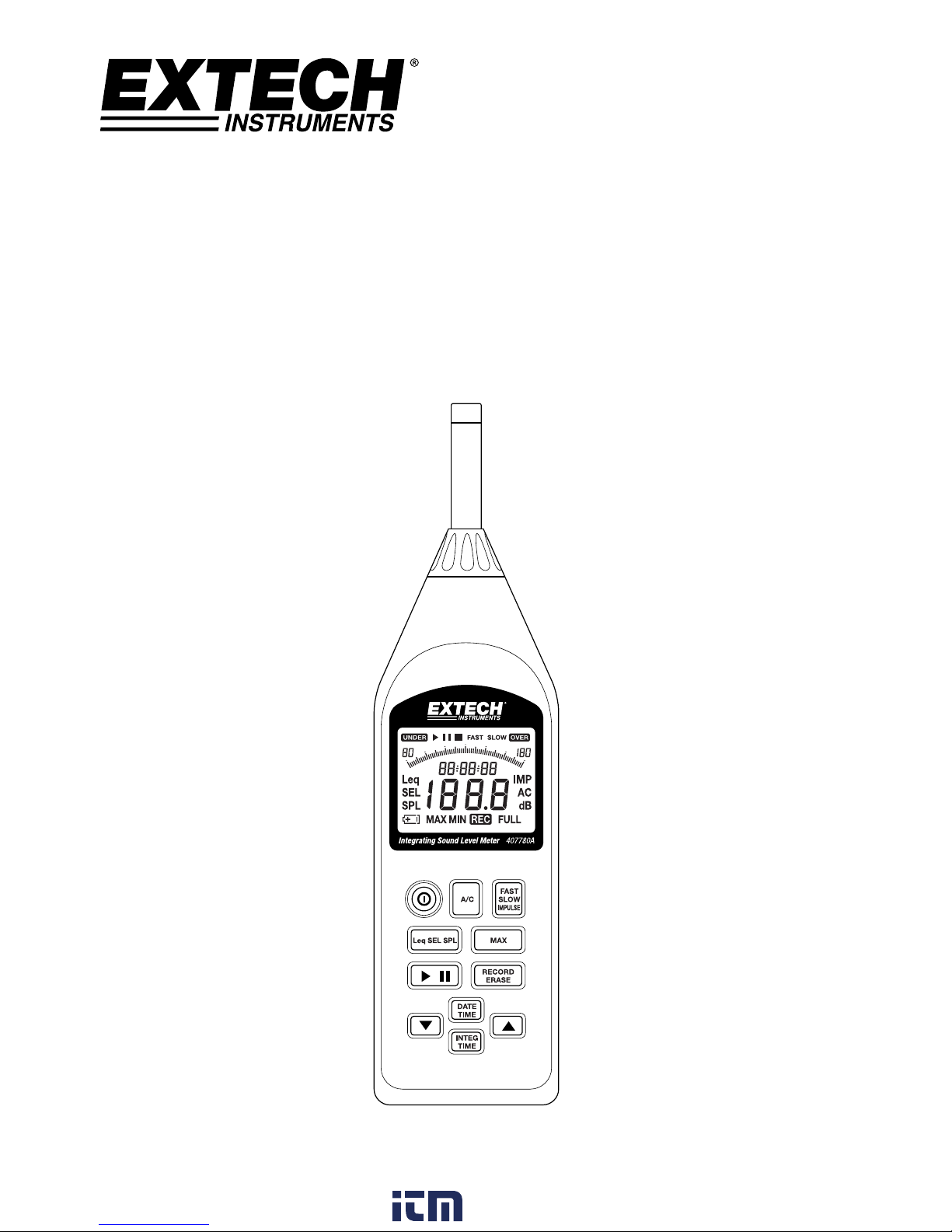

USERGUIDE



IntegratingSoundLevelMeter

andDatalogger



Model407780A



www. .com information@itm.com1.800.561.8187

407780A‐EU‐ENv1.34/14

Introduction



ThankyouforselectingtheExtechInstrumentsModel407780A.Thisdeviceisshippedfullytested

andcalibratedand,withproperuse,willprovideyearsofreliableservice.Pleasevisitourwebsite

(www.extech.com)tocheckforthelatestversionofthisUserGuide,ProductUpdates,and

CustomerSupport.



Features

TheSoundLevelMetercomplieswiththerequirementsofIEC61672‐1:2003standardfora

Class2instrument.

Theinstrumentcontainsseveralfeatureswhichpermitsoundlevelmeasurementsundera

varietyofconditions.

Featuresinclude:

Fivemeasurementranges

Fast,SlowandImpulsetimeweightingsettings

AandCfrequencyweightingsettings

Storageofupto32000measurementrecords

USBserialportfordownloadingrecordstoacomputerorrealtimeanalysis

AC/DCsignaloutputsareavailablefromasinglestandard3.5mmcoaxialsocketsuitable

forusewithafrequencyanalyzer,levelrecorder,FFTanalyzer,graphicrecorder,etc.

Leq,SEL,SPLMAX,SPLMIN,PH(PeakHold),L05,L10,L50,L90,andL95,tenmeasured

parametersaremonitoredduringmeasurement

Presetmeasurementtime

Soundlevelalarmoutputconnector



www. .com information@itm.com1.800.561.8187

407780A‐EU‐ENv1.34/14

InstrumentCare

Donotattempttoremovethemeshcoverfromthemicrophoneasthiswillcause

damageandaffecttheaccuracyoftheinstrument.

Protecttheinstrumentfromimpact.Donotdropitorsubjectittoroughhandling.

Transportitinthesuppliedcarryingcase.

Protecttheinstrumentfromwater,dust,extremetemperatures,highhumidityand

directsunlightduringstorageanduse.

Protecttheinstrumentfromairwithhighsaltorsulphurcontent,gasesandstored

chemicals,asthismaydamagethedelicatemicrophoneandsensitiveelectronics.

Alwaysswitchtheinstrumentoffafteruse.Removethebatteriesfromtheinstrumentif

itisnottobeusedforalongperiodoftime.Donotleaveexhaustedbatteriesinthe

instrument,astheymayleakandcausedamage.

Cleantheinstrumentonlybywipingitwithasoft,dryclothor,whennecessary,withacloth

lightlymoistenedwithwater.Donotusesolvents,abrasives,alcoholorcleaningagents.

www. .com information@itm.com1.800.561.8187

407780A‐EU‐ENv1.34/14

MeterDescription



1. 1/2‐inchmicrophone

2. LCDdisplay

3. Powerbutton

4. Leq/SEL/SPLselectbutton

5. RUN/Pausebutton

6. UP/DOWNrangesettingbuttons.

7. A/CFrequencyweightingselectswitch

8. FAST/SLOW/IMPULSEtimeweighting

selectswitch.

FAST:125ms,SLOW:1second,

IMPULSE:35mswithslowdecay

9. MAXbutton

10. RECORD/ERASEbutton

11. Realtimeclockbutton

12. Integrationtimebutton

13. Alarmoutput

14. AC/DCoutput

15. CAL(calibration)adjustment

16. Externalpowerinput

USBinput(locatedonbottom,not

shown)

Tripodmountingscrew(locatedonrear,notshown)

Batterycover(locatedonrear,notshown)



www. .com information@itm.com1.800.561.8187

407780A‐EU‐ENv1.34/14

DisplayDescription



1. Soundlevelrangeindicator(5ranges):30–90dB,40–100dB,50–110dB,60–120dBand70–

130dB

2. Bargraphrepresentsthecurrentsoundlevel(1dBresolution).

3. Date/timeandelapsedtimeindicator:year‐month‐dayorhour:minute:second.

Duringintegratingthisindicatordisplaystheelapsedtimeinseconds.

WhenviewingthePeakHoldvaluethisindicatordisplaysPH.

WhenviewingthepercentilevaluesthisindicatordisplaysL:05,L:10,L:50,L:90orL:95.

4. Leq:Equivalentcontinuoussoundlevelreading

5. SEL:Soundexposurelevelreading

6. SPL:Time‐weightedsoundlevelreadingSoundPressureLevel

7. Low‐batteryindication

8. MAX:WhendisplayedflashingitindicatesthattheMaximumtime‐weightedsoundlevel

readingisshown.WhenitisdisplayedsoliditindicatesthattheMaximumsoundlevel

readingisdisplayed.

9. MIN:Minimumsoundlevelreading.

10. REC:IndicatesthatDatarecordingisinprocess

11. Soundlevelreading(0.1dBresolution):30.0–130.0dB

12. FULL:Indicatesthattherecordingmemorybankhasbeenfilled

www. .com information@itm.com1.800.561.8187

407780A‐EU‐ENv1.34/14

13. dB:Soundlevelunit(decibel)

14. A,C:AorCfrequencyweightingindicator.

15. IMP:Impulsetimeweightingindicator

16. OVER:Over‐rangeindicatorappearsflashingwhenover‐rangemeasurementshavebeen

includedinthesoundlevelmeasurementdatarecordingsession.

17. SLOW:Slowtimeweightingindicator

18. FAST:Fasttimeweightingindicator

19. :Indicatesthatintegratingsoundlevelmeasurementshavebeenstopped.

20. :Indicatesthatintegratingsoundlevelmeasurementsarepaused.

21. :Startandcontinuousintegratingmeasurementindicator.

22. UNDER:Under‐rangeindicatorappearsflashingwhenunder‐rangemeasurementshave

beenincludedinthesoundlevelmeasurementdatarecordingsession.



www. .com information@itm.com1.800.561.8187

407780A‐EU‐ENv1.34/14

Operation

Themeterhastwomodesofoperation,SoundLevelMetermodeandIntegratingSoundLevel

Metermode.

SoundLevelMetermeasurements

1. Pressthe buttontoswitchthemeterON.Theinitialstatedependsontheconditionsset

whenthemeterwaslastswitchedoff.

2. PresstheA/Cbuttontoselectthedesiredfrequencyweighting.

3. PresstheFAST/SLOW/IMPULSEbuttontoselectthedesiredresponsetime.

Note:Refertolocalstandardstoselecttheproperweightingandresponsetimeforthe

measurementstobeperformed.Requirementsvaryaccordingtocountryandtypeoftest.

OSHArequiresSlowandAweightformanyoftheirworkplacetests.

4. Usethe▲▼buttonstoselectthedesireddBrange.Chooseasettinginwhichthebar

graphindicationregistersapproximatelyinthemiddleoftherange.IftheOVERindicator

appearsduringameasurement,theupperlimitoftheselectedrangehasbeenexceeded.

Increasetherangesettinguntilthesymbolremainsoffduringmeasurements.Similarly,if

theUNDERindicatorappears,reducetherangesettinguntilthesymbolremainsoff.Both

indicatorsarenon‐latchingandwillclearwhenthecorrectrangeisselected.

5. Holdtheinstrumentcomfortablyinhand(awayfromthebody)orpositionitonatripod.

Pointthemicrophonetowardthenoisesource,thesoundpressurelevelwillbedisplayed

onthemeter’sLCDdisplay

6. Thenumericlevelindicationonthedisplayshowsthecurrentlymeasuredsoundlevel.The

readingisupdatedoncepersecond.

7. PresstheMAXbuttontodisplaythemaximumsoundlevelencounteredduringa

measurementperiod;theMAXindicatorwillblinkappearonthedisplay.PresstheMAX

buttonagaintoexitthismode

8. PressDATE/TIMEtochangefromcurrenttimehour:minute:seconddisplaytocurrent

dateyear–month‐daydisplay.Thedisplaywillreverttothecurrenttimedisplayafter2

seconds.



www. .com information@itm.com1.800.561.8187

407780A‐EU‐ENv1.34/14

IntegratingSoundLevelMetermeasurements

Theintegratingsoundlevelmodewillmeasurethesoundlevelovertimeandcalculatethe

followingresults:

LeqEquivalentcontinuoussoundlevelmeasurement

SELSoundexposurelevelmeasurement

SPLMAXMaximumsoundlevelmeasurement

SPLMIN Minimumsoundlevel)measurement

(PH) PeakHoldsoundlevelmeasurement

Percentile Soundlevel(L05,L10,L50,L90andL95)measurement

Whenusingthismeterinamodeotherthanthesoundlevelmeasurementmode,allprocessing

functionsprovidedbythemeterareperformedsimultaneously.Forexample,whenequivalent

continuoussoundlevelmeasurementisselectedtheexposurelevelandpercentilelevelarealso

determined.

1. Pressthe buttontoswitchONthemeter.

2. PresstheA/Cbuttontoselectthedesiredfrequencyweighting.

3. PresstheFAST/SLOW/IMPULSEbuttontoselectthedesiredresponsetime.

4. Usethe▲▼buttonstoselectthedesireddBrange.Chooseasettinginwhichthebar

graphindicationregistersnearthemiddleoftherange.IftheOVERorUNDERindicators

switchONfrequently,changethelevelrangesetting.

5. Settingtheintegratingmeasurementtime.(DefaultorManual)

Defaulttimes:

a. PresstheINTEGTIMEbuttononcetoselectadefaultintegratingtime.

b. Usethe▼▲buttonstoselectthemeasurementtime.

c. Theselectionwillcyclethrough:1sec,3sec,10sec,30sec,1min,5min,8min,10min

15min,30min,1hour,8hours,24hours.

d. After5secondsofinactivitythemeterwillstorethedisplayedselectionandreturnto

thenormalmode.

Manuallysettime:

a. PressandholdINTEGTIMEfor3secondstomanuallysettheintegrationtime.

b. Aflashingcursorindicatesthecurrentlyselectedparameter(seconds).

c. Usethe▼▲buttonstosetdesiredsecond.

d. PresstheINTEGTIMEbuttontomovetothenextparameter(minutes),repeatthis

procedureuntilthedesiredminutesandhourshavebeenset.PresstheINTEGTIME

buttontostorethesettingandtoexitthismode.Themaximummeasurementtime

settingis100hours.



www. .com information@itm.com1.800.561.8187

407780A‐EU‐ENv1.34/14

6. Pressthe►ǁbuttontostartthemeasurement,the►symbolandtheelapsed

measurementtimeisdisplayed.

Whenthemeasurementtimehaselapsed,themeasurementautomaticallyterminates

andthesymbolisdisplayed.

Duringmeasurements,the►ǁbuttoncanbeusedtopauseandresumeatest.

Duringpause,thepausesymbolǁisdisplayed.

Toterminatethemeasurement,pressandholdthe►ǁbuttonfor2seconds.

Ifanunderoroverrangeconditionoccursatleastonceduringmeasurement,theOVER

orUNDERindicatorappearstoindicatethattherecordeddatacontainsover‐rangeor

under‐rangedata.

Duringthisproceduremostofthebuttons,suchastheA/Cbuttonandlevelrange

buttons,areinoperative.Onlythe►ǁbuttonandtheLeqSELSPLbuttonscanbeused.

Allothersettingsmustbemadebeforestartingthemeasurement.

Pauseintervalsarenotincludedinthemeasurementtime.



7. Whenthemeasurementiscompleted,pausedorinprogress,presstheLeqSELSPLbutton

tocyclethroughanddisplaythefollowingmeasurementresults.

Leq:Equivalentcontinuoussoundlevelwithstartmeasurementtime.

SEL:Soundexposurelevelwithterminatemeasurementtime.

SPLMAX:Maximumsoundlevelwithtime.

SPLMIN:Minimumsoundlevelwithtime.

PH:PeakHoldsoundlevel

L:055%percentilesoundlevel

L:1010%percentilesoundlevel

L:5050%percentilesoundlevel

L:9090%percentilesoundlevel

L:9595%percentilesoundlevel

SPLINSTCurrentsoundlevelwithcurrenttime.

IfOVERisflashing,therecordeddatacontainsover‐rangemeasurements.

IfUNDERisflashing,therecordeddatacontainsunder‐rangemeasurements.

8. Pressandholdthe►ǁbuttonfor2secondstoexitthismeasurementmode,clearthe

measuredresult,andtoreturntothenormalsoundlevelmeasurementmode.



www. .com information@itm.com1.800.561.8187

407780A‐EU‐ENv1.34/14

SettingtheCurrentTimeandDate

Dateandtimeinformationisstoredwitheachstoredrecordblock.Therefore,itisimportantto

ensurethatthisinformationiscorrect.

1. PresstoswitchOFFthemeter.

2. PressandholdtheDATETIMEbuttonandthenpressthe buttontoswitchONthemeter

toenterthedateandtimesettingmode.

3. Aflashingcursorindicatesthecurrentlyselectedparameter(seconds),usethe▲▼buttons

tosetthecurrentsecond.

4. PresstheDATETIMEbuttontomovetothenextparameter(minutes)andusethe

▲▼buttonstosetthecurrentminute.

5. Repeatstep4tosetthecurrenthour,day,month,andyear.

6. PressDATETIMEtostorethenewdateandtime,andtoexitthismode.



RecordingData

IntheIntegratingSoundLevelMetermodethemetercanrecordandstoremeasurementdata.

Memorycapacityis32000recordswhichcanbestoredinupto255blocks.Recordingcanstart

whenintegrationbeginsoratapresettime.Thestoreddatacannotbeviewedonthemeter’s

display;itmustbedownloadedusingthesuppliedPCsoftware.

1. Settingthedatasamplingrate.

a) Pressthe buttontoswitchOFFthemeter.

b) PressandholdtheINTEGTIMEbuttonandthenswitchthemeterON,theIntrsymbol

andthesamplerateinsecondswillbedisplayed.

c) Usethe▲▼buttonstosetthesamplingrate(1to255seconds).

d) PressINTEGTIMEtostorethesettingandexitthismode.

2. Settheintegratingfunctionsasdescribedpreviously.

3. PresstheRECORDERASEbuttontoprepareforrecording.TheRECsymbolwillappearonthe

display.

4. Pressthe►‖button.ThemeasurementswillstartandtheRECsymbolwillbegintoflash,

indicatingthatdataarebeingstored.

5. Ifintegrationispaused,recordingwillalsopause.

6. Whenthememoryisfilled(32000datapointsor255blocksused),theRECFULLsymbolwill

bedisplayed.



www. .com information@itm.com1.800.561.8187

Inhaltsverzeichnis

Andere Extech Instruments Messgerät Handbücher

Extech Instruments

Extech Instruments MultiScope 381270 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik EC510 Bedienungsanleitung

Extech Instruments

Extech Instruments EA30 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik FL700 Bedienungsanleitung

Extech Instruments

Extech Instruments 382075 Bedienungsanleitung

Extech Instruments

Extech Instruments AN400 Bedienungsanleitung

Extech Instruments

Extech Instruments RH390 Bedienungsanleitung

Extech Instruments

Extech Instruments MO265 Bedienungsanleitung

Extech Instruments

Extech Instruments SDL710 Bedienungsanleitung

Extech Instruments

Extech Instruments CO15 Bedienungsanleitung

Extech Instruments

Extech Instruments PQ3450 Bedienungsanleitung

Extech Instruments

Extech Instruments MS400 Bedienungsanleitung

Extech Instruments

Extech Instruments EX830 Bedienungsanleitung

Extech Instruments

Extech Instruments VB450 Bedienungsanleitung

Extech Instruments

Extech Instruments DT300 Bedienungsanleitung

Extech Instruments

Extech Instruments 451112 Bedienungsanleitung

Extech Instruments

Extech Instruments SDL400-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments MO55 Bedienungsanleitung

Extech Instruments

Extech Instruments RPM33-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments 45118 Bedienungsanleitung

Extech Instruments

Extech Instruments 401027 Bedienungsanleitung

Extech Instruments

Extech Instruments PH220 Bedienungsanleitung

Extech Instruments

Extech Instruments RH600 Bedienungsanleitung

Extech Instruments

Extech Instruments PH220 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
