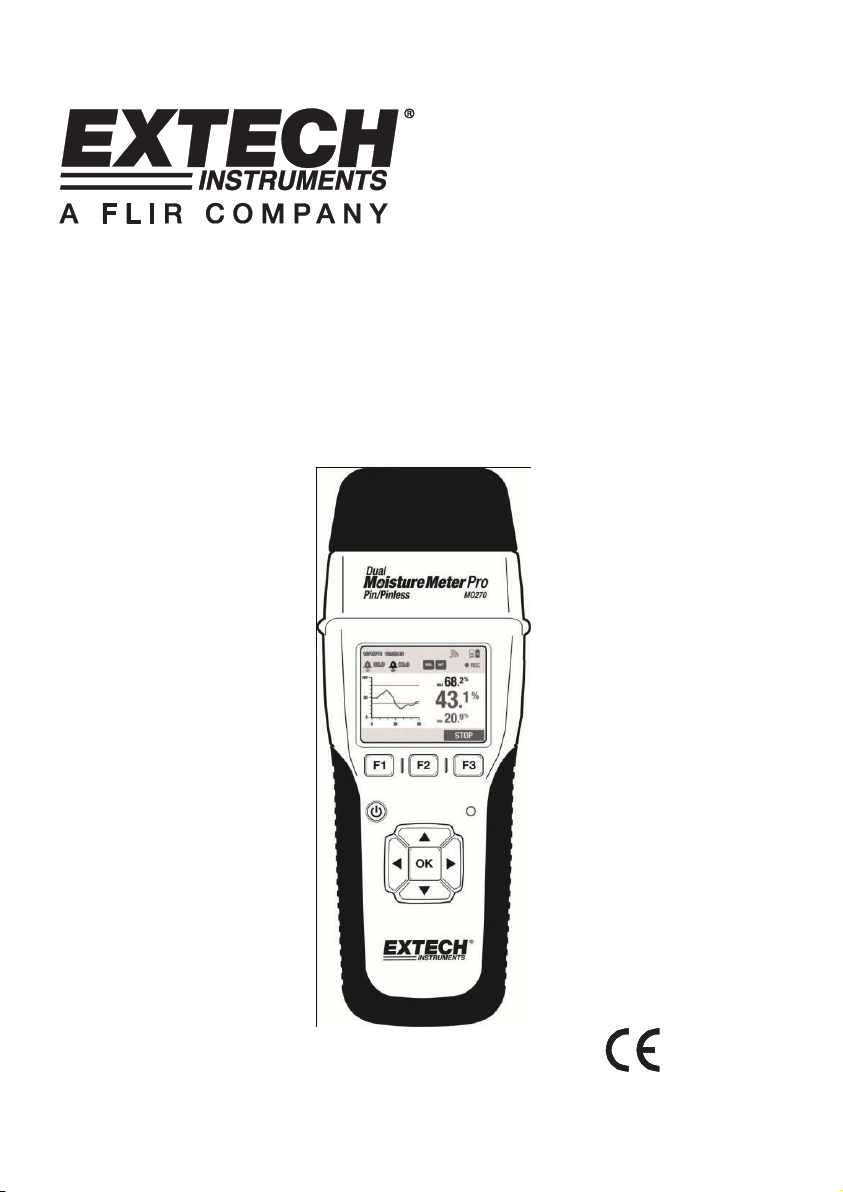

Extech Instruments MO270 Bedienungsanleitung

User Guide

Wireless Pin and Pinless Moisture Meter

Model: MO270

Includes

EX3000 Wireless Receiver and

MO270-X Wireless Moisture Meter

FCC warning statement:

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modiﬁcations to this device not explicitly approved by

manufacturer could void your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

RF warning statement:

The device has been evaluated to meet general RF exposure requirement. The device

can be used in portable exposure condition without restriction.

MO270-EU-EN-Temp02-11/11

Introduction

Congratulations on your purchase of the Extech MO270 Moisture Meter with full graphical display.

This meter includes MeterLinkTM Bluetooth capabilities for use with FLIR infrared cameras (such as

FLIR T/B200, T/B300, T/B360, T/B400 or i/b60 cameras). The MO270 detects moisture in wood

and other materials such as particle board, carpeting, and ceiling/bathroom tiles using a non-

invasive method (pinless); the MO270 also measures moisture in sheet rock and other building

materials using the pin method. This meter is shipped fully tested and calibrated and, with proper

use, will provide years of reliable service.

Features

Detachable sensors transmit data viewable on meter display from up to 65ft (20m)

Readings from up to eight (8) remote sensors can be viewed on meter

Meter can record data from up to forty (40) remote sensors simultaneously onto SD card

Wireless sensor affixes to 4 ft (1.2m) telescoping handle; Optional longer handles available

Wirelessly transmit moisture data to FLIR IR cameras via MeterLinkTM and Bluetooth

Wood Moisture equivalent (%WME) pin readings

Visual and audible High and Low Alarm modes

2-point calibration check built into protective cap

Includes 3.7V rechargeable Li-Polymer battery, wireless moisture sensor, external pin probe,

replacement pins, telescoping handle, AC adaptor, protective cap, 2G SD card, and hard case

MO270-EU-EN-Temp02-11/11

Description

Meter Front View

1. Electrode pins protective cap

2. Sensor release buttons

3. Display

4. Function buttons

5. Power button

6. Bluetooth status light (blue)

7. Navigation and OK buttons

Meter Side Views

1. Sensor release buttons

2. Video output

3. Audio output

4. RJ-45 remote probe port

5. Meter (receiver) USB port

6. Mini-SD card

7. Sensor (ransmitter) USB port

Meter Components

1. Contact pins

2. Non-Contact capacitive sensor

3. Sensor (transmitter)

4. Meter (Receiver)

MO270-EU-EN-Temp02-11/11

Display Icons

ICON

Name

Function

(black) Low alarm set Low alarm is set and active with sound

(black) High alarm set High alarm is set and active with sound

(black) Low alarm set Low alarm is set and active without sound

(black) High alarm set High alarm is set and active without sound

(red) Low alarm triggered Low alarm has been triggered

(red) High alarm triggered High alarm has been triggered

(B.T.) MeterLink mode Bluetooth is on, MeterLinkTM protocol is active

(gray) (B.T.) Transmitter ON Bluetooth is ON; PC protocol is active

(blue) (B.T.) Active pairing Bluetooth is ON; PC protocol is active

(gray) (RF) Wireless ON Wireless transmitter is ON; no communication

activity with sensor

(orange) (RF) wireless comm. Wireless transmitter is ON; communication with

sensors is active

(blue) REL mode Reading moisture using non intrusive sensors

WME mode Reading moisture using ‘pin’ sensors

External probe Reading measurement from external probe

(blue) Internal probe Reading measurements from internal probe

Recording Unit is actively recording content (on-screen)

(green)

Sensor (transmitter)

battery Sensor battery (fully charged)

(orange) Meter (Receiver) battery Meter battery (low)

MO270-EU-EN-Temp02-11/11

Setup

Getting Started

1. Charge the sensor and the meter batteries (refer to following section for full details on

battery charging).

2. To switch the meter ON, press and hold the button for 3 seconds; the navigation buttons

will illuminate and the display will switch ON. To power OFF, press and hold the power

button for 3 seconds.

3. The F1, F2 and F3 buttons are ‘soft keys’ meaning that their functions change with the

particular mode or screen that is active.

4. The ▲, ►, ▼and ◄buttons are used to navigate the menu selections.

5. The “OK” button is used to select the highlighted menu function.

Charging the Batteries

1. Charging will begin once the USB cable is connected between the mini-USB port on the

Sensor or the Meter and a PC USB port or an AC outlet. Connecting only the Meter USB

port charges both the Meter and the Sensor simultaneously (while they are physically

connected to each other).

2. Note that if you connect the meter to the PC via the USB port before switching the meter

ON, the meter screen will show these 3 selections when it is powered up:

PC CAM (reserved for future use)

Disk Drive (select this setting to view the meter’s stored readings on the PC using

optional WindowsTM software)

Charger (select this setting if the connection to the PC is to be used for charging

purposes)

3. To check the battery status:

a) Press and hold the button for 3 seconds to switch the meter ON.

b) The USB menu will appear. Navigate down to “Charger” and press OK.

c) The digital display measurement screen will appear showing the two battery icons at

the upper right side of the display.

d) The (Meter) and (Sensor) icons will be completely filled when the batteries are

fully charged.

MO270-EU-EN-Temp02-11/11

Operation

Basic Operation for Pin Measurments

CAUTION: The electrode measurement pins are extremely sharp. Use care when handling this

instrument. Cover the pins with the protective cap when the instrument is not in use.

1. Remove the protective cap to expose the electrode pins.

2. Press and hold the key for 3 seconds to switch the meter ON.

3. If the icon is displayed, proceed as follows to switch to the icon.

a) Press the MENU (F1) button and navigate to the WME/REL box.

b) Press OK, select WME, press OK and press EXIT.

4. Carefully push the electrode pins a minimum of 0.07” (2mm) into the material under test.

Note that the pins should be inserted into wood perpendicular to the wood’s fiber structure.

For high moisture readings, it may take several minutes for the meter reading to stabilize.

5. Take several readings in several locations on the material for the best representation of the

amount of moisture present.

6. Read the measurement values on the display

7. Replace the protective cap when finished.

Basic Operation for Pinless Measurments

1. Press and hold the key for 3 seconds to switch the meter ON.

2. If the icon is displayed, proceed as follows to switch to the icon.

a) Press the MENU (F1) button and navigate to the WME/REL box.

b) Press OK, select REL, press OK and press EXIT.

3. Press and hold the key for two seconds to switch the meter OFF

4. Keep hands and any surface away from the rear sensor and then press the key to

switch the meter ON. The meter will auto-zero during power-on.

5. The pinless moisture detector is located at the rear of the instrument, just behind the display.

6. Place the meter so that the rear sensor lays flat against the surface of the material under

test.

7. Take several readings in several locations on the material for the best representation of the

amount of moisture present.

8. Read the measurement values on the display.

MO270-EU-EN-Temp02-11/11

The SETTINGS Configuration Mode Basics

1. Turn the meter ON.

2. Press and Hold the OK button until the Main Menu appears

3. Press the F3 (settings) button to bring up the SETTINGS

4. Navigate the menu and select sub-menus as desired. Details

for each setting are provided in the ‘SETTINGS Mode IN

DETAIL’ section of this guide below.

The SETTINGS Mode Menu Items in Detail

ALARM Settings

a) From the SETTINGS sub-menu, navigate to the ALARM box

and press OK.

b) Alarm limits can be set directly by a value entry or from a

measured (scanned) value.

c) Navigate to the value entry box or the scan box.

d) For value entry, scroll to the value entry box and press OK.

The digit-select red arrow will appear. Use the left/right arrows to move the red arrow. Use the

up/down arrow buttons to set the numerical value of the digit above the red arrow. Note that the

High Alarm cannot be set lower than 10.00% and the Low Alarm cannot be set higher than

10.00%.

e) When complete, press OK to capture the value and then press F3 button to store the value.

f) Re-enter the ALARMS screen for further adjustments.

g) For scanned entry, navigate to the SCAN box.

h) Take a measurement and then press the OK button to begin the scan. The measured values will

appear in the % box.

i) With the desired value in the box, press the OK button to capture the value and then press the

F3 EXIT button to store the value.

j) To turn the alarm ON or OFF: navigate back to the Alarm screen and use the arrow buttons to

move the cursor to the Alarm High and/or Alarm Low OFF box.

k) Press the OK button to toggle between ON (OFF) or OFF (OFF).

l) When complete, press the OK button to capture the settings and then press the F3 EXIT button

to store the setting.

m) To set the alarm beeper ON or OFF: Return to the Alarm screen and navigate to the SOUND

ON or OFF box. Select the desired condition, press OK and then press F3-EXIT.

MO270-EU-EN-Temp02-11/11

AUTO POWER OFF (APO) AND BACKLIGHT Settings

a) The APO or backlight timeout can be set in minutes.

b) Navigate to the APO/BL sub-menu in the SETTINGS mode.

c) Scroll to the desired setting.

d) Press OK and then press EXIT or BACK when done.

CHANNEL Setting

a) Up to 40 remote sensors can be identified on this screen. Up

to 8 sensors can be selected at any one time for viewing

remotely on the meter.

b) To set the channel, first navigate to the CHANNEL sub-menu

in the SETTINGS mode.

c) Navigate to the desired channel and then Press OK

d) Continue selecting channels (up to 8) and press EXIT or

BACK when done.

DATE/TIME and FORMAT Settings

a) To set the time and date, select DATE/TIME from the

SETTINGS menu and then scroll to the desired setting field

and press OK.

b) Use the left/right arrow keys to move the red triangular

pointer to digit that is to be changed

c) Use the up/down arrows to change a digit value.

d) Press OK to store the new value and to hide the red

triangular arrow.

e) To select a time format, scroll to the desired settings field and press OK.

f) Press EXIT or BACK when done.

DATA FORMAT Setting

a) To set the numerical delineator to a decimal point (.) or to a

comma (,) select DATA FORMAT from the SETTINGS

menu.

b) Scroll to the desired selection.

c) Press OK to select and then press EXIT or BACK when

done.

BLUETOOTH / PC Selection Setting

a) To activate the Bluetooth/MeterLinkTM function so as to

communicate with a FLIR camera, select BLUETOOTH from

the SETTINGS menu.

b) Scroll to METERLINK MODE and press OK

c) Select PC mode if the meter is to be connected directly to a

PC for two-way communication using optional software.

MO270-EU-EN-Temp02-11/11

d) Select OFF if no communications will be used.

e) Press BACK or EXIT when done.

ZERO CLEAR

a) To set the ZERO CLEAR function to MANUAL or AUTO,

select ZERO CLEAR from the SETTINGS menu.

b) Use the arrow keys to select MANUAL or AUTO.

c) Press OK to select and then press BACK or EXIT when done.

SYSTEM INFORMATION (INF)

a) To view the System Information, select SYSTEM INF from the

SETTINGS menu

b) The only parameters that can be changed on this screen are

OWNER NAME and NUMBER.

c) Scroll to the OWNER NAME or NUMBER field and then press

OK.

d) An alpha-numerical screen will appear allowing the user to

select text using the arrow and OK buttons.

e) Press BACK or EXIT when done.

Andere Handbücher für MO270

Inhaltsverzeichnis

Andere Extech Instruments Messgerät Handbücher

Extech Instruments

Extech Instruments CO230 Bedienungsanleitung

Extech Instruments

Extech Instruments VB450 Bedienungsanleitung

Extech Instruments

Extech Instruments 401025 Bedienungsanleitung

Extech Instruments

Extech Instruments 401027 Bedienungsanleitung

Extech Instruments

Extech Instruments SL10 Bedienungsanleitung

Extech Instruments

Extech Instruments PQ34-12 Bedienungsanleitung

Extech Instruments

Extech Instruments EX820 Bedienungsanleitung

Extech Instruments

Extech Instruments MultiScope 381270 Bedienungsanleitung

Extech Instruments

Extech Instruments SDL470 Bedienungsanleitung

Extech Instruments

Extech Instruments 407790A Bedienungsanleitung

Extech Instruments

Extech Instruments 382090 Bedienungsanleitung

Extech Instruments

Extech Instruments ExStik DO600 Bedienungsanleitung

Extech Instruments

Extech Instruments RH300 Bedienungsanleitung

Extech Instruments

Extech Instruments 421509 Bedienungsanleitung

Extech Instruments

Extech Instruments 407026 Bedienungsanleitung

Extech Instruments

Extech Instruments CO10 Bedienungsanleitung

Extech Instruments

Extech Instruments AN100-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments AN320 Bedienungsanleitung

Extech Instruments

Extech Instruments 461920 Bedienungsanleitung

Extech Instruments

Extech Instruments 380580 Bedienungsanleitung

Extech Instruments

Extech Instruments 451181 Bedienungsanleitung

Extech Instruments

Extech Instruments 407114 Bedienungsanleitung

Extech Instruments

Extech Instruments SDL600-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments RH520 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
