Quantum Ultra®Series Videowall Processors •

Setup Guide

The Extron Quantum Ultra Series, consisting of the Quantum Ultra 610 and 305, the Quantum Ultra II 610 and 305, and the

Quantum Ultra Connect 128 and 84 Videowall Processors, are modular 4K video processors that support ultra-high resolutions

up to 2560x1600 and 4096x2160 (4K) @ 60 Hz on inputs and outputs. All models provide customizable output resolutions, input

and output image rotation, and mullion compensation. USB, RS-232, and Ethernet interfaces also provide direct connections for

control systems.

• The Quantum Ultra 610 has a 6U, 10-slot card frame, or chassis, while the Quantum Ultra 305 has a 3U chassis with

five card slots. These models support multiple videowalls with mixed resolutions and screen orientations. They also support

edge blend compensation, window border styles, and a variety of source types including picture, RSS, Text, Clock, and

VNC. The optional IN SMD 100 input card decodes and displays multiple simultaneous MPEG2, Motion JPEG, and H.264

video streams at up to 60 frames per second. Each input card contains four HDMI or two LAN connectors. The output cards

contain either four HDMI or four DTP connectors. Both chassis support any combination of input and output cards. Additional

inputs and outputs can be added to a system with use of one or more additional chassis.

• The Quantum Ultra II 610 and Quantum Ultra II 305 have the same features as their respective Quantum Ultra 610

and Quantum Ultra 305 counterparts, described above. In addition, these models support the IN4HDMI 4K PLUS input and

OUT4HDMI 4K PLUS output cards, which provide 4K @ 60 Hz capability on each of the four HDMI connectors.

• The Quantum Ultra Connect 128 and 84 have fixed configurations. The Quantum Ultra Connect 84 has two HDMI

input cards and one HDMI output card, while the Quantum Ultra Connect 128 has three HDMI input cards and two HDMI

output cards. These card configurations cannot be modified by the user.

The Expansion In and Expansion Out cards provide another option for the Quantum Ultra 610 and Quantum Ultra 305

(Quantum Ultra II and Quantum Ultra Connect models do not support expansion cards). These input and output cards enable

up to ve Quantum Ultra chassis to be connected together and managed from one primary chassis (see Expansion Cards on

page4). Using the expansion cards, a Quantum Ultra system can be expanded to up to 42 input and output cards.

Control methods for all models include Extron Videowall Conguration Software (VCS), available on the Extron website, which

provides a means of conguring videowall displays and saving window presets. Control is also available via Simple Instruction

Set™ (SIS™) or the Express Mobile Software (EMS) for Quantum Ultra on an iOS®, Android®, or Microsoft®tablet device.

This setup guide provides step-by-step instructions for an experienced user to set up and congure a Quantum Ultra Series

device. In this guide, the terms “Quantum Ultra Series,” “Quantum Ultra Series device,” “unit,” and “processor” are used

interchangeably to refer to all models in the series.

Installation Steps

WARNING: To avoid electric shock or product damage due to condensation, always let the Quantum Ultra become

acclimated to ambient temperature and humidity for at least 30 minutes before switching it on. This is very important when

you are moving the unit from a cold to a warm location.

AVERTISSEMENT : Afin d’éviter un risque éventuel de choc électrique ou d’endommagement du produit dû à la

condensation, laisser toujours le temps à la source d’alimentation de le Quantum Ultra à la température et à l’humidité

ambiantes, pendant au moins 30minutes, avant de les brancher. Ceci est particulièrement important lorsque vous déplacer

l’unité depuis un lieu frais vers un lieu chaud.

ATTENTION:

• All structural steps and electrical installation must be performed by

qualified personnel in accordance with local and national building

codes and electrical codes.

• Toute étape structurelle et installation électrique, doit être effectuée

par un personnel qualifié, conformément aux codes du bâtiment,

aux codes incendie et sécurité, et aux codes électriques, locaux et

nationaux.

1. Disconnect power from all equipment.

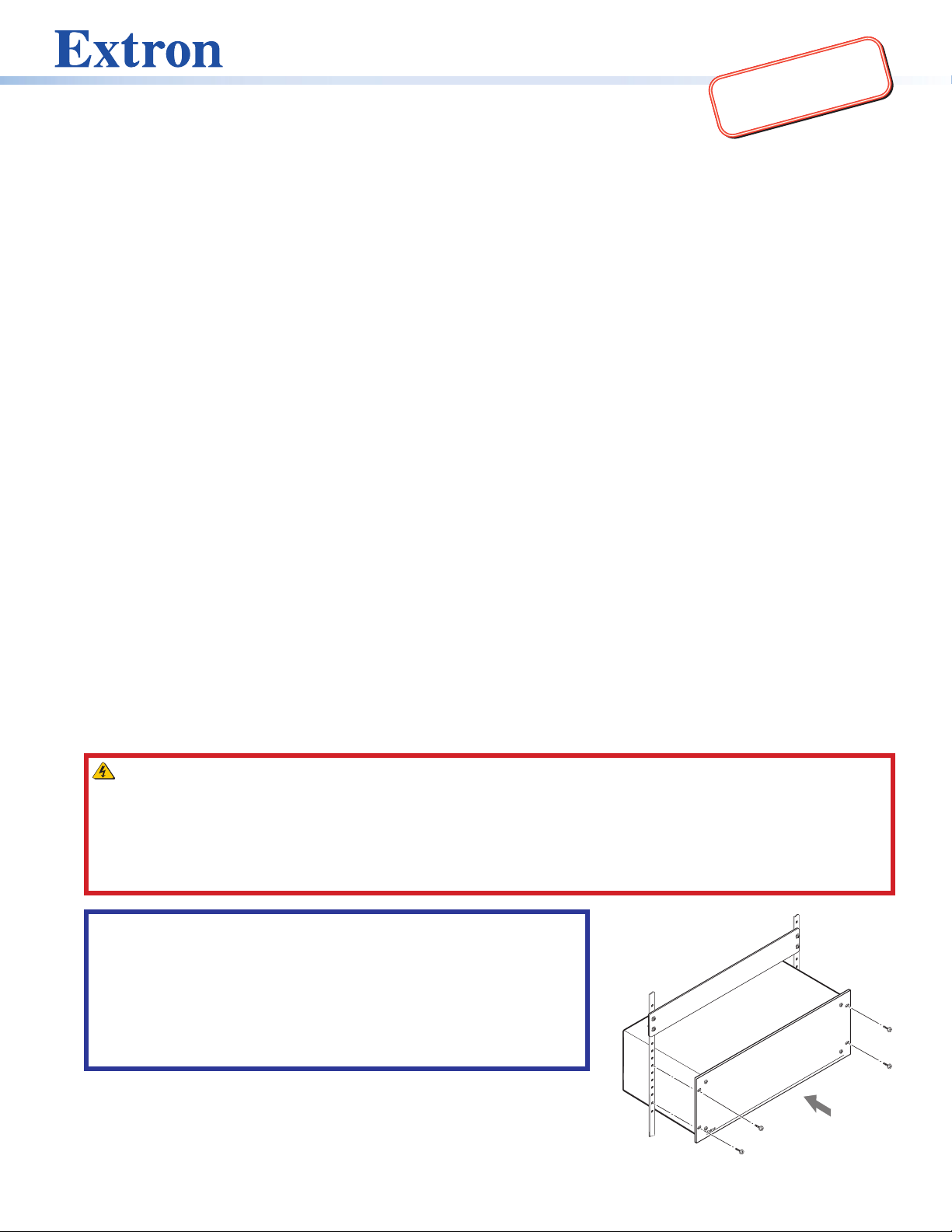

2. (Optional) Mount the unit to a rack using the supplied screws (see the

image at right).

Quantum Ultra Series • Setup Guide (Continued)

3. Connect the video inputs and outputs. Connect HDMI sources to connectors on the installed HDMI input cards. If

IN SMD 100 input cards are installed (Quantum Ultra and Quantum Ultra II only), connect the LAN connectors on the cards

to a network for streaming sources. Connect DTP receivers (Quantum Ultra and Quantum Ultra II only) or HDMI displays

to connectors on the output cards. Secure each HDMI device cable to the connector with a provided LockIt®HDMI Cable

Lacing Bracket.

4. Connect a control device — For remote control, connect a control device or a computer to:

• The RJ-45 LAN A to enable configuration of the Quantum Ultra Series device via SIS commands, VCS, or EMS

• (Optional) The USB mini B Config connector to enable configuration and control via SIS commands or VCS

• (Optional) The 3-pole captive screw RS-232 connector to enable serial control via SIS commands

5. Connect power to the Quantum Ultra or Ultra II primary and redundant (optional) IEC connectors.

6. Power on the unit and all connected devices.

7. Download and install VCS on your computer.

8. Configure sources, displays, EDID, and presets for your videowall using VCS (see Configuring the Videowall Using

VCS on page5).

Rear Panel Features and Connections

NOTE: Figure 1 shows the rear panel of a Quantum Ultra 610. The Quantum Ultra II 610 rear panel is identical except for IEC

C20 AC connectors and the product name in the upper-left corner. The Quantum Ultra and Ultra II 305, Ultra Connect 84,

and Ultra Connect 128 have similar rear panels except they are 3U high, have five card slots, and have no redundant power

connector.

QUANTUM ULTRA 610

Tx Rx G

CONFIG

RS-232

SLOT 9SLOT 10

DISCONNECT POWER

CORD BEFORE

SERVICING

100-240V ~ 5.0A MAX 50-60 Hz100-240V ~ 5.0A MAX 50-60 Hz

POWER LAN

SYSTEM REMOTE

OUTPUTS

SLOT 8

QUANTUM OUT4HDMI

OUTPUTS

SLOT 7

QUANTUM OUT4HDMI

OUTPUTS

SLOT 6

QUANTUM OUT4HDMI

INPUTS

SLOT 5

INPUTS

SLOT 4

INPUTS

SLOT 3

INPUTS

SLOT 2

INPUTS

SLOT 1

QUANTUM IN4HDMI

1234

HDBT

4A MAX

DTP POWER

12V

OUTPUTS QUANTUM OUT4DTP

TxRx RxGTx

SIGLINK

OUT 4 DTP

OVER TP

TxRx RxGTx

SIGLINK

OUT 3

OVER TP

TxRx RxGTx

SIGLINK

OUT 2

OVER TP

TxRx RxGTx

SIGLINK

OUT 1

OVER TP

HDBT

4A MAX

DTP POWER

12V

OUTPUTS QUANTUM OUT4DTP

TxRx RxGTx

SIGLINK

OUT 4 DTP

OVER TP

TxRx RxGTx

SIGLINK

OUT 3

OVER TP

TxRx RxGTx

SIGLINK

OUT 2

OVER TP

TxRx RxGTx

SIGLINK

OUT 1

OVER TP

Quantum Ultra 610

LAN A LAN B

INPUTS

QUANTUM IN SMD 100

1234

QUANTUM IN4HDMI

A Primary AC power connector

B Redundant power connector (Quantum Ultra and Ultra II 610 only)

C Power switch

D HDMI Out system output connector

E USB system connectors

F USB Conﬁg control connector

G RS-232 control connector

H LAN connectors A and B

I Input and output card slots

Figure 1. Quantum Ultra 610 Rear Panel

A Primary AC power connector — Connect AC power to this IEC connector for the primary power supply.

Product Category

BRedundant power connector (Quantum Ultra 610 and Ultra II 610 only) — (Optional)

Connect a second AC power source to this IEC connector for the secondary power supply to

provide uninterrupted operation in the event of failure of the primary supply.

NOTE: The Quantum Ultra II 610 has IEC C20 power connectors (shown at right), while the

Quantum Ultra and Quantum Ultra II 305 models have standard US IEC connectors. The

Quantum Ultra II requires an IEC C19 power cord to connect AC power.

For Quantum Ultra II 610 only:

• North America — Connect the equipment to a 100-240 VAC, 50-60 Hz, 20 A protected power

source using a power supply cord with a C19 coupler and either a NEMA 5-20 plug (125 V) or

NEMA 6-20 plug (250 V).

• Other regions — Connect the equipment to a 200-240 VAC, 50-60 Hz power source using a power supply cord with a

C19 coupler and a plug configuration of 7 A minimum.

CPower switch — Press this momentary rocker switch to power the unit off and on.

• If the unit is off, momentarily pressing this switch powers it on.

• If the unit is on, pressing and holding this switch for approximately 5 seconds powers it down.

• If the unit is logged into the Quantum Ultra Series device operating system, a momentary press of this switch powers off

the device.

DHDMI Out system output connector — (Optional) Connect an HDMI monitor to this female HDMI connector to view

activity and interactions with the embedded operating system.

EUSB system connectors — (Optional) Connect a flash drive or human interface devices (HIDs) such as a keyboard or

mouse to one or more of these three USB A connectors to enable interaction with the embedded operating system.

FUSB Config control connector — Connect a computer to this USB connector to enable control of the Quantum Ultra

Series device via VCS and SIS commands.

GRS-232 control connector — Connect a control system or computer to this 3-pole, 3.5 mm captive screw connector to

enable control of the Quantum Ultra Series device via SIS commands. RS-232 protocol for this port is 9600 baud, 1 stop bit,

no parity, 8 data bits, and no ow control.

HLAN connectors A and B — Connect one or both of these RJ-45 Ethernet connectors to a network to access:

• A computer with VCS and, optionally, EMS installed, to set up the videowall (see Configuring the Videowall Using VCS

on page5).

• A control device such as an Extron IP Link Pro or IPCP Pro for AV control of the Quantum Ultra Series device.

• A network with Virtual Network Computing (VNC) servers to stream desktops to the Quantum Ultra or Ultra II device.

NOTE: For expansion systems, the LAN A ports of all chassis in the system must be connected to the same network. If

desired, LAN B ports of any of the chassis can be connected to a separate network for VNC or RSS sources.

IInput and output card slots — Each of these slots supports either an input or an output card. At least one input and one

output card must be installed.

NOTE: The Quantum Ultra Connect 84 has two HDMI input cards and one HDMI output card, while the Connect 128

has three HDMI input and two HDMI output cards. These card configurations are fixed and cannot be user-modified.

• Inputs — Each HDMI and HDMI 4K PLUS input card has four female HDMI connectors, so that up to four HDMI sources

can be connected to it. For the Quantum Ultra and Ultra II 610 and 305, each IN SMD 100 input card has two LAN

connectors, each of which can be connected to a network to enable decoding and displaying of multiple streams.

• Outputs — Each HDMI and HDMI 4K PLUS output card has either four HDMI connectors or, for Quantum Ultra and

Ultra II 610 and 305, four DTP connectors. Up to four HDMI displays or DTP receivers can connect to these cards.

• The Quantum Ultra Connect 84 has two HDMI input cards and one HDMI output card, while the Connect 128 has three

HDMI input and two HDMI output cards. These card configurations are fixed and cannot be modified by the user.

• Each expansion input and output card has three 12-fiber push-on (MPO) connectors to which another chassis in an

expansion system can be connected via three MPO cables (Quantum Ultra 610 and 305 only, see Expansion Cards on

page4 for more information).

NOTE: The recommended cable type for the HDMI input and output connections is single link, high-speed, HDMI video

cable with a maximum length of 25 feet (7.6 meters). Dual link signals are not supported. To connect DVI sources or

displays to an HDMI connector, use a DVI-to-HDMI adapter.

DISCONNECT POWER

CORD BEFORE

SERVICING

PRIMARY POWER

100-240V~16.0A MAX 50-60 Hz

REDUNTANT POWER

100-240V~16.0A MAX 50-60 Hz

Quantum Ultra Series • Setup Guide (Continued)

Card Installation Order

When the Quantum Ultra Series device is assembled at the factory, all the input cards are installed in slots above the output cards

in the chassis. If installing cards yourself, do not intersperse input cards with output cards.

NOTE: The expansion output and input cards have special rules for placement in card slots (see Expansion Card

Locations in the Chassis on page4 for more information).

Each card slot can contain either an input or an output card (at least one input and one output card must be installed). However,

because all the input cards must be installed together above the output cards in the chassis, slot 1 cannot contain an output card

and slot 10 of the 610 models or slot 5 of the 305 models cannot contain an input card.

All input cards of the same type (IN SMD 100, HDMI, and HDMI 4K PLUS) must be installed in adjacent slots, as must all output

cards of the same type (HDMI, DTP, and HDMI 4K PLUS). Do not intersperse different card types.

• Install the cards in this order: IN SMD 100, IN4HDMI, IN4HDMI 4K PLUS, OUT4HDMI, OUT4DTP, OUT4HDMI 4K PLUS.

• Do not leave empty slots between cards in the chassis. Empty card slots must be at the bottom of the card stack.

Expansion Cards

The Expansion IN (input) and Expansion OUT (output) cards are used to interconnect up to ve chassis in a chain. All chassis in

an expansion system are connected to the same network via their LAN A ports. The rst (primary) chassis in the signal chain is

always a Quantum Ultra 610, and controls the other (secondary) chassis in the chain. The last unit in the chain can be either a

Quantum Ultra 305 or 610 (expansion cards are not supported by the Quantum Ultra II or Quantum Ultra Connect models).

QUANTUM EXPANSION ININPUTS

A CB

Figure 2. Expansion In Card

QUANTUM EXPANSION OUT

A CB

OUTPUTS

Figure 3. Expansion Out Card

Each input and output expansion card contains three MPO connectors,

labeled A, B, and C. The chassis in the system are linked to each other

through these connectors. Two lengths of MPO M-M cables are available:

1 meter (3.3 feet), and 10 meters (32.8 feet). Three cables of the either length

are needed for each pair of output-input expansion cards to be connected together.

Expansion Card Locations in the Chassis

In the expansion units, cards are factory-installed in the chassis in the order

listed below:

On the primary chassis:

• Non-expansion input and output cards are installed as described

under Card Installation Order on page4 (see 1in the image at

right).

• The Expansion OUT card is installed in the last slot (slot 10) of the

primary chassis to enable connection to the secondary chassis (2).

SLOT 9SLOT 10 SLOT 8 SLOT 7 SLOT 6SLOT 5 SLOT 4 SLOT 3 SLOT 2 SLOT 1

INPUTS LAN A LAN B QUANTUM IN SMD 100

INPUTS QUANTUM IN4HDMI

QUANTUM EXPANSION OUT

A CB

OUTPUTS

Primary Chassis

Product Category

On the secondary chassis:

• The Expansion IN card is installed in the first slot (slot 1) to accept the

connection from the Expansion OUT card in the previous chassis (see

1in the image at right).

• Additional non-expansion input or output cards are installed

following the installation order started in the previous chassis.

In the example at right, non-expansion input cards (2) are installed

below the Expansion IN card. Non-expansion output cards (3) follow

the input cards. The Expansion OUT card (4) is in the last slot.

NOTES:

• The last chassis in the chain does not contain an Expansion

OUT card.

• 4K PLUS input and output cards are currently not supported

in expansion systems.

• So long as the expansion cards do not interrupt an

otherwise normal flow of card locations, any expansion

system should be valid.

Connecting Expansion Cards

1. Connect three MPO cables between Expansion OUT card connectors A, B, and C of the primary chassis and Expansion

IN card connectors A, B, and C of the first secondary chassis in the chain. Always connect output A to input A, output B to

input B, and output C to input C (see figure4 on page5).

2. Connect the three expansion outputs of each subsequent secondary chassis to the expansion inputs of the next chassis until

all the desired chassis (up to five) are connected (figure4).

QUANTUMULTRA 610

TxRx G

CONFIG

RS-232

SLOT9SLOT10

DISCONNECTPOWER

CORDBEFORE

SERVICING

100-240V ~ --A MAX 50-60 Hz100-240V ~ --A MAX 50-60 Hz

POWER LAN

SYSTEM REMOTE

SLOT8 SLOT7 SLOT 6 SLOT 5 SLOT4 SLOT3 SLOT 2 SLOT 1

QUANTUMEXPANSION ININPUTS

A CB

OUTPUTS QUANTUMOUT4HDMI

HDBT

4AMAX

DTP POWER

12V

OUTPUTS QUANTUM OUT4DTP

TxRx RxGTx

SIGLINK

OUT 4 DTP

OVERTP

TxRx RxGTx

SIGLINK

OUT 3

OVERTP

TxRx RxGTx

SIGLINK

OUT 2

OVERTP

TxRx RxGTx

SIGLINK

OUT 1

OVERTP

HDBT

4AMAX

DTP POWER

12V

OUTPUTS QUANTUM OUT4DTP

TxRx RxGTx

SIGLINK

OUT 4 DTP

OVERTP

TxRx RxGTx

SIGLINK

OUT 3

OVERTP

TxRx RxGTx

SIGLINK

OUT 2

OVERTP

TxRx RxGTx

SIGLINK

OUT 1

OVERTP

HDBT

4AMAX

DTP POWER

12V

OUTPUTS QUANTUM OUT4DTP

TxRx RxGTx

SIGLINK

OUT 4 DTP

OVERTP

TxRx RxGTx

SIGLINK

OUT 3

OVERTP

TxRx RxGTx

SIGLINK

OUT 2

OVERTP

TxRx RxGTx

SIGLINK

OUT 1

OVERTP

HDBT

4AMAX

DTP POWER

12V

OUTPUTS QUANTUM OUT4DTP

TxRx RxGTx

SIGLINK

OUT 4 DTP

OVERTP

TxRx RxGTx

SIGLINK

OUT 3

OVERTP

TxRx RxGTx

SIGLINK

OUT 2

OVERTP

TxRx RxGTx

SIGLINK

OUT 1

OVERTP

QUANTUMULTRA 610

TxRx G

CONFIG

RS-232

SLOT9SLOT10

DISCONNECTPOWER

CORDBEFORE

SERVICING

100-240V ~ --A MAX 50-60 Hz100-240V ~ --A MAX 50-60 Hz

POWER LAN

SYSTEM REMOTE

SLOT8 SLOT7 SLOT 6 SLOT 5 SLOT4 SLOT3 SLOT 2 SLOT 1

QUANTUMEXPANSION ININPUTS

A CB

OUTPUTS QUANTUMOUT4HDMI

QUANTUMEXPA NSIONOUT

A CB

OUTPUTS

INPUTS QUANTUMIN4HDMI

QUANTUMULTRA 610

TxRx G

CONFIG

RS-232

SLOT9SLOT10

DISCONNECTPOWER

CORDBEFORE

SERVICING

100-240V ~ --A MAX 50-60 Hz100-240V ~ --A MAX 50-60 Hz

POWER LAN

SYSTEM REMOTE

SLOT8 SLOT7 SLOT 6 SLOT 5 SLOT4 SLOT3 SLOT 2 SLOT 1

INPUTSLANA LANB QUANTUM IN SMD 100

INPUTS QUANTUMIN4HDMI

QUANTUMEXPA NSIONOUT

ACB

OUTPUTS

Extron

Quantum Ultra 610

Ultra-high Bandwidth

4K Videowall Processor

Extron

Quantum Ultra 610

Ultra-high Bandwidth

4K Videowall Processor

Ext

ron

uantum Ultra 610

Ultra-high

Bandwidth

Videowall Processor

Fiber Optic Link Cable 1 m or 10 mFiber Optic Link Cable 1 m or 10 m

Primary Chassis

Secondary Chassis

Figure 4. Expansion Card Connection

3. Connect the LAN A port (see figure1, H, on page 1) of each chassis in the chain to the same network.

4. If desired, connect the LAN B port of all of the chassis to a different network for VNC or RSS sources.

5. Use VCS to configure the videowall for the multi-chassis system (see Starting the VCS Program with Expansion Cards on

page7, and the VCS Help File for more information).

Conﬁguring the Videowall Using VCS

This section describes how to set up the videowall (create a project) using the VCS program to congure and control the

Quantum Ultra Series from the computer. For detailed information, see the VCS Help File, accessible from within VCS.

Starting VCS

1. Download VCS from www.extron.com (see the Quantum Ultra Series User Guide, also available on the Extron website, for

instructions).

2. Open the software program either by double-clicking the VCS icon (shown at right) that is placed on your

desktop during installation, or by clicking Start > Extron Electronics > Videowall Configuration Software.

The Extron VCS program opens with the Start screen, Create New Project tab (see figure5 on the next page)

and a list of devices supported by the current version of VCS.

SLOT 9SLOT 10 SLOT 8 SLOT 7 SLOT 6 SLOT 5 SLOT 4 SLOT 3 SLOT 2 SLOT 1

QUANTUM EXPANSION ININPUTS

A CB

OUTPUTS QUANTUM OUT4HDMI

QUANTUM EXPANSION OUTOUTPUTS

INPUTS QUANTUM IN4HDMI

A CB

Secondary Chassis

Quantum Ultra Series • Setup Guide (Continued)

Figure 5. VCS Start Screen, Create New Project Tab

3. Select the radio button for your device and click the Create button (see figure5, 1). VCS searches for Quantum Ultra Series

devices that are on the network. The Connect to Device screen is displayed. The Select Device(s) to Add panel (see

gure6, 1, on the next page) displays all detected devices of the type selected on the Create New Project screen.

NOTE: A gateway IP address is required on the PC running VCS, in order for the Quantum Ultra Series device to be

detected. The gateway address need not be valid or on the same subnet.

Figure 6. Connection Screen

4. Locate your Quantum Ultra Series device on the device list and click the Add to System button at the left of the device

name. If a project already exists on the selected device, a prompt opens, asking if you want to apply your new project to the

device (deleting the previous project). Click OK to continue creating the project (or Cancel to stop the procedure). Connection

information is displayed in the System Devices panel. If the computer is successfully connected to the device, the word

Connected is displayed, preceded by a green dot, in the System Devices panel (see gure6, 2).

NOTE: Multiple Quantum Ultra and Ultra II 610 and 305 devices can be added to a product. Only one Quantum Ultra

Connect device can be added.

Product Category

5. Edit IP address settings for your device as needed.

a. In the Select Device(s) to Add panel, click the Edit button (see 1in the image below).

b. The Communication Settings dialog box opens. In this window, enter a new IP address and edit other IP settings as

desired.

To enable Dynamic Host Conguration Protocol (DHCP), select the DHCP checkbox. When this box is selected, an

available IP address is assigned automatically to the Quantum Ultra Series device when it is connected to a supporting

network. (When this checkbox is selected, all other IP settings elds become read-only.)

If you added this device manually, click the Device Settings button (shown at right) on the VCS

taskbar. On the Device Details screen, click the Communication Settings button to display the

Communication Settings window. If the device cannot be detected or manually added, connect to

it using USB or RS-232 and congure the IP address using SIS commands.

Manually adding devices

If you do not see your Quantum Ultra Series device in the Select Device(s) to Add panel (see step 3 starting on the previous

page), you can add the device manually:

1. Click the Manually Add Device button (see figure6, 3on the

previous page). The Manually Add Device window opens (shown at

right).

2. In the IP Address field, enter the address of the Quantum Ultra Series

device to be connected and select the Pull from Hardware radio

button (see 1in the image at right).

3. Select the device type from the Device Type drop-down list.

Quantum Ultra or Ultra II devices can be selected if a Quantum Ultra

or Ultra II 305 or 610 project was created. Quantum Ultra Connect devices can be selected if a Quantum Ultra Connect 84 or

128 project was created.

4. Click Add. The connection information for the device is displayed in the System Devices panel (see figure6, 2on the

previous page). A unit added by this method is not displayed in the Select Device(s) to Add panel.

Starting the VCS Program with Expansion Cards

There are some differences in the procedure for starting a VCS project for a system containing expansion cards. To set up an

expansion project:

1. On the Start screen, select the Quantum Ultra 305/610 radio button.

NOTE: Expansion cards are not supported on the Quantum Ultra II models.

2. On the New Project screen, each listed device with expansion cards is preceded by a Configure Expansion button (in place

of the Add to System button, see figure7, 1). Click the Configure Expansion button for any one of the expansion devices.

(Figure 7 shows an expansion system with two chassis. There can be up to five chassis in an expansion system.)

Figure 7. Connection Screen for an Expansion System

Quantum Ultra Series • Setup Guide (Continued)

3. The Confirm Expansion System window opens, showing the IP

addresses of all Quantum Ultra Series devices with expansion cards,

listed in their order in the chain, with the primary device at the top. If

all the information on this screen is correct, click the Confirm button

at the bottom of the screen (see the image at right).

NOTE: If the IP address of a connected device in the chain

is not found, this window indicates which device is missing.

Click Cancel to return to the New Project connection screen.

4. A prompt window appears, indicating that the initial configuration is

complete and that the system will reboot. Click OK on the prompt to

close it. The reboot starts automatically and takes a few minutes to complete.

5. When the connection screen is displayed, the device list contains one item, the primary chassis, representing the expansion

system, showing Quantum Ultra Expansion in the Model column (see figure8, 1). The information in the rest of the

columns (IP Address, Device Name, and Connection columns) applies to the primary device in the chain.

Click the Add to System button in front of the Quantum Ultra Expansion line (2) to add the expansion chain to the System

Devices panel (see figure6, 2on page 6).

Figure 8. Quantum Ultra Expansion Chain in the Device Discovery Panel

6. Configure the videowall (see Configuring the Videowall Using VCS on page5).

Adding expansion devices manually

If no expansion device appears on the New Project discovery screen,

add the expansion system manually as follows:

1. On the New Project connection screen, click the Manually Add

Device button (see figure6, 3on page 6).

2. On the Manually Add Device window, click the Manually Add

Expansion Device button (see 1in the image at right). Ignore the

other fields.

3. On the Manually Configure Expansion screen, enter the

IP addresses of the devices in the expansion. Be sure to

enter the addresses in the order the devices are connected

in the chain, with the primary device address in the top (first)

field (see 1in the image at right).

4. Click Confirm. The system restarts, then after

approximately 2 minutes displays the expansion system

as a single item on the device list with the model name

Quantum Ultra Expansion (see figure8, 1).

5. Go to step 4 of the “Starting the VCS Program with

Expansion Cards” procedure, above, and complete the

procedure as described.

NOTE: If the Quantum Ultra Expansion line does not

appear on the connection screen, add the primary device

manually (see Manually adding devices on page7).

Product Category

Reconfiguring an expansion system

To redo the conguration or repurpose the chassis into different systems:

1. Connect to the expansion system.

2. From the Tools menu, select Reset Devices.

3. In the Reset Devices window, select Reset Device Settings and Delete All Files (Retains TCP/IP Settings) (the

second radio button).

4. Click Reset. The system reboots. After approximately 2 minutes, the expansion devices appear listed separately in the device

discovery panel, as shown in ﬁgure7 on page7.

Setting Up the Videowall

To use the VCS program to congure the videowall, start by setting up a project. In the project, you can dene the Quantum

Ultra Series processors, create one or more videowalls, set up video sources and outputs, and create presets. At the top of the

Quantum Ultra Series screen is a row of task buttons. After connecting to the desired Quantum Ultra Series device (processor

or chassis) or devices, click the task buttons to access screens for the setup tasks. For best results, perform the following setup

steps in the order shown.

Wall Configuration

Click the Wall Conguration button (shown at right) to congure the outputs and to select the output

channels on the Quantum Ultra Series device for the videowall. The Wall Conguration window opens,

providing a Canvas to set up the wall (see gure9).

1. Name the Canvas. By default, the first videowall configuration (Canvas) you define is named Canvas 1(see figure9, 1).

In the Canvas Name field, you can customize the name if desired (2). Each Canvas that is created (a maximum of 10) is

assigned an incremented number that appears in the Canvas ID field and is used in SIS commands.

NOTE: The Quantum Ultra Connect models support only one canvas.

2. Select the number of displays. In the spin boxes labeled Number of Displays (3) select or enter the number of displays

for the columns and the rows of the videowall. In the example in figure99, the wall has five columns by three rows (4).

Figure 9. Wall Conﬁguration Window

3. Configure the outputs. The settings on the menus in the output configuration panel apply to all displays in the Canvas:

• Resolution (see figure9, 5— From this drop-down list, select the output resolution for the displays.

• Master Refresh Rate (6) — From this drop-down list, select the refresh rate for the displays.

NOTE: Quantum Ultra and Ultra II 610 and 305 only: This rate not only applies to all the displays on the first

Canvas, but limits selectable refresh rates on all other Canvases that are added (see the VCS Help File to use

multiple Canvases).

Quantum Ultra Series • Setup Guide (Continued)

• Output format (see figure9, 7on the previous page) — From this drop-down list, select the output format (AUTO, DVI

RGB 444 or HDMI RGB 444). The default is Auto.

• HDCP Mode (8) — From this drop-down list, select how to manage HDCP encryption on the outputs. You can select

to always encrypt the output (default), to never encrypt the output, or to attempt to encrypt the output for 1 minute, then

revert to an unencrypted state (not allowing display of HDCP encrypted sources if authentication with the sink device

fails).

• HDCP Notification (9) — From this drop-down list, select to enable or disable a green screen notification when the

input signal contains HDCP-protected content and the outputs cannot be encrypted.

• Display Rotation (¢) — In this panel, select the radio button for the angle at which the displays

physically rotate: +90°(90 degrees clockwise), -90° (90 degrees counterclockwise) or 0° (no

rotation). The example at right shows a videowall that has four rotated displays.

NOTE: The OUT4HDMI cards support output rotation only on the even numbered channels

and disables the odd numbered channels. The OUT4HDMI 4K PLUS cards support output

rotation on all channels.

4. Define the Quantum Ultra Series device and output in the output assignment panel (£) for each

display on the videowall, using either of the following methods:

• Automatic method — (Recommended) Click the Auto Assign Outputs button (¤) to

automatically assign a device and an output channel to each display in the videowall. Output card

slot and connector numbers are assigned to the displays in numerical order. The displays are

shown on the Canvas numbered from left to right, starting in the upper-left corner with Display 1.

The number format for the display locations is n.n.n. The first numeral indicates the chassis number. If there is a single

chassis, this number is 1. In an expansion system, this number is the order number of the chassis in the chain. In all

systems, the second numeral is the card slot, and the third is the connector (channel) number. For example, 3.9.2

represents chassis 3, card slot 9, connector 2.

• Manual method —

a. Select a Quantum Ultra Series device for a display on the videowall. Click <Undefined>

beside the number of the display to be assigned, and select a device from the drop-down

list.

b. Select a chassis, output card, and slot number for the display. Click <Undefined> in

the Output Assignment column, in the row of the display to be assigned. On the output

drop-down list, all output connectors are listed in order by chassis number (unless the unit is

part of an expansion system, this number is always 1), then card slot number, then

connector number.

In the example at right, number 1.10.4 represents connector 4on the

output card in slot 10 of chassis 1.

Repeat these steps for each display on the videowall to which you want to

assign a Quantum Ultra Series device and output connector. (This guide

assumes you are conguring a videowall with one device. For information on

conguring a videowall with multiple processors, see the VCS Help File).

5. In the Mullion/Edge Blending Compensation panel (¥) select either of the following radio buttons (for more detailed

information, see the VCS Help File):

• Mullion Compensation — Displays controls that let you specify the mullion space around the displays in pixels, inches,

centimeters, or millimeters. If not using pixel values, you must also enter the diagonal size of the screen.

• Edge Blending (Quantum Ultra or Ultra II 610 and 305 only) — Displays controls that let you specify the amount in

pixels of horizontal and vertical overlap of the videowall outputs.

6. If desired, select a test pattern from the menu in the Test Pattern panel (¦) to aid in optimizing the wall configuration.

Source Configuration

Each source used in a project must have a corresponding source denition in VCS. To congure the sources:

1. On the taskbar, click the Source Configuration button (see figure10, 1on the next page) to display the Source

Configuration screen.

2. Select a source type. In the Source Configuration Tree (left panel), click a source type to add (2). Depending on

the cards installed in your unit, HDMI, IP Source, or both may be listed. Picture, Clock, VNC, Text, and Really Simple

Syndication (RSS) source types are always available for configuration.

1.10.4

Chassis Connector

Card Slot

Andere Handbücher für Quantum Ultra Series

Inhaltsverzeichnis

Andere Extron electronics Computerhardware Handbücher

Extron electronics

Extron electronics IPCP Pro PCS1 Bedienungsanleitung

Extron electronics

Extron electronics IPL Pro Series Bedienungsanleitung

Extron electronics

Extron electronics PIP 422 Bedienungsanleitung

Extron electronics

Extron electronics EDID 101D Bedienungsanleitung

Extron electronics

Extron electronics IPL M PDP-ES Montage- und Bedienungsanleitung

Extron electronics

Extron electronics DMP 128 Plus Bedienungsanleitung

Extron electronics

Extron electronics DMP 44 LC Bedienungsanleitung

Extron electronics

Extron electronics IPCP Pro PCS1 xi Bedienungsanleitung

Extron electronics

Extron electronics DMP 128 FlexPlus Bedienungsanleitung

Extron electronics

Extron electronics Network Device PIP 444 Bedienungsanleitung

Extron electronics

Extron electronics Quantum Ultra Bedienungsanleitung

Extron electronics

Extron electronics Dual Window Multi-Graphic Processor MGP 462 Bedienungsanleitung

Extron electronics

Extron electronics EDID 101H 4K PLUS Bedienungsanleitung

Extron electronics

Extron electronics IPL Pro S1 Bedienungsanleitung

Extron electronics

Extron electronics Annotator 300 Bedienungsanleitung

Extron electronics

Extron electronics DMP 64 Bedienungsanleitung

Extron electronics

Extron electronics HAE 100 4K Bedienungsanleitung

Extron electronics

Extron electronics Multi-Graphic Processor MGP 464 Bedienungsanleitung

Extron electronics

Extron electronics DMP 64 Plus Bedienungsanleitung

Extron electronics

Extron electronics XMP 240 C AT Bedienungsanleitung

Extron electronics

Extron electronics Multi-Graphic Processor MGP 464 Bedienungsanleitung

Extron electronics

Extron electronics DTP3 T 202 Bedienungsanleitung

Extron electronics

Extron electronics DMP Plus Series Bedienungsanleitung

Extron electronics

Extron electronics EDID 101H 4K PLUS Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
