NAV SD 501 and NAV SD 101 • Setup Guide

This guide provides instructions for an experienced installer to install the Extron NAV SD 501 and

NAV SD 101 scaling decoders and to make all connections. One or more compatible Extron NAV

encoders and one or more decoders form an AV distribution and switching matrix on a managed 1G

IP network.

NOTE: For more information on any subject in this guide, see the NAV SD 501 and NAV SD 101 User Guide, available at

www.extron.com.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources and rack or furniture mount the decoder as required.

Step 2 — Rear Panel Connections

HDMI

POWER

12V

2.0 A MAX L

Tx Rx GSG

RS-232 IRR

AUDIO

CONTROLOUTPUT

NAV SD 101

RESET

NAV 1G/PoE+

LAN

HDMI

POWER

12V

2.0 A MAX L

Tx Rx GSG

RS-232IRR

AUDIO

CONTROLOUTPUT

NAV SD 501

RESET

5V/200 mA

USB 2.0

NAV 1G/PoE+EXT

LAN

DDD

CCCHHHEEEGGGFFFAAABBB

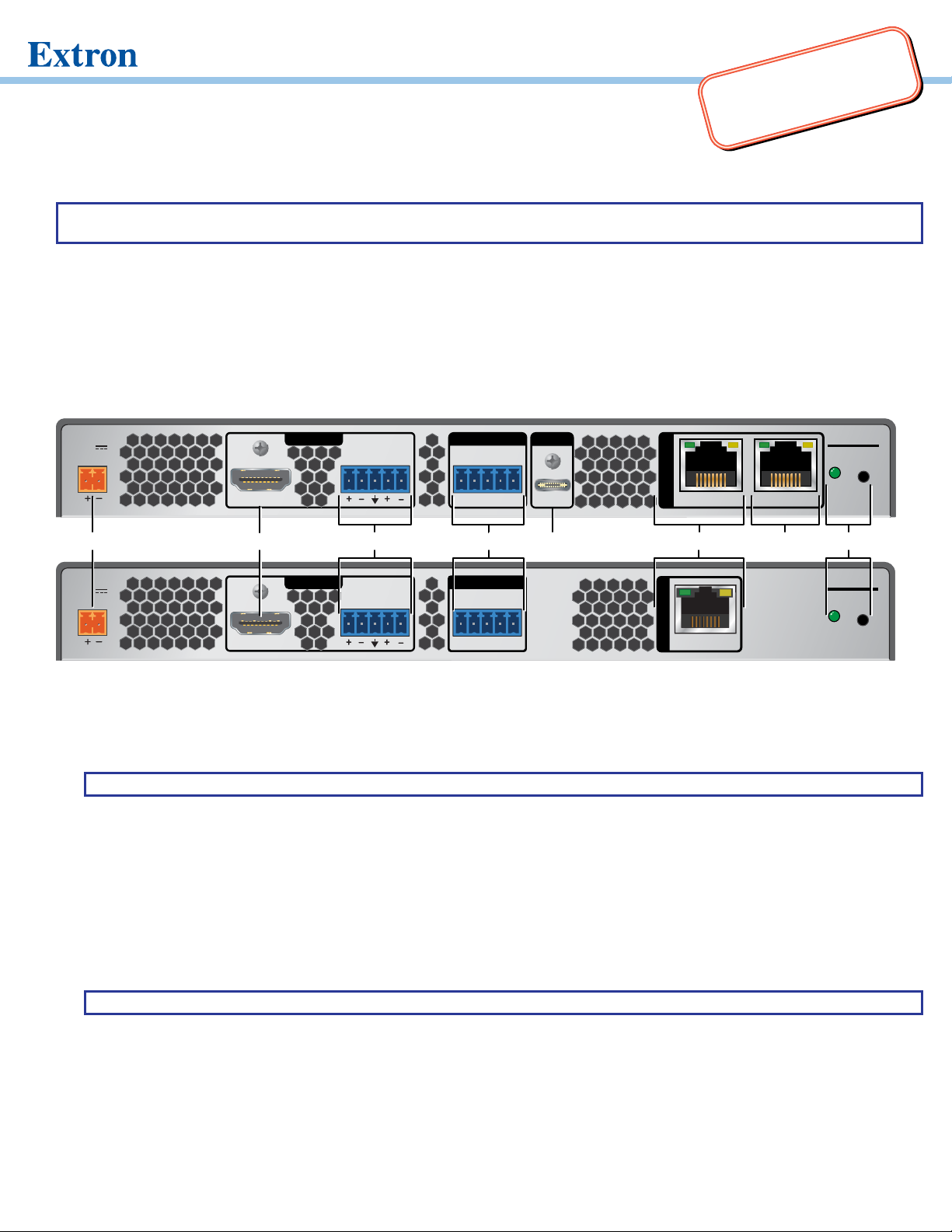

Figure 1. NAV SD 501 and NAV SD 101 Rear Panel Features

ANAV 1G/PoE+ port — Connect to an Ethernet LAN on which one or more encoders also reside for streaming and control. This port

can also receive Power over Ethernet (PoE+) to power the decoder (see Power on page 3 for power options).

BExtension port (NAV SD 501 only) — If desired, connect another networked device to this port. The port acts as a networked switch

to the NAV 1G/PoE+ port.

NOTE: The Extension port cannot provide PoE.

CHDMI output port — Connect an HDMI cable between this port and an HDMI display (or a DVI display, with an appropriate adapter).

See LockIt® Lacing Brackets on page6 to use the LockIt HDMI Cable Lacing Bracket to secure the connector to the decoder.

DAUDIO output port — This 5-pole, 3.5 mm captive screw connector outputs the streamed, unamplified, line level analog audio. Connect

an audio device, such as an audio amplifier or powered speakers (see Analog audio output on page6 to wire the connector).

ECONTROL RS-232/IR port — Connect a serial RS-232 signal, a modulated IR signal, or both to this 3.5 mm, 5-pole captive screw

connector for bidirectional RS-232 and IR communication with connected remote controlled devices using an Extron control system

(see Control connector on page6 to wire the connector).

FUSB 2.0 port (NAV SD 501 only) — Connect a USB Type-C cable to USB host or a USB device. See LockIt® Lacing Brackets to

securely fasten the USB connector to the decoder.

NOTE: This connector is limited to supplying 200 mA in USB device mode.

GRESET button — This button initiates three modes of reset (see the NAV SD 501 and NAV SD 101 User Guide, available at

www.extron.com, for details).

HPOWER connector (optional) — Plug the included external 12 VDC power supply into this 2-pole connector for local power (see

Power connector on page6 to wire the connector and Power for power options).

IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications before connecting the

product to the power source.

NAV SD 501 and NAV SD 101 • Setup Guide (Continued)

Step 3 — Front Panel Conﬁguration Port Connection

NAV SD 101

NAV

HDCP

VIDEO

CONFIG HDMI LNK

ACT

ANALOG

AUDIO

AUDIO LAN ID

NAV SD 501

NAV

HDCP

VIDEO

CONFIG

ANALOG

HDMI

ACTIVE

HOST -LNK-

-ACT-

NAV EXT

USB

AUDIO

AUDIO LAN IDUSB

CCC

AAABBBDDDFFFGGG

EEE

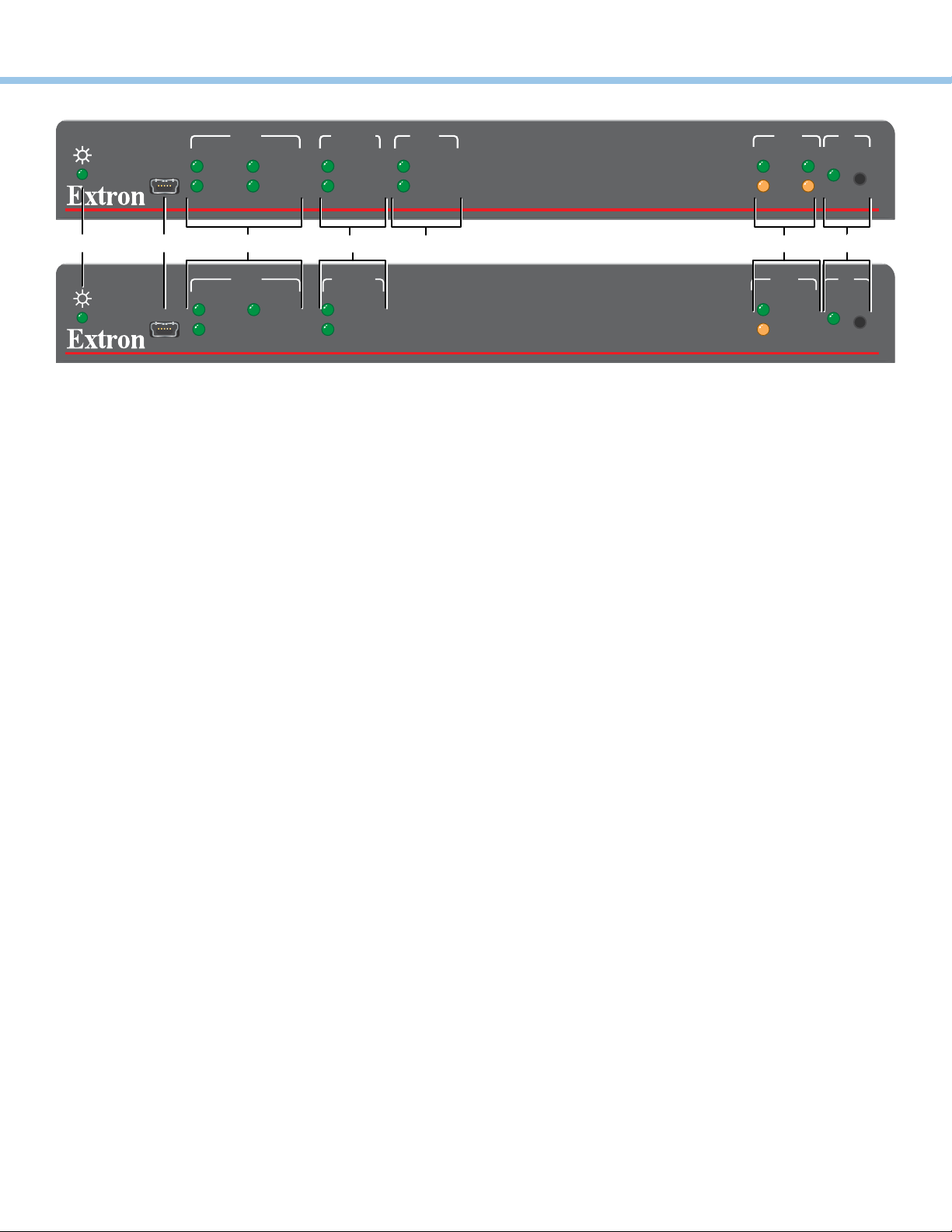

Figure 2. NAV SD 501 and NAV SD 101 Front Panel Features

AConfiguration port — Connect a PC to the decoder via this front panel USB Mini-B connector for configuration of the decoder.

The port uses IP over USB technology; the IP address is always 203.0.113.22 and CANNOT be changed. The Config port is also

discoverable via Extron Toolbelt (see the NAV SD 501 and NAV SD 101 User Guide; the guide and Toolbelt are available for download

at www.extron.com).

Indicators

BPower LED — Indicates power and startup status, as follows:

• Blinking — The unit is receiving power, either locally or remotely (via PoE) and is booting up.

• Lit steadily — The unit is receiving power, either locally or remotely (via PoE) and is operational.

CNAV LEDs — Indicates status of the streaming input, as follows:

• VIDEO — Indicates status of the video stream.

• Lit steadily — The decoder is receiving a video stream.

• Blinking — A video stream is being decoded, but network errors are present that affect the video quality.

• HDCP — The video stream is HDCP encrypted.

• AUDIO LED — Indicates status of the audio stream.

• Lit steadily — The decoder is receiving an audio stream.

• Blinking — An audio stream is being decoded, but network errors are present that affect the audio quality.

• USB LED (NAV SD 501 only) — Indicates status of the USB stream.

• Lit Steadily - The decoder is actively receiving and sending a NAV USB stream

• Unlit — The decoder is unable to establish a NAV USB stream.

• Blinking - The decoder is not actively sending and receiving a NAV USB Stream.

DAudio LEDs — Indicate the active audio output, as follows:

• HDMI — The embedded HDMI audio output is selected.

• ANALOG — The analog audio output is selected.

EUSB LEDs (NAV SD 501 only) — Indicates the status of the USB stream, as follows:

• Host

• Lit steadily – The decoder is in USB host mode.

• Unlit – The decoder is in USB device mode, the default condition.

• Active

• Lit steadily – A USB device or host is connected to the rear panel USB port.

• Unlit – No host or USB device is connected to the rear panel USB port.

• Blinking – A USB device or hub is connected to the decoder and is attempting to draw more power than the USB port can

supply.

page 2

point E > Active > Fast blinking: I don’t believe in Active mode the unit actually

provides power, please conrm with PD

FLAN LEDs (see figure 2 on page 2)— Indicate the status of the network connections, as follows:

• NAV LED (NAV SD 501) or LAN LED (NAV SD 101) —

• Link LED — Lit steadily indicates that a network link is established. Blinking indicates a link speed less than 1G.

• Act LED — Blinking indicates network traffic. The blink rate corresponds to activity.

• Ext LED (NAV SD 501 only) —

• Link LED — Lit steadily indicates that a network link is established. Blinking indicates a link speed less than 100 Mbps.

• Act LED — Blinking indicates network traffic. The blink rate corresponds to activity.

GID button and LED — The recessed ID button identifies the decoder when pressed. The LED blinks three times when the decoder is

paired to a NAV encoder (see Pairing devices via front panel on page5).

Operation

Power

The decoder can be powered in one of three ways:

• Locally, from the included external power supply and via the power connector (see figure1, Hon page 1).

• Remotely, receiving PoE via the NAV 1G/PoE+ port (see A); either from the network switch or from an optional PI 140 Power Injector.

• Locally (H) and remotely (A), with priority on the NAV 1G/PoE+ port. If PoE voltage drops below a threshold, the decoder

immediately transitions to the external power supply with no effect on system operation.

When power is applied, the decoder runs a series of self-tests that blink the front panel Power LED and all other indicators. The decoder

then boots the NAV operating system. It can take approximately 45 seconds for self-test and system startup to complete. When the

process is complete, the Power LED lights steadily.

NOTE: The decoder is NOT operational until the boot process is complete (the Power LED is lit steadily).

System Operation

The decoder can be congured and controlled using embedded web pages or Extron Toolbelt (see the

NAV SD 501 and NAV SD 101 User Guide available at www.extron.com).

NOTE: The “Connection via web pages,” Connection settings, and Pairing devices via front panel procedures (see page 5) may

NOT be necessary if your system includes a NAVigator System Manager.

Connection via web pages

Connection to the decoder and its embedded web pages can be made via either the front panel Conguration (USB) port (using IP over

USB) (see ﬁgure2, A) or the rear panel NAV 1G/PoE+ port (see ﬁgure1, A).

Access the decoder using HTML pages as follows:

1. Start a web browser.

NOTES:

• Suggested browsers to fully support the NAV system are: Google Chrome™, Mozilla™ Firefox™, and Microsoft Edge™.

• The network must be properly configured for multicasting (IGMP). Failure to do so may result in degraded performance.

2. Enter the IP address of the decoder in the browser Address field.

NOTE:

• Default settings:

Port DHCP IP address Subnet mask

Conﬁg (USB)*203.0.113.22

NAV/PoE+ (RJ-45) On

* For the Config port, the address for IP over USB CANNOT be changed.

• If you use IP over USB, Extron recommends waiting a minute after plugging in the cable for your PC to identify the USB

connection as a valid Ethernet port

NAV SD 501 and NAV SD 101 • Setup Guide (Continued)

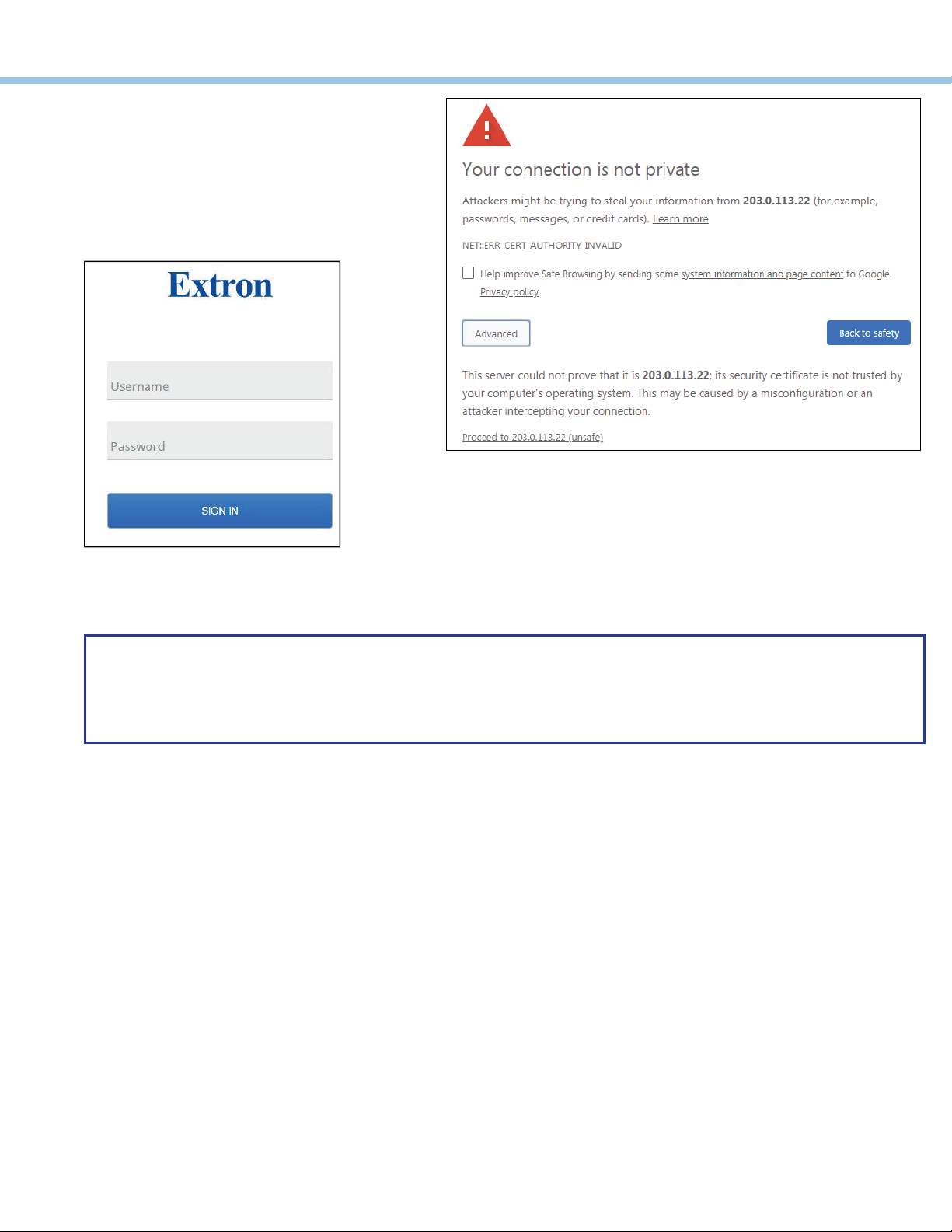

3. Press the keyboard <Enter> key. The browser displays

a privacy error message (see figure 3 at right for an

example in the Chrome browser).

4. Click Advanced (see figure 3, 1). The button changes

to Hide Advanced and explanatory text and a link

appear below the button.

5. Click Proceed to <IP address>(unsafe) (2). The

browser opens to the Login dialog box (see figure 4).

1111111111

1111

2222222222

2222

3333333333

3333

Figure 4. Login Dialog Box

6. Enter the username and password in the appropriate fields (see figure 4, 1and 2) and click Sign In (3). The browser opens to the

home page of the embedded web pages (see figure5 on the next page).

NOTES:

• The default username is admin.

• The factory configured passwords for all accounts on this device have been set to the device serial number. If the password is

reset, the decoder defaults to the default password, which is extron.

• Usernames and passwords are case sensitive.

1111

2222

Figure 3. Privacy Error Message (in Chrome Browser)

111111111111111111

2222222222

2222

* NAV SD 501 only

Figure 5. Home Page

NOTE: Detailed descriptions of communication, configuration, and monitoring are provided in the NAV SD 501 and NAV SD 101

User Guide, available at www.extron.com.

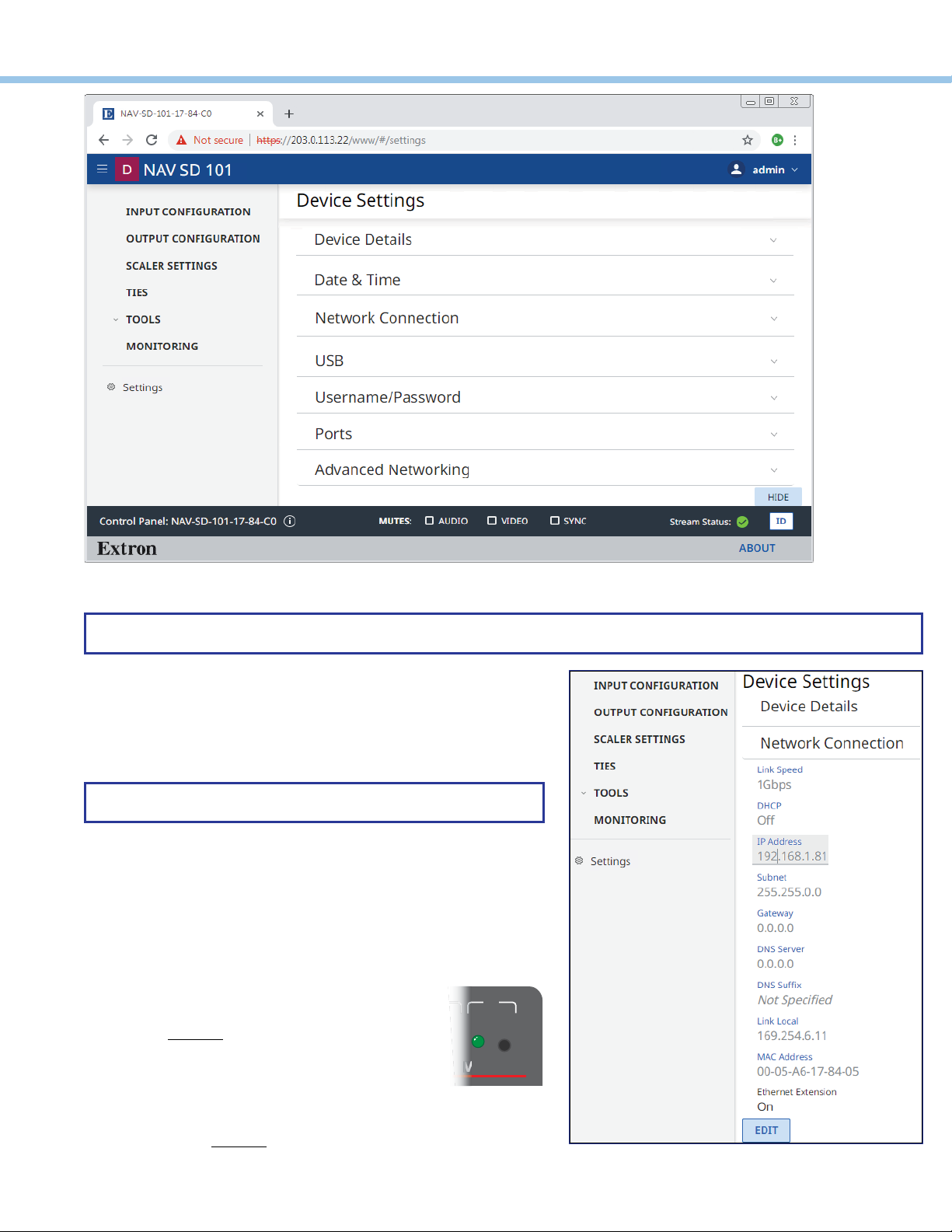

Connection settings

View and change connection settings as follows:

1. On the home page, click Settings (see figure 5, 1) > Network

Connection (2). The Network Connection pane opens (see figure 6),

showing protected views of the network connection settings.

NOTE: Editing of connection settings is disabled when the device is

assigned to an Extron NAVigator System Manager.

2. To change the settings, click Edit (see figure 6, 1). The Edit button

changes to Save.

3. Click in the desired field (2) and edit it as desired.

4. Repeat step 3 as necessary for other values.

5. Click Save.

Pairing devices via front panel

Pair devices from the front panel as follows:

V SD 101

1. Use a Tweeker or other small screwdriver to press

and hold the encoder front panel ID button for

approximately 3 seconds, until the ID LED blinks. The

encoder enters pairing mode, which allows decoders

to receive the AV stream (NAV SD 101) or AV and USB

streams (NAV SD 501 only) from encoders.

2. One at a time, use a Tweeker or other small screwdriver to press and

hold the front panel decoder ID button for approximately 3 seconds,

until the ID LED blinks. The decoder is now paired to the encoder.

3. Repeat step 2 for each decoder.

1111111111

1111

2222222222

2222

* NAV SD 501 only

Figure 6. Network Connection Pane

668-2980-50 Rev. B

09 20

NAV SD 501 and NAV SD 101 • Setup Guide (Continued)

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see

the Extron Safety and Regulatory Compliance Guide on the Extron website.

4. Use a Tweeker or other small screwdriver to press and release the encoder front panel ID button. The encoder exits pairing mode.

5. Repeat steps 1 through 4 to pair decoders to other encoders.

After all devices are connected, powered on, and paired, the system is fully operational.

Operation in a System with a NAVigator

The Extron NAVigator is a system manager that easily congures and controls the NAV System. The NAVigator can support a 16 endpoint

system by default, but if a LinkLicense is installed, it can support up to 240 endpoints.

See the NAVigator User Guide, available at www.extron.com for details.

Connection Details

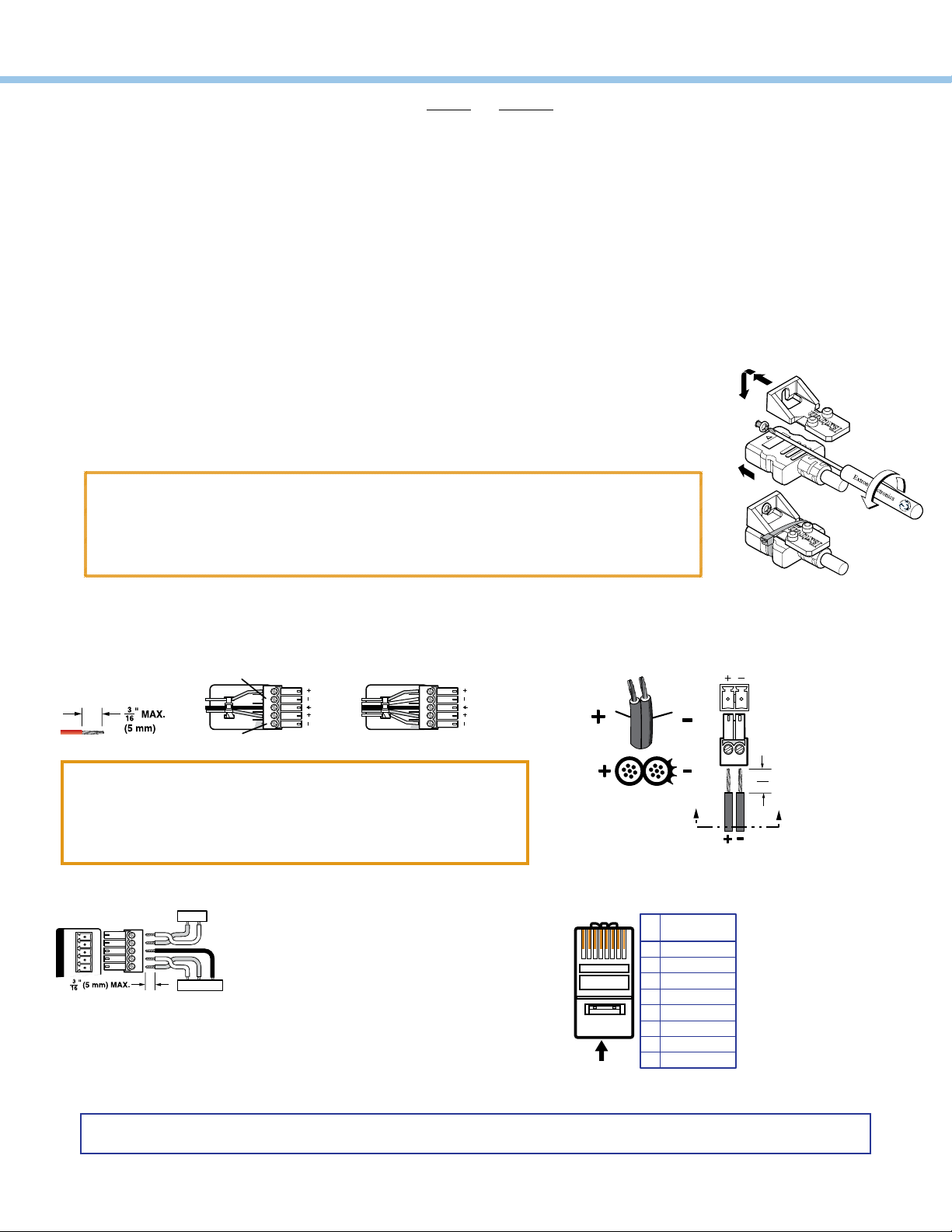

LockIt®Lacing Brackets

1. Plug the HDMI cable or USB (NAV E 501 only) into the panel connection (see 1, at right).

333

111

555

444

222

2. Loosen the connection mounting screw from the panel enough to allow the LockIt lacing bracket to

be placed over it (2). The screw does not have to be removed.

3. Place the LockIt lacing bracket on the screw and against the connector (3).

4. Tighten the screw to secure the bracket.

ATTENTION:

• Do not overtighten the HDMI connector mounting screw. The shield it fastens to is very

thin and can easily be stripped.

• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est

attachée est très n et peut facilement être dénudé.

5. Loosely place the included tie wrap around the connector and the LockIt lacing bracket as shown (4).

6. While holding the connector securely against the lacing bracket, use pliers to tighten the tie wrap, then remove any excess length (5).

Analog audio output Power connector

Unbalanced Stereo Output Balanced Stereo Output

Do not tin the wires!

Tip

No Ground Here

Tip

Sleeves

Tip

Ring

Tip

Ring

Sleeves

ATTENTION:

• For unbalanced audio, connect the sleeves to the ground contact.

DO NOT connect the sleeves to the negative (-) contacts.

• Pour l’audio asymétrique, connectez les manchons au contact au

sol. NE PAS connecter les manchons aux contacts négatifs (–).

Power Supply

Output Cord

Ridges

Smooth

Captive

Screw

Connector

16 (5 mm) MAX

SECTION A–A

Control connector NAV and EXT connectors

TxRx

RxTx Gnd

IR Device

RS-232 Device

RS-232

Tx Rx GSG

CONTROL

Wire color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Blue

TIA/EIA T568B

TP Wires

12345678

Pins:

Andere Handbücher für NAV SD 501

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Extron electronics Medienkonverter Handbücher

Extron electronics

Extron electronics SMD 101 Bedienungsanleitung

Extron electronics

Extron electronics RGB to DVI Scaler RGB-DVI 300 Handbuch

Extron electronics

Extron electronics QSD 204 Bedienungsanleitung

Extron electronics

Extron electronics mediaport 200 Bedienungsanleitung

Extron electronics

Extron electronics NAV E 501 Bedienungsanleitung

Extron electronics

Extron electronics DDS 100 Bedienungsanleitung

Extron electronics

Extron electronics Multi Video Processor MVP 104GX Bedienungsanleitung

Extron electronics

Extron electronics VSC 700 Bedienungsanleitung

Extron electronics

Extron electronics DDS 402 Bedienungsanleitung

Extron electronics

Extron electronics DVS 510 Bedienungsanleitung

Extron electronics

Extron electronics DVS 204 Bedienungsanleitung

Extron electronics

Extron electronics RGB to DVI Scaler RGB-DVI 300 Bedienungsanleitung

Extron electronics

Extron electronics Sync Converter/Stabilizer SCS 300 Bedienungsanleitung

Extron electronics

Extron electronics DSC 3G-HD A Bedienungsanleitung

Extron electronics

Extron electronics RGB to DVI Scaler RGB-DVI 300 Bedienungsanleitung

Extron electronics

Extron electronics NAV SD 511 Bedienungsanleitung

Extron electronics

Extron electronics mediaport 200 Bedienungsanleitung

Extron electronics

Extron electronics AXI 016 Bedienungsanleitung

Extron electronics

Extron electronics SDI to Analog Video Converter SDI-AVR 100 Bedienungsanleitung

Extron electronics

Extron electronics VSC 150 Bedienungsanleitung

Extron electronics

Extron electronics NAV 10SD 501 Bedienungsanleitung

Extron electronics

Extron electronics HAE 100 4K Plus Bedienungsanleitung

Extron electronics

Extron electronics NAV 10SD 101 Bedienungsanleitung

Extron electronics

Extron electronics DSC 3G-HD A Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
