QGE 100 • Setup Guide

The QGE 100 Quantum Graphics Encoder encodes an RGB or DVI signal from a source computer or similar graphical device

and streams it to a Quantum®Elite Videowall Processor, computer, or other viewing device over an IP network. The viewing

device can then decode the image data and reproduce the original source image, displaying it at its original or scaled

resolution. The QGE is connected between a source computer and its monitor, keyboard, and mouse without affecting the

performance of the computer. From these connections it obtains data about changes in the display content, along with

keyboard and mouse actions.

NOTE: For full installation, conﬁguration, and operation details, see the QGE 100 User Guide at www.extron.com.

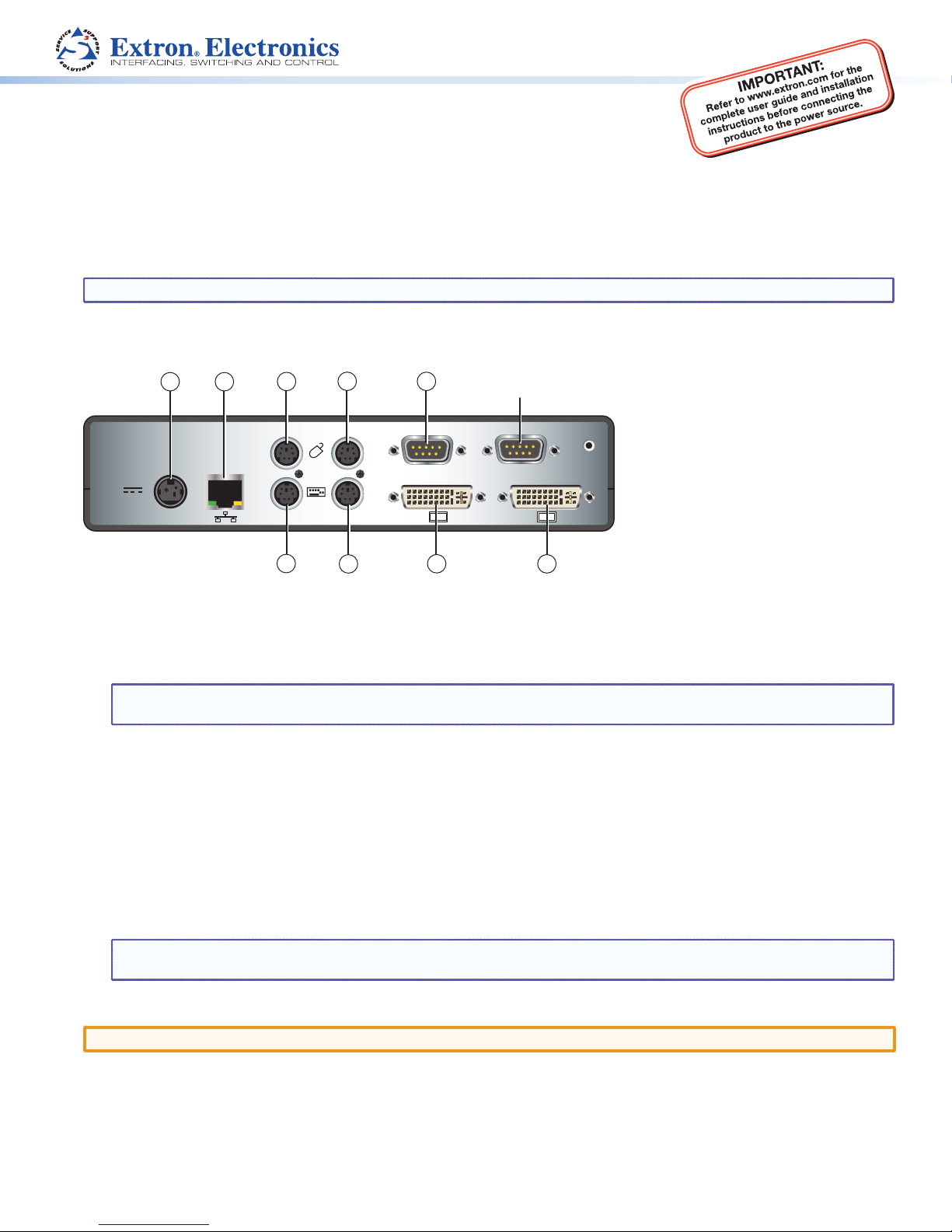

Rear Panel Features and Connections

COM 1

COM 2

DVI-I DVI-I

12V DC IN

REG

1.5A MAX

PERIPH PC

Refer all servicing to

qualiﬁed service personnel

1 2 345

Reserved for

Future Use

Installation Steps

1. Disconnect power from the QGE and power off all other equipment in the system.

2. Connect the QGE to the source computer:

NOTE: If you do not intend to use keyboard and mouse control of the source computer through the QGE 100, omit

the ﬁrst four bullets (connecting the QGE between the source computer and its keyboard and mouse).

zConnect the PS/2 mouse of the source computer to the QGE Periph mouse port (cin the diagram above).

zConnect the PS/2 keyboard of the source computer to the QGE Periph keyboard port (i).

zConnect the QGE mouse PC port (d) to the PS/2 mouse connector of the source computer.

zConnect the QGE keyboard PC port (h) to the PS/2 keyboard connector of the source computer.

zConnect the DVI-I In (f) monitor port of the QGE to the monitor port of the source computer.

zConnect the monitor of the source computer to the DVI-I Out loop-through connector (g) of the QGE.

3. Connect the QGE to the network. Connect the QGE Ethernet port to the network of your viewing device.

4. Connect power to the QGE 100 (see “Connecting Power to the QGE 100,” below).

NOTE: Always power up the QGE 100 before the source computer; otherwise, the QGE does not correctly detect

the mouse, keyboard, and monitor.

5. Power on the source computer.

CAUTION: Always power on the source computer and QGE 100 after making all connections between them.

Connecting Power to the QGE 100

1. Plug the mini DIN connector of the provided 12 VDC power supply into the rear panel connector labeled “12V DC.”

2. Connect the provided power cord between the IEC connector of the power supply and an AC outlet. (The QGE 100

power supply is double-insulated and does not require an earth to ground connection.)

aPower connector

bEthernet port

cPeripheral mouse connector

dPC mouse connector

eCOM1 serial port

fDVI-I In monitor port

gDVI-I Out loop-through connector

hPC keyboard connector

iPeripheral keyboard connector

QGE 100 • Setup Guide (Continued)

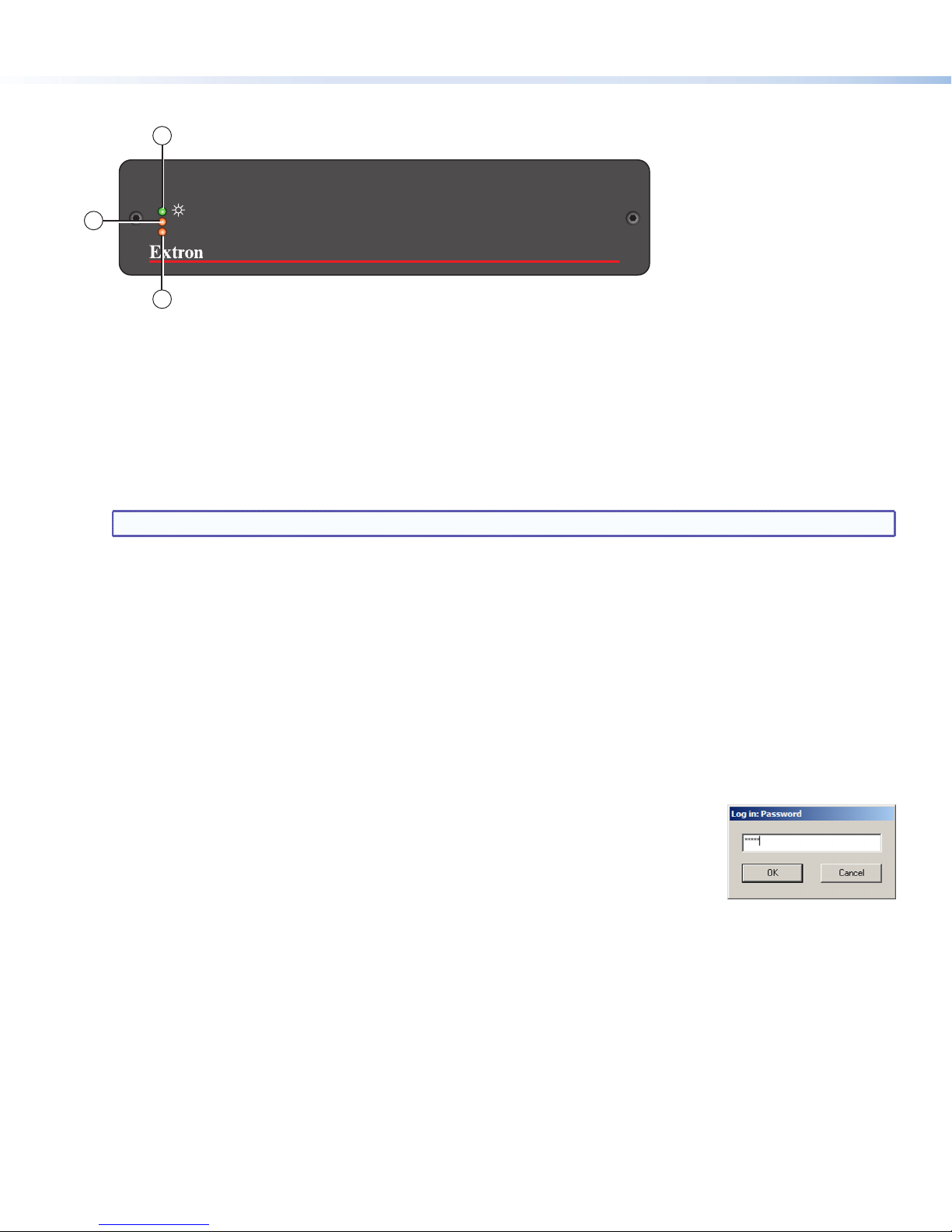

Front Panel Features

STATUS

LAN

QGE 100

QUANTUM GRAPHICS ENCODER

aPower LED (green) — Lights when the unit has power.

bLAN LED (amber) —

zBlinking: Data is being transmitted.

zUnlit: No data is being transmitted or no source is connected.

cStatus LED (amber) —

zLit steadily: The unit is connected to a valid source and is functioning normally.

zBlinking regularly: The unit is functioning normally; no source is connected.

zUnlit: The unit is not functioning correctly.

NOTE:When the QGE 100 is powered on, the three LEDs light steadily for approximately 10 seconds.

Conﬁguring the QGE 100

To set up the QGE 100, use the QGE 100 Administrator software, which is provided with the product on the Extron

Videowall Processing CD.

1. Install and start the QGE 100 Administrator program:

a. Load the Videowall CD in the external disk drive of your viewing computer.

b. On the external root directory of the CD, locate and double-click the Administrator icon, located at:

QGE 100\Software\QGE 100 Administrator\QGE 100 Administrator Vn.nn.exe. The installation wizard opens.

c. Follow the instructions on the wizard screens to complete the program installation.

d. On your desktop, click Start > All Programs > Extron Electronics > QGE 100 > QGE 100 Administrator >

QGE 100 Administrator. The main application window opens with the QGE 100 List section displaying all QGE 100s

detected on the network.

2. Log in as administrator by selecting Log in from the Admin menu and entering Admin (the

default password) on the Log in: Password screen. This enables you to access the ﬁelds in the

Conﬁgure QGE 100 Properties section.

3. On the QGE 100 list, click the name of the QGE that you want to conﬁgure, then click the

Connect button.

4. In the Performance Settings section under Conﬁgure QGE 100 Properties, select the following settings:

zFrame Rate Limit:From this menu, select the refresh rate (number of frames per second) (5is recommended).

zBandwidth Limit: From this menu, select the maximum possible ﬂow of data streaming onto the network (5000 is

recommended).

5. Make changes to the network settings as desired:

a. In the Network Settings section, click the Advanced Network Settings button. The Network Settings screen opens.

b. The factory default IP address for the QGE 100 is 172.28.231.98. To change this, enter a new address in the

IP Address ﬁeld on the Network Settings screen.

c. Enter subnet mask, gateway, DNS server, and WINS server addresses as appropriate. You can also enter a name for

the QGE and select the network speed from the drop-down menu.

d. When ﬁnished entering network settings, click OK to close the Network Settings screen and enable your changes.

Product Category

6. In the Network Settings section of the main window, enter the following multicast settings:

zTTL (Time to Live): Enter the number of jumps a multicast message can make through a router to other subnets

before being canceled (5is recommended).

zRefresh Factor:Enter the frequency (number of frames) after which the QGE will automatically update the screen

(a setting of 1, specifying the most frequent updates, is recommended).

zIf the QGE 100 will be operating in multicast mode (connected to multiple viewing devices or to a Quantum Elite

processor), select the Enable Multicast check box and enter the multicast group IP address and port number in the

appropriate ﬁelds (see “Conﬁguring for Use with a Quantum Elite Processor [UDP Multicast Mode],” below).

NOTE: The multicast group address must be within the range of 225.0.0.0 through 239.255.255.255.

Ensure that the address you choose is unique to your QGE and is not being used anywhere else on the

network.

7. When ﬁnished, click the Apply button in the lower-right corner of the main window to save and implement your

settings. The ﬁelds in the QGE 100 Properties section are updated with the new settings.

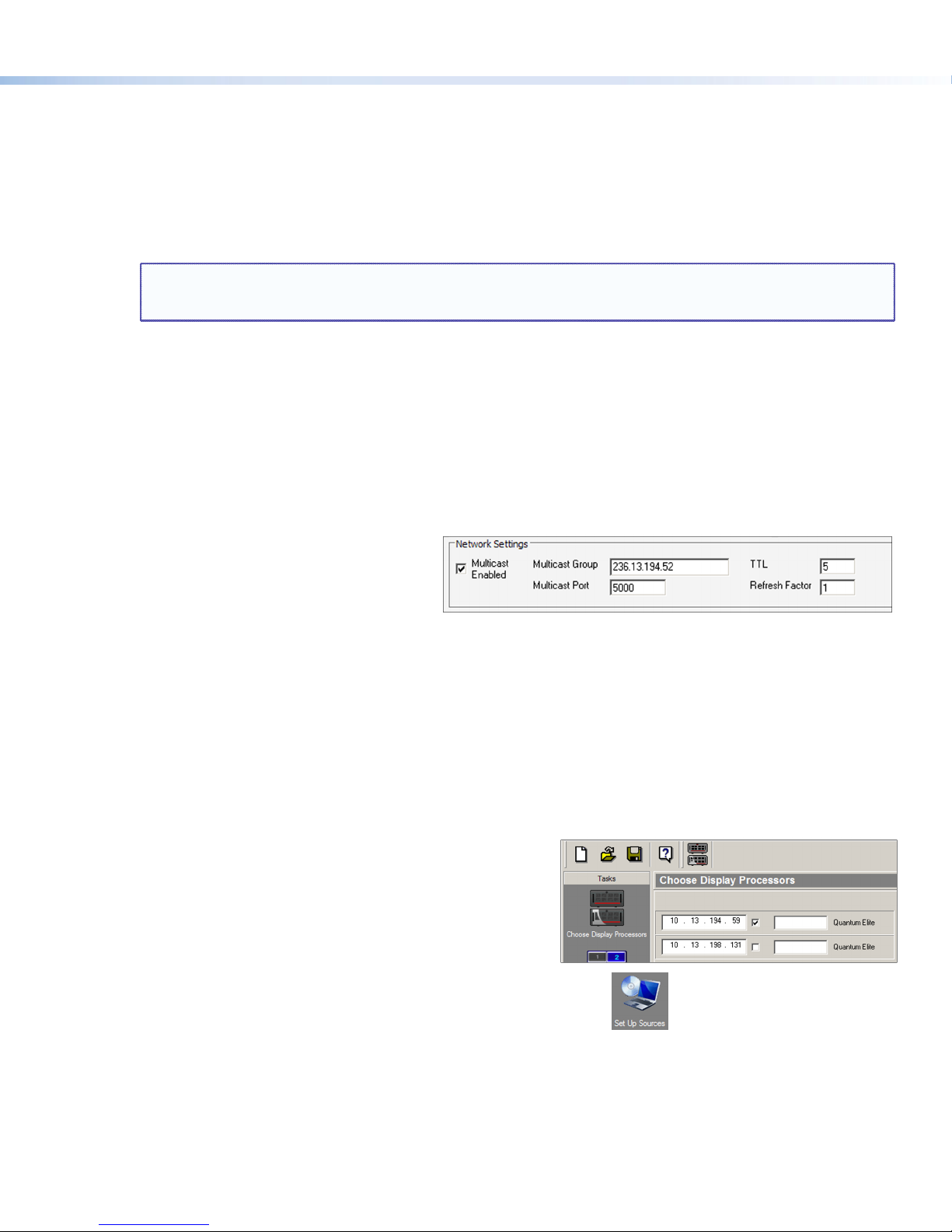

Conﬁguring the QGE for Use with a Quantum Elite Processor (UDP Multicast Mode)

To use a Quantum Elite Videowall Processor as a viewing device or to connect the QGE 100 source to multiple viewing

devices, the QGE must be in multicast mode. To conﬁgure multicast connection parameters:

1. Make sure that you are logged in as administrator.

2. On the QGE 100 List, select the QGE that will be used with the Quantum.

3. In the Network Settings section, make any desired changes in the multicast settings fields:

zMulticast Group:Enter an IP address to

which all viewing devices will connect in

order to view the QGE 100 source.

zMulticast Port: Enter the port number for

the multicast connection (normally 5000).

zTTL:Enter a Time To Live value for multicast messages (number of jumps a multicast message can make through a

router to other subnets before being canceled). The range for this ﬁeld is 1through 255; 5is recommended.

zRefresh Factor:Enter the number of frames that will be processed between the automatic screen updates. A value

of 1(recommended) speciﬁes the most frequent updates.

4. Select the Multicast Enabled check box.

5. Click Apply to implement your multicast settings.

6. Use the Quantum Elite Control Software to set up a source deﬁnition for your QGE 100 on your Quantum Elite

Videowall Processor:

a. With both the Quantum Elite processor and the QGE 100 powered on and connected to the network, open the

Quantum Elite software.

b. Select a Quantum on the network to use with the QGE:

1. On the left taskbar, click the Choose Display Processors

button to display the display processors screen.

2. On the toolbar at the top of the Quantum main window,

click the Probe the Network for Quantum Frames button.

The IP addresses of all Quantum Elite Processors on the

network are displayed.

3. Select the check box next to the processor that you want to use.

c. Click the Set Up Sources button on the taskbar (shown at right).

d. In the source explorer tree in the left pane of the Set Up Sources workspace, right-click Display Processors and

select Detect Sources from the drop-down menu. The Detect Quantum Sources window opens.

e. Click the Full Detect button, then click Yes on the conﬁrmation prompt that opens. A list of source types

(including QGE 100) is added to the source explorer tree (depending on the available sources on the network, this

may take a few seconds to display completely).

f. If necessary, click the +button in front of QGE 100 to expand the source type category. The name of your QGE 100 is

listed below the source type.

68-2178-50

Rev. A 01 12

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.863.1794

+1.714.491.1517 FAX +1.919.863.1797 FAX

Extron Europe

+800.3987.6673

(Inside Europe Only)

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.7339.8766

(Inside Asia Only)

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+4000.398766

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

Inside India Only

+91-80-3055.3777

+91 80 3055 3737 FAX

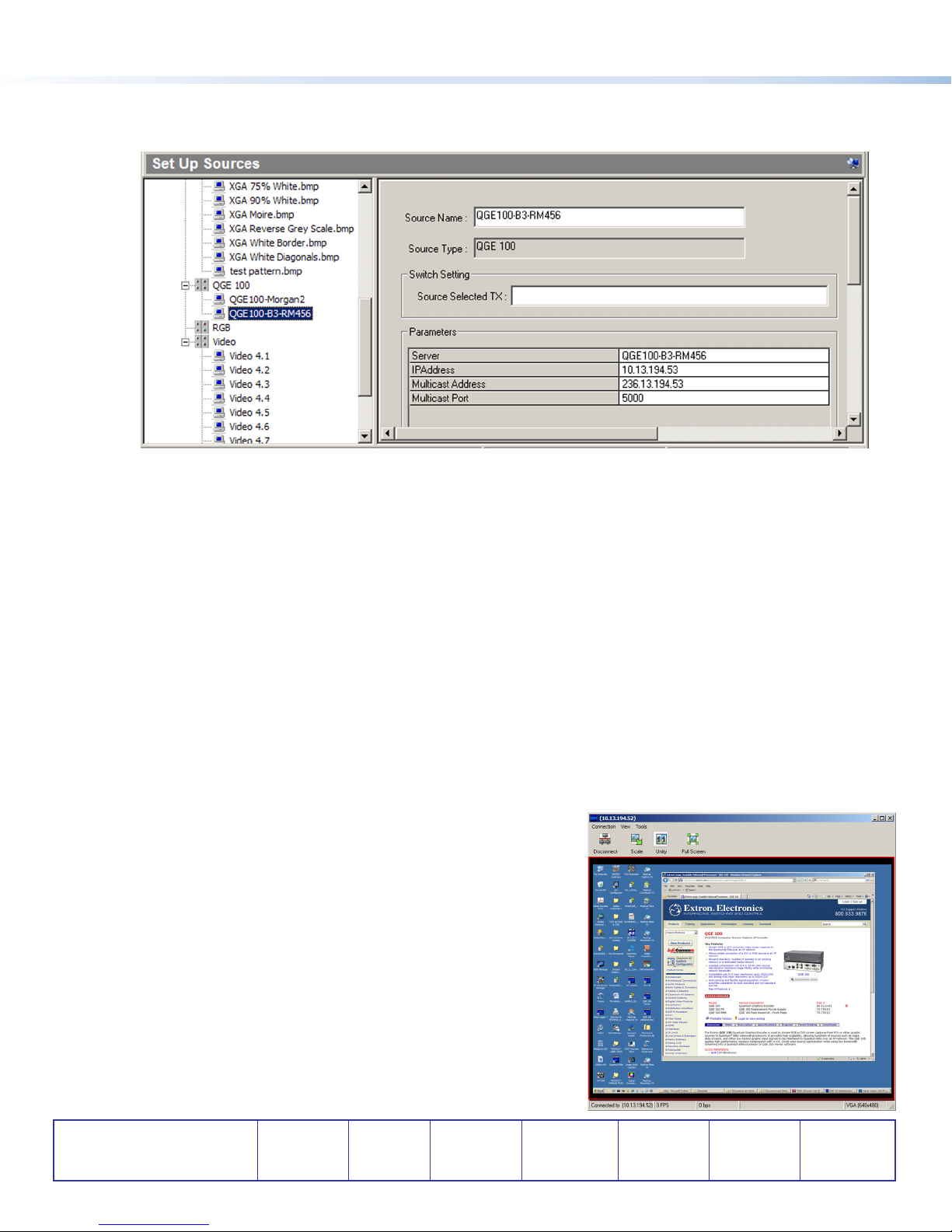

g. If you want to make changes to the QGE properties, click on the name of your QGE in this list to display its

information in the right pane. Enter any changes, then click Apply. (The Source Selected TX ﬁeld should remain

blank.)

For detailed information on setting up sources, see the Quantum Control Software User Guide, available on the Extron

website at www.extron.com.

Using the QGE 100 Viewer Software

To display a QGE 100 source on your viewing computer:

1. With the QGE powered on, open the Viewer program by clicking Start > All Programs > Extron Electronics >

QGE 100 > QGE 100 Viewer > QGE 100 Viewer on your viewing computer desktop. All QGEs on the network are detected

and displayed in the right pane.

2. In the right pane, double-click on the QGE name that you want to view. The source is displayed in the left pane.

3. Do any of the following as desired:

zClick the Unity button to display the source at its native resolution.

zUse the scroll bars to select the part of the source frame you want to view.

zClick Full Screen to maximize the display area. To exit full screen mode, press <ESC> or <Alt> + <Enter>.

zTo refresh the QGE list at any time, click the Refresh button.

Setting Up Remote Keyboard and Mouse Control (Unicast Mode Only)

To set up remote keyboard and mouse control via the QGE, ensure the QGE

is connected between the source computer and its keyboard and mouse

(see the QGE 100 User Guide for details) and that the QGE is in unicast

mode.

1. From the Tools menu of either the QGE Administrator viewer or the

QGE 100 Viewer, select Mouse &Keyboard. A check mark appears in

front of the option on the menu.

2. If desired, select Mouse &Keyboard Options from the Tools menu to

change the default hot keys or timeout settings.

3. Click within the source window. A red border appears around the

source window to indicate a control session in active.

4. To access a menu of special key functions, such as the Windows key,

press <Ctrl> + <F2>.

5. To end the control session, press <Ctrl> + <F1> or wait for the session

to time out.

Andere Handbücher für QGE 100

Inhaltsverzeichnis

Andere Extron electronics Medienkonverter Handbücher

Extron electronics

Extron electronics DVS 204 Bedienungsanleitung

Extron electronics

Extron electronics DSC 3G-3G A Bedienungsanleitung

Extron electronics

Extron electronics DSC 301 HD Bedienungsanleitung

Extron electronics

Extron electronics NAV SD 511 Bedienungsanleitung

Extron electronics

Extron electronics DVS 204 Bedienungsanleitung

Extron electronics

Extron electronics NAV SD 501 Bedienungsanleitung

Extron electronics

Extron electronics Quantum Elite Series Bedienungsanleitung

Extron electronics

Extron electronics BUC 202 Bedienungsanleitung

Extron electronics

Extron electronics Annotator Bedienungsanleitung

Extron electronics

Extron electronics II Bedienungsanleitung

Extron electronics

Extron electronics DSC 301 HD Bedienungsanleitung

Extron electronics

Extron electronics SMD 101 Bedienungsanleitung

Extron electronics

Extron electronics HAE 100 4K Plus Bedienungsanleitung

Extron electronics

Extron electronics Quantum Ultra Expansion System Bedienungsanleitung

Extron electronics

Extron electronics Digital Video Scalers DVS 204 Series Bedienungsanleitung

Extron electronics

Extron electronics Converter CVC 200 Bedienungsanleitung

Extron electronics

Extron electronics TSC 100 Bedienungsanleitung

Extron electronics

Extron electronics Video and Sync Converter/Stabilizer SC 210 Bedienungsanleitung

Extron electronics

Extron electronics CVC 300 Bedienungsanleitung

Extron electronics

Extron electronics FOX 3G DVC Bedienungsanleitung

Extron electronics

Extron electronics VSC 900 Bedienungsanleitung

Extron electronics

Extron electronics SDI to Analog Video Converter SDI-AVR 100 Bedienungsanleitung

Extron electronics

Extron electronics Four Input Video and RGB Scaler DVS 304 Bedienungsanleitung

Extron electronics

Extron electronics SME 100 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
