IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications before connecting the

product to the power source.

FOX3SR201 • Setup Guide

This guide provides quick start instructions for an experienced installer to set up and operate the Extron FOX3SR201 Fiber Optic

scaling receivers. This scaling receiver scales resolutions up to 4K @ 60 Hz, 4:4:4 video, and extends with 2-CH audio, RS-232,

and IR over ber. The FOX3SR201 is available in either singlemode (SM) or multimode (MM) transmission mode.

WARNING: The FOX3SR201 outputs continuous invisible light (Class 1 rated), which may be harmful to the eyes; use

with caution. Plug the attached dust caps into the optical transceivers when the fiber cable is unplugged.

CLASS 1 LASER PRODUCT, see the FOX3SR201 User Guide, at www.extron.com.

AVERTISSEMENT : Le FOX3SR201 émet une lumière invisible en continu (conforme à la classe1) qui peut être

dangereux pour les yeux, à utiliser avec précaution. Associez les bouchons anti-poussière à l’ensemble émetteur/récepteur

optique lorsque le câble fibre optique est débranché.

Produit laser de classe1, voir le FOX3SR201 User Guide sur www.extron.com (en anglais).

Installation

RS-232

REMOTE

POWER

12V

2.0 AMAX

Tx Rx G

OUTIN

LAN

RS-232

Tx Rx Tx RxG

HDMI

FOX3 SR 201

AUDIO

CONTROL

OUTPUTS

III

GGGFFFCCCAAADDDH

BBB

Figure 1. FOX3SR201 Rear Panel

APower Inlet FRemote RS-232

BPower LED GLAN Ethernet port

CAudio output HSFP module and LEDs

DHDMI output IReset button

EControl RS-232/IR port

Step 1 — Mounting

Turn off or disconnect all equipment power sources and mount the scaling receiver as required. For mounting details and

considerations, see the FOX3SR201 User Guide at www.extron.com.

Step 2 — Output Connections

a. Connect an HDMI display to the HDMI output (see figure1 ,D).

b. Connect an audio output device to the Audio 5-pole captive screw port (C) (see figure2 to wire the captive screw

connector).

Unbalanced Stereo Output Balanced Stereo Output

Unbalanced Stereo Input Balanced Stereo Input

Do not tin the wires!

Tip

No Ground Here

Tip

Sleeves

Tip

Ring

Tip

Ring

Sleeves

Tip

Ring

Tip

Ring

Sleeves

Tip

Sleeve

Tip

Figure 2. Audio Wiring Diagrams

ATTENTION:

• For unbalanced audio, connect the sleeves to the ground contact. DO NOT connect the sleeves to the negative (–)

contacts.

• Pour l’audio asymétrique, connectez les manchons au contact au sol. Ne PAS connecter les manchons aux

contacts négatifs (–).

Step 3 — Control Connections

a. To pass serial, IR data, or control signals, such as for serial control of a projector,

connect the master device to the transmitter and the controlled device to the

receiver via the CONTROL 5-pole captive screw connector (see Eand figure3 for

wiring).

NOTE: For returned RS-232 and IR responses (from the scaling receiver to the

transmitter) install the receiver-Tx-to-transmitter-Rx fiber cable in step 4b.

TxRx

RxTx

Gnd

IR Device

RS-232 Device

RxTx RxTxG

RS-232 IR

CONTROL

Figure 3. RS-232 and IR Wiring

FOX3SR201 • Setup Guide (Continued)

b. For remote control of a unit and loading firmware (LAN or USB only), connect a host device, such as a computer or control

system, to one of the following ports (see the FOX3SR201 User Guide, available at www.extron.com, for details):

• Remote RS-232 port — Connect the 3-pole captive screw connector to this port (F). The protocol for the Remote port

is as follows:

• 9600 baud • no parity • 8 data bits

• 1 stop bit • no flow control

• LAN Ethernet port — Connect an RJ-45 connector to this port (G).

• USB Configuration port — Connect a USB mini-B connector to this port (see figure5, Bon page2).

Step 4 — Throughput Connections

NOTE: See figure4 for fiber cable connections. Connect the transmitter to a receiver in one of

three ways:

• One way (transmitter to receiver) only, perform step 4a.

• Two way (transmitter to receiver and return), perform steps 4a and 4b.

• Output B is available to transmit 4K @ 60 Hz uncompressed signal when the FOX3

Uncompressed Video LinkLicense is purchased.

a. Connect the fiber between the A Out port on the transmitter and the A In port on the receiver (1).

NOTE: Ensure that the transmitter and connected receiver are in the same transmission

mode, singlemode (SM) or multimode (MM) and use the correct SM or MM fiber cable to

connect the devices.

b. To return serial data from the receiver (such as responses from a controlled device) or IR data

to the transmitter, connect a cable between the A Out port on the receiver and AIn port on the

transmitter (2).

c. To transmit an uncompressed 4K @ 60 Hz signal, using the Uncompressed Video LinkLicense,

repeat step 4a on the SFP B port on the scaling receiver

SFP Link LEDs —

Receiver

ransmitter

OUTIN

OUTPUTS

OUTIN

INPUTS

OUTIN

Figure 4.

Fiber Cable Connection

• Transmit Optical OUT LED — Lights solid green when powered and lights off when there is no power on the endpoint.

• Receive Optical IN LED — Lights solid green when light is present and lights off when there is no power or light present.

Step 5 — Power Connection

Connect the included external 12 VDC power supply into the 2-pole connector (see ﬁgure1, Aon page1). The power LED

lights (B) when the unit is receiving power.

Operation

After the receiver, transmitter, and their connected devices are powered up, the system is fully operational. If any problems are

encountered, verify that the cables are routed and connected properly and the display device has a compatible resolution and

refresh rate. If problems persist, call the Extron S3 Sales & Technical Support Hotline (see the contact number on page6).

FOX3 SR 201

CONFIG

INPUT

SIGNAL

HDCP

ENTER

Figure 5. FOX3SR201 Front Panel

APower LED — Indicates power is applied to the unit.

BUSB Config port — Connect a USB Mini-B cable to a computer to configure the device and update the firmware via Product

Configuration Software (PCS), Simple Instruction Set (SIS) commands, or internal web pages.

CInput LEDs —

• Signal LED — Lights when the unit detects an input video signal.

• HDCP LED — Lights when the input signal is HDCP encrypted.

step 4b

DMenu and Enter buttons — Press these buttons to access and navigate the on-screen display menu system.

ENavigation buttons — Press these buttons to navigate through the on-screen display menu system or change settings.

Reset

Press the rear panel recessed reset button (see ﬁgure1, Ion page1) if the FOX3 scaling receiver rmware is corrupted

or the unit gets disconnected during the update process. The different resets allow the device to revert to the factory loaded

rmware, reset IP seetings, or reset conguration to default (see the Reset Modes table, for details on the reset modes).

Reset Modes

Mode Activation Result Purpose and Notes

Use Factory

Firmware

1Hold in the recessed rear panel

Reset button while applying power

to the unit.

The unit reverts to the factory default

firmware for a single power cycle.

Use to revert to the factory default

firmware for a single power cycle if

incompatibility issues arise with user-

loaded firmware. All user files and settings

are maintained.

NOTE: Do not operate with the default firmware loaded by a mode 1 reset. Use it only to load the most current

firmware to the device.

Reset IP Setting

*4 Hold in the Reset button about

6seconds until the Power LED

blinks twice. Then, release

and press the Reset button

momentarily (<1 second) again

within 1 second.

Sets the following back to factory default:

• Port mapping

• IP address: 192.168.254.254

• Subnet mask address:

255.255.255.0

• Gateway address: 0.0.0.0

Turns DHCP off.

Power LED blinks 4 times during reset.

Use to reset all IP settings back to the

factory defaults.

Equivalent to SIS command 1ZQQQ.

Reset to Factory

Default

*5 Hold in the Reset button until

the Power LED blinks three times

(once at 3 seconds, again at

6seconds, again at 9 seconds).

Then, release and press the Reset

button again within 1second*.

A complete reset to factory defaults

(except the firmware).

• Does everything mode 4 does.

• Clears port configurations.

• Resets all IP options.

• Clears all user settings.

• Clears all files from the unit.

• Power LED blinks four times.

Use to start over with default configuration

and uploading, and also to replace events.

Equivalent to SIS command ZQQQ.

NOTES:

• *For modes 4 and 5, nothing happens if the momentary press does not occur within 1 second.

• The factory configured passwords for all accounts on this device have been set to the device serial number. In the

event of a complete system reset, the passwords convert to the default, which is extron.

Front Panel Lockout Mode (Executive Mode)

The front panel lockout mode limits operation of the device from the front panel. When enabled, use SIS commands or the

Product Conguration Software (PCS) to congure the device. To enable or disable the front panel lockout mode through the front

panel, press and hold the Menu (see ﬁgure5, Don page2) and down arrow (E) buttons simultaneously for 5 seconds or

until the power LED blinks.

FOX3SR201 • Setup Guide (Continued)

Conﬁguration and Control

To congure the FOX3 SR, use the front panel controls and the on-screen display (OSD) menu, Simple instruction Set (SIS)

commands, or PCS.

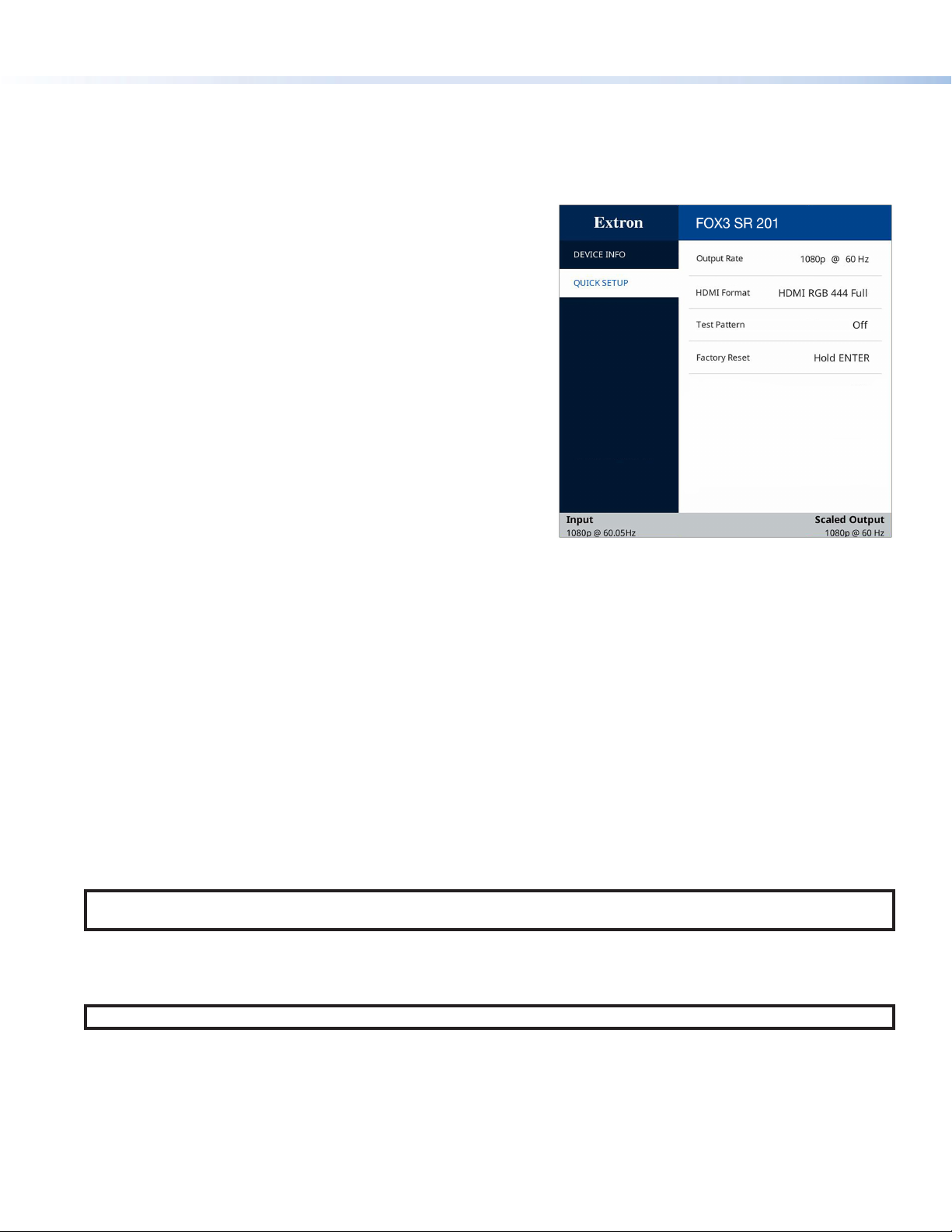

On-screen display menu system

The OSD menu consists of two submenus, Device Info and Setup, that

can be accessed using the front panel Menu button. View the menu on

a display connected to the HDMI output connector (see ﬁgure1, Don

page2). The Device Info submenu is view only. The following elds

can be congured from the Setup submenu:

• Output Rate — Select from a list of refresh rates (see Output

Resolution table on page5). The default setting is 1080p @

60Hz.

• HDMI Format — Select the output format:

• Auto (default)

• DVI RGB 444

• HDMI RGB 444 Full

• HDMI RGB 444 Limited

• HDMI YUV 444 Full

• HDMI YUV 444 Limited

• HDMI YUV 422 Full

• HDMI YUV 422 Limited

• Test Pattern — Select an available test pattern to display or turn a test pattern off. The available test pattern selections are

Crop, Alternating Pixels, Crosshatch, and Color Bars. The default setting is Off.

• Factory Reset — Reset the unit to its factory default values (removing any user-specified values) while retaining all TCP/IP

settings.

To adjust settings:

1. Press the Menu button to access the main menu.

2. Press the directional arrows to navigate to a desired submenu.

3. Press the Enter button to access submenu items of a selected submenu.

4. Press the directional arrows to navigate a desired submenu item.

5. Press the Enter button to select a submenu item for adjustment.

6. As required, press the directional arrows or press the Enter button to adjust submenu items.

7. Press the Menu button to return to the list of submenus or exit the OSD menu.

Product Configuration Software

The FOX3 scaling receiver can be congured via the Product Conguration Software when it is installed on a connected host

device, such as a PC, through the front panel USB port or LAN port (see the FOX3 SR 201 User Guide for more details).

NOTE: An Extron Insider account is required to download and use PCS. Contact an Extron support representative, to obtain

an Insider Account.

Internal Web Pages

To congure the FOX3 SR 201 using the factory-installed internal web pages in a web browser, connect the LAN port on the

receiver to a LAN or WAN. The default IP address is 192.168.254.254.

NOTE: Compatible web browsers are Microsoft®Edge®, Modzilla®Firefox®, Google Chrome™, and Apple®Safari®.

Basic Scaler SIS Commands

Use Simple Instruction Set (SIS) commands for operation and conguration of the scaling receiver using a PC connected to:

• A LAN or WAN using the rear panel RJ-45 LAN port (see figure1, Gon page1) via an SSH client and port 22023.

• The Remote RS-232 port (see figure1, F) via DataViewer.

• The front panel USB config port (see figure5, Bon page2) via an SSH client using IP address 203.0.113.22 and port

22023.

NOTE: The following table is a partial list of SIS commands and output resolutions. For a complete listing of SIS

commands,output resolutions, and instructions to install an SSH client, see the FOX3 SR 201 User Guide.

Command and Response Table for SIS Commands

Command Name SIS Command SIS Response Additional Description

Output scaler rate

Set output rate EX2$RATE}RateX2$] Set output rate to X2$.

View current output rate ERATE}

Verbose mode 2/3

X2$]

RateX2$]

KEY: X2$ = Scaler resolution 3-digit response with 0padding (see the Output Resolution table)

Output aspect ratio

Set output aspect ratio EX2%ASPR}Aspr X2%] Set output rate to X2%.

View current output aspect ratio EASPR}

Verbose mode 2/3

X2%]

AsprX2%]

KEY: X2% = Aspect Ratio 1= Fill (default) 2= Follow

Freeze

Set freeze X3)F Frz X3)] Enable freeze setting.

View current freeze setting F

Verbose mode 2/3

X3)]

FrzX3)]

KEY: X3) = Enable or disable 0= Disable (default) 1= Enable

Executive mode (front panel lockout)

Set executive mode X3)X Exe X3)] Enable executive mode setting.

View current executive mode

setting

Verbose mode 2/3

X3)]

ExeX3)]

KEY: X3) = Enable or disable 0= Disable (default) 1= Enable

Global unsolicited response

Output scaler rate RateX2$] When output rate is changed.

Output aspect ratio AsprX2%] When aspect ratio is changed.

Freeze FrzX3)] When freeze setting is changed.

KEY: X2$ = Scaler resolution 3-digit response with 0padding (see the Output Resolution table)

X2% = Aspect Ratio 1= Fill (default) 2= Follow

X3) = Enable or disable 0= Disable (default) 1= Enable (front panel is locked)

SIS Variable ( X2$ ) for Selected Output Resolution and Refresh Rate Combinations

Resolution 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz

1024x768 12

1280x800 14

1280x1024 15

1680x1050 21

1920x1200 23

720p 29 30 31 32 33 34

1080p 38 39 40 41 42 43 44 45*

2048x1080 46 47 48 49 50 51 52 53

3840x2160 59 60 61 62 63 64 65 66

Custom output rate 201 Captured or uploaded EDID

*Default output resolution

Output Resolution table

68-2888-50 Rev. A

04 21

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

RS-232

REMOTE

POWER

12V

0.7 A MAX

Tx Rx G

OUT IN

LAN

RS-232

Tx Rx Tx RxG

HDMI

FOX3 SR 201

AUDIO

CONTROL

OUTPUTS

CONTROL

RS-232

REMOTE

POWER

12V

--A MAX

Tx Rx G

OUT IN

RS-232

Tx Rx Tx RxG

HDMI

FOX3 T 201

AUDIO

CONTROL

INTPUTS

LOOP OUT

LAN

STANDBY

CLASS2 WIRING

XPA1002

LEVEL

1212

LIMITER/

PROTECT

SIGNAL

INPUTS OUTPUT

REMOTE

VOL/MUTE

10V50mA

100-240V 1.3A,50-60Hz

Ethernet

HDMI

Loop out

HDMI

Output

HDMI Input

Extron

SI 28

Surface-mount

Speakers

Extron

XPA 1002

Power Amplier

4K Display

Blu-ray Player

Local

Monitor

Up to 20 km (12.43 miles)

Singlemode Fiber

SM Model

Audio

Output

RS-232

Extron

FOX3 T 201

Fiber Optic Transmitter

Extron

FOX3 SR 201

Fiber Optic Receiver

LAN

MODEL80

contact number

Andere Handbücher für FOX3 T 201

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Extron electronics Empfänger Handbücher

Extron electronics

Extron electronics PowerCage FOX SR HDMI Bedienungsanleitung

Extron electronics

Extron electronics HFX 100 Tx Bedienungsanleitung

Extron electronics

Extron electronics MTP 1500RL 15HD A SEQ Bedienungsanleitung

Extron electronics

Extron electronics MTP R 15HD RSA D Bedienungsanleitung

Extron electronics

Extron electronics Dual Link DVI Transmitter and Receiver DVI DL 201... Bedienungsanleitung

Extron electronics

Extron electronics MTP 1500RL 15HD A SEQ Bedienungsanleitung

Extron electronics

Extron electronics Fiber Optic Transmitter-Receiver Pair FOX 500 DVI... Bedienungsanleitung

Extron electronics

Extron electronics MTP C7 RL 15HD A SEQ Bedienungsanleitung

Extron electronics

Extron electronics XTP T HD 4K Bedienungsanleitung

Extron electronics

Extron electronics MTP 1500RL 15HD A SEQ Bedienungsanleitung

Extron electronics

Extron electronics HDMI 201 Rx Bedienungsanleitung

Extron electronics

Extron electronics MTP 15HD A Series Bedienungsanleitung

Extron electronics

Extron electronics MTP U R RSA SEQ Bedienungsanleitung

Extron electronics

Extron electronics DTP2 R 212 Series Bedienungsanleitung

Extron electronics

Extron electronics FOX II T DP 4K Bedienungsanleitung

Extron electronics

Extron electronics MTP/HDMI U R Bedienungsanleitung

Extron electronics

Extron electronics Twisted Pair Receiver VTR001 Bedienungsanleitung

Extron electronics

Extron electronics MTP 15HD A Series Bedienungsanleitung

Extron electronics

Extron electronics Digital Video Transmitter and Receiver HDMI 201... Bedienungsanleitung

Extron electronics

Extron electronics TP R BNC A Bedienungsanleitung

Extron electronics

Extron electronics MTP T SV A Bedienungsanleitung

Extron electronics

Extron electronics MTP 15HD A Series Bedienungsanleitung

Extron electronics

Extron electronics FOX 500 Tx Bedienungsanleitung

Extron electronics

Extron electronics XTP R HWP 201 4K Bedienungsanleitung

Beliebte Empfänger Handbücher anderer Marken

Garmin

Garmin GA 23 Bedienungsanleitung

Aiphone

Aiphone PS-12F Bedienungsanleitung

IMES

IMES TCS-01CA-PMI Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE SR Handbuch

AMIMON

AMIMON AMN12310 WHDI Bedienungsanleitung

Dual

Dual DMCPA79BT Betriebsanleitung

Sound Associates

Sound Associates SA652P Bedienungsanleitung

Sherwood

Sherwood NewCastle R-772 Bedienungsanleitung

Audio

Audio A10-RX Series Bedienungsanleitung

AllSee

AllSee PushShare PSRV1.1 Bedienungsanleitung

DEMAG

DEMAG DRC-DR D2 Bedienungsanleitung

Teleco

Teleco TVRCL868A02 Bedienungsanleitung

Bosch

Bosch RF3222E Bedienungsanleitung

Kramer

Kramer 631R Bedienungsanleitung

Xpress

Xpress xmc10 Bedienungsanleitung

JVC

JVC KD-MR1BTS Bedienungsanleitung

Omega Engineering

Omega Engineering UWTC-REC3 Bedienungsanleitung

e-survey

e-survey E300 Pro Bedienungsanleitung
