Extron electronics RGB 109xi Bedienungsanleitung

Setup Guide — RGB 109xi

Step 1 — Disconnect power

Turn off all equipment and disconnect their power sources.

Step 2 — Conﬁgure sync settings

W Changes to internal jumpers must be performed by authorized service personnel only.

Take steps to prevent electrostatic discharge.

a. Open the interface and locate jumper blocks J20

and J40 (see the ﬁgure at right).

b. Set the sync polarity (jumper J20):

To force H and V output syncs to

negative, connect pins 1 and 2.

For output sync to follow input

sync, connect pins 2 and 3 (default

setting).

c. Set vertical sync pulse width (jumper J40).

For a narrow V output sync pulse,

connect pins 1 and 2.

For a wide V output sync pulse

(default setting), connect pins 2 and 3.

d. Replace the cover.

Step 3 — Mount the interface

The interface can be mounted on a desk, under a

desk, or through a desk. See the RGB 109xi and RGB 112xi User’s Guide for details.

Step 4 — Connect video and audio input

The video and audio connectors are on a 4 foot (122 cm) cable (a).

Connect the 15-pin HD male connector to the computer video

output and the 3.5 mm tip-ring-sleeve (TRS) audio connector to the

unbalanced computer audio output. Wire the audio connector as

shown in the ﬁgure at right.

Step 5 — Connect local monitor

If required, connect a local monitor to this 15-pin HD connector (b).

The Extron® RGB 109xi is a dedicated computer-video

interface with a 15-pin HD connector.

C These instructions provide a quick setup

guide for experienced installers. Installation

and service must be performed by authorized

personnel only.

Setup Guide — RGB 109xi (cont’d)

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500

+1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794

+1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+800.73 39.8766

Inside Asia Only

+65.63 83.4400

+65.63 83.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+400.8 83.1568

Inside China Only

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800

+971.4.2991880 FAX

68-410-50

Rev. A

02 10

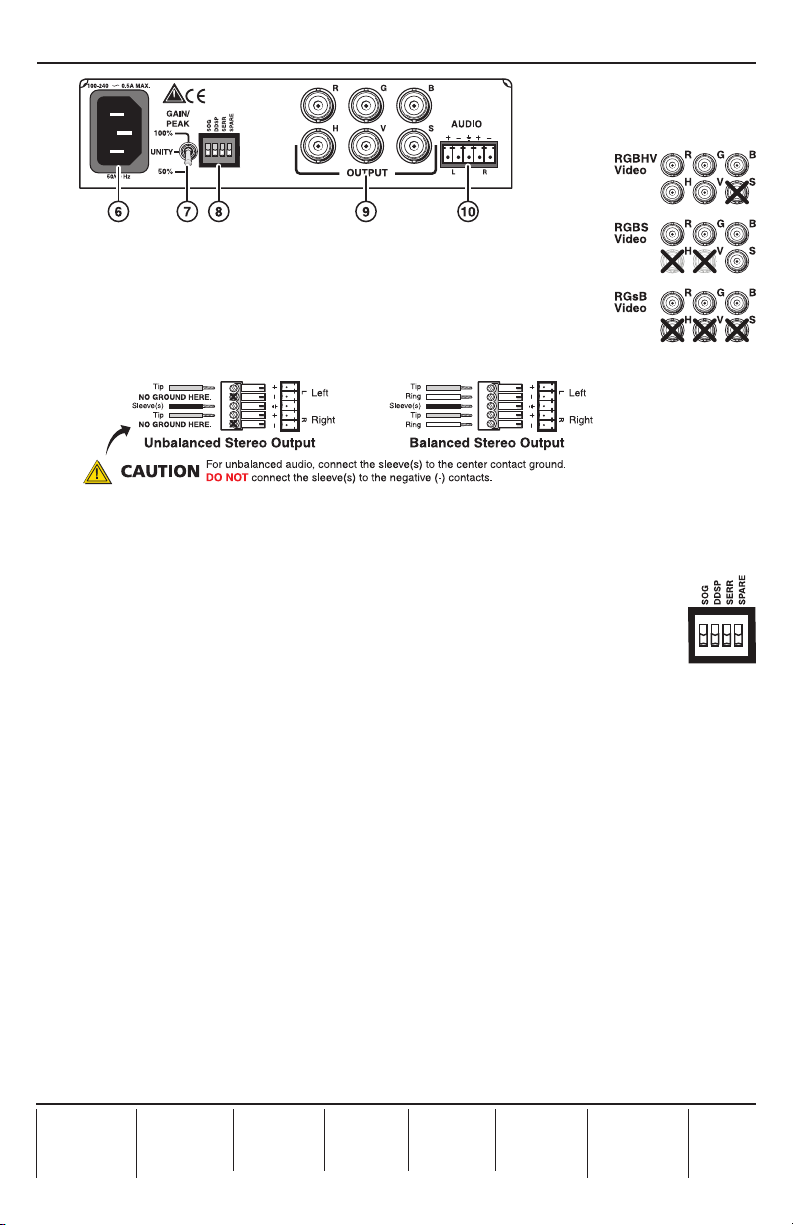

Step 6 — Connect video output

Connect a RGBHV, RGBS, or RGsB video display to the video output (i),

as shown in the ﬁgure at right.

Step 7 — Connect audio output

Connect an audio device to the ﬁve-pole, 3.5 mm captive screw connector

(j). Follow the wiring diagram below for unbalanced or balanced stereo output.

Step 8 — Connect power

Connect a standard IEC AC power connector (100-240 VAC, 50-60 Hz) to this socket (f).

Power on input and output devices.

Step 9 — Set rear panel DIP switches

The ﬁrst three rear panel DIP switches (h) control:

Sync on Green (SOG) — Set to on (up) for RGsB output; set to off for RGBHV or

RGBS output.

Digital Display Sync Processing (DDSP™) — Set to off (down) for sync processing; set to on

(up) for no sync processing (may be needed for some LCD and DLP plasma displays) .

Serration Pulses — Set to on (up) to keep serration pulses; set to off (down) to remove them. If

there is ﬂagging or bending at the top of the video image, set this switch to off.

N Turning on the DDSP switch disables the horizontal shift.

Step 10 — Set rear panel Gain/Peak switch

This rear panel switch (g) can be set to Unity (no gain and no peaking), gain with 50%

peaking, gain with 100% peaking. For cable runs of 125 feet or less, use the Unity setting.

Step 11 — Set front panel DIP switches

These front panel ID bit termination DIP switches (c) must both be set to on (up) if using a

laptop and no local monitor. Both switches must be set to off (down) if using a local monitor.

Step 12 — Adjust horizontal shift

This front panel knob (d) adjusts the horizontal shift of the remote output display device(s).
