TLI Pro 201 • Setup Guide

Overview

The Extron TLI Pro 201 is a TouchLink®Interface scaler that integrates a third-party touchscreen display as a point of control

within an Extron Pro series control system. The scaled output supports resolutions up to 4K @ 30 Hz. The Extron TLI Pro 201 also

provides annotation features that allow users to draw, point, or type on video sources during presentations.

This guide provides instructions for experienced installers to mount and install the TLIPro 201 and to create a basic conguration.

For more complete instructions, see the TLI Pro 201 User Guide, at www.extron.com.

Setup Checklist

Get Ready

Download and install the latest version of the following software:

Toolbelt — Provides device discovery, device information, rmware updates, and conguration of network settings,

system utilities, and user management for TouchLink Pro devices.

GUI Designer — For designing layouts for third party touchpanel interfaces.

Global Configurator®Professional and Global Configurator Plus — For setting up and conguring the control

processor and interface.

Global Scripter®— Provides an integrated development environment for Extron control systems programming.

NOTE: All four software programs are available from www.extron.com.

Obtain the following network information from your network administrator:

DHCP status — (on or off). If DHCP is off, you must also obtain:

IP address Subnet mask Gateway

Usernames — These must be either admin or user.

Password — The factory congured passwords for all accounts on this device have been set to the device serial

number. Passwords can be changed during conguration. They are case sensitive.

NOTE: If the device is reset to default settings, the passwords are reset to the default password, which is extron

(for either admin or user).

Make a note of the MAC address for the TLI Pro 201.

Mount and Cable All Devices

Mount the units. Place the TLI Pro 201 on a convenient surface, mount it in a standard rack, or use an under-table mounting

kit (see the TLI Pro 201 User Guide, at www.extron.com). To mount the third-party touchscreen follow the instructions

provided by the manufacturer.

Connect cables to the TLI Pro 201 (see Rear Panel Connectors and Features on the next page).

Connect the required HDMI source to the HDMI input of the TLI Pro 201.

Connect the HDMI output from the TLI Pro 201 to the third-party touchpanel.

Connect the USB port from the TLI Pro 201 to the third-party touchpanel.

NOTE: The USB connection passes information to the TLI Pro 201 about where on the screen the touchpanel was

pressed. If you are using a non-touch display, connect a USB mouse to the USB port on the TLI Pro 201 to click

the screen icons.

Connect the Ethernet cable. The TLI Pro 201 must be powered by PoE+.

ATTENTION:

• Do not power on the TLI Pro 201 until you have read the Attention in the Rear Panel Features section of the

TLI Pro 201 User Guide.

• Ne branchez pas le TLI Pro 201 avant d’avoir lu la mise en garde dans la section «Rear Panel Features» du

TLI Pro 201 UserGuide.

www.extron.com

TLI Pro 201 • Setup Guide (Continued)

Set up the TLI Pro 201 for Network Communication

Connect the PC that you are using for setup on the same Ethernet subnetwork as the TLI Pro 201. You must also connect

a control processor to the same subnetwork.

Use the Setup Menu (see page 4) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask,

gateway, and related settings for the network interface. For information about accessing the the Setup menu see Menu

button on the following page.

Conﬁgure the User Interface

The GUI Designer Help File, Global Conﬁgurator Help File, Global Scripter Help File, and Toolbelt Help File provide step-by-step

instructions and detailed information. The Global Conﬁgurator Help File includes an introduction to the software and sections on

how to start a project and conguration.

Global Scripter provides an Extron-exclusive Python library (ControlScript®) and Global Scripter modules to get you started.

Rear Panel Connectors and Features

AAABBBC

CCD

DEVICE LAN/PoE+

OUTPUTINPUT

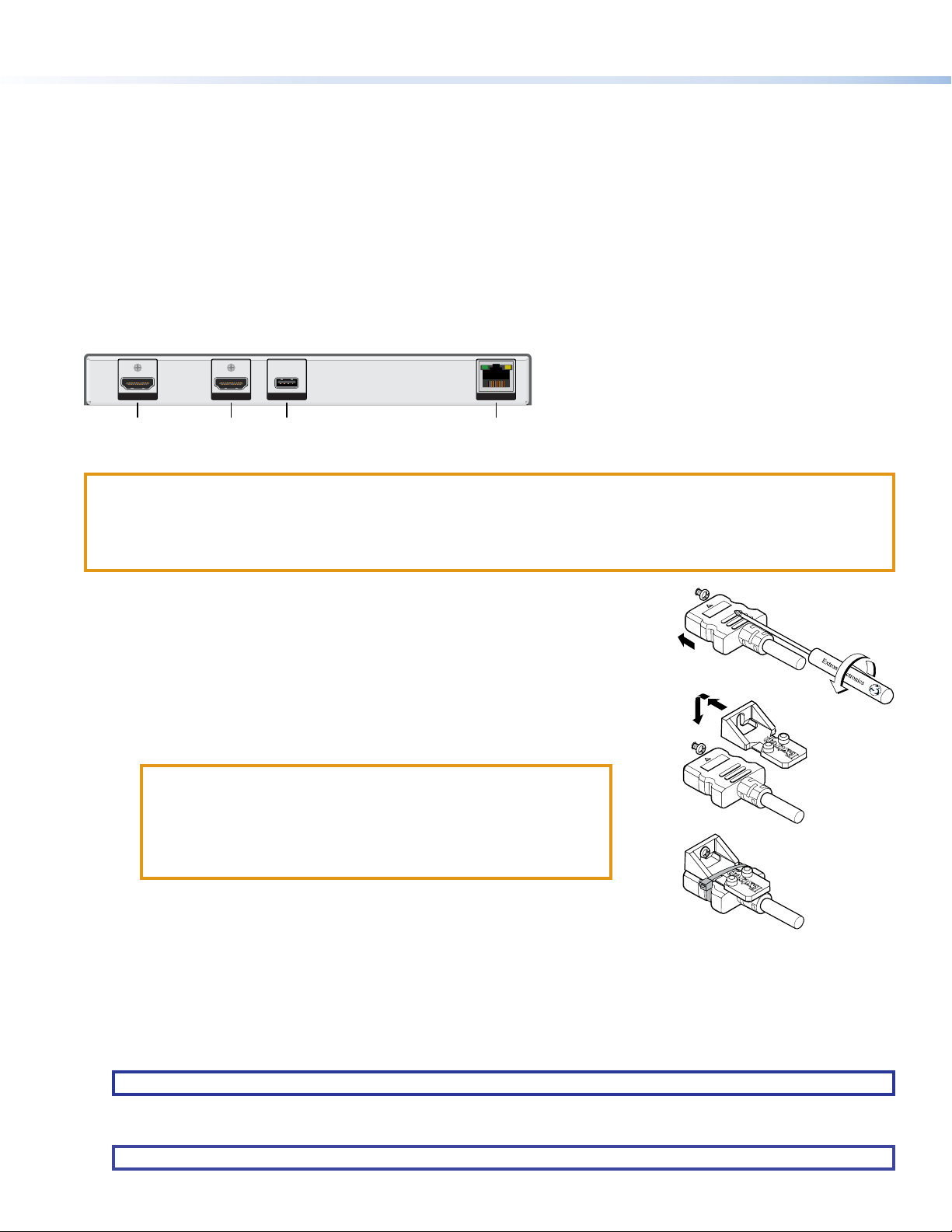

Figure 1. TLI Pro 201 Rear Panel

ATTENTION:

• The TLI Pro 201 is Power over Ethernet (PoE+ 803.3at, class4) compliant. Do not connect the power supply before

reading the Attention in the Rear Panel Features section of the TLI Pro 201 User Guide.

• Le TLI Pro 201 support l’alimentation via Ethernet (PoE+ 803.3at, classe4). Veuillez lire la partie « Attention » dans la

section « Rear Panel Features » du TLI Pro 201 User Guide, avant de mettre sous tension les écrans tactiles.

gure 1

AHDMI input — Use a HDMI cable to connect the input source device to this

female HDMI type A port. Secure the HDMI connector with the provided LockIt

HDMI lacing bracket by following these instructions:

1. Plug the source HDMI cable into this input port.

2. Loosen the HDMI connection mounting screw from the TLI Pro 201 rear

panel enough to allow the LockIt lacing bracket to be placed over it. The

screw does not have to be removed.

3. Place the LockIt lacing bracket on the screw and against the HDMI

connector, then tighten the screw to secure the bracket.

ATTENTION:

• Do not overtighten the HDMI connection mounting screw. The

shield it fastens to is very thin and can easily be stripped.

• Ne serrez pas trop la vis de montage du connecteur HDMI. Le

blindage auquel elle est attachée est très n et peut facilement

être dénudé.

4. Loosely place the included tie wrap around the HDMI connector and the

LockIt lacing bracket as shown.

5. While holding the connector securely against the lacing bracket, tighten the

tie wrap, then remove any excess length.

HDMI input

Figure 2. Securing the HDMI Connector

BHDMI output — Connect this female HDMI type A port to a third-party touchscreen. A full list of compatible resolutions is

provided in the TLI Pro 201 User Guide.

Use the provided LockIt brackets to secure the connector to the TLI Pro 201 unit (see HDMI input, above).

CDEVICE port — supports High-speed USB 2.0 control. Plug a Type-A USB cable from the third-party touchpanel into this

port.

NOTE: If using a non-touch display, connect a USB mouse to the USB port on the TLI Pro 201 to click screen icons.

DLAN and PoE+ port — Use an Ethernet cable to connect this port to the network via a PoE+ power sourcing equipment

(PSE, not provided). This can be a power injector (see ﬁgure 3, on the next page) or PoE+ switch.

NOTE: The TLI Pro 201 does not include any PoE+ power sourcing equipment. This must be purchased separately.

Product Category

Front Panel Features

CCDD

SIGNAL

INPUTOUTPUT

HDCP

TLI Pro 201

R MENU

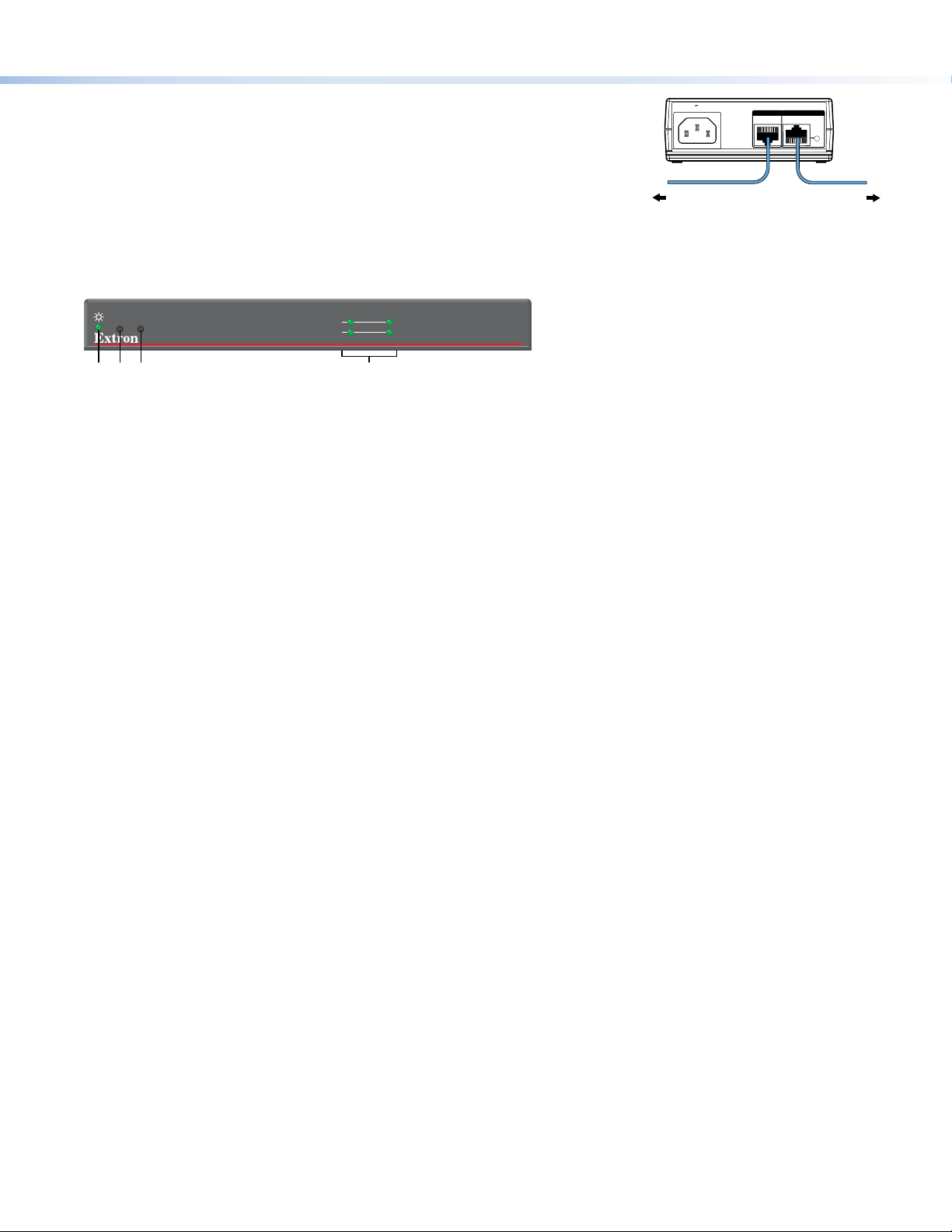

Figure 4. TLI Pro 201 Front Panel

APower LED — Indicates the power status and the reset status of the unit.

BReset button (recessed) — allows the unit to be reset in any of three different modes. It also allows the user to toggle

between enabling and disabling the DHCP client. A brief summary of the reset modes is given on the next page. For more

information see the TLI Pro 201 User Guide.

CMenu button (recessed) — opens the Setup Menu (see the next page) and Calibration screen for the TLI Pro 201:

Setup Menu

1. Press the button briey (less than 3 seconds) to open the internal menu screens.

2. Press the button briey for a second time to exit the setup menu.

Calibration Screen

1. Press and hold the button (3 seconds or more) to open the Calibration screen. Follow the on-screen instructions to

calibrate the touchpanel.

2. Complete the calibration process or press the button briey (less than 2 seconds) for a second time to exit the

Calibration screen.

DStatus LEDs —

• The Signal LEDs light green when a video signal is detected and are unlit when no signal is detected.

• The HDCP LEDs light green when HDCP content is detected and are unlit when HDCP content is not detected.

Menu button

100-240V 50/60 Hz

1.1A MAX INPUT

LAN POWERED TLP

OUTPUT

To network switch To interface

Figure 3. PI 140 Power Injector

gure 3 Connecting the PoE+ Power Injector

Extron recommends the Extron PI 140 power injector (see gure 3). Your power

injector may look different.

1. Use an Ethernet cable to connect the LAN/PoE+ port of the TLI Pro 201 to the

power output of the 803.3at, class4 compliant PoE+ power injector.

2. Connect the network input of the power injector to a network switch or router.

gure 4

468-3514-50 Rev. B

04 20

TLI Pro 201 • Setup Guide (Continued)

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

Reset Modes: A Brief Summary

The TLI Pro 201 offers the following reset modes:

• Use Factory Firmware: Press and hold the Reset button (see ﬁgure 4, B, on page 3) while applying power to

the unit. Use this mode to replace rmware in the event of rmware failure.

• Reset All IP Settings: Press and hold the Reset button for 6 seconds. After the Power LED (A) ashes twice,

release and momentarily press the Reset button. Use this mode to reset all network

settings without affecting user-loaded les.

• Reset to Factory Defaults: Press and hold the Reset button for 9 seconds. After the Power LED ashes three times,

release and momentarily press the Reset button. Use this mode to return the device to

factory default settings.

NOTES:

• The factory congured passwords for all accounts on this device have been set

to the device serial number. Passwords can be changed with Toolbelt (see the

Toolbelt Help File). They are case sensitive.

• If the device is reset to default settings, the passwords are reset to the default

password, which is extron (for either admin or user).

• Enable or Disable the DHCP

Client:

This mode toggles between DHCP enabled and DHCP disabled. Press the Reset button

ve times, consecutively. After the fth press, do not press the button again within 3

seconds. If DHCP was enabled, it is now disabled and the Power LED blinks three times. If

DHCP was disabled, it is now enabled and the Power LED blinks six times.

Setup Menu

Press the Menu button (see ﬁgure 4, C, on the previous page) to open

the setup menu (see gure 5). There are six available screens that are

selected by pressing the appropriate button in the navigation bar at the

top of the screen.

• The Status screen is read-only and provides a summary of the

other screens.

• The Network screen is used to edit the network settings (DHCP

setting, IP, subnet mask, gateway, and DNS Primary addresses).

• The Output screen is used to congure the image shown by the

third-party display, using built-in test patterns and EDID.

• The Audio screen is used to set audio levels.

• The Input screen is used to congure the input video signal.

• The Advanced screen provides information about the system and

the GUI project. It also allows you to add or reset a PIN and to

adjust the mouse pointer settings.

Info

Model: TLI Pro 201

Part Number: 60-1669-01

Firmware

Version: 1.00

Network

IP Address:

DHCP:

Host Name:

Off

192.168.254.251

TLI-AB-CD-EF

Output

TLI Output:

GUI Project:

Sleep Timer:

1080p @ 60Hz

5 Minutes

Audio

Master Volume:

Master Mute:Off

Input

HDMI:No Signal

Status Output AudioAdvanced Exit

NetworkInput

Advanced

Controller IP:192.168.254.250

Project Size:N/A

Bootloader

Version: 1.00

PoE Status:Active

Figure 5. Setup Menu

Press the Exit button to close the setup menu.

For more information about the setup menu, see the TLI Pro 201 User Guide at www.extron.com.

Annotation

The TLI Pro 201 allows users to add annotations to the screen. For information about annotations, see the TLI Pro 201 User Guide

at www.extron.com.

Andere Handbücher für TLI Pro 201

Inhaltsverzeichnis

Andere Extron electronics Aufnahmegeräte Handbücher

Extron electronics

Extron electronics SSP 200 Bedienungsanleitung

Extron electronics

Extron electronics IPL T S1 Bedienungsanleitung

Extron electronics

Extron electronics VN-Matrix Bedienungsanleitung

Extron electronics

Extron electronics Architectural Interface RGB 440 Bedienungsanleitung

Extron electronics

Extron electronics RGB 400 Series Bedienungsanleitung

Extron electronics

Extron electronics SSP 7.1 Bedienungsanleitung

Extron electronics

Extron electronics RGB 326 Bedienungsanleitung

Extron electronics

Extron electronics Computer-Video Interface RGB 508 AKM Bedienungsanleitung

Extron electronics

Extron electronics RGB 472xi Bedienungsanleitung

Extron electronics

Extron electronics RGB 302 Bedienungsanleitung

Extron electronics

Extron electronics RGB 109xi Bedienungsanleitung

Extron electronics

Extron electronics RGB 580xi AAP Bedienungsanleitung

Extron electronics

Extron electronics 12G HD-SDI 101 Bedienungsanleitung

Extron electronics

Extron electronics Interface RGB 120p Bedienungsanleitung

Extron electronics

Extron electronics Ethernet Control Interface IPL T PCS4 Bedienungsanleitung

Extron electronics

Extron electronics RGB 124 Bedienungsanleitung

Extron electronics

Extron electronics Quantum Ultra Series Bedienungsanleitung

Extron electronics

Extron electronics VersaTools MTP DA4 Bedienungsanleitung

Extron electronics

Extron electronics RGB 190F Bedienungsanleitung

Extron electronics

Extron electronics ACP 106 EU Bedienungsanleitung

Extron electronics

Extron electronics TLI Pro 201 Bedienungsanleitung

Extron electronics

Extron electronics SSP 200 Bedienungsanleitung

Extron electronics

Extron electronics RGB 560 AKM Bedienungsanleitung

Extron electronics

Extron electronics AXI 22 AT D Bedienungsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken

KV2 Audio

KV2 Audio 500 Series Bedienungsanleitung

Robotics Technologies

Robotics Technologies microBus-Cam II Bedienungsanleitung

Seca

Seca 460 Bedienungsanleitung

Cognex

Cognex MVS-8000 Series Bedienungsanleitung

Mect

Mect MPNC006 Series Bedienungsanleitung

Bad Caf

Bad Caf THE LEASH Bedienungsanleitung

Strymon

Strymon NIGHTSKY Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Bedienungsanleitung

Tews Technologies

Tews Technologies TPMC465 Bedienungsanleitung

Honeywell

Honeywell Excel 50 Bedienungsanleitung

SeaLevel

SeaLevel COMM+8.LPCI Bedienungsanleitung

Arturia

Arturia AUDIOFUSE STUDIO Bedienungsanleitung

Rukra

Rukra RK-1240 Bedienungsanleitung

Samson

Samson SCOM Bedienungsanleitung

Dynacord

Dynacord DPS260 Bedienungsanleitung

Nice

Nice Core Bedienungsanleitung

Pyle Pro

Pyle Pro PSS8 Bedienungsanleitung

RF-System

RF-System TinyGate Gebrauchs- und Pflegehandbuch
