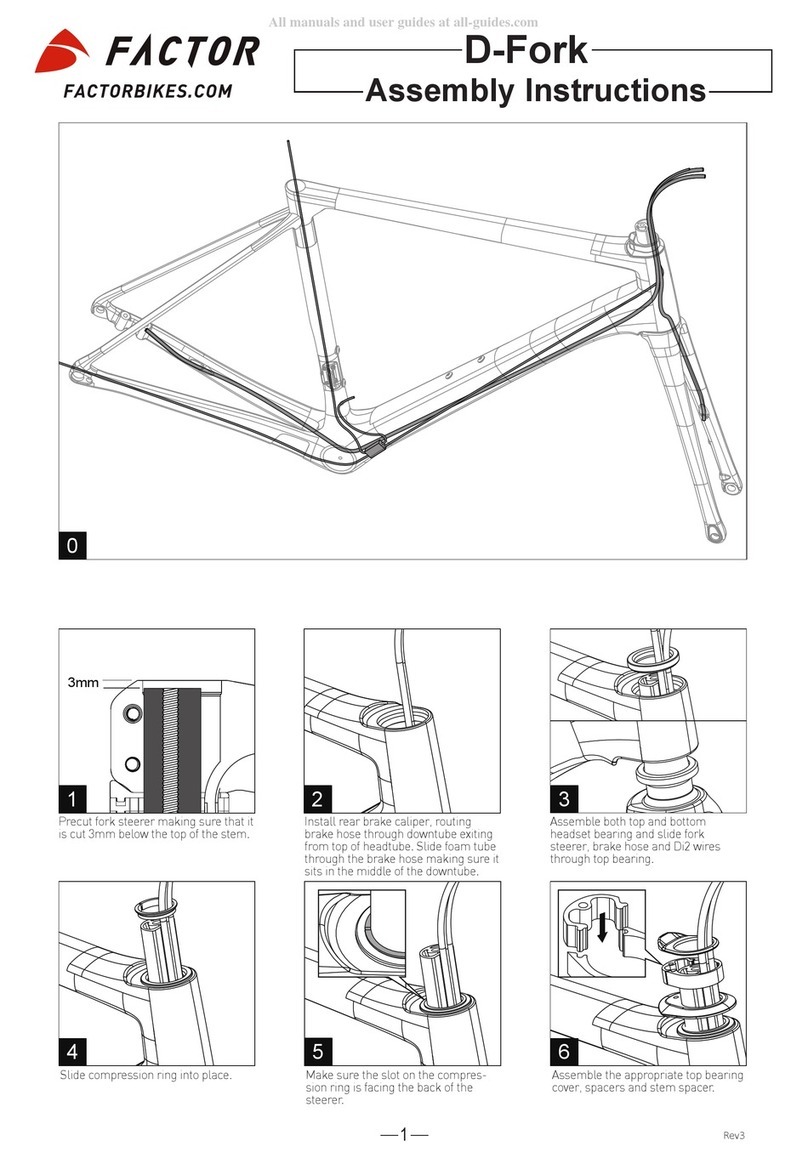

Factor D-Fork Bedienungsanleitung
2
3mm
1 3
4 5 6
1
Precut fork steerer making sure that it
is cut 3mm below the top of the stem.
Install rear brake caliper, routing
brake hose through downtube exiting
from top of headtube. Slide foam tube
through the brake hose making sure it
sits in the middle of the downtube.
Assemble both top and bottom
headset bearing and slide fork
steerer, brake hose and Di2 wires
through top bearing.
Slide compression ring into place. Make sure the slot on the compres-
sion ring is facing the back of the
steerer.
Assemble the appropriate top bearing
cover, spacers and stem spacer.
D-Fork
Assembly Instructions
0
Rev3
10 11
14
13
12
7 8
2
Apply assembly compound on the
steerer tube and slide the barstem
onto the fork steerer.
Insert anti-compression plug into the
gap in front of the fork steerer and the
apply assembly compound around it.
Install the top cap cover.
Preload the headset to remove excess
play.
Torque the barstem to 5.2Nm
Note that the notch on top cap sits in
between the slot on the back of the
barstem.
9
Feed Di2 wires through the barstem. Feed brake hoses through the barstem.
D-Fork
Assembly Instructions
Rev3
