FCC BBQ Ultimate Pro 4.1 Bedienungsanleitung
Sare u cookin!
MANUAL
Installation, use, maintenance and safety
FCC-G-202180-41
!OUTDOORUSEONLY
READTHEMANUAL, FOLLOWTHE
ASSEMBLYINSTRUCTIONSSTEPBY
STEP. GETTOKNOWYOURGRILLAND
THESAFETYINSTRUCTIONSBEFORE
USINGTHEAPPLIANCE!
Contents
Warnings .......................................................................................................................3
Technical Data .............................................................................................................4
Read before assembly ...........................................................................................4
Parts list .........................................................................................................................6
Exploded Drawing ..................................................................................................7
Assembly instructions ...........................................................................................8
Regulator and hose - Connecting the gas .................................................16
Check for leaks before using the barbecue ...........................................17
Last check ...................................................................................................................18
Lighting instructions ............................................................................................19
Maintenance ..........................................................................................................20
Advice, tips and safety .....................................................................................22
Troubleshooting ...................................................................................................23
Consumer Contact ............................................................................................24
2
WARNINGS!
●ACCESSIBLE PARTS OF THE GRILL BECOME VERY HOT
DURING USE. KEEP CHILDREN AND OTHERS WHO NEED
SUPERVISION AT A SAFE DISTANCE.
●THE GRILL IS INTENDED FOR OUTDOOR USE ONLY IN WELL-
VENTILATED AREAS.
●LEAK TESTS (SEE PAGE 17) MUST ALWAYS BE CARRIED
OUT BEFORE THE GRILL IS USED AND WHEN REPLACING
THE GAS CYLINDER. ALSO PERFORM A LEAK TEST IF THE
PRODUCT HAS NOT BEEN IN USE FOR A LONG TIME AND IN
ADVANCE OF A NEW BARBECUE SEASON. ALWAYS CHECK
THE GAS HOSE FOR DAMAGE AND CRACKS BEFORE USING
THE BARBECUE.
●NEVER BARBECUE IN CLOSED ROOMS OR UNDER ROOFS,
AS THIS MAY LEAD TO A LACK OF OXYGEN.
●FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN
IMPLY A RISK OF SERIOUS INJURY TO PERSONNEL AND
FIXED INSTALLATIONS.
●REBUILDING / MODIFYING THE BARBECUE CAN CAUSE
DANGER AND WILL INVALIDATE THE WARRANTY.
●ALWAYS SUPERVISE THE BARBECUE DURING USE AND KEEP
SUITABLE EXTINGUISHING EQUIPMENT WITHIN REACH.
THE GRILL SHOULD NOT BE OPERATED BY INTOXICATED
PERSONS.
●THE BARBECUE MUST NOT BE USED IN PLACES THAT ARE
BELOW NORMAL GROUND LEVEL. GAS CAN ACCUMULATE
AND REPRESENT A DANGER OF EXPLOSION. GAS
ACCUMULATION CAN ALSO CAUSE OXYGEN DEFICIENCY.
●THE BARBECUE MUST BE CLEANED REGULARLY AND
THOROUGHLY TO PREVENT UNCONTROLLED GREASE FIRE.
READ MORE ABOUT GREASE FIRE ON PAGE 20
ALSO READ PAGE 22 FOR MORE ADVICE AND TIPS ON GRILLING AND SAFETY.
33 fccbbq.com
Tekniske data
Total Heat input: 18.9 kW (Main burners 3.8kWx4=15.2kW, Side infrared burner 3.7kW).
Gas consumption: 1375 gram/hour
Gas cylinder (not included): Use standard cylinder approved for use in the Nordic Region.
Even though butane and propane gas can be used, we recommend propane for use in the Nordic
Region. Approved hoses and regulators are available from most outlets selling gas equipment.
NB! Gas hoses used for this product must not exceed 120 cm in length.
Technical Data
LU, NL, DK, FI, SE, CY,
CZ, EE, LT, LV, MT, SK, SI,
BG, IS, NO, TR, HR, RO,
IT, HU
ø0.96 mm main burner
ø0.94 mm infrared side burner
G30(Butane
G31(Propane)
and their mixtures
I3B/P(30)
The product is manufactured in accordance with European Gas Appliances Regulation (EU) 2016/426
USE ONLY GAS TYPE AND GAS CATEGORY ENTERED IN THIS MANUAL.
!
DESTINATION OF
COUNTRIES TO USE GAS TYPEVALVE SIZE GAS CATEGORY
1008-20
4
W: 143 cm D: 60cm
H: 119cm
Make sure that all parts and screws are in the box before
mounting the product, please note that some parts may be
located in the styrofoam in the side walls of the packaging.
Compare the parts list with the contents of the box.
Do not mount this barbecue if parts are missing, contact
your dealer or support@fccbbq.com. Remove all packaging
material and any plastic wrap from the barbecue.
●FOLLOW THE ORDER IN THIS MANUAL TO AVOID ERROR
ASSEMBLY. PARTS OF THE ASSEMBLY WILL REQUIRE HEAVY LIFTS
WHICH SHOULD BE CARRIED OUT BY TWO PERSONS TOGETHER.
SOME METAL PARTS MAY BE SHARP, USE PROTECTIVE GLOVES.
●POWER TOOLS SHOULD NOT BE USED FOR INSTALLATION AS
THIS MAY DAMAGE THE SURFACE TREATMENT ON SCREWS AND
LOOSE PRE-MOUNTED NUTS.
!
FOLLOW THESE INSTRUCTIONS CAREFULLY
TO AVOID SERIOUS PERSON INJURY OR
DAMAGE TO YOUR BARBECUE.
Read before assembly
A screwdriver and adjustable/allen wrench (not provided)
is necessary when assembling the BBQ.
The BBQ should be assembled by two persons.
5fccbbq.com
CODE DESCRIPTION QTY
LIDHANDLE
THERMOMETER
THERMOMETERBEZEL
WARMINGRACK
CASTIRONGRATEA
CASTIRONGRATEB (W/ MGSINSERT)
ROUNDCASTIRONGRATEC
FMETAMER
SIDETABLEASSY
DRIPTRAYHANDLE
DRIPTRAY
SIDEBURNERRACK
SIDEBURNERASSY
SIDEBURNERELECTRODE
SIDEBURNERTABLEASSY
KNOBBEZEL
KNOB
CROSSFIRESLOT
MAINBURNER
STOVEBODYASSY
CUSHION
GASTUBEASSY
LEFTSIDEPANELOFCABINET
REARPANELOFCABINET
RIGHTSIDEPANELOFCABINET
BOTTOMPANELOFCABINET
UPPERBEAMOFCABINET
LEFTDOORASSY
RIGHTDOORASSY
CASTORWITHBRAKE
CASTORWITHOUTBRAKE
DOORSTOPPER
SMALLKNOB
SMALLKNOBBEZEL
SIDETABLEHOOK
SIDEOILTRAY
Parts List
6

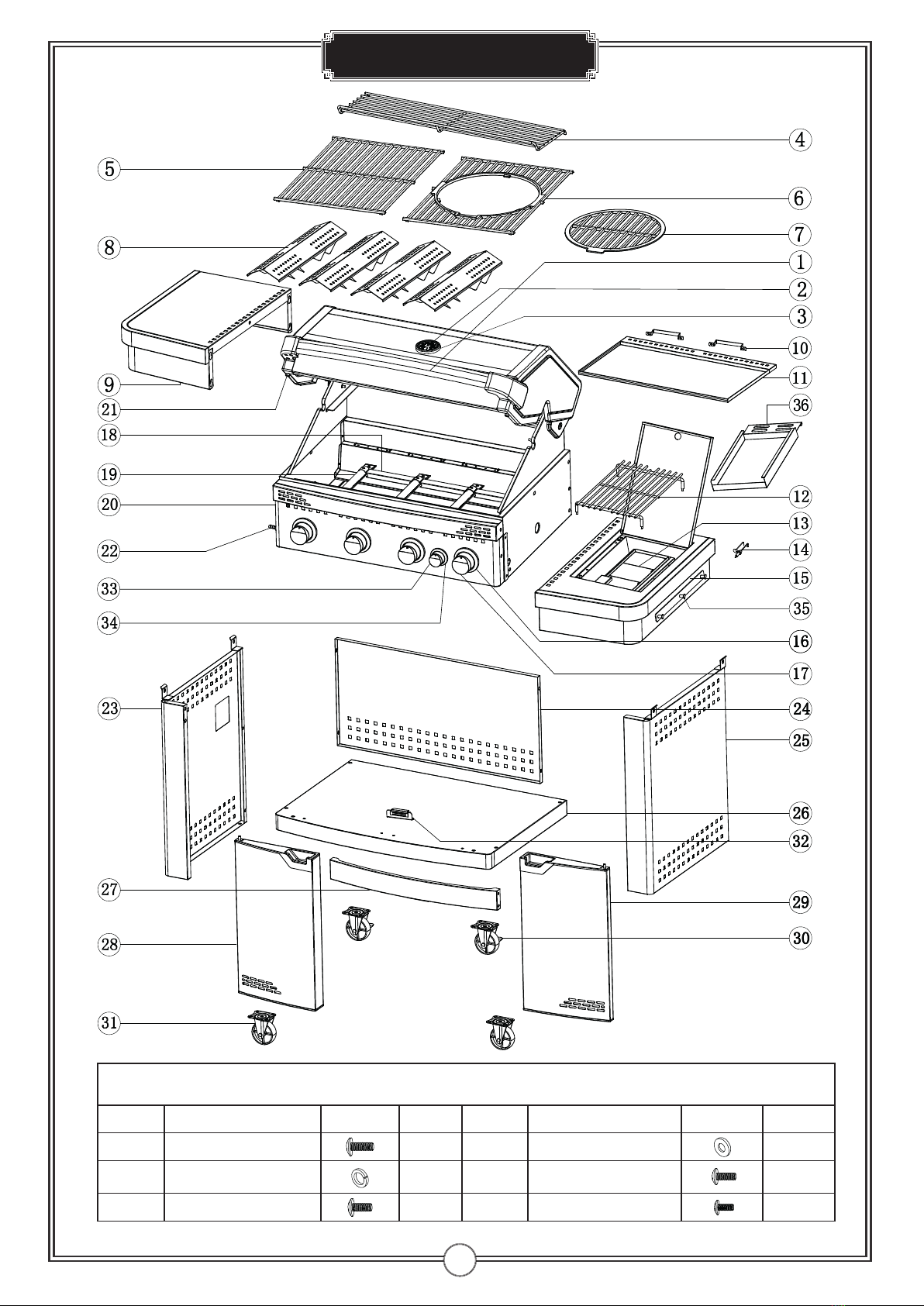

Exploded Drawing
HARDWARE
CODE DESCRIPTION FIGURE QTY CODE DESCRIPTION FIGURE QTY
AMx Screw D M Washer
BM Spring Washer E Mx Screw
CMx Screw FMx Screw
7fccbbq.com

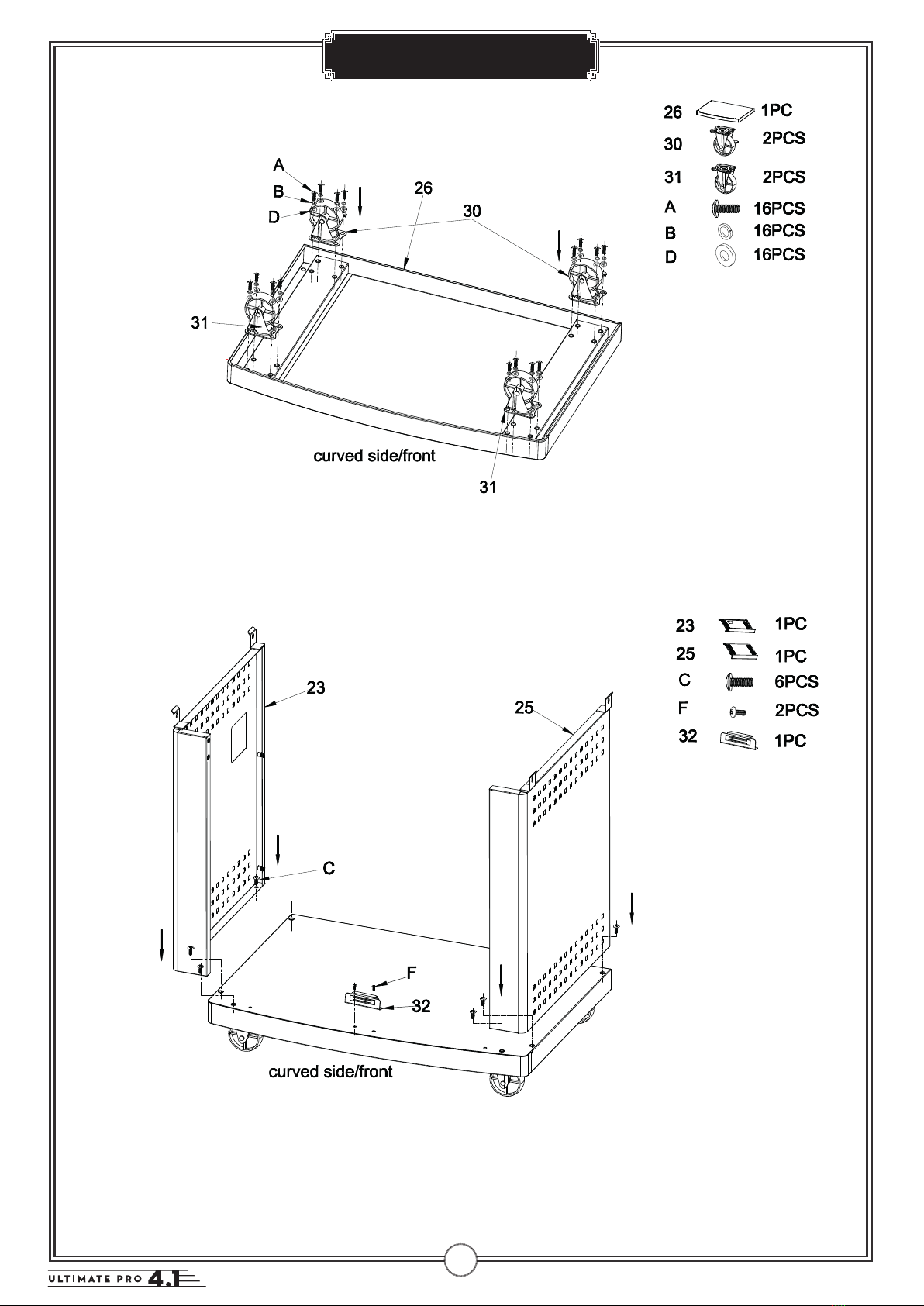

1. Turn bottom panel of cabinet (26) upside down, and fix castors with
brake(30) and castors without brake(31) with A,B,D.
2. Fix left side panel (23) and right side panel (25) with screw C as below.
Fix door block component (35) with screw F as illustration above.
Assembly
8
1
2
Assembly
3. Fix rear panel (24) with screw E as illustration above.
4. Fix upper beam (27) with screw C as shown in illustration.
9fccbbq.com
3
4
5. Follow
1
in the illustration above to insert lower rotating axis of left
door assy (28) into hole in the bottom panel of cabinet, then follow
2
in the
illustration to press spring pin and insert into hole of upper beam(27).
Same assembling procedure for right door assy (29).
Assembly
NOTE!
TWO PERSONS IS
RECOMMENDED
WHEN LIFTING
THE STOVE BODY
6. Fix stove body assy (20) with screw (C) onto cabinet.
10
5
6
