Foreword
Thank you for purchasing our 10.1-inch portable monitor. Please read this manual
carefully before using the unit. Have a great experience!
Caution
1. Do not use a damaged or loose plug.This may cause an electric shock
or fire.
2. Do not pull the plug out by the wire or touch the plug with wet hands.
This may cause an electric shock or fire.
3. Do not excessively bend the plug and wire nor place heavy objects
upon them, which could cause damage.
4. Disconnect the plug from the outlet during storms or lightening or if it
is not used for a long period of time. Failure to do so may cause an
electric shock or fire.
5. Put your monitor in a location with low humidity and a minimum of dust.
An electric shock or fire could result inside the monitor.
6. Do not drop the monitor when moving it.This may cause damage to
the product or human body.
7. When cleaning the monitor case or the surface of the IPS screen, wipe
with a slightly moistened, soft fabric.
8. If your monitor does not operate normally - in particular,if there are any
unusual sounds or smells coming from it - unplug it immediately and
contact after sales or the professional technical staff.
9. For each hour of looking at the monitor, you should let your eyes rest
for 5 minutes.This will reduce eye fatigue.
2
Key Feature
● 1280x800 HD IPS , 280cd/㎡
● Slim design and lightweight, easy to carry on-the-go
● OSD button operation, simple and intuitive
● Full function of Type-C1 and Type-C2 ports for power supply, display
and touch
● Widely compatible with Smart Phone, PC, Mac Book, Switch, etc.
● Type-C3 port can connect to keyboard or mouse to the monitor.
● Plug and play. No additional installation or software necessary.
●Built-in dual stereo speakers
CONTENTS
1.Product Structure and Instruction.................................. 3
2. Ports Connection............................................................ 4
3. Supported Phone Model................................................. 4
4. Button Shortcut Operation Instructions....................... 5
5. Menu Operation Instructions......................................... 6
6. Menu Function Instructions........................................... 7
7. Product Parameters........................................................ 9
3

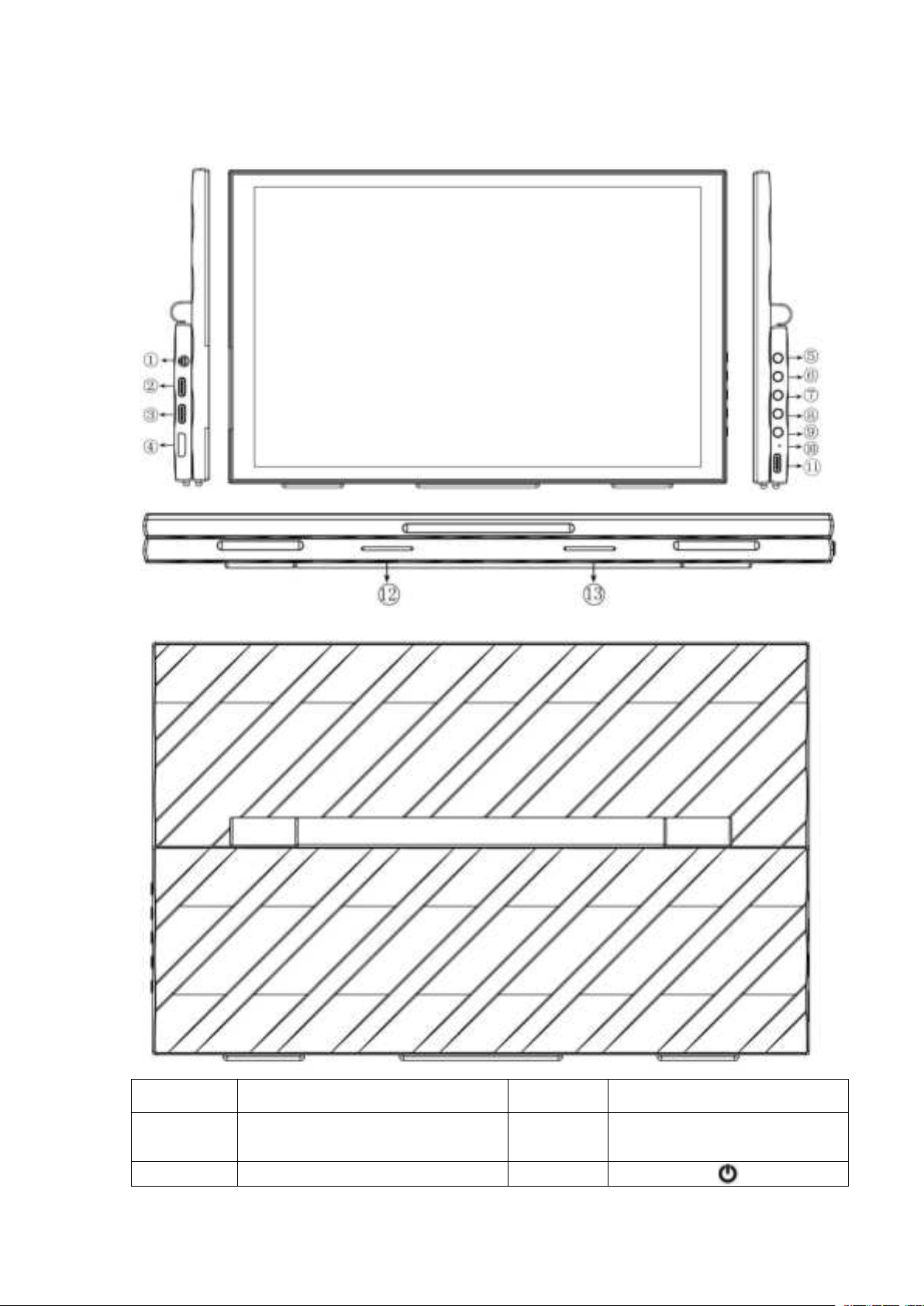

1. Product Structure and Instruction
Number
Function Instruction
Number
Function Instruction
①
3.5mm audio input
⑧
EXIT
Return/exit the menu
②
Type-C1
⑨
4
Video/Audio input, power supply
Long press to Turn ON/ OFF
power
③
Type-C 2
Video/Audio input, power supply
⑩
Indicator Light
Green color : detected
input signal
Red color: w/o input signal
④
Mini HDMI
Video/Audio input
⑪
Type-C 3
Connect with keyboard/ Mouse
⑤
MENU
Setting, Confirm
⑫
Speaker
⑥
>
Backlight shortcut press(OSD w/o
display); Increase, Next
⑬
Speaker
⑦
<
Volume shortcut press (OSD w/o
display; Decrease, PREV
2. Ports Connection
Note: Phone for IOS system, MAC notebooks (without HDMI interface)
need to use adapter devices, such as Lightning to HDMI cable
3. Supported Phone Model
HUAWEI
Mate10, Mate10 Pro, Mate20, Mate20 Pro,
Mate20 X, Mate30, Mate30 Pro, P20, P20 Pro,
P30, P30 Pro, P40, P40 Pro
HONOR
Honor Note10, V20
5
SUMSUNG
S8, S8+, S9, S9+, S10e, S10, S10+, S20,
S20+, Note8, Note9, Note10, Note10+, A90
5G, Galaxy Fold, Galaxy Fold2 5G, Tab S4, Tab
S5e, Tab S6
RAZER
Razer Phone, Razer Phone2
LG
G5
OPPO
R17 PRO
ASUS
ROG Phone
HTC
U Ultra
SMARTISAN
R1, Pro2S
Tips: the smartphone can be compatible which equipped with USB-C port
and supports DP output function , not limited to the listed models.
4. Button Shortcut Operation Instructions
Press >key to bring up the backlight adjustment item,press the ＜/＞
key to adjust the analog value, after the adjustment, press EXIT key to
exit.
6
Press <key to bring up the volume adjustment item,press the ＜/＞key
to adjust the analog value, after the adjustment, press EXIT key to exit.
Press EXIT key to bring up the Input , press the＜/＞key to select the
signal input, press Exit key to exit
5. Menu Operation Instructions
7
①.Use the USB-A to USB-C cable to connect the monitor to the power
supply. After the power is turned on, the indicator light turns red，
the indicator lights up green after connected the signal.
②.Press the MENU key to enter the menu bar, use the ＜or ＞
key to select the menu item, and press the MENU key confirm to enter
the secondary menu.
③.After entering the secondary menu, use the ＜or ＞key to select
the adjustment item. Press the MENU key to confirm and enter the
adjustment item, use the ＜or ＞key to adjust the parameter value.
After adjustment, press the EXIT key to return to the previous menu,
and then enter the next step of selection and adjustment.
Note: The menu can only be operated when a signal is connected.
6. Menu Function Instructions
Backlight
0～100
Brightness
0～100
Contrast
0～100
Sharpness
0～4
Temperature
9300, 7500, 6500, 5800, sRGB, User
Under the User, the Red,Green and Blue of the image can be
8
adjusted.
Red (0～255), Green (0～255), Blue (0～255)
(Use the ＜/＞key to select the User, and then press the MENU
key to enter the User .)
Color Effect
Standard, Game, Movie, Photo
HUE
0～100
Saturation
0～100
Aspect Ratio
Full, 16:9, 4:3, 5:4, 1:1
Over Drive
ON , OFF , OD Gain 0～100
DCR
ON , OFF
Input
Auto Select, D1: TYPE C , D2: TYPE C, D3: HDMI
Volume
0～100
Mute
ON , OFF
9
Information
View the corresponding screen input source information.
(Press the MENU key to enter the Information menu to view.)
7.Product Parameters
Panel Size
10.1”
Whether Touch
Type-C full-featured ports support touch operation
Resolution
1280x800 pixels
Aspect Ratio
16:10
Pixel Pitch
0.1692(W) x 0.1692(H) (mm)
Brightness
280cd/m²
Contrast
900:1
Viewing Angle
80°/80°(L/R) 80°/80°(U/D)
Backlight
LED
Input
Type-C, Mini HDMI
Note: please use 5V/3A TYPE-C power supply at least
Audio
3.5mm Stereo Headphone, Speaker
Language
English, 中文, Français, Deutsch, Español, Italiano, 日本語
Menu Time
10～60s
OSD Transparency
0～255
Reset
Press the MENU button to reset, it will restore the factory default
parameter settings.
