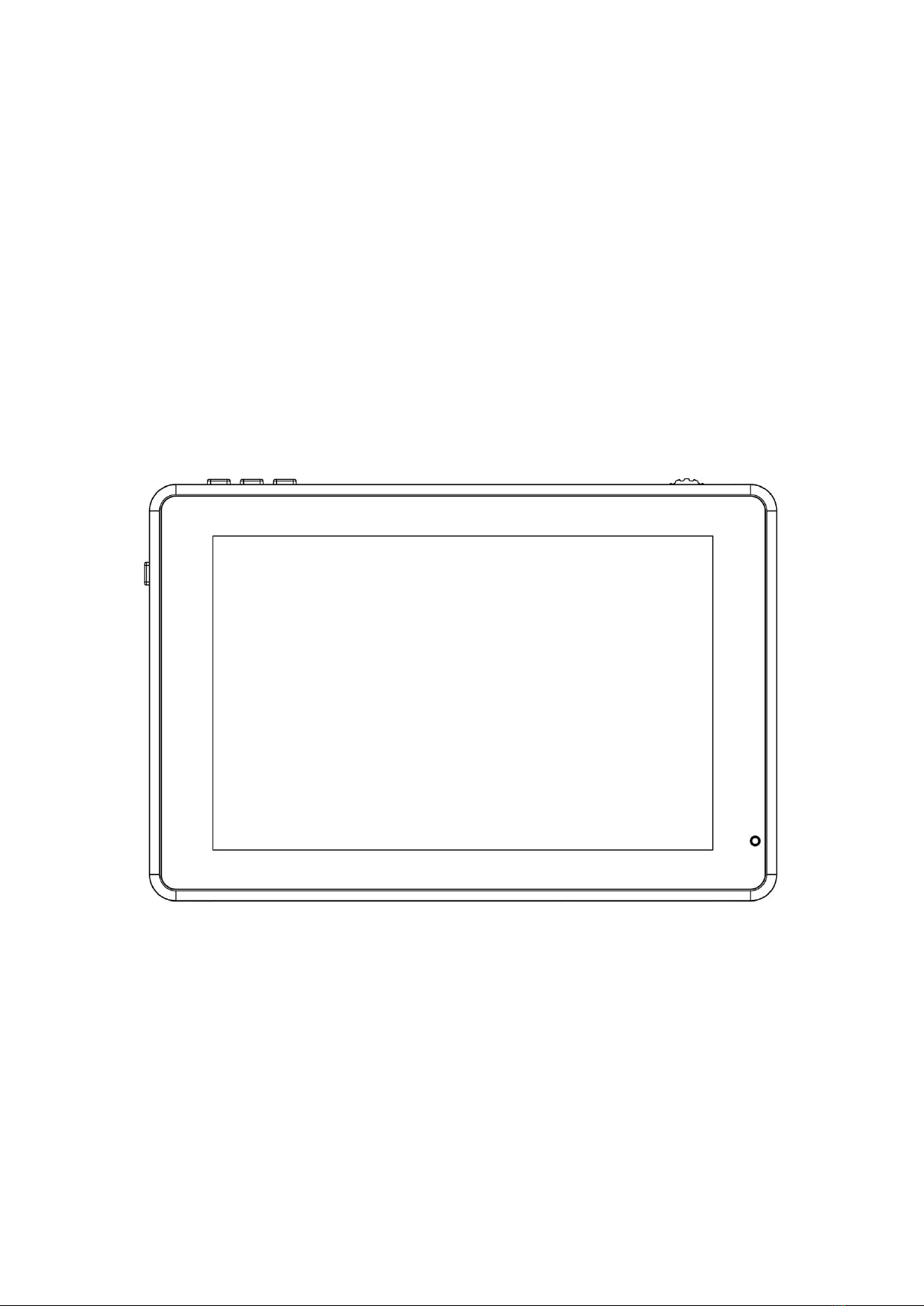

Feelworld LUT7S Bedienungsanleitung
7″ 3D LUT Touchscreen Monitor
2200nits Daylight Viewable
User Manual
1
Product Overview
Thank you for using our 7 inch ultra bright touch screen monitor.
This monitor has SDI (optional), HDMI input and output, auxiliary
power output, touch screen menu operation, HDR monitoring and
support user 3D LUT upload and other features. Advanced features
include Parade, Vector, Histogram, Audio Meter, Focus Assist,
False Color, Zebra Exposure, Pixel to Pixel, Center Marker, Safety
Marker, Marker Mat, Monochrome, Image Freeze, Zoom,
Anamorphic etc. It is an ideal, portable and lightweight viewfinder
and video monitor.
The monitor is equipped with dual battery plates; you can use the
power adapter supply or use the external battery for power supply.
To insure the best use of the unit, please read the
user’s manual carefully
CAUTION
1. Please avoid the heavy impact and drop onto the ground when
move the product.
2. The screen of this product is made of glass.Keep away from
injury if the screen is broken.
3. Keep the product away from the heat source, and avoid the
prolonged exposures to the sun as the LCD screen will be
damaged.
4. Please do NOT use chemical solutions to clean this product.
Please wipe the monitor with a clean soft cloth to maintain the
brightness of the surface.
2
5. No adjustable components are in the monitor. Please do not take
apart or repair the unit by yourself, to avoid the damage of the product.
Features
● Touch screen menu operation
● Support HDR monitoring
● Support 3D LUT Log to REC.709 and user 3D LUT upload
● 1920x1200 full HD IPS screen
● 2200nits Daylight Viewable (Light Sensor)
●All Waves display, Parada, Vector, RGB Histogram functions
●Histogram is a quantitative tool to inspect the image brightness,
to guide the exposure control
●Focus Assist (red, green, blue, white, yellow five peaking colors
optional)
●Audio Meter
●Zebra and False Color function, convenient to guide the using
light when shooting and the post production
●Monochrome (gray, red, green, blue)
●Image Zoom-in function
● Anamorphic Mode
●Image Flip H and Flip V
●Image Freeze
●Pixel to Pixel
●Marker Mat, Center Marker and Safety Marker
●Brightness, Contrast, Sharpness, Hue, Saturation and Color
Temp Adjustment.
●Stereo Earphone output
●DC 8.4V power out to power your DSLR camera or mirrorless
camera
3
CONTENTS
1. Product Description ----------------------------------------- 4
1.1 Button Instruction --------------------------------------------- 4
1.2 Port Instruction ------------------------------------------------ 5
1.3 Power Supply Way ------------------------------------------- 6
1.4 Mount Points --------------------------------------------------- 7
2. Menu Operation Instruction ------------------------------- 8
3. Menu Function Instruction -------------------------------- 10
4. Support Formats --------------------------------------------- 14
5. Technical Parameters --------------------------------------- 14
6. Trouble Shooting --------------------------------------------- 15
4
1. Product Description
1.1 Button Instruction
①. Indicator Light: After connecting the power, the indicator light
is on (red). Long Press button to turn on the monitor, it
turns yellow. After the signal is connected, it turns green.
②. MENU: See details: 3.1 MENU Wheel Menu Operation in 3.
Menu Operation Instruction.
③. Light Sensor: The backlight mode under the icon is set
to Auto, and the brightness of the backlight can be adjusted
automatically by the light sensor.
④. F1 ~ F3: Custom function buttons
5
1.2 Port Instruction
①.Dual F970 Battery Plates
⑥.DC 12V Power Input
②.Power / Touch Function Button
Long press to turn on / off; short press to
turn on / off the screen touch function.
⑦.DC OUT 8.4V Power Output
Connect the optional dummy battery
cable to power camera.
③.3.5mm Headphone Jack
⑧.SDI OUT (Optional)
④.HDMI IN
⑨.SDI IN (Optional)
⑤.HDMI OUT
⑩.SD Card Slot
3DLUT upload via SD card and for
firmware upgrade
6
1.3 Power Supply Way
(1) The rear cover of the monitor is equipped with dual F970 battery
plate, which is applicable to F970 series of batteries.
Sony F970 battery plate for battery of Sony DV:
Sony F970 F960 F950 F930 F770 F750 F730 F570 F550 F530
series
Remark: It is recommended to use standard original F970
batteries. Different specifications of the battery have different
capability. The working time for the monitor will be different.
Higher capability (working time) will be longer. Please take off
the battery from the monitor if you don’t use the monitor in a
long time.
●Battery switching instruction
When the battery/batteries is/are placed in the battery slot(s),
battery icon will appear on the upper right of the screen.
White battery icon: working; Gray battery icon: not working.
Manually switching: Double-tap the gray battery icon and it will
be switched to a working state in about 3 seconds, then it will be
turned white.
Automatically switching: Automatically switch to another
charged battery when one battery is exhausted.
(2) DC IN 12V: DC power input, polarity as the input power
, Barrel (5.5mm outer, 2.1mm inner) at the bottom of the
monitor, DC 7~24V Input.
7
(3) DC OUT 8.4V: DC power output interface, polarity as the output
power
Barrel output for powering your camera with a separately
available DC coupler via adaptor (NP-FW50 Sony & LP-E6
Canon&DMW-BLF19 Panasonic). More adapters coming soon.
1.4 Mount Points
There are (3) ¼-20 thread points (bottom, right & left) can be easily
connected to the hot shoe mount, tripod fixed installation.
Tilt Arm Mounting
The monitor secures to your camera using the included Tilt Arm via
shoe mount or 1/4"-20 thread. The Tilt Arm enables 360°of tilt for
convenient monitoring at nearly any angle. A cold shoe on the Tilt
Arm lets you secure equipment (like a microphone, LED light, or
8
wireless receiver) that would otherwise be displaced from the
camera's accessory shoe.
2. Menu Operation Instruction
After the monitor is properly connected to the power supply, the
indicator light is on (red). Long press button to turn on
the monitor, the indicator light turns yellow. After the signal is
connected, the indicator light turns green.
After startup, short press to select to turn the screen
touch function on or off.
2.1 Touch Screen Menu Operation (turn on the screen touch
function)
①．Double-click on the screen to open the main menu (show on the
left side of the screen) and click on the corresponding menu to
display the secondary menu. You can enter the corresponding
function option to select or set with the "<" or ">" key of the
option. Exit the menu and press key of the main menu
or click the touch screen.
9
②．When the menu is not displayed, swipe up from the bottom of
the screen to open the shortcut menu, and click on the
corresponding menu box to open or set the corresponding
function.
③．When the menu is not displayed, on the left side of the screen
(1/2 split screen), you can directly adjust the brightness of the
screen backlight; on the right side of the screen (1/2 split
screen), you can directly adjust the volume.
Figure:
2.2 MENU Wheel Menu Operation
①．When the menu is not displayed, directly rotate the wheel to
backlight or brightness adjustment. The wheel option can be
set to backlight or brightness in the menu .
②．Long press the MENU wheel to open the main menu (on the left
side of the screen). Rotate the wheel to select the secondary
function menu. After selecting it, press the wheel, then rotate
the wheel to select or set the option function.
