Feelworld F5Pro Bedienungsanleitung
5.5″ Touchscreen Monitor
F970 Install and Power Kit
User Manual
1
Product Overview
Thank you for purchasing our 5.5 inch Full HD touch screen monitor. This
monitor has HDMI input and output, auxiliary power output, touch screen menu
operation, support user 3D LUT upload, etc. It has small size, simple operation,
portable convenience and wide application range. Advanced features include
Histogram, Embedded Audio, Focus Assist, False Colors, Over Exposure,
Center Marker, Safe Frames, Ratio Marker, Check Field, Image Freeze, Zoom,
Anamorphic etc. It is an ideal, portable and lightweight viewfinder and video
monitor.
A Sony F970 external install and power kit design is added to the back of the
monitor. The external kit can be used to install and install the external
equipment, like wireless transmitter, LED light, video converter and others
which can be powered by Sony F970 battery. The monitor is equipped with a
battery plate; you can use the power adapter supply or use the external battery
for power supply.
To insure the best use of the unit, please read the
user’s manual carefully
CAUTION
● Please avoid the heavy impact and drop onto the ground when move the
product.
● The screen of this product is made of glass. Please do not drop the screen
towards the ground. Keep away from injury if the screen is broken.
● Keep the product away from the heat source, and avoid the prolonged
exposures to the sun as the LCD screen will be damaged.
● To avoid damaging the product, please do not take apart or repair the unit
by yourself without the adjustable components in the unit.
2
● In order to better maintain the LCD screen and protect the cover, please
follow the following ways to avoid damages.
1. Please refrain from using the hard objects to hit the screen.
2. Please do not force to wipe the screen.
3. Please do not use the chemical solutions to clean the screen.
4. Please do not spray any detergent on the screen.
5. Please do not write on the screen directly.
6. Please do not stick on the screen.
7. Please simply wipe with a clean soft cloth and make sure no water on
the screen.
Features
● Touch screen menu operation
● IPS Full HD 1920x1080 LCD panel
● Support 4K HDMI input and output
● User custom 3D LUT import by Type-C to USB
●Histogram is a quantitative tool to inspect the image brightness, to guide
the exposure control
●Focus Assist (Focus edge can be Red, Green, Blue)
●Embedded Audio
●Zebra and False Color function, convenient to guide the using light when
shooting and the post production
●Check Field (Red, Green, Blue, Mono)
●Image Zoom-in function
● Anamorphic Mode
●Image Flip (H, V, H/V)
●Image Freeze
●Image Nine Grid, zoom one of the images to realize the full screen
3
●Pixel to Pixel
●Ratio Marker, Safe Frames and Center Marker
●Brightness, Contrast, Sharpness, Tint, Saturation and Color Temp
Adjustment.
●3.5mm earphone output
●DC 8.4V power out to power your DSLR camera or mirrorless camera
●External sunshade, sunlight readable
CONTENTS
1. Product Description ----------------------------------------- 4
1.1 Button Instruction --------------------------------------------- 5
1.2 Port Instruction (Bottom) ------------------------------------ 5
1.3 Port Instruction (Left) ---------------------------------------- 6
1.4 Power Supply Way ------------------------------------------- 7
1.5 Sony F970 Install and Power Kit -------------------------- 8
1.6 Mount Points -------------------------------------------------- 10
1.7 Sunshade ------------------------------------------------------ 11
2. Menu Operation Instruction ------------------------------ 12
3. Menu Function Instruction -------------------------------- 14
4. Technical Parameters --------------------------------------- 18
5. Trouble Shooting --------------------------------------------- 19
4

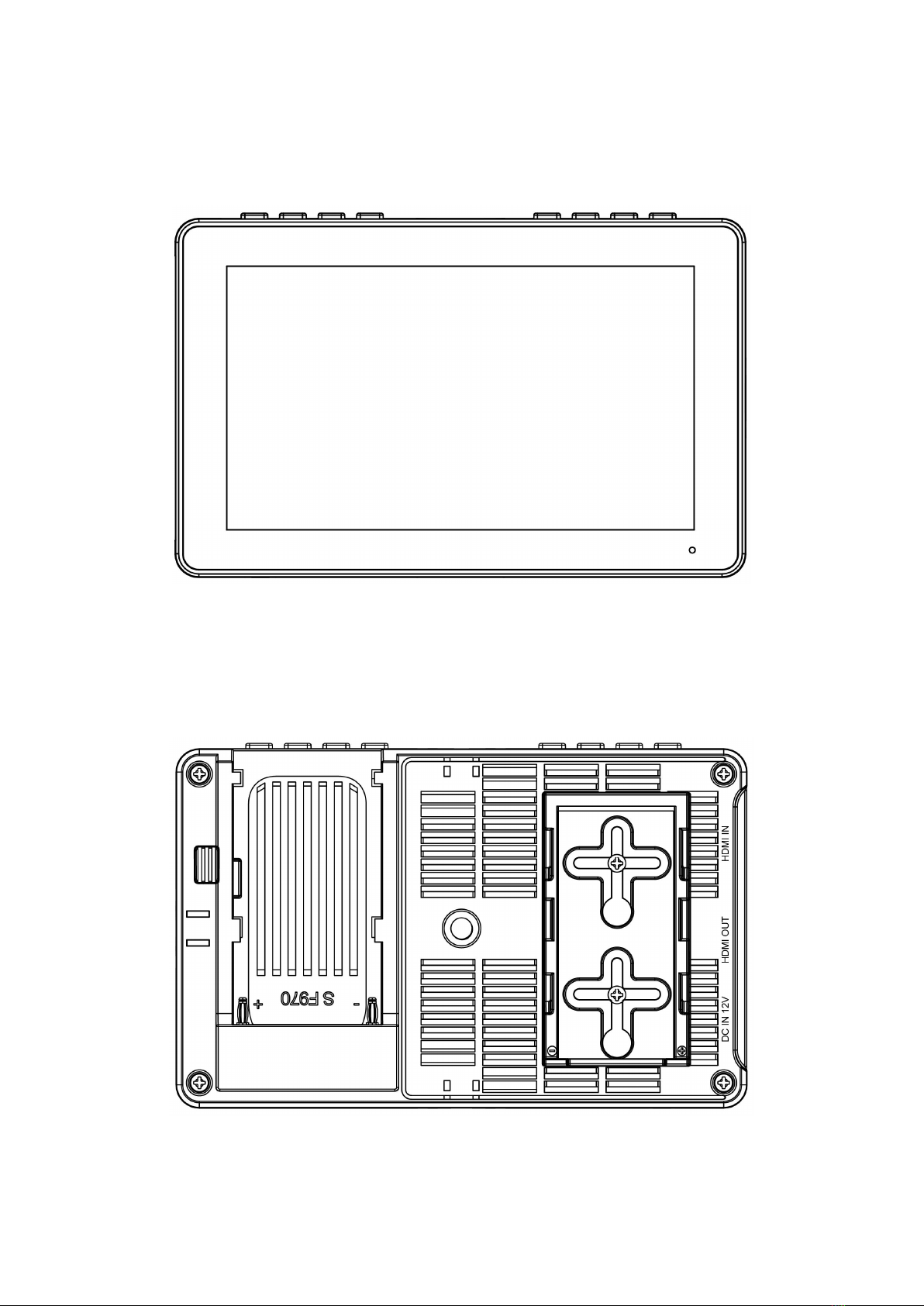

1. Product Description
Front Panel
Back Panel
5

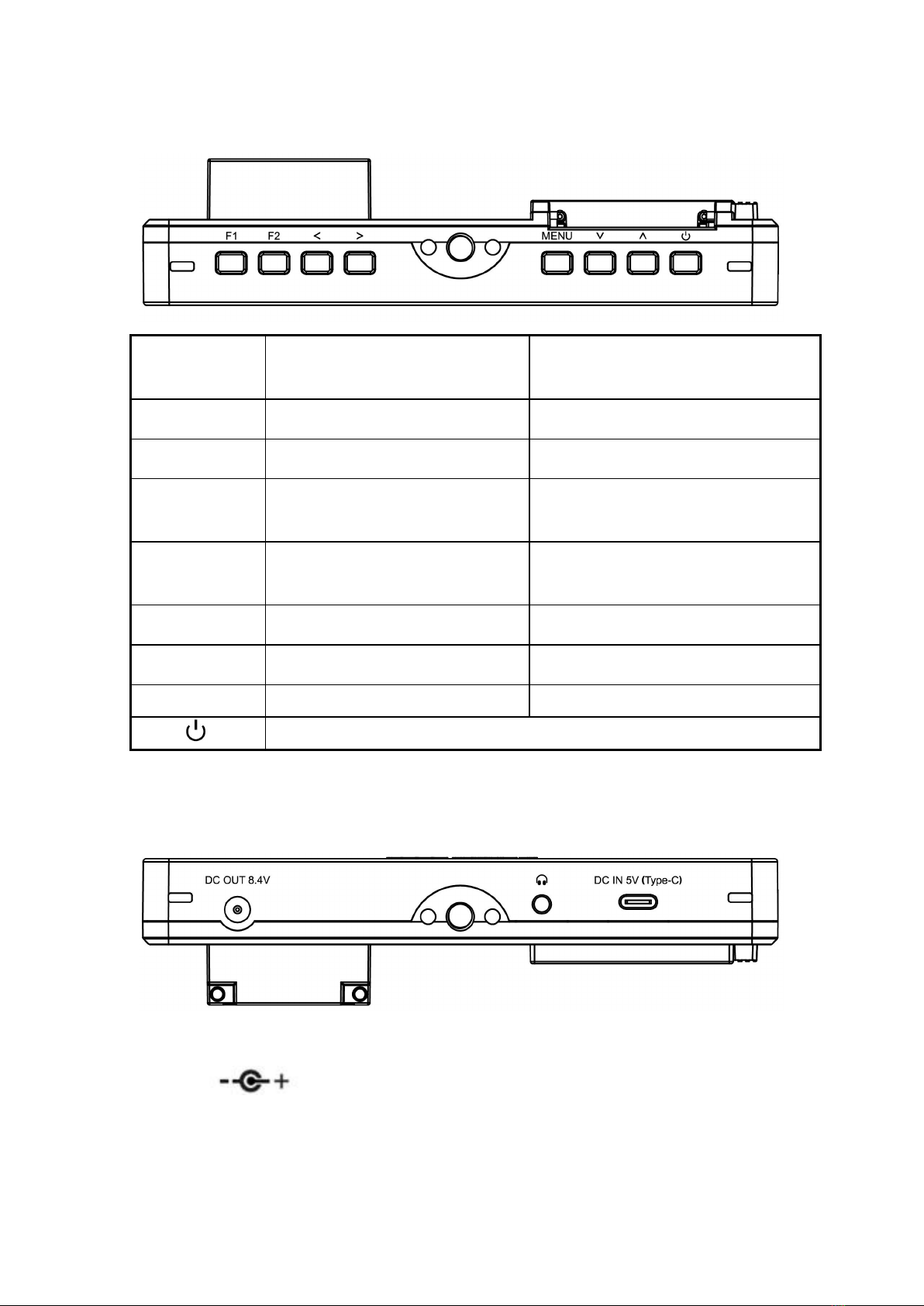

1.1 Button Instruction
Button
Function when OSD is not
displayed
Function when OSD is
displayed
F1
Custom button F1
/
F2
Custom button F2
/
＜
Decrease the volume or
backlight
Decrease or adjust value of
selected parameter
＞
Increase the volume or
backlight
Increase or adjust value of
selected parameter
MENU
Display OSD Main menu
Return to previous OSD menu
∨
/
Select next menu item
∧
/
Select previous menu item
Power On/Off button
1.2 Port Instruction (Bottom)
DC OUT 8.4V: DC power output interface, polarity as the output
power Barrel output for powering your camera with a
separately available DC coupler via adaptor (NP-FW50 Sony &
6
LP-E6 Canon&DMW-BLF19 Panasonic). More adapters coming
soon.
:3.5mm earphone port output
DC IN 5V (Type-C): Type-C power input. It is recommended to be
used for local power supply only. It is not recommended to connect
other devices to provide loop-out power.
1.3 Port Instruction (Left)
HDMI IN: V1.4, HDMI signal input, up to 4K@30Hz.
HDMI OUT: V1.4, HDMI signal output, up to 4K@30Hz.
DC IN 12V: DC power input, polarity as the input power
7
1.4 Power Supply Way
(1) The rear cover of the monitor is equipped with a F970 battery plate,
which is applicable to F970 series of batteries.
● Sony F970 battery plate for battery of Sony DV:
Sony F970 F960 F950 F930 F770 F750 F730 F570 F550 F530
QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70
QM51D QM51 FM71 FM70 series
When using battery power supply: two power output interfaces (DC OUT
8.4V interface and external install and power kit) can be connected to other
device. When powering other device, it is recommended to choose a
battery with a larger capacity, so the longer the use time.
Remark: Please take off the battery from the monitor if you
don’t use the monitor in a long time.
(2) The left side of the monitor has a DC 12V input power port
(5.5mm outer, 2.1mm inner) and supports 7 ~ 24V wide voltage.
The DC power adapter needs to be purchased separately.
When using external adapter input: two power output interfaces (DC OUT
8.4V interface and external install and power kit) can be connected to
other devices. When powering other equipment, it is recommended to
equip at least 3A power adapter.
(3) The bottom of the monitor has a Type-C 5V input power port.
This port can be connected to the power bank for power supply and is not
used for data transmission; it is recommended to be used only for local
power supply, and it is not recommended to connect other devices to
provide loop-out power.
8
1.5 Sony F970 Install and Power Kit
A Sony F970 external install and power kit design is added to the back
of the monitor. The external kit can be used to install and install the
external equipment, like wireless transmitter, LED light, video
converter and others which can be powered by Sony F970 battery.
The kit has two cross grooves, you can adjust the position of the external
device by loosening 2 screws up and down / left or right, or install the kit
upside down. When you don't need the kit, you can loosen the screws and
remove the kit.
Note: Before disassembling the kit, make sure that the monitor is
turned off, and then remove the battery or power adapter.
(1) Just move the kit: Loosen 2 screws, and then adjust up / down / left / right.
(2) Remove the external device: After the plug-in device is installed on the kit, if
your plug-in device has a locking button, and it is more difficult to press it to
remove it by hand, then you can use our assisting tool to disassemble.
9
(3) Steps to remove the kit:
①. Loosen the 2 screws.
②. Use both hands to move the kit up.
③. Move the round holes to the corresponding 2 screws.
(You can also install the kit upside down.)
④. Then gently lift the kit upwards and carefully disassemble the 2P power cord.
⑤. Then remove the 2 screws.
(4) Install back to the kit: first screw the 2 screws back to the screw hole used to
install the kit on the back of the monitor, install the 2P power cable to the cutout,
then align the round hole of the kit with the screw, and then push the kit to the
screw at the center of the kit cross, then tighten the screws.
