Feelworld PVR733 Bedienungsanleitung
32ChannelAutoSearching
Wireless FPV Monitor with Dual Receiver
LCD Monitor（Built-in DVR）
User Manual
1
Product description：
Wireless FPV monitor with dual receiver (built-in DVR) LCD
monitor is a new multi-function product; adopts advanced
integrated circuits and high-quality new HD LCD monitor. It
integrates a high-sensitivity dual 5.8GHZ AV wireless receivers,
Aerial receiver, Video recorders, high-definition monitor, not only
can conduct on-site wireless receiver, video, but also can
seamless video, real-time image snapping and video playback.
The monitor build-in battery, if you don’t install the battery, you can
use the 9~18V power supply or use the battery plate for external
power supply. The Monitor casing compact, easy to operate, can
be used for FPV ground station, car video monitors(tachograph),
security monitoring, baby monitors, photography viewfinder,
construction site video surveillance, advertising and other venues.
To insure best use of the unit, please read the
user’s manual carefully.
CAUTION
1. Do not use any damaged or leaking battery and please replace
the battery immediately if its working life becomes short
significantly.
2. Do not expose this product to direct sunlight, heat or humid
conditions.
3. Keep away from strong light while using this product so as to
obtain the clearest and the most colorful picture. Please use sun
shade for the outdoor necessary.
4. Please avoid heavy impact or drop on the ground.
5. Do not use chemical solutions to clean this unit. Please simply
wipe with a clean soft cloth to keep the brightness of the surface.
6. Without adjustable component in the unit, please do not take
apart or repair the unit by yourself, to avoid damage the product.
2
Product Feature:
●Dual antenna receiver, high-sensitivity, strong anti-interference
●Set DVR, 5.8G wireless receiver, a monitor for the integration of
multi-functional combination machine, compact, suitable for a
variety of purposes
●Real-time image snap and keep the beautiful memory
●DVR seamless video, save the latest data
●Motion detection recording, save memory space
●5.8G wireless receiver, 32 Channel Auto Scan, effectively
avoid signal interference
●High brightness, contrast, anti-glare screen with a sun shade, sun
clearly visible
●With VIDEO input, output, HDMI input, suitable for a variety of
sources. Can be used as video, photography Viewfinder,
advertising machine
●Color Control Systems support, enter the menu to manually
Select the appropriate format, and adaptable
●Front headphone listening to playback of audio effect
●Build-in battery and optional battery plate, can be equipped with a
variety of battery, No power to facilitate use of the site in country
●With VIDEO signal output function, can be used as video
Playback DVR host, connecting multiple monitors
●Check Field
●Picture Screen Markers and Centre Markers
3
CONTENTS
1. Product description ------------------------------------ 4
2. DVR (Video) Operation instruction-------------- 8
3. Wireless transmission receive operation ---- 18
4. Operation instructions -------------------------------- 20
5. Sun shade installation--------------------------------- 27
6. Power Supply ----------------------------------------------- 29
7. Parameters ------------------------------------------------- 32
8.
Trouble shooting ---------------------------------------- 33
4
1. Product description:
1.1Front view:
1、Video Indicator
2、Power Indicator
★3～8 DVR operation button
3、SC.SHOT: Real-time images snapping
4、REC/OK: Recording start, stop/ function confirm
5、MODE: Mode key to enter/ exit the playback mode
6、MENU: Menu key to enter/ exit the DVR (Video) menu
mode
7、: UP button, up one option
8、: Down button, down one option
★ 9～12 monitor operation button
5
9、：Multi button for UP /Channel Selection /Search
/ Volume up. Press this button for channel selection, long
pressing for channel auto searching. In OSD for “UP”
button, Volume up
10、: Multi button for DOWN /Channel Selection
/Volume down. Press this button for channel selection
from “A、B、E、F”. In OSD for “DOWN” button,
Volume down
11、: Menu key, under a signal input mode, pressing
this button to pop up the menu, and the current menu
and sub-menu item to confirm the adjustment
12、: Input signal selection or exit the menu
13、: Stereo earphone jack
14、LCD screen
6
1.2 Rear View:
1、VIDEO OUT: Composite video signal output
2、HDMI IN: HD HDMI signal input
3、VIDEO IN: Composite video signal input
4、USB data upgrade port
5、AUDIO IN: Audio signal input
6、Power switch “ ” Indicates that the power is turned
on, “○”means disconnect the power
7、Power input jack
8、Battery Pack
9、Speaker
10、Antenna connector
7
11、12：it is a screw hole for battery plate, when you use
battery external,11 is“+”，12 is“-”,Copper Screw
size:M3×9.5mm
A：Battery plate locking screw hole, 4 holes, Copper
Screw size: M3×5.0mm
B:75×75mmVESA, Screw size: M4×5.0mm
1.3 TF Card Slot：
8
2. DVR (Video) Operation instruction:
When the monitor's "VIDEO-IN" and "AUDIO-IN" has access to
the appropriate signals or "RF" wireless receiver transmitter has
been reliably received video signal transmitted over and check the
TF card has been reliably into the slot (monitor the HDMI input,
there is no video function).
After the device is turned on, press “ ” to select
“DVR” channel, press “REC/OK”, then the monitor will be on “RF”
channel, if you would like to “VIDEO”, press “ ” again to
change to VIDEO.

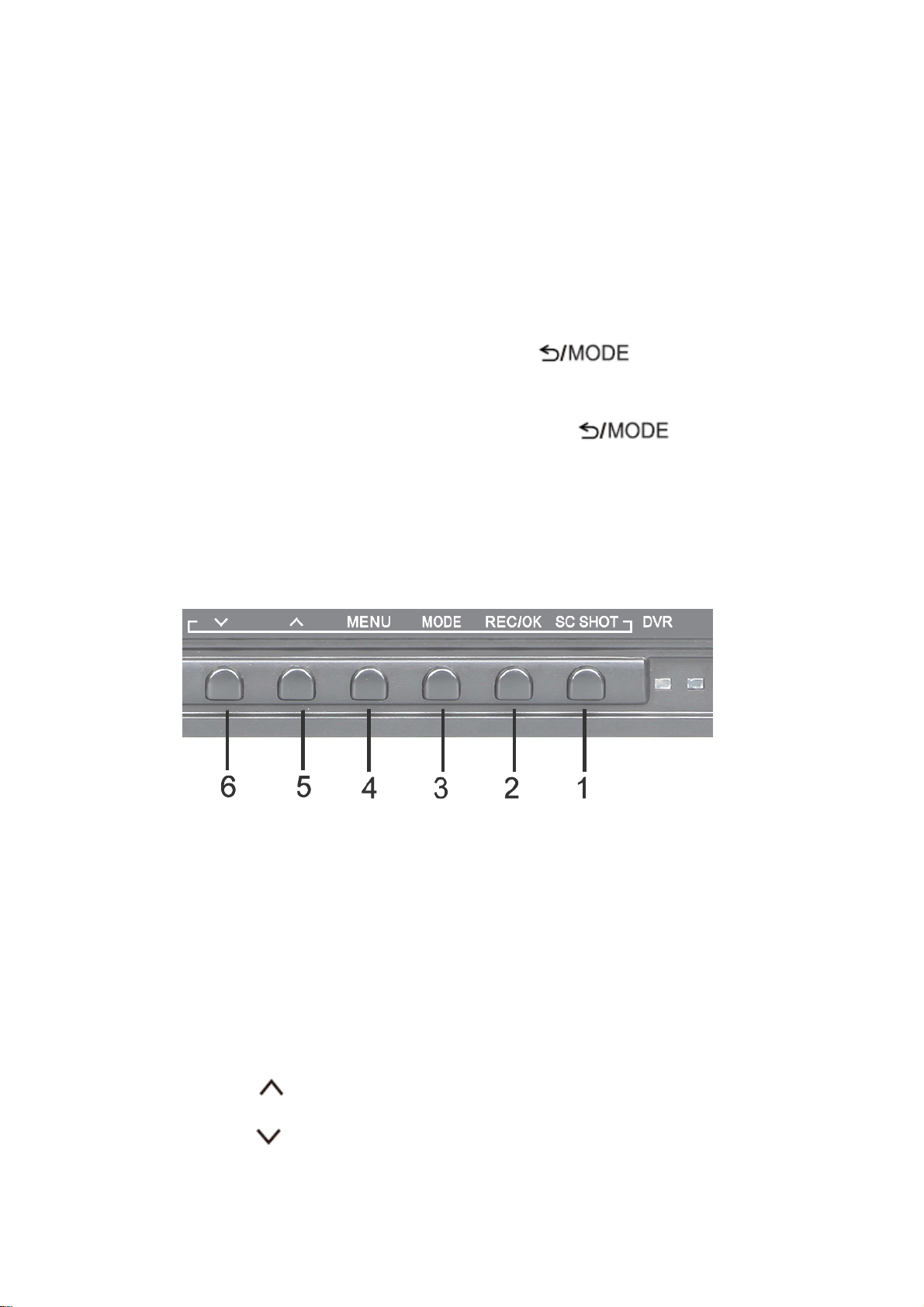

2.1 DVR (Video) button instruction：
1. SC.SHOT: Real-time images snapping
2. REC/OK: Recording start, stop/function confirm
3. MODE: Mode button to enter/ exit the playback mode
4. MENU: Menu key to enter / exit the DVR (Video) menu
mode
5. : UP button, up one option
6. ：Down button, down one option
9
2.2 Recording start：
The monitor input signal selection "DVR" (video signal) channel,
the monitor screen will display the “RF” channel of the screen,
press the "REC / OK" button will appear when the red flashing ,
meaning that start recording begins, the DVR default to RF channel,
if you would like to “VIDEO” channel, press to switch
(HDMI input without recording function). You want to stop the video,
press "REC / OK" button. Recording or recording by time period
paragraphs packaged storage.
2.3 Video playback：
When the video for some time, you need to playback video
effects observed, press "MODE" button at the top left appears ,
because the video store is packaged stored by time period, can use
“/ ”keys to go forward or backward to select playback file
package, select and press the "REC / OK" button to confirm, the
device begins to enter the playback mode. Playback with the ""
button to select the playback speed, return fast play with " " key
in order to exit. When fast playback is muted trumpet, playing at
normal rate for a voice broadcast.
2.4 Screen shot（SC.SHOT function）:
SC.SHOT means quickly grab its natural, vivid image, one of
the most expressive moments of operation process
