FeiYu Tech G5 Bedienungsanleitung

User Manual

3-Axis Stabilized Handheld Gimbal

Compatible with GoPro HERO5 / HERO4 / HERO3+ / HERO3 /

Yi Cam 4K / AEE etc.

GuiLin FeiYu Technology Incorporated Company

2016.12

V 1.2

All manuals and user guides at all-guides.com

all-guides.com

Long press the selﬁe button, the lens will rotate 180 °,

release to restore.

Self-timer button

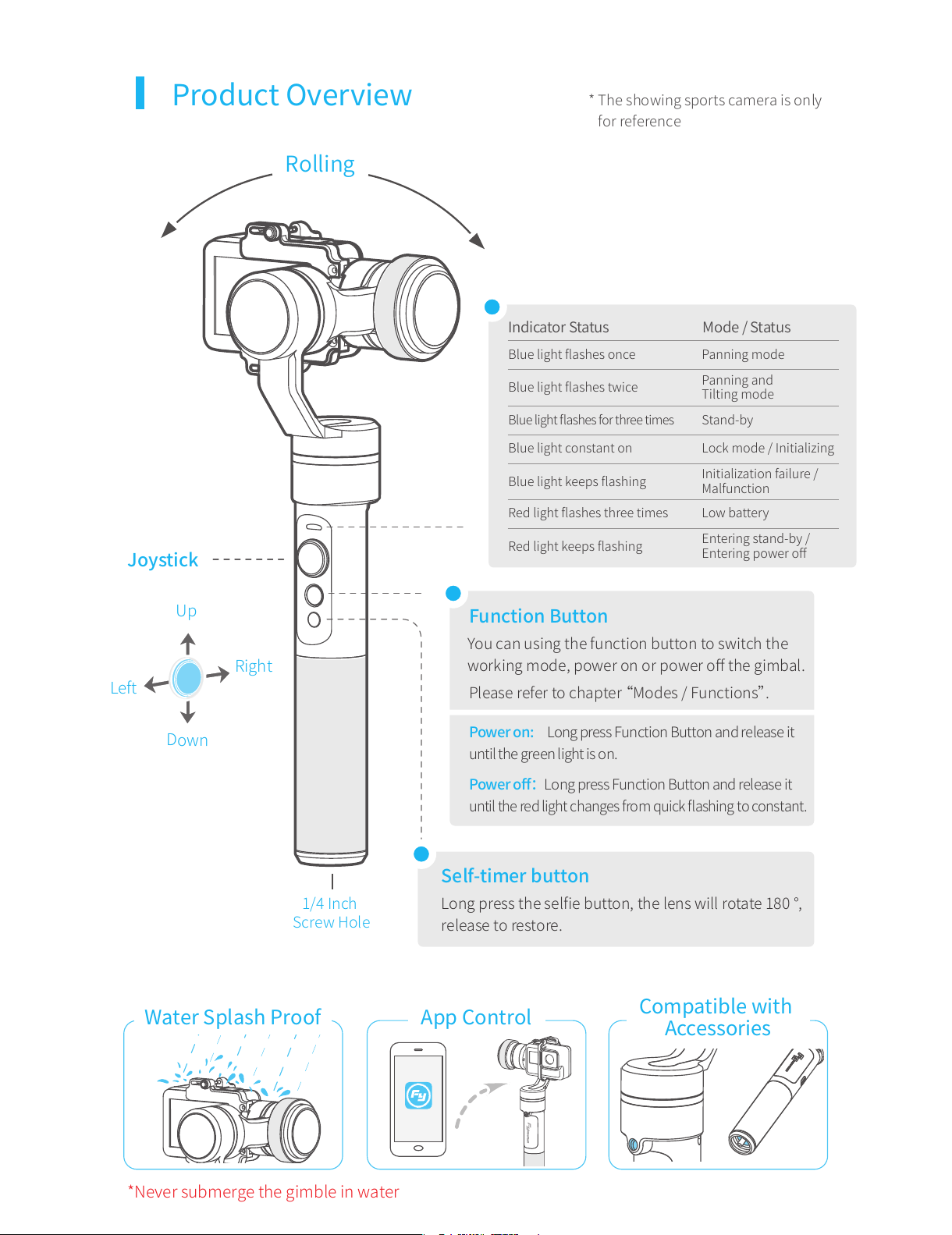

Product Overview

Joystick

1/4 Inch

Screw Hole

Rolling

Indicator Status Mode / Status

Blue light ﬂashes once

Blue light ﬂashes twice

Panning mode

Panning and

Tilting mode

Lock mode / InitializingBlue light constant on

Blue light keeps ﬂashing Initialization failure /

Malfunction

Blue light ﬂashes for three times Stand-by

Low batteryRed light ﬂashes three times

Red light keeps ﬂashing Entering stand-by /

Entering power oﬀ

Function Button

You can using the function button to switch the

working mode, power on or power oﬀ the gimbal.

Please refer to chapter “Modes / Functions”.

Power on: Long press Function Button and release it

until the green light is on.

Power oﬀ：Long press Function Button and release it

until the red light changes from quick ﬂashing to constant.

* The showing sports camera is only

for reference

Right

Down

Left

Compatible with

Accessories

App ControlWater Splash Proof

*Never submerge the gimble in water

All manuals and user guides at all-guides.com

Firmware upgrade

Firmware upgrade (1) Please visit the oﬃcial website www.feiyu-tech.com to download the

relevant programs for upgrading, including USB driver, ﬁrmware upgrade

software and product ﬁrmware, and install the relevant software,

decompress the ﬁrmware ﬁles for standby application.

Connect the USB cable with micro port as the above picture.

Please upgrade the relevant ﬁrmware according to the operation

instructions of ﬁrmware upgrade software.

(2)

(3)

Or use the FY Settings App for ﬁrmware upgrades.

Tilting

Panning

micro port

USB Cable

5V USB power adapter

(Equipped by user )

Upgrade........

After power oﬀ, connect the USB cable to USB port,

and connect with 5V USB power adapter (equipped

by user) by USB cable .

The red indicator light is on during charging, and

green light is on after the battery is fully charged.

Or take out the battery, and use the corresponding

charger(equipped by user) to

charge the battery . Charging

USB Port

Connecting App

1/4 Inch

Screw Hole

FY Settings

new ﬁrmware is available,

do you want to upgrade?

www.feiyu-tech.com

（2） Start the app on your smartphone, follow the instructions to connect the smartphone with

gimbal via Bluetooth.

（1） Please go to Apple app store to search "FY Settings" and then install it.

iOS version:

Android version:

Feiyu oﬃcial website

APP Store

FY Settings Open

FY Settings

GuiLin FeiYu Technology Incorporated Company

Firmware upgrade

Yes No

scan to down load

All manuals and user guides at all-guides.com

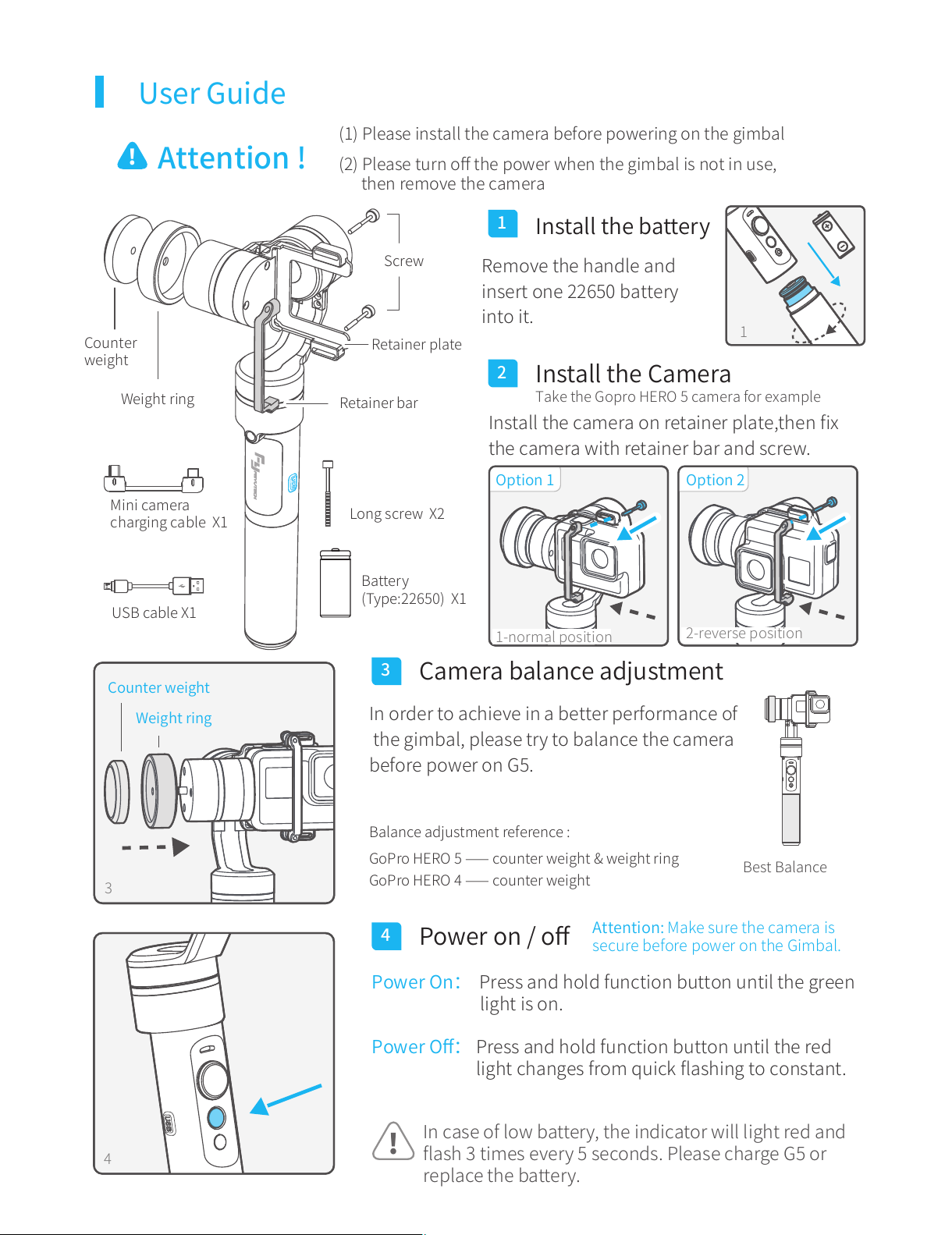

User Guide

1Install the battery

Remove the handle and

insert one 22650 battery

into it.

Install the camera on retainer plate,then ﬁx

the camera with retainer bar and screw.

2Install the Camera

4Power on / oﬀ

In order to achieve in a better performance of

the gimbal, please try to balance the camera

before power on G5.

3Camera balance adjustment

(1) Please install the camera before powering on the gimbal

(2) Please turn oﬀ the power when the gimbal is not in use,

then remove the camera

Attention !

Power On： Press and hold function button until the green

light is on.

Power Oﬀ： Press and hold function button until the red

light changes from quick ﬂashing to constant.

In case of low battery, the indicator will light red and

ﬂash 3 times every 5 seconds. Please charge G5 or

replace the battery.

Attention: Make sure the camera is

secure before power on the Gimbal.

Best Balance

Balance adjustment reference :

GoPro HERO 5 ⸺ counter weight & weight ring

GoPro HERO 4 ⸺ counter weight

USB cable X1

Long screw X2

Mini camera

charging cable X1

Screw

Battery

(Type:22650) X1

Retainer bar

Counter

weight Retainer plate

Option 1 Option 2

Take the Gopro HERO 5 camera for example

1-normal position 2-reverse position

Counter weight

Weight ring

All manuals and user guides at all-guides.com

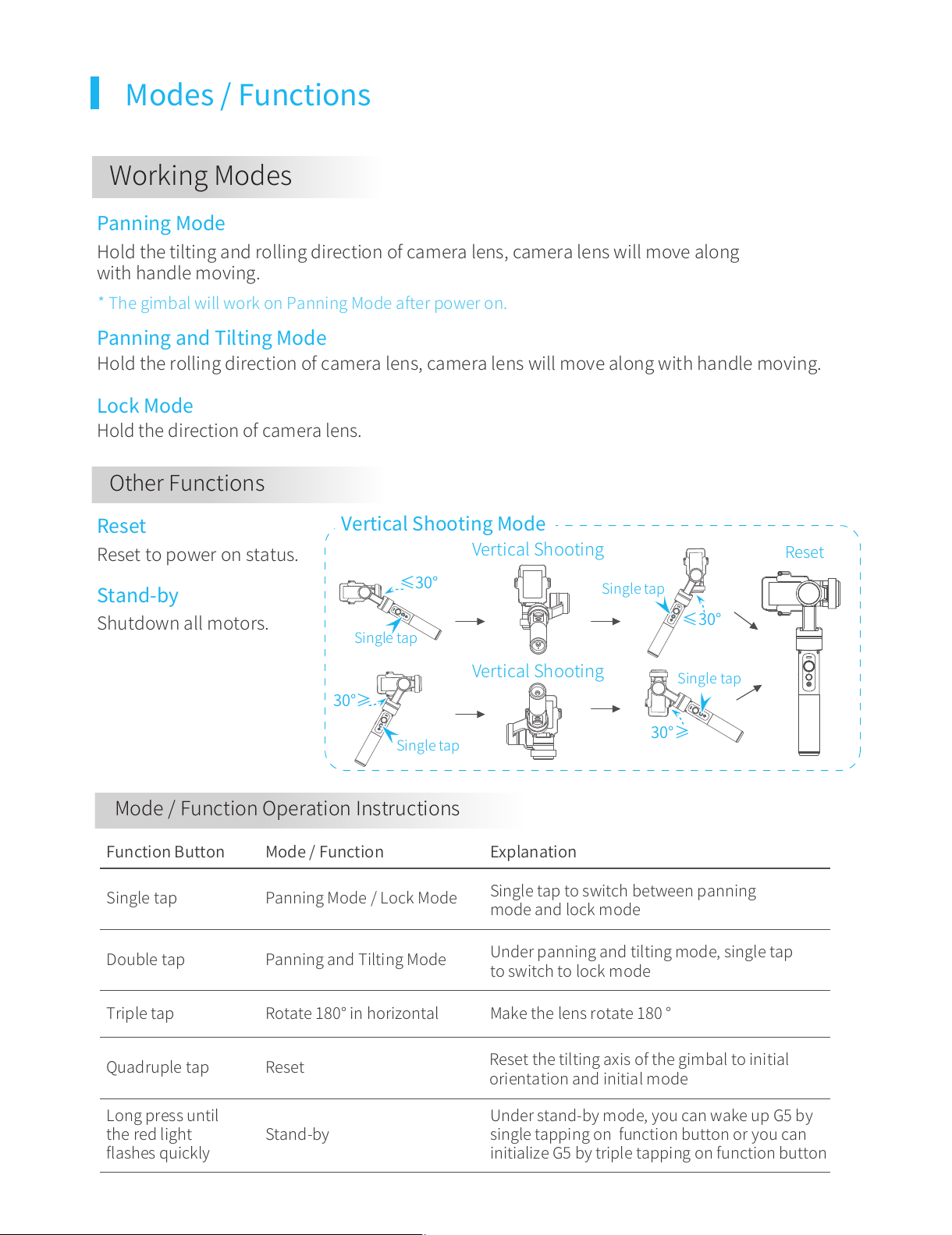

Modes / Functions

Working Modes

Reset

Stand-by

Other Functions

Mode / Function Operation Instructions

Shutdown all motors.

Hold the direction of camera lens.

Panning Mode

Hold the tilting and rolling direction of camera lens, camera lens will move along

with handle moving.

Panning and Tilting Mode

Hold the rolling direction of camera lens, camera lens will move along with handle moving.

Lock Mode

* The gimbal will work on Panning Mode after power on.

Reset the tilting axis of the gimbal to initial

orientation and initial mode

Function Button

Double tap

Single tap

Mode / Function

Explanation

Panning Mode / Lock Mode

Panning and Tilting Mode

Triple tap

Single tap to switch between panning

mode and lock mode

Under panning and tilting mode, single tap

to switch to lock mode

Rotate 180° in horizontal Make the lens rotate 180 °

Quadruple tap Reset

Long press until

the red light

ﬂashes quickly

Under stand-by mode, you can wake up G5 by

single tapping on function button or you can

initialize G5 by triple tapping on function button

Stand-by

Reset to power on status.

≤30°

Single tap

30°≥

Vertical Shooting

Vertical Shooting Mode

Vertical Shooting Reset

All manuals and user guides at all-guides.com

7985

246

143

360°

245°

360°

min 2°/s max 75°/s

min 3°/s max 150°/s

Gimbal initialization

You can initialize your gimbal when:

（1） Camera is not level

（2） Haven been used for long time

（3） Big variation of ambient temperature

44.7

11.3

4.9

Parameters Unit: mm

Titling Angle

Rolling Angle

Panning Angle

Adaption

Weight

and other cameras

with the same size

GoPro HERO5 / HERO4 / HERO3+ / HERO3 / Yi cam 4K / AEE

271g （Not including battery, camera or counter weight ）

Titling Increments

Panning Increments

Usage time 8 Hours

16.5～29

Flash

1 2 3

Stands on table

press and hold

Press and hold Triple tapTriple tap

Blue light ﬂash

three times quickly

Initialization

successful

Adjusting steps:

Light on

All manuals and user guides at all-guides.com

all-guides.com

[ MANUAL AUDIO CONTROL ] Wind Only

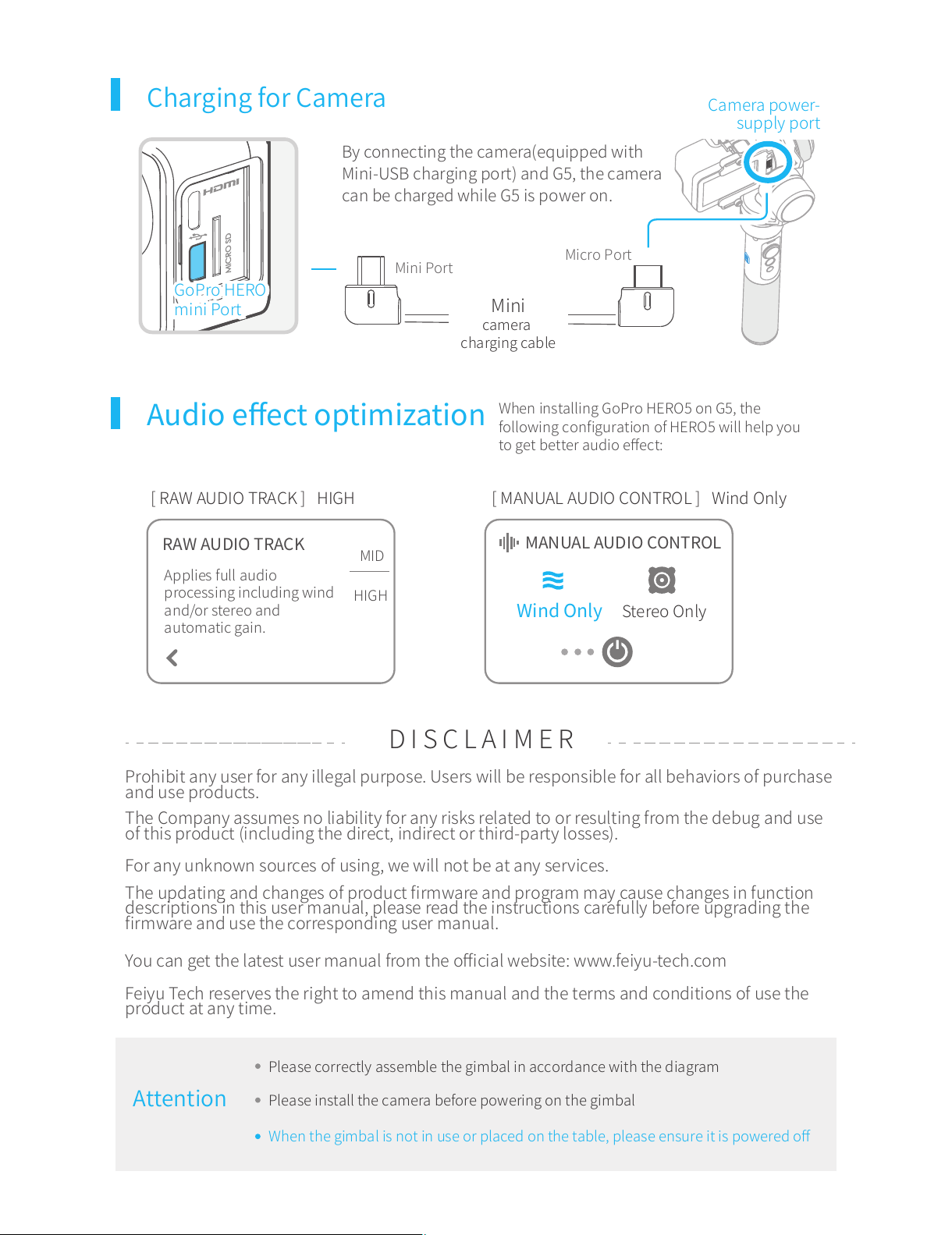

By connecting the camera(equipped with

Mini-USB charging port) and G5, the camera

can be charged while G5 is power on.

Mini

camera

charging cable

Mini Port Micro Port

Audio eﬀect optimization

Charging for Camera 相机供电接口

Wind Only

MANUAL AUDIO CONTROL

[ RAW AUDIO TRACK ] HIGH

RAW AUDIO TRACK

When installing GoPro HERO5 on G5, the

following conﬁguration of HERO5 will help you

to get better audio eﬀect:

Applies full audio

processing including wind

and/or stereo and

automatic gain.

HIGH

MID

GoPro HERO

mini Port

GoPro HERO

mini Port

Camera power-

supply port

DISCLAIMER

Attention

Please correctly assemble the gimbal in accordance with the diagram

When the gimbal is not in use or placed on the table, please ensure it is powered oﬀ

Please install the camera before powering on the gimbal

Prohibit any user for any illegal purpose. Users will be responsible for all behaviors of purchase

and use products.

The Company assumes no liability for any risks related to or resulting from the debug and use

of this product (including the direct, indirect or third-party losses).

For any unknown sources of using, we will not be at any services.

The updating and changes of product ﬁrmware and program may cause changes in function

descriptions in this user manual, please read the instructions carefully before upgrading the

ﬁrmware and use the corresponding user manual.

You can get the latest user manual from the oﬃcial website: www.feiyu-tech.com

Feiyu Tech reserves the right to amend this manual and the terms and conditions of use the

product at any time.

Stereo Only

All manuals and user guides at all-guides.com

www.feiyu-tech.com

Create More Possibilities

For more information, please visit our oﬃcial website: www.feiyu-tech.com

Support Email: service@feiyu-tech.com

This product is due to follow-up hardware and software updates may occur

description of the introduction does not match the actual product features.

You can get the latest user manual from the oﬃcial website
