3-Axis Stabilized Handheld Gimbal
Compatible with GoPro HERO5 / HERO4 / HERO3+ /
HERO3 / Yi Cam 4K / AEE etc.
1. Product Overview
* The showing sports camera is only for reference
[1]
[3]
[4]
[5]
[6]
[2]
1
[9]
[8]
[7]
[10]
[11] Counter weight
[12]
[12] Weight ring
[13]
[13] Thumb screw
[14]
[14] Retainer plate
[15]
[15] Retainer bar
[16]
[17]
[16] USB interface
[17] Trigger button
[2] Rolling axis
[3] Status indicator
[4] Joystick
[5] Function button
[6] Self-timer button
[7] Titling axis
[8] Vertical arm
[9] Panning axis
[10] Handle
[1] Cross arm
[11]
USB cable X1 Battery
(Type:22650) X1
Mini camera
charging cable X1 Thumb screw X2
HERO 5 camera
charging cable X1 Portable bag X1
App Control Compatible with
Accessories
*Never submerge the gimbal in water
2
Water Splash Proof
Package List
3
2. User Guide
Attention: Please complete the following instructions before powering on the gimbal.
1 2
Install the camera on retainer plate,then fix the camera with
retainer bar and screw.
Install the Camera
Take the Gopro HERO 5 camera for example
option 1
2-倒装
option 2
Install the battery
Remove the handle and insert
one 22650 battery into it.
1-normal position 2-reverse position
3
In order to achieve in a better performance of the
gimbal, please try to balance the camera before
powering on G5.
Balance adjustment reference :
GoPro HERO 5 ⸺ counter weight & weight ring
GoPro HERO 4 ⸺ counter weight
Best Balance
Camera balance adjustment
weight ring
counter weight
4Power on / off
Power On：
Press and hold the function button
until the green light comes on and
you hear the tone.
Power Off：
Press and hold the function button
until the red light changes from
quick flashing to constant and you
hear the tone.
In case of low battery the indicator
light will flash red three times every
5 seconds. Please charge gimbal or
replace the battery.
!
Attention: Make sure the camera is secure before
powering on the Gimbal.
4
3. Modes / Functions
Function Button
Two taps
One tap
Function Explanation
All follow
Three taps Rotate horizontal 180° Make the lens rotate 180 °
Mode / Function Operation Instructions
5
Trigger Button
In the panning follow or all follow, press and hold the button to enter the
locking mode, release it to return previous mode
Two taps Panning Reset
Long press Locking Mode
Function Explanation
Explanation of LED indicator status
The current mode of the gimbal can be identified by the
indicator status.
Indicator
status Mode / Status
Blue light flashes once
Blue light flashes twice
Panning follow
All follow
Locking mode / Initialize the gimbal
Blue light constant on
Blue light keeps flashing
Initialization failure / Malfunction
Low battery
Red light flashes three times
Red light keeps flashing
Entering power off

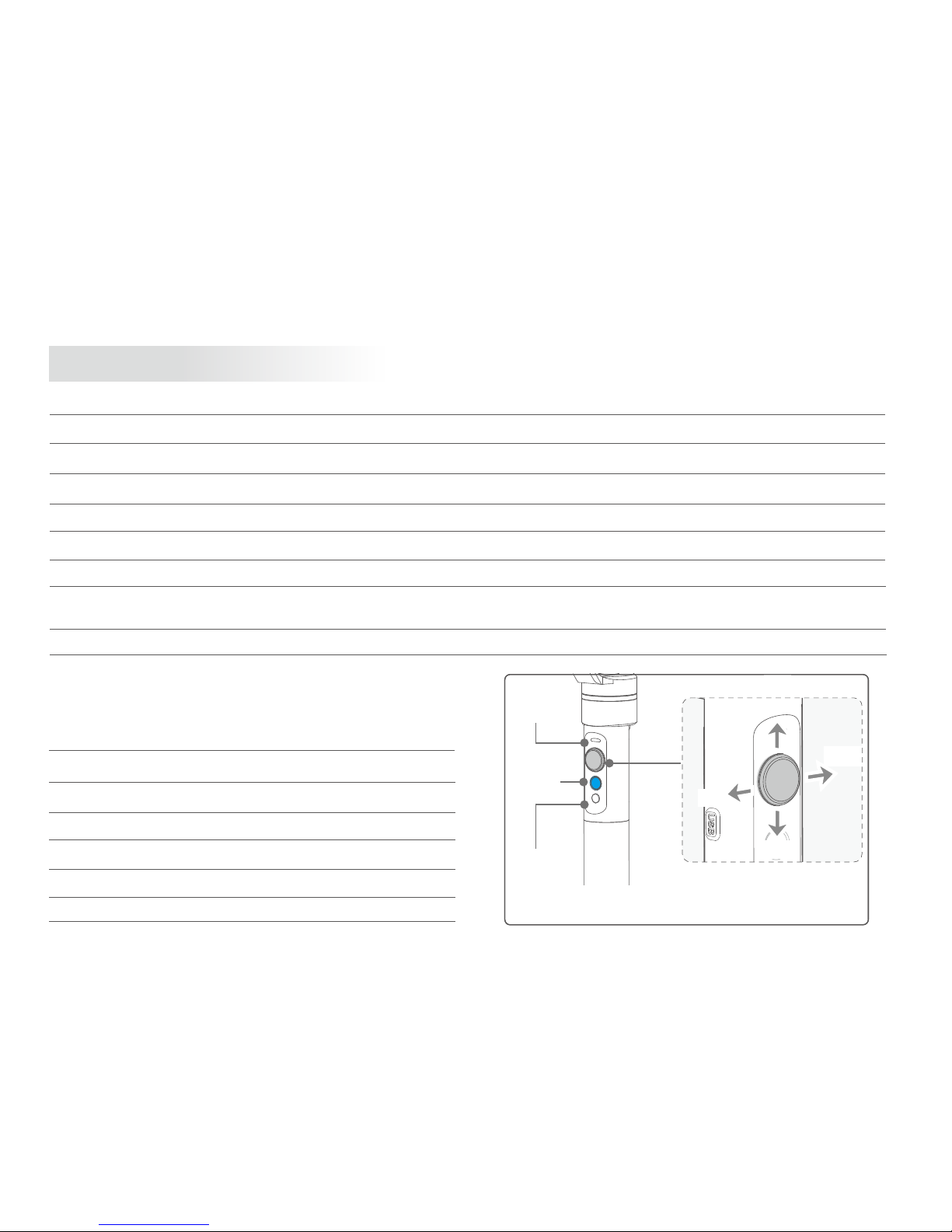

Explanation of joystick control
Function
Button
Self-timer
button
Up
Status
indicator
Left
Right
Down
Long press the self-timer button, the lens will rotate 180 °,
release to restore.
Four taps Quadruple taps to enter autototation mode
Autorotation Mode
Five taps Initialization Five taps to automatically enter initialization
Panning follow / Locking Mode Single tap to switch between panning follow and locking mode
Under all follow, single tap to switch to locking mode
Restore the initial follow state of the panning follow
The orientation of the camera is fixed.
Working Modes
Panning follow
All direction are fixed, and the camera lens moves
according to the hand movement directionof the user.
All follow
The rolling direction is fixed, and the camera lens
moves according to the hand movement direction
of the user.
Locking Mode
Return to panning follow, all to return to default.
Reset
*The gimbal will work in panning follow after powering on.
Reset
≤30°
≤30°
Single tap
Single tap
Single tap
Single tap
30°≥
30°≥
Vertical Shooting
Vertical Shooting
Vertical Shooting Mode
When installing GoPro HERO5 on G5, the following configuration of HERO5 will help you to get better audio effect:
[MANUAL AUDIO CONTROL] Wind Only
Audio effect optimization
Wind Only
MANUAL AUDIO CONTROL
[RAW AUDIO TRACK] HIGH
RAW AUDIO TRACK
Applies full audio processing
including wind and/or stereo
and automatic gain.
HIGH
MID
Stereo Only
6
7
Tilting
Tilting
Panning
Panning
Exit operations:
1.Click the function button to exit the autorotation mode during automatic rotation and reset the gimbal.
2.Enter the autorotation mode or autorotation setting, four times click the function button to exit the autorotation mode and reset the gimbal.
gimbal speed setting reference table
Annexed parameter table：
Autorotation Mode
Note: Both the panning and tilting directions can be rotated.
1.Four taps on function button, gimbal will access the autorotation mode .
2. Set the gimbal rotetion start position: Pull the tilting axis or panning axis to the start position by hand,clicking the function button to record.
3. Set the gimbal rotetion end position:Pull the gimbal (which can be rotated more than one turn) to the rotation path you want to set, and
then click the function button to record the end position .
4.The gimbal will go to the start position and start the automatic rotation.
Using the gimbal autorotation function with a camera, timelapse photography functioning can be used to achieve special movement timelapse
photograpy.use the Feiyu ON App for control the speed setting .
1.Four taps on function button,
gimbal will access the autorotation
mode setting.
2. Turn the panning axis or
tilting axis to the start position
and hold for half a second.Click
on function button to record
the start position .
3 .Turn the panning axis or tilting axis
to the end position and hold for half
a second.Click on the function button
to record the end position .
4.Gimbal will recover to
start position automatically.
Tilting axis and panning
axis turn to end position
at constant speed.The
gimbal is automatically
reset after the end.
12
8
Manual Lock
Hold the camera and change its angle in
tilting axis direction.
Keep this position for half second, the
current angle will be locked manually.
Pull to the required angle and hold for half a second to lock in that position.(The tilting axis and panning axis
in the locking mode can be manual locking .The tilting axis can be manually locked in the panning follow.)
Take the tilting axis as an example :
?
G5
G5
?
G5
360°
9
4. Download and connect App
1
2
* Use the browser to scan two-dimensional code can
be downloaded the App directly
App Store
Download " Feiyu ON " and install it.
(1) iOS version: (2) Android version:
Google play
Feiyu ON Download
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
Connecting App
Start the App on your smartphone,follow the instructions to connect the smartphone with gimbal via bluetooth.
Feiyu ON Download
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
FY_G5 _XX
Choose a gimbal
FY_XXX_XX
FY_XXX_XX
FY_XXX_XX
×
Connect Connect
