Fermax DETECTA-6 Bedienungsanleitung
Pag 1
DETECTA-6
DETECTA-6
ENGLISH
Pag 2
DETECTA-6
DETECTA-6
Code 97072EIb V11_06
Technical publication of an informative nature, edited by FERMAX ELECTRÓNICA S.A.E.
FERMAX ELECTRÓNICA S.A.E., in a policy of ongoing improvement, reserves the right to modify the
contents of this document and the features of the products cited at any time and with no prior notice.
Any modification shall be reflected in subsequent editions of this document.
‘’DETECTA-6 INSTALLATION MANUAL’’
Pag 3
DETECTA-6
DETECTA-6
INDEX
ENGLISH
INTRODUCTION ............................................................................................................ 4
REGULATIONS .............................................................................................................. 5
INSTALLATION CONDITIONS AND TIPS ...................................................................... 7
DETECTA-6 CENTRAL CONFIGURATION ..................................................................... 13
EQUIPMENT INSTALLATION AND CONNECTION DIAGRAMS ..................................... 17
Power supply installation ......................................................................................... 18
Outdoor panel installation ........................................................................................ 18
Panel settings ........................................................................................................... 19
Monitor installation (ADS y 4+N) .............................................................................. 20
ADS Monitor Programming ...................................................................................... 20
ADS Telephone programming and installation ...................................................... 21
Central installation ................................................................................................... 21
Wiring diagramas ..................................................................................................... 22
ADS Detecta-6 installations wiring diagrams .................................................... 23
Wiring diagram of the Detecta-6 1-line ADS Video-entryphone Kit ................................ 24
Wiring diagram of the Detecta-6 1-line ADS Building Video-entryphone Kit. ................. 26
Wiring diagram with Detecta-6 ADS Telephone .............................................................. 28
Wiring diagram with Detecta-6 ADS Telephone and Monitor .......................................... 30
4+N/MDS Detecta-6 installations wiring diagrams ............................................ 33
Wiring diagram with 4+N/MDS Detecta-6 Monitor ........................................................... 34
Relay connection diagram ................................................................................... 36
Microphone-Loudspeaker connection diagram ................................................. 36
TECHNICAL FEATURES ................................................................................................ 37
INSTALLATION CHECKING PROTOCOL ...................................................................... 39
INCIDENTS AND SOLUTIONS TABLE .......................................................................... 43
Pag 4
DETECTA-6
DETECTA-6
INTRODUCTION
Detecta-6 is an electronic video entry system incorporating alarm central functions, with
the option of connection to an alarm reception central.
The Detecta-6 system comes with a basic factory configuration that covers most of the
installations to be carried out, although it can be modified to adapt to the specific needs
of any installation.
This manual describes the initial factory configuration.
The main features of the system are:
- 6 wired zones, with pre-assigned functions:
· Zones 1, 2 and 3: Presence detection zones.
· Zone 4: Smoke detection zone.
· Zone 6: Flood detection zone.
- 2 independent areas.
- 8 connection / disconnection codes (1 service code).
- Fast connection function.
- Up to two entry / exit routes, with selection of 2 entry times and 1 exit time.
- 1 main output by MOSFET.
- 1 PGM output by transistor.
- Real time clock.
- 4 relay outputs with schedule programmer.
- Dynamic battery test.
- Memory for up to 125 events. Date and time. Complete visualisation of events.
- Telephone line network fault or cut detection.
- Events sent to Reception Central, with most standard protocols. 2 telephones.
- Two-way remote and local.
- Sending programmable voice messages to private telephone. 8 telephones.
- Telecontrol by means of DTMF commands.
- Listen / Talk in hands-free mode.
- Reproduction of zone and output messages by loudspeaker, special disconnection
mode.
- Recording of messages from telephone/keypad.
- Programmable audio volume.
Pag 5
DETECTA-6
DETECTA-6
REGULATIONS
Pag 6
DETECTA-6
DETECTA-6
REGULATIONS
Installation and Maintenance of Security Equipment, Devices and Systems.
1.- Only authorised companies may carry out operations of installation and maintenance
of electronic security systems against robbery, intrusion and fire.
Provision to third parties of services of reception and verification of alarm signals and
their communication to the Security Forces and Organisations must be effectuated by
security firms using the alarm central.
2.- The installation of automatic diallers to transmit alarms directly to the facilities of the
Security Forces and Organisations is strictly forbidden.
3.- Alarm and security devices installed must comply with safety regulations, preventing
harm or inconvenience to third parties (Detecta-6 equipment complies with current
legislation).
4.- Once the installation has been carried out by authorised personnel, the installer
company shall carry out the necesssary checks to ensure that its preventive aim is fulfilled
(this manual includes the checking protocol).
5.- In the event of connection to an alarm reception central, the company contracted shall
be responsible for carrying out revisions, maintenance etc. of the system in accordance
with the time scales indicated in the contract.
6.- If using the system as a personal detection system, not connected to an alarm
reception central, an initial certification of the system by the authorised installer will be
necessary, as well as periodic revision and maintenance (a maintenance handbook is
included for monitoring of the revisions of the Detecta-6 system).
The equipment is designed and manufactured to comply with all the health and safety
requisites derived from the following European Directives:
This Declaration ceases to be valid as soon as any modifications are made to the product
without our consent.
Equipment destined for use in a residential, commercial and light industrial environment.
89/336/ EEC General directive on electromagnetic compatibility.
73/23 EEC Low voltage directive.
93/68 EEC Modification of directive 73/23/EEC.
EN 50 131 Intrusion alarm system requirements.
EN 50 136-1 Alarm transmission systems.
EN 300 220 Unlicensed low power radio equipment.
TBR21 Access to switched telephone network.
Detecta-6 Central Compliance with Regulations
Pag 7
DETECTA-6
DETECTA-6
INSTALLATION CONDITIONS AND TIPS
Pag 8
DETECTA-6
DETECTA-6
FERMAX ELECTRÓNICA, S.A.E. certifies its products under the following conditions:
· The system has been certified connecting the FERMAX Detecta 6 central to a grounded
power source.
· Cable length between the RS-232 pins of the circuit and the computer communication
interface must not exceed 1 metre.
· Compliance with regulations has been certified with the use of screened cable in all
the inputs of the product (zones, keypads, outputs...).
· The TBR21 recommendations for access to the Public Switched Telephone Network
have been followed in the design of the telephone section.
· This equipment is in accordance with the features of the Telefónica S.A interface for
switched analogue network.
INSTALLATION CONDITIONS AND TIPS
Outdoor Panel
Must be sufficiently protected against damp and other atmospheric agents. In
permanently adverse weather conditions of strong rain or saline atmosphere, it should
be installed in a sheltered spot to prolong its useful life.
Monitor-Telephone
The wall where the monitor/telephone is installed must be smooth and consistent,
away from direct heat sources (radiators, heaters, etc..) or very smoky surroundings.
Power Supply
Install the power supply on a smooth and consistent surface, always indoors (house,
hallway, etc...) and protected against damp or manipulation.
Central
Install the central, along with the battery, in an indoor inspection closet in the home,
preventing access to the equipment by unauthorised persons. Installation in a cupboard
under lock and key is recommended.
Electronic Equipment Installation Tips
Pag 9
DETECTA-6
DETECTA-6

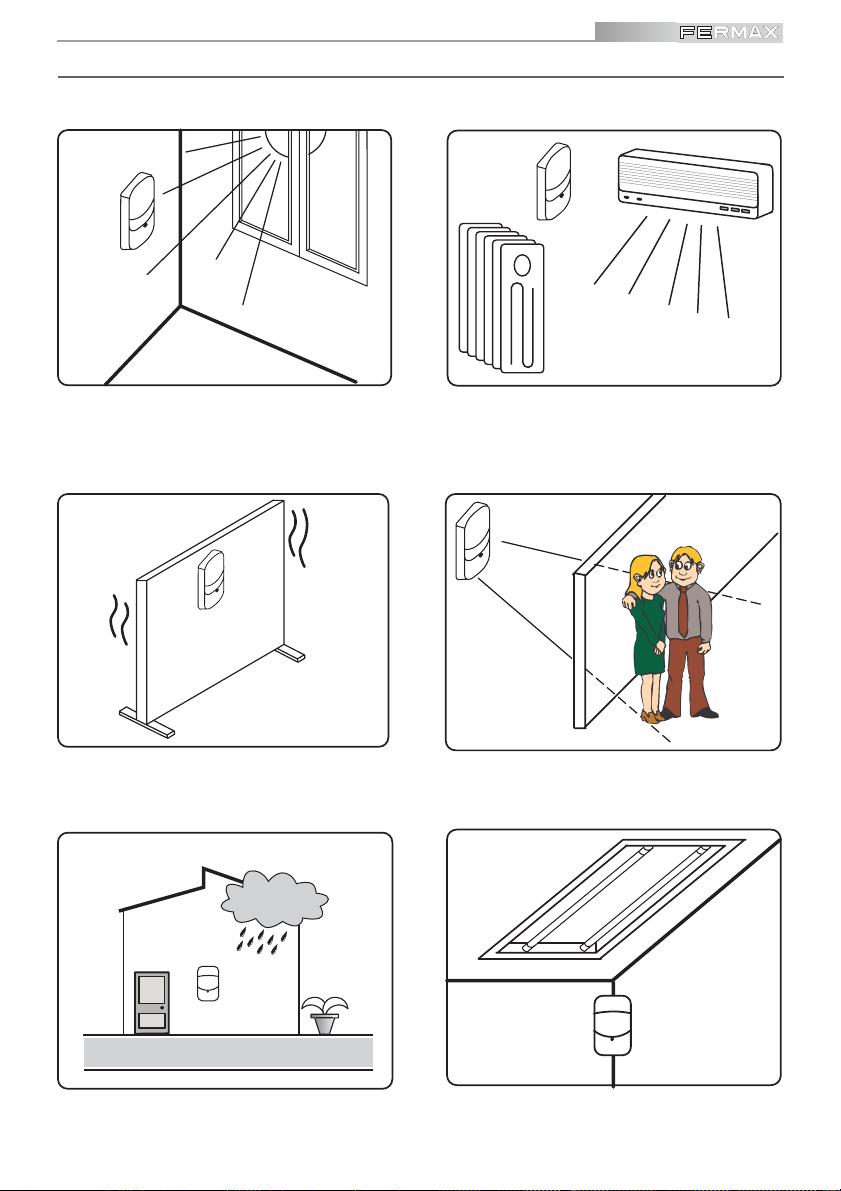

Avoid direct sunlight on the sensor. Avoid placing the sensor where there are
draughts, where they may be detected,
caused by ventilators or airconditioning.
Do not install in places near fluorescent
light tubes.
Avoid curtains, partitions, etc.. that may
block the detection area.
Do not install outdoors.
Do not place in unstable positions, where
vibrations or blows may affect the sensor.
Presence Detectors (Intrusion)
INSTALLATION TIPS FOR DETECTORS
Pag 10
DETECTA-6
DETECTA-6
Avoid zones where steam or high humidity
may cause condensation.
Do not focus on outdoor
zones where there is
frequent movement.
Do not aim the sensor towards detection
zones with objects continually in movement
(blinds, curtains..).
Fit the water sensor to a wall or a flat surface
close to the area to be detected, with the
sensor contacts as near as possible to the
floor, but without touching it.
Flood Detectors
