INTRODUCTION

The VIDEO DIGITAL COLOR KIT is an advanced Video Door Entry

professional system for simplified installation (no call wires), specially designed

to be installed in bungalows or small residential complexes. It is basically made

up of an Outdoor Panel, which is installed outside the house, and a Color

Monitor, installed inside. Moreover, the corresponding Power Supply must be

installed in an inner place.

VERY IMPORTANT NOTES:

The Power Supply should be installed on a hard

and flat surface, as inside the buiding as in the lobby,

etc... but always in inner places. It can be installed in

a DIN box for electric switches.

Before installing the VIDEO DIGITAL COLOR KIT,

install the cables needed to Monitor (or monitors),

Outdoor Panel and Power Supply, following the

installation diagram.

To install the Monitor, choose a hard and flat

surface, far away from direct heat sources (radiators,

heaters, ...) or very smoky environments (kitchens,

etc.). We advise to install the Monitor in a place

where the call could be heard all inside the house.

The Outdoor Panel is protected against humidity

and atmosferical agents. In adverse conditions with

permanently hard rain or salty environment, it is

recommended to install the Panel with a hood or under

shelter. Strong light coming straight into the camera

(against the light) will produce contrast and/or

brightness losses.

Pag 27

VIDEO DIGITAL COLOR KIT manual

FLAT MONITOR

HIGH RESOLUTION

COLOR CAMERA

Only in installations withAUXILIARY COLOR CAMERA

KIT or ADDITIONAL COLOR VIDEO PANEL (optional).

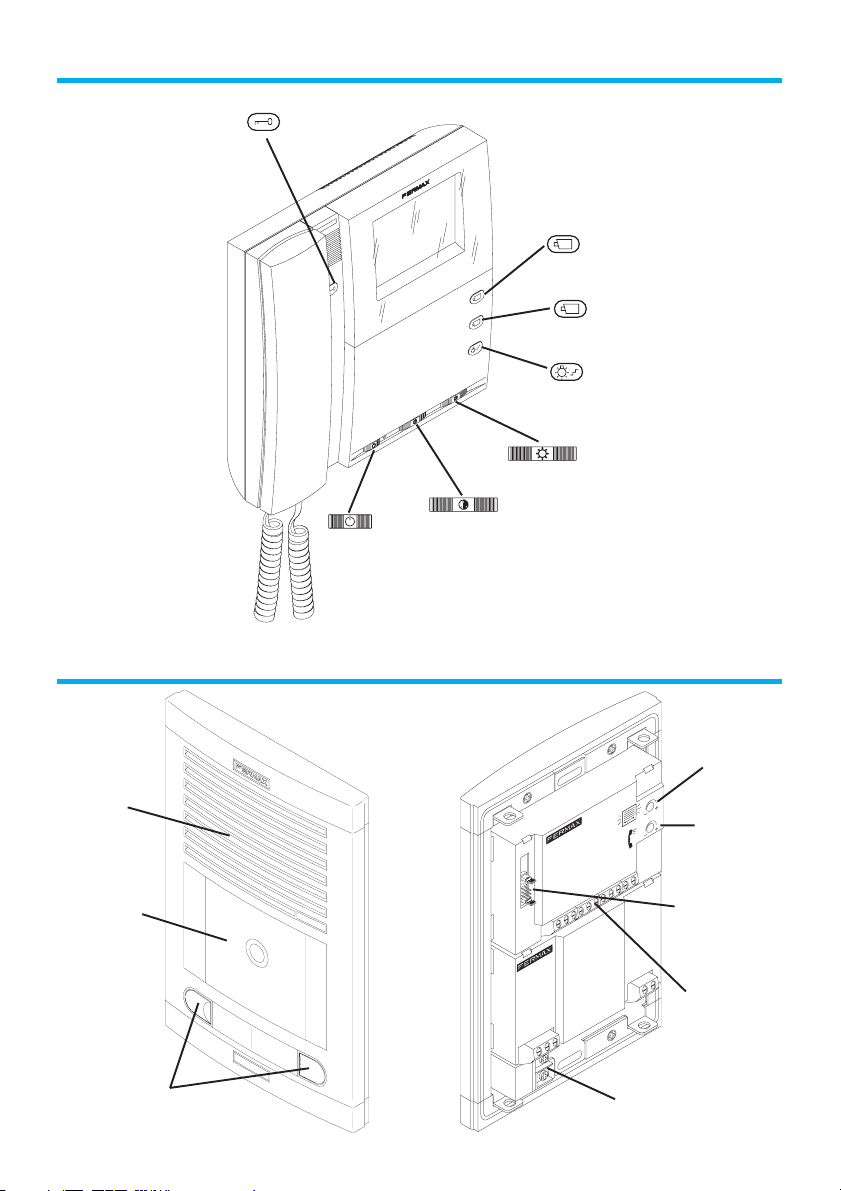

THE CITYMAX MONITOR

THE OUTDOOR PANEL

AMPLIFIER

mesh

Terminals for

CONNECTION

DOOR RELEASE

push button

2nd CAMERA

connection

BRIGHTNESS

control

COLOR

control

ON/OFF

switch

AUTO SWITCH-ON

push button

STAIRS LIGHT

push button

COLOR

CAMERA

module

CALL

Push buttons

CONFIGURATION

jumpers

Volume for

MONITOR

Volume for

OUTDOOR PANEL

PUSHBUTTON

connector

Pag 28

3.Once the wires are connected, plug in

the connector and place the Monitor as

shown above: 1 - 2 - 3 .

90º

FLAT MONITOR

HIGH RESOLUTION

FLAT MONITOR

HIGH RESOLUTION

4.To unhook the Monitor, insert the screw-

driver in the notch , turn it a few degrees

and slide up the Monitor.

Once the equipment is fully installed, the Monitor will need to be programmed

in order to assign it a call pushbutton. Follow the set up sequence shown in

page 32.

90º

1.60m

FROM THE

FLOOR

1.Use a plain screw-driver to separate the

base from the Monitor. Put it in, rotate

and slide the Monitor up.

2.Install the Monitor on a hard and flat

surface. Mark and drill the wall at the

holes in the base.

MONITOR INSTALLATION

The CityMax monitors allow a quick and easy installation, without neccesity

of doing any kind of building-work. Do not remove the screen protection film

until the Monitor is completely installed.

Pag 29

VIDEO DIGITAL COLOR KIT manual

1.7m

1.Before embedding the box, break the

flange where the cables will be passed

through.

2.Place the embedding box at the desired

height (1.7m aprox.). Make sure that the

box is totally flush with the wall.

OUTDOOR PANEL INSTALLATION

Follow the recommendations shown in this chapter to install the Outdoor

Panel correctly. Do not forget to remove the protective plastic film in the front

of the camera once the installation is finished.

3.Place the waterproof tapes supplied with

the KIT.

4.Use the hinges to connect the wires and

handle the Panel comfortably.

Pag 30

+18V 1.5A

50-60 H. 50VA MAX.

12V 1A

FUENTE ALIMENTACION

KIT DIGITAL

MADE IN SPAIN

+18V 1.5A

50-60 H. 50VA MAX.

12V 1A

FUENTE ALIMENTACION

KIT DIGITAL

MADE IN SPAIN

POWER SUPPLY INSTALLATION

Finally, the Power Supply must be placed in a place dry and safe from the

weather. Its DIN 6 format allows you to install it in any type box or directly on

the wall by using the wallplugs and screws supplied.

1.Drill 2 holes in the wall, place the

wallplugs and fasten the screws, fixing

the Power Supply to the wall.

2.The Power Supply can be fitted on a

DIN rail inside a box pressing it as shown

in figure.

MARIA

LORCA

HIGH RESOLUTION

COLOUR TELECAMERA

6.Close the Panel and fasten the screws

with the allen key supplied. Place the

covers to finish the installation.

5.Push up the houvre behind nameplate

the louvre and place the label. You can

use the labels supplied with the Outdoor

Panel.

Pag 31

VIDEO DIGITAL COLOR KIT manual

+18V 1.5A

50-60 H. 50VA MAX.

12V 1A

FUENTE ALIMENTACION

KIT DIGITAL

MADE IN SPAIN

FUENTE ALIMENTACION

KIT DIGITAL

220 - 240 V

MADE IN SPAIN

+ - +

3.The Power Supply can be unmounted

from the DIN rail by levering at the flange

with a flat screw-driver.

NOTE:

The Power Supply must be installed in a place dry and safe from

inclemency of weather. It is advisable to install it protected through a

thermo-magnetic circuit breaker at the main input.

4.Plug-in the wires in the corresponding

terminals following the installation

diagrams attached.

ING

* The jumper JP1 must be always

connected, except when having 2

Outdoor Panels, in which case the

jumper in one of them will be removed

(secondary).

* Select the language of the door open

message by means of JP2: english

(ING), french (FRA), spanish (ESP) and

german (ALE).

OUTDOOR PANEL SET UP

The Outdoor Panel must be set up depending on the type of installation,

using the jumpers in the rear side of the amplifier.

ESP

FRA

ALE

JP2

JP1

Pag 32

OPERATION

Once the VIDEO DIGITAL COLOR KIT has been installed, it is advisable to

check all its features.

Call

* When pressing the call pushbutton in the Outdoor Panel it produces an

electronic sound in the Monitor, which is activated to show the visitor in

the screen. The image must be clear, day and night, because of the

camera's lighting. You can watch the visitors without letting them know if

the apartment is inhabited.

MONITOR CONFIGURATION

Before programming, the system must be fully wired, the handset on hook

and the Monitor connected as shown below.

HIGH RESOLUTION

COLOUR TELECAMERA

PRG

1.Put the jumper J1 to the

PRG position. A

confirmation sound will

be heard.

2.Press the button which

will identify the Monitor.

Once again confirmation

is generated.

3.Put back the jumper

back to its original

position and hang up the

Monitor.

Time between steps 1 and 2 must not be longer than 2 minutes. In case this

would occur, put back the jumper to its original position and restart the sequence.

Pag 33

VIDEO DIGITAL COLOR KIT manual

NOTE:

* For normal use of the Monitor, the switch must be in the ON

position. When the Monitor is not going to be used for a long time,

switch off the monitor using this switch.

* In installations with additional terminals (monitors and/or telephones),

the call activates all the terminals (call tone and video). When picking

up one of the handsets the communication channel with the Outdoor

Panel is opened, and the rest of terminals are blocked. From the blocked

monitors, the only function available will be the auto switch-on

* The spoken message when releasing the lock is selectable from 4

different languages (see page 31). If it is not needed, the message may

be cancelled.

* Picking up the handset you can hold a conversation with the visitor up to

a maximum of 90 seconds, or until you hang up the handset.

* Pressing the button you will release the door lock, giving access to

the visitor. When the door opening is produced, a spoken message can

be heard: "The door is opened. Please, close the door behind you.".

Reconnect a call

* At any time, you can re-stablish communication with the Outdoor Panel

by pressing

and picking up the handset.

Auto switch-on

* You can also activate the Monitor at will by pressing the auto switch-on

, obtaining the image from the Outdoor Panel. This feature allows

you to control the area covered by the camera whenever you need

(vigilance and watching functions). The Monitor will switch-off

automatically after 30 seconds.

If the system does not work correctly check out the chapter TROUBLE

SHOOTING HINTS in page 43 of this manual.

Inhaltsverzeichnis

Andere Fermax Gegensprechanlage Handbücher

Fermax

Fermax DUOX CITYLINE 3-24L Betriebsanleitung

Fermax

Fermax FVI-7008 KIT Bedienungsanleitung

Fermax

Fermax CITY PRIVATE VIDEO DIGITAL KIT 1 Line Bedienungsanleitung

Fermax

Fermax Duox Wifi Veo XS Benutzerhandbuch

Fermax

Fermax PBX EXP Handbuch

Fermax

Fermax COLOUR 4+N LOFT MEMORY MONITOR Bedienungsanleitung

Fermax

Fermax DUOX PLUS WIFI VEO XS MONITOR Benutzerhandbuch

Fermax

Fermax iLOFT-IP CITY Bedienungsanleitung

Fermax

Fermax 2235 Bedienungsanleitung

Fermax

Fermax VDS MEMOPHONE KIT Series Bedienungsanleitung

Fermax

Fermax 970114h Bedienungsanleitung

Fermax

Fermax VDS VIDEO CITYLINE iLOFT KIT Bedienungsanleitung

Fermax

Fermax DUOX Video Direct Outdoor Panel Betriebsanleitung

Fermax

Fermax iLOFT VDS Extra Bedienungsanleitung

Fermax

Fermax CITYCOM III CENTRAL GUARD UNIT Bedienungsanleitung

Fermax

Fermax 97085b Bedienungsanleitung

Fermax

Fermax MEET GUARD UNIT Benutzerhandbuch

Fermax

Fermax DUOX MARINE Series Benutzerhandbuch

Fermax

Fermax DUOX Benutzerhandbuch

Fermax

Fermax Loft Bedienungsanleitung

Fermax

Fermax DUOX PLUS VEO-XL Bedienungsanleitung

Fermax

Fermax DUOX VIDEO MARINE KIT 1-2 L Bedienungsanleitung

Fermax

Fermax kitcity BUS2 1/W Bedienungsanleitung

Fermax

Fermax SKYLINE Series Benutzerhandbuch

Beliebte Gegensprechanlage Handbücher anderer Marken

Bticino

Bticino LINEA 3000 Bedienungsanleitung

MSI

MSI MSI-140 Bedienungsanleitung

golmar

golmar Stadio Plus Bedienungsanleitung

CyberData

CyberData 011211 series Handbuch

Vidos

Vidos duo M1021 Bedienungsanleitung

Vimar

Vimar ELVOX 7539/E Bedienungsanleitung

SSS Siedle

SSS Siedle BTSV 850-03 Bedienungsanleitung

Dahua

Dahua VTO Series Bedienungsanleitung

Elvox

Elvox 5651 Bedienungsanleitung

Videx

Videx VIDEOKIT Series Bedienungsanleitung

Rocom

Rocom Doortello Business FW T2.05W2.04 Bedienungsanleitung

Viking

Viking E-35-EWP Bedienungsanleitung

Safeguard Supply

Safeguard Supply LRA-EX1000 Bedienungsanleitung

SSS Siedle

SSS Siedle BFCV 850 Series Bedienungsanleitung

GRD

GRD MAX V2 Bedienungsanleitung

Alecto

Alecto ADI-250 Bedienungsanleitung

Aiphone

Aiphone IE-8MD Bedienungsanleitung

Perel

Perel EDB4 Bedienungsanleitung
