QUICK START GUIDE
DUOX VEO XS MONITOR WITH MEMORY
XS
XS
2DUOX VEO XS MONITOR
START GUIDE FOR MONITOR VEO XS DUOX

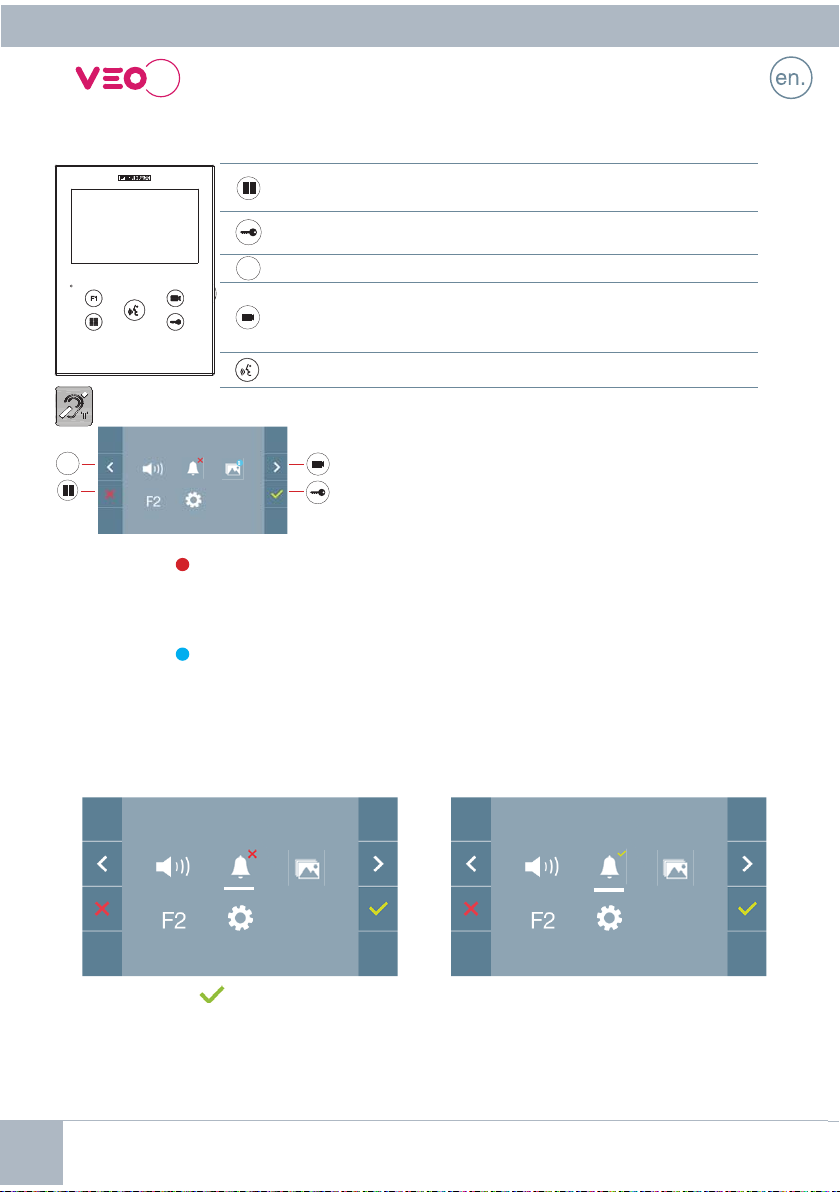

CONTROL BUTTONS
Digital menu for internal parameter settings and confi guration.
(When the monitor has already been programmed)
In conversation, press to open the door.
In standby, call to guard unit (if applicable).
Auxiliary function, (contact your installer).
In standby, press and it displays the option of auto-starting with
different panels. By sequentially pressing Panel 0, Panel 1, General
Panel, (depending on the available panels).
Audio activation and hang-up (hands-free functions).
VEO XS monitor incorporates an OSD menu that is managed
via the monitor´s push buttons to access the terminals´user
and programming functions. The icons displayed are
managed with the corresponding buttons located on the
monitor.
F1
F1
Inductive loop label
(depending on the model)
Cod. 970042b V06_18
LEDs Red LED:
Switched on. Monitor is idle.
Intermittent. Indicates that the Do Not Disturb feature is enabled.
Blue LED:
Intermittent. Monitor not programmed (idle).
Switched on. Conversation in hands-free audio mode.
On/Intermittent. Conversation in simple audio mode
4.2 USER MENU: DO NOT DISTURB MODE
This icon allows you to enable/disable the Dial Tone (Do Not Disturb).
Press the icon to change the selection. By default normal operation is selected (The
call is heard).
The red LED on the monitor blinks slowly when the Do Not Disturb mode is active.
Note: If the Do Not Disturb mode is active, you may reactivate the call via this screen or
by sliding the potentiometer to any position other than the minimum.
DUOX VIDEO MONITOR 3
Select the settings option and increase or decrease with
AUDIO SETTINGS
While the audio channel is open, press the button and a menu screen appears for this
setting.
Increase or decrease
with and , until
obtaining the desired
regulation.
Notice: Maximum conversation time: 90 seconds.
123
21 3
With select the icon and confirm with .
XS

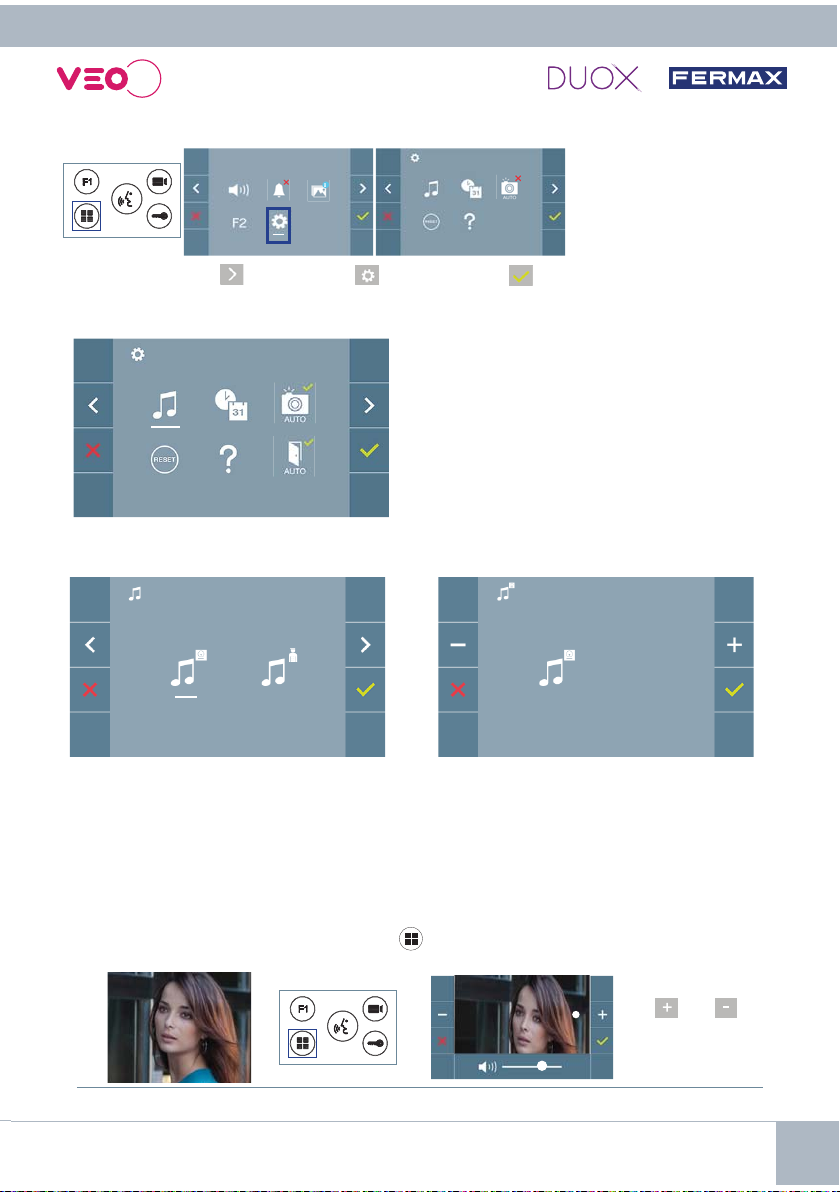

USER SETTINGS
Access user parameters.
4
Once you have selected the option, you
will see and hear the current melody, and
by pressing the +or - button you can, con-
tinue selecting and listening to the various
melodies available on the monitor.
4.5.1 User parameter settings: MELODY SELECTION
The monitor allows you to select a melody
for each individual panel and another for the
concierge.
You may assign up to 5 different melodies.
By selecting this option you can change
the melody that you hear on the monitor
when a call is made from outdoors.
a) Panel melody selection
5.2 SETTINGS: AUDIO SETTINGS
XS
4DUOX VEO XS MONITOR
USER SETTINGS
Access user parameters.
12 3
1. DATE AND TIME SETTINGS
20 01 2017 13 55
2. ACTIVATION/DEACTIVATION OF VIDEO CAPTURE
01 01 2017 13 55 130 149
123
123
31 / 01 / 2017
01 / 31 / 2017
2017 / 01 / 31
With select the icon
and confirm with .
Press to activate/
deactivate the function.
User Menu Screen Communication screen Image viewer screen
With select the icon
and confirm with .
With select the date
format. Once selected
confirm with .
Select the date and hour
with and confirm
with . To browse the
settings .
1. Date and Time Settings
2. Capture images
Date not set: 01/01/2017 (default). The icon appears indicating that the date is not correct (default
date). Upon losing power, it returns to the default date.
Note: If an image is captured with the date not yet set, the following icon appears .
Notif cation icons for a date not set:
With select the icon and confirm with .
Image Viewer
The monitor can take an automatic picture within 5 seconds of receiving a call from an outdoor panel.
According to the European Union legislation about data protection ((EU) 2016/679), the capture of
images may be restricted. This feature is deactivated by default in all monitors, although can be
activated at your own responsibility. Furthermore, the legislation may force to place a sign next to
door stations, indicating that monitors can capture images. You can download it at https://www.
fermax.com/intl/en/corporate/utilities.html.
