VC19

MAINBOARD

MANUAL

DOC No.: M02205

Rev. :A0

Date : 5, 2002

Part No. : 25-11647-00

Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its

protective packaging, ensure that there is no static electric charge

in your body.

2. There is a danger of explosion if the battery is incorrectly

replaced. Replace only with the same or an equivalent type

recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s

instructions.

4. Never run the processor without the heatsink properly and firmly

attached.PERMANENTDAMAGE WILL RESULT!

Observe the following basic precautions when handling the motherboard

or other computer components:

nWear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

nTouch a grounded or anti-static surface or a metal fixture such as a

water pipe.

nAvoid contacting the components on add-on cards, motherboards,

and modules with the golden fingers connectors plugged into the

expansion slot. It is best to handle system components by their

mounting brackets.

The above methods prevent static build-up and cause it to be discharged

properly.

Trademark

All trademarks mentioned in this manual are registered properly of

the respective owners.

Handling Precautions

This manual may not, in whole or in part, be photocopied, reproduced,

transcribed, translated, or transmitted in whatever form without the

written consent of the manufacturer, except for copies retained by the

purchaser for personal archival purposes.

Notice

TableofContents

Table of Contents

Chapter 1 Overview

Package Checklist .......................................................................... 1-2

The VC19 Mainboard ................................................................ 1-3

Main Features ................................................................................ 1-4

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support ..................... 1-6

Chapter 2 Installation Procedures

Quick Reference (from Page 2-2 to 2-4) .......................................... 2-2

Mainboard Layout .................................................................... 2-2

1). Clear CMOS, Clear Password, FSB Speed Select .......... 2-3

2). Front Panel Block Cable Connection ............................ 2-3

3). CPU Fan Installation ..................................................... 2-4

1). Set System Jumpers .................................................................. 2-4

FSB Speed: FS4 ................................................................. 2-4

Clear CMOS: JP1 ............................................................... 2-5

Clear Password: JP1 .......................................................... 2-5

2). Install Memory Modules .......................................................... 2-6

3). Install the CPU .......................................................................... 2-6

4). Install Expansion Cards ............................................................. 2-7

5). Connect Devices ....................................................................... 2-9

Floppy Diskette Drive Connector ..................................... 2-9

IDE Device Connectors ..................................................... 2-10

Fan Connectors ................................................................. 2-11

Wake-On-LAN Connector ................................................. 2-11

Power Connectors ............................................................. 2-12

Front Panel Block, Power LED and Speaker Connector ..... 2-12

Quick Reference (German) G-1

Quick Reference (French) F-1

Quick Reference (Spanish) S-1

Quick Reference (Japanese) J-1

Quick Reference (Chinese) C-1

Quick Reference (Simplified Chinese) |||||||||||||SC-1

VC19MainboardManual

CD Audio-In Connector .................................................... 2-14

PS/2 Keyboard and Mouse Connector .............................. 2-14

Optional LAN Connector .................................................. 2-15

Serial Port Connectors ....................................................... 2-15

Audio I/O Jacks ................................................................ 2-16

Universal Serial Bus Connectors ....................................... 2-17

Printer Connector .............................................................. 2-18

Game/MIDI Connector ...................................................... 2-18

Chapter 3 BIOS Setup

CMOS Setup Utility ....................................................................... 3-1

Standard CMOS Setup ................................................................... 3-2

Advanced BIOS Features .............................................................. 3-4

Advanced Chipset Features .......................................................... 3-8

Integrated Peripherals .................................................................... 3-10

Power Management Setup ............................................................. 3-15

PnP/PCI Configurations ................................................................. 3-19

PC Health Status ............................................................................ 3-20

Frequency/Voltage Control ............................................................ 3-21

Load Fail-Safe Defaults .................................................................. 3-22

Load Optimized Defaults ................................................................ 3-22

Supervisor/User Password ............................................................ 3-22

Save and Exit Setup ........................................................................ 3-22

Exit without Saving ........................................................................ 3-22

1 - 1

Overview

Chapter 1

The new ATX, 478-pin 1stMainboard®VC19 supports a full range of the latest

generation Intel®Pentium®4 processors. The leading edge chipset Intel®

845E MCH was designed for coworking with Pentium®4 (up to 2GHz) and

Northwood®processor (min 2GHz) in the 478-pin package based on the VRM

9.0 spec and 533 MHz.Built using the leading edge technology the Intel

Pentium®4 processors provide a significant performance over previous

Pentium®III processors. Three DDR 200/266 SDRAM sockets allow for up to

2GB memory capacity. Support for the Ultra DMA/100protocol and its high-

speed interface further ensures that data transfer speeds are improved, espe-

cially for long sequential transfers required by audio/visual applications. The

board also features onboard audio and optional onboard LAN function. An

optional 2 x 5 pinheader for Smart Card Reader and an optional 1x10 pinheader

for Memory Stick are provided for future upgrade.

The 1stMainboard comes with a versatile range of I/O features such as 2 serial

ports, 1 parallel port, 1 optional LAN, 1 PS/2 mouse and keyboard connector, 6

USB ports, 1 media connector (front audio, Line-in, Line-out and Mic-in, game/

MIDI port). In addition, the board is equipped with 2 dual channeled enhanced

PCI bus master IDE connectors, plus two optional IDE RAID ATA133 connec-

tors for supporting more efficient data backup. Ample expansion is available

through 6 PCI and 1AGP (only 1.5V 4X cards allowed) to meet the requirement

for enjoying the P4 CPU benefits in internet applicatons, video/3D graphics

performance, and so forth.

Other key features are Remote On/Off, Auto Power Failure Recovery, inte-

grated temperature monitoring and system fan control. Included also is CD Pro

with enhanced drivers and a few bundled soft-ware solutions.

1 - 2

VC19MainboardManual

NOTE: CD Pro that contains patch files, onboard video/audio chip

drivers, related online help and other useful information can be

found in your mainboard package.

Please install it right after your Windows operating system installa-

tion is done.

Place your CDPro in the drive, an operating menu will

appears in your monitor. Please select

Auto Installation

. It will auto-

matically detect which software tools (patch files, drivers) that the

mainboard needs. Press OK button to go through the whole instal-

lation procedure in a very straight forward and easy way. It also

provides you with a custom way to select wanted patch files and

software drivers that for onboard chips use. The top menu of the

CD Pro lists all the functions that allowed by this board.

Package Checklist

If you discover any item below was damaged or lost, please contact your

vendor.

þThe mainboard þThis user manual

þOneFDDcable þ|SoftwareCD

þOneATA/100cable

1 - 3

Overview

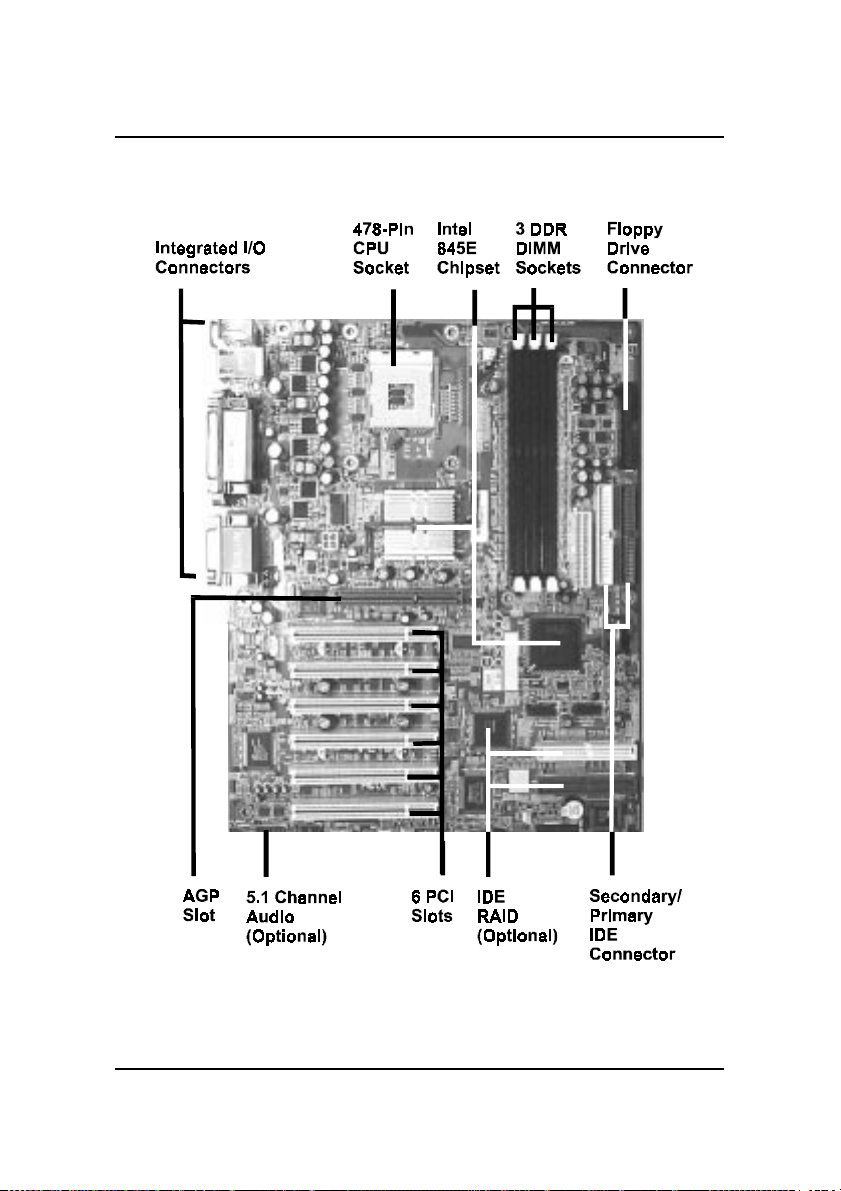

The VC19 Mainboard

1 - 4

VC19MainboardManual

nIntegrated Audio Subsystem

Embedded audio features in the ICH4 with an integrated PCI audio con-

troller, DOS games compatible engine. The subsystem utilizes line-out,

line-in, and MIC external jacks, one joystick port with MIDI interface.

Main Features

nEasy Installation

||BIOS with support for Plug and Play, auto detection of IDE hard drives,

||LS-120|drives, IDE ZIP drives, Windows 98SE, Windows ME, Windows

||NT, Windows 2000, Windows XP, and OS/2.

nLeading Edge Chipset

Intel®845E provides integrated DRAM controllers with new Dynamic

Power Management Architecture (DPMA), concurrent PCI, AGP and USB.

The built-in audio and video features of the Intel chipset 845E (MCH +

ICH4) provide better visual performance with the Dynamic Video Memory

Technology (DVMT) properties.

nVersatile Main Memory Support

Accepts up to 2 GB DDR SDRAM using three memory sockets for allow-

ing that from 64, 128, 256, 512MB with support for lightenning-fast DDR

SDRAM (DDR 200/266 MHz).

nAGP and PCI Expansion Slots

One AGP Bus expansion slot (only 1.5V 4X card allowed), and six PCI Bus

expansion slots provided the room to install a full range of add-on cards.

nIntel P4 Processors Support

Intel P4 478-pin FC-PGA2 package:

1.4 to 2.4 GHz and up* (FSB 400) / 1.73 to 2.53 GHz and up* (FSB 533)

Celeron 1.7 GHz and up* (FSB 400) (*: not tested yet)

nSuper Multi Input/Output (I/O) Support

Integrated Plug and Play multi-I/O chipset features two high-speed UART

16550 compatible serial ports, one parallel port, one game port, and one

FDD connector.

1 - 5

Overview

nOnboard Accelerated Graphics Port (AGP)

The motherboard is installed one 32-bit 1.5V AGP 4X bus with a dedicated

66MHz/133MHz path from the graphics card to the system memory offer-

ing much greater bandwidth than the 32-bit PCI bus does. AGP enabled 3D

graphics cards can directly access main memory across this fast path

instead of using local memory.

nEnhanced PCI Bus Master IDE Controller with Ultra DMA 33/66/100

Support

Integrated Enhanced PCI Bus Master IDE controller features two dual-

channel connectors that up to four Enhanced IDE devices, including CD-

ROM and Tape Backup Drives, as well as Hard Disk Drives supporting

the new Ultra DMA 100 protocol. Standard PIO Mode 3, PIO Mode 4,

DMA Mode 2, DMA Mode 4, UltraDMA-100 Mode 5 devices are also

supported.

nConvenient Rear Panel USB Connection Support

Two USB ports integrated in the rear I/O panel and four extra USB ports

for either front or rear panel connection allow convenient and high-speed

Plug and Play connections to the growing number of USB compliant

peripheral devices on the market.

nLAN Support (optional)

Onboard optional LAN controller with one optional jack integrated with

other rear panel I/O connectors provides users with a convenient con-

nection with network environment.

nIDE RAID Support (optional)

The optional feature allows this board to back up huge amount data in an

economic way. The chip on this board is a PCI-to-IDE UDMA/ATA133

RAID controller and designed for mainboard use. It offers features that of

level 0, 1, 0+1 and supports the most popular operating systems, such as

Windows 95/98/ME/NT 4.0/2000/XP and Linux.

n5.1 Channel Audio Support (optional)

The board owns an optional audio controller that gives magnificent 5.1

channel audio effect. It meets PC99®and supports digital audio interface

such as 24-bit SPDIF IN/OUT.

1 - 6

VC19MainboardManual

nEasy Key

Instead of completing the multi-layered BIOS setup process these 3 Easy

Key functions provide direct access to Sub-Menus when completing

BIOS settings adjustments.

Easy-Keys are as follows:

Ctrl + c: To enter clock settings menu.

Ctrl + p: To load Performance Default settings and restart.

Ctrl + f: To load Fail-Safe Default settings and restart.

FIC Unique Innovation for Users (NOVUS) -

Enhanced Mainboard Features and System Support

nLogoGenie

A user friendly GUI supporting Windows 95/98/98SE (not Windows 2000/

NT/ME), LogoGenie allows you to customize, create or select a Logo

which will be displayed when the system is booting.

NOTE:

1. LogoGenie supports Award BIOS only.

2. If you create a Logo file (.bmp) by LogoGenie, the file size must

||||be 640 x 464 x 256 colors.

To enable this utility, please proceed as follows:

1. Insert CD Pro. Select LogoGenie from the Menu and

follow the installation instructions.

2. After LogoGenie has been installed, go to Windows Start Box.

In Programs Menu, select LogoGenie (ver.), then select LogoGenie.

3. Press F1 to read Help file to understand how to use this software if

it is new to you.

Inhaltsverzeichnis

Andere FIC Hauptplatine Handbücher

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
