Fireco Dorgard Pro Bedienungsanleitung
Pro
Handbook
Compliance Made Easy
2019-07-17
Contents
Section 1: Pro system overview Page 1
Section 2: Survey and demo Page 7
Section 3: Installation Page 10
Section 4: Troubleshooting Page 13
Section 5: Maintenance Page 19
Section 6: Notes Page 20
Compliance Made Easy
The Pro Range provides a safe and legal way to hold open fire doors.
The Transmitter, which is connected to an alarm panel, will ensure all connected devices
release when an alarm is activated, preventing the spread of smoke and fire.
Part Number Part Name
885-3205 Fireco Transmitter
966-2075 Fireco Repeater
775-5231 Pro Timer
360-1551 Dorgard Pro Black
956-8278 Dorgard Pro White
338-0604 Freedor Pro
Pro system
overview
Pro system
overview
Page 1
The Transmitter is a radio control unit for the Pro system. Connected to a fire alarm relay,
it controls and monitors the system.
Fireco Transmitter
Power 8-30V AC or DC
Battery back-up Two x LR14 C-size batteries, capable of operating system
for upto 7 days
Triggers Volt free NC/NO/COM
Radio Frequency 433.050 MHz to 434.790 MHz
Range Survey dependant - typically 40-50m
Maximum System Capacity 50 Repeaters and 500 Pro Devices
Compliant to EN1155, EMC Directive, Radio Equipment Directive
Operating Temperatures -5 to +70C
• Casing Height: 180mm
• Width: 180mm
• Depth: 48.5mm
• Weight: 532g
180mm !
180mm
!
Radio
Fire
Power
Alert
Page 2
Pro system
overview
The Repeater extends the radio range from the Transmitter, allowing you to connect
more units over a greater distance. Up to 50 Repeaters may be used in any installation.
Fireco Repeater
Power 8-30V AC or DC
Battery back-up Two x LR14 C-size batteries, capable of operating system
for upto 7 days
Triggers Fireco Transmitter
Radio Frequency 433.050 MHz to 434.790 MHz
Range Survey dependant - typically 40-50m
Maximum System Capacity 8 Repeaters and 120 Pro Devices
Compliant to EN1155, EMC Directive, Radio Equipment Directive
Operating Temperatures -5 to +70C
• Casing Height: 180mm
• Width: 180mm
• Depth: 48.5mm
• Weight: 532g
!
180mm
180mm
!
Radio
Fire
Power
Alert
Page 3
Pro system
overview
!
A Pro Timer is a digital timer device which can be bound to a Transmitter or a Repeater.
It can be programmed to release all the devices further down the system for a set period
of time. There is also a manual override button which releases devices when pressed.
Pro Timer
Power 8-30v AC or DC
Battery life None
Triggers Programmed schedule on Digital Timer
Radio frequency 433.050 MHz to 434.790 MHz
Range Survey dependant - typically 40-50m
Maximum System Capacity 1 Parent Transmitter/Repeater
Compliant to EMC Directive, Radio Equipment Directive, CE marked digital
Timer (OEM)
Operating Temperatures -5 to +70
Radio
Fire
Power
Alert
Pro system
overview
• Casing Height: 180mm
• Width: 180mm
• Depth: 48.5mm
• Weight: 532g
!
180mm
180mm
Page 4
• Overall Height: 205mm
• Casing Height: 150mm
• Width: 195mm
• Depth: 45mm
• Weight: 700g
150mm
205mm
195mm
Dorgard Pro
Dorgard Pro is a fire door hold open device which can retain a fire door at any angle
of opening. When the fire alarm is activated, the Transmitter sends a radio signal to the
Dorgard Pro to release all doors, preventing the spread of smoke and fire.
Dorgard Pro
Power Two x LR14 C Size batteries
Battery life Five years
Triggers Fireco Transmitter 885-3205
Radio frequency 433.050 MHz to 434.790 MHz
Applicable door size Up to EN7 160Kg, 1600mm (with a floor plate)
Fire rating Dorgard has been tested to EN1634-1 on FD30 doorsets
exposed face and FD60 doorsets non-exposed face
Compliant to
EN1155, EN1634, EMC Directive, Radio Equipment Directive,
Critical (Cat A) BS7273-4, when hard wired to a Critical
(Cat A) system
Radio
Fire
Power
Alert
FR120M
Page 5
Pro system
overview
• Height: 65mm
• Height with arm: 150mm
• Length: 320mm
• Depth: 95mm
• Weight: 4.2kg
Freedor Pro takes the weight out of heavy fire doors, the free-swing feature allows you
to leave the door open at any position. When the fire alarm is activated, the Transmitter
sends a radio signal to the Freedor Pro to close all doors, preventing the spread of
smoke and fire.
Freedor Pro
Power 9V Alkaline battery pack
Battery life Five years
Triggers Fireco Transmitter
Radio frequency 433.050 MHz to 434.790 MHz
Applicable door size Up to EN3 60Kg, 950mm
Fire rating Freedor has been tested to EN1634-1 on FD30 doorsets,
exposed and unexposed faces
Compliant to EN1154, EN1155, EN1634-1 ETSI EN300 220-1,
ETSI EN300 220-2 EN50130-4:2011+A1:2014
Alert
Power
Fire
Radio
Pro system
overview
65mm
320mm
105mm
Page 6

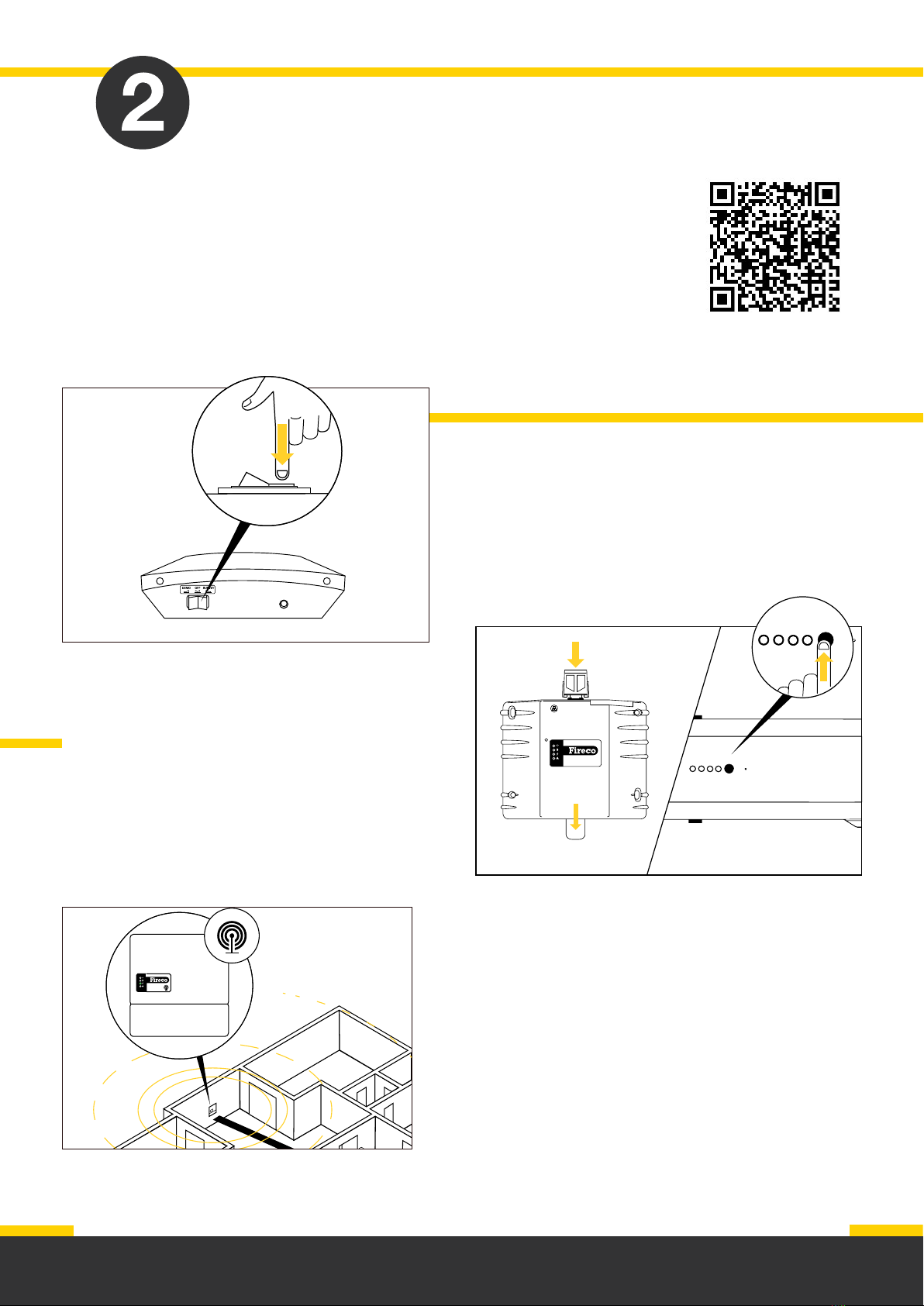

1. Activate survey mode
Switch the Pro Demo & Site Survey Transmitter into
survey mode by flicking the switch on the base of
the Survey Transmitter to the right.
2. Binding
Dorgard Pro Depress the plunger on your
Demo Dorgard Pro. This will bind the two units
and enable you to survey a building.
Freedor Pro Push the button on the front of
unit. This will bind the two units together and
enable you to survey a building.
!
3. Surveying
Place the Survey Transmitter where you are proposing
to install the Fireco Transmitter. This should be within 2
metres of the fire alarm relay. Do not site Transmitters
within 1 metre of power sources or metal surfaces
(including Georgian wire glass).
Dorgard Pro
!
1
Surveying a
building prior to
installation
Survey and
demo
Page 7
Scan to watch our
technical support video
Repeat steps 3-4 from this position.
When survey is complete, switch transmitter to
the off position to conserve battery power.
To connect out of range devices, you will need to
install a repeater to extend the range.
Dorgard Pro Place the Survey Dorgard Pro at the position
a Dorgard Pro is to be fitted. Hold it at the bottom of the
fire door.
Depress the plunger to get a radio reading. If the Dorgard
Pro is in range of the Survey Transmitter, the top LED of
the Dorgard Pro will show solid green for 4 seconds. If the
Survey Dorgard Pro is not in range, the top LED will show
red for 4 seconds.
Freedor Pro Place the Survey Freedor Pro at the position
a Freedor Pro is to be fitted. Fit to the correct side of the
door, using the adjustable bracket provided.
4. Repeater Location
To identify a suitable location for the new Repeater bring the
Survey Pro device closer to the Survey Transmitter until you are
again in range (confirmed by a green LED).
!Dorgard Pro
!Dorgard Pro
!Dorgard Pro
!Dorgard Pro
!Dorgard Pro
!Dorgard Pro
!
Survey and
demo
!
Press the button on the front of the Freedor Pro to get a radio reading.
If the Freedor Pro is in range of the Survey Transmitter the right LED of
the Freedor Pro will show solid green for 4 seconds. If the Survey
Freedor Pro is not in range the right LED will show red for 4 seconds.
Repeat this process for all of the doors you wish to survey.
Dorgard Pro
!
!Dorgard Pro
Dorgard Pro
!
!Do
Page 8
