Fisher & Paykel DCS RX215 Montageanleitung

US CA

Installation instructions

and User guide

Side by side refrigerator

RX215 models

Instructions d’installation

et Guide d’utilisation

Réfrigérateur à

compartiments juxtaposés

Modèles RX215

All manuals and user guides at all-guides.com

all-guides.com

English Page 1 – 36

Français Page 37 – 72

All manuals and user guides at all-guides.com

Contents

Introduction 2

Safety and warnings 3

Installation instructions 5

Before use 10

Temperature controls (RX215) 11

Fresh food features 12

Freezer features 15

Ice maker 16

Water filter 18

Food storage tips 20

Care and cleaning 23

Operating sounds 28

Troubleshooting 29

Warranty and service 34

Filter specification data 73

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please go to our website www.dcsappliances.com

or contact your local DCS by Fisher & Paykel dealer.

All manuals and user guides at all-guides.com

Introduction

Thank you for buying a DCS side by side refrigerator with an internal ice maker.

This refrigerator combines size and storage space with the latest features and functions. Many

hours have been spent researching how you, our customer, use your refrigerator and what we

can do to make life easier for you.

This refrigerator has a number of customizable storage zones, such as a Beverage Chiller with

adjustable temperature settings and a fruit and vegetable bin with adjustable humidity.

As your life changes, so can your refrigerator. This book explains the features and functions, and

will help you get the most out of your refrigerator.

We hope you enjoy your new refrigerator!

Important!

It is important that this User Guide should be retained with your refrigerator for future reference.

Should the appliance be sold or transferred to another owner, please ensure that the User Guide

is left with the appliance. This will ensure that the new owner can familiarize themselves with

the information and warnings contained within the Guide.

Fig.1 Side by side refrigerator

RX215

All manuals and user guides at all-guides.com

Safety and warnings

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide

before operating this appliance.

Failure to do so can result in death, electric shock, fire or injury to persons.

Use this appliance only for its intended purpose as described in this User Guide.

Important safety precautions

Warning

When using this appliance always exercise basic safety precautions including the following:

Danger

This appliance is not intended for use by children or infirmed persons without supervision. This is

especially important when using the freezer compartment. Young children should be supervised

to ensure they do not play with the appliance.

Risk of child entrapment. Before you throw away your old refrigerator:

–

Take off the doors

–

Leave the shelves in place so that children can not easily climb inside.

The plastic packaging, off your new refrigerator, may be a choking or suffocation hazard to

children. Ensure all plastic is disposed of properly.

Disposal

Extreme care must be taken when disposing of your old appliance to avoid hazards. The

refrigerant gas must be safely removed and for the safety of young children, remove doors.

Your DCS Authorized Service Agency or DCS Customer Care Representative will be able to give

advice on environmentally friendly methods of disposing of your old refrigerator.

Electrical

This new appliance must be properly installed in accordance with the installation instructions

before it is used.

Never unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull straight out from the outlet socket.

Do not plug in any other appliance at the same power point outlet socket your refrigerator is

using. Do not use extension cords or double adapters with these products.

All manuals and user guides at all-guides.com

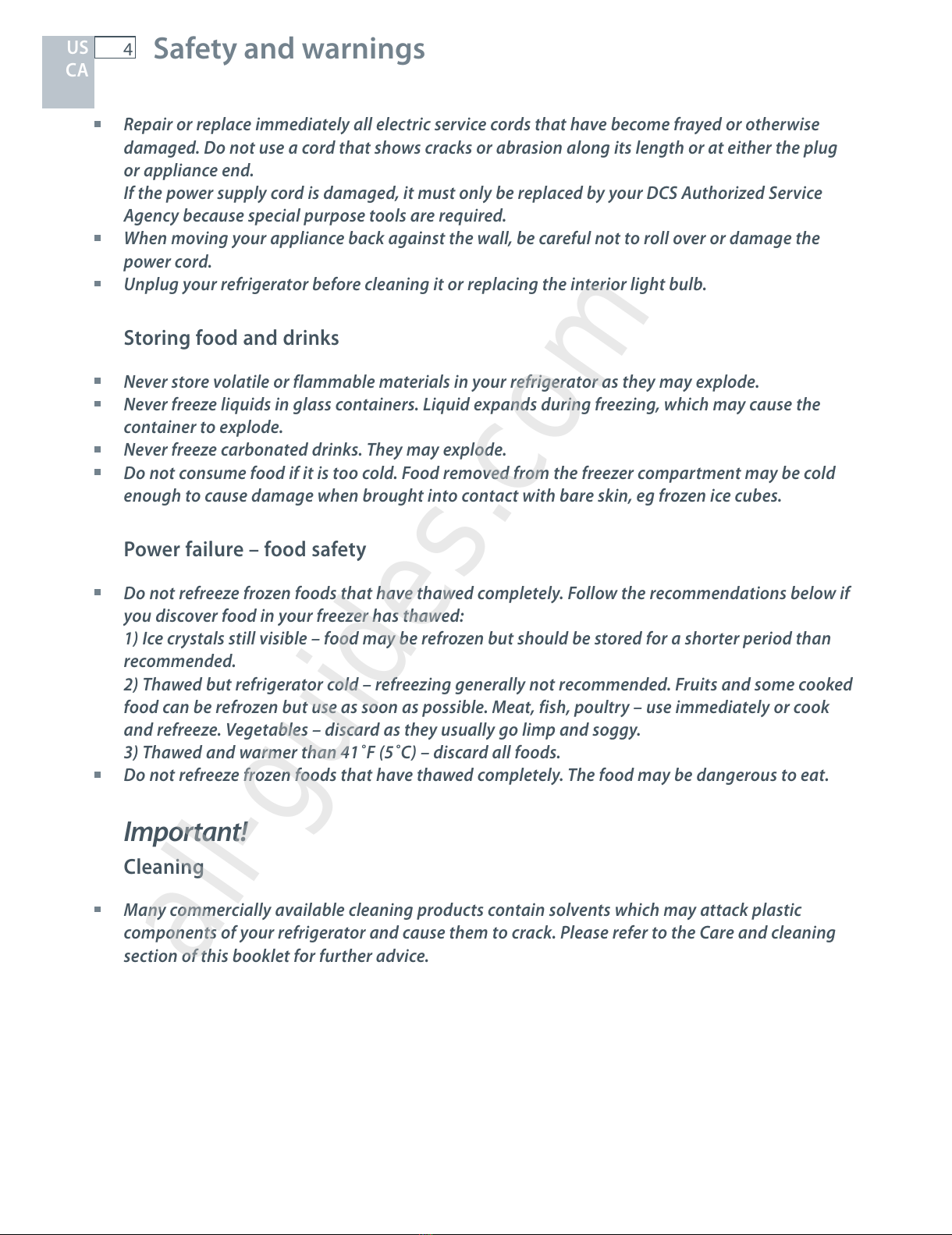

4Safety and warnings

Repair or replace immediately all electric service cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug

or appliance end.

If the power supply cord is damaged, it must only be replaced by your DCS Authorized Service

Agency because special purpose tools are required.

When moving your appliance back against the wall, be careful not to roll over or damage the

power cord.

Unplug your refrigerator before cleaning it or replacing the interior light bulb.

Storing food and drinks

Never store volatile or flammable materials in your refrigerator as they may explode.

Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the

container to explode.

Never freeze carbonated drinks. They may explode.

Do not consume food if it is too cold. Food removed from the freezer compartment may be cold

enough to cause damage when brought into contact with bare skin, eg frozen ice cubes.

Power failure – food safety

Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if

you discover food in your freezer has thawed:

1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than

recommended.

2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some cooked

food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately or cook

and refreeze. Vegetables – discard as they usually go limp and soggy.

3) Thawed and warmer than 41˚F (5˚C) – discard all foods.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Important!

Cleaning

Many commercially available cleaning products contain solvents which may attack plastic

components of your refrigerator and cause them to crack. Please refer to the Care and cleaning

section of this booklet for further advice.

All manuals and user guides at all-guides.com

all-guides.com

Installation instructions

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide

before operating this appliance, pages 3 – 4.

Failure to do so can result in death, electric shock, fire or injury to persons.

Location

Do not install refrigerator near an oven, radiator or other heat source. If not possible, shield

refrigerator with cabinet material.

Do not install where temperature falls below 55° F (13° C) or rises above 110° F (43° C).

Malfunction may occur at these temperatures.

The refrigerator is designed for indoor household application only.

Measuring the opening

When installing your refrigerator, allow ½” (13 mm) space at the top and ½”(13 mm) space

behind machine compartment cover (located in the rear) for proper air circulation. If the

refrigerator is placed with the door hinges against a wall, you may want to allow additional space

so the door can be opened wider.

Subflooring or floor coverings (ie carpet, tile, wood floors, rugs) may make your opening smaller

than anticipated.

Some clearance may be gained by using the leveling procedure under Leveling, page 7.

Important!

If refrigerator is to be installed into a recess where the top of the refrigerator is completely

covered, use dimensions from floor to top of hinge cap to verify proper clearance.

Transporting your refrigerator

NEVER transport refrigerator on its side. If an upright position is not possible, lay refrigerator

on its back. Allow refrigerator to sit upright for approximately 30 minutes before plugging it in.

This will ensure oil returns to the compressor. Plugging refrigerator in immediately may cause

damage to internal parts.

Use an appliance dolly/trolley when moving refrigerator. ALWAYS truck refrigerator from its side

or back – NEVER from its front.

Protect the outside finish of the refrigerator during transport by wrapping the cabinet in

blankets or inserting padding between the refrigerator and dolly.

Secure refrigerator to dolly firmly with straps or bungee cords. Thread straps through handles

where and when possible. Do not over-tighten. Over-tightening restraints may dent or damage

the outside finish.

All manuals and user guides at all-guides.com

Installation instructions

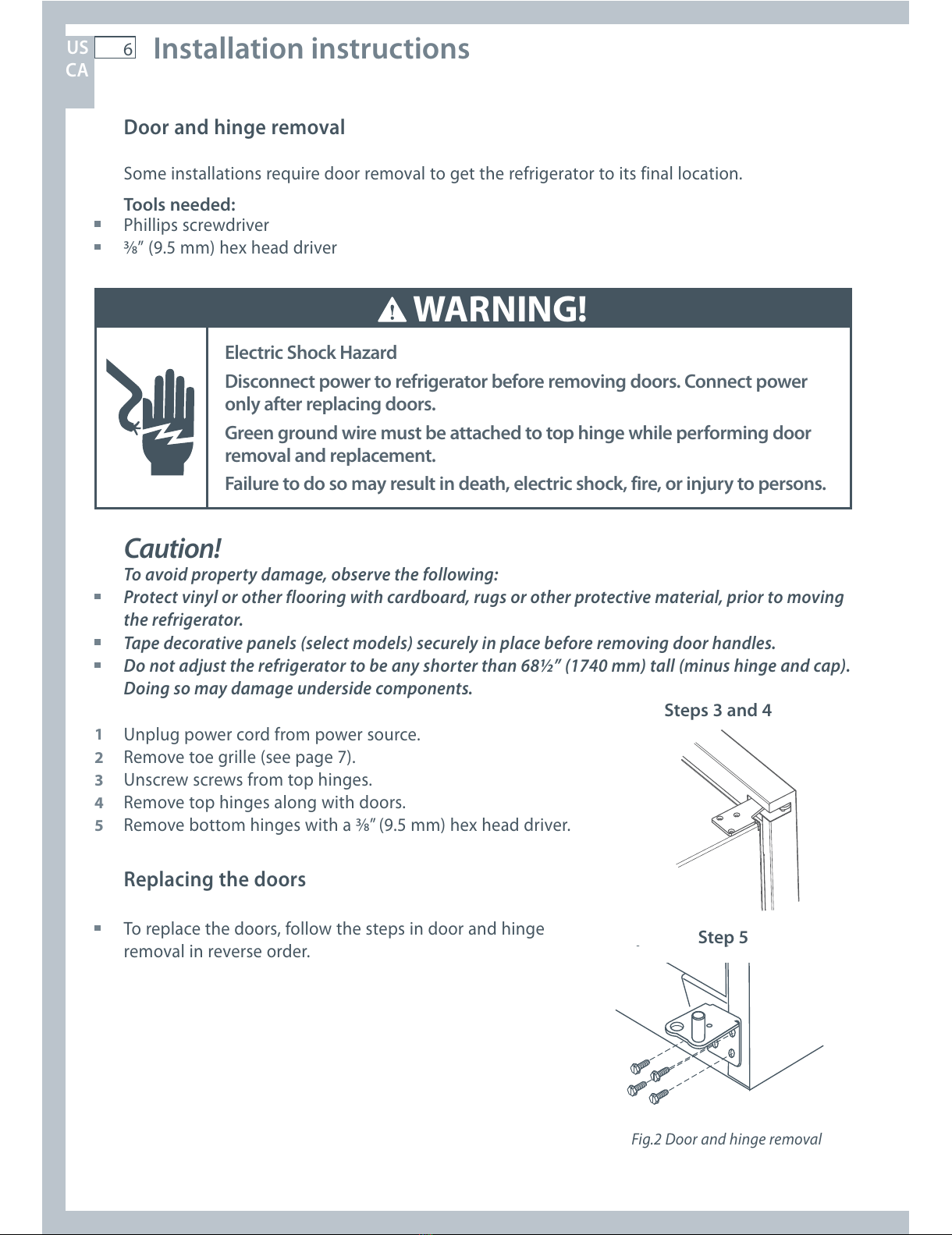

Door and hinge removal

Some installations require door removal to get the refrigerator to its final location.

Tools needed:

Phillips screwdriver

⁄” (9.5 mm) hex head driver

WARNING!

Electric Shock Hazard

Disconnect power to refrigerator before removing doors. Connect power

only after replacing doors.

Green ground wire must be attached to top hinge while performing door

removal and replacement.

Failure to do so may result in death, electric shock, fire, or injury to persons.

Caution!

To avoid property damage, observe the following:

Protect vinyl or other flooring with cardboard, rugs or other protective material, prior to moving

the refrigerator.

Tape decorative panels (select models) securely in place before removing door handles.

Do not adjust the refrigerator to be any shorter than 68½” (1740 mm) tall (minus hinge and cap).

Doing so may damage underside components.

Unplug power cord from power source.

Remove toe grille (see page 7).

Unscrew screws from top hinges.

Remove top hinges along with doors.

Remove bottom hinges with a ⁄” (9.5 mm) hex head driver.

Replacing the doors

To replace the doors, follow the steps in door and hinge

removal in reverse order.

Fig.2 Door and hinge removal

Step 5

Steps 3 and 4

All manuals and user guides at all-guides.com

Installation instructions

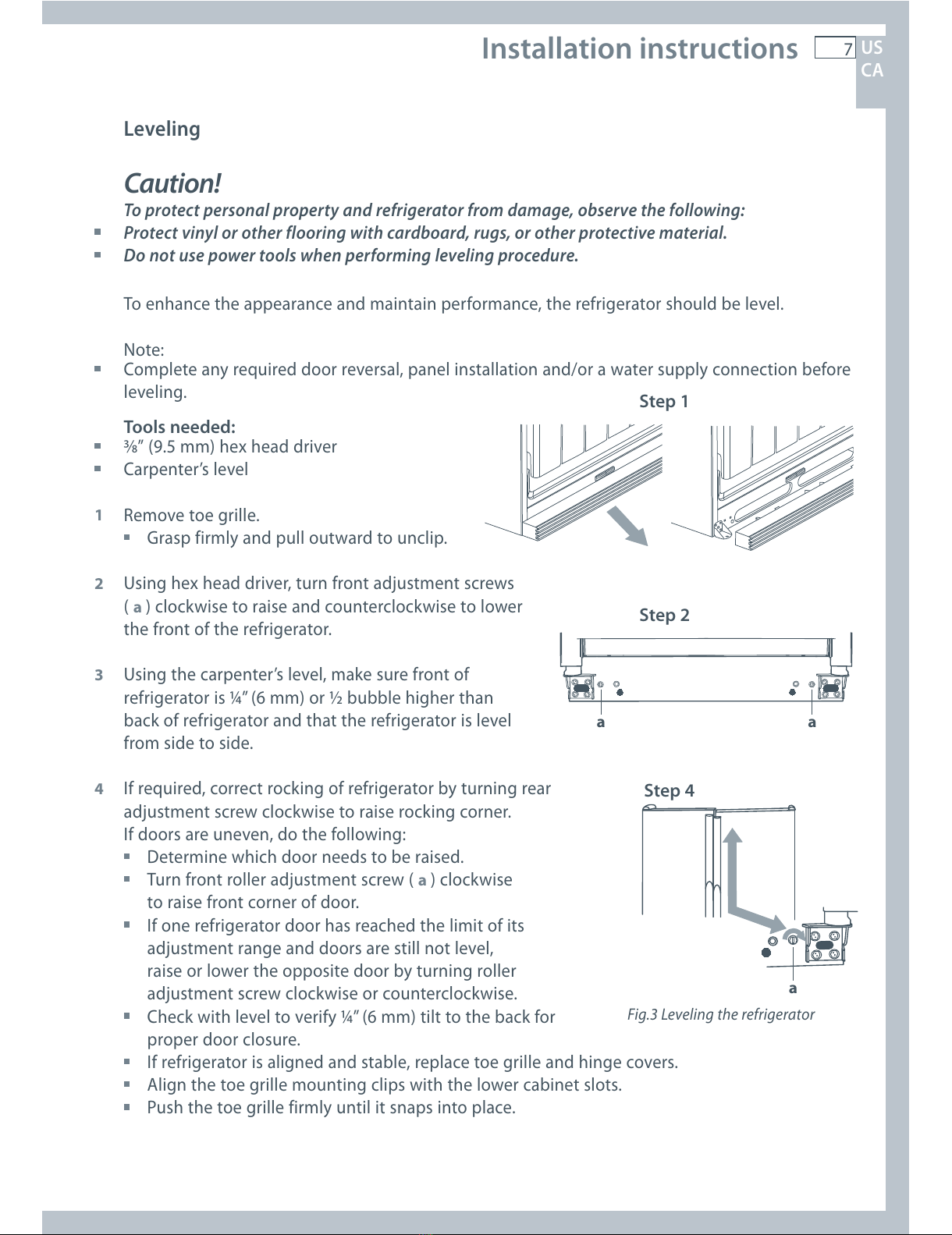

Leveling

Caution!

To protect personal property and refrigerator from damage, observe the following:

Protect vinyl or other flooring with cardboard, rugs, or other protective material.

Do not use power tools when performing leveling procedure.

To enhance the appearance and maintain performance, the refrigerator should be level.

Note:

Complete any required door reversal, panel installation and/or a water supply connection before

leveling.

Tools needed:

⁄” (9.5 mm) hex head driver

Carpenter’s level

Remove toe grille.

Grasp firmly and pull outward to unclip.

Using hex head driver, turn front adjustment screws

(

) clockwise to raise and counterclockwise to lower

the front of the refrigerator.

Using the carpenter’s level, make sure front of

refrigerator is ⁄” (6 mm) or ½ bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

If required, correct rocking of refrigerator by turning rear

adjustment screw clockwise to raise rocking corner.

If doors are uneven, do the following:

Determine which door needs to be raised.

Turn front roller adjustment screw (

) clockwise

to raise front corner of door.

If one refrigerator door has reached the limit of its

adjustment range and doors are still not level,

raise or lower the opposite door by turning roller

adjustment screw clockwise or counterclockwise.

Check with level to verify ⁄” (6 mm) tilt to the back for

proper door closure.

If refrigerator is aligned and stable, replace toe grille and hinge covers.

Align the toe grille mounting clips with the lower cabinet slots.

Push the toe grille firmly until it snaps into place.

Fig.3 Leveling the refrigerator

Step 1

Step 4

a a

Step 2

All manuals and user guides at all-guides.com

Connecting the water supply

Important!

Read the instructions before connection, and do not attempt if instructions are not understood

or are beyond personal skill level.

It is recommended that an authorized plumber in your state or town is used to install the water

connection, to ensure all local codes and ordinances are followed. Consult a plumber to connect

¼” (6.35 mm) OD copper tubing to household plumbing to assure compliance with local codes

and compliance.

Installation precautions/warnings

CONFIRM inlet water pressure to refrigeration connection is between 35 psi and 100 psi. This

applies to reverse osmosis systems. If the pressure from your reverse osmosis system is lower

than this, consult a licensed, qualified plumber.

WAIT two to three hours before placing refrigerator in final position to check and correct any

water leaks. Recheck for leaks after 24 hours. Water damage to an improper water connection

may cause mold/ mildew growth. Clean up spills or leakage immediately.

DO NOT use with water that is microbiologically unsafe or of unknown quality without adequate

disinfection before or after the system.

DO NOT use a self piercing or ⁄” (4.7 mm) saddle valve. Both reduce the water flow, can become

clogged over time, and may cause leaks if repair is attempted.

DO NOT service ice maker unless specifically recommended in User Guide or published user-

repair instructions.

CHECK the copper tubing under the sleeve is smooth and free from defects. Do not reuse an old

sleeve.

Tools needed:

⁄” (6.35 mm) outer diameter flexible copper tubing.

Shut-off valve (requires a ⁄” (6.35 mm) hole to be drilled into water supply line before valve

attachment).

Adjustable wrench (2).

⁄” (6.35 mm) hex nut driver.

Note:

Use copper tubing only for installation. Plastic is less durable and can cause damage.

Add 8’(2440 mm) to tubing length needed to reach water supply for creation of service loop.

Installation instructions

All manuals and user guides at all-guides.com

Inhaltsverzeichnis

Andere Fisher & Paykel Kühlschrank Handbücher

Fisher & Paykel

Fisher & Paykel RS2484SRK1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS90AU Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart RS36A72J Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121FLJK2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RB2470BRV Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF381T Verdrahtungsschema

Fisher & Paykel

Fisher & Paykel E402BRXFDU G FP SX Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121SLK2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel Active Smart Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135 Montageanleitung

Fisher & Paykel

Fisher & Paykel RS90AU1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS3084WLUK1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel CoolDrawer RB90S64MKIW1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF522ADX5 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF523M Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel CoolDrawer RB90S64MKIW1 Betriebsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart E372B Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF201ACJSX1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF523M U Series Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart RF522ADX4 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121FLJK2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121S Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart RS80AU1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS4621FLJK2 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
