Fisher & Paykel RS2484S Bedienungsanleitung

REFRIGERATOR & FREEZER

RS2484S, RS2484SH, RS084S, RS084SH

RS1884F, RS2484F & RS084F

REFRIGERATOR-FREEZER

RS2484W & RS084W

WINE CABINET

RS2484V

INTEGRATED COLUMN

INSTALLATION GUIDE

US CA

CONTENTS

Safety and warnings 4

Integrated refrigerator & freezer 5

Integrated refrigerator-freezer 6

Integrated wine cabinet 6

Supplied parts 7

Required parts 8

Door panel kit 9

Handle kit 10

Hinge change kit 11

Wine display accessories 11

Tools 12

Product dimensions 13

Cabinetry dimensions — Single installation 14

Cabinetry dimensions — Multiple installation 15

Stainless steel Door panel dimensions — Single installation 16

Custom Door panel dimensions — Single installation 17

Custom Door panel dimensions — Multiple installation 18

Toe kick dimensions 19

Installation options 20

Door clearance 21

Drawer clearance 21

Electrical and plumbing 22

Custom door panel install dimensions 23

Before installation 28

Cavity preparation 30

Appliance preparation 31

Door panel preparation — Stainless steel panel 33

Door panel preparation — Custom panel 34

Door panel preparation — Wine cabinet only 35

Power and water supply connection 37

Single installation — Align appliance into cabinetry 38

Single installation — Secure appliance into cabinetry 40

Door panel installation 41

Toe kick installation 43

Grilles installation 46

Carbon filter installation 47

Air flow divider installation 47

Door covers & Trims installation 48

Top trim & hinge pocket covers installation 49

Multiple installation — Appliance preparation 50

Multiple installation — Join products 51

Multiple installation — Roll into cabinetry 52

Multiple installation — Level and secure 53

Grilles installation 54

Multiple installation — Top trim & hinge pocket covers installation 55

Multiple installation — Install trims 56

Wine display for wine cabinet (optional) 57

Change the door hinges (optional) 58

Final checklist 63

SAFETY AND WARNINGS

READ AND SAVE THIS GUIDE

WARNING!

To avoid hazard, follow these instructions carefully before Installing or using thisappliance.

z Please make this information available to the persons installing the appliance.

z Assume all electrical parts are live.

z Disconnect power supply before servicing and installation.

BEFORE INSTALLATION

z The appliance has front and rear rollers to easily move forward and backward. Do not

move the appliance sideways to avoid damaging the rollers or the floor covering/surface.

z Ensure your appliance is not exposed to any heat generating appliance eg cooktop, oven

or dishwasher.

z The appliance must be installed by a qualified installer, or Fisher and Paykel trained and

supported service technician to avoid faulty electrical and plumbing connections.

z All connections for electrical power and grounding must comply with local codes and

ordinances and be made by licensed personnel when required.

z Avoid installation of the appliance/s under a ground fault circuit interrupter (GFCI).

z Ensure the appliance is installed properly. Improper installation that results in appliance

failure is not covered under the appliance warranty.

UNPACKING

z The appliance is heavy and requires at least twopersons to move and install.

z Remove the installation kit (internal box) and trims kit (external box) while the product is

still on the pallet.

z Avoid scratching the surface of your appliance when moving or installing.

z Keep the appliance stable and door closed to prevent tipping over when moving to the

installation location.

z Ensure the feet of the appliance are retracted before moving to the installation location.

z If the appliance is damaged, contact your Fisher and Paykel dealer.

z Ensure all components and accessories are complete. Refer to 'Before installation'.

z Record the default Wifi password, and the model and registration numbers for future

servicing or repair of your appliance.

ELECTRICAL/PLUMBING

z Alternatively, electrical and water supply connections for these appliances can be located

in an adjacent area or unit (cabinet or cupboard) that are easily accessible in case of

repair or disconnection.

z Ensure an isolating switch is available if electrical connection is not accessible.

WARNING!

Electric Shock Hazard

Failure to follow this advice may result in

electrical shock or death.

• Read and follow the safety and warnings outlined

in this User guide before operating this appliance.

WARNING!

Cut Hazard

Failure to use caution could result in injury.

• Take care: panel edges may be sharp.

• Do not put fingers in the drawers when closing.

WARNING!

Tip Hazard

• This product may tip until it is fully installed.

Keep children away and take care. Failure to

follow this advice may result in injury.

• This appliance is top-heavy and must be secured

to prevent the possibility of tippingforward.

To ensure that the appliance is stable under

all loading conditions:

• Theanti-tip bracket and fittings supplied must

be installed by a professional installer according

tothe installation steps in this guide.

SAFETY AND WARNINGS

INSTALLATION

z The anti-tip bracket and fittings supplied must be fitted tothe wall of the finished

enclosure to withstand a 220lbs (100kg) load.

z Ensure that the anti-tip bracket is installed correctly to prevent the possibility of the

appliance tipping forward when the door is open.

z Ensure the door of the appliance is closed when rolling into thecabinetry.

z Ensure the power cord is not run over or damaged when rolling the product into

the cabinetry.

z For flush installation, ensure the door panels are installed flush with cabinetry front

surface. Ensure the appliance is properly is centreed.

z All four corners of the appliance must be supported firmly on the floor to eliminate any

movement. Installing the appliance on a soft, uneven, or not level floor may cause twisting

and poor door sealing.

z Use low speed, low torque setting when using a powered driver for the screws when fixing

or aligning the product.

z Open the appliance door to remove the alignment brackets from both sides of the

appliance, and then re-tighten the screws.

Stainless steel panel

z Protect the finish of the Fisher and Paykel Stainless Steel door panels from any scratch

or damage.

z Remove the blue tape attached to inner edges of the door panels after the handles

are installed.

z We recommend to load the shelves in the appliance door with weights to ensure an

accurate door panel gap width. Load 33lbs (15kg) for 24" models, and 44lbs (20kg) for

30" models.

Custom panel

z If using Custom door panels, ensure they are prepared as per 'Custom door panel install

dimensions' section.

z The thickness of the custom door panel can vary as long as the screws do not penetrate

beyond the full depth of the door panel, and as long as the overall weight of door panel

does not exceed the allowable weight. Refer to 'Door panel dimensions' for maximum

door panel weight of your product.

z Do not place the handle holes in marked areas to avoid clashing with panel

attachment brackets.

z Minimum panel thickness where screw hole is drilled must be 5/8" 16mm.

Changing the door hinge (optional)

z Door hinges are interchangeable for each model. A hinge change kit is available and can

be purchased separately if you prefer to change from ‘right hinge door’ to ‘left hinge door’

or vice versa.

INTEGRATED REFRIGERATOR & FREEZER

Left or Right hinged door available for each model.

18" Freezer

RS1881FLJK*

& RS1884FRJK*

24" Freezer

RS2484FLJK*

& RS2484FRJK*

24" Refrigerator

RS2484SLK*, RS2484SLHK*,

RS2484SRHK* & RS2484SRK*

30" Freezer

RS3084FLJK*

& RS3084FRJK*

30" Refrigerator

RS3084SLK*, RS3084SLHK*,

RS3084SRHK* & RS3084SR*

24" Refrigerator-Freezer

RS2484WLUK* & RS2484WRUK*

30" Refrigerator-Freezer

RS3084WLUK* & RS3084WRUK*

INTEGRATED REFRIGERATOR-FREEZER INTEGRATED WINE CABINET

24" Wine Cabinet

RS2484VL2K* & RS2484VR2K*

Left or Right hinged door available for each model.

Depth alignment

gauge (4)

Hinge limiting pin (3)

Door panel attachment kit

Install fasteners kit

Miscellaneous parts

Side spacer

bracket (12)

8Gx16 Countersunk

screw (7)

M5x12 Cross-head

screw (44)

Side bracket (12) Bracket slider (12)

Barbed plug (2)

Air toe kick seal (1)

Anti-tip bracket (1) 10-12x35mm

crosshead screw (5)

Masonry plug (5)

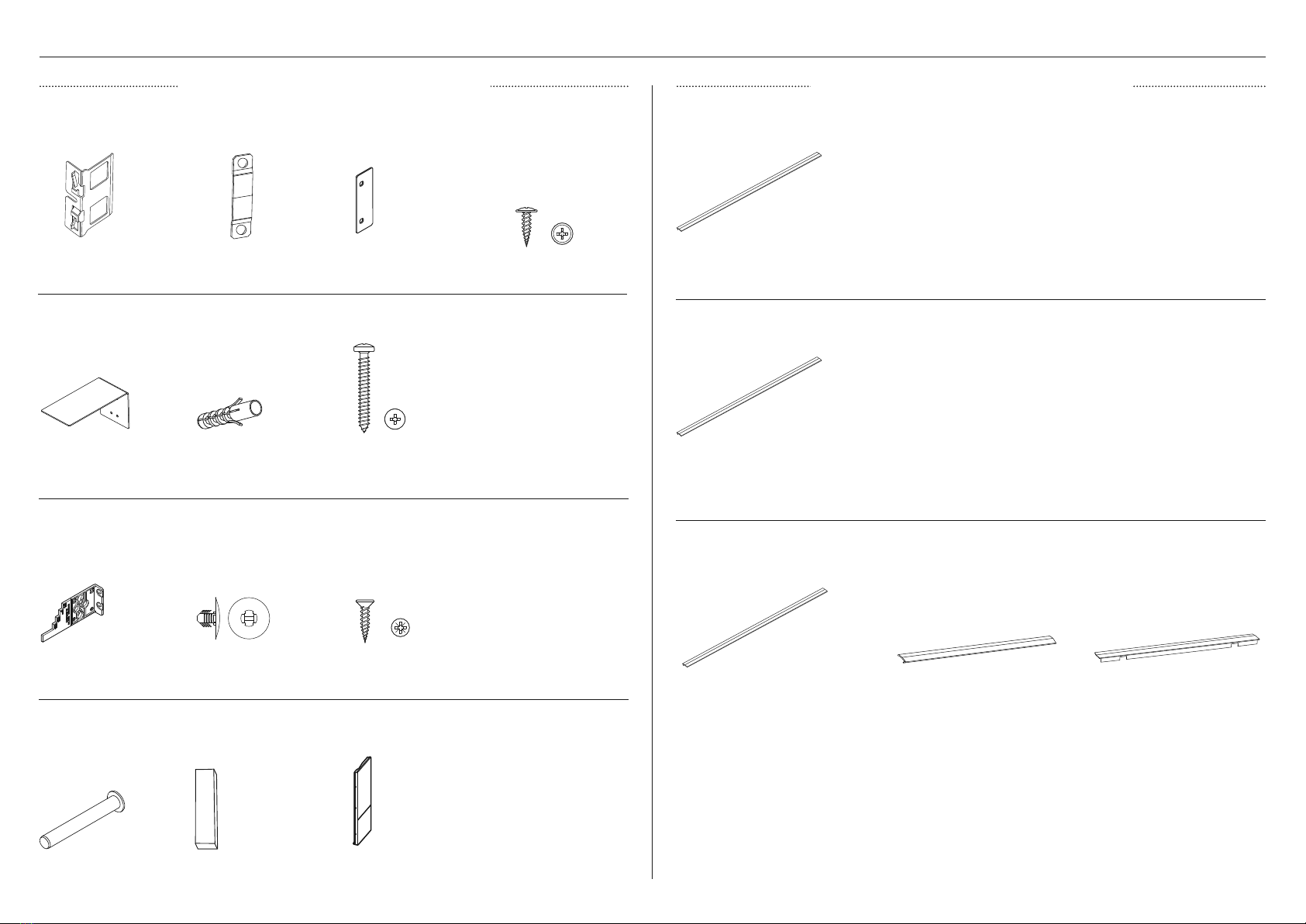

INSTALLATION KIT (INTERNAL BOX)

SUPPLIED PARTS

TRIMS INSTALL KIT (EXTERNAL BOX)

Flow divider cap (1)

Anti-tip bracket assembly

Refrigerator or Freezer

Door panel side cover (2)

Wine Cabinet

Door panel side cover (2)

Upper door panel side cover (2) Lower door panel side cover (2) Drawer top trim (1)

Refrigerator-Freezer

REQUIRED PARTSSUPPLIED PARTS

Air carbon filters (2)

#862755

For Wine Cabinet only

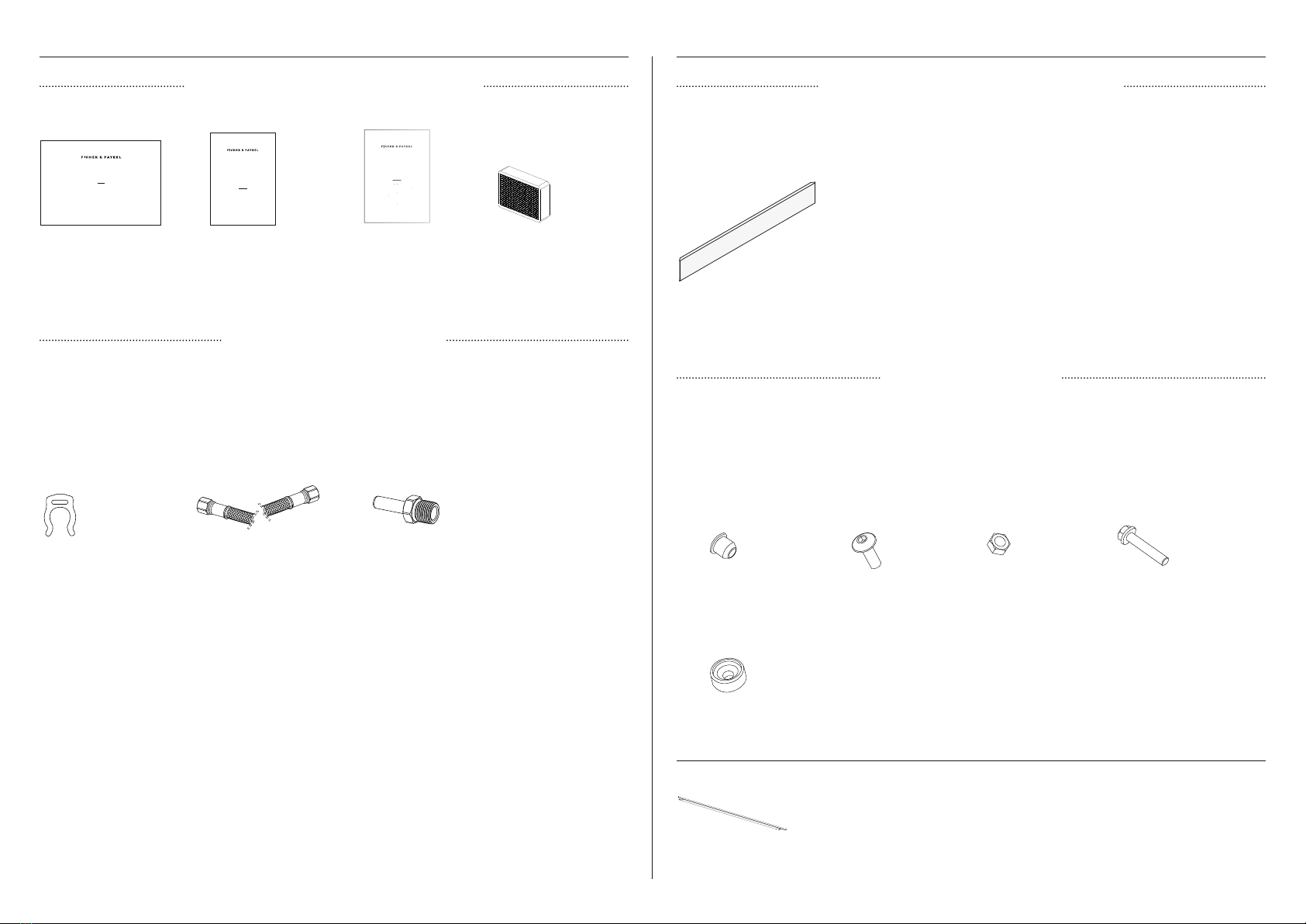

MISCELLANEOUS ITEMS (MI) PACK

Installation guide

INSTALLATIONGUIDE

US CA

INTEGRATED COLUMN

REFRIGERATOR& FREEZER

REFRIGERATOR-FREEZER

RS3084W& RS3084W

WINE CABINET

RS2484V

RS2484S,RS2484SH, RS3084S, RS3084SH

RS1884F,RS2484F & RS3084F

1/4" (6mm) Stainless

steel braided hose with

7/16-24 UNS thread (1)

1/4" (6.35mm)

Adaptor (2)

Collet locking clip (1)

WATER CONNECTION KIT

Service & Warranty

SERVICE & WARRANTY

SERVICE ET GARANTIE

ΣΈΡΒΙΣΚ ΑΙ ΕΓΓΎΗΣΗ

SERVIZIO E GARANZIA

SERVICE & GARANTIE

HUOLTOJA TAKUU

SERVICE OG GARANTI

保修和维修

݉ଡ଼ڸߴঔ

User guide

US CA

COL

UMN

REFR

R & FREE

EZER

S2484S, R

RS2484SH, R

RS30

84S

S, RS3084SH

RS188

84F, RS248

84F & RS3

84F

REFRIGERAT

TOR-FRE

EEZER

RS3084W &

& RS3084

WINE C

CABINET

RS2

2484V

Supplied in models with Ice & Water function only

(RS2484SH, RS3084SH, RS1884F, RS2484F, RS3084F, RS2484W & RS3084W)

Water filter comes preinstalled on this product.

Not supplied and can be purchased separately through an authorised Fisher and Paykel dealer.

Visitfisherpaykel.com for more information.

Standard toe kick height is 4" (102mm) forstandard stainless

steel door panel.

For Custom door panel installation, atoe kick 2-6" (50–152mm)

must be fitted andadjusted accordingly.

An extra bottom grille is required when you use 2" (50mm) toe

kick height.

You can purchase the extra bottom grille (847542P) online

at fisherpaykel.com.

STAINLESS STEEL TOE KICK PANEL

Toe kick panel (1)

Joiner Sleeve (2)

Flange Joiner Trim (2)

INSTALL JOINER KIT

Used for combined installation of multiple appliances. Supplied in selected appliances only

(Freezer and Wine Cabinets). For other models, the joiner kit (AJ-RS84LR) can be purchased

separately through an authorised Fisher and Paykel dealer. Visitfisherpaykel.com for more

information.

Joiner fastener kit

Aluminium center trim (1)

M6 Hex Nut (1) Bolt M5 HEX (2)

Screw WSH M6 (1)

Custom door panel Custom door panel Custom door panel

The Custom door panel must leave the glass pane visible. A full

custom panel sheathing over the glass pane does not meet the

specifications of the Wine Cabinet.

8Gx16 Mush washer screw (48)

RH LH

RS24 RD2484WRD RD2484WLD

RS30 RD3084WRD RD3084WLD

Stainless steel door panel kit Stainless steel door panel kit Stainless steel door panel kit

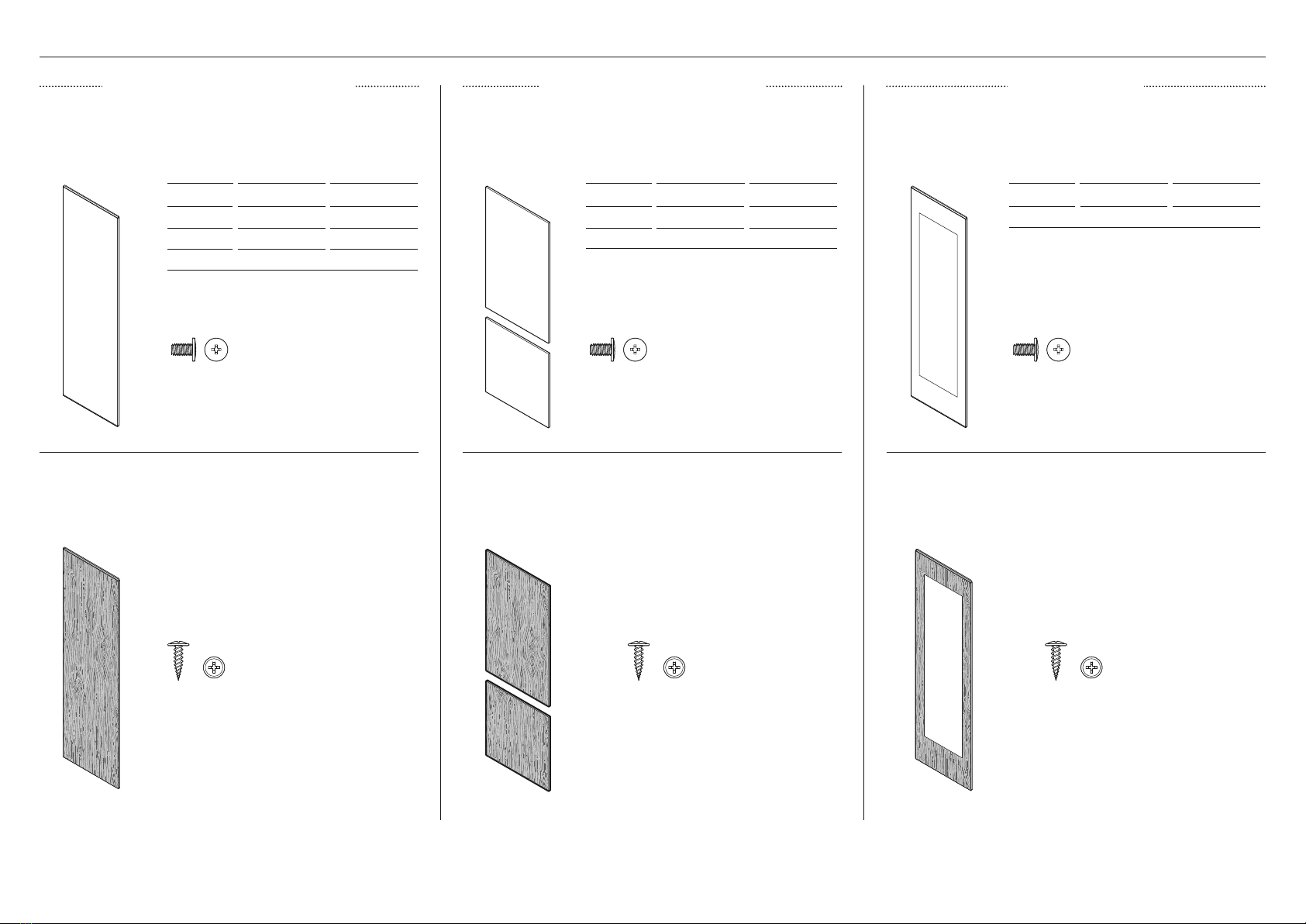

DOOR PANEL KIT

REFRIGERATOR OR FREEZER REFRIGERATOR-FREEZER WINE CABINET

Custom door panels must be supplied by the customer to match their cabinetry. Stainless steel door panels are not supplied and must be purchased separately through an authorised Fisher and Paykel dealer.

Take note of the part numbers above to ensure you are ordering the correct door panel set. Visitfisherpaykel.com for more information.

M5x12 Cross-head screw (44)

Included in Installation kit

M5x12 Cross-head screw (44)

Included in Installation kit

M5x12 Cross-head screw (44)

Included in Installation kit

8Gx16 Mush washer screw (32)

RH LH

RS18 RD1884R4D RD1884L4D

RS24 RD2484R4D RD2484L4D

RS30 RD3084R4D RD3084L4D

8Gx16 Mush washer screw (32)

RH LH

RS24 RD2484VR4 RD2484VL4

CONTEMPORARY PROFESSIONAL

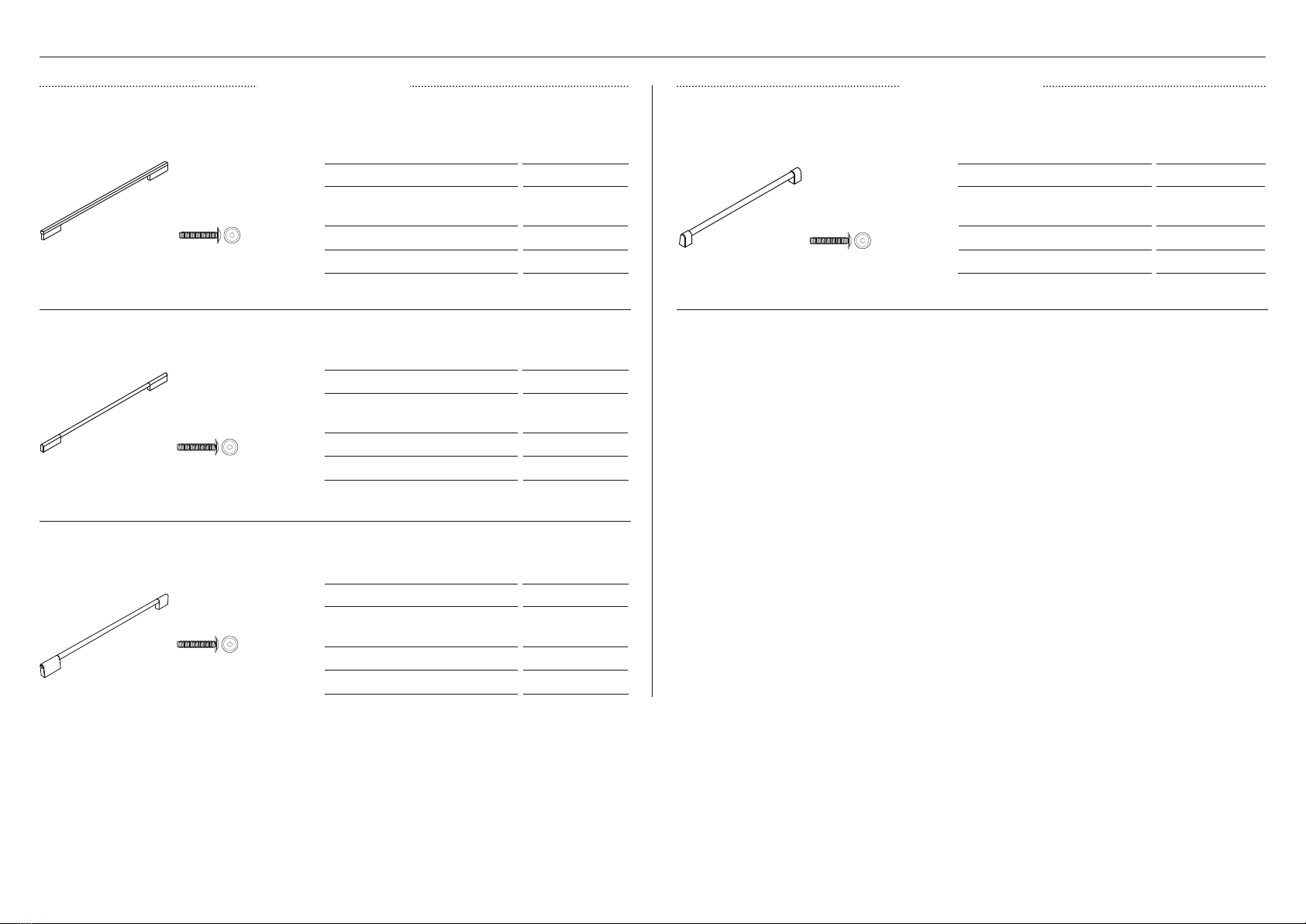

HANDLE KIT

The handle kit is not supplied and must be purchased separately through an authorised Fisher and Paykel dealer. Visitfisherpaykel.com for more information.

For Refrigerator-Freezer models, each handle kit includes two (2x) handles for door and drawer panels, and M5x25 hex screws (8x).

Round flush handle

(1) M5x25 Hex screw

(4)

MODEL DESCRIPTION

REFRIGERATOR/FREEZER

WINE CABINET

AHP3-RDSF

24" REFRIGERATOR-FREEZER AHP3-RD2484W

30" REFRIGERATOR-FREEZER AHP3-RD3084W

Stainless steel round flush handle set

Square fine handle

(1) M5x25 Hex screw

(4)

Round handle

(1) M5x25 Hex screw

(4)

M5x25 Hex screw

(4)

MODEL DESCRIPTION

REFRIGERATOR/FREEZER

WINE CABINET

AHD5-RDSF

24" REFRIGERATOR-FREEZER AHD5RD2484W

30" REFRIGERATOR-FREEZER AHD5RD3084W

MODEL DESCRIPTION

REFRIGERATOR/FREEZER

WINE CABINET

AHD5-RDSF

24" REFRIGERATOR-FREEZER AHD5RD2484W

30" REFRIGERATOR-FREEZER AHD5RD3084W

Aluminium/Black square fine handle set

Aluminium round handle set

Classic handle set

MODEL DESCRIPTION

REFRIGERATOR/FREEZER

WINE CABINET

AHCLRDSF

24" REFRIGERATOR-FREEZER AHCLRD2484W

30" REFRIGERATOR-FREEZER AHCLRD3084W

Andere Handbücher für RS2484S

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Fisher & Paykel Kühlschrank Handbücher

Fisher & Paykel

Fisher & Paykel RS6019S2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF523M U Series Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel E331T Montageanleitung

Fisher & Paykel

Fisher & Paykel Active Smart Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel 331T Montageanleitung

Fisher & Paykel

Fisher & Paykel RS2484SLK1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS2474S3RH Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121SRK2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RX256DT7X1 Montageanleitung

Fisher & Paykel

Fisher & Paykel E522BRXU Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF500QNUB1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF170ADUSX4 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS6121SLK2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF730Q Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel 635 Active Smart Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS7621SRK1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS90AU1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Montageanleitung

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS80 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS90A1 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RF610ADW5 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel E522BLXU2 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel RS36W80 series Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
