Fisher-Price JEEP 72607 Bedienungsanleitung

Instructions

Jeep

Push’n Scoot™

Model Number: 72607

If you experience a problem with this product, or are missing a part,

please call us at 1-800-432-KIDS, rather than return this product to the store.

Please save these instructions for future reference.

Adult assembly is required.

Tools required for assembly: Hammer and Scrap Block of Wood.

Weight Limit: 55 lbs.

Ages: 11/2years - 5 years.

’

•Adult supervision is required.

•Never use near steps, sloped driveways, hills, roadways, alleys, swimming pool areas or

other bodies of water.

•Always wear shoes or sneakers.

•Never allow more than one rider.

WARNING

Parts

•If you experience a problem with this product, or are

missing a part, please call us at 1-800-432-KIDS, rather

than return this product to the store.

•Please save all packaging material until assembly is

complete to ensure that no parts are discarded.

•For your convenience, an extra piece of each type of

hardware is included.

•Before assembling the Jeep Push ‘n Scoot™, please

wipe each part with a clean, dry cloth.

•The Jeep Push ‘n Scoot™ comes with cap nut tools to

help you fasten the cap nuts. After one-time assembly is

complete, dispose of the cap nut tools properly.

Handle

Spacer

Cap Nut Tool - 2

Cap Nut

Wheel

“A” Front Axle “B” Front Axle

Washer

Bushing

Vehicle Body

Rear Axle

11/8" Washer - 4

SHOWN ACTUAL SIZE

Assembly

CAUTION

Rear Axle

Cap Nut

Scrap Block

of Wood

•Place a cap nut on a scrap block of wood.

•Fit the rear axle into the cap nut and tap with a hammer

until secure.

•Slide a wheel, spoke side down, onto the rear axle.

•Slide a spacer onto the rear axle.

Rear Axle

Wheel

Spoke Side Down

Spacer

•Insert the rear axle through the holes in the rear of the

vehicle body. Make sure the spacer fits into the hole in

the vehicle body.

Spacer Rear Axle

•Turn the vehicle body on its side with the end of the

rear axle facing up.

•Lift the vehicle body up slightly and fit a cap nut tool on

the cap nut.

•Slide a block of wood under the cap nut tool to support

the rear axle.

•Fit the other spacer onto the rear axle and into the hole

in the vehicle body.

Scrap Block of Wood

Vehicle Body

Cap Nut Tool

Vehicle

Body

Spacer

Rear Axle

Please keep small parts and plastic

bags out of children’s reach. Dispose of

plastic bags properly.

Wheel

•Slide a washer onto the "A" front axle.

•Slide a bushing, narrow side up, onto the "A" front axle.

•Repeat steps and to assemble the "B" front

axle, washer, wheel, bushing and cap nut.

•Identify and separate the "A" and "B" front axles.

•Place the "A" front axle onto a scrap block of wood.

•Slide a washer onto the "A" front axle.

•Slide one of the wheels, spoke side up, onto the "A"

front axle.

•Fit a cap nut onto the end of the "A" front axle.

•Fit a cap nut tool over the cap nut and tap the center

with a hammer until the cap nut is secure.

•Slide a wheel, spoke side up, onto the end of the

rear axle.

•Fit a cap nut onto the end of the rear axle.

•Fit a cap nut tool over the cap nut and tap the center

with a hammer until the cap nut is secure.

Cap Nut Tool

Spoke Side Up

Cap Nut

Rear Axle

Wheel

Assembly

Cap Nut

Tool

Wheel

Washer

Spoke Side Up

Scrap

Block of

Wood

Bushing

"A" Front Axle

Washer

"A"

Front

Axle

"A" Front

Axle

"B" Front

Axle

•Turn the vehicle body upright.

•Lift the front end of the vehicle body and locate the

side of the vehicle body marked "A".

IMPORTANT! For proper wheel position, the "A" front

axle assembly must be inserted into the hole in the

vehicle body marked "A".

•Insert the "A" front axle up into the hole underneath

the vehicle body marked "A".

•Make sure the bushing fits into the hole in the vehicle

body.

Bushing

"A"

Front

Axle

"A" Marking Vehicle

Body

•Lower the vehicle body.

•Fit a bushing, narrow side down, onto the exposed end

of the "A" front axle and into the hole in the vehicle

body.

•Fit a cap nut onto the end of the "A" front axle.

•Fit a cap nut tool over the cap nut and tap the center

with a hammer until the cap nut is secure.

•Repeat assembly steps and to assemble the

"B" front axle to the side of the vehicle body marked "B".

•Dispose of the cap nut tools properly.

Assembly

Cap Nut

Cap Nut Tool

"A"

Front

Axle

Bushing

Vehicle Body

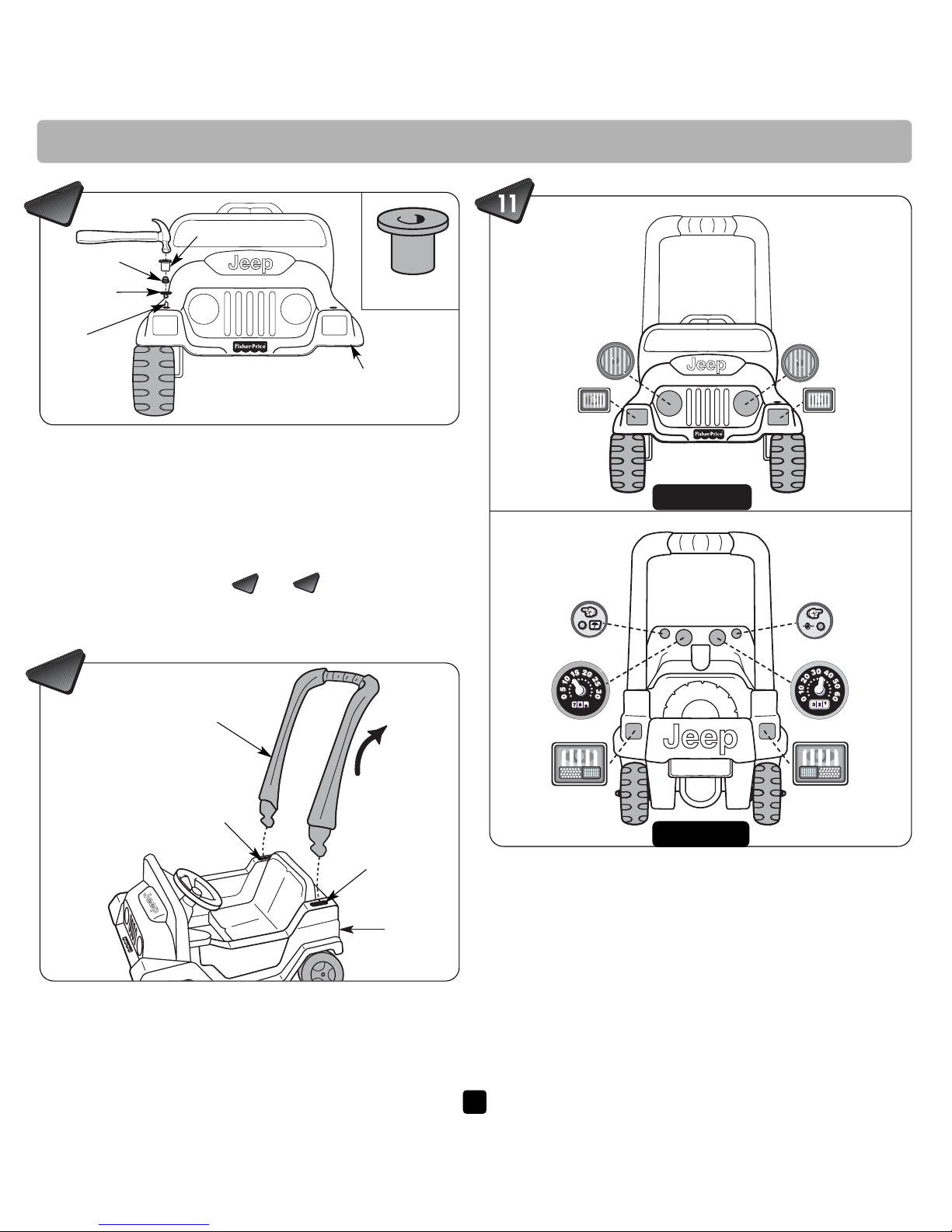

•Position the handle over the rear of the vehicle body so

that it leans away from the vehicle body.

•While keeping the vehicle body stationary, insert and

snap the handle into the two holes in the rear of the

vehicle body.

Hole

Rear of

Vehicle

Body

Hole

Handle

•Make sure the areas where the labels will be applied

are clean and dry.

•Apply the labels as shown in the illustrations.

•For best adhesion, try to avoid applying a label more

than once.

One-time assembly is now complete.

Front View

Back View

Bushing

When pushing your child in the Jeep Push 'n Scoot™,

use the pull-out footrest.

Use

•Pull the footrest out from under the seat.

•Hook the notches in the front of the footrest onto the

tabs on the inside front of the Jeep Push 'n Scoot™.

Ta b

Seat

Footrest

Notches

Fisher-Price, Inc., 636 Girard Avenue, East Aurora,

New York 14052, warrants to the original owner that the

Jeep Push 'n Scoot™ is free from all defects in material

and workmanship when used under normal conditions for

a period of three (3) years from the date of purchase. This

warranty does not cover color fading of the product or

product parts, or damage from excessive abuse or Acts

of God.

Should the product fail to perform properly, we will repair

or replace it, free of charge. Purchaser is responsible for

shipping the product to the address indicated above and

for all associated freight and/or insurance cost.

Fisher-Price, Inc. will bear the cost of shipping the repaired

or replaced item to you. This warranty is void if the owner

repairs or modifies the product. This warranty excludes any

liability other than the above mentioned, including but not

limited to any incidental or consequential damages.

SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL

DAMAGES, SO THE ABOVE LIMITATION OR EXCLU-

SION MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

Maintenance

Three (3) Year Limited Warranty

Questions?

•Periodically check the Jeep Push 'n Scoot™ to be sure

all fasteners are secure and re-fasten as needed.

•To clean or remove static electricity, use a mild soap

and water solution and a clean cloth. Rinse clean with

water to remove soap residue.

Printed in U.S.A. 72607 1 72607-0920

We'd like to hear from you!

Call Fisher-Price®Consumer Affairs, toll-free at

1-800-432-KIDS, 8 AM - 6 PM EST Monday through

Friday. Hearing-impaired consumers using TTY/TDD

equipment, please call 1-800-382-7470. Or, write to:

Fisher-Price®Consumer Affairs, 636 Girard Avenue,

East Aurora, New York 14052.

JEEP and Jeep grille design are registered trademarks of Chrysler Corporation U.S.A. Used under license.

©CHRYSLER CORPORATION 1997.

If you have any questions about this product:

In Canada, call 1-800-567-7724, or write to: Mattel/Fisher-Price, 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2.

In Great Britain, telephone 01734 770488.

In Australia, call the Fisher-Price Australian Consumer Advisory Service toll-free at 1-800-800-812, or write to: Fisher-Price, Mattel Pty. Limited, 461 Plummer Street,

Port Melbourne, Victoria 3207.
