Fisher-Price V4595 Bedienungsanleitung
V4595
V4595
V9115
V9115
www.fisher-price.com
www.fisher-price.com
Stage 2
Stage 2
Stage 1
Stage 1
2
To avoid serious injury:
• Never use near/keep away from cars and
other motor vehicles, streets, steps, steep
inclines, sloped driveways, hills, roadways,
alleys, swimming pools, or other bodies
of water.
• Always wear shoes.
• Never allow more than 1 rider.
• Not for children with a body weight of more
than 20 kg (44 lb).
• Adult supervision required.
• For stage 2 use, protective equipment should
be worn. Use helmet, wrist guards, kneepads
and elbow pads.
• Never ride at night.
WARNING
Consumer Information
IMPORTANT! For stage 2 use, please take a few moments to
review the following safety tips:
Please use with caution as this product requires skill to operate•
safely to avoid falls, collisions, and injuries to yourself (the rider)
and others.
This product is intended to be used outdoors for stage 2 use.•
Adults should supervise beginners.•
Wear shoes or sneakers that provide good support. Do not wear•
open-toe shoes.
Keep loose laces and pant legs away from the wheels.•
Choose areas for riding that are free of obstacles.•
Ride on smooth, paved surfaces away from motor vehicles.•
Avoid wet or uneven surfaces; sharp bumps, drainage grates, and•
other sudden surface changes, as the product may suddenly stop.
Avoid excessive speed associated with downhill rides.•
Towing riders with bicycles or cars is unsafe.•
Avoid colliding with pedestrians.•
Learn to stop safely.•
Please keep this instruction sheet for future reference, as it•
contains important information.
Adult assembly is required.•
Tools required for assembly: 2 Phillips screwdrivers (not included).•
Ages: 18 months and older.•
Weight Limit: 44 lbs (20 kg).•
For• stage 1 use, please refer to the instructions beginning on
page 4.
For• stage 2 use, please refer to the instructions beginning on
page 7.
Your product comes with replacement warning labels which•
you can apply over the factory applied warning label if English
is not your primary language. Select the warning label with the
appropriate language for you.
Actual product may appear different from the photos shown.•
3

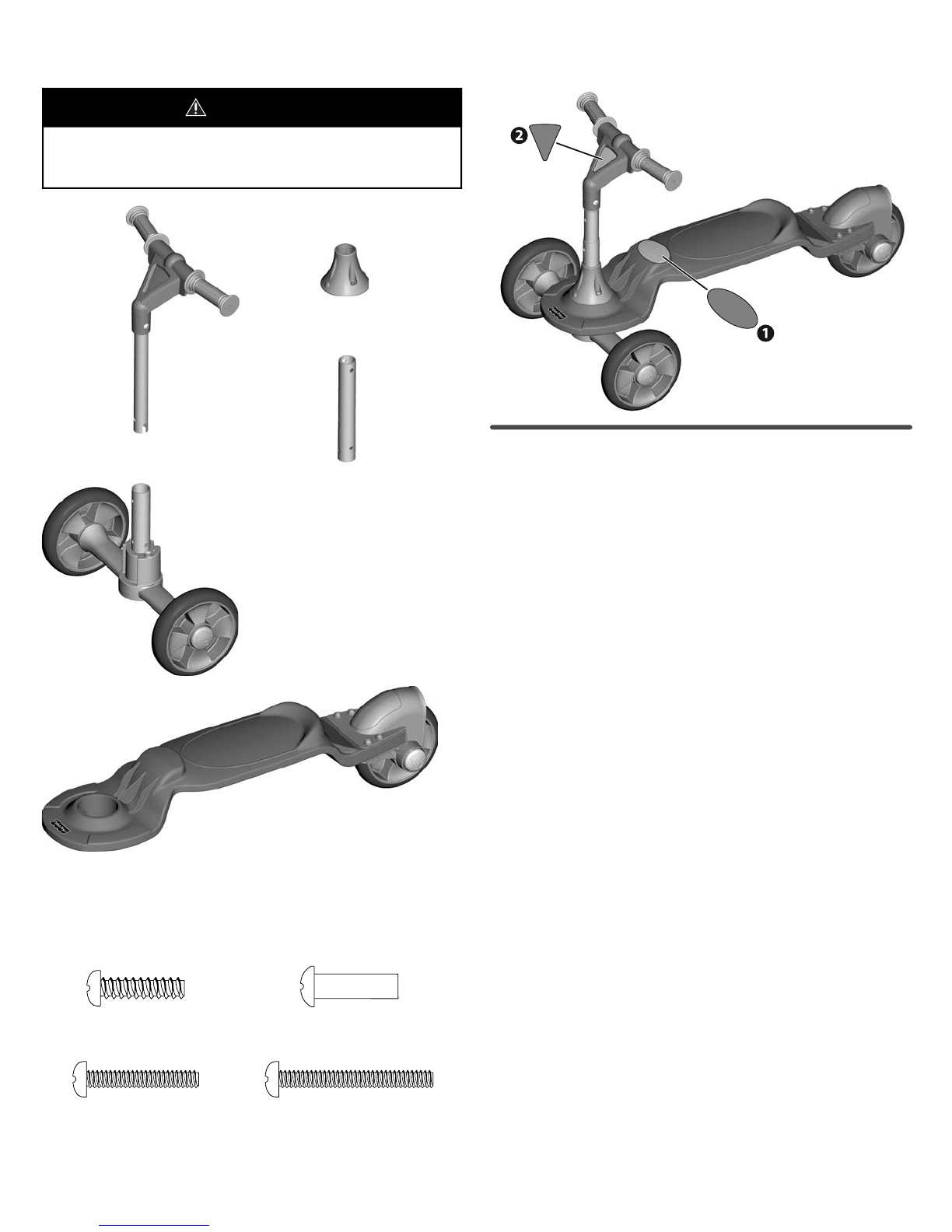

Parts Decoration
Handlebar
Handlebar
Part not shown: Decorative Labels
Part not shown: Decorative Labels
Collar
Collar
Board
Board
Front Wheel Assembly
Front Wheel Assembly
Fasteners
Fasteners Shown Actual Size.
Tighten and loosen the screws with a Phillips screwdriver.
#10 x ¾˝ (1,9 cm) Screw - 2
#10 x ¾˝ (1,9 cm) Screw - 2
#8 x 1˝ (2,5 cm) Screw - 2
#8 x 1˝ (2,5 cm) Screw - 2
#10 x ¾˝ (1,9 cm) Barrel Nut - 2
#10 x ¾˝ (1,9 cm) Barrel Nut - 2
#8 x 1
#8 x 1
3
3
/
/
8
8
˝ (3,5 cm) Screw - 4
˝ (3,5 cm) Screw - 4
(assembled to the rear wheel)
(assembled to the rear wheel)
Extension Tube
Extension Tube
Hint: The extension tube
is located inside the front
wheel assembly post.
Remove it from the post
before beginning assembly.
CAUTION
This product contains small parts in its
unassembled state. For adult assembly only.
Wipe the areas where the labels will be applied with a clean, dry•
cloth to remove any oils before applying labels.
Apply labels exactly as shown in the illustration. For best results,•
avoid repositioning the label after it has been applied.
Starting at the center of a label rub firmly with a dry cloth, and•
smooth towards the outer edges to remove air bubbles.
4
1
With the seating area upright• , slide the board onto the front
wheel assembly.
Hint: The board and front wheel assembly are designed to fit one
way for stage 1 use. If the front wheel assembly does not seem to
fit, turn it around and try again.
Board
Board
Wheel Assembly
Wheel Assembly
Stage 1 Assembly
Sit & Scoot Mode
2
Position the extension tube so the end with• two holes is upright.
Slide the extension tube into the front wheel assembly post.•
1
Wi
t
h
t
h
e seat
i
n
g
•
wheel assembly.
Hi
nt
:
The board a
n
wa
y
f
or stage 1 u
s
f
it, turn it around
a
Sit
&
Scoot
Mode
Seating Area
Seating Area
2
Extension Tube
Extension Tube
2 Holes
2 Holes
Upright
Upright
4 Holes
4 Holes
5
4
While holding the extension tube in position, insert a•
#10 x ¾˝ (1,9 cm) barrel nut into one of the side holes in the
post and through the extension tube.
5
Insert a #10 x ¾˝ (1,9 cm) screw into the opposite side hole in•
the post and into the barrel nut.
While holding the barrel nut in place with a Phillips screwdriver,•
fully tighten the screw with another Phillips screwdriver.
Stage 1 Assembly
Sit & Scoot Mode
3
Align all four holes in the lower end of the extension tube with the•
holes (front and back and both sides) in the wheel assembly post.
3
Holes
Holes
6
Slide the collar, narrow end up, onto the end of the handlebar.•
Slide the handlebar assembly into the extension tube.•
Barrel Nut
Barrel Nut
Handlebar
Handlebar
Collar
Collar
#10 x ¾˝ (1,9 cm) Screw
6
9

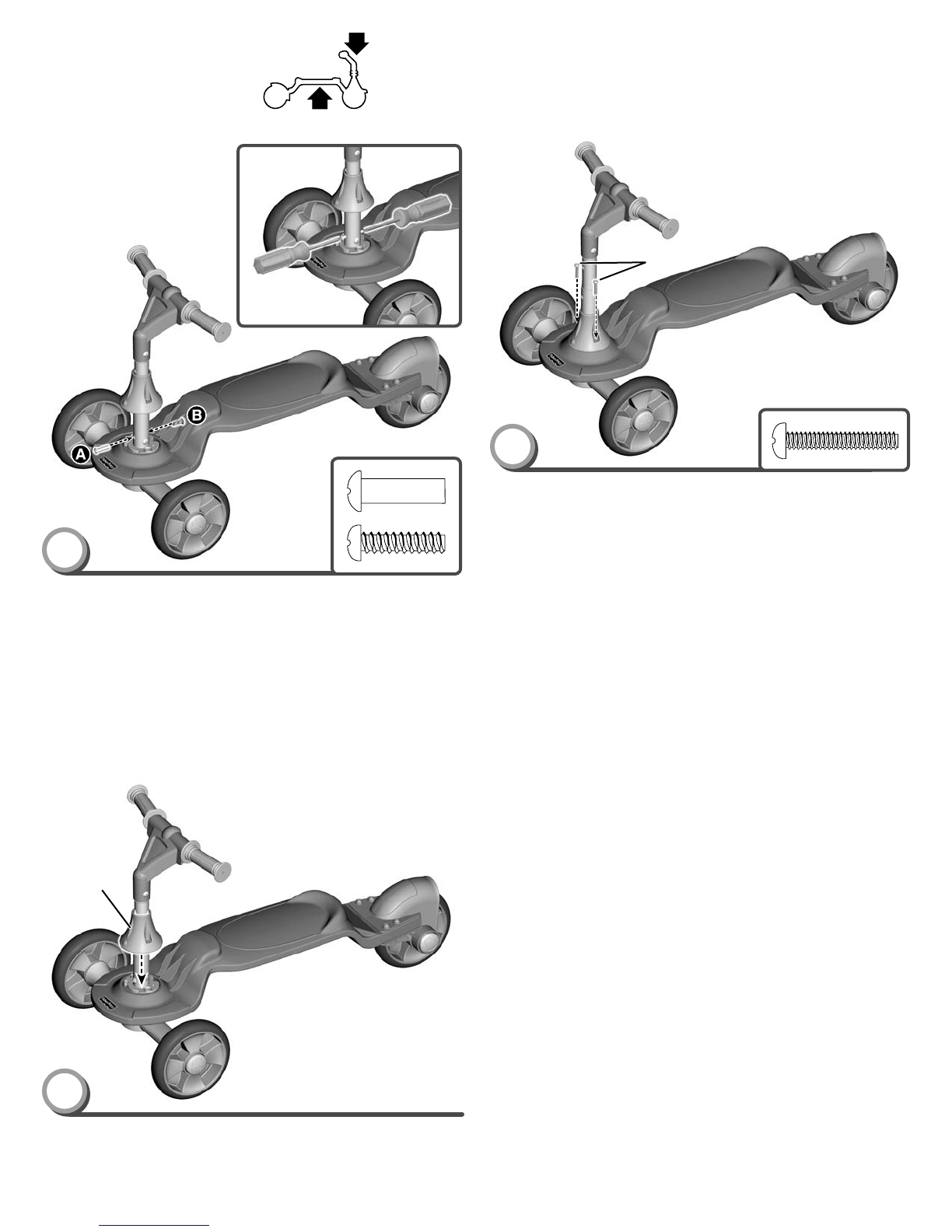

Insert two #8 x 1˝ (2,5 cm) screws into the holes in the collar•
and tighten.
8
Slide the collar down onto the board.•
Stage 1 Assembly
Sit & Scoot Mode
7
Insert a #10 x ¾˝ (1,9 cm) barrel nut into the front hole in the•
post A. Next, insert a #10 x ¾˝ (1,9 cm) screw into the rear hole
in the post Band into the barrel nut.
Turn the front wheel assembly slightly.•
While holding the barrel nut in place with a Phillips screwdriver,•
fully tighten the screw with another Phillips screwdriver.
IMPORTANT! Pull up on the handlebar to be sure it's secure. If you
can remove the handlebar, please go back to step 2 to assemble the
extension tube, handlebar and collar to the post.
Collar
Collar
#8 x 1˝ (2,5 cm) Screws
7
3

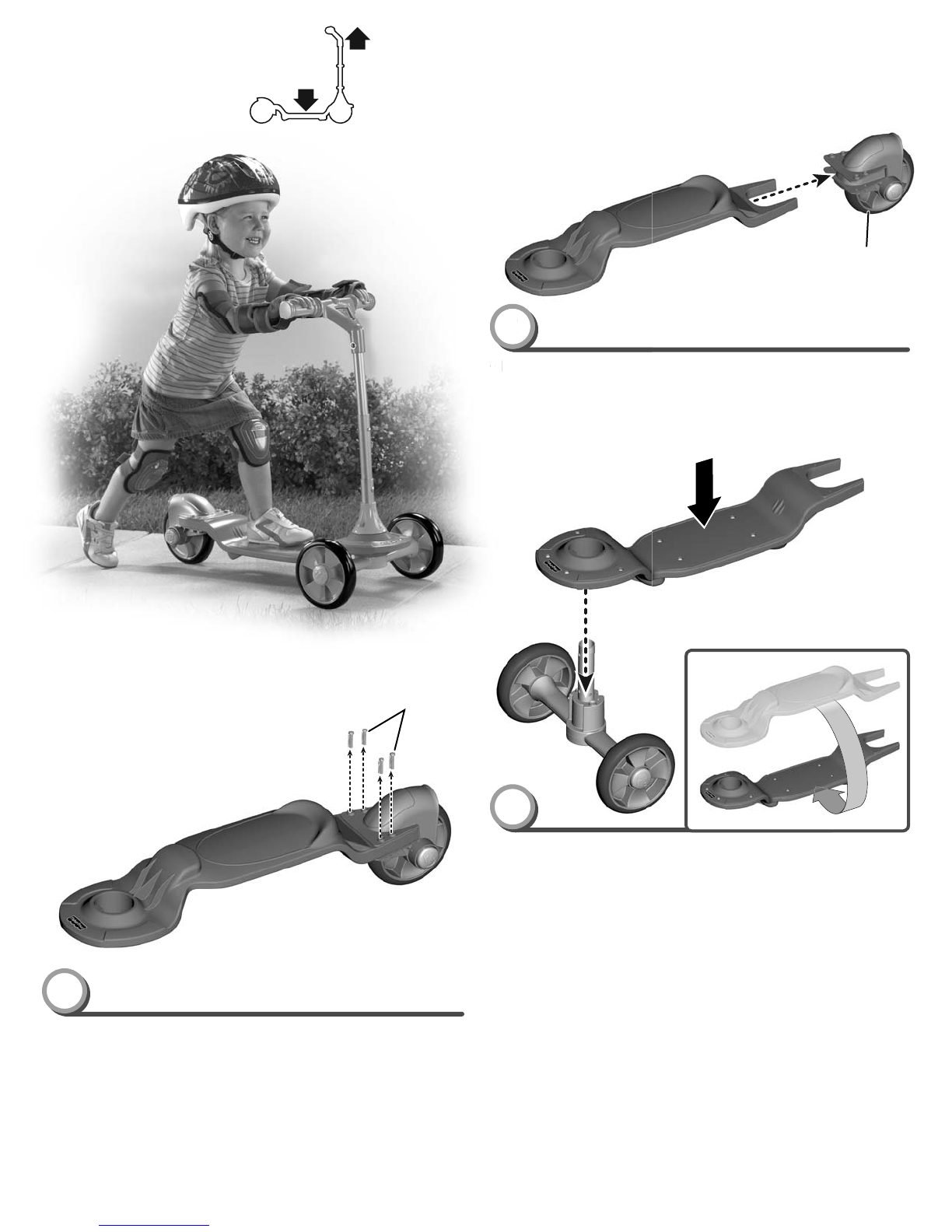

Turn the board over so that the stepping area curves down. Fit the•
board back onto the front wheel assembly, as shown.
Hint: The board and front wheel assembly are designed to fit one way
for stage 2 use. If the front wheel assembly does not seem to fit,
turn it around and try again.
2
Remove the rear wheel assembly from the board. Set the rear•
wheel assembly aside. It will be re-assembled in step 9.
1
Loosen and remove the four #8 x 1• 3/8˝ (3,5 cm) screws in the
board near the rear wheel assembly.
Set the screws aside. They will be re-used to assemble the•
rear wheel in the last step.
2
R
emove the rear wheel
a
•
w
h
ee
l
assem
bly
as
id
e.
I
t
Stage 2 Assembly
Stand & Scooter Mode
Stepping Area
Stepping Area
#8 x 1
3
3
/
/
8
8˝
(3,5 cm) Screws
Rear Wheel
Rear Wheel
Assembly
Assembly
8
4
5

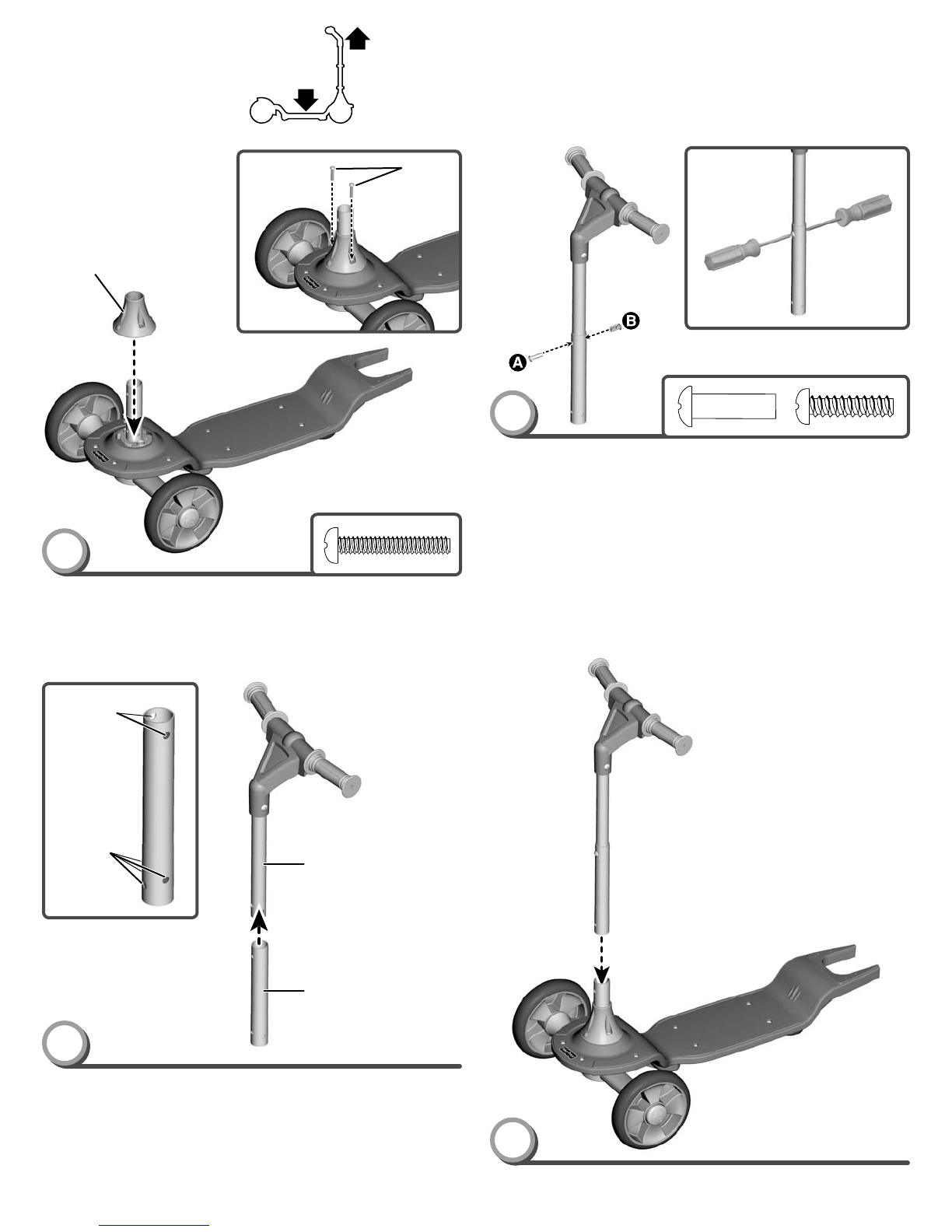

Slide the collar (wide end down) onto the post, as shown.•
Insert two #8 x 1˝ (2,5 cm) screws into the collar and tighten.•
Position the extension tube so the end with• two holes
is upright.
Slide the extension tube onto the handlebar.•
6
Align the holes on the extension tube with the holes•
in handlebar.
First, insert a #10 x ¾˝ (1,9 cm) barrel nut into a hole in the•
extension tube A. Then, insert a #10 x ¾˝ (1,9 cm) screw into the
opposite hole in the extension tube B.
While using a Phillips screwdriver to hold the barrel nut in place,•
fully tighten the screw with another Phillips screwdriver.
Check to be sure the handlebar is attached to the extension tube.•
If you can pull them apart, go back to step 5 and follow the
instructions carefully.
7
Slide the handlebar assembly into the front wheel assembly post.•
Stage 2 Assembly
Stand & Scooter Mode
Collar
Collar
#8 x 1˝
(2,5 cm)
Screws
Handlebar
Handlebar
Extension Tube
Extension Tube
2 Holes
2 Holes
Upright
Upright
4 Holes
4 Holes
9
8
10
9

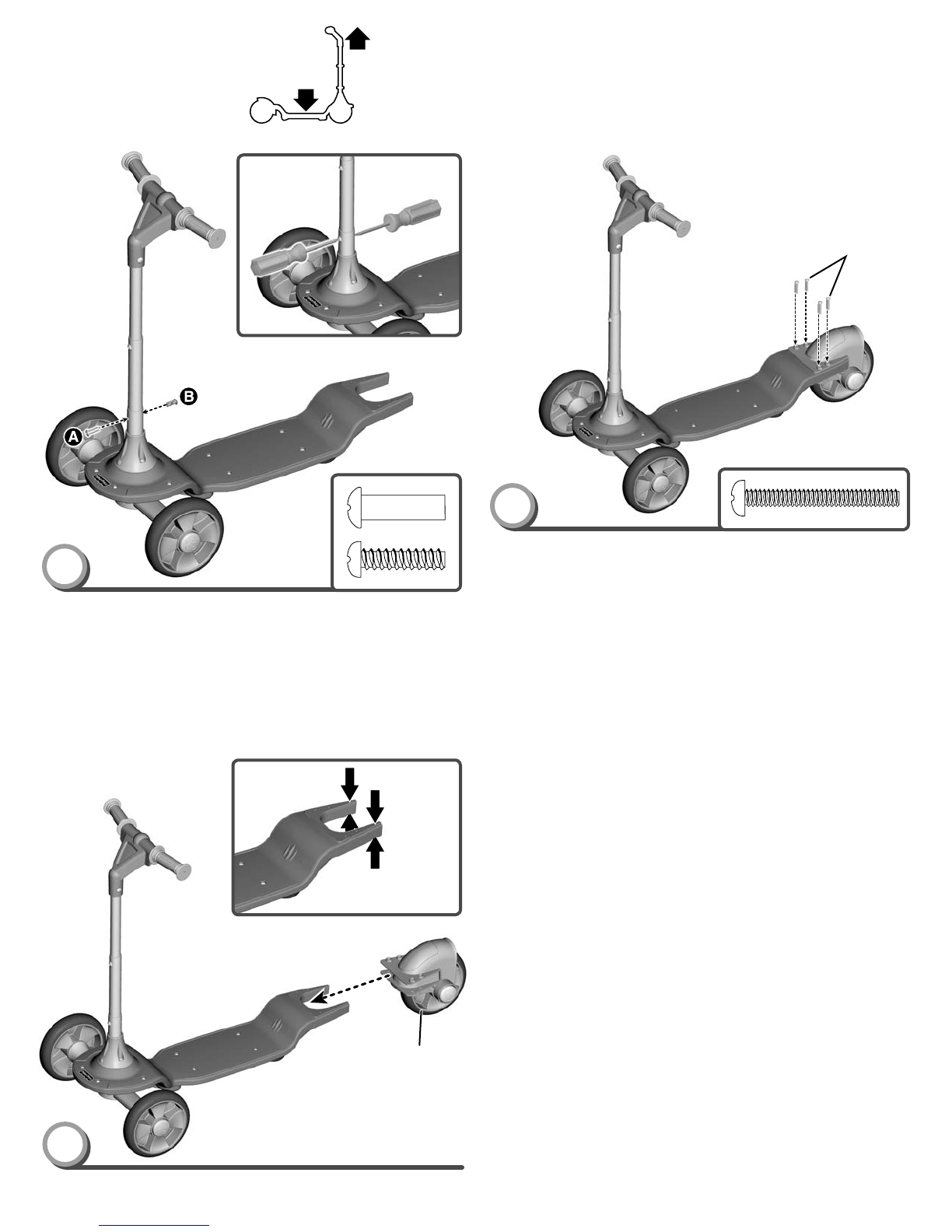

Align the holes in the handlebar assembly with the holes in•
the post.
First, insert a #10 x ¾˝ (1,9 cm) barrel nut into a hole in the•
post A. Next, insert a #10 x ¾˝ (1,9 cm) screw into the opposite
hole in the post B.
While holding the barrel nut in place with a Phillips screwdriver,•
fully tighten the screw with another Phillips screwdriver.
Replace the four #8 x 1• 3/8˝ (3,5 cm) screws into the board near
the rear wheel assembly and tighten.
Slide the rear wheel assembly onto the back of the board.•
Hint:
Hint:
Squeeze the top and bottom
Squeeze the top and bottom
ends of the board together.
ends of the board together.
Stage 2 Assembly
Stand & Scooter Mode
Rear Wheel
Rear Wheel
Assembly
Assembly
#8 x 1
3
3
/
/
8
8˝
(3,5 cm) Screws
10

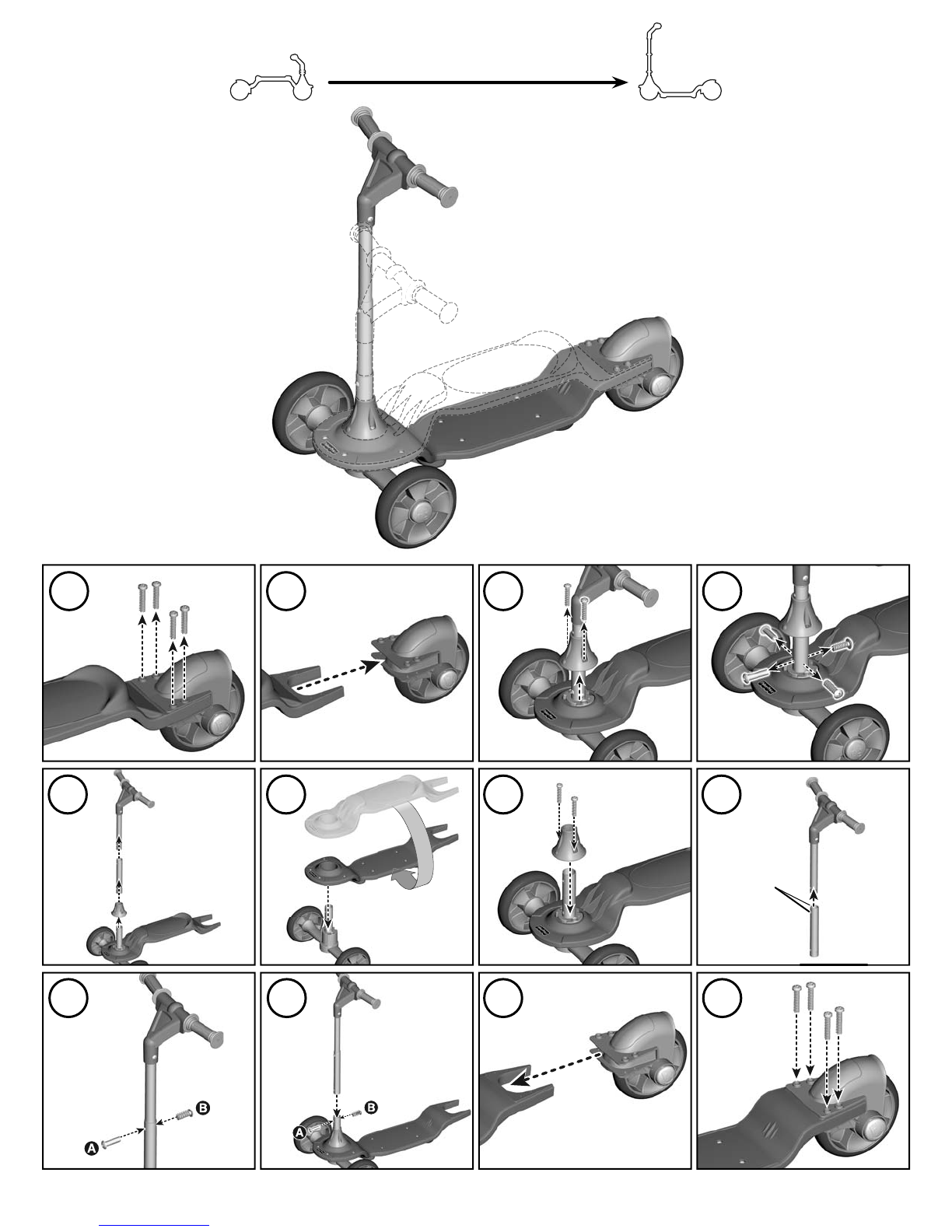

Convert Stage 1 to Stage 2
1234
5678
910 11 12
2 Holes
2 Holes
Upright
Upright
