FITNESS AUDIO DX6-PR Bedienungsanleitung

Operation manual

DX6-PR

Single-Channel Three Redundancy Digital

Receiver

DX6-PR Single-Channel Three Redundancy Digital Receiver

Introduction

Thank you for choosing Fitness Audio digital wireless microphone system!

For more details, please take a few moments to read this operating manual for thorough

understanding of the function and operation of both transmitter and receiver.

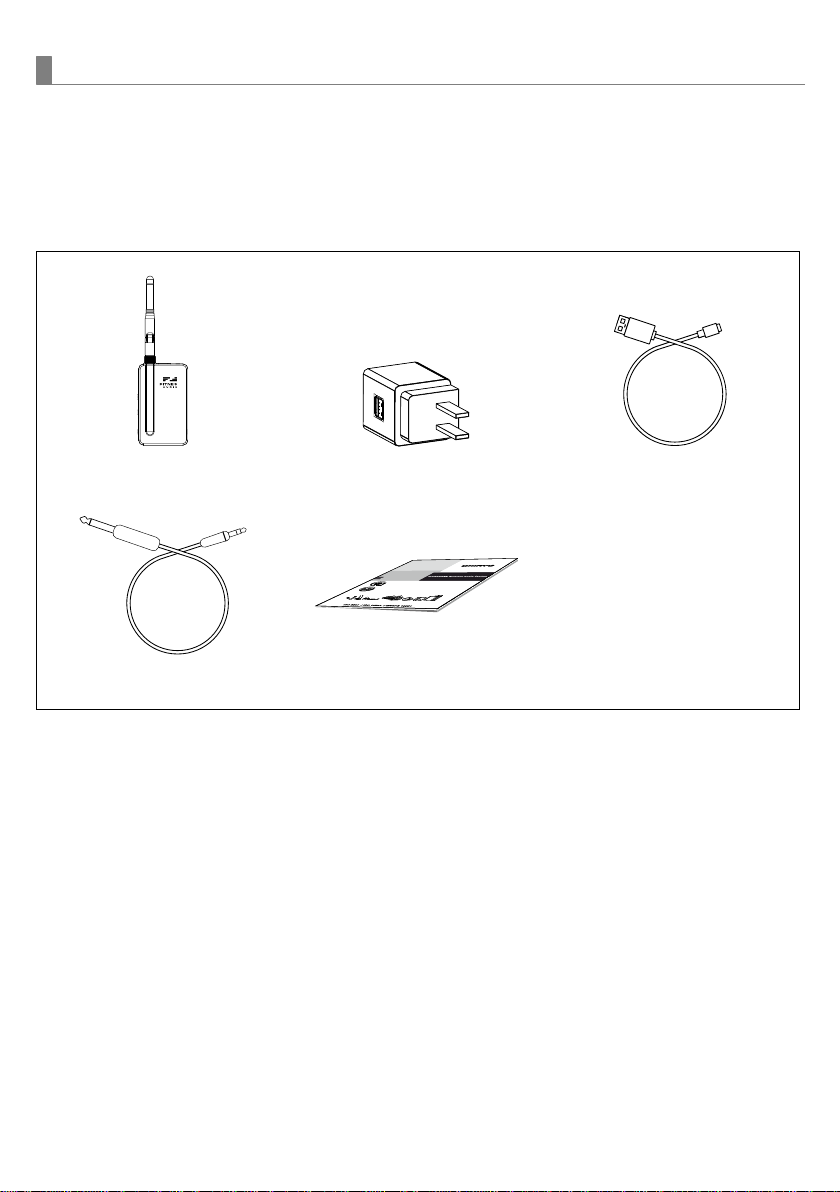

In the box

1 portable receiver

AC/POWER adaptor

(plug varies from country to country)

USB charging cable

Audio output cable

operation manual

Advisory

1.Do not store or operate this product near a heat source or in an environment of extreme

temperatures.

2.Avoid exposure to rain or any other source of moisture.

3.Do not submerge in water. If exterior is exposed to water, wipe dry before use.

4.Do not attempt to open the casing or make any modification to the internal electrical

components. Electric shock or injury may result.

5.Any unauthorized modification to this product will void any applicable warranties.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

⚫Reorient or relocate the receiving antenna.

⚫Increase the separation between the equipment and receiver.

⚫Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

⚫Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this

equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum

distance of 20 centimeters between theradiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in

conjunction with any other antenna or transmitter.

Instructions

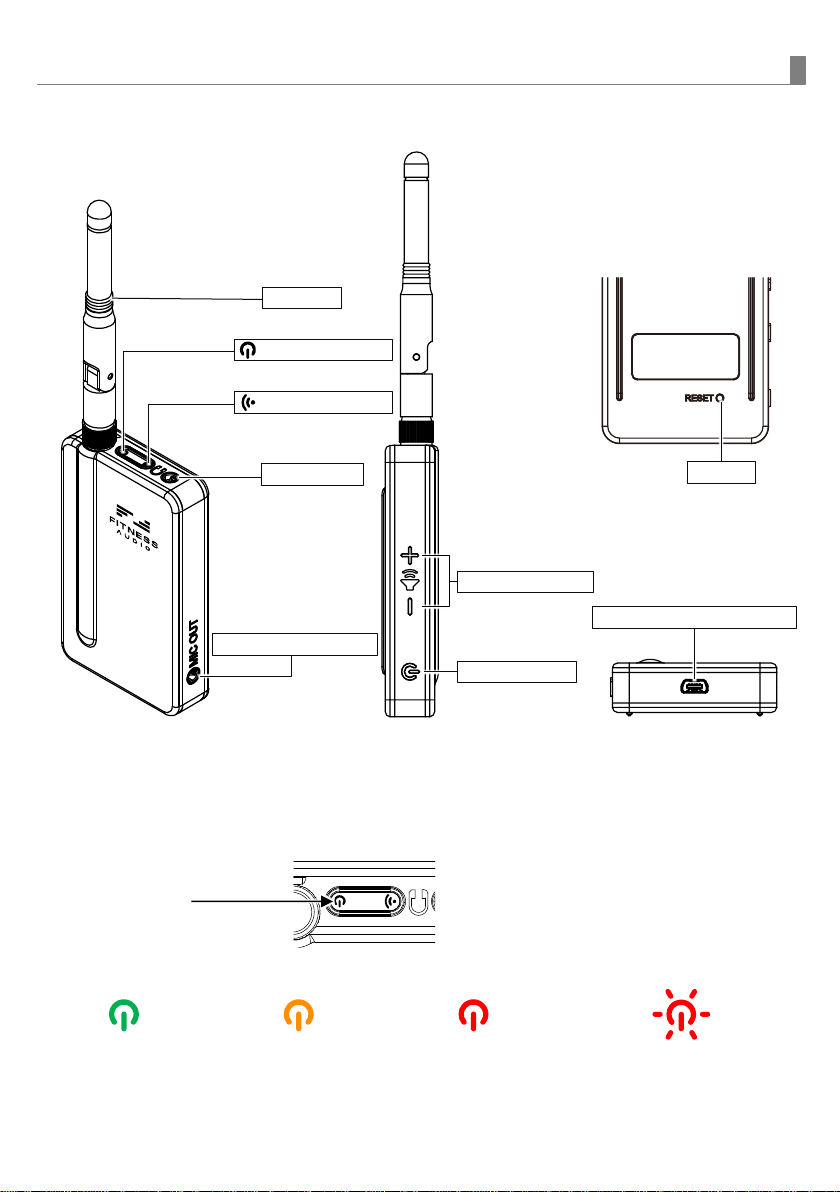

Parts and functions

Power On/Off

Turn on the DX6-PR by pressing and holding the power button for 1 second. It may take a few

seconds for the transmitter and receiver to connect and show solid green signal indicator lights.

Power Indicator

The power indicator will change color or blink to show the battery status.

GREEN: more than

50% battery remains

ORANGE: between

30-50% battery

remains

RED: 10-30% battery

remains.

BLINKING RED: Less than

10% battery remains. Charge

soon or risk losing audio.

Volume Control

Signal Indicator

Power Indicator

Antenna

Power Button

Mini USB Charging Port

Microphone Output

Reset

Line Output

DX6-PR Single-Channel Three Redundancy Digital Receiver

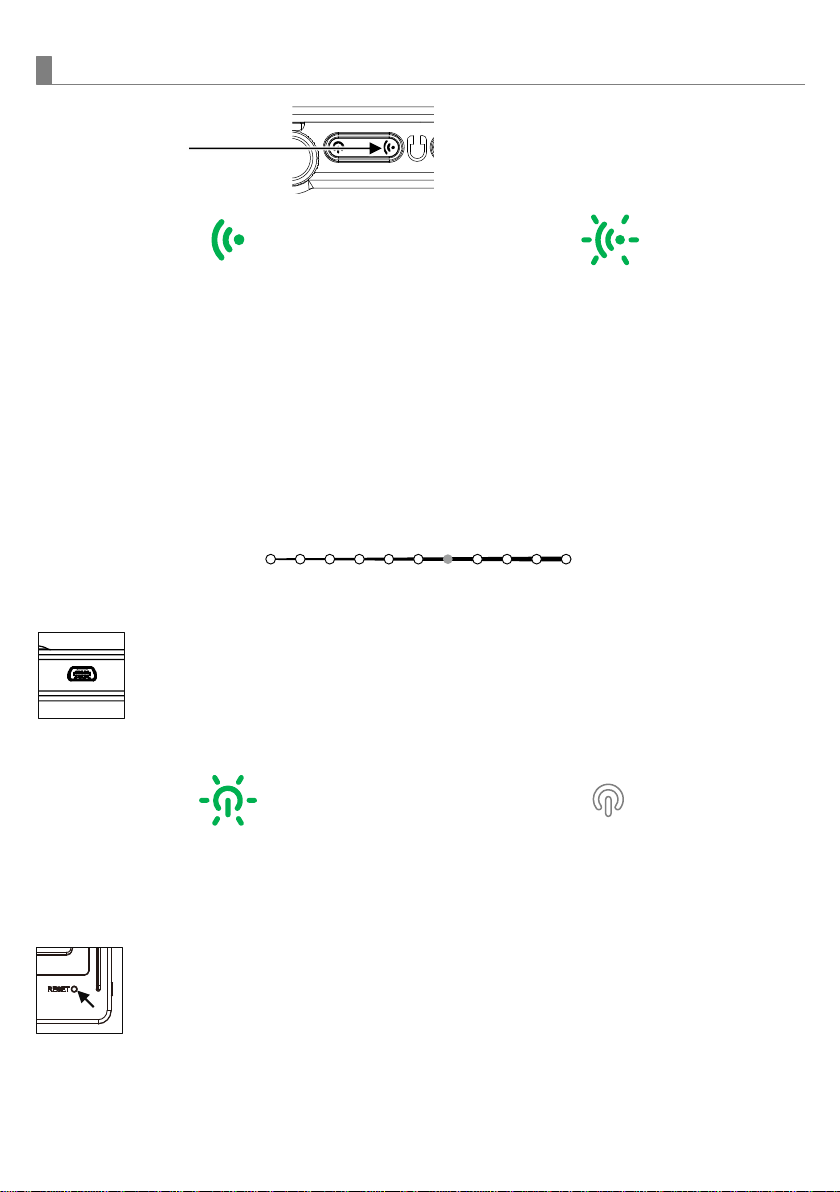

Signal Indicator

SOLID GREEN: The receiver is paired and

communicating with the transmitter.

FLASHING GREEN: the receiver is not

connected to the transmitter, or has gone out of

range. If this light remains blinking, the units will

have to be paired again. See detailed

instructions on pairing on P.4.

Volume Control

Use the the plus (+) / minus (-) button to increase / decrease the microphone output gain level.

A change in line level will also correspond with the change in microphone output gain level.

The volume control has a total of 11 increments. Each time the unit is powered on it will start at

the default volume setting. There are 4 increments of volume increase available above the

default level and 6 increments of volume decrease available below the default level.

Internal battery and charging

The receiver has an internal lithium-ion rechargeable battery. It charges via the mini

USB port located at the bottom. For charging, plug the mini end of the USB cable

into the receiver's charging port and

A. plug the USB-A end into the included AC adapter (to be plugged into a power

socket).

B. plug the USB-A end into a computer USB port or power bank.

While the RX is charging, the power indicator

light will flash GREEN.

This light will turn off to let you know charging is

complete. The full charge time is approximately

2.5 hours. It is also possible to operate the

receiver while being charged.

Reset button

The receiver has a recessed reset button located on the back. The reset button acts

as a backup to the power button’s “off” function. In case the RX’s power button is

unresponsive, the reset button can be used to power it off. To use the reset button,

the unit must be powered on. Press the reset button by using a thin, rigid object like a paper clip

or tip of a pen; push and hold for 1 second and then release. The unit will power off and need to

be turned on again.

1 2 3 4 5 6 7 8 9 10 11

min

▼

max

▼

default

▼

Instructions

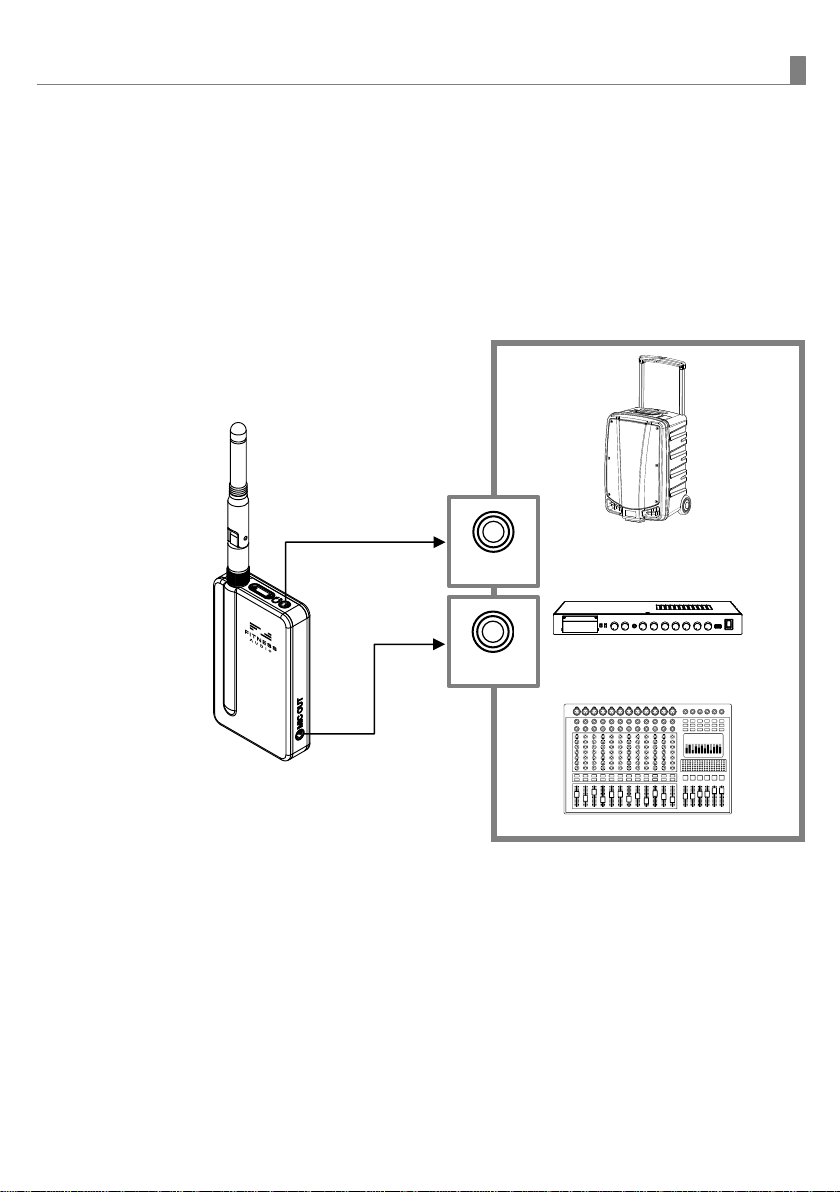

Microphone output

The microphone output on the receiver is a 3.5 mm, unbalanced TRS stereo jack that outputs a

microphone level audio signal. Use the included audio output cable (3.5mm to 6.3mm) to

connect the receiver to the mic input (6.3mm) of the amplifier. Be advised that the DX6-PR

receiver’s MIC OUT is not compatible with line level inputs labeled as LINE or AUX.

Line output

The line output is a 3.5 mm, unbalanced TRS stereo jack that outputs a line level signal that is

generally intended for the amplifier’s line / aux input (6.3mm). Be advised that the DX6-PR

receiver’s LINE OUT is not compatible with mic level inputs, such as inputs labeled as MIC.

Portable PA

Media amplifier

Audio mixer

Pairing the Transmitter and Receiver

If the RX’s Signal Indicator light is blinking persistently, this would indicate that the TX and RX

units have lost sync and need to be paired. This pairing procedure would also be necessary if

you have replaced either of your original TX or RX units and are using it for the first time, or if

you want to use additional RX units with your TX.

LINE

MIC

DX6-PR Single-Channel Three Redundancy Digital Receiver



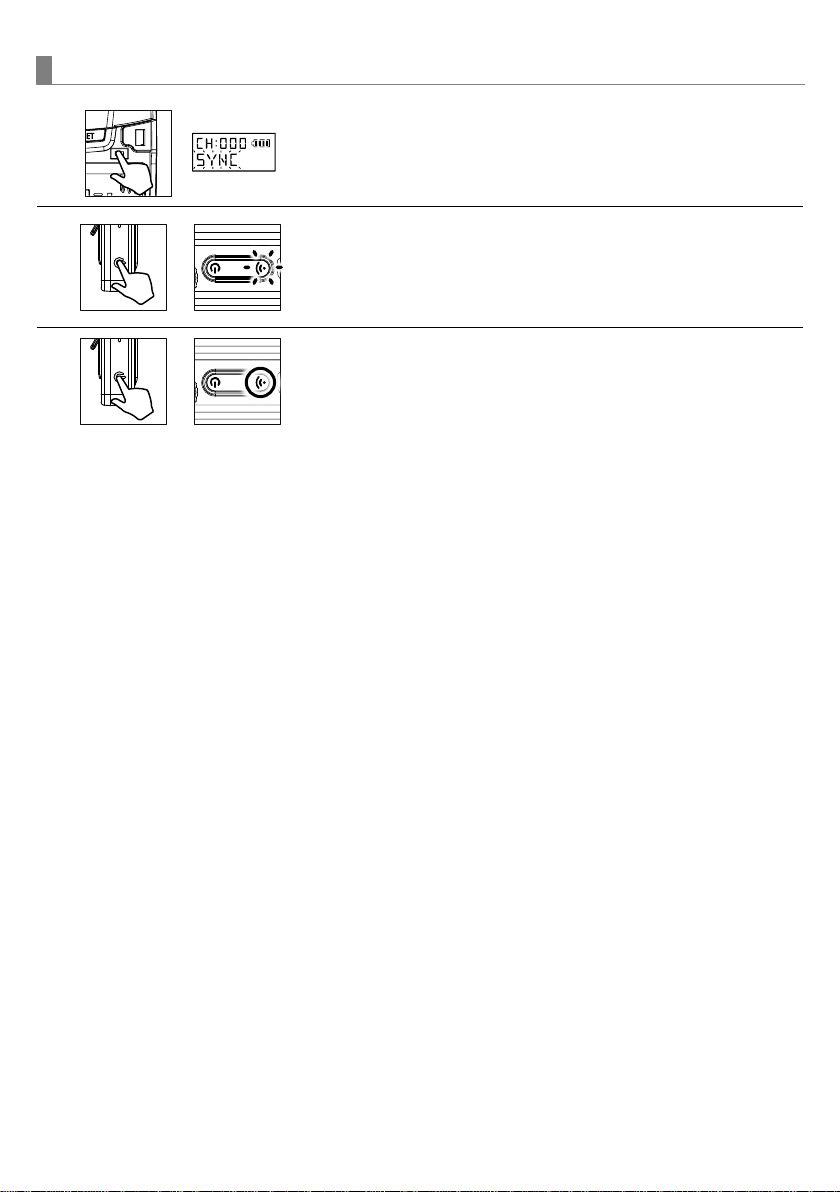

1. Press and hold the DX6-TF transmitter’s “SYNC” button

located under the battery cover until it flashes on the

LCD Screen.



2. Press and hold the power button on the PR until the

signal LED flashes RED indicating pairing mode, then

release at which time the DX6-TF will synchronize and

the “SYNC” will disappear from the screen and display

Channel info instead.



3. Press and release the power button on the PR to

complete pairing lock. The signal LED will stop flashing

red and a second later will be a steady GREEN

indicating that it’s connected.

Once the RX and TX units are paired they will remain so for subsequent uses. Pairing will be

automatic upon both units being powered on.

Tips for best results

1.For each use of the SYSTEM start with the RX and TX units fully charged.

2.Position the TX and RX with as few physical obstacles between them as possible. While the

System can overcome minor obstructions fairly well, a clear line-of-sight between the TX and

RX is always best.

3.Over-crowded Wi-Fi environments can make it challenging for the SYSTEM to find a clear

channel on which to connect. An over-crowded Wi-Fi environment will also limit the number of

Systems that can be used simultaneously in the same area. Consider these limitations when

choosing your location.

4.Close proximity to Wi-Fi or Bluetooth equipment can negatively affect performance. Avoid

operating the SYSTEM near such equipment whenever possible.

5.The System will automatically scan the 2.4 GHz environment each time it is powered on and

choose the best frequencies on which to connect. You can use this to your advantage; if you

know of a trouble spot because of its proximity to other 2.4 GHz equipment, turning on the

system in a trouble spot will allow it to better avoid frequencies that are already in use. If you

encounter an area that causes frequent drop outs while using the system, carry both system

units into the trouble spot, power off the units and then power them on again. When the units

pair up again they will avoid using any interfering frequencies in the area.

Instructions

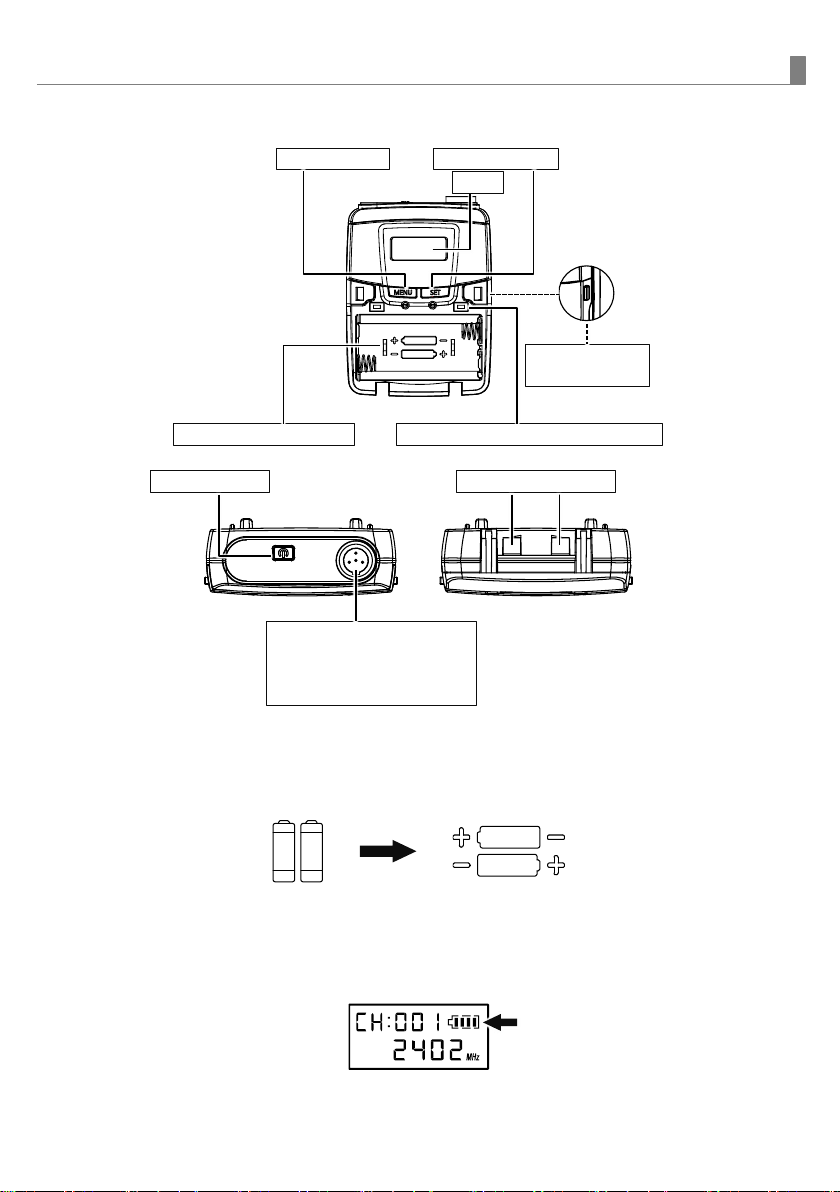

Parts and functions of DX6-TF transmitter

Battery installation & indicator

1 This transmitter requires two AA batteries to operate. To install, remove the battery cover

and insert the batteries into the compartment.

2 Press the power button to turn on the transmitter. Press and hold the button for 2 seconds

to turn off.

3 The battery status can be monitored by the transmitter’s LCD

IMPORTANT: Batteries contain corrosive acid that may leak and damage the transmitter when stored for a

long period. Batteries should be removed from the transmitter before storing without use for more than 4

weeks.

Menu button

Setting button

Battery compartment

Channel synchronization button

Power button

Charging contacts

Audio input connector

for FITNESS AUDIO

headset / lavalier /

earworn microphone.

Cover release

button

LCD

DX6-PR Single-Channel Three Redundancy Digital Receiver

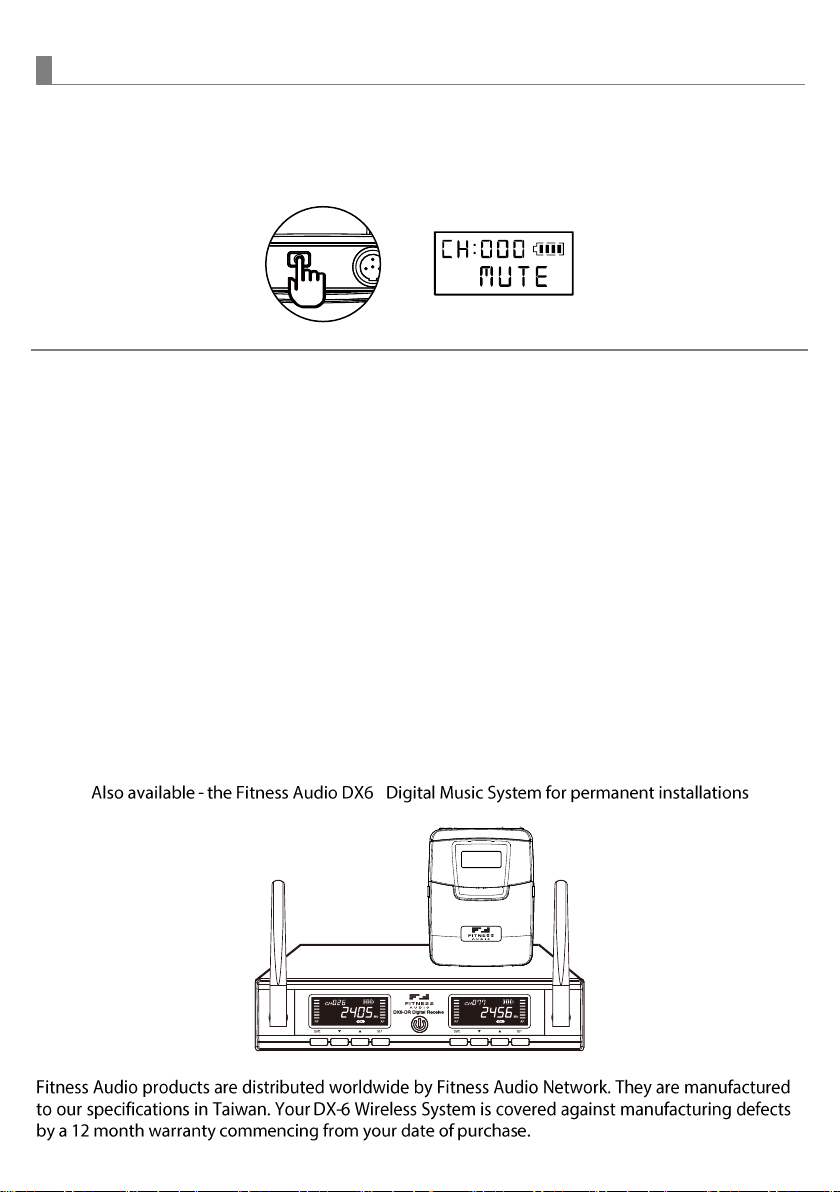

Audio mute setting

1 Press the power button to enable MUTE mode and the signal of microphone will not enter

the transmitter. Press again to disable MUTE.



2 Under MUTE mode, the transmitter automatically turns off after 5 minutes.



Instructions

DX6-PR Single-Channel Three Redundancy Digital Receiver
